Using On-Demand Address Pools

Table Of Contents

Using On-Demand Address Pools

Cisco-Incoming Script

How the Script Works

CiscoWithODAPIncomingScript

Vendor Type CiscoWithODAP

Configuring Cisco Access Registrar to Work with ODAP

Configuration Summary

Detailed Configuration

Setting Up an ODAP UserList

Adding ODAP Users

Setting Up an ODAP-Users Service

Setting Up an ODAP Accounting Service

Adding Session Managers

Setting Up Resource Managers

Configuring Session Managers

Configure Clients

Save Your Configuration

Using On-Demand Address Pools

Cisco Access Registrar 1.7 provides support for On-Demand Address Pools (ODAP). Using ODAP, the CAR server manages pools of addresses. Each pool is divided into subnets of various sizes, and the CAR server assigns the subnets to virtual home gateways (VHG) and Provider Edge (PE) routers. The VHG/PE router has one On-Demand Address Pool configured for each VPN supported by that VHG/PE.

Cisco Access Registrar 1.7 R1 has been enhanced to make ODAP functionality more accessible and to enable ODAP requests and normal user authentication to occur on the same Cisco Access Registrar server. To achieve this functionality, a new Cisco vendor script CiscoWithODAPIncomingScript was written to direct ODAP requests to particular services and session managers. CiscoWithODAPIncomingScript also provides the same functionality as the previous CiscoIncomingScript.

Additionally, Cisco Access Registrar 1.7 R1 has a new vendor type, CiscoWithODAP which references CiscoWithODAPIncomingScript as its IncomingScript and references the existing script, CiscoOutgoingScript, as its Outgoing Script.

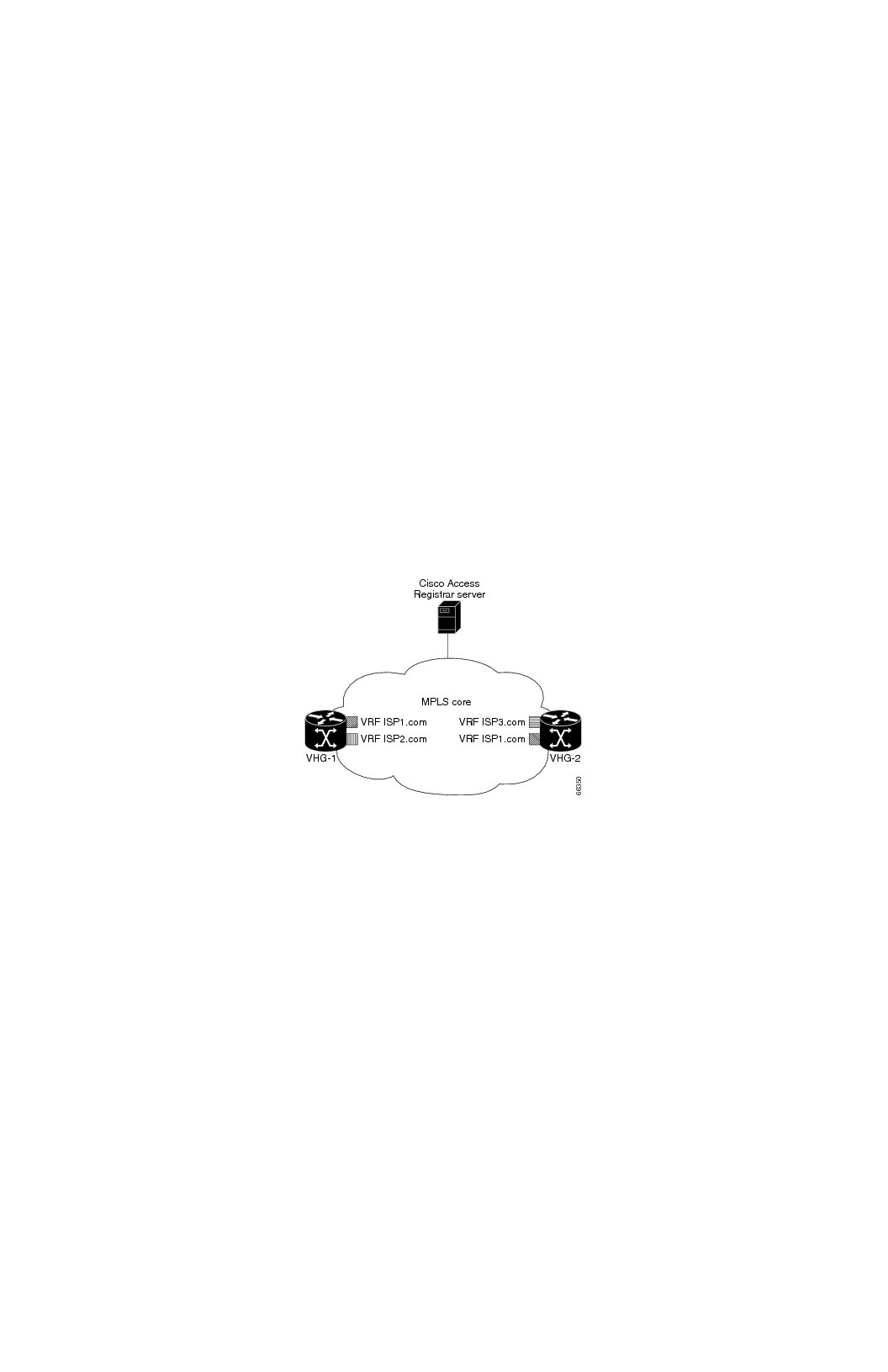

Figure 7-1 shows a simple MPLS VPN network with two VHG/PE routers, VHG-1 and VHG-2. The CAR server allocates IP subnets to the VHGs by way of VRFs which contain the subnets and addresses (address space) available.

Figure 7-1 MPLS Core

In CAR, the VRFs are configured as users in an ODAP-users list under /Radius/UserLists. The VRF name is set in IOS for the ODAP pool. When a VRF requests a pool of addresses, CAR directs the request to a Session-Manager configured with the name odap-<VRF name>. CAR also directs ODAP accounting requests to the service odap-accounting.

In the example network shown in Figure 7-1, the VRFs are configured with the following address spaces:

•VRF-ISP1.com—consists of the address range 10.255.0.0 - 10.255.255.255 divided among the following subnets:

–10.255.0.0/24

–10.255.1.0/24

–...

–10.255.255.0/24

•VRF-ISP2.com—consists of the address ranges 10.0.0.0 - 10.10.255.255 and 10.255.0.0 - 10.255.10.255 divided among the following subnets:

–10.0.0.0/16

–10.1.0.0/16

–...

–10.10.0.0/16

and:

–10.255.0.0/24

–10.255.1.0/24

–...

–10.255.10.0/24

Note VRF-ISPe.com requires two ResourceManagers because it has subnets of two different sizes.

•VRF-ISP3.com—consists of the address range 1172.21.0.0 - 172.21.255.255 divided among the following subnets:

–172.21.0.0/18

–172.21.64.0/18

–172.21.128.0/18

and

–172.21.192.0/24

–172.21.193.0/24

–...

–172.21.255.0/24

Note VRF-ISP3.com requires two ResourceManagers because it also has subnets of two different sizes.

Cisco-Incoming Script

Cisco Access Registrar 1.7R1 includes a new CAR script, CiscoWithODAPIncomingScript, that makes ODAP functionality more accessible. The script eases the configuration required to enable ODAP requests and normal user authentication to occur on the same Cisco Access Registrar server. CiscoWithODAPIncomingScript also provides the functionality of the original CiscoIncomingScript.

If the CAR server receives an ODAP request, the server sets the Session-Key from the AcctSessionID and sets the services and session managers.

If the CAR server receives a non-ODAP request, other scripts, rules or policies that you might already have in place on the CAR server handle these requests.

How the Script Works

The following describes how the script CiscoWithODAPIncomingScript works.

1. The script examines the incoming NAS-Identifier sent by the client (VHG). If the NAS-Identifier does not equal odap-dhcp then this request is not an ODAP request. Since this is not an ODAP request, the script does not do any more ODAP-specific processing and just calls CiscoIncomingScript to allow that script to process the request. If this is an ODAP request, this script removes the NAS-Identifier attribute because it is no longer needed.

2. The script sets the Authentication-Service and the Authorization-Service to odap-users, and it sets the Accounting-Service to odap-accounting.

3. The CAR server sends the request to the appropriate Session Manager based on the username. Session Managers with odap-<username> must be created and configured in CAR.

4. The script then uses Session IDs to identify each ODAP request. The script uses the Acct-Session-Id attribute as the Session-Key.

CiscoWithODAPIncomingScript

The following is a Tcl script example of the script CiscoWithODAPIncomingScript.

Note CiscoWithODAPIncomingScript is written in C language. This example script is more easily understood in Tcl.
proc CiscoWithODAPIncomingScript {request response environ} {
  set RequestType [ $environ get Request-Type ]
  if { [ string compare $RequestType "Access-Request" ] == 0 ||
       [ string compare $RequestType "Accounting-Request" ] == 0 } {
       set NasID [ $request get NAS-Identifier ]
       if { [ string compare $NasID "odap-dhcp" ] == 0 } {
              # Remove the NAS-Identifier - it has done it's job
              $request remove NAS-Identifier
              set UserName [ $environ get User-Name ]
              if { [ string length $UserName ] == 0 } { set UserName [ $request get User-Name ] }
              # ODAP SUBNET ASSIGNMENT
              $environ put Authentication-Service "odap-users"
              $environ put Authorization-Service "odap-users"
              $environ put Accounting-Service "odap-accounting"
              $environ put Session-Manager "odap-$UserName"
              set AcctSessionId [ $request get Acct-Session-Id ]
              if { [ string length $AcctSessionId ] != 0 } { $environ put Session-Key $AcctSessionId
              } else {
              $environ log LOG_ERROR "Missing Acct-Session-Id attribute in request-unable to set Session-Key"
             }
     }
  }
CiscoIncomingScript $request $response $environ
}
Note The final line in the example above is not how the script really works because a Tcl script can't call a C script. This is one reason why CiscoWithODAPIncomingScript was written in C.

Vendor Type CiscoWithODAP

Cisco Access Registrar 1.7R1 includes a new vendor type, CiscoWithODAP. You must configure any Clients that might forward ODAP requests to the CAR server as being of Vendor CiscoWithODAP.

This vendor type references the new script, CiscoWithODAPIncomingScript, as its IncomingScript and references the existing script, CiscoOutgoingScript, as its OutgoingScript.

After setting Vendor to CiscoWithODAP, ODAP requests are directed to the AA service, set to odap-users, the accounting service is set to odap-accounting, and the Session Manager is set to odap-username, where username is filled from the request. The username received in the request is a VRF name, the request is directed to the appropriate Session Manager.

Configuring Cisco Access Registrar to Work with ODAP

This section provides information about how to configure CAR to work with ODAP.

Configuration Summary

This section provides the steps required to configure CAR to work with ODAP. For detailed information about configuring CAR to work with ODAP, refer to the following section, Detailed Configuration.

1. Create and configure an ODAP-users UserList

All ODAP users are configured under this UserList.

2. Add all ODAP users to the ODAP-users UserList

Usernames must be of the form <vrf name> with the AllowNullPassword property set to TRUE.

3. Create and configure a service for ODAP-users

4. Create and configure an ODAP accounting service

Set the accounting service Type to file and FilenamePrefix odap-accounting.

5. Create a Session Manager for each of the VRFs

There must be a separate Session Manager for each VRF pool.

6. Create and configure Resource Managers to be referenced by the Session Managers

Subnet pools of different sizes (different subnet masks) require separate Resource Managers.

7. Configure the Session Managers with the Resource Managers

8. Configure any Clients that might send ODAP requests to Vendor type CiscoWithODAP

9. Save your configuration

Detailed Configuration

The following steps provide a detailed description of configuring Cisco Access Registrar to work with ODAP.

Setting Up an ODAP UserList

Step 1 Create a UserList for ODAP users.

--> cd /radius/userlists
[ //localhost/Radius/UserLists ]
Entries 1 to 1 from 1 total entries
Current filter: <all>

Default/
--> add odap-users

Added odap-users
Adding ODAP Users

Step 2 Add the ODAP users to the ODAP UserList and set the AllowNullPassword property to TRUE.

Each user is a VRF name set for each ODAP client.
[ //localhost/Radius/UserLists/odap-users ]

Entries 0 to 0 from 0 total entries
Current filter: <all>
Name = odap-users
Description =
--> add vrf-ISP1.com
Added vrf-ISP1.com
--> add vrf-ISP2.com
Added vrf-ISP2.com
--> add vrf-ISP3.com
Added vrf-ISP3.com
--> ls
[ //localhost/Radius/UserLists/odap-users ]
Entries 1 to 3 from 3 total entries
Current filter: <all>
Name = odap-users
Description =
vrf-ISP1.com/
vrf-ISP2.com/
vrf-ISP3.com/
Step 3 Set the AllowNullPassword property to TRUE for each ODAP user.

--> cd vrf-ISP2.com
[ //localhost/Radius/UserLists/odap-users/vrf-ISP2.com ]
Name = vrf-ISP2.com
Description =
Password =
Enabled = TRUE
Group~ =
BaseProfile~ =
AuthenticationScript~ =
AuthorizationScript~ =
UserDefined1 =
AllowNullPassword = FALSE
--> set AllowNullPassword TRUE
Setting Up an ODAP-Users Service

Step 4 Add and configure a service for ODAP Users.

--> cd /radius/services
[ //localhost/Radius/Services ]
    Entries 1 to 2 from 2 total entries
    Current filter: <all>
    local-file/
    local-users/
--> add odap-users
Added odap-users
--> cd odap-users
[ //localhost/Radius/Services/odap-users ]
Name = odap-users
Description =
Type =
IncomingScript~ =
OutgoingScript~ =
--> set type local
Set Type local
--> set userlist odap-users
Set UserList odap-users
--> ls
[ //localhost/Radius/Services/odap-users ]
Name = odap-users
Description =
Type = local
IncomingScript~ =
OutgoingScript~ =
OutagePolicy~ = RejectAll
OutageScript~ =
UserList = odap-users
Setting Up an ODAP Accounting Service

Step 5 Add and configure an ODAP accounting service.

--> cd /radius/services
[ //localhost/Radius/Services ]
Entries 1 to 3 from 3 total entries
Current filter: <all>
local-file/
local-users/
odap-users/
--> add odap-accounting
Added odap-accounting
--> cd odap-accounting
[ //localhost/Radius/Services/odap-accounting ]
Name = odap-accounting
Description =
Type =
IncomingScript~ =
OutgoingScript~ =
--> set type file
Set Type file
--> ls
[ //localhost/Radius/Services/odap-accounting ]
Name = odap-accounting
Description =
Type = file
IncomingScript~ =
OutgoingScript~ =
OutagePolicy~ = RejectAll
OutageScript~ =
FilenamePrefix = accounting
MaxFileSize = "10 Megabytes"
MaxFileAge = "1 Day"
RolloverSchedule =
--> set FilenamePrefix odap-accounting
Set Filenameprefix odap-accounting
Adding Session Managers

Step 6 Create one Session Manager for each of the VRF pools.

Create one Session Manager for each of the users you specify in the odap-users UserList. The Session Managers must be called odap-VRF_name to meet the requirements of CiscoWithODAPIncomingScript.

--> cd /radius/sessionmanagers
[ //localhost/Radius/SessionManagers ]
Entries 1 to 1 from 1 total entries
Current filter: <all>
session-mgr-1/
--> add odap-vrf-ISP1.com
Added odap-vrf-ISP1.com
--> add odap-vrf-ISP2.com
Added odap-vrf-ISP2.com
--> add odap-vrf-ISP3.com
Added odap-vrf-ISP3.com
Setting Up Resource Managers

Step 7 Set up subnet-dynamic Resource Managers that are to be referenced by the Session Managers.

Session Managers can manage multiple Resource Managers. One or more subnet pools can be set up of varying sizes to allocate the ranges of subnet addresses you have available. Subnets of different sizes require different Resource Managers.

--> cd /radius/resourcemanagers
[ //localhost/Radius/ResourceManagers ]
    Entries 1 to 5 from 5 total entries
    Current filter: <all>
    IPA-Pool/
    IPA-Pool-2/
    IPX-Pool/
    Per-Group/
    Per-User/
--> add odap-vrf-ISP1.com

Note The names of Resource Managers do not have to be related to VRFs.
Added odap-vrf-ISP1.com
--> cd odap-vrf-ISP1.com
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP1.com ]
    Name = odap-vrf-ISP1.com
    Description =
    Type =
--> set type subnet-dynamic
Set Type subnet-dynamic
--> ls
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP1.com ]
    Name = odap-vrf-ISP1.com
    Description =
    Type = subnet-dynamic
    NetMask =
    SubnetAddresses/
-> set netmask 255.255.255.0
Set NetMask 255.255.255.0
-> cd subnetaddresses
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP1.com/SubnetAddresses ]
    Entries 0 to 0 from 0 total entries
    Current filter: <all>
--> add 10.255.0.0-10.255.255.255
Added 10.255.0.0-10.255.255.255
Note Two Resource Managers are required for VRF-ISP3.com and VRF-ISP2.com because their address spaces are made up of subnets of the different sizes.

--> cd /radius/resourcemanagers
[ //localhost/Radius/ResourceManagers ]
Entries 1 to 5 from 5 total entries
Current filter: <all>
IPA-Pool/
IPA-Pool-2/
IPX-Pool/
odap-vrf-ISP1.com/
Per-Group/
Per-User/
--> add odap-vrf-ISP3-a.com
Added odap-vrf-ISP3-a.com
--> cd odap-vrf-ISP3-a.com
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP3-a.com  ]
    Name = odap-vrf-ISP3-a.com
    Description =
    Type =
--> set type subnet-dynamic
Set Type subnet-dynamic
--> ls
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP3-a.com  ]
    Name = odap-vrf-ISP3-a.com
    Description =
    Type = subnet-dynamic
    NetMask =
    SubnetAddresses/
-> set netmask 255.255.192.0
Set NetMask 255.255.192.0
-> cd subnetaddresses
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP3-a.com /SubnetAddresses ]
    Entries 0 to 0 from 0 total entries
    Current filter: <all>
--> add 171.21.0.0-172.21.191.255
Added 172.21.0.0-172.21.191.255
-> cd /radius/resourcemanagers
[ //localhost/Radius/ResourceManagers ]
Entries 1 to 10 from 10 total entries
Current filter: <all>
IPA-Pool/
IPA-Pool-2/
IPX-Pool/
odap-vrf-ISP1.com/
odap-vrf-ISP3-a.com /
Per-Group/
Per-User/
--> add odap-vrf-ISP3-b.com
Added odap-vrf-ISP3-b.com
--> cd odap-vrf-ISP3-b.com
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP3-b.com  ]
    Name = odap-vrf-ISP3-b.com
    Description =
    Type =
--> set type subnet-dynamic
Set Type subnet-dynamic
--> ls
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP3-b.com  ]
    Name = odap-vrf-ISP3-b.com
    Description =
    Type = subnet-dynamic
    NetMask =
    SubnetAddresses/
-> set netmask 255.255.255.0
Set NetMask 255.255.255.0
-> cd subnetaddresses
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP3-b.com /SubnetAddresses ]
    Entries 0 to 0 from 0 total entries
    Current filter: <all>
--> add 172.21.191.0-172.21.255.255
Added 172.21.191.0-172.21.255.255
-> cd /radius/resourcemanagers
[ //localhost/Radius/ResourceManagers ]
Entries 1 to 10 from 10 total entries
Current filter: <all>
IPA-Pool/
IPA-Pool-2/
IPX-Pool/
odap-vrf-ISP1.com/
odap-vrf-ISP3-a.com /
odap-vrf-ISP3-b.com /
Per-Group/
Per-User/
--> add odap-vrf-ISP2-a.com
Added odap-vrf-ISP2-a.com
--> cd odap-vrf-ISP2-a.com
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP2-a.com  ]
    Name = odap-vrf-ISP2.com
    Description =
    Type =
--> set type subnet-dynamic
Set Type subnet-dynamic
--> ls
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP2-a.com  ]
    Name = odap-vrf-ISP2-a.com
    Description =
    Type = subnet-dynamic
    NetMask =
    SubnetAddresses/
-> set netmask 255.255.0.0
Set NetMask 255.255.0.0
-> cd subnetaddresses
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP2-a.com /SubnetAddresses ]
    Entries 0 to 0 from 0 total entries
    Current filter: <all>
--> add 10.0.0.0-10.10.255.255
Added 10.0.0.0-10.255.255.255
-> cd /radius/resourcemanagers
[ //localhost/Radius/ResourceManagers ]
Entries 1 to 10 from 10 total entries
Current filter: <all>
IPA-Pool/
IPA-Pool-2/
IPX-Pool/
odap-vrf-ISP1.com/
odap-vrf-ISP3-a.com /
odap-vrf-ISP3-b.com /
odap-vrf-ISP2-a.com /
Per-Group/
Per-User/
--> add odap-vrf-ISP2-b.com
Added odap-vrf-ISP2-b.com
--> cd odap-vrf-ISP2-b.com
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP2-b.com  ]
    Name = odap-vrf-ISP2-b.com
    Description =
    Type =
--> set type subnet-dynamic
Set Type subnet-dynamic
--> ls
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP2-b.com  ]
    Name = odap-vrf-ISP2-b.com
    Description =
    Type = subnet-dynamic
    NetMask =
    SubnetAddresses/
-> set netmask 255.255.255.0
Set NetMask 255.255.255.0
-> cd subnetaddresses
[ //localhost/Radius/ResourceManagers/odap-vrf-ISP2-b.com /SubnetAddresses ]
    Entries 0 to 0 from 0 total entries
    Current filter: <all>
--> add 10.255.0.0-10.255.10.255
Added 10.255.0.0-10.255.10.255
Configuring Session Managers

Note It is not necessary to configure Session Managers in two instances. All SessionManager configuration can be done at one time before configuring the Resource Managers.

Step 8 Configure the Session Managers to be referenced by the Resource Managers.

--> cd/radius/sessionmanagers
[ //localhost/Radius/SessionManagers ]
Entries 1 to 4 from 4 total entries
Current filter: <all>
odap-vrf-ISP1.com/
odap-vrf-ISP2.com/
odap-vrf-ISP3.com/
session-mgr-1/
--> cd odap-vrf-ISP2.com
[ //localhost/Radius/SessionManagers/odap-vrf-ISP2.com ]
Name = odap-vrf-ISP2.com
Description =
AllowAccountingStartToCreateSession = FALSE
ResourceManagers/
--> cd resourcemanagers
--> set 1 odap-vrf-ISP2-a.com
Set 1 odap-vrf-ISP2-a.com
--> set 2 odap-vrf-ISP2-b.com
Set 2 odap-vrf-ISP2-b.com
--> cd/radius/sessionmanagers
[ //localhost/Radius/SessionManagers ]
Entries 1 to 4 from 4 total entries
Current filter: <all>
odap-vrf-ISP1.com/
odap-vrf-ISP2.com/
odap-vrf-ISP3.com /
session-mgr-1/
--> cd odap-vrf-ISP3.com
[ //localhost/Radius/SessionManagers/odap-vrf-ISP3.com  ]
Name = odap-vrf-ISP3.com
Description =
AllowAccountingStartToCreateSession = FALSE
ResourceManagers/
--> cd resourcemanagers
--> set 1 odap-vrf-ISP3-a.com
Set 1 odap-vrf-ISP3-a.com
--> set 2 odap-vrf-ISP3-b.com
Set 2 odap-vrf-ISP3-b.com
--> cd/radius/sessionmanagers
[ //localhost/Radius/SessionManagers ]
Entries 1 to 4 from 4 total entries
Current filter: <all>
odap-vrf-ISP1.com/
odap-vrf-ISP2.com/
odap-vrf-ISP3.com/
session-mgr-1/
--> cd odap-vrf-ISP1.com
[ //localhost/Radius/SessionManagers/odap-vrf-ISP1.com ]
Name = odap-vrf-ISP1.com
Description =
AllowAccountingStartToCreateSession = FALSE
ResourceManagers/
--> cd resourcemanagers
--> set 1 odap-vrf-ISP1.com
Set 1 odap-vrf-ISP1.com
Configure Clients

Step 9 For any client that might forward ODAP requests to the CAR server, set the Vendor property to CiscoWithODAP.

--> cd /radius/clients
[ //localhost/Radius/Clients ]
Entries 1 to 2 from 2 total entries
Current filter: <all>
localhost/
vhg-1/
vhg-2/
--> cd vhg-1
[ //localhost/Radius/Clients/vhg-1 ]
    Name = vhg-1
    Description =
    IPAddress = 209.165.200.225
    SharedSecret = secret
    Type = NAS
    Vendor =
    IncomingScript~ =
    OutgoingScript~ =
    UseDNIS = FALSE
    DeviceName = a_name
    DevicePassword = password
--> set vendor CiscoWithODAP
Set Vendor CiscoWithODAP
Save Your Configuration

Step 10 After completing the configuration, save your changes.

--> save
Validating //localhost...
Saving //localhost...

Was this Document Helpful?

Feedback

Contact Cisco

Open a Support Case
(Requires a Cisco Service Contract)
