Installing the Chassis Bezel
on Cisco 2600 Series Routers

---

Product Number: ACS-2600-FACE=

This document describes the procedure for installing a replacement chassis bezel (front panel) on Cisco 2600 series routers with a chassis height of 1 rack unit (RU). This procedure is intended for replacing a bezel that is missing or damaged.

Sections in this document include:

•Required Tools and Equipment

•Removing an Existing Bezel

•Installing a Bezel

•Obtaining Documentation

•Obtaining Technical Assistance

•Obtaining Additional Publications and Information

---

Note Use this document with the appropriate hardware installation guide and regulatory compliance and safety information document.

---

Required Tools and Equipment

No tools are normally required for removing and installing the bezel; however, a thin-bladed screwdriver can aid removal of the old bezel if removal is difficult.

Removing an Existing Bezel

This section describes the procedure for removing the bezel from a Cisco 2600 series router. Figure 1 shows the front of a Cisco 2600 series router with the bezel in place.

---

Note Removing the bezel using this procedure damages the plastic bezel retainers and renders the old bezel unusable. Cisco recommends that you do not remove an existing bezel unless you have a replacement bezel ready to install.

---

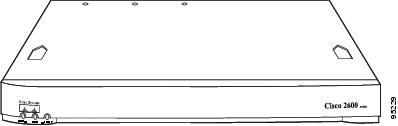

Figure 1 Front View of Cisco 2600 Series Router

To remove the bezel from a Cisco 2600 series router, perform the following procedure:

---

Step 1 Pull the bezel straight away from the router chassis at either side of the chassis, until the plastic retainer is free of the chassis. To help loosen the bezel, rock the bezel up and down while you pull.

---

Note If the bezel does not separate by pulling, you can insert a thin-bladed screwdriver between the bezel and the chassis near either end of the bezel, and pry gently.

---

Step 2 Pull the opposite end of the bezel free of the chassis.

---

Installing a Bezel

To install a bezel on a Cisco 2600 series router, perform the following procedure:

---

Step 1 Align the three plastic retainers with the three holes in the front of the chassis, with the LED openings at the left side. See Figure 2.

---

Note The retainers will not line up with the holes if the bezel is not oriented correctly.

---

Step 2 Insert the three plastic retainers into the holes and press the bezel into place against the chassis.

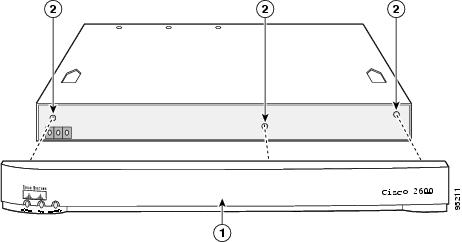

Figure 2 Bezel in Position for Installation

1

Bezel

2

Holes for plastic retainers

---
