Release Notes for Cisco Catalyst SD-WAN Control Components Release 20.7.x
Note |
To achieve simplification and consistency, the Cisco SD-WAN solution has been rebranded as Cisco Catalyst SD-WAN. In addition, from Cisco IOS XE SD-WAN Release 17.12.1a and Cisco Catalyst SD-WAN Release 20.12.1, the following component changes are applicable: Cisco vManage to Cisco Catalyst SD-WAN Manager, Cisco vAnalytics to Cisco Catalyst SD-WAN Analytics, Cisco vBond to Cisco Catalyst SD-WAN Validator, and Cisco vSmart to Cisco Catalyst SD-WAN Controller. See the latest Release Notes for a comprehensive list of all the component brand name changes. While we transition to the new names, some inconsistencies might be present in the documentation set because of a phased approach to the user interface updates of the software product. |
These release notes accompany the Cisco SD-WAN Control Components, Release 20.7.x, which provides Cisco Catalyst SD-WAN capabilities. They include release-specific information for Cisco Catalyst SD-WAN Controllers, Cisco Catalyst SD-WAN Validators, Cisco SD-WAN Manager as applicable to Cisco SD-WAN Manager.
Related Releases
For release information about Cisco IOS XE Catalyst SD-WAN devices, refer to Release Notes for Cisco IOS XE Catalyst SD-WAN Devices, Cisco IOS XE Catalyst SD-WAN Release 17.7.x.
For release information about Cisco vEdge Devices, refer to Release Notes for Cisco vEdge Devices, Cisco SD-WAN Release 20.7.x.
What's New for Cisco Catalyst SD-WAN Control Components Release 20.7.x
Cisco is constantly enhancing the SD-WAN solution with every release and we try and keep the content in line with the latest enhancements. The following table lists new and modified features we documented in the Configuration, Command Reference, and Hardware Installation guides.
What's New for Cisco IOS XE Catalyst SD-WAN Release 17.7.x
This section applies to Cisco IOS XE Catalyst SD-WAN devices.
| Feature | Description |
|---|---|
|
Cisco SD-WAN Getting Started |
|
|
Support for the Cisco Catalyst 8000V Edge Software Platform on OpenStack Train |
This feature introduces support for managing a Cisco Catalyst 8000V Edge software platform hosted in the OpenStack cloud computing platform "Train" release. |
|
This feature enables a device to automatically learn about the available IP addresses and default gateway information when a DHCP server is not available. The device assigns an IP address to its WAN interface, and then contacts the PnP server and begins the PnP onboarding process. |
|
|
This feature revokes enterprise certificates from devices based on a certificate revocation list that Cisco SD-WAN Manager obtains from a root certificate authority. |
|
|
This feature replaces the Symantec Certificate Authority (CA) server with Digicert Certificate Authority server for signing the controller device certificates on Cisco SD-WAN controllers including Cisco vSmart Controller, Cisco vBond Orchestrator, and Cisco vManage. You can protect, verify, and authenticate the identities of organizations and domains using these certificates. |
|
|
Cisco SD-WAN Systems and Interfaces |
|
|
This feature lets you configure Cisco Unified Border Element functionality by using Cisco IOS XE SD-WAN device CLI templates or CLI add-on feature templates. |
|
|
Cisco ThousandEyes Support for Cisco 1000 Series Integrated Services Routers |
You can deploy Cisco ThousandEyes Enterprise agent natively as a container application on Cisco ISR 1100X-6G devices. |
|
Support for HSRP and HSRP Authentication on Cisco IOS XE SD-WAN Devices |
This feature allows you to configure HSRPv2 and HSRP authentication on Cisco IOS XE SD-WAN platforms via CLI template. HSRP is a long-standing Cisco proprietary First Hop Redundancy Protocol (FHRP) to support version 2 of the protocol and authentication. |
|
Added Support for Configuring Geofencing Using a Cisco System Feature Template |
This feature adds support for configuring the geographical boundary of a device using a Cisco System feature template. With this feature, you can also configure automatic geolocation detection, where the device determines its own location, while configuring geofencing. A new parameter auto-detect-geofencing-location is added to the geolocation (system) command. |
|
This feature enables VRRP to set the edge as active or standby based on the WAN Interface or SIG tracker events and increase the TLOC preference value on a new VRRP active to ensure traffic symmetry, for Cisco IOS XE SD-WAN devices. |
|
|
TCP/UDP Endpoint tracker and Dual Endpoint Static route tracker for Cisco IOS XE SD-WAN devices |
This feature enables you to configure the TCP/UDP individual Endpoint static route tracker and to configure tracker group with IPv4, TCP/UDP Dual Endpoint static route trackers for service VPNs to enhance the reliability of the probes. |
|
This feature allows you to configure DHCP for IPv6 (DHCPv6) on Cisco IOS XE SD-WAN devices to assign IPv6 addresses to hosts on an IPv6-enabled network. Assigning of IPv6 addresses is accomplished using SLAAC, DHCPv6 with SLAAC, DHCPv6 with SLAAC, DHCPv6 Prefix Delegation, or DHCPv6 Relay. A Cisco IOS XE SD-WAN device can be configured for DHCPv6 as a DHCP server, DHCP client, or as a DHCP relay agent. |
|
|
Hierarchical SD-WAN provides the ability to divide the architecture of the Cisco SD-WAN overlay network into multiple regional networks that operate distinctly from one another, and a central core-region network for managing inter-regional traffic. The hierarchical architecture enables you to use different traffic transport service providers for each region, and for the central core-region network, to optimize cost and traffic performance. It also simplifies traffic configuration for some scenarios, and provides a robust, adaptive topology that can help prevent routing failures in specific network scenarios. |
|
|
Co-Management: Granular Role-Based Access Control for Feature Templates |
This feature introduces greater granularity in assigning role-based access control (RBAC) permissions for template use. This enables you to give a tenant self-management of network configuration tasks. Network administrators and managed service providers can use this feature to assign permissions to their end customers. |
|
Cisco SD-WAN Routing |
|
|
This feature enables you to configure RIPv2 on Cisco IOS XE SD-WAN devices. Routers redistribute RIPv2 routes to OMP for advertisement in the SD-WAN overlay and to OSPFv3 for service-side routing. |
|
|
Cisco SD-WAN Policies |
|
|
This feature is an enhancement to the centralized and localized policies feature. This feature allows you to configure default application-aware routing (AAR) and quality of service (QoS) policies on Cisco IOS XE devices. |
|
|
This feature supports Netflow on VPN0 interfaces. Flexible Netflow acts as a security tool, enables exporting data to Cisco vManage and detects attacks on devices and monitors traffic. |
|
|
Cisco SD-WAN Security |
|
|
This feature enables you to configure an interface-based firewall policy to control traffic between two interfaces or an interface-VPN-based firewall policy to control traffic between an interface and a VPN group. This feature also provides support for default zone where a firewall policy can be configured on a zone pair that consist of a zone and a default zone. |
|
|
Resource Limitations and Device-global Configuration Options |
This feature enables you to define resource limitation options such as idle timeout and session limits, and device-global options in the policy summary page to fine-tune a firewall policy behaviour after a firewall policy is implemented in Cisco SD-WAN. |
|
This feature supports Unified Logging which is used to capture information about connection events across different security features at different stages during policy enablement and execution. With Unified Logging, you can have visibility to the log data for Zone-based Firewall and for Unified Threat Defense features such as IPS, URL-F and AMP to understand what traffic, threats, sites or malware were blocked, and the rules that blocked the traffic or sessions with the associated port, protocol or applications. Additionally, this feature also provides support for On-Demand Troubleshooting. On-Demand troubleshooting allows a user to view the connection events of different flows of traffic from a device within a configured period of time. |
|
|
This feature allows you to set up GRE over IPsec tunnels with IKEv2 RSA-SIG authentication on Cisco IOS XE SD-WAN devices in the controller mode to connect to Cisco IOS XE devices in the autonomous mode. This set up enables Cisco IOS XE SD-WAN devices to use OSPFv3 as the routing protocol and multicast traffic across the WAN network. You can configure GRE over IPsec tunnels using the CLI device templates in Cisco vManage. |
|
|
High Availability |
|
|
This feature lets you change the disaster recovery user password for disaster recovery components from the Cisco vManage Disaster Recovery window. |
|
|
Cisco SD-WAN Cloud OnRamp |
|
|
Added Webex to the list of cloud applications for which Cloud onRamp for SaaS can determine the best network path to the cloud server. Cisco vManage periodically downloads a list of Webex servers organized by geographic region. Cloud onRamp for SaaS uses this server list to help calculate the best network path for Webex traffic in different regions. |
|
|
Support for Using Microsoft Telemetry Metrics for Microsoft 365 SharePoint and Teams Traffic. |
This feature adds support for using Microsoft telemetry metrics for Microsoft 365 SharePoint and Teams (Skype). Cloud onRamp for SaaS uses the metrics data when determining the best path for Office 365 traffic. |
|
Azure Scaling, Audit, and Security of Network Virtual Appliances |
This feature allows you to edit the SKU Scale value, carry out the audit to identify discrepancies, and have better security for your Network Virtual Appliances (NVAs). |
|
This feature allows you to upload a virtual machine image to Cisco vManage in qcow2 format. Earlier, you could upload only a prepackaged image file in tar.gz format. |
|
|
This feature lets you capture packets at either the physical interface level (PNIC) or the virtual interface level (VNIC) on a CSP device of a colocation cluster. You can capture packets on one or more PNICs or VNICs on the same device or different devices with different browsers at the same time. This feature lets you gather information about the packet format and therefore helps in application analysis, security, and troubleshooting. |
|
|
Cisco SD-WAN Monitor and Maintain |
|
|
This feature enhances the output of the admin-tech file with additional diagnostics information collected from the application server, the configuration database, the statistics database, and other internal services. |
|
|
This feature enables you to upload an admin-tech file directly from Cisco vManage when opening a TAC case. When you create a TAC case, you can upload the generated admin-tech files to TAC service requests (SRs) from Cisco vManage. This streamlines the steps required for working with TAC to troubleshoot a problem. |
|
|
Bidirectional Packet Capture for Cisco IOS XE SD-WAN Devices |
This feature enhances the embedded packet capture functionality to support bidirectional packet capture through Cisco vManage. |
|
This feature enables you to upgrade device or controller software using software images stored on a remote server. The feature enables you to register a remote server with Cisco vManage, and add locations of software images on the remote server to the Cisco vManage software repository. When you upgrade device or controller software, the device or controller can download the new software image from the remote server. This feature also improves the listing of images available in the repository. When two or more images have the same version but different filenames, each image is listed as a separate entry. |
|
|

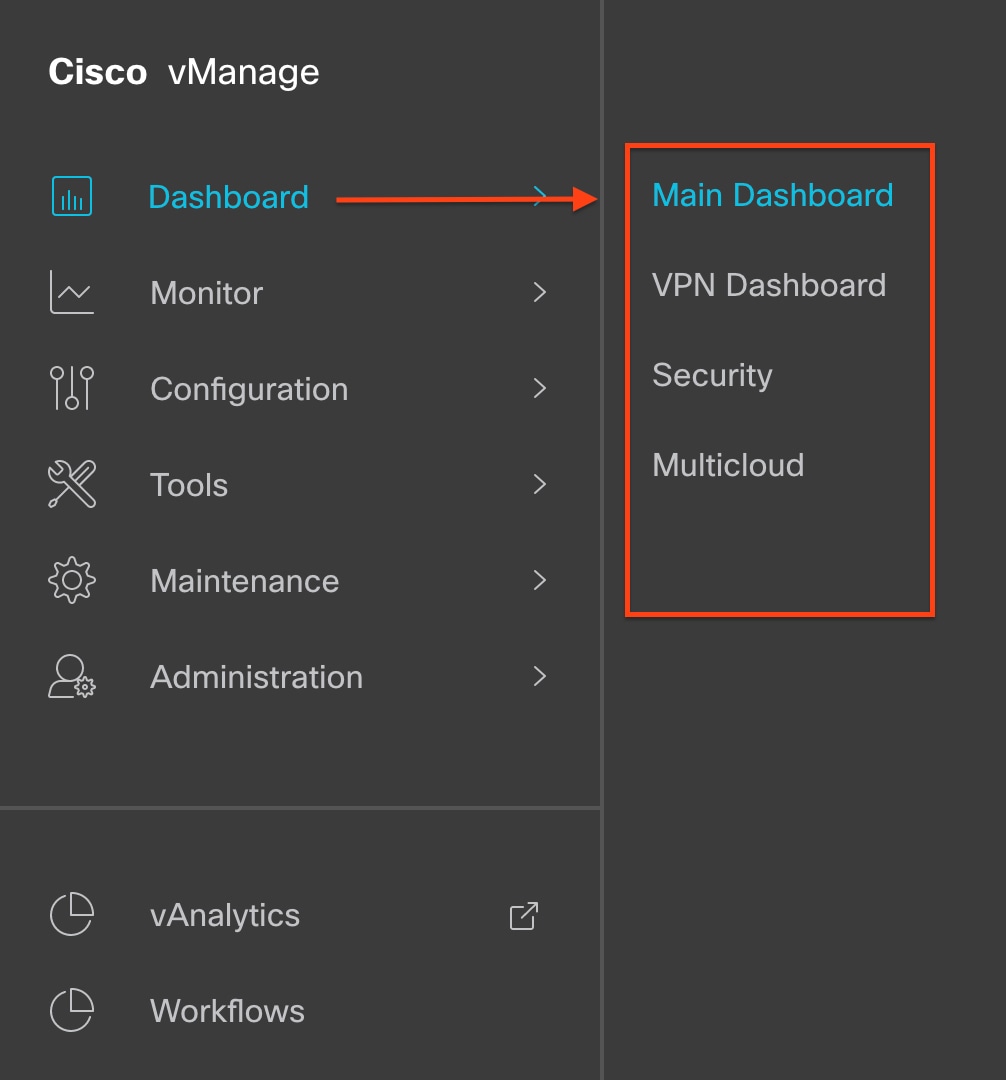

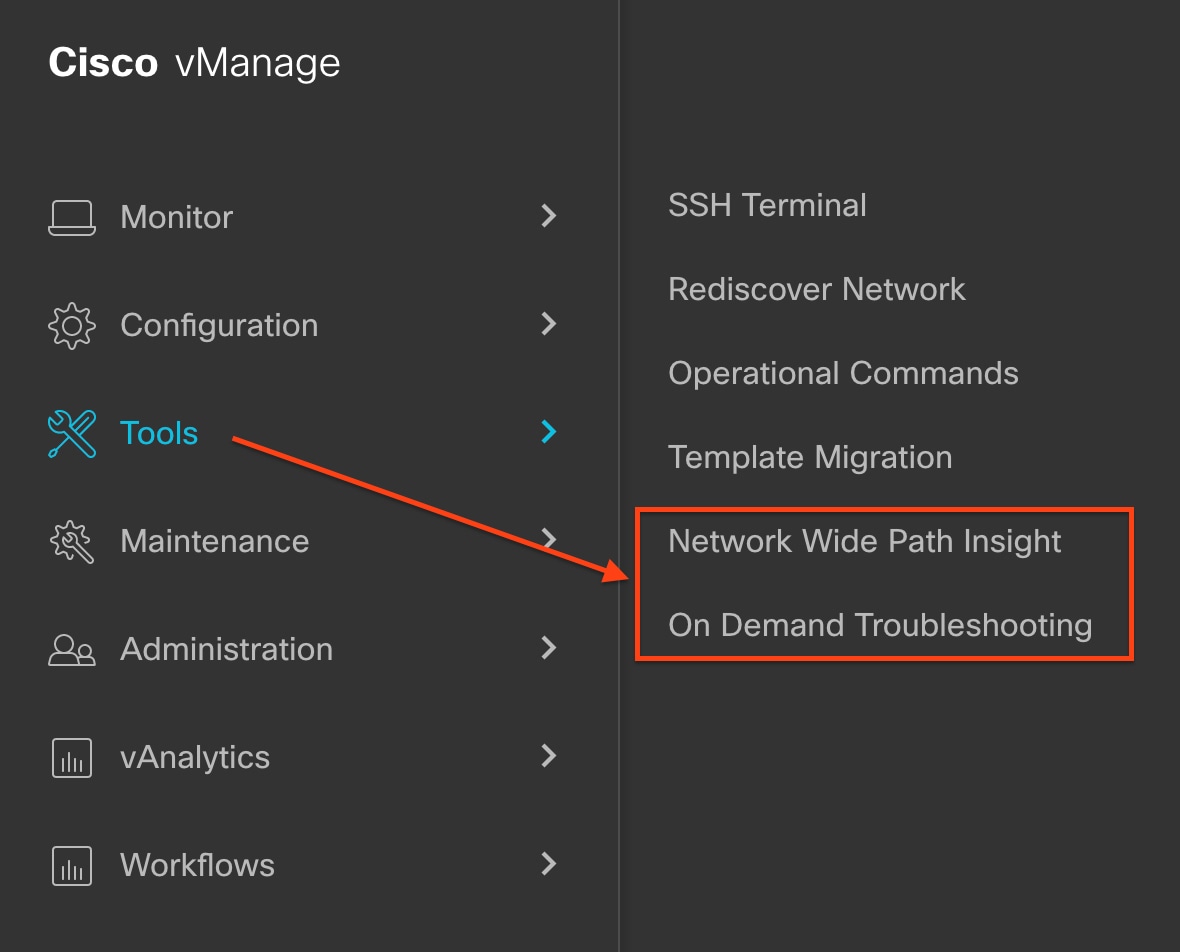

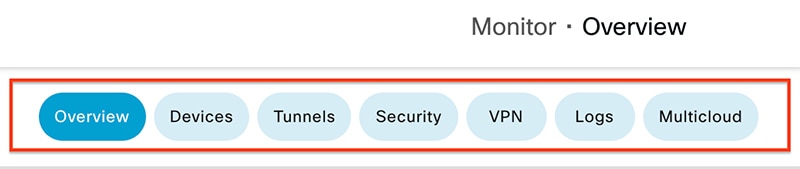

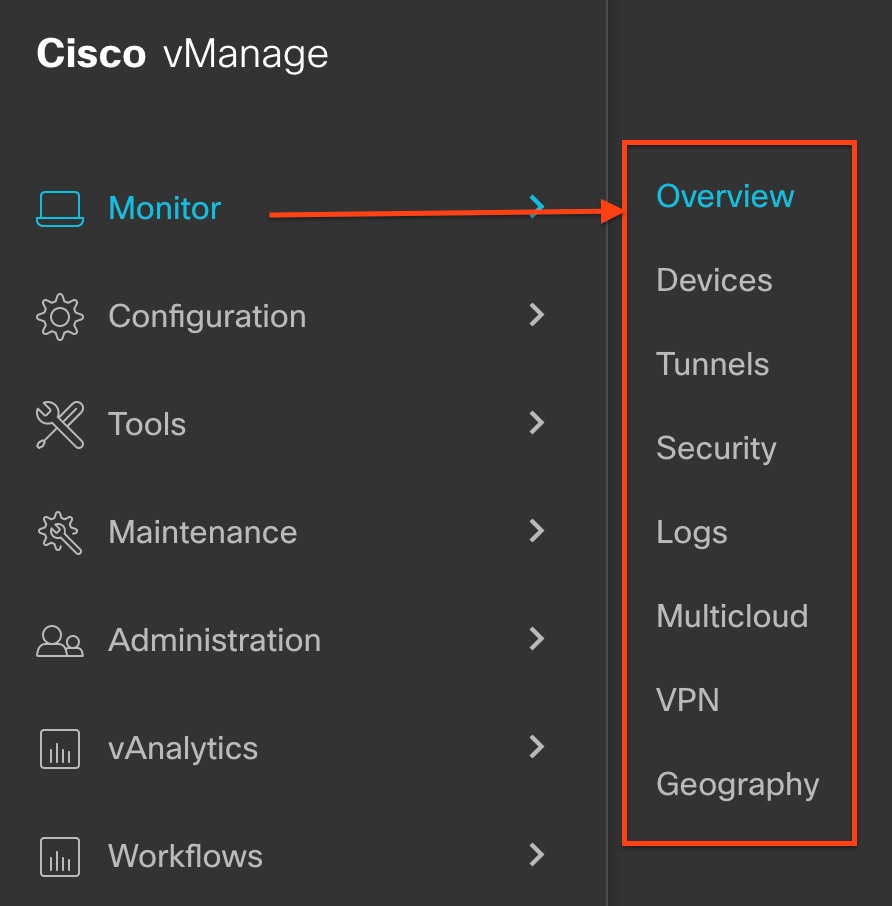

Enhanced Cisco vManage User Interface for a Consolidated Monitoring View |
This feature introduces the enhanced user interface of Cisco SD-WAN Manager. The Monitor window provides a single-page, real-time user interface that facilitates a consolidated view of all monitoring components and services of a Cisco Catalyst SD-WAN overlay network. It provides an entry point for all Cisco SD-WAN Manager dashboards, including Main Dashboard, VPN Dashboard, Security, and Multicloud. These dashboards were earlier accessible from the Dashboard menu. In addition, all monitoring components have been organized into pill buttons in the user interface so that you can quickly navigate from one page to another. The Tools menu of Cisco SD-WAN Manager has also been enhanced in this release. The Network Wide Path Insight and On Demand Troubleshooting options that were earlier accessible from the Monitor menu have now been moved to the Tools menu so that you can easily locate these features. |
|
Cisco SD-WAN SNMP |
|
|
Support for SNMPv3 AES-128 and AES-256 bit Encryption Protocol |
This feature allows you to configure SNMPv3 users in support with SHA-1 authentication protocol and AES-128 and AES-256 encryption on Cisco IOS XE SD-WAN devices. |
|
Cisco SD-WAN NAT |
|
|
Dual Endpoint Support for Interface Status Tracking on Cisco IOS XE SD-WAN Devices |
This feature allows you to configure tracker groups with dual endpoints using the Cisco System template and associate each template group to an interface. The dual endpoints provide redundancy for tracking the status of transport interfaces to avoid false negatives. |
|
Intra-VPN allows service-side LAN interfaces to communicate with other service-side LAN interfaces within the same VPN. Configure the ip nat outside command on the LAN interface for which you require translation of the source IP addresses to the outside local addresses. You can apply static or dynamic NAT rules for packets to be routed from other LAN interfaces to the interface configured as the outside interface. You configure intra-VPN service-side NAT using a device CLI template or a CLI add-on template. |
|
|
The IPv6-to-IPv6 Network Address Translation (NAT66) Direct Internet Access (DIA) feature enables an IPv6 device to translate an inside source address prefix to an outside source address prefix in IPv6 packet headers. NAT66 DIA allows you to direct local IPv6 internet traffic to exit directly to the internet from the service-side VPN (VPN 1) through the transport VPN (VPN 0). You configure NAT66 DIA using Cisco vManage, the CLI, or a device CLI template. This feature introduces new CLI commands. For more information, see the Cisco IOS XE SD-WAN Qualified Command Reference Guide. |
|
|
Cisco SD-WAN Remote Access |
|
|
Remote access refers to enabling secure access to an organization's network from devices at remote locations. Cisco Catalyst SD-WAN remote access (SD-WAN RA) integrates remote access functionality into Cisco Catalyst SD-WAN. SD-WAN RA enables Cisco IOS XE Catalyst SD-WAN devices to function as RA headends, managed through Cisco SD-WAN Manager. This eliminates the need for separate Cisco Catalyst SD-WAN and RA infrastructure, and enables rapid scalability of RA services. RA users can use the same software- or hardware-based RA clients as with solutions that do not integrate with Cisco Catalyst SD-WAN. For RA users, benefits include extending Cisco Catalyst SD-WAN features to remote users. RA users can access applications hosted on-premises, applications hosted in IaaS, SaaS applications, or the internet |
|
What's New for Cisco SD-WAN Release 20.7.x
This section applies to Cisco vEdge devices.
| Feature | Description |
|---|---|
|
Cisco SD-WAN Getting Started |
|
|
This feature enables a device to automatically learn about the available IP addresses and default gateway information when a DHCP server is not available. The device assigns an IP address to its WAN interface, and then contacts the PnP server and begins the PnP onboarding process. |
|
| This feature revokes enterprise certificates from devices based on a certificate revocation list that Cisco SD-WAN Manager obtains from a root certificate authority. | |
|
This feature replaces the Symantec Certificate Authority (CA) server with Digicert Certificate Authority server for signing the controller device certificates on Cisco SD-WAN controllers including Cisco vSmart Controller, Cisco vBond Orchestrator, and Cisco vManage. You can protect, verify, and authenticate the identities of organizations and domains using these certificates. |
|
|
Systems and Interfaces |
|
|
TCP/UDP Endpoint tracker and Dual Endpoint Static route tracker for Cisco vEdge devices |
This feature enables you to configure the TCP/UDP individual Endpoint static route tracker and to configure tracker group with IPv4, TCP/UDP Dual Endpoint static route trackers for service VPNs to enhance the reliability of the probes. |
|
This feature enables VRRP to set the edge as active or standby based on the WAN Interface or SIG tracker events and increase the TLOC preference value on a new VRRP active to ensure traffic symmetry, for Cisco vEdge devices. Starting this release, you can configure it through Cisco vManage feature template. |
|
|
Co-Management: Granular Role-Based Access Control for Feature Templates |
This feature introduces greater granularity in assigning role-based access control (RBAC) permissions for template use. This enables you to give a tenant self-management of network configuration tasks. Network administrators and managed service providers can use this feature to assign permissions to their end customers. |
|
Policies |
|
|
This feature is an enhancement to the centralized and localized policies feature. This feature allows you to configure default application-aware routing (AAR) and quality of service (QoS) policies on Cisco IOS XE devices. |
|
|
High Availability |
|
|
This feature lets you change the disaster recovery user password for disaster recovery components from the Cisco vManage Disaster Recovery window. |
|
|
Cloud OnRamp |
|
|
Cisco CXP Gateway Support for Internet Exit through Service VPN Interfaces |
This feature adds support for enabling SaaS in service VPN interfaces in Gateway sites. |
|
This feature allows you to upload a virtual machine image to Cisco vManage in qcow2 format. Earlier, you could upload only a prepackaged image file in tar.gz format. |
|
|
This feature lets you capture packets at either the physical interface level (PNIC) or the virtual interface level (VNIC) on a CSP device of a colocation cluster. You can capture packets on one or more PNICs or VNICs on the same device or different devices with different browsers at the same time. This feature lets you gather information about the packet format and therefore helps in application analysis, security, and troubleshooting. |
|
|
Cisco SD-WAN Monitor and Maintain |
|
|
This feature enhances the output of the admin-tech file with additional diagnostics information collected from the application server, the configuration database, the statistics database, and other internal services. |
|
|
This feature enables you to upload an admin-tech file directly from Cisco vManage when opening a TAC case. When you create a TAC case, you can upload the generated admin-tech files to TAC service requests (SRs) from Cisco vManage. This streamlines the steps required for working with TAC to troubleshoot a problem. |
|
|
Resource Monitoring on Cisco SD-WAN Controllers and Cisco vEdge Devices |
With this feature, you can configure usage watermarks for resources such as CPU, memory, and disk on Cisco SD-WAN controllers and Cisco vEdge devices. In addition, on Cisco vManage servers, you can configure watermarks to monitor disk read and write speeds. Devices poll the resource usage and notify events to Cisco vManage. Cisco vManage raises alarms to alert you to changes in resource usage, or disk read or write speed so that you can take any necessary corrective action. |
|
This feature enables you to upgrade device or controller software using software images stored on a remote server. The feature enables you to register a remote server with Cisco vManage, and add locations of software images on the remote server to the Cisco vManage software repository. When you upgrade device or controller software, the device or controller can download the new software image from the remote server. This feature also improves the listing of images available in the repository. When two or more images have the same version but different filenames, each image is listed as a separate entry. |
|
|
Enhanced Cisco vManage User Interface for a Consolidated Monitoring View |
This feature introduces the enhanced user interface of Cisco SD-WAN Manager. The Monitor window provides a single-page, real-time user interface that facilitates a consolidated view of all monitoring components and services of a Cisco Catalyst SD-WAN overlay network. It provides an entry point for all Cisco SD-WAN Manager dashboards, including Main Dashboard, VPN Dashboard, Security, and Multicloud. These dashboards were earlier accessible from the Dashboard menu. In addition, all monitoring components have been organized into pill buttons in the user interface so that you can quickly navigate from one page to another. The Tools menu of Cisco SD-WAN Manager has also been enhanced in this release. The Network Wide Path Insight and On Demand Troubleshooting options that were earlier accessible from the Monitor menu have now been moved to the Tools menu so that you can easily locate these features. |
|
Cisco SD-WAN Command Reference |
|
|
OMP CLI Enhancements |
This feature displays detailed information about OMP and TLOC routes on Cisco vSmart Controllers and Cisco vEdge devices. The following commands are enhanced to display received and advertised peering sessions for OMP. |
Important Notes, Known Behavior, and Workaround
-
From Cisco SD-WAN Release 20.4.1.1, Microsoft Azure environment is supported for deploying Cisco SD-WAN controllers (Cisco vBond orchestrator, Cisco vSmart controller, and Cisco vManage). The support is limited to Cisco SD-WAN cloud-based deployments only.
-
If SD-AVC is enabled using Cloud Connector or custom applications while upgrading from Cisco vManage Release 20.3.1 to Cisco vManage Release 20.6.1 and later releases, during the upgrade, a defect CSCwd35357 is impacting the data plane. We strongly recommend you to contact the Cisco TAC to perform a workaround while upgrading.
Cisco SD-WAN Manager Upgrade Paths
For information about Cisco SD-WAN Manager upgrade procedure, see Upgrade Cisco vManage Cluster.
| Starting Cisco SD-WAN Manager Version | Destination Version | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19.2.x |
20.1.x |
20.3.x |
20.4.x |
20.5.x |
20.6.x |
20.7.x |
|||||||
|
18.x/19.2.x |
Direct Upgrade |
Direct Upgrade |
Check disk space*
For cluster upgrade procedure**: request nms configuration-db upgrade
|
Step upgrade through 20.3.x |
Step upgrade through 20.3.x |
Step upgrade through 20.3.x |
Step upgrade through 20.3.x |
||||||
|
20.1.x |
Not Supported |
Direct Upgrade |
Direct Upgrade For cluster upgrade procedure**: request nms configuration-db upgrade
|
Direct Upgrade For cluster upgrade procedure**: request nms configuration-db upgrade
|
Step upgrade through 20.3.x |
Step upgrade through 20.3.x |
Step upgrade through 20.3.x |
||||||
|
20.3.x |
Not Supported |
Not Supported |
Direct Upgrade |
Direct Upgrade |
Direct Upgrade For cluster upgrade procedure**: request nms configuration-db upgrade
|
Direct Upgrade For cluster upgrade procedure**: request nms configuration-db upgrade
|
Direct Upgrade For cluster upgrade procedure**: request nms configuration-db upgrade
|
||||||
|
20.4.x |
Not Supported |
Not Supported |
Not Supported |
Direct Upgrade |
Direct Upgrade For cluster upgrade procedure**: request nms configuration-db upgrade
|
Direct Upgrade For cluster upgrade procedure**: request nms configuration-db upgrade
|
Direct Upgrade For cluster upgrade procedure**: request nms configuration-db upgrade
|
||||||
|
20.5.x |
Not Supported |
Not Supported |
Not Supported |
Not Supported |
Direct Upgrade |
Direct Upgrade |
Direct Upgrade |
||||||
|
20.6.x |
Not Supported |
Not Supported |
Not Supported |
Not Supported |
Not Supported |
Direct Upgrade |
Direct Upgrade |
||||||
*To check the free disk space using CLI,
-
Use the vshell command to switch to vshell
-
In vshell, use the df -kh | grep boot command
**Cluster upgrade must be performed using CLI
-
Use the following command to upgrade the configuration database . This must be done on one node only in the cluster:
request nms configuration-db upgradeNote
We recommend the data base size in the disk is less than or equal to 5GB. Use the
request nms configuration-db diagnosticcommand to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.
-
Enter login credentials, if prompted. Login credentials are prompted if all vManage server establish control connection with each other. After a successful upgrade, all configuration-db services are UP across the cluster and the application-server is started.
Resolved and Open Bugs
About the Cisco Bug Search Tool
Use the Cisco Bug Search Tool to access open and resolved bugs for a release.
The tool allows you to search for a specific bug ID, or for all bugs specific to a product and a release.
You can filter the search results by last modified date, bug status (open, resolved), severity, rating, and support cases.
Bugs for Cisco SD-WAN Controllers Releases 20.7.2
This section details all fixed and open bugs for this release. These are available in the Cisco Bug Search Tool through the Resolved Bug Search.
Resolved Bugs for Cisco SD-WAN Controllers Releases 20.7.2
|
Identifier |
Headline |
|---|---|
|
Inability to add Device Specific names for CUCM Feature Template |
|
|
Cisco vManage GUI going blank seeing HTTP 403 error |
|
|
Duplicate records from device need to be ignored by vmanage before feeding to ES |
|
|
Smart Account Device Sync Service task page is not loading in tenant view |
|
|
When a certificate file already installed is uploaded by mistake, vM will invalidate its cert status |
|
|
Generate Bootstrap Configuration for c8300 is not working, Cisco vManage 20.6.1 |
|
|
Cannot configure FXO voice port in Cisco vManage |
|
|
HSDWAN: All region BRs are seen in partial connections on Cisco vManage |
|
|
MT Cisco vManage 20.6.2 problem with users when Tacacs/Radius is enable for Provider Level |
|
|
Change user groups from operator to netadmin fails |
|
|
Cisco vManage reports error when configure bgp regex ^6511$ or _4$ (in as-path list) |
|
|
MT : Error in vEdgeList upload when uploading list manually or do sync from Smart Account |
|
|
Unable to set multiple ip addresses for DHCP options |
|
|
Unable to change Ipsec interval from feature based template |
|
|
Control connection to the vBond failing because of ERR_SER_NUM_NT_PRESENT on the vBond. |
|
|
Restrict feature of NAT DIA policy do not working when used with app-list |
|
|
20.7: Cisco IOS XE Catalyst SD-WAN device Interface Statistics do not change regardless of which interval is chosen |
|
|
Tenant Export Backup task page is not loading in tenant view |
|
|
After upgrade Cisco vManage to 20.6.2 ZTP task failed |
|
|
"request nms update-internal-ip new-ip" does not work on Cisco vManage 20.3.4 |
|
|
Cisco vManage showing '1 invalid' certificate status on dashboard |
|
|
Evaluation of sd-wan for Log4j 2.x DoS vulnerability fixed in 2.17 |
|
|
[MSDC] 20.6.2: API delay of 90+ seconds in displaying Real Time Tunnel statistics |
|
|
vSmarts OMP peerings flap with devices when taking admin tech on all vSmarts |
|
|
Pushing wan edge list fails to Cisco vManage cluster nodes when tacacs user set for controllers |
|
|
Unable to add Cellular Gateway CG522-E to vManage. |
|
|
Enabled usage but prepaid consumption |
|
|
Cisco vManage central policy push times out |
|
|
MTT, site/node level alarm are missing when manually shutdown / re-start edge device |
|
|
Unable to install certificate on ISRv device due to autogenerated configuration in Cisco vManage |
|
|
Connection Events page is not getting loaded as api throwing 500 Internal error |
|
|
20.4 Getting Wrong Control Site Down Alarm alarms |
|
|
Device template push fail after ISRv comes up and online |
|
|
HTTP Proxy: Unable to update IPS signature using proxy config in vmanage |
|
|
20.7: vQOE score for WebEx application is low in Cisco vManage due to high latency in device |
|
|
Cisco vManage crashed due to kernal panic [20.3.3.1.2] |
|
|
Cisco vManage Access Control List is providing option to fulfill the VRF id |
|
|
License Management page shows vBond along with edge devices in the device list- 20.7 |
|
|
NWPI fail to merge domain/IP for dual Cisco IOS XE Catalyst SD-WAN device site |
|
|
CoR Multicloud for GCP Site-to-Cloud CGW Deployment fails with Code 400 in S2S non supported region |
|
|
cannot upgrade Cisco IOS XE Catalyst SD-WAN device with "Invalid Response" error |
|
|
Src Script issue in Angular JS in 20.6 Main Dashboard: UN>15 char overflow the limt set |
|
|
CLI request nms server-proxy update-ratelimit-config is broken on 20.6 due to python 3 version |
Open Bugs for Cisco SD-WAN Controllers Releases 20.7.2
|
Identifier |
Headline |
|---|---|
|
Search for tunnel is not working |
|
|
CXP : Cisco vManage not pushing probe color when new color added to color list. |
|
|
"Enforce Software Version (ZTP)" does not support version format for NFVIS-SDWAN-BRANCH |
|
|
Services still communicate via old OOB IP after changing the vpn 0 OOB interface IP |
|
|
Enabling or Disabling OMP Overlay AS Prevents Connected Routes from Being Advertised in OMP |
|
|
VPN drop menu shows empty in NWPI when we iniiate trace for first time |
|
|
Cisco vManage: Noticed RouteMap attribute modification failure , while attempting through CLI Template |
Bugs for Cisco SD-WAN Controllers Release 20.7.1
This section details all fixed and open bugs for this release. These are available in the Cisco Bug Search Tool through the Resolved Bug Search.
Resolved Bugs for Cisco SD-WAN Controllers Release 20.7.1
|
Bug ID |
Description |
|---|---|
|
Cisco vManage 20.6.1 Dashboard does not show custom application server logo |
|
|
Login to Cisco SD-WAN OS fails if plain-text password was set in cloud-init write_files |
|
|
vEdge: google-accounts getting classified as google-services in DPI Application |
|
|
CSR generation failure and incomplete error message |
|
|
Enhancement: Cisco VPN Interface IPsec template does not DH group 2 as option |
|
|
Cisco vManage: Local device access policy with SNMP is not getting pushed correctly. |
|
|
Device inventory sections shows incorrect count. |
|
|
MTT : OptIn status is not updated to the Cisco IOS XE SD-WAN devices in a tenant |
|
|
20.6: Cisco vManage UI stuck when we create a new device temp and create and attach a global temp at creat |
|
|
Server error: illegal reference ncs devices |
|
|
Cisco vManage network template allows vlan range "-" ( vlan 71 - 75) on OVS network setting |
|
|
CoR SaaS "vQoE Score History" not getting displayed for vEdge on Cisco vManage |
|
|
Cisco vManage pushes invalid service route command |
|
|
Cisco vManage services do not start on upgrade from 20.3 to 20.6 due to upgrade-context.json incorrect |
|
|
Replication starts from time value 0, if the replication leader entry is not present in the replication status table |
|
|
UUID lookup fail for vBond which behind NAT device while adding vBond in DR setup |
|
|
Provide "Migrate Device" option in Cisco vManage UI before the device has been onboarded to Cisco vManage |
|
|
Shared clouddock cluster activation shows FAILED after claiming its successful |
|
|
Failed to create deviceactionstatusnode table entry in DB for device: Validation |
|
|
Cisco vManage 20.4.2 - Interface template doesn't pushing encapsulation frame-relay |
|
|
Cisco vManage is not compliant with RFC3411 when it generates the SNMP EngineID through feature template |
|
|
Error occurred while generating report |
|
|
Cisco vManage Tunnel States API is not backward compatible between 20.6 and 20.4.1 |
|
|
Unexpectedly redirect to previous provision device variable page when save config for another branch |
|
|
CFGmgr crash on Cisco vManage when user added on GUI |
|
|
Intermittent Cisco vManage control up count mismatch |
|
|
CCM config rejection does NOT cause Cluster to be marked in "Failed" State |
|
|
Root cert sync not working for large scale deployments |
|
|
SRST Feature Template "CUCM Media Resource Group" does not accept variable for field |
|
|
vSmart crash on ompd process |
|
|
Unexpected redirect to previous provisioned branch variable page on saving |
|
|
Device Specific field is not usable |
|
|
control connection to the edege device doesnt come up with v6 and reverse proxy |
|
|
ip dhcp client default-router distance not working for Eth interface in DSL IPOE feature template |
|
|
Security policies applied to incorrect interface in cluster mode, iptables |
|
|
Root cert sync failures not reported to the UI |
|
|
New sequence in RPL with set as-path has both prepend and exclude as required fields |
|
|
Huge Data replication observed during DR process of 3 node cluster running 20.3.4 |
|
|
Impossible to install UTD software with "Task cannot proceed. Similar task is in progress" error |
|
|
CSR generation fails if given OU differs from org-name on the Cisco vManage |
|
|
ES(ex. Alarm/Event/Audit) replication import fail |
|
|
custom application list not replicated in Disaster Recovery for a Single Node Cisco vManage Cluster |
|
|
Evaluation of Cisco vManage for Log4j RCE (Log4Shell) Vulnerability |
|
|
Cisco Catalyst SD-WAN Manager Information Disclosure Vulnerability |
|
|
Cisco Catalyst SD-WAN Manager Unauthorized Configuration Rollback Vulnerability |
Open Bugs for Cisco SD-WAN Controllers Release 20.7.1
|
Bug ID |
Description |
|---|---|
|
Cloud Global Settings AWS subnet setting |
|
|
vManage config roll back failed after vManage template is attached to the Cisco IOS XE SD-WAN device |
|
|
services still communicate via old OOB IP after changing the vpn 0 OOB interface IP |
|
|
System IP persists after invalidating the edge devices from the Cisco vManage which it is not connected . |
|
|
Cisco vManage ODT : Monitoring Stats collection takes > 3 hours when selected for 1 day duration. |
|
|
20.7: Unreachable node still shows up in device list |
|
|
OIB DayN: "Manage Network Design" button is disabled when add service. Need wait for task completed |
|
|
Cisco vManage with IPv6 interface with local user fails until we login with ipv4 once |
|
|
20.6.2: API delay of 90+ seconds in displaying Real Time Tunnel statistics |
|
|
HSDWAN: All region BRs are seen in partial connections on Cisco vManage |
|
|
OMPD crashed on vSmart running on 20.6.1.1 |
|
|
Cisco vManage MTT : An empty popup is displayed |
|
|
boot up time to bring up the containers takes considerable amount of time in 20.6 compared to 20.5 |
|
|
Cisco vManage: Noticed RouteMap attribute modification failure , while attempting through CLI Template |
|
|
Filtering the data based on local tloc is returning no data in Cisco vManage GUI for DPI stats |
Cisco Catalyst SD-WAN Control Components Compatibility Matrix and Server Recommendations
For compatibility information and server recommendations, see Cisco Catalyst SD-WAN Control Components Compatibility Matrix and Server Recommendations.
Redesign of Cisco vManage GUI
From Cisco vManage Release 20.7.1, Cisco vManage GUI is redesigned and offers a new visual display. This section presents a comparative summary of the significant changes between older Cisco vManage releases and Cisco vManage Release 20.7.1 and later.
Changes in Monitor and Tools Menus
Cisco vManage Release 20.7.1 includes the following changes:
-
The Dashboard menu is removed, and all submenus that were earlier accessible from the Dashboard menu are now part of the Monitor menu.
-
The Monitor page provides a real-time user interface with a consolidated view of the monitoring information for the components and services of a Cisco SD-WAN overlay network.
-
Using the pill buttons on the Monitor page, you can navigate to monitoring information for specific components or services of a Cisco SD-WAN overlay network.
-
The Network Wide Path Insight and On Demand Troubleshooting options that were earlier accessible from the Monitor menu are now part of the Tools menu so that you can easily locate these features.
Support for Web Content Accessibility Guidelines (WCAG) 2.0 Standard
Cisco vManage Release 20.7.1 supports Web Content Accessibility Guidelines (WCAG) 2.0 standard for the AA conformance level, with the following limitations:
-
You cannot exit from SSH terminal using the keyboard.
-
Cisco SD-WAN Manager cannot skip repetitive navigation links.
-
Data charts on Cisco SD-WAN Manager use colors as the only visual means of conveying information, which is not compliant with WCAG 2.0.
-
Some text elements as well as non-text elements in Cisco SD-WAN Manager do not meet the color contrast ratio as defined in WCAG 2.0.
Related Documentation
Full Cisco Trademarks with Software License
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version.
Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: https://www.cisco.com/c/en/us/about/legal/trademarks.html. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1721R)
Feedback
