Configuring Router and Switch Devices

Revised: November 10, 2007

This chapter describes how to bootstrap routers and switches and add those reporting devices and mitigation devices to MARS. It also describes how to configure NetFlow, NAC's EAP over UDP and 802.1x logging, and the Layer 2 (L2) mitigation features of switches.

Routers and switches provide MARS with data about traffic flows and the network topology, including address translations, endpoint devices, connected networks, and accepted and rejected sessions. Routers and switches also support modules that enable features common to specialty security appliances, such as firewalls and intrusion detection or prevention systems (IDS/IPS). This chapter does not describe how to enable the features on routers and switches that enable the modules or how to configure these modules for use by MARS. Such discussions are provided in Configuring Firewall Devices, page 5-1, and Configuring Network-based IDS and IPS Devices, page 7-1.

This chapter explains how to bootstrap and add the following router and switch devices to MARS:

•Cisco Router Devices

•Cisco Switch Devices

•Extreme ExtremeWare 6.x

•Generic Router Device

Cisco Router Devices

To configure Cisco routers running Cisco IOS Software Release 12.2 and later to communicate with a MARS Appliance, you must perform three tasks:

•Enable Administrative Access to Devices Running Cisco IOS 12.2 and Later

•Configure the Device Running Cisco IOS 12.2 and Later to Generate Required Data

•Add and Configure a Cisco Router in MARS

Enable Administrative Access to Devices Running Cisco IOS 12.2 and Later

You must enable administrative access by the MARS Appliance to any Cisco routers or switches running Cisco IOS Software release 12.2 and later. The type of access that you must enable depends on whether modules are installed in your Cisco router or switch and the role of the device in your network. MARS uses this administrative access to discover the device's configuration and, at times, to make changes to the device's running configuration. For information on selecting an administrative access method, see Selecting the Access Type, page 2-10.

Before you add a Cisco router to MARS, make sure that you have enabled SNMP, Telnet, SSH, or FTP access to the router. The following sections provide guidance on configuring each supported access method:

•Enable SNMP Administrative Access

•Enable Telnet Administrative Access

•Enable SSH Administrative Access

•Enable FTP-based Administrative Access

Enable SNMP Administrative Access

To enable configuration discovery using SNMP access to the Cisco router or switch, refer to your device documentation or the following URL:

http://cisco.com/en/US/docs/ios/12_2/configfun/configuration/guide/fcf014.html

Enable Telnet Administrative Access

To enable configuration discovery using Telnet access to the Cisco router or switch, refer to your device documentation or the following URL:

http://cisco.com/en/US/products/sw/iosswrel/ps1818/products_configuration_example09186a0080204528.shtml

Enable SSH Administrative Access

To enable configuration discovery using SSH access to the Cisco router or switch, refer to your device documentation or the following URL:

http://cisco.com/en/US/docs/ios/12_1t/12_1t1/feature/guide/sshv1.html

Enable FTP-based Administrative Access

To enable configuration discovery using FTP access, you must place a copy the Cisco router's or switch's configuration file on an FTP server to which the MARS Appliance has access. This FTP server must have user authentication enabled.

Note TFTP is not supported. You must use an FTP server.

You must copy the running configuration from the Cisco router or switch. For information on copying the running configuration, refer to your device documentation or the following URL:

http://www.cisco.com/en/US/products/sw/iosswrel/ps1835/products_tech_note09186a008020260d.shtml

Configure the Device Running Cisco IOS 12.2 and Later to Generate Required Data

Cisco routers and switches that are running Cisco IOS Software release 12.2 and later can be configured to provide different types of data to MARS:

•Syslog messages. The syslog messages provide information about activities on the network, including accepted and rejected sessions.

•SNMP traffic. SNMP RO community strings support the discovery of your network's topology.

•NAC-specific data. NAC logs events that are specific to its configuration, including Extensible Authentication Protocol (EAP) over UDP messages and 802.1x accounting messages.

•Access lists or NAT statements. You must enable SSH or Telnet access if the configuration on the Cisco router or swtich includes access lists or NAT statements.

•Spanning tree messages (Switch only). You must have STP (spanning tree protocol) configured correctly on the switches to enable L2 discovery and mitigation. STP provides MARS with access to the L2 MIB, which is required to identify L2 re-routes of traffic and to perform L2 mitigation. MARS also uses the MIB to identify trunks to other switches, which are used to populate VLAN information used in L2 path calculations. STP, which is enabled by default on Cisco Switches, should remain enabled, as it is required for L2 mitigation.

The following topics describe how to configure these settings:

•Enable Syslog Messages

•Enable SNMP RO Strings

•Enable NAC-specific Messages

•Enable L2 Discovery Messages

•Enable SDEE for IOS IPS Software

Enable Syslog Messages

To send syslog messages to the MARS Appliance from a device running Cisco IOS Software Release 12.2 and later, follow these steps:

Step 1 Log in to the Cisco IOS device with enabled password.

Step 2 Enter the commands:

Router(config)#logging source-interface <interface name>

Router(config)#logging trap <logging level desired>

Router(config)#logging <IP address of MARS Appliance>

Enable SNMP RO Strings

To enable SNMP RO strings for topology discovery on the Cisco IOS device, you must enable the SNMP server and define the RO community.

To configure the SNMP RO string settings, follow these steps:

Step 1 Enter configuration mode:

Router> enable

Password: <password>

Router#

Step 2 Enter the configure terminal command to enter configuration mode:

Router# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#

Step 3 Set the SNMP read community string as follows:

Router(config)# snmp-server community <read community>  RO <ACL name if required>

Note This information is required to retrieve the MAC addresses and associated L2 information.

Step 4 Set the SNMP write community string as follows:

Router(config)# snmp-server community <write community> RW

The Add and Configure a Cisco Router in MARS procedure provides instructions for configuring the MARS Appliance to discover configuration and settings using these strings











 Enable NAC-specific Messages



 Cisco routers and switches that are running Cisco IOS Software release 12.2 and later or CatOS can enable network Admission Control (NAC) specific data. This data includes:



 •Client logs. These logs relate the activities of the client software.



 •RADIUS server logs. These logs relate the authorization communications between clients and the posture validation servers.



 •Network access device logs. These logs relate connection attempts by clients and final authorizations provided by the AAA server enforcing the NAC policies.



 For more information on the events that are logged as part of NAC, see the Monitoring and Reporting Tool Integration into Network Admission Control white paper at the following URL:



 http://www.cisco.com/en/US/netsol/ns617/networking_solutions_white_paper0900aecd801dee49.shtml



 This section contains the following two topics, which address the NAC configuration settings specific to each device type:



 •Cisco Routers



 •Cisco Switches





 Cisco Routers



 This command ensures that the IOS device sends the IP address of the host that is being NAC'd in its calling-station-id attribute in all RADIUS requests to the ACS.



 To configure the NAC Phase I data on a Cisco router to work with MARS, you must allow EAP over UDP and allow an IP address in the AAA station-id field of the packets. (Cisco Secure ACS includes this detail in its logs. MARS presents this data in reports and queries that dispay the host IP addresses.) In addition, you must enable logging of these events, which are published as syslog messages.



 To enable the NAC-specific data on a Cisco router, enter the following commands:





Router(config)#eou allow ip-station-id








Router(config)#eou logging













 For more information on these commands and related commands, see the Network Admission Control feature document at the following URL:



 http://www.cisco.com/en/US/docs/ios/sec_user_services/configuration/guide/sec_net_admssn_ctrl_ps6350_TSD_Products_Configuration_Guide_Chapter.html





 Cisco Switches



 NAC Phase II enables Cisco switches to act as network access devices. To support this new feature, you must configure the Cisco switch to initiate 802.1x authentication when the link state changes from down to up and periodically if the port remains up but unauthenticated. NAC requires that hosts use 802.1x supplicants, or clients, to authenticate to the Cisco Secure ACS server before gaining access to network services. Enabling the 802.1x messages on your network helps you troubleshoot supplicant failures becauise connection attempts are logged, which you can analyze.



 Configuring the Cisco switch to act as proxy between the Cisco Secure ACS server and the 802.1x supplicants is a multi-step process. First, the e switch must be defined as a AAA client (RADIUS) in the Cisco Secure ACS server. For information on defining a AAA client, see Define AAA Clients, page 15-5. Second, the switch must be configured to use a a RADIUS server. Then, you must enable the following features on each interface installed in the switch:



 •802.1X port-based authentication. The device requests the identity of the client and begins relaying authentication messages between the client and the authentication server. Each client attempting to access the network is uniquely identified by the system by using the client's MAC address.



 •802.1x reauthentication. The device re-authenticates the supplicants after the reauthentication timeout value is reached, which is 3600 seconds by default.



 •802.1x accounting. The device logs authentication successes and failures, as well as link down events and users logging off. The switch publishes these audit records to the Cisco Secure ACS server for logging.



 •DHCP snooping. The device filters DHCP requests, safeguarding against spoof attacks. This feature ensures that MARS receives reliable data and identifies the port number of the 802.1x supplicant.



 The following URLs detail how to configure these features:



 Dot1x and Radius Sever



 IOS Software:



 http://www.cisco.com/en/US/docs/switches/lan/catalyst3750/software/release/12.2_25_sec/configuration/guide/sw8021x.html



 CatOS Software: http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/catos/8.x/configuration/guide/8021x.html



 DHCP Snooping



 IOS Software: http://www.cisco.com/en/US/docs/switches/lan/catalyst3750/software/release/12.2_25_sec/configuration/guide/swdhcp82.html



 CatOS Software: http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/catos/8.x/configuration/guide/dhcp.html



 After you configure the switch to act as proxy and it is defined as a AAA client in Cisco Secure ACS, you must ensure that the authentication messages are sent to the MARS Appliance. For 802.1x accounting records, you must ensure that the audit records are written to the RADIUS log on the Cisco Secure ACS server. To configure these settings, refer toConfigure Cisco Secure ACS to Generate Logs, page 15-3.





 Enable SDEE for IOS IPS Software



 Before you enable SDEE, you must enable either Telnet or SSH as the access type for configuration discovery on a Cisco IOS device. You must also enable SDEE on the device that supports the IOS IPS software feature. SDEE is used to publish events to MARS about signatures that have fired.



 To enable SDEE protocol on the Cisco IOS device that supports IOS IPS, follow these steps:





 Step 1 Log in to the Cisco IOS device using the enable password.



 Step 2 Enter the following commands to enable MARS to retrieve events from the IOS IPS software:





Router(config)#ip http secure-server








Router(config)#ip ips notify sdee








Router(config)#ip sdee subscriptions 3








Router(config)#ip sdee events 1000








Router(config)#no ip ips notify log




















 Note The "no ips notify log" causes the IOS IPS software to stop sending IPS events over syslog.










 Add and Configure a Cisco Router in MARS



 Cisco routers provide data about the network and its activities in the form of syslog messages and SNMP RO MIBs. In addition, MARS can discover settings, such as network address translations, attached networks, and active access rules, that improve the accuracy of false positive identification, attack path analysis, and L3 network discovery.



 To add a Cisco router running Cisco IOS 12.2 and later, follow these steps:

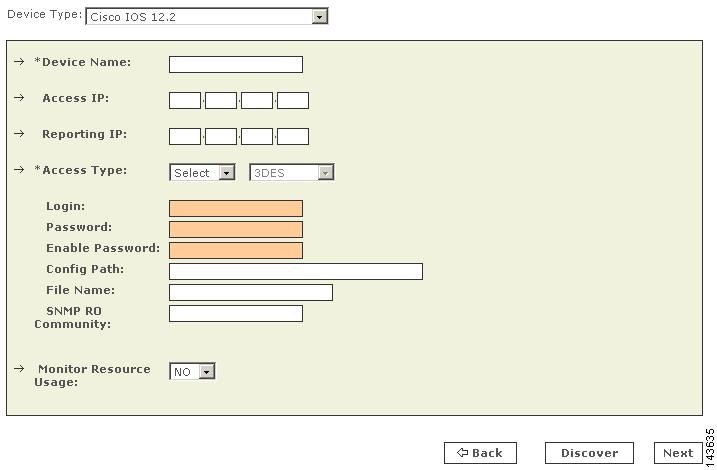

 Step 1 Select Admin > System Setup > Security and Monitor Devices > Add.

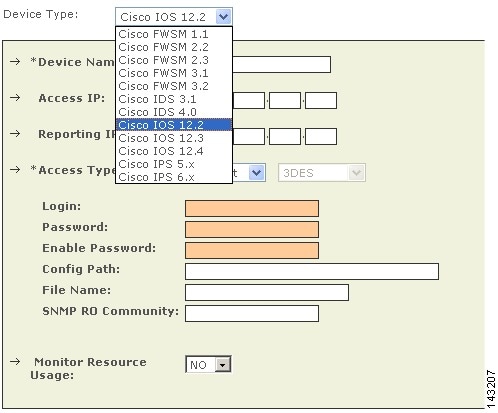

 Step 2 Select one of the following options from the Device Type list:



 •Cisco IOS 12.2



 •Cisco IOS 12.3



 •Cisco IOS 12.4















 Step 3 Enter the name of the device in the Device Name field.



 MARS maps this name to the reporting IP address. This name is used in topology maps, queries, and in the Security and Monitoring Device list. For devices that support the discovery operation, such as routers and firewalls, MARS renames this field's value to match the name discovered in the device configuration, which typically uses the hostname.domain format. For devices that cannot be discovered, such as Windows and Linux hosts and host applications, MARS uses the provided value.



 Step 4 (Optional) To enable MARS to discover settings from this device, enter the administrative IP address in the Access IP field.



 To learn more about the access IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 5 Enter the IP address of the interface that publishes syslog messages, SNMP notifications, NetFlow MIBs, or any combination of the three, in the Reporting IP field.



 To learn more about the reporting IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 6 If you entered an address in the Access IP field, select SNMP, TELNET, SSH, or FTP from the Access Type list, and continue with the procedure that matches your selection:



 •Configure SNMP Access for Devices in MARS, page 2-11



 •Configure Telnet Access for Devices in MARS, page 2-12



 •Configure SSH Access for Devices in MARS, page 2-12



 •Configure FTP Access for Devices in MARS, page 2-12



 For more information on determining the access type, see Selecting the Access Type, page 2-10.



 Step 7 (Optional) To enable MARS to retrieve MIB objects for this reporting device, enter the device's read-only community string in the SNMP RO Community field.



 Before you can specify the SNMP RO string, you must define an access IP address. MARS uses the SNMP RO string to read MIBs related to a reporting device's CPU usage, network usage, and device anomaly data and to discover device and network settings.



 Step 8 (Optional) To enable MARS to monitor this device for anomalous resource usage, select Yes from the Monitor Resource Usage list.



 Result: MARS monitors the device for anomalous consumption of resources, such as memory and CPU. If anomalies are detected, MARS generates an incident. Resource utilization statistics are also used to generate reports. For more information, see Configuring Resource Usage Data, page 2-42.



 Step 9 (Optional) If this router has the IOS IPS feature and SDEE access enabled and you have configured the router to accept HTTPS connections from the MARS Appliance, click Add IPS to provide the username and password required to pull SDEE events.










 Note IOS IPS does not refer to an IPS module. It refers to a software feature in the IOS software.

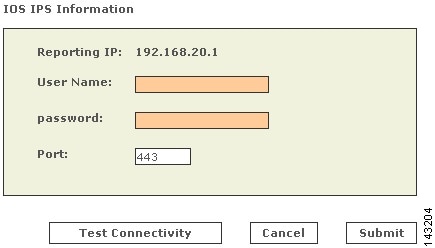

 Result: The IOS IPS Information page appears.















  a. Enter the username that has HTTPS access to this device in the User Name field.



  b. Enter the corresponding password in the Password field.



  c. In the Port field, verify the port used for SDEE communications with this device.



 MARS pulls data using SDEE over HTTPS. The default port number for HTTPS/SDEE is 443. This access allows MARS to retrieve XML files that contain the events generated by the IOS IPS feature.



 Result: MARS can query the router for SDEE events.



 Step 10 (Optional) If you defined an access IP and selected and configured an access type, click Discover to determine the device settings, including the IOS IPS settings.



 Result: If the username and password are correct and the MARS Appliance is configured as an administrative host for the device, the "Discovery is done." dialog box appears when the discovery operation completes. Otherwise, an error message appears. After the initial pull, the MARS Appliance pulls based on the schedule that you define. For more information, see Scheduling Topology Updates, page 2-40.



 Step 11 To add this device to the MARS database, click Submit.



 Result: The submit operation records the changes in the database tables. However, it does not load the changes into working memory of the MARS Appliance. The activate operation loads submitted changes into working memory.



 Step 12 Click Activate.



 Result: MARS begins to sessionize events generated by this device and evaluate those events using the defined inspection and drop rules. Any events published by the device to MARS before activation can be queried using the reporting IP address of the device as a match criterion. For more information on the activate action, see Activate the Reporting and Mitigation Devices, page 2-28.








 Cisco Switch Devices



 You can manage Cisco switches that run either CatOS or Cisco IOS Software Release 12.2 or later. The configuration of the switch varies between these two operating system, as does the addition of the device in MARS. Adding a Cisco switch involves three steps:



  1. Configure the switch to enable MARS to discover the its settings.



  2. Configure the switch to generate the data required by MARS.



  3. Add and configure the switch in MARS.



  4. Add modules to the switch.



 To prepare a Cisco switch running Cisco IOS Software Release 12.2 or later, refer to the following procedures:



 •Enable Administrative Access to Devices Running Cisco IOS 12.2 and Later



 •Configure the Device Running Cisco IOS 12.2 and Later to Generate Required Data



 To prepare a Cisco switch running CatOS, refer to the following procedures:



 •Enable Communications Between Devices Running CatOS and MARS



 •Configure the Device Running CatOS to Generate Required Data



 Adding a Cisco switch running to MARS has two distinct steps. First, you add the base module of the switch, providing administrative access to that device. Second, you add any modules that are running in the switch. For instructions on performing these two steps, refer to the following topics:



 •Add and Configure a Cisco Switch in MARS

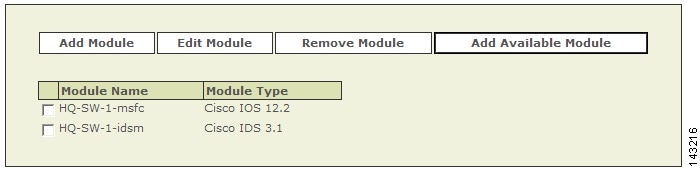

 •Adding Modules to a Cisco Switch





 Enable Communications Between Devices Running CatOS and MARS



 Before you add a Cisco switch running CatOS to MARS, make sure that you have enabled SNMP, Telnet, SSH, or FTP access to the swtich. First, you must configure the MARS Appliance as an IP address that is permited to access the switch.



 For information on permitting IP addresses and specifying the access type, see the following URL:



 http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/catos/6.x/configuration/guide/ip_perm.html#wp1019819



 Next, you must ensure that your switch is configured to enable the correct access method. The following sections provide guidance on configuring each supported access method:



 •Enable SNMP Administrative Access



 •Enable Telnet Administrative Access



 •Enable SSH Administrative Access



 •Enable FTP-based Administrative Access





 Enable SNMP Administrative Access



 To enable configuration discovery using SNMP access to the Cisco switch, refer to your device documentation or the following URL:



 IP Access



 http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/catos/6.x/configuration/guide/ip_perm.html



 Configure SNMP



 http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/catos/6.x/configuration/guide/snmp.html





 Enable Telnet Administrative Access



 To enable configuration discovery using Telnet access to the Cisco switch, refer to your device documentation or the following URL:



 IP Access



 http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/catos/6.x/configuration/guide/ip_perm.html#wp1019913





 Enable SSH Administrative Access



 To enable configuration discovery using SSH access to the Cisco router or switch, refer to your device documentation or the following URL:



 IP Access



 http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/catos/6.x/configuration/guide/ip_perm.html#wp1019893





 Enable FTP-based Administrative Access



 To enable configuration discovery using FTP access, you must place a copy the Cisco router's or switch's configuration file on an FTP server to which the MARS Appliance has access. This FTP server must have user authentication enabled.










 Note TFTP is not supported. You must use an FTP server.





 You must copy the running configuration from the Cisco switch. For information on copying the running configuration, refer to your device documentation or the following URL:



 http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/catos/6.x/configuration/guide/cli.html#wp1022739l





 Configure the Device Running CatOS to Generate Required Data



 You can configure the following message types:



 •SNMP RO strings



 •NAC messages (802.1x)



 •L2 discover settings



 •Syslog message



 For information on configuring these settings, refer to the following topics:



 •Enable SNMP RO Strings on CatOS



 •Enable NAC-specific Messages



 •Enable L2 Discovery Messages



 •Enable Syslog Messages on CatOS





 Enable SNMP RO Strings on CatOS



 If the supervisor SNMP server is not configured, you must perform this procedure.



 To configure the supervisor SNMP server and enabled SNMP traps on the Catalyst switch, follow these steps:





 Step 1 Enter configuration mode:





switch> enable








Enter password: <password>








switch> (enable)













 Step 2 Set the SNMP read community string as follows:





switch> (enable) set snmp community read-only <read community>













 Step 3 Set the SNMP write community string as follows:





switch> (enable) set snmp community read-write <write community>








switch> (enable) set snmp community read-write-all <write community>













 Step 4 To collect RMON Ethernet statistics, RMON data collection must be enabled in the CatOS agent (this is not required in Native IOS). To enable RMON collection, enter the following:





switch> (enable) set snmp rmon enable













 Step 5 Exit configuration mode as follows:





switch> (enable) exit


















 Enable Syslog Messages on CatOS



 To configure a Cisco switch running CatOS to send syslog information to MARS, follow these steps:





 Step 1 To enable the syslog server on the switch, enter:





set logging server enable













 Step 2 To identify the MARS Appliance as a destination for syslog messages, enter the following command:





set logging server <IP address of MARS Appliance>













 Step 3 The remaining commands tell the switch what kinds of logging information to provide and at what level. The commands in the following example can be changed to suit your requirements.





set logging level cdp 7 default








set logging level mcast 7 default








set logging level dtp 7 default








set logging level dvlan 7 default








set logging level earl 7 default








set logging level fddi 7 default








set logging level ip 7 default








set logging level pruning 7 default








set logging level snmp 7 default








set logging level spantree 7 default








set logging level sys 7 default








set logging level tac 7 default








set logging level tcp 7 default








set logging level telnet 7 default








set logging level tftp 7 default








set logging level vtp 7 default








set logging level vmps 7 default








set logging level kernel 7 default








set logging level filesys 7 default








set logging level drip 7 default








set logging level pagp 7 default








set logging level mgmt 7 default








set logging level mls 7 default








set logging level protfilt 7 default








set logging level security 7 default








set logging server facility SYSLOG








set logging server severity 7








set logging buffer 250








set logging timestamp enable


















 Enable L2 Discovery Messages



 To enable L2 discovery on your Cisco switches, you must enable the spanning tree protocol (STP) and provide the SNMP RO community string. All L 2 devices must support SNMP STP MIB (IETF RFC 1493). The discovered information includes interfaces, Layer 3 (L3) routes, L2 spanning trees, L2 forwarding tables, MAC addresses, and so on.










 Note STP is enabled by default on all Cisco switches. Therefore, unless you have altered this setting, no changes are necessary.





 For more information on configuring STP, see the section, Spanning Tree Protocol at the following URL:



 http://www.cisco.com/en/US/products/hw/switches/ps708/prod_configuration_examples_list.html





 Add and Configure a Cisco Switch in MARS



 MARS monitors Cisco switches running either CatOS or Cisco IOS 12.2 and later.



 To add the configuration information that MARS uses to monitor a Cisco switch running Cisco IOS 12.2 and later, follow these steps:





 Step 1 Select Admin > System Setup > Security and Monitor Devices > Add.



 Step 2 Do one of the following:



 •If the switch is running any version of CatOS, select Cisco Switch-CatOS ANY from the Device Type list.



 •If the switch is running Cisco IOS 12.2 or later, select one of the following options from the Device Type list:



 –Cisco IOS 12.2



 –Cisco IOS 12.3



 –Cisco IOS 12.4



 Step 3 Enter the name of the device in the Device Name field.



 MARS maps this name to the reporting IP address. This name is used in topology maps, queries, and in the Security and Monitoring Device list. For devices that support the discovery operation, such as routers and firewalls, MARS renames this field's value to match the name discovered in the device configuration, which typically uses the hostname.domain format. For devices that cannot be discovered, such as Windows and Linux hosts and host applications, MARS uses the provided value.



 Step 4 (Optional) To enable MARS to discover settings from this device, enter the administrative IP address in the Access IP field.



 To learn more about the access IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 5 Enter the IP address of the interface that publishes syslog messages, SNMP notifications, NetFlow MIBs, or any combination of the three, in the Reporting IP field.



 To learn more about the reporting IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 6 If you entered an address in the Access IP field, select SNMP, TELNET, SSH, or FTP from the Access Type list, and continue with the procedure that matches your selection:



 •Configure SNMP Access for Devices in MARS, page 2-11



 •Configure Telnet Access for Devices in MARS, page 2-12



 •Configure SSH Access for Devices in MARS, page 2-12



 •Configure FTP Access for Devices in MARS, page 2-12



 For more information on determining the access type, see Selecting the Access Type, page 2-10.



 Step 7 (Optional) To enable MARS to retrieve MIB objects for this reporting device, enter the device's read-only community string in the SNMP RO Community field.



 Before you can specify the SNMP RO string, you must define an access IP address. MARS uses the SNMP RO string to read MIBs related to a reporting device's CPU usage, network usage, and device anomaly data and to discover device and network settings.



 Step 8 (Optional) To enable MARS to monitor this device for anomalous resource usage, select Yes from the Monitor Resource Usage list.



 Result: MARS monitors the device for anomalous consumption of resources, such as memory and CPU. If anomalies are detected, MARS generates an incident. Resource utilization statistics are also used to generate reports. For more information, see Configuring Resource Usage Data, page 2-42.



 Step 9 (Optional) If you defined an access IP and selected and configured an access type, click Discover to determine the device settings



 Result: If the username and password are correct and the MARS Appliance is configured as an administrative host for the device, the "Discovery is done." dialog box appears when the discovery operation completes. Otherwise, an error message appears. After the initial pull, the MARS Appliance pulls based on the schedule that you define. For more information, see Scheduling Topology Updates, page 2-40.



 Step 10 To add this device to the MARS database, click Submit.



 Result: The submit operation records the changes in the database tables. However, it does not load the changes into working memory of the MARS Appliance. The activate operation loads submitted changes into working memory.



 Step 11 Click Activate.



 Result: MARS begins to sessionize events generated by this device and evaluate those events using the defined inspection and drop rules. Any events published by the device to MARS before activation can be queried using the reporting IP address of the device as a match criterion. For more information on the activate action, see Activate the Reporting and Mitigation Devices, page 2-28.



 After submitting, you can add modules. See Adding Modules to a Cisco Switch.








 Adding Modules to a Cisco Switch



 In MARS, you can represent, discover, and monitor modules that are installed in Cisco switches. These modules perform special purpose security functions for the switch, such as firewall or intrusion detection and prevention. MARS recognizes the following switch modules and versions:



 •Cisco FWSM 1.1, 2.2, 2.3, 3.1, and 3.2



 •Cisco IDS 3.1 and 4.0



 •Cisco IPS 5.x and 6.x



 •Cisco IOS 12.2, 12.3, and 12.4



 To add a module, you must first add the base module, which is the Cisco switch. After the base module is defined in the web interface, you can discover the modules that are installed in the switch (click Add Available Module) or add them manually (click Add Module).



 For instructions on adding and configuring a firewall services module (FWSM), see Cisco Firewall Devices (PIX, ASA, and FWSM), page 5-1.



 For instructions on adding and configuring an intrusion detection or prevention services module (IDSM or IPSM), see Cisco IPS Modules, page 8-16.



 This section contains the following topics:



 •Add Available Modules



 •Add Cisco IOS Modules Manually





 Add Available Modules



 When you perform a discovery operation on a base module, MARS lists the discovered modules. From this list, you can select the modules to monitor using MARS.



 To add available modules, follow these steps:





 Step 1 Click Add Available Module.















 If modules are installed in the switch, a list of the modules appears.



 Step 2 Select a module from the Select list.



 Step 3 Click Add.



 Step 4 Repeat for other modules.



 Step 5 After you add the desired modules, verify the configuration information of each. For example, verify that the SNMP RO community string matches that defined for use by MARS. To verify these settings, select a module and click Edit Module.



 Basic guidance for editing these settings can be found in the topics that discuss manually adding these modules. See the following topics for more information:



 •Add Cisco IOS Modules Manually



 •Cisco Firewall Devices (PIX, ASA, and FWSM), page 5-1



 •Cisco IPS Modules, page 8-16.



 Step 6 To add these modules to the base module defined in the MARS database, click Submit.



 Result: The submit operation records the changes in the database tables. However, it does not load the changes into working memory of the MARS Appliance. The activate operation loads submitted changes into working memory.



 Step 7 Click Activate.



 Result: MARS begins to sessionize events generated by this device and the selected modules and evaluate those events using the defined inspection and drop rules. Any events published by the device or its modules to MARS before activation can be queried using the reporting IP address of the device or module as a match criterion. For more information on the activate action, see Activate the Reporting and Mitigation Devices, page 2-28.








 Add Cisco IOS Modules Manually



 To add a module manually, follow these steps:





 Step 1 Click Add Module.



 Step 2 Select one of the following options from the Device Type list:



 •Cisco IOS 12.2



 •Cisco IOS 12.3



 •Cisco IOS 12.4















 Step 3 Enter the name of the module in the Device Name field.



 MARS maps this name to the reporting IP address. This name is used in topology maps, queries, and in the Security and Monitoring Device list. For modules that support the discovery operation, such as router and firewall modules, MARS renames this field's value to match the name discovered in the device configuration, which typically uses the hostname.domain format.



 Step 4 (Optional) To enable MARS to discover settings from this device, enter the administrative IP address in the Access IP field.



 To learn more about the access IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 5 Enter the IP address of the interface that publishes syslog messages, SNMP notifications, NetFlow MIBs, or any combination of the three, in the Reporting IP field.



 To learn more about the reporting IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 6 If you entered an address in the Access IP field, select TELNET, SSH, or FTP from the Access Type list, and continue with the procedure that matches your selection:



 •Configure Telnet Access for Devices in MARS, page 2-12



 •Configure SSH Access for Devices in MARS, page 2-12



 •Configure FTP Access for Devices in MARS, page 2-12



 For more information on determining the access type, see Selecting the Access Type, page 2-10.



 Step 7 (Optional) To enable MARS to retrieve MIB objects for this reporting device, enter the device's read-only community string in the SNMP RO Community field.



 Before you can specify the SNMP RO string, you must define an access IP address. MARS uses the SNMP RO string to read MIBs related to a reporting device's CPU usage, network usage, and device anomaly data and to discover device and network settings.



 Step 8 (Optional) To enable MARS to monitor this device for anomalous resource usage, select Yes from the Monitor Resource Usage list.



 Result: MARS monitors the module for anomalous consumption of resources, such as memory and CPU. If anomalies are detected, MARS generates an incident. Resource utilization statistics are also used to generate reports. For more information, see Configuring Resource Usage Data, page 2-42.



 Step 9 (Optional) If you defined an access IP and selected and configured an access type, click Discover to determine the module settings.



 Result: If the username and password are correct and the MARS Appliance is configured as an administrative host for the module, the "Discovery is done." dialog box appears when the discovery operation completes. Otherwise, an error message appears. After the initial pull, the MARS Appliance pulls based on the schedule that you define. For more information, see Scheduling Topology Updates, page 2-40.



 Step 10 To add this module to the device in the MARS database, click Submit.



 Result: The submit operation records the changes in the database tables. However, it does not load the changes into working memory of the MARS Appliance. The activate operation loads submitted changes into working memory.








 Extreme ExtremeWare 6.x



 MARS can use Extreme ExtremeWare switches to enforce L2 mitigation. To configure MARS to communicate with an ExtremeWare switch, you must configure the switch to publish SNMP notifications to the MARS Appliance. In addition, you must add and configure the switch in the web interface.



 This section contains the following topics:



 •Configure ExtremeWare to Generate the Required Data



 •Add and Configure an ExtremeWare Switch in MARS





 Configure ExtremeWare to Generate the Required Data



 To bootstrap an ExtremeWare switch, you must configure two features. First, you must configure the switch to send syslog messages to the MARS Appliance. Next, you must configure the SNMP RO community for MARS to access available L2 information.



 To prepare the ExtremeWare device to generate the data required by MARS, follow these steps:





 Step 1 For syslog configuration, add this command:





	configure syslog add <MARS's IP address> local7 debug








	enable syslog













 Step 2 For SNMP configuration add these commands:





	enable snmp dot1dTpFdbTable








	configure snmp delete community readonly all








	configure snmp delete community readwrite all








	configure snmp add community readonly encrypted <encrypted community string>








	configure snmp add community readwrite encrypted <encrypted community string>


















 Add and Configure an ExtremeWare Switch in MARS



 To add and configure an ExtremeWare switch in MARS, follow these steps:





 Step 1 Select Admin > System Setup > Security and Monitor Devices > Add.



 Step 2 Select Extreme ExtremeWare 6.x from the Device Type list.



 Step 3 Enter the name of the device in the Device Name field.



 MARS maps this name to the reporting IP address. This name is used in topology maps, queries, and in the Security and Monitoring Device list. For devices that support the discovery operation, such as routers and firewalls, MARS renames this field's value to match the name discovered in the device configuration, which typically uses the hostname.domain format. For devices that cannot be discovered, such as Windows and Linux hosts and host applications, MARS uses the provided value.



 Step 4 (Optional) To enable MARS to discover settings from this device, enter the administrative IP address in the Access IP field.



 To learn more about the access IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 5 Enter the IP address of the interface that publishes syslog messages, SNMP notifications, or both in the Reporting IP field.



 To learn more about the reporting IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 6 If you entered an address in the Access IP field, select SNMP from the Access Type list.



 For more information on understanding the access type, see Selecting the Access Type, page 2-10.



 Step 7 (Optional) To enable MARS to retrieve MIB objects for this reporting device, enter the device's read-only community string in the SNMP RO Community field.



 Before you can specify the SNMP RO string, you must define an access IP address. MARS uses the SNMP RO string to read MIBs related to a reporting device's CPU usage, network usage, and device anomaly data and to discover device and network settings.



 Step 8 To add this device to the MARS database, click Submit.



 Result: The submit operation records the changes in the database tables. However, it does not load the changes into working memory of the MARS Appliance. The activate operation loads submitted changes into working memory.



 Step 9 Click Activate.



 Result: MARS begins to sessionize events generated by this device and evaluate those events using the defined inspection and drop rules. Any events published by the device to MARS before activation can be queried using the reporting IP address of the device as a match criterion.








 Generic Router Device



 You can add any L2 or L3 device to the MARS as long as SNMP is enabled on the device. A generic router refers to any L2 or L3 device that is not listed in the Supported Devices and Software Versions for CS-MARS Local Controller 4.1.




 Add and Configure a Generic Router in MARS



 To add and configure a generic router device in MARS, follow these steps:





 Step 1 Select Admin > System Setup > Security and Monitor Devices > Add.



 Step 2 Select Generic Router version unknown from the Device Type list.



 Step 3 Enter the name of the device in the Device Name field.



 MARS maps this name to the reporting IP address. This name is used in topology maps, queries, and in the Security and Monitoring Device list. For devices that support the discovery operation, such as routers and firewalls, MARS renames this field's value to match the name discovered in the device configuration, which typically uses the hostname.domain format. For devices that cannot be discovered, such as Windows and Linux hosts and host applications, MARS uses the provided value.



 Step 4 (Optional) To enable MARS to discover settings from this device, enter the administrative IP address in the Access IP field.



 To learn more about the access IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 5 Enter the IP address of the interface that publishes syslog messages, SNMP notifications, or both in the Reporting IP field.



 To learn more about the reporting IP address, its role, and dependencies, see Understanding Access IP, Reporting IP, and Interface Settings, page 2-8.



 Step 6 If you entered an address in the Access IP field, select SNMP from the Access Type list.



 For more information on understanding the access type, see Selecting the Access Type, page 2-10.



 Step 7 (Optional) To enable MARS to retrieve MIB objects for this reporting device, enter the device's read-only community string in the SNMP RO Community field.



 Before you can specify the SNMP RO string, you must define an access IP address. MARS uses the SNMP RO string to read MIBs related to a reporting device's CPU usage, network usage, and device anomaly data and to discover device and network settings.



 Step 8 To add this device to the MARS database, click Submit.



 Result: The submit operation records the changes in the database tables. However, it does not load the changes into working memory of the MARS Appliance. The activate operation loads submitted changes into working memory.



 Step 9 Click Activate.



 Result: MARS begins to sessionize events generated by this device and evaluate those events using the defined inspection and drop rules. Any events published by the device to MARS before activation can be queried using the reporting IP address of the device as a match criterion.






















































































































































































































Was this Document Helpful?







      FeedbackFeedback

























































Contact Cisco
