Cisco uBR10012 Universal Broadband Router Half-Height Gigabit Ethernet Line Card Installation
Release History
Release Date
|
Modification
|
07/16/2008
|
Support for the GLC-T SFP module.
|
07/24/2005
|
This product was introduced.
|
This installation guide contains instructions for the installation and basic troubleshooting of the Cisco Half-Height Gigabit Ethernet line card (HHGE) in a Cisco uBR10012 universal broadband router.
This document is intended for use by a field service engineer who is familiar with Cisco products and headend cable installation procedures.
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Contents
•Product Overview
•Technical Specifications and Part Numbers
•Compliance Information
•Prerequisites and Preparation
•Safety and Warnings
•Installation Guidelines
•Installing the Slot Splitter and Half-Height Gigabit Ethernet Line Card
•Removing and Replacing an SFP Module
•Removing the Half-Height Gigabit Ethernet Line Card and the Slot Splitter
•Upgrading to a Half Height Gigabit Ethernet Line Card
•Troubleshooting the Installation
•Cleaning the Fiber-Optic Connections
•Obtaining Documentation, Obtaining Support, and Security Guidelines
Product Overview
The Cisco HHGE line card (Figure 2) contains a single Gigabit Ethernet port that provides a trunk uplink to switches and core routers. The Cisco HHGE line card provides the Cisco uBR10012 universal broadband router with an IEEE 802.3z compliant Ethernet interface that can run up to 1 Gbps in full duplex mode. The line card uses a Small Form-factor Pluggable (SFP) gigabit interface converter (GBIC) module that supports a variety of gigabit Ethernet interface types (SX LX/LH, and ZX), which you can change or upgrade at any time.
Note Only SFP GBIC modules purchased from Cisco work with the gigabit Ethernet line card software.
Benefits
The Cisco HHGE line card provides the following benefits:
•Provides 1-port full duplex 1 Gbps data rate
•Supports Etherchannel network
•Supports OIR for 1000BASE-SXs, 1000BASE-LX, or 1000BASE-ZX GBICs, as described in the IEEE 802.3zspecifications
•Provides redundant trunks in one chassis slot
•Increases throughput density and load balancing which enhances high availability
•Supports trunk redundancy in a single slot, which frees up a slot for additional subscriber cards
Restrictions
•The Cisco HHGE line card installed in a Cisco uBR10012 universal broadband router, must be used with the Performance Routing Engine (PRE2). This card is not supported with the PRE1 installed.
•The Cisco HHGE line card must be installed in WAN slots 3/0/0, 3/1/0, 4/0/0 or 4/1/0. See Figure 1.
•Only SFP modules supplied by Cisco with your HHGE line card work with the HHGE line card. Unapproved SFP modules (those not purchased directly from Cisco) do not work with the HHGE line card.
Installation Location and Physical Description

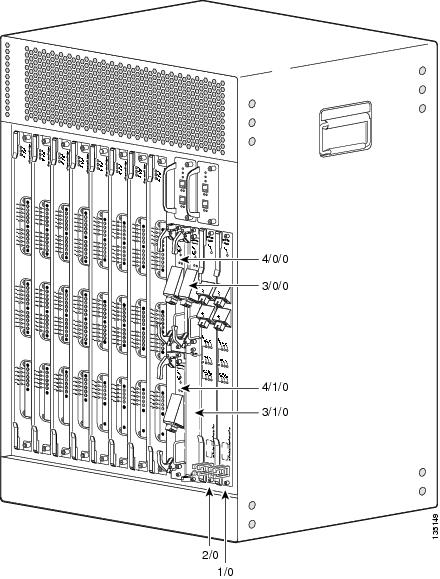

Figure 1 shows the slot locations used by the WAN cards in the Cisco uBR10012 router.
Caution Cisco HHGE line cards are installed in slots 3/0/0, 3/1/0, 4/0/0, and 4/1/0. Installation in other slots is not supported.
Figure 1 Cisco Half-Height Gigabit Ethernet Line Card Slot Locations
Figure 2 Half-Height Gigabit Ethernet Line Card
1
|
Ejector Levers
|
4
|
SFP Gigabit Ethernet Interface Converter
|
2
|
FAIL LED (yellow)
|
5
|
Link Status (green)
|
3
|
Receive Packet (green)
|
6
|
Transmit Packet (green)
|
LEDs
This line card faceplate contains the following LEDs that continuously indicate line card status as well as the status of the port during operation (see Figure 2):
•FAIL (yellow)—This LED lights during portions of the POST (Power-On Self Test), but remains off after the POST on a properly working line card. If the line card fails during operation, this LED lights and an alarm event occurs.
The FAIL LED blinks during the following SFP faults:
–An SFP GBIC other than a Cisco brand is inserted
–A non-gigabit Ethernet SFP GBIC is inserted
–A hardware problem occurs in a valid SFP GBIC
•Link (green)—When on, this LED indicates that a carrier signal exists. If negotiation is enabled (at both ends), it indicates successful completion and the port can pass traffic.
Note This LED can also be on if the line card is in internal loopback.
When off, this LED indicates that no carrier signal is detected, negotiation failed, or the port is administratively down.
–RX (green)—When on, this status LED indicates that packets are being received. When this LED is off, the line card is not receiving packets.
–TX (green)—When on, this status LED indicates that packets are being transmitted. When this LED is off, the line card is not transmitting packets.
Note Because this line card operates in full-duplex mode, both the RX and TX LEDs can be on at the same time.
For additional information about using the faceplate LEDs to troubleshoot the line card, see the "Troubleshooting the Installation" section.
SFP Gigabit Ethernet Interface Converter Modules and Cable Specifications
The HHGE line card supports single Ethernet interfaces based on SFP GBIC technology. The following SFPs are supported by this line card:
•1000BASE-SX SFP—The SFP-GE-S, 1000BASE-SX SFP operates on ordinary multimode fiber optic link spans of up to 550 meters in length.
•1000BASE-LX/LH SFP—The SFP-GE-L, 1000BASE-LX/LH SFP operates on ordinary single-mode fiber optic link spans of up to 10,000 meters in length.
•1000BASE-ZX SFP—The GLC-ZX-SM, 1000BASE-ZX SFP operates on ordinary single-mode fiber optic link spans of up to 70 kilometers (km) in length. Link spans of up to 100 km are possible using premium single-mode fiber or dispersion-shifted single-mode fiber. The SFP provides an optical link budget of 23 dB—the precise link span length depends on multiple factors such as fiber quality, number of splices, and connectors.
When shorter distances of single-mode fiber are used, it may be necessary to insert an inline optical attenuator in the link, to avoid overloading the receiver. A 5-decibel (dB) or 10-dB inline optical attenuator should be inserted between the fiber optic cable plant and the receiving port on the GLC-ZX-SM at each end of the link whenever the fiber optic cable span is less than 25 km.
•1000BASE-T SFP— Support for the GLC-T, 1000BASE-T SFP module is introduced in Cisco IOS Release 12.3(23)BC1.
The Cisco GLC-T, 1000BASE-T SFP module connects a Cisco Gigabit Interface Converter (GBIC) port to Category 5 wiring via a standard RJ-45 interface. The maximum Category 5 wiring distance is 100 m. The module provides with an option of connecting to a backhaul network interface. For more information on the Cisco GLC-T 1000BASE-T SFP, see http://www.cisco.com/en/US/docs/routers/7200/install_and_upgrade/gbic_sfp_modules_install/5067g.html
Note The required line card SFP GBIC is shipped already installed in the line card. Cisco sells individual SFP GBICs separately and you can change the type of gigabit Ethernet interface supported by this line card by simply changing its SFP GBIC module.
Table 1 lists the interface types supported by gigabit Ethernet line card.
Table 1 GBIC Port Cabling Specifications
SFP GBIC
|
Wavelength
(nm)
|
Fiber Type
|
Core Size
(microns)
|
Modal Bandwidth
(MHz*km)
|
Cable Distance
|
1000BASE-SX
SFP-GE-S
|
850
|
MMF
|
62.5
62.5
50.0
50.0
|
160
200
400
500
|
722 ft (220 m)
902 ft (275 m)
1640 ft (500 m)
1804 ft (550 m)
|
1000BASE-LX/LH
SFP-GE-L
|
1300
|
MMF1
SMF
|
62.5
50.0
50.0
8 to 10
|
500
400
500
—
|
1804 ft (550 m)
1804 ft (550 m)
1804 ft (550 m)
32,808 ft (10 km)
|
1000BASE-ZX
GLC-ZX-SM
|
1550
|
SMF
|
9, 10
|
—
|
229152 to 327360 ft (70 to 100 km)2
|
1000BASE-T SFP
|
NA
|
NA
|
NA
|
NA
|
328 ft (100 m)
|
For more information about the SFPs, see the following URL: http://www.cisco.com/en/US/products/
hw/modules/ps5000/products_data_sheet09186a008014cb62.html
Technical Specifications and Part Numbers
For more information on safety and compliance, see the Regulatory Compliance and Safety Information for the Cisco uBR10012 Universal Broadband Router and at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ub10rcsi.htm
Table 2 lists part numbers and specifications for the Cisco half height Gigabit Ethernet line card, slot splitter card and GBIC modules.
Table 2 Cisco Half-Height Gigabit Ethernet Line Card
Description
|
Part Numbers and Specification
|
Cisco half-height gigabit Ethernet line card
|
ESR-HH-1GE
|
Slot splitter card
|
ESR-HH-CARRIER
|
Half height slot blank cover
|
ESR-HH-COVER
|
Full height slot blank cover
|
ESR-COVER
|
1000BASE-SX—pluggable transceiver
|
SFP-GE-S
|
1000BASE-LX/LH—pluggable transceiver
|
SFP-GE-L
|
1000BASE-ZX— pluggable transceiver
|
GLC-ZX-SM
|
1000BASE-T SFP— pluggable transceiver
|
GLC-T
|
Line card dimensions (H x W x D)
|
7.8 x 1.3 x 11 in. (19.8 x 3.3 x 27.9 cm)
|
Splitter card dimensions (H x W x D)
|
16.00 x 1.80 x 10.50 in. (40.64 x 3.00 x 26.67cm)
|
Weight (HHGE)
|
2 lb (0.9 kg)
|
Weight (slot splitter)
|
2.28 lb (1.05 kg)
|
Power consumption (line card)
|
15.98 W
|
Optical power budget—1000BASESX GBIC
|
•Power budget: 7.5 dB
•Transmit power: -9.5 to 0 dBm
•Receive power: -17 to 0 dBm
|
Optical power budget—1000BASELX/LH GBIC
|
•Power budget: 7.5 dB (multimode fiber), 8 dB (single mode)
•Transmit power: -11.5 to -3 dBm (multimode fiber), -11 to -3 dBm (single mode)
•Receive power: -19 to -3 dBm (multimode and single mode fiber)
|
Optical power budget—1000BASEZX GBIC
|
•Power budget: 23 dB
•Transmit power: 0 to 4.77 dBm
•Receive power: -23 to 0 dBm
|
Thermal heat dissipation
|
BTU
|
MTBF—HHGE
Slot splitter card
|
•449330 hours
•N/A
|
Operating temperature, nominal
Operating temperature, short term
Storage temperature
|
•41 to 104°F (5 to 40°C)
•23 to 131°F (-5 to 55°C)
•-38 to 150°F (-40 to 70°C)
|
Relative humidity
|
•Operating: 10 to 90% non-condensing
•Non-operating: 5 to 95%
|
Operating altitude
|
-197 to 13,123 ft. (-60 to 4000 m)
|
Software requirements
|
Cisco IOS release 12.3(13)BC
|
Other requirements
|
•Requires PRE2 module
•Carrier card location installation limitations, see the "Restrictions" section
|
Compliance Information
This device complies with the world-wide compliance requirements specified in the following sections.
USA—Class B Notice
The equipment described in this manual generates and may radiate radio-frequency energy. If it is not installed in accordance with Cisco installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.
Modifying the equipment without written Cisco authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:
•Turn the television or radio antenna until the interference stops.
•Move the equipment to one side or the other of the television or radio.
•Move the equipment farther away from the television or radio.
•Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.)
Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.
Europe, Australia, and New Zealand—Class B Notices
CISPR 22 Class B Requirements
•EN55022:1998—European requirements
•AS/NZ 3548:1995—Australia and New Zealand
General Requirements
•Blank faceplates must be installed in all empty chassis slots.
Canada—Class B Notice
This Class B digital apparatus complies with Canadian ICES-003.
Cet apparéil numerique de las classe Best conforme á la norme NMB-003 du Canada.
Japan—Class B Notice
This equipment complies with the Class B requirements specified by the Voluntary Control Council for Interference by Information Technology Equipment (VCCI) as described in the following statement:
|
Warning This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
|
|
|
Korea—Class B Notice
This equipment complies with the Class B requirements as described in the following statement:
|
Warning This is a Class B Device and is registered for EMC requirements for residential use. This device can be used not only in residential areas but in all other areas.
|
|
|
Safety Compliance
This line card meets the following safety standards:
•UL60950/CAN/CSA-C22.2 No. 60950-00, third edition, dated
December 1, 2000, with no deviation considered to be less stringent than IEC 60950
•EN60950 with Amendments 1-4, for CE Marking to the LVD directive
•IEC 60950 third edition with Amendments 1-4 including all national/group deviations
•AS/NZS 60950:2000
•AS/NZS 3260-1993 with Amendments 1-4
•ACA TS001-1997
Laser Safety
This line card meets the following laser safety standards:
•21 CRF 1040, Subchapter J
–EN60825-1
–EN60825-2
Networking Equipment-Building Systems Compliance
This line card meets the following Networking Equipment-Building Systems (NEBS) standards:
•Level 3 compliant
•Telcordia SR-3580 Criteria Levels, issued 11/95
•GR1089-Core: Electromagnetic Compatibility & Electrical Safety, issued 2/99
•GR63-Core: Physical Protection Requirements, issued 4/02
•SBC Equipment Requirements: TP76200 MP & TP76400 MP
•Verizon Equipment Requirements: SIT.NEBS.TE.NPI.2000.004 Rev. 1
Emissions and Immunity Compliance
This line card meets the following emissions and immunity standards.
Emissions
This line card complies with:
•EN61000-3-2
•EN61000-3-3
•CISPR22, Class B
In addition, this equipment conforms with other world-wide variants of CISPR22 such as 47CFR, Part 15; ENRR022; and so on. For further details, see the specified declaration of conformity and test reports.
Immunity
This line card complies with:
•EN300386 (reference)
•EN55024 (reference)
•EN50082-2
This line card complies with the requirements of the following specifications as defined in the reference:
•EN61000-4-2, ESD
•EN61000-4-3, Radiated Immunity
•EN61000-4-4, Burst Transients
•EN61000-4-5, Surges
•EN61000-4-6, Injected RF
•EN61000-4-11, Dips + Sags
In addition, this line card also complies with other requirements. Refer to relevant test reports.
Prerequisites and Preparation
Before you perform any of the procedures in this guide, we recommend that you:
•Read the safety guidelines in the next section and review the electrical safety and ESD-prevention guidelines in the Cisco uBR10012 Universal Broadband Router Installation Guide.
•Ensure that you have all of the necessary tools and equipment before you begin the installation (see the "Installation Guidelines" section).
•Have a terminal console connected to the performance routing engine (PRE2) to configure the line card after it is installed.
•Have access to the following documents (available online) during the installation:
–Cisco uBR10012 Universal Broadband Router Hardware Installation Guide
–Cisco uBR10012 Universal Broadband Router Troubleshooting Guide
–Cisco uBR10012 Universal Broadband Router Software Configuration Guide
Safety and Warnings
Following are safety guidelines that you should follow when working with any equipment that connects to electrical power.
Electrical Equipment Guidelines
Follow these basic guidelines when working with any electrical equipment:
•Before beginning any procedures requiring access to the chassis interior, locate the emergency power-off switch for the room in which you are working.
•Disconnect all power and external cables before moving a chassis.
•Do not work alone when potentially hazardous conditions exist.
•Never assume that power has been disconnected from a circuit; always check.
•Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
•Carefully examine your work area for possible hazards such as moist floors, ungrounded power extension cables, and missing safety grounds.
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) damage, which occurs when electronic cards or components are improperly handled, can result in complete or intermittent failures. The AC-input power shelf and its AC power modules contain a printed circuit card that is fixed in a metal carrier. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps to protect the cards from ESD, use an anti-static strap each time you handle the modules.
Following are guidelines for preventing ESD damage:
•Always use an ESD-preventive wrist or ankle strap and ensure that it makes good skin contact. Before removing a card from the chassis, connect the equipment end of the strap to a bare metal, unpainted surface on the chassis or rack-mount.
•Handle components by the carrier edges only; avoid touching the card components or any connector pins.
•When removing a module, place it on an anti-static surface or in a static-shielding bag. If the module will be returned to the factory, immediately place it in a static-shielding bag.
•Avoid contact between the modules and clothing. The wrist strap protects the card from ESD voltages on the body only; ESD voltages on clothing can still cause damage.
Caution For safety, periodically check the resistance value of the anti-static strap. The measurement should be between 1 and 10 megohms.
Note Statement numbers (Example: Statement 1071) at the end of a Warning refer to specific warnings and their translations in the Cisco uBR10012 Regulatory Compliance and Safety Information document.
Warning Definition
|
Warning
|
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071
SAVE THESE INSTRUCTIONS
|
Waarschuwing
|
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.
BEWAAR DEZE INSTRUCTIES
|
Varoitus
|
TÄRKEITÄ TURVALLISUUSOHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.
SÄILYTÄ NÄMÄ OHJEET
|
Attention
|
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.
CONSERVEZ CES INFORMATIONS
|
Warnung
|
WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
BEWAHREN SIE DIESE HINWEISE GUT AUF.
|
Avvertenza
|
IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.
CONSERVARE QUESTE ISTRUZIONI
|
Advarsel
|
VIKTIGE SIKKERHETSINSTRUKSJONER
Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.
TA VARE PÅ DISSE INSTRUKSJONENE
|
Aviso
|
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.
GUARDE ESTAS INSTRUÇÕES
|
¡Advertencia!
|
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.
GUARDE ESTAS INSTRUCCIONES
|
Varning!
|
VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.
SPARA DESSA ANVISNINGAR
|
|
|
|
|
|
|
|
|
|
|
Aviso
|
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.
GUARDE ESTAS INSTRUÇÕES
|
Advarsel
|
VIGTIGE SIKKERHEDSANVISNINGER
Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.
GEM DISSE ANVISNINGER
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Installation Guidelines
This section contains the following guidelines and requirements:
•Guidelines for a new installation
•Guidelines for a replacement installation
•Required tools and equipment
Line cards in the Cisco uBR10012 universal broadband router are hot-swappable, which means you can remove and replace line cards while the system is operating. You do not need to notify the software or reset the system power. This feature allows you to add, remove, or replace line cards while the system maintains all routing information and ensures session preservation.
Caution To prevent electrostatic discharge (ESD) damage, handle line cards by the faceplate or the card carrier edges only. Avoid touching the line card printed circuit board, components, or any connector pins.
Guidelines for New Installation or Upgrade Installation
For upgrading information see the "Upgrading to a Half Height Gigabit Ethernet Line Card" section.
Requirements
•PRE2 module installed in your router
•IOS software release 12.3(13)BC or later
•Slot splitter installed in slot 3 and/or slot 4
Refer to Configuring the Cisco Half-Height Gigabit Ethernet Line Card at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/ub10ksw/index.htm
Refer to the Cisco uBR10012 Universal Broadband Router Software Configuration Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/scg/index.htm
Guidelines for Replacing a Line Card
Note For replacing a GigE line card with an HHGE line card.
If you replace a line card (into the same slot), the system automatically downloads the necessary configuration information from the PRE2. You do not need to configure the replacement line card. Interfaces that were configured to be in an up state on the previous line card are also recognized as up on the replacement line card.
Required Tools and Equipment
You need the following tools and equipment to install the line card:
•A No. 2 Phillips screwdriver
•ESD-preventive wrist or ankle strap with connection cord
•Antistatic surface or antistatic bag
•A terminal console connected to the PRE2
Note A PRE 2 must be installed in the Cisco uBR10012 router for this configuration.
Installing the Slot Splitter and Half-Height Gigabit Ethernet Line Card
This section describes how to install the line card in the Cisco uBR10012 router. This section includes the following tasks:
•Installing the Slot Splitter
•Installing the Half-Height Gigabit Ethernet Line Card
•Half-Height Gigabit Ethernet Line Card Configuration
Caution You must use slot 3 or slot 4 when installing the slot splitter and HHGE line card in the Cisco uBR10012 router, using slot 1 or slot 2 will cause the router to shut down those slots.
Caution Do not install two half-height blank faceplates into the same slot in the slot splitter. Instead, install a full-slot blank faceplate into the slot. The half-height blank faceplates do not have air dams, and the empty slot will rob cooling air from the other slots. A slot splitter with one half-height line card and one blank faceplate is allowed.
Caution Do not install a line card into the slot splitter before installing the splitter into the chassis. The slot splitter does not have ejector levers that allow you to seat the line card in the backplane.
Installing the Slot Splitter
You must install the half-height line card into a slot that contains a slot splitter, which can hold two half-height line cards. If both slots of the slot splitter are not used, then you must install a blank faceplate in the empty slot.
Follow these steps to install a slot splitter into slot 3 or slot 4 of the Cisco uBR10012 chassis.
Step 1 Attach an antistatic wrist strap to your wrist and to an ESD socket on the chassis, or to a bare metal surface on the chassis or frame (Figure 3).

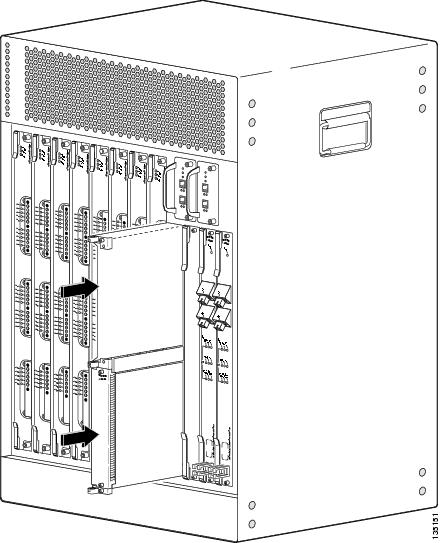

Figure 3 Inserting the Slot Splitter
Step 2 Grasp the front of the slot splitter with one hand and place your other hand under the splitter. Position the splitter in front of the card cage slot.
Step 3 Carefully align the upper and lower edges of the slot splitter with the upper and lower guides in the chassis, and slide the splitter into the slot until the front is flush with the chassis.
Note The slot splitter shown in Figure 3 has one open slot (top) and one slot with a slot cover (bottom).

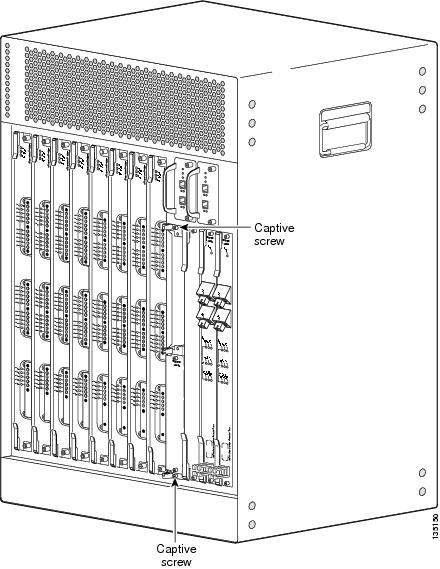

Figure 4 Captive Screw Locations
Step 4 Secure the slot splitter to the chassis by tightening the top and bottom captive screws (Figure 4).
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Statement 1029
Installing the Half-Height Gigabit Ethernet Line Card
Use the following procedure to install a HHGE line card into an installed slot splitter. See the "Installing the Slot Splitter" section to install the slot splitter.
If you are replacing a line card, see the "Removing a Half-Height Gigabit Ethernet Line Card" section before you begin this procedure.
Step 1 Attach an antistatic wrist strap to your wrist and to an ESD socket on the chassis, or to a bare metal surface on the chassis or frame.

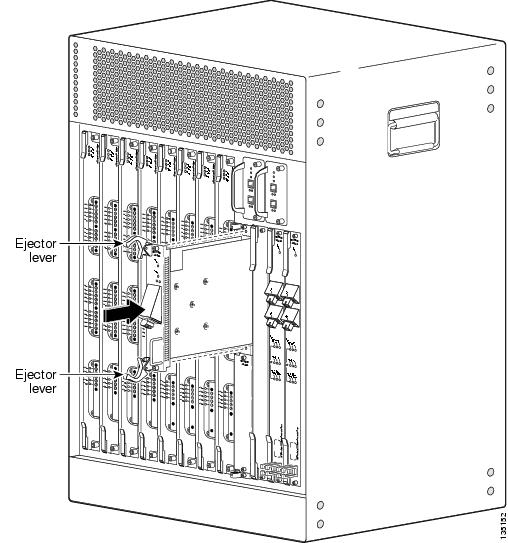

Figure 5 Inserting the HHGE Line Card
Step 2 Grasp the faceplate of the line card with one hand and place your other hand under the card carrier (to support the weight of the card). Position the card in front of the slot splitter.
Step 3 Carefully align the upper and lower edges of the line card with the upper and lower guides in the slot splitter, and slide the line card about half-way into the splitter.
Step 4 Be sure the ejectors are in the open position (as shown) and continue to push the line card into the splitter until you can feel it begin to seat in the backplane connectors.
Step 5 Verify that the captive screws are properly aligned with the captive screw holes in the splitter. If the captive screws are not properly aligned, the card will not seat properly in the backplane.
Step 6 Simultaneously pivot both ejector levers toward each other (until they are parallel to the faceplate) to firmly seat the card in the backplane (Figure 6).
The line card cycles through its power-on self-test. The FAIL LED lights during portions of the POST (Power-On Self Test), but remains off after POST on a properly working line card. If the FAIL LED remains on, go to the "Troubleshooting the Installation" section.

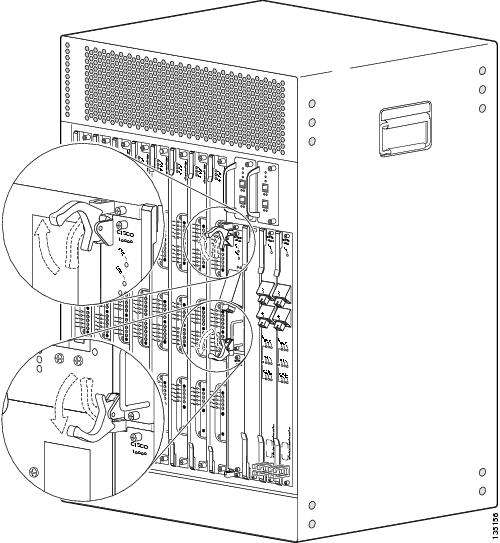

Figure 6 Closing the Ejector Levers

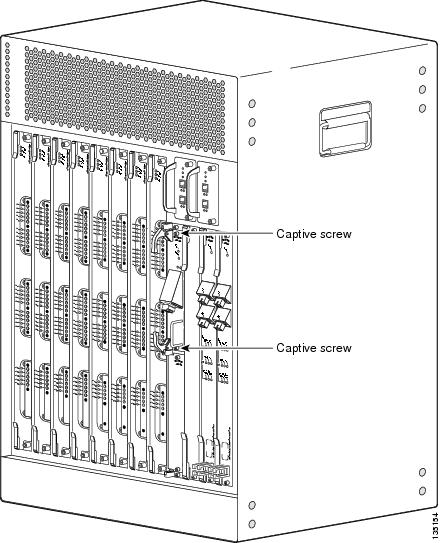

Figure 7 Captive Screw Locations
Step 7 Secure the line card in the slot splitter by tightening the top and bottom captive screws (Figure 7).
Caution To ensure that there is adequate space for additional line cards, always tighten the captive screws on each newly installed line card
before you insert any additional line cards. These screws prevent accidental removal and provide proper grounding for electromagnetic interference (EMI) shielding.
Half-Height Gigabit Ethernet Line Card Configuration
After you successfully install the line card you can configure it for network use. For information about configuring the line card, see Configuring Half-Height Gigabit Ethernet Line Cards at the following URL:
http://www.cisco.com/en/US/docs/interfaces_modules/cable/line_cards/ubr_hh_ge/configuration/guide/hhgefm10.html
Note If you are replacing this line card into the same chassis slot, you do not need to configure the line card. The system automatically downloads the configuration information used for the previous card from the PRE2.
Removing and Replacing an SFP Module
Your HHGE line card is shipped with an SFP module installed. Use the procedures in this section if you need to change the SFP module:
•Removing an SFP Module
•Inserting an SFP Module
Use only SFP modules supplied by Cisco with your HHGE line card. Each SFP module contains an internal serial EEPROM that is security-programmed by the SFP manufacturer with information that provides a way for Cisco (through Cisco IOS software) to identify and validate the SFP module as a module type that is tested and qualified by Cisco to operate properly with your line card. Unapproved SFP modules (those not purchased directly from Cisco) do not work with the HHGE line card.
Types of SFP Modules
SFP modules from different manufacturers provide different methods for freeing the locking pin and removing the SFP module. Figure 8 shows two available module types.
Figure 8 Mylar Tab SFP Module and Bale Clasp SFP Module
•Mylar Tab SFP—Pulling the mylar tab simultaneously releases the locking pin and pulls the SFP module out of its receptacle.
•Bale Clasp SFP—Opening the bale clasp releases the locking pin so you can remove the SFP module from its receptacle.
Removing an SFP Module
Use the following procedure to remove an SFP module from the HHGE line card.
Note You can remove an SFP module while the system is powered on, but the interface shuts down.
Step 1 Attach an antistatic wrist strap to your wrist and to an ESD socket on the chassis, or to a bare metal surface on the chassis or frame.
Figure 9 Disconnecting the LC-type Fiber-Optic Cable
Step 2 Disconnect the fiber-optic cable connector from the SFP module (Figure 9).
Note which cable connector plug is TX and which is RX for reattachment.

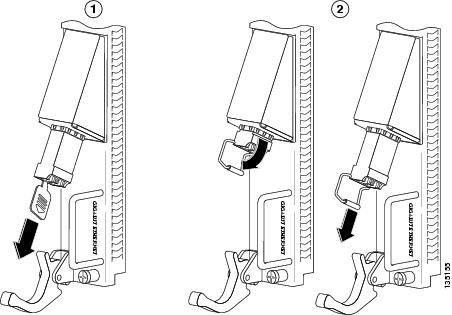

Figure 10 Removing an SFP Module
Step 3 Unlock and remove the SFP module as follows:
1. Mylar Tab SFP Modules—Gently, but firmly pull the plastic tab to free the locking pin and remove the SFP module (Figure 10).
Caution Do not twist the Mylar tab when you remove the SFP module. Twisting the tab may disconnect it from the module.
2. Bale Clasp Modules—Open the bale clasp to release the locking pin and remove the SFP module (Figure 10).
Step 4 Insert a dust plug into the optical ports of the removed SFP module to keep the optical interfaces clean, and place the module in an antistatic bag or other protective environment.
Inserting an SFP Module
Use the following procedure to insert an SFP module into the HHGE line card.
Step 1 Attach an antistatic wrist strap to your wrist and to an ESD socket on the chassis, or to a bare metal surface on the chassis or frame.
Figure 11 Inserting the SFP Module
Step 2 Gently insert the SFP module into the line card port until the edge connector is fully seated in the connector. You will hear a click as the triangular pin on the bottom of the SFP module snaps into place (Figure 11).
Step 3 Remove the dust plug from the SFP module optical ports and plug the LC-type fiber-optic cable connector into the SFP module (see Figure 11).
Removing the Half-Height Gigabit Ethernet Line Card and the Slot Splitter
This section describes how to properly remove HHGE line cards and the slot splitter from the chassis (for purposes of updating or upgrading to a new line card). This section includes the following tasks:
•Removing a Half-Height Gigabit Ethernet Line Card
•Removing the Slot Splitter
Removing a Half-Height Gigabit Ethernet Line Card
Use the following procedure to remove the HHGE line card from the slot splitter:
Step 1 Verify that you are properly grounded.
Step 2 Disconnect any network cables connected to the line card port.
Figure 12 Captive Screw Locations
Step 3 Loosen the top and bottom captive screws until they disengage and spring away from the face plate (Figure 12).
Step 4 Simultaneously pivot both ejector levers away from each other to disengage the line card from the backplane (Figure 13).
Step 5 Slide the line card out of the slot splitter and place it on an antistatic surface or in an antistatic bag.
Step 6 If you are not installing a replacement line card, install a blank faceplate in the slot.
Figure 13 Opening the Ejector Levers
Caution Do not operate the system unless all slots contain a line card or a blank faceplate. Always install a full-slot blank faceplate into an empty slot. Half-height blank faceplates do not have air dams, and the empty slot will rob cooling air from the other slots. A slot splitter with one half-height line card and one blank faceplate is allowed.
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Statement 1029
Removing the Slot Splitter
Use the following procedure to remove a slot splitter from the chassis:
Step 1 Attach an antistatic wrist strap to your wrist and to the ESD socket on the chassis, or to a bare metal surface on the chassis or frame).
Step 2 Remove any line cards from the splitter according to the "Removing a Half-Height Gigabit Ethernet Line Card" section.
The slot splitter does not have ejector levers to disengage cards from the backplane, so you must remove any line cards before you remove the splitter.
Step 3 Loosen the top and bottom captive screws on the slot splitter (Figure 14).
Figure 14 Captive Screw Locations
Step 4 Slide the splitter out of the slot (Figure 15).
Step 5 If you are not installing a replacement splitter or a line card, install a full-slot blank faceplate in the slot.

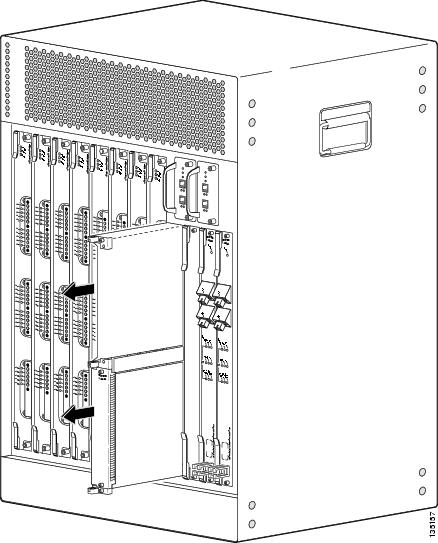

Figure 15 Removing the Slot Splitter
Basic Configuration
The following example shows the syntax for configuring a HHGE card in slot 3:
Router(config)# interface GigabitEthernet 3/0/0
Configuring an HHGE Interface
Use the following procedure to create a basic configuration (enabling an interface and specifying IP routing) for the HHGE interface. Be prepared with the information you need, such as the interface IP address.
Step 1 At the global configuration prompt, specify the new interface to configure by entering the interface command.
Router(config)# interface GigabitEthernet 3/0/0
Step 2 Assign an IP address and subnet mask to the interface using the ip address configuration subcommand, as in the following example:
Router(config-if)# ip address 192.168.172.12 255.255.255.0
Step 3 If necessary, modify the HHGE line card configuration or that of the remote device to ensure that, where appropriate, they use the same settings. For more information, refer to the Remote Side Setting column in Table 3.
The table includes the command used for modifying a default value and indicates if a value needs to be the same (or opposite) on the remote end of the connection.
Table 3 HHGE Line Card Defaults
Command Name
|
Default Setting
|
Command Syntax
|
Remote Side Setting
|
auto-negotiation
|
Enabled
|
[no] negotiation auto
|
Same
|
mtu (maximum transmission unit)
|
1500 (half-height)
|
mtu size
|
Same
|
Step 4 Add any other configuration subcommands required for the enabling of routing protocols and adjust the interface characteristics.
Step 5 Enter the no shutdown command to enable the interface.
Router(config-if)# no shutdown
Step 6 When you have included all of the configuration subcommands to complete the configuration, enter Ctrl-Z to exit configuration mode.
Step 7 Write the new configuration to memory.
Router# copy running-config startup-config
When the configuration is stored, the system displays an OK message.
After you complete the configuration, you can check the configuration using the show interface gigabitEthernet slot/subslot/port command.
Upgrading to a Half Height Gigabit Ethernet Line Card
This section provides instructions for upgrading from two full height gigabit Ethernet line cards to half-height gigabit Ethernet line cards.
Note Verify that you have a PRE2 installed in the router and that you are using the latest IOS software, IOS software release 12.3(13)BC or later.
To upgrade from the full-height GigE card to the HHGE card, perform the following steps:
Step 1 Verify traffic is passing through slot 3 and slot 4.
Step 2 Administratively shut down the line card in slot 3 and let traffic reroute through slot 4.
Step 3 Remove the full height line card in slot 3.
Step 4 Install the slot splitter into slot 3.
Step 5 Install the half height card in the slot splitter 3/0/0 or slot 3/1/0.
Step 6 Configure and bring up the ethernet card in slot 3/0/0 or slot 3/1/0.
Refer to Configuring the Half-Height Gigabit Ethernet Line Card for the Cisco uBR10012 Universal Broadband Router at the following URL:
http://www.cisco.com/en/US/docs/interfaces_modules/cable/line_cards/ubr_hh_ge/configuration/guide/hhgefm10.html
