Network Edge Authentication Topology

The NEAT feature enables extended secure access in areas outside the wiring closet (such as conference rooms). NEAT allows you to configure a switch to act as a supplicant to another switch. Thus, with NEAT enabled, the desktop switch can become a supplicant switch and authenticate itself to the access switch.

• 802.1X supplicant switch: You can configure a switch to act as a supplicant to another switch by using the 802.1X supplicant feature. This configuration is helpful in a scenario where, for example, a switch is outside a wiring closet and is connected to an upstream switch through a trunk port. A switch configured with the 802.1X switch supplicant feature authenticates with the upstream switch for secure connectivity. Once the supplicant switch authenticates successfully the port mode changes from access to trunk.

• If the access VLAN is configured on the authenticator, it becomes the native VLAN for the trunk port after successful authentication.

You can enable multidomain authentication (MDA) or multiple-authentication mode on the authenticator interface that connects to one or more supplicant switches. Multihost mode is not supported on the authenticator interface. Additional information about the authenticator can be found in the "IEEE 802.1X Authenticator" section of the "Configuring IEEE 802.1X Port-Based Authentication" chapter.

Use the dot1x supplicant force-multicast global configuration command on the supplicant switch for NEAT to work in all host modes.

• Host Authorization: Ensures that only traffic from authorized hosts (connecting to the switch with supplicant) is allowed on the network. The switches use Client Information Signalling Protocol (CISP) to send the MAC addresses connecting to the supplicant switch to the authenticator, as shown in the figure below.
• Auto enablement: Automatically enables trunk configuration on the authenticator switch, allowing user traffic from multiple VLANs coming from supplicant switches. Configure the Cisco Attribute-Value (AV) pair as device-traffic-class=switch at the ACS. (You can configure this under the group or the user settings.)

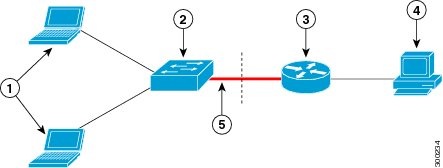

Figure 1

Authenticator and Supplicant Switch Using CISP

• You can configure NEAT ports with the same configurations as the other authentication ports. When the supplicant switch authenticates, the port mode is changed from access-based to trunk-based on the switch vendor-specific attributes (VSAs) (device-traffic-class=switch).
• The VSA changes the authenticator switch port mode from access to trunk and enables 802.1X trunk encapsulation and the access VLAN (if any) would be converted to a native trunk VLAN. VSA does not change any of the port configurations on the supplicant.
• To change the host mode and apply a standard port configuration on the authenticator switch port, you can also use Auto Smartports user-defined macros, instead of the switch VSA. This allows you to remove unsupported configurations on the authenticator switch port and to change the port mode from access to trunk. For information, see the AutoSmartports Configuration Guide.

Note	NEAT does not support redundant links between authenticator and supplicant switches.

1.    configure terminal

2.    cisp enable

3.    interface type slot/port

4.   switchport mode access

5.   authentication port-control auto

6.   dot1x pae authenticator

7.    end

8.    show authentication interface interface-id

1.    configure terminal

2.    cisp enable

3.   dot1x credentials profile

4.   username name

5.   password password

6.   exit

7.   dot1x supplicant force-multicast

8.    interface type slot/port

9.   switchport trunk encapsulation dot1q

10.   switchport mode trunk

11.   dot1x pae supplicant

12.   dot1x credentials profile-name

13.    end
