Airline Product Set with MATIP
Feature Overview
The Airline Product Set (ALPS) feature transports airline protocol data across a TCP/IP network to a mainframe. ALPS provides connectivity between agent set control units (ASCUs) and a host airline reservation systems.
The first two phases of ALPS began the network migration to TCP/IP without requiring any changes in the hardware or software of the endstations (ASCUs and mainframes). ALPS phase I and II developed a new protocol, ALPS Tunneling Protocol (ATP), to tunnel airline protocol traffic (ALC or UTS data) through the TCP/IP network between peer Cisco routers. ALPS phase I provided support for the ALC protocol and the transport of the data from the ASCUs to a reservations system on an IBM mainframe. ALPS phase II provided support for the UTS protocol and the transport of the data from the ASCUs to a reservations system on a Unisys host system. This feature module can be used in conjunction with the Cisco IOS Release 12.0(2)T Airline Product Set feature module.
ALPS phase III, ALPS with MATIP, provides support for Mapping of Airline Traffic over Internet Protocol (MATIP). MATIP is an industry standard protocol for transporting airline protocol traffic across a TCP/IP network. This feature enables the end-to-end delivery of ALC and UTS data streams between a Cisco router and the mainframe using TCP/IP. This feature removes the X.25 (AX.25 or EMTOX) requirements for communication with the host reservation system by enabling TCP/IP communication between the router and the airline host reservation system.
This document includes the following sections:
•
Supported MIBs, RFCs, and Standards
•
shows the basic ALPS topology and the protocols implemented in the feature. Three major components provide the end-to-end transportation of airline protocol traffic across the network: the P1024B Airline Control (ALC) or P1024C (UTS) protocol, the TCP/IP-based MATIP protocol conversion, and the TCP/IP access to the mainframe.
Figure 1 Airline Product Set with MATIP Architecture
Benefits
•
•
•
•
•
•
•
Restrictions
The ALPS with MATIP feature supports only type A conversational protocol traffic. The ALPS with MATIP feature does not support MATIP type A host-to-host protocol traffic and MATIP type B messaging protocol traffic.
Remote routers must have the Cirrus Logic CD2430 chipset on a synchronous serial interface module to connect to the ALC or UTS ASCUs. See the "Supported Platforms" section for more information.
Related Features and Technologies
The ALPS MATIP feature is an enhancement to the existing ALPS features that are documented in the "Airline Product Set" chapters of the Cisco IOS Release 12.0 Bridging and IBM Networking Configuration Guide and the Cisco IOS Release 12.0 Bridging and IBM Networking Command Reference and the Airline Product Set feature module for Cisco IOS Release 12.0(2)T.
Related Documents
•
•
•
Supported Platforms
The ALPS feature is supported on the following remote router platforms:
•
•
•
•
Note
Supported MIBs, RFCs, and Standards
MIBs
No new or modified MIBs are supported by this feature.
For descriptions of supported MIBs and how to use MIBs, see the Cisco MIB web site on CCO at http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml.
RFCs
•
Standards
•
•
•
Prerequisites
The ALPS with MATIP feature is available on the Cisco IOS software IP Plus images.
Configuration Tasks
The following sections provide configuration tasks for the Airline Product Set with MATIP feature. Each task in the list indicates if the task is optional or required.
•
•
•
•
Configuring the Remote Routers
Perform the tasks in the following sections to configure the ALPS feature on the remote routers:
•
•
Specifying the ALPS Local Peer IP Address
You must identify an IP address as an ALPS local peer on the remote router. Only one ALPS local peer is permitted on a router.
To specify the ALPS local peer IP address, use the following commands in global configuration mode:
Specifying the ALPS Remote Peer IP Address
You must specify a partner IP address (remote peer) on the remote router. The peer connection may be permanent or dynamic (established on demand).
To specify the partner IP address for one or more TCP peer connections to the configured IP address, use the following command in global configuration mode:
Specifying the ALPS Circuit
An ALPS circuit is a communication path across a TCP connection for one or more ASCUs. The ALPS circuit must have a configured association with an ALPS remote peer to establish a connection to the host. Additionally, an ALPS circuit configuration may specify a different remote peer as a backup peer to the host. Each MATIP circuit maps to a single TCP connection. For ATP, ALPS circuits can be multiplexed across to a single TCP connection.
To specify an ALPS circuit, use the following commands, beginning in global configuration mode:
Specifying Each ASCU
You must configure each ASCU within the context of the serial interface configuration. You must configure ASCU addressing information and association with an ASCU. You can configure the timers, maximum frame sizes, and retry values optional configuration parameters for each ASCU. Appropriate default parameters are used for unspecified parameters. Once you configure the first ASCU, you can configure additional ASCUs using only Steps 8 through 14.
To specify an ASCU, use the following commands, beginning in global configuration mode:
Customizing the Service Messages
You can customize the contents of the service message list. To specify the service message number and the content of the message, use the following command in global configuration mode:
Specifies service message numbers and content.
Updating a Circuit
You can clear or update the circuits on the ALPS network. If a specific name is entered, the update action will be executed only on a configured circuit with that name; otherwise, the action will be performed on all configured circuits. If the circuit uses the ATP protocol, an update consists of a closing and re-opening of the ALPS circuit (the same action performed when clearing the circuit). If the circuit is a MATIP circuit, the update results in the sending of a configuration update (in the form of a MATIP Session Open command). You can update the circuit only on enabled or active (opened or opening state) ALPS circuits.
To update one or more ALPS circuits, use the following command in EXEC mode:
Verifying ALPS
Perform the tasks in the following steps to verify the ALPS feature:
Step 1
router#show alps ascuinterface dlc id a1 a2 circuit pkt_tx pkt_rx state---------------------------------------------------------------------------------------Serial6 ALC 42 60 70 CKT_ALC_1 416 416 UPSerial6 ALC 45 60 72 CKT_ALC_1 600 600 UPSerial6 ALC 48 62 78 CKT_ALC_2 0 0 DOWNSerial7 UTS 21 22 13 CKT_UTS 4830 4830 UPStep 2
router#show alps peerslocal_peer : ip_address = 192.168.25.2ip_address conn_id state pkt_t pkt_rx---------------------------------------------------------------------------------------192.168.20.3 MATIP_A_CKT_UTS OPENED 1023 1023192.168.70.2 MATIP_A_CKT_ALC_1 OPENED 4852 4757192.168.70.2 MATIP_A_CKT_ALC_2 OPENED 1 1192.168.70.3 MATIP_A_CKT_ALC_1 DISCONN 0 0192.168.70.3 MATIP_A_CKT_ALC_2 DISCONN 0 0Monitoring and Maintaining ALPS
To monitor the status of the ALPS feature, use the following commands in EXEC mode:
Configuration Examples
This section provides the following configuration example:
•
ALPS with MATIP Configuration for ALC and UTS

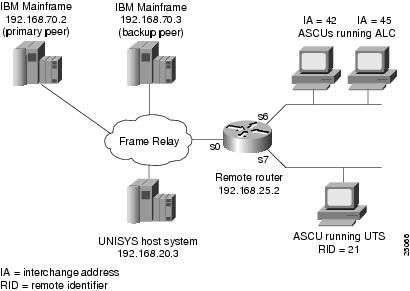

shows a simple example of a router topology for the ALPS with MATIP feature. The configuration corresponding to this topology follows.
Figure 2 Router Topology for the ALPS with MATIP Configuration Example
ALC/UTS Router Configuration
(config)# hostname alps-rcpe(config)# alps local-peer 192.168.25.2(config)# alps keepalive interval 45 retry 2(config)# alps remote-peer 192.168.20.3 protocol matip-a dynamic status-interval 60(config)# alps remote-peer 192.168.70.2 protocol matip-a dynamic 0 no-circuit 10(config)# alps remote-peer 192.168.70.3 protocol matip-a dynamic 45(config)# alps enable-alarms peer 192.168.70.2(config)# alps enable-alarms ascu!(config)# alps circuit CKT_ALC_1(config-alps-circ)# alps primary-peer 192.168.70.2 backup-peer 192.168.70.3(config-alps-circ)# alps connection-type permanent(config-alps-circ)# alps local-hld 2525(config-alps-circ)# alps enable-circuit(config)# alps circuit CKT_ALC_2(config-alps-circ)# alps primary-peer 192.168.70.2 backup-peer 192.168.70.3(config-alps-circ)# alps mpx single hdr none(config-alps-circ)# alps local-hld 2526(config-alps-circ)# alps enable-circuit!(config)# alps circuit CKT_UTS(config-alps-circ)# alps primary-peer 192.168.20.3(config-alps-circ)# alps mpx single(config-alps-circ)# alps idle-timer 90(config-alps-circ)# alps local-hld 2527(config-alps-circ)# alps enable-circuit(config-alps-circ)# alps service-msg-interval 2!(config)# interface Loopback0(config-if)# ip address 192.168.25.2 255.255.255.0(config)# interface Serial0(config-if)# ip address 210.100.50.2 255.255.255.0(config-if)# encapsulation frame-relay IETF(config-if)# frame-relay map ip 210.100.60.2 40(config-if)# frame-relay map ip 210.100.70.2 50!(config)# interface Serial6(config-if)# encapsulation alc(config-if)# alps t1 6(config-if)# alps t2 8(config-if)# alps poll-pause 100(config-if)# clockrate 9600!(config-if)# alps ascu 42(config-alps-ascu)# alps default-circuit CKT_ALC_1(config-alps-ascu)# alps a1-map 60 a2-map 70(config-alps-ascu)# alps enable-ascu!(config-if)# alps ascu 45(config-alps-ascu)# alps default-circuit CKT_ALC_1(config-alps-ascu)# alps a1-map 60 a2-map 72(config-alps-ascu)# alps enable-ascu!(config)# interface Serial7(config-if)# encapsulation uts(config-if)# alps n3 4(config-if)# alps poll-pause 125(config-if)# clockrate 4800!(config-if)# alps ascu 21(config-alps-ascu)# alps default-circuit CKT_UTS(config-alps-ascu)# alps a1-map 22 a2-map 13(config-alps-ascu)# alps enable-ascu!Command Reference
This section documents new or modified commands. All other commands used with this feature are documented in the Cisco IOS Release 12.0 command reference publication.
In Cisco IOS Release 12.0(1)T or later, you can search and filter the output for show and more commands. This functionality is useful when you need to sort through large amounts of output, or if you want to exclude output that you do not need to see.
To use this functionality, enter a show or more command followed by the "pipe" character (|), one of the keywords begin, include, or exclude, and an expression that you want to search or filter on:
command | {begin | include | exclude} regular-expression
Following is an example of the show atm vc command in which you want the command output to begin with the first line where the expression "PeakRate" appears:
show atm vc | begin PeakRate
For more information on the search and filter functionality, refer to the Cisco IOS Release 12.0(1)T feature module titled CLI String Search.
alps a1-map a2-map
To specify the A1 and A2 logical ASCU identification information, use the alps a1-map a2-map ALPS ASCU submode command. To remove the specification of the A1 and A2 logical ASCU identification information, use the no form of this command.
alps a1-map a1-value a2-map a2-value
no alps a1-map a1-value a2-map a2-value
Syntax Description
Defaults
No default behavior or values.
Command Modes
ALPS ASCU submode
Command History
11.3(6)T
This command was introduced for limited availability.
12.0(1)
This command was available for general release.
12.0(5)T
The range was modified.
Example
The following example specifies the A1 identification as 0x4C and the A2 identification as 0x20:
alps a1-map 4C a2-map 20Related Commands
alps local-hld remote-hld
To specify the local and remote HLDs to use for this ALPS circuit, use the alps local-hld remote-hld ALPS circuit submode command. To remove the definition from the configuration, use the no form of this command.
alps local-hld loc-hld remote-hld rem-hld
no alps local-hld loc-hld remote-hld rem-hld
Syntax Description
loc-hld
Local HLD to use for ALPS circuit. Hexadecimal number in the range 1 to FFFF.
rem-hld
Remote HLD to use for ALPS circuit. Hexadecimal number in the range 1 to FFFF.
Defaults
No default behavior or values.
Command Modes
ALPS circuit submode
Command History
Usage Guidelines
The remote-hld keyword is not applicable for ALPS with MATIP.
Examples
The following example specifies the local HLD as 4B10:
alps local-hld 4B10Related Commands
alps circuit
Specifies an ALPS circuit at the remote router and enters ALPS circuit submode.
Displays the status of the ALPS circuits.
alps matip-close-delay
To specify the interval between the closing and re-opening of MATIP circuit connections, use the alps matip-close-delay ALPS circuit submode command. To restore the definition to the default value, use the no form of this command.
alps matip-close-delay time
no alps matip-close-delay time
Syntax Description
time
Minimum number of seconds between the closing and re-opening of an ALPS MATIP circuit. The range is 1 to 90 seconds. The default is 10 seconds.
Defaults
The default value is 10 seconds.
Command Modes
ALPS circuit submode
Command History
Examples
The following example specifies a close delay time of 20 seconds
alps matip-close-delay 20Related Commands
alps remote-peer
To specify the partner IP address, use the alps remote-peer global configuration command. To remove the definition from the configuration, use the no form of this command.
alps remote-peer ip-addr [protocol {atp | matip-a}] [status-interval interval] [status-retry retries] [dynamic [inact-timer] [no-circuit no-circ-timer]] [tcp-qlen [num]]
no alps remote-peer ip-addr [protocol {atp | matip-a}] [status-interval interval] [status-retry retries] [dynamic [inact-timer] [no-circuit no-circ-timer]] [tcp-qlen [num]]
Syntax Description
Defaults
The default for the dynamic argument is 30 seconds.
The default for the no-circuit argument is 90 seconds.
The default for the tcp-qlen argument is 50 packets.
The default for the status-interval argument is 0 (off).
The default for the status-retry argument is 2.
Command Modes
Global configuration mode
Command History
Usage Guidelines
When the protocol option is configured for MATIP, the peer connection is dynamic.
When the protocol option is configured for ATP, the peer connection is permanent.
The no-circuit option within the dynamic keyword does not apply to permanent (ALC/UTS) connections.
The status-interval and status-retry options apply only to the MATIP protocol.
Issuing the no alps remote-peer command does the following:
•
•
•
Examples
The following example specifies a MATIP peer connection at IP address 172.22.0.92. Status messages will be sent every 20 seconds and will be 2 times before the connection is closed. The maximum TCP length is 30:
alps remote-peer 172.22.0.92 protocol matip-a status-interval 20 status-retry 2 tcp-qlen 30Related Commands
alps update-circuit
To update one or more ALPS circuits, use the alps update-circuit EXEC command. If a circuit name is specified, then only that circuit will be updated; otherwise, all circuits will be updated.
alps update-circuit [name]
Syntax Description
Defaults
No default behavior or values.
Command Modes
EXEC
Command History
Usage Guidelines
If the alps update-circuit command is issued for a circuit that is using the ATP protocol, the circuit will be closed and reopened.
If the alps update-circuit command is issued for a circuit that is using the MATIP protocol, a configuration update will be sent in the form of a MATIP Session Open command.
The alps update-circuit command is effective only for ALPS circuits that are enabled and active (opening or opened state).
Examples
The following example specifies that circuit 1 has been updated:
alps update-circuit CKT-1Related Commands
show alps ascu
To display the status of the ALPS ASCU, use the show alps ascu EXEC command.
show alps ascu [interface [ia]] [detail]
Syntax Description
Defaults
No default behavior or values.
Command Modes
EXEC
Command History
11.3(6)T
This command was introduced for limited availability.
12.0(1)
This command was available for general release.
12.0(5)T
This command was modified.
Examples
The following example shows output from the show alps ascu command:
router#show alps ascuinterface dlc id a1 a2 circuit pkt_tx pkt_rx state----------------------------------------------------------------------Serial3 ALC 41 41 41 CKT-1 0 0 UPSerial3 ALC 42 41 42 CKT-1 0 0 UPSerial3 ALC 45 41 45 CKT-1 29 1484 UPRelated Commands
show alps circuits
To display the status of the ALPS circuits, use the show alps circuits EXEC command. If a circuit name is specified, then only the status of that circuit will be displayed; otherwise, the status of all circuits will be displayed.
show alps circuits [name name] [detail]
Syntax Description
Defaults
No default behavior or values.
Command Modes
EXEC
Command History
11.3(6)T
This command was introduced for limited availability.
12.0(1)
This command was available for general release.
12.0(5)T
The output of this command was modified.
Examples
The following example shows output from the show alps circuits command:
router#show alps circuits name ckt-1 detailCKT-1:dlc = ALC, conn_type = DYN, state = OPEN, uptime = 00:00:06down reason = noReasonpri_peer = 10.227.50.106, sec_peer = 0.0.0.0curr_peer = 10.227.50.106, MATIP_A_CKT-1local_hld = 7F7F, remote_hld = 7F7Femtox:hostlink = 255, x121 = 1133470125lifetime_tmr = 4, idle_tmr = 60, retry_tmr = 0pkt_tx = 2239, byte_tx = 94244, pkt_rx = 2238, byte_rx = 94208src_corr = 0, dst_corr = 0drops_q_overflow = 388, drops_ckt_disabled = 30drops_lifetime_tmr = 24, drops_invalid_ascu = 0ascus:(45,41)Related Commands
show alps peers
Use the show alps peers EXEC command to display the status of the ALPS partner peers. If an IP address is specified, then only the status of that peer will be displayed; otherwise, the status of all peers will be displayed.
show alps peers [ipaddress addr] [detail]
Syntax Description
Defaults
No default behavior or values.
Command Modes
EXEC
Command History
11.3(6)T
This command was introduced for limited availability.
12.0(1)
This command was available for general release.
12.0(5)T
This output of this command was modified.
Examples
The following example shows output from the show alps peers detail command:router#show alps peers detailTCP:10.227.50.106, conn_id = MATIP_A_CKT-2protocol = MATIP_A, fport = 350, lport = 11592type = DYN, create = ADMIN, state = OPENED, uptime = 00:00:53down reason = unknownpkt_tx = 1071, byte_tx = 37264, pkt_rx = 1066, byte_rx = 36010Drops:giants = 0, q_overflow = 0, peer_down = 0, ver_mismatch = 0active_ckts:CKT-2Related Commands
alps primary-peer
Specifies the primary TCP peer and an optional backup peer for this ALPS circuit.
Specifies the partner IP address.
Debug Commands
This section documents new or modified debug commands. All other commands used with this feature are documented in the Cisco IOS Release 12.0 command reference publications.
debug alps ascu
To enable debugging for ALPS ASCUs, use the debug alps ascu EXEC command. To disable debugging, use the no form of this command.
[no] debug alps ascu {event | packet | detail | all} [interface [ascu id]]
Syntax Description
Defaults
Debugging is off.
Command History
11.3(6)T
This command was introduced for limited availability.
12.0(1)
This command was available for general release.
12.0(5)T
This command was modified.
Usage Guidelines
To enable debugging for a group of ASCUs enter a separate command for each ASCU interface and IA combination.
Examples
The following output is from the debug alps ascu event command, showing events or protocol errors for ASCU 42 on interface Serial7:
router#debug alps ascu event Serial7 42ALPS ASCU: T1 expired for ascu 42 on i/f Serial7ALPS ASCU: DOWN event while UP for ascu 42 on i/f Serial7 : C1 count = 1The following output is from the debug alps ascu detail command, showing all protocol events for ASCU 42 on interface Serial6:
router#debug alps ascu detail Serial6 42ALPS ASCU: Tx ALC POLL MSG (3 bytes + CCC) to ascu 42 on i/f Serial6ALPS ASCU: ALC GO AHD MSG rcvd from ascu 42 on i/f Serial6ALPS ASCU: Tx ALC POLL MSG (3 bytes + CCC) to ascu 42 on i/f Serial6ALPS ASCU: ALC GO AHD MSG rcvd from ascu 42 on i/f Serial6ALPS ASCU: Tx ALC POLL MSG (3 bytes + CCC) to ascu 42 on i/f Serial6ALPS ASCU: Rx ALC DATA MSG (14 bytes + CCC) from ascu 42 on i/f Serial6, fwd cktRTP_MATIPALPS ASCU: ALC GO AHD MSG rcvd from ascu 42 on i/f Serial6ALPS ASCU: Tx ALC DATA MSG (14 bytes + CCC) to ascu 42 on i/f Serial6ALPS ASCU: Tx ALC POLL MSG (3 bytes + CCC) to ascu 42 on i/f Serial6The following output is from the debug alps ascu packet command, showing all packets transmitted or received for ASCU 42 on interface Serial6:
router#debug alps ascu packet Serial6 42ALPS ASCU: Tx ALC SERVICE MSG (18 bytes + CCC) to ascu 42 on i/f Serial60405B530: 02321D26 0C2616160405B540: 140C0D18 26163135 0611C6ALPS ASCU: Rx ALC DATA MSG (14 bytes + CCC) from ascu 42 on i/f Serial6, fwd cktRTP_MATIP040730B0: 42607866 65717866040730C0: 65717966 755124ALPS ASCU: Tx ALC DATA MSG (14 bytes + CCC) to ascu 42 on i/f Serial60405B540: 022038 262531380405B550: 26253139 263511E4debug alps peer
Use the debug alps peer EXEC command to enable event or packet debugging for ALPS peers. To disable debugging, use the no form of this command.
[no] debug alps peer {event | packet} [ipaddr]
Syntax Description
event
Specifies debugging for an event.
packet
Specifies debugging for a packet.
ipaddr
(Optional) Remote peer IP address.
Defaults
If no IP address is specified, then debugging is enabled for every peer connection.
Command History
Usage Guidelines
To enable debugging for a single remote ALPS peer, specify the peer IP address.
To enable debugging for a set of remote peers, enter the command for each peer IP address.
Examples
The following output is from the debug alps peer packet command:
router#debug alps peer packetALPS PEER:Peer (10.227.50.106, MATIP_A_CKT-1) - TX Peer Data Msg (18 bytes)040A5320: 01 00001241040A5330:45546B5F 6F4F7757 67477B5B 51ALPS PEER:Peer (10.227.50.106, MATIP_A_CKT-1) - RX Peer Data Msg (18 bytes)04000550: 01000012 4145546B 5F6F4F7704000560:5767477B 5B51ALPS PEER:Peer (10.227.50.106, MATIP_A_CKT-1) - TX Peer Data Msg (18 bytes)0409F6E0: 01 00001241 45546B5F0409F6F0:6F4F7757 67477B5B 51ALPS PEER:Peer (10.227.50.106, MATIP_A_CKT-1) - RX Peer Data Msg (18 bytes)04000680: 01000012 4145546B04000690:5F6F4F77 5767477B 5B51debug alps snmp
Use the debug alps snmp EXEC command to enable debugging for ALPS SNMP agents. To disable debugging, use the no form of this command.
[no] debug alps snmp
Syntax Description
This command has no arguments or keywords.
Defaults
Debugging for SNMP agents is not enabled.
Command History
11.3(6)T
This command was introduced for limited availability.
12.0(1)
This command was available for general release.
12.0(5)T
This command was added to the documentation.
Examples
The following output is from the debug alps snmp command. The first line shows a circuit event status change. The second line shows an ASCU status change. The third line shows a peer connection status change.
ALPS CktStatusChange Notification for circuit CKT-1ALPS AscuStatusChange Notification for ascu (Serial3, 41)PeerConnStatusChange Notification for peer (10.227.50.106, MATIP_A_CKT-1)Glossary
agent set control unit—See ASCU.
Airline Control Protocol—See ALC.
Airline Product Set—See ALPS.
Airline protocol—A generic term that refers to the airline reservation system data and the protocols such as P1024B (ALC), P1024C (UTS), and MATIP that are used to transport the data between the mainframe and the ASCUs.
ALC—Airline Control Protocol. P1024B, a data link layer polled protocol that runs in full-duplex mode over synchronous serial (V.24) lines and uses the binary-coded decimal (BCD) character set.
ALPS—Cisco's Airline Product Set feature. The feature includes all the components involved in transporting airline protocol data across a TCP/IP based network to mainframe reservation systems.
ALPS circuit—Communication path across a TCP connection between a host reservation system and an ASCU.
ALPS Tunneling Protocol—See ATP.
ASCU—Agent set control unit. An airline reservations system terminal controller.
ASCU Interchange Address—See IA.
ATP—ALPS Tunneling Protocol. A protocol used to transport ALPS data across a TCP/IP network between an ALC/UTS router and an AX.25/EMTOX router. It consists of a set of messages (or primitives) to activate and deactivate ALPS ATP circuits and pass data.
High-Level Designator—See HLD.
HLD—High-Level Designator.
IA—ASCU Interchange Address. Specifies a physical ASCU identity.
Management Information Base—See MIB.
Mapping of Airline Traffic over Internet Protocol—See MATIP.
MATIP—Mapping of Airline Traffic over Internet Protocol. A standard defined in RFC 2351 for transporting airline reservation, ticketing, and messaging traffic over TCP/IP.
messaging traffic—See Type B traffic.
MIB—Management Information Base. Database of network management information that is used and maintained by a network management protocol such as SNMP or CMIP. The value of a MIB object can be changed or retrieved using SNMP or CMIP commands, usually through a GUI network management system. MIB objects are organized in a tree structure that includes public (standard) and private (proprietary) branches.
remote router—Routers with the ALPS feature that are physically connected to the ASCUs.
Simple Network Management Protocol—See SNMP.
SNMP—Simple Network Management Protocol. Network management protocol used almost exclusively in TCP/IP networks. SNMP provides a means to monitor and control network devices, and to manage configurations, statistics collection, performance, and security.
transactional traffic—See Type A traffic.
Type A traffic—Transactional traffic. Typically, this is conversational traffic exchanged between a host and its ASCUs for terminal queries and responses for reservation systems. There is another form of type A traffic called host-to-host.
Type B traffic—Messaging traffic. Typically, this is e-mail application traffic in IATA-compliant format.
Universal Terminal Support—See UTS.
UTS—Universal Terminal Support. P1024C is a data link layer protocol that runs in full-duplex mode over synchronous serial (V.24) lines and uses the ASCII character set.
