Cisco 10720 Internet Router Memory Replacement Instructions
Customer Order Number: DOC-7816166=
Product Numbers: CISCO 10720=
Product Number
|
Product Name
|
15-4987-01
|
256 MB Router Processor Memory
|
15-4988-01
|
512 MB Router Processor Memory
|
This document contains instructions to upgrade the Route Processor (RP) memory in the Cisco 10720 Internet Router. from 256 MB to 512 MB.
Refer to the Cisco 10720 Internet Router Installation and Configuration Guide for more information about this product line.
This document uses the following terminology to refer to the Cisco 10720 Internet Router and chassis:
Product Name
|
Reference
|
Cisco 10720 Internet Router
|
router
|
Cisco 10720 Internet Router chassis with dual AC or DC power supply
|
chassis
|
Cisco 10720 Internet Router Cable-Management
|
cable-management system
|
256 MB Route Processor Memory
|
256-MB memory
|
512 MB Route Processor Memory
|
512-MB memory
|
Contents
The following sections are included in this document:
Important Information
Overview
Preparing for the Memory Upgrade
Upgrading and Verifying the Route Processor Memory
Regulatory and Compliance Information
Translated Safety Warnings
Related Documentation
Obtaining Documentation
Documentation Feedback
Obtaining Technical Assistance
Obtaining Additional Publications and Information
Important Information
Starting in IOS Release 12.0(27)S, you can increase the memory in the Cisco 10720 Internet Router from 256 MB to 512 MB. Cisco IOS software running on a Cisco 10720 Internet Router in which 512 MB of Route Processor (RP) memory has been installed can then use up to 512 MB of memory.
The upgrade procedures must be completed in the order specified in this document. See the "Upgrading and Verifying the Route Processor Memory" section for information on the order in which the procedures must be completed.
Overview
The RP memory of the Cisco 10720 Internet Router is Dynamic Random Access Memory (DRAM) that enables an onboard Route Processor to perform several tasks for Cisco 10720 Series Internet Routers, including:
•
Running the Cisco IOS software image
•Storing and maintaining the network routing tables
You can physically upgrade the RP memory from the factory default of 256 MB to the maximum physical configuration of 512 MB.
The RP memory upgrade supports increasingly larger route tables and allows for more route table entries.

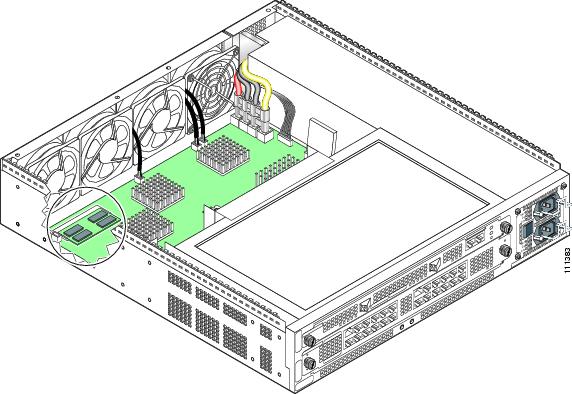

Figure 1 shows the location of the RP memory socket on the chassis.
Note The 512-MB upgrade is supported in IOS Release 12.0(27)S. If you have 512 MB of RP memory installed in the Cisco 10720 Internet Router but do not have the IOS Release 12.0(27)S or later running, the router will use only 256 MB.
Note A Cisco 10720 Internet Router with 256 MB of RP memory only supports up to 256 MB of memory for IOS use, even when running IOS Release 12.0(27)S and later releases.
To verify the amount of memory on a Cisco 10720 Internet Router available for IOS use, use the show version command. See the "Hardware and Software Requirements" section for more information.
Figure 1 Memory Location on the Cisco 10720 Series Internet Router
Preparing for the Memory Upgrade
The following requirements must be met before starting the memory upgrade procedures:
•Hardware and Software Requirements
•Required Tools and Equipment
•Safety Guidelines
•Electrostatic Discharge
Hardware and Software Requirements
Ensure that the router configuration meets the minimum hardware and software requirements for the RP memory upgrade and that you have all the required parts and tools listed in the "Required Tools and Equipment" section.
•Software Requirements—Determine the current loaded and running Cisco IOS Release on the Cisco 10720 Internet Router using the show version command. The 512-MB RP memory router system software requires Cisco IOS Release 12.0(27)S or later.
See the following show version command example to locate the current loaded and running Cisco IOS Release. Line 4 of the example is in italic print to indicate where the Cisco IOS Release is listed.
For information on loading the Cisco IOS Release 12.0(27)S system images, refer to the "File Management" chapter of the Cisco IOS Release 12.0 Configuration Fundamentals Configuration Guide.
•Hardware requirements—Determine the physical RP memory installed in the Cisco 10720 Internet Router using the show version command.
Caution If you are not running Cisco IOS Release 12.0(27)S or later, the
show version command will indicate 256 MB and use of RP memory even if 512 MB of RP memory is actually installed.
See the following show version command example to locate the RP memory. Line 17 of the example is in italic print to indicate where the RP memory is listed.
Cisco Internetwork Operating System Software
IOS (tm) 10700 Software (C10700-P-M), Version 12.0(27)S
TAC Support:http://www.cisco.com/tac
Copyright (c) 1986-2001 by cisco Systems, Inc.
Compiled Fri 28-Sep-01 11:44 by user_1
Image text-base:0x50010960, data-base:0x50660000
ROM:System Bootstrap, Version 12.0(20010529:144545) [rommon1 149], DEVELOPMENT SOFTWARE
BOOTLDR:10700 Software (C10700-P-M), Version 12.0(29)S
Router uptime is 10 minutes
System returned to ROM by power-on
cisco C10720 (R5000) processor (revision 0xFF) with 256000K/6144K bytes of memory.
R527x CPU at 200Mhz, Implementation 40, Rev 10.0
Toaster processor tmc0 is running.
Toaster processor tmc1 is running.
1 one-port OC48 SONET based SRP controller.
1 24 Port 100 Mbps Fast Ethernet TX controller.
24 FastEthernet/IEEE 802.3 interface(s)
1 SRP network interface(s)
509K bytes of non-volatile configuration memory.
16384K bytes of Flash internal SIMM (Sector size 512KB).
49152K bytes of Flash internal SIMM (Sector size 512KB).
Configuration register is 0x2102
Required Tools and Equipment
You will need the following tools and equipment to upgrade the RP memory:
•512 MB RP memory upgrade kit, which includes:
–512-MB small outline dual inline memory module (SODIMM)
–Disposable grounding wrist strap
–Associated documentation
•Your own ESD-prevention equipment or the disposable grounding wrist strap included with all upgrade kits, field-replaceable units (FRUs), and spares for the Cisco 10720 Series Internet Routers. See the "Preventing Electrostatic Discharge" section.
•Antistatic mat or surface.
•Number 1 Phillips screwdriver.
•Antistatic bag (optional).
Safety Guidelines
This document contains important safety information that you must read and understand before attempting to install, remove, or modify any hardware in your router. For more safety information, see the "Regulatory and Compliance Information" section.
For information about regulatory compliance and safety, see the Regulatory Compliance and Safety Information for the Cisco 10720 Internet Router document that shipped with your router.
Please review the safety guidelines in the following sections to avoid injuring yourself or damaging the equipment:
•Safety Warnings
•Disconnect Device Warnings
Safety Warnings
Before upgrading the RP memory, note the following safety warnings:
Caution This router is equipped with a redundant power supply. Ensure both power supply connections are disconnected before beginning any procedure.
Warning Read the installation instructions before you connect the system to its power source.
Warning Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord.
Warning Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.
For more safety information about your Cisco 10720 Internet Router, refer to the Regulatory Compliance and Safety Information for the Cisco 10720 Internet Router document that shipped with your router.
Disconnect Device Warnings
The Cisco 10720 Internet Router power source must be disconnected before performing any task on the router. Please refer to the safety warnings in the "Powering Down the Router" section of Chapter 5, "Maintaining the Cisco 10720 Internet Router", in the Cisco 10720 Internet Router Installation and Configuration Guide.
Electrostatic Discharge
Electrostatic discharge (ESD) can damage circuit boards and other electronic equipment if they are handled improperly, resulting in complete or intermittent failures. Cisco recommends using an ESD-preventive strap when you handle a router or one of its components. Electromagnetic interference (EMI) shielding is an integral component of the router.
Caution For safety, periodically check the resistance value of the ESD-preventive wrist strap. The resistance measurement should be between 1 and 10 megohms.
Preventing Electrostatic Discharge
When handling router components, observe the following guidelines to prevent ESD damage:
•Always use an ESD-preventive wrist or ankle strap and ensure that it makes good skin contact. If using an ESD-preventative wrist strap, connect the equipment end of the connection cord to bare metal on the router chassis. (See Figure 2.)
•Avoid touching the board or connector pins.
•Place a removed component on an antistatic surface on in a static shielding bag. If you plan to return the component to the factory, immediately place it in a static shielding bag.
•Avoid contact between the component and clothing. The wrist strap protects the component only from ESD voltages on the body; ESD voltages on clothing can still cause damage.
Figure 2 Attaching an ESD-Preventive Wrist Strap
Upgrading and Verifying the Route Processor Memory
To upgrade and verify the RP memory in the Cisco 10720 Series Router, the following procedures must be completed in the specified order.
Caution To prevent upgrade failure, complete the upgrade using the following procedure sequence. Ensure that each procedure is complete before starting the next procedure.
1. Check that the Cisco 10720 Internet Router has Cisco IOS Release 12.0(27)S or later installed and running. See the "Upgrading and Verifying the Cisco IOS Release" section for procedures.
2. Upgrade the ROM monitor (ROMMON) image on the Cisco 10720 Internet Router, then verify the version. See the "Upgrading and Verifying the ROMmon Image" section for procedures.
Refer to the Cisco IOS Release 12.0 Configuration Fundamentals Configuration Guide for information on ROMMON.
3. Replace the 256-MB RP memory with 512-MB RP memory. See the "Upgrading the Route Processor Memory" section for procedures.
Upgrading and Verifying the Cisco IOS Release
Ensure that the Cisco IOS Release 12.0(27)S or later is installed and running on the Cisco 10720 Internet Router. Refer to the "File Management" chapter of the Cisco IOS Release 12.0 Configuration Fundamentals Configuration Guide for procedures.
Once the upgrade is completed, use the show version command to check that the Cisco 10720 Internet Router has the Cisco IOS Release 12.0(27)S or later installed and running. See the "Hardware and Software Requirements" section for more information on the show version command.
Upgrading and Verifying the ROMmon Image
The following section provides procedures for upgrading both the golden ROM monitor (ROMmon) image (the original image that you receive with the router) and the alternate ROMmon image. For additional information about ROMMON features, refer to the Cisco IOS Software Configuration for the Cisco 10720 Internet Router document.
The following procedures are provided:
•Upgrading the Golden ROMmon Image with FPGA Version 3
•Upgrading the Golden ROMmon Image with FPGA Version 4
•Upgrading the ROMmon Image
•Verifying the ROMmon Image
Upgrading the Golden ROMmon Image with FPGA Version 3
To upgrade the Golden ROMmon (S ROMmon) image on the Cisco 10720 Internet Router with version 3 FPGA, follow these steps:
Step 1 Determine the version of the FPGA by using the show diag command. The last line in the sample output below provides the information on the FPGA version.
MAIN:type 0x0001, 800-08427-01 rev 255 (decimal) - Warning:Pre-FCS
SW key:00-00-00 S/N CAT0502000L
Test hist:0x00(no failure) RMA#:000000
RMA hist:0 upgrades 0 field failures
PCA: 73-5349-02 rev 255 (decimal) - Warning:Pre-FCS revision. fab
DIAG:Test count:0x00000000 Test results:0x00000000
Van Allen Memory Size:64 MB
Toaster Memory Size - Column 1:32 MB
Toaster Memory Size - Column 2:128 MB
Toaster Memory Size - Column 3:32 MB
Toaster Memory Size - Column 4:32 MB
Toaster Memory Size - Column 5:32 MB
Toaster Memory Size - Column 6:32 MB
Toaster Memory Size - Column 7:32 MB
Toaster Memory Size - Column 8:32 MB
With a version 3 FPGA, you will need to upgrade the FPGA to version 4 before you can upgrade the golden ROMmon. Only FPGA version 4 supports the golden ROMmon upgrade.
Step 2 To upgrade the version 3 FPGA, first download Cisco IOS Release 12.0(28)S or later releases of 12.0S.
Step 3 Use the upgrade hw-mnodule slot 0 command to upgrade the main FPGA.
C10720#upgrade hw-module slot 0
The upgrade process takes about 1 minute. Do not power off the router when you finish the upgrade.
Step 4 Complete the FPGA programming. When finished, power off and power on the router to have the upgrade take effect.
Step 5 Use the show diag command to verify that you have successfully upgraded to FPGA version 4.
Upgrading the Golden ROMmon Image with FPGA Version 4
To upgrade the golden ROMmon image with FPGA version 4, follow these steps:
Step 1 Make sure you are at the ROMmon F1 or F2 region. You cannot upgrade the golden ROMmon from the golden ROMmon region. To run rommon from F1 or F2 region, see "Upgrading the ROMmon Image" section and '"Verifying the ROMmon Image" section.
Step 2 Copy the ROMmon file to flash memory.
Step 3 Use the upgrade rom-monitor file command to upgrade the golden ROMmon.
C10720#upgrade rom-monitor file C10700_ROMMON_FILE_NAME gold
Upgrading ROMMON gold region...
Gold region upgrade complete, C10720 must be reloaded.
Step 4 Power off and power on the router to complete the golden ROMmon upgrade procedure.
Upgrading the ROMmon Image
To upgrade the ROMmon image on the Cisco 10720 Internet Router, perform the following steps:
Step 1 From the IOS prompt, view ROMmon information using the show rom-monitor command.
Currently running ROMMON from S (Gold) region
Step 2 Copy the new ROMmon record file on to the router flash memory using the copy tftp flash command.
Step 3 Program the new ROMmon into the router ROMmon flash memory using the upgrade rom-monitor file flash:name command.
Router# upgrade rom-monitor file flash:name
ROMMON image upgrade in progress
ROMMON image upgrade complete, router must be reloaded.
Step 4 Proceed to the "Verifying the ROMmon Image" section.
Verifying the ROMmon Image
To verify the ROMmon image upgrade on the Cisco 10720 Internet Router, use the show rom-monitor command.
Region F1: APPROVED, preferred
Currently running ROMMON from F1 region
Upgrading the Route Processor Memory
This section describes how to upgrade the RP memory on the Cisco 10720 Series Internet Router from 256 MB to 512 MB.
The following procedures must be completed in sequence to upgrade the existing 256-MB RP memory to 512-MB RP memory:
•Powering Down the Router
•Verifying That the Router is Powered Down
•Removing the Chassis Cover
•Removing the 256-MB Route Processor Memory
•Installing the 512-MB Route Processor Memory
•Installing the Chassis Cover and Router
•Connecting the Power Supply
•Installing the Cable Management Cover (Optional)
•Powering Up the Router
•Checking the 512-MB Route Processor Installation
Powering Down the Router
Step 1 Attach an ESD-preventive strap to your wrist, and to the router or to a bare metal surface. (See the "Preventing Electrostatic Discharge" section.)
Step 2 If the cable-management cover is installed on the router, it must be removed in order to access the power switch. Verify that all cables are safely secured before detaching the cable-management cover.
Note If the cable-management cover is not installed, go to Step 4.
Step 3 Remove the cable-management cover from the router using a Number 1 Phillips screwdriver. (See Figure 3.)
Figure 3 Removing Cable-Management Cover
Step 4 Press the power switch on the router to the off position (O). (See Figure 4.)
Figure 4 Power Supply in Off (O) Position
1
|
— indicates that the power is on
|
3
|
AC power switch
|
2
|
O indicates that the power is off
|
4
|
DC power switch
|
Step 5 Disconnect the site power. Figure 5 provides an example for disconnecting the AC power source. Figure 6 provides an example for disconnecting the DC power source from the router.
Step 6 Disconnect the power source from the router as described below for each power input type:
•AC—Disconnect the wall plug. (See Figure 5.)
•DC—Disconnect the power source to the router, then disconnect the DC power leads on the router. (See Figure 6.)
Figure 5 Removing Router from Power Source
Warning Before performing any of the following procedures, ensure that the power is removed from the DC circuit. Ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker on the panel board that services the DC circuit. Switch the circuit breaker to the off (O) position, and tape the switch handle of the circuit breaker in the off (O) position.
Step 7 Loosen the three locking screws for the negative, positive, and ground screw connectors on the DC power supply terminal block as follows:
a. Remove the -48 VDC lead (black) from the terminal block negative connector (-). (See Figure 6.)
b. Remove the +48 VDC lead (white wire) from the terminal block positive connector (+). (See Figure 6.)
c. Remove the safety ground lead (green wire) from the terminal block ground connector. (See Figure 6.)

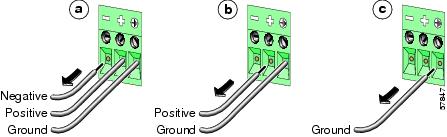

Figure 6 Removing DC Power Leads from the Terminal Block
a
|
Negative lead disconnected
|
c
|
Ground lead disconnected
|
b
|
Positive lead disconnected
|
|
|
Verifying That the Router is Powered Down
Check the following to ensure that your router is properly powered down:
•LED lights are off
•Fans are not running
•Power switch indicates the power supply is turned to the off position (O)
•Power is disconnected at the source
Removing the Chassis Cover
To remove the chassis cover, perform the following steps:
Step 1 Ensure that the router is powered down. See the "Powering Down the Router" section.
Warning Before performing any maintenance on this router or its components, unplug the power cord on AC-input powered routers.
Warning Before performing any of the following procedures, ensure that the power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position.
Step 2 Attach an ESD-preventive wrist strap to your wrist, and to the router or to a bare metal surface. (See the "Preventing Electrostatic Discharge" section.)
Step 3 Remove all interface cables from the access card (see Figure 7) and uplink card (see Figure 8).
Figure 7 Removing Interface Cables From Access Card
1
|
Access card interface cable connector
|
Figure 8 Removing Interface Cables From Uplink Card
1
|
Uplink card interface cable connector
|
Step 4 Remove the router from the wall or rack mount (if mounted). (Refer to Chapter 5, "Maintaining the Cisco 10720 Internet Router", in the Cisco 10720 Internet Router Installation and Configuration Guide.)
Step 5 Arrange the router so that you face a side panel. (See Figure 9.)

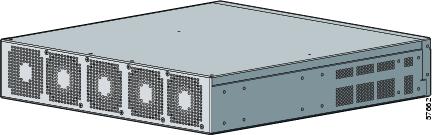

Figure 9 Router Left Side Panel
Step 6 Using a Number 1 Phillips screwdriver, remove the four screws that secure the cover to the router chassis. (See Figure 10.) Place the screws in a safe place for later use.
Figure 10 Screws on the Router Cover
Step 7 Slide the cover back toward the fan assembly until the cover disengages from the front of the router chassis. Lift the cover up and away from the router chassis and store it in a safe place until it is installed back on the router chassis. (See Figure 11.)
Figure 11 Removing the Router Cover
Note It is important to replace the cover after completing any maintenance task on the router. This will help reduce the possibility of damage to the router components while the router is not in service.
Removing the 256-MB Route Processor Memory
To remove the RP memory module, perform the following steps:
Step 1 Attach an ESD-preventive wrist strap to your wrist, and to the router or to a bare metal surface. (See the "Preventing Electrostatic Discharge" section.)
Step 2 Place the router on an antistatic mat so that the front of the router is facing you.
Step 3 Locate the RP memory module on the router motherboard. (See Figure 12 for the location of the RP memory module on the motherboard.
Figure 12 RP Memory Module on the Router Motherboard
Step 4 Remove the RP memory module by gently moving the latches in an outward direction, parallel to and away from the memory module until it releases and rotates to a 45-degree angle. (See Figure 13.)
Caution The latch on the RP memory socket is enclosed by the metal strain relief latch. The latch should never be moved past the metal strain relief latch.
Figure 13 Moving the Latch Away from the RP Memory Module
Caution Handle the edges of the RP memory module only. Do not touch the integrated circuit devices on the RP memory module, the metal traces, or fingers, along the edge of the RP memory module, or the pins in the RP memory socket.
Step 5 As the RP memory module is released, the module is positioned at a 45-degree angle. Gently pull the RP memory module out of the socket. Continue to keep the module in a 45-degree angle until it is completely removed from the socket guides. (See Figure 14.)
Figure 14 Removing the RP Memory Module
Step 6 Immediately place the RP memory module in an antistatic bag to protect it from ESD damage.
Installing the 512-MB Route Processor Memory
To install the RP memory module, perform the following steps:
Step 1 Attach an ESD-preventive wrist strap to your wrist, and to the router or to a bare metal surface. (See the "Preventing Electrostatic Discharge" section.)
Step 2 Place the router on an antistatic mat so that the front of the router is facing you.
Step 3 Locate the RP memory socket on the router motherboard. (See Figure 12.)
Step 4 Remove the new 512-MB RP memory module from the protective antistatic bag.
Caution Grasp the edges of the RP memory module only. Do not touch the integrated circuit devices on the RP memory module, the metal traces, or fingers, along the edge of the memory, or the pins in the memory socket.
Step 5 Line up the RP memory module key with the key in the motherboard socket. (See Figure 15.)

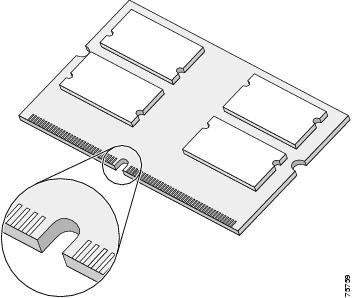

Figure 15 RP Memory Module with Key in Face-Up Position
Step 6 The RP memory module must be lined up at a 45-degree angle. (See Figure 16a.)
Note When the key is in the face-up position, the metal traces on the left side of the key measure 0.9 inch (23.20 mm). The metal traces on the right side of the key measure 1.29 inches (32.80 mm). The RP memory cannot be inserted until the keys are lined up properly.
Step 7 Place both thumbs at the end of the socket and use your index fingers to guide the memory module in to the socket until it is fully seated.
Ensure that your index fingers are located on the outer corners of the RP memory module to maintain even pressure when the module is seating in the socket.
Figure 16 Installing the RP Memory Module
Step 8 Gently press the RP memory module down using your index fingers, distributing even pressure across the module until it locks into the tabs. (See Figure 16b.)
Caution Excessive pressure can damage a RP socket.
Step 9 Verify that the release levers are flush against the side of the socket. If they are not, the RP memory module might not be seated properly.
Step 10 If the module appears misaligned, carefully remove it and reseat it, ensuring that the release lever is flush against the side of the RP memory socket.
Installing the Chassis Cover and Router
To replace the router cover and reinstall the router in the wall or rack mount, perform the following steps:
Step 1 Arrange the router so that you face a side panel. (See Figure 17.)

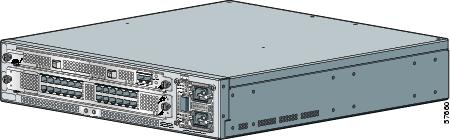

Figure 17 Router Right Side View
Tip If you are right-handed, face the router so the front is on your left and the back is on your right side. This position lets you align the cover and the router chassis more easily. Reverse the position of the router if you are left-handed.
Step 2 Place the router cover over the router and align the front edge of the router cover with the front lip of the router chassis. Slide the cover down and forward until the router cover is firmly seated under the front lip of the router chassis. Lower the back of the cover to close the router. (See Figure 18.)

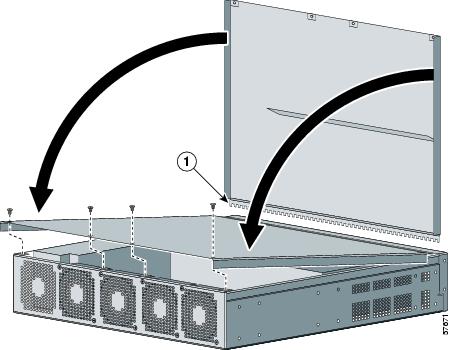

Figure 18 Positioning the Cover in the Router
Step 3 Using a Number 1 Phillips screwdriver, secure the router cover with four screws. (See Figure 19.)
Figure 19 Securing the Router Cover
Step 4 Install the router in the wall or rack mount (if mounted). (Refer to Chapter 5, "Maintaining the Cisco 10720 Internet Router", in the Cisco 10720 Internet Router Installation and Configuration Guide.)
Step 5 Install all interface cables from the access card (see Figure 20) and uplink card (see Figure 21).
Figure 20 Installing Interface Cables on the Access Card
1
|
Access card interface cable connector
|
Figure 21 Installing Interface Cables on the Uplink Card
1
|
Uplink card interface cable connector
|
Step 6 Proceed to the "Connecting the Power Supply" section.
Connecting the Power Supply
Perform one of the following procedures to restore power to the router:
•If you have an AC-powered Cisco 10720 Internet Router—Connecting the AC Power Supply
•If you have a DC-powered Cisco 10720 Internet Router—Connecting the DC Power Supply
Connecting the AC Power Supply
Warning Before you install, operate, or service the system, read the Regulatory Compliance and Safety Information for the Cisco 10720 Internet Router publication. This publication contains important safety information you should know before working with the system.
Warning Read the installation instructions before you connect the system to its power source.
Note For additional information, refer to the Cisco 10720 Internet Router AC and DC Installation and Configuration Guide. This configuration note is available on the Documentation CD-ROM and at Cisco.com (formerly Cisco Connection Online [CCO]), or can be ordered as a printed document. Field replacement documentation is available electronically, by default. If printed documentation is preferred, order it online.
Note We recommend that you attach each AC-input power supply to a dedicated power source for redundancy and use an uninterruptable power supply (UPS) to protect against power failures. Each AC power supply operating between 100 and 240 VAC requires a dedicated 15 Amp electrical power service for North America, 10 Amp electrical power service for international specifications.
Perform the following steps to connect the AC power supply:
Step 1 Confirm that the power switch on the router is in the off (O) position. (See Figure 4.)
Step 2 Connect the AC power cord to the AC power supply receptacle on the router. (See Figure 22.)
Figure 22 AC Power Cord Connected to Router
Step 3 Close the wire bracket over the power cord plug. (See Figure 23.)
Figure 23 Power Cord Secured with Wire Bracket
Step 4 Connect the other end of the AC power cord to the AC power source outlet. (See Figure 24.)
Figure 24 Router Connected to Power Source
Step 5 Press the power switch to on (—). (See Figure 25.)
Figure 25 Power Switch in the On Position (—)
Connecting the DC Power Supply
Read the following safety warnings before connecting the dual DC power supply:
Warning When you install the unit, the ground connection must always be made first and disconnected last.
Warning Before performing any of the following procedures, ensure that the power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit. Switch the circuit breaker to the OFF (O) position, and tape the switch handle of the circuit breaker in the OFF (O) position.
Connect the DC power supply by performing the following steps:
Step 1 Verify that the -48V and +48V leads are disconnected from the power source.
Step 2 Attach an ESD-preventive strap to your wrist, and to the router or to a bare metal surface. (See the "Preventing Electrostatic Discharge" section.)
Step 3 Verify that the power switch located on the front of the power supply is in the off (O) position. (See Figure 26.)
Figure 26 Power Switch in Off Position (O)
Step 4 Insert the stripped end of the ground lead all the way into the ground lead receptacle on the DC-input power supply and tighten the receptacle screw using a 1/8-inch flat blade screwdriver. (See Figure 27.)
Figure 27 Tightening DC Lead Receptacle
Note Make sure the entire stripped end of each lead is inserted all the way into its receptacle. If any exposed wire at the stripped end of a lead is visible after inserting the lead into its receptacle, remove the lead from the receptacle. Use a wire cutter to cut the stripped end of the lead to fit the receptacle.
Step 5 Connect the power leads in the following order:
a. Ground (green wire) (See Figure 28.)
b. Positive (white wire) (See Figure 28.)
c. Negative (black wire) (See Figure 28.)
Figure 28 Connecting DC Power Leads
`
a
|
Ground lead connected
|
c
|
Negative lead connected
|
b
|
Positive lead connected
|
|
|
Step 6 After tightening the receptacle screw for the ground, +48V, and -48V DC-input leads, use cable ties to secure the three leads. (See Figure 29.)
Figure 29 Cable Tie Wrapped Power Leads
Note Leave a small service loop in the ground lead to ensure that the ground lead is the last lead to disconnect from the power supply. If a great deal of strain is placed on the ground, +48V, and -48V DC-input leads, it is important that the ground power lead is the last to disconnect from the power supply terminal.
Note Allow sufficient slack in the power cable leads for strain relief. The power cable leads should be adequately secured to prevent the power supply terminal connections from being subjected to strain.
Step 7 After wiring the DC power supply, remove the tape from the circuit breaker switch handle and reinstate power by moving the handle of the circuit breaker to the on position.
Installing the Cable Management Cover (Optional)
Perform the following steps to install the cable-management system:
Step 1 Attach an ESD-preventive wrist strap to your wrist, and to the router or to a bare metal surface. (See the "Preventing Electrostatic Discharge" section.)
Step 2 (Optional) Using a Number 1 Phillips screwdriver, attach the cable-management cover with four screws to secure the cable-management cover to the router. (See Figure 30.)
Figure 30 Installing the Cable-Management Cover (optional)
Powering Up the Router
Perform the following procedures to power up the router:
•Turning the Router Power On
•Verifying the Router Power Is Turned On
Turning the Router Power On
To power up the router, perform the following steps:
Step 1 Push the power switch on the router to the on position (—). (See Figure 31.)
Note The "—" symbol means on. The `O' symbol means off.
Figure 31 On (—) and Off (O) Switch
1
|
— indicates power supply is on
|
3
|
AC power supply switch
|
2
|
O indicates power supply is off
|
4
|
DC power supply switch
|
Verifying the Router Power Is Turned On
Check the following to ensure that the router is properly powered on:
•LED lights are on
•Fans are running
•Power switch indicates router is turned on
Checking the 512-MB Route Processor Installation
When you power up the router, the router reinitializes and detects the memory change as part of the reinitialization cycle. The time required for the router to initialize can vary with different router configurations and memory configurations.
If the router does not initialize properly after you replace the memory, or if the console terminal displays a checksum or memory error, verify that you have installed the correct RP memory and that it is installed correctly in the router.
If the router fails to restart properly after several attempts and you are unable to resolve the problem, access Cisco.com or contact your Cisco service representative for assistance. Before calling, make note of any console error messages, unusual LED states, or other router indications or behaviors that might help to resolve the problem. Under certain highly improbable scenarios (for example, battery failure), the router may fail to boot after the 512-MB upgrade. In such cases, see the "Obtaining Technical Assistance" section for information on contacting Cisco.
To check the installation of the RP memory, use the show version command and check that the upgraded RP memory is 512 MB.
See the following show version command example to locate the RP memory. Line 17 of the example is in italic print to indicate where the RP memory is listed.
Cisco Internetwork Operating System Software
IOS (tm) 10700 Software (C10700-P-M), Version 12.0(27)S
TAC Support:http://www.cisco.com/tac
Copyright (c) 1986-2001 by cisco Systems, Inc.
Compiled Fri 28-Sep-01 11:44 by user_1
Image text-base:0x50010960, data-base:0x50660000
ROM:System Bootstrap, Version 12.0(20010529:144545) [rommon1 149], DEVELOPMENT SOFTWARE
BOOTLDR:10700 Software (C10700-P-M), Version 12.0(27)S)
Router uptime is 10 minutes
System returned to ROM by power-on
cisco C10720 (R5000) processor (revision 0xFF) with 507904K/16384K bytes of memory.
R527x CPU at 200Mhz, Implementation 40, Rev 10.0
Toaster processor tmc0 is running.
Toaster processor tmc1 is running.
1 one-port OC48 SONET based SRP controller.
1 24 Port 100 Mbps Fast Ethernet TX controller.
24 FastEthernet/IEEE 802.3 interface(s)
1 SRP network interface(s)
509K bytes of non-volatile configuration memory.
16384K bytes of Flash internal SIMM (Sector size 512KB).
49152K bytes of Flash internal SIMM (Sector size 512KB).
Configuration register is 0x2102
Regulatory and Compliance Information
Safety compliance information is presented in the following sections:
•Electromagnetic Compatibility Regulatory Statements
•Site Wiring Distance and Interference Guidelines
Electromagnetic Compatibility Regulatory Statements
FCC Class A Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.
Modifying the equipment without Cisco's authorization may result in the equipment no longer complying with FCC requirements for Class A digital devices. In that event, your right to use the equipment may be limited by FCC regulation and you may be required to correct any interference to radio or television communication at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:
•Turn the television or radio antenna until the interference stops.
•Move the equipment to one side or the other of the television or radio.
•Move the equipment farther away from the television or radio.
•Plug the equipment into an outlet that is on a different circuit from the television or radio. (In other words, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.)
CISPR 22
Warning This is a class A product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take adequate measures.
Note For CISPR 22 class B, the use of shielded (i.e. screened) CAT5 or equivalent Ethernet cable is required.
Note This apparatus complies with EN55022 class B conducted emissions requirements on AC main with unshielded or shielded CAT5 Ethernet cabling (i.e. does not require the use of shielded Ethernet cable to meet this requirement.)
Canada
English Statement of Compliance
This class A digital apparatus complies with Canadian ICES-003.
French Statement of Compliance
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Europe (EU)
This apparatus complies with EN55022 Class A and EN55024 standards when used as ITE/TTE equipment, and EN 300 386-2 (EN55022 class B with shielded CAT5 Ethernet cable, non-central office equipment) for Telecommunications Network Equipment (TNE).
Hungarian Class A Warning
Figyelmeztetés a felhasználói kézikönyv számára:
Ez a berendezés "A" osztályú termék, felhasználására és üzembe helyezésére a magyar EMC "A" osztályú követelményeknek (MSZ EN 55022) megfelelõen kerülhet sor, illetve ezen "A" osztályú berendezések csak megfelelõ kereskedelmi forrásból származhatnak, amelyek biztosítják a megfelelõ speciális üzembe helyezési körülményeket és biztonságos üzemelési távolságok alkalmazását.
This equipment is a class A product and should be used and installed properly according to the Hungarian EMC Class A requirements (MSZEN55022). The Class A equipment are derived for typical commercial establishments for which special conditions of installation and protection distance are used.
Taiwan Class A Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case you may be required to take adequate measures.
Note Bureau of Standards, Metrology and Inspection (BSMI) product approval license number is on the product label outside the system enclosure.
Japan VCCI Class A
This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.
Korean Class A Warning
Class A device. This device is registered for EMC requirements for industrial use. The seller or buyer should be aware of this. If this type was sold or purchased by mistake, it should be replaced with a residential-use type.
Site Wiring Distance and Interference Guidelines
This section offers site wiring guidelines for setting up the site plant wiring and cabling. When planning the location of the new system, consider the information in the following sections:
•Electromagnetic Interference
•Distance Limitations for Signaling and Unshielded Conductors
Electromagnetic Interference
Electromagnetic interference can occur between the field and the signals on the wires when the wires are run for any significant distance. This fact has two implications for the construction of plant wiring:
•Poor wiring practice can result in radio interference emanating from the plant wiring.
•Strong EMI, especially when it is caused by lightning or radio transmitters, can destroy and/or cause interference with the signal drivers and receivers in the Cisco 10720 Internet Router, and can create an electrical hazard by conducting power surges through lines and into equipment.
Note To predict and remedy strong EMI, consult experts in radio frequency interference (RFI).
A good quality twisted pair cable or shielded twisted pair cable helps limit radiation and noise induced into the cable, minimizing the following problems:
•Potential for radio interference
•Potential for interference with the data transmission
Distance Limitations for Signaling and Unshielded Conductors
Give special consideration to the effect of a lightning strike in the site vicinity if wires exceed recommended distances, or if wires pass between buildings. The electromagnetic pulse (EMP) caused by lightning or other high-energy phenomena can easily couple enough energy into unshielded conductors to destroy electronic devices.
Provide a properly grounded and shielded environment. Consider electrical surge suppression issues by addressing the following items:
•Potential surge sources
•Distance
Caution Splicing can degrade cable performance.
Translated Safety Warnings
Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may harm you. A warning symbol precedes each warning statement. The following paragraph is an example of a safety warning. It identifies the warning symbol and associates it with a bodily injury hazard. The remaining paragraphs in this section are translations of the initial safety warning.
Note For a complete list of translated safety warnings, read the Regulatory Compliance and Safety Information for the Cisco 10720 Internet Router document that accompanies your Cisco 10720 Internet Router. We recommend that you read and understand the safety warnings and guidelines before installing, configuring, or maintaining the router.
|
Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. (In this publication, refer to the appendix "Translated Safety Warnings" in the installation guide that accompanied this device.)
|
Waarschuwing
|
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. (Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het aanhangsel "Translated Safety Warnings" (Vertalingen van veiligheidsvoorschriften) in de installatiegids die bij dit toestel is ingesloten, raadplegen.
|
Varoitus
|
Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. (Tässä julkaisussa esiintyvien varoitusten käännökset löydät tämän laitteen mukana olevan asennusoppaan liitteestä "Translated Safety Warnings" (käännetyt turvallisuutta koskevat varoitukset).)
|
Attention
|
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures. Avant d'accéder à cet équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures courantes de prévention des accidents. Pour obtenir les traductions des mises en garde figurant dans cette publication, veuillez consulter l'annexe intitulée « Translated Safety Warnings » (Traduction des avis de sécurité) dans le guide d'installation qui accompagne cet appareil.
|
Warnung
|
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. (Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Anhang mit dem Titel "Translated Safety Warnings" (Übersetzung der Warnhinweise) in der diesem Gerät beiliegenden Installationsanleitung.)
|
Avvertenza
|
Questo simbolo di avvertenza indica un pericolo. Si è in una situazione che può causare infortuni. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nell'appendice, "Translated Safety Warnings" (Traduzione delle avvertenze di sicurezza), del manuale d'installazione che accompagna questo dispositivo.
|
Advarsel
|
Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du være oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. (Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i vedlegget "Translated Safety Warnings" [Oversatte sikkerhetsadvarsler] i installasjonsveiledningen som ble levert med denne enheten.)
|
Aviso
|
Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos fisicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. (Para ver as traduções dos avisos que constam desta publicação, consulte o apêndice "Translated Safety Warnings" - "Traduções dos Avisos de Segurança", no guia de instalação que acompanha este dispositivo).
|
¡Advertencia!
|
Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. (Para ver traducciones de las advertencias que aparecen en esta publicación, consultar el apéndice titulado "Translated Safety Warnings," en la guía de instalación que se acompaña con este dispositivo.)
|
Varning!
|
Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. (Se förklaringar av de varningar som förekommer i denna publikation i appendix "Translated Safety Warnings" [Översatta säkerhetsvarningar] i den installationshandbok som medföljer denna anordning.)
|
|
|
Related Documentation
The following section provides the names of reference material from the Cisco.com library that may be useful for configuring and maintaining the Cisco 10720 Internet Router:
•Cisco 10720 Internet Router Installation and Configuration Guide
•Regulatory Compliance and Safety Information for the Cisco 10720 Internet Router
•Cisco IOS Software Configuration for the Cisco 10720 Internet Router
•Cisco IOS Software Release 12.0 S
•Cross-Platform Release Notes for Cisco IOS Release 12.0 S
•Cisco IOS Release 12.0 Command Reference
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation on the World Wide Web at this URL:
http://www.cisco.com/univercd/home/home.htm
You can access the Cisco website at this URL:
http://www.cisco.com
International Cisco websites can be accessed from this URL:
http://www.cisco.com/public/countries_languages.shtml
Ordering Documentation
You can find instructions for ordering documentation at this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm
You can order Cisco documentation in these ways:
•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Ordering tool:
http://www.cisco.com/en/US/partner/ordering/index.shtml
•Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS (6387).
Documentation Feedback
You can submit e-mail comments about technical documentation to bug-doc@cisco.com.
You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Obtaining Technical Assistance
For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, the Cisco Technical Assistance Center (TAC) provides 24-hour-a-day, award-winning technical support services, online and over the phone. Cisco.com features the Cisco TAC website as an online starting point for technical assistance. If you do not hold a valid Cisco service contract, please contact your reseller.
Cisco TAC Website
The Cisco TAC website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The Cisco TAC website is available 24 hours a day, 365 days a year. The Cisco TAC website is located at this URL:
http://www.cisco.com/tac
Accessing all the tools on the Cisco TAC website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a login ID or password, register at this URL:
http://tools.cisco.com/RPF/register/register.do
Opening a TAC Case
Using the online TAC Case Open Tool is the fastest way to open P3 and P4 cases. (P3 and P4 cases are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Case Open Tool automatically recommends resources for an immediate solution. If your issue is not resolved using the recommended resources, your case will be assigned to a Cisco TAC engineer. The online TAC Case Open Tool is located at this URL:
http://www.cisco.com/tac/caseopen
For P1 or P2 cases (P1 and P2 cases are those in which your production network is down or severely degraded) or if you do not have Internet access, contact Cisco TAC by telephone. Cisco TAC engineers are assigned immediately to P1 and P2 cases to help keep your business operations running smoothly.
To open a case by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447
For a complete listing of Cisco TAC contacts, go to this URL:
http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml
TAC Case Priority Definitions
To ensure that all cases are reported in a standard format, Cisco has established case priority definitions.
Priority 1 (P1)—Your network is "down" or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Priority 2 (P2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
Priority 3 (P3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.
Priority 4 (P4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
•Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Go to this URL to visit the company store:
http://www.cisco.com/go/marketplace/
•The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as ordering and customer support services. Access the Cisco Product Catalog at this URL:
http://cisco.com/univercd/cc/td/doc/pcat/
•Cisco Press publishes a wide range of general networking, training and certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press online at this URL:
http://www.ciscopress.com
•Packet magazine is the Cisco quarterly publication that provides the latest networking trends, technology breakthroughs, and Cisco products and solutions to help industry professionals get the most from their networking investment. Included are networking deployment and troubleshooting tips, configuration examples, customer case studies, tutorials and training, certification information, and links to numerous in-depth online resources. You can access Packet magazine at this URL:
http://www.cisco.com/packet
•iQ Magazine is the Cisco bimonthly publication that delivers the latest information about Internet business strategies for executives. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/ipj
•Training—Cisco offers world-class networking training. Current offerings in network training are listed at this URL:
http://www.cisco.com/en/US/learning/index.html
Copyright © 2004, Cisco Systems, Inc.
All rights reserved.
