Quick Start Guide
Cisco 7201 Router
1 Documentation and Resources
Documentation for the Cisco 7201 router is online with the exception of the regulatory compliance and safety documentation. For detailed hardware installation instructions, refer to the online Cisco 7201 Installation and Configuration Guide. Refer to the following online documents for titles and links to related documentation for installation and replacement of parts (including port adapters), regulatory compliance information, and troubleshooting information and tools.
•
All Cisco 7201 documentation—See the Cisco 7201 Router Documentation Roadmap at http://www.cisco.com/en/US/products/hw/routers/ps341/products_documentation_roadmap09186a00807f635a.html
•Port adapter documentation—See the Cisco 7201 Router Port Adapter Documentation Roadmap at http://www.cisco.com/en/US/products/hw/routers/ps341/products_documentation_roadmap09186a00807f704f.html
•Troubleshooting documentation and tools—See the Cisco 7201 Router Troubleshooting Documentation Roadmap at http://www.cisco.com/en/US/products/hw/routers/ps341/products_documentation_roadmap09186a00807f708b.html
Documentation Survey
Is Cisco documentation helpful? Click here or go to http://www.cisco.com/warp/public/732/docsurvey/rtg/ to give us your feedback.
Obtaining Documentation, Obtaining Support, and Security Guidelines
For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised technical documentation at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html.
Document Revision History
The Document Revision History table below records technical changes to this document.
Document Version
|
Date
|
Change Summary
|
OL-11363-01
|
April, 2007
|
This is the first version of this document.
|
2 Prepare for Installation
This section contains information about tools and parts, warnings, site preparation information, and information for workbench or tabletop installation and rack-mount installation.
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Warning The ports labeled "Ethernet," "10BaseT," "Token Ring," "Console," and "AUX" are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits. Because the BRI circuits are treated like telephone-network voltage, avoid connecting the SELV circuit to the telephone network voltage (TNV) circuits. Statement 22
Before beginning this router installation, read the Regulatory Compliance and Safety Information for Cisco 7200 Series Routers document.
Site Preparation and Unpacking
•Lift the router safely out of the packing container.
•Ensure the power service at the site is suitable for the router you are installing.
•Check the packing slip to ensure that all the proper components are present.
•Locate and have accessible the Site Log for recording information about this installation.
Tools and Parts
Use the following list of tools and parts as a checklist for preparing to install the Cisco 7201 router:
•ESD-preventative wrist strap
•Power cord
•Appropriate cables to connect the router to the network, console port, and auxiliary port
•Tape measure and level (optional)
•Screwdrivers: Number 2 Phillips screwdriver and 3/16-inch flat-blade screwdriver
•Wire stripper
•Chassis grounding lug and wires:
–A grounding lug with two number-10 screw holes with a 0.63-inch (16.002-mm) spacing between them
–A wire receptacle large enough to accept a 6-AWG multistrand, copper wire
–Two Phillips machine screws with locking washers—M5 (metric), 0.031-inch (.08-mm) pitch, 0.315-inch (8-mm) length
–A crimping tool to fit the grounding lug wire receptacle
–One grounding wire—6-AWG, 0.162-inch (4.115-mm) diameter, with approximately 0.108-inch (2.743-mm) insulation, for a total wire diameter of approximately 0.27 inches (6.858 mm). The wire length depends on your router location and site environment.
•The rack-mount and cable-management kit:
–Two rack-mount brackets and one cable-management bracket
–Screws: Four 6-32 x 0.25-inch screws, four 10-32 or 12-24 screws, and one M4 x 20-mm screw
•(Optional) Any modules or disks not ordered with the chassis:
–Cisco USB Flash memory module or Aladdin USB eToken Pro key
–SFP module
–CompactFlash Disk
Prepare for Workbench or Tabletop Installation
For a workbench or tabletop installation, verify the following before installing the router:
•The router is off the floor and has adequate ventilation.
•An adequate chassis ground (earth) connection exists for the router.
•The router has at last 3 inches (7.62 cm) of clearance at the inlet and exhaust vents (front and back of router).
•The router has 19 inches (48.26 cm) of clearance at the front and rear to allow for CompactFlash Disk, SFP module, USB module and port adapter replacement or installation, or to access cables or equipment.

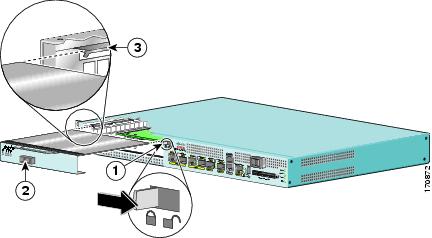

•The port adapter blank panel is installed if a port adapter is not installed. The slot must not be empty.
Prepare for Rack-Mount Installation
Before you begin the rack-mounting tasks, decide whether or not you want to front- or rear-mount the chassis, decide whether or not you want to attach the cable-management bracket, and determine the type of rack—four-post or two-post—that you will be using. Also determine if you have any optional field-replaceable units to install, particularly if you are using SFP modules, port adapters, or CompactFlash Disks that are at your site and have not been ordered with the router. See the "After Installation" section for instructions on installing these units.

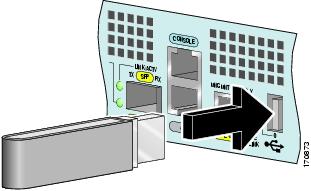

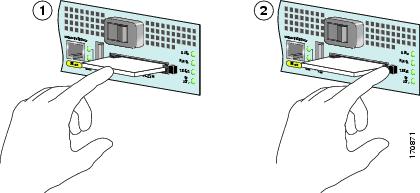

If you ordered a port adapter, CompactFlash Disk, or SFP module with the router, they ship installed. If you ordered a USB Flash memory module or Aladdin USB eToken Pro key, go to the "After Installation" section for installation information.
3 Rack-Mount the Router
This section provides information for rack-mounting the router.
Attach the Rack-Mount Brackets—Chassis Front-Mounted

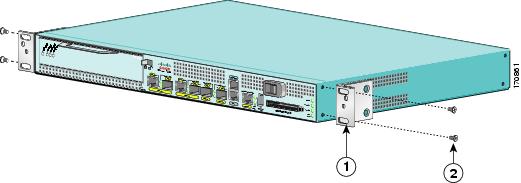

Figure 1 Attaching the Rack-Mount Brackets to the Front of the Chassis
1
|
Rack-mount bracket
|
2
|
Four 6-32 x 0.25-in. screws
|
To install the rack-mount brackets on a Cisco 7201 router for a front rack-mount configuration, complete the following steps:
Step 1 Locate the threaded holes in the front sides of the chassis.
Step 2 Align the rack-mount bracket to the side of the router. Depending on which set of rack-mount bracket holes you choose to use to attach the rack-mount bracket to the router, the chassis will either be recessed in the rack, or protrude from the rack.
Step 3 Insert and tighten the two screws.
Step 4 Repeat Step 1 through Step 3 on the other side of the router.
To install the cable-management bracket, see page 7. If you are not installing the cable-management bracket, skip to the "Two-Post Rack Installation" section or the "Four-Post Rack Installation" section for rack-mount instructions.
Attach the Rack-Mount Brackets—Chassis Rear-Mounted

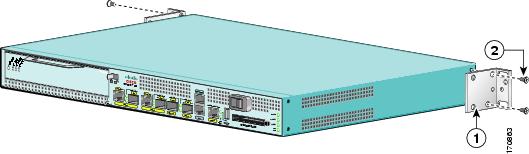

Figure 2 Attaching the Rack-Mount Brackets to the Rear of the Chassis
1
|
Rack-mount bracket
|
2
|
Four 6-32 x 0.25-in. screws
|
To install the rack-mount brackets on a Cisco 7201 router for a rear rack-mount configuration, complete the following steps:
Step 1 Locate the threaded holes in the rear sides of the chassis.
Step 2 Align the rack-mount bracket to the side of the router. Depending on which set of holes on the rack-mount bracket that you use, the router will either be recessed in the rack or protrude from the rack.
Step 3 Insert and tighten the two screws.
Step 4 Repeat Step 1 through Step 3 on the other side of the router.
To install the cable-management bracket, see page 7. If you are not installing the cable-management bracket, skip to the "Two-Post Rack Installation" section or the "Four-Post Rack Installation" section for rack-mount instructions.
Attach the Cable-Management Bracket
Figure 3 Installing the Cable-Management Bracket
1
|
Cable-management bracket
|
2
|
M4 x 20-mm screw
|
Step 1 Align the cable-management bracket to the rack-mount bracket on the left side of the Cisco 7201 router.
Step 2 Using a Phillips screwdriver and the M4 x 20-mm screw, thread and tighten the screw to the cable-management bracket.
This completes the procedure for installing the cable-management bracket on a Cisco 7201 router. Go to the "Two-Post Rack Installation" section or the "Four-Post Rack Installation" section.
Two-Post Rack Installation
Note Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches (48.26 cm). The height of the chassis is 1.73 inches (4.39 cm). Airflow through the chassis is from front to back.
Figure 4 Installing the Cisco 7201 Router in a Two-Post Rack
1
|
Two-post rack
|
3
|
Four 10-32 or 12-24 screws
|
2
|
Screw hole for the cable-management bracket
|
|
|
Step 1 Make sure that the port adapter lever is in the locked position.
Step 2 Make sure the rack brakes are locked or the rack is stabilized.
Step 3 Position the router so the front is closest to you and lift it carefully into the rack. To prevent injury, avoid any sudden twists or moves.
Step 4 Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the rack.
Step 5 Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the rack or mounting strip.
Step 6 For each bracket, insert and tighten two 10-32 or 12-24 screws to the rack.
This completes the procedure for installing the chassis in the rack. Proceed to the "Chassis Ground Connection Installation" section to continue the installation.
Four-Post Rack Installation
Note Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches (48.26 cm). The height of the chassis is 1.73 inches (4.39 cm). Airflow through the chassis is from front to back.

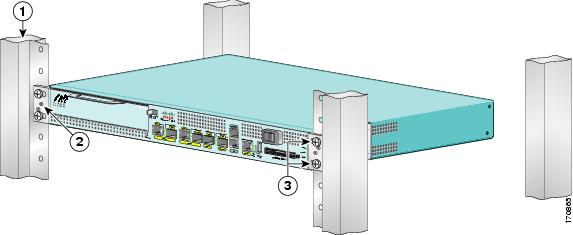

Figure 5 Installing the Cisco 7201 Router in a Four-Post Rack
1
|
Four-post rack
|
3
|
Four 10-32 or 12-24 screws
|
2
|
Screw hole for the cable-management bracket
|
|
|
Step 1 Make sure that the port adapter lever is in the locked position.
Step 2 Make sure the rack brakes are locked or the rack is stabilized.
Step 3 Position the router so the front is closest to you and lift it carefully into the rack. To prevent injury, avoid any sudden twists or moves.
Step 4 Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the rack.
Step 5 Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the rack or mounting strip.
Step 6 For each bracket, insert and tighten two 10-32 or 12-24 screws to the rack.
This completes the procedure for installing the chassis in the rack. Proceed to the "Chassis Ground Connection Installation" section to continue the installation.
Chassis Ground Connection Installation
Before you connect power or turn on power to your router, you must provide an adequate chassis ground (earth) connection for the router chassis. A chassis ground connector is provided on each Cisco 7201 router chassis.

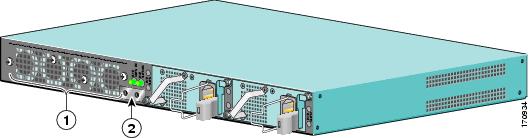

Figure 6 Locating the Chassis Ground Connector
1
|
Fan vents
|
2
|
Chassis ground connector
|
Step 1 Use the wire stripper to strip one end of the 6-AWG wire approximately 0.75 inches (19.05 mm).
Step 2 Insert the 6-AWG wire into the wire receptacle on the grounding lug.
Step 3 Use the crimping tool to carefully crimp the wire receptacle around the wire; this step is required to ensure a proper mechanical connection.
Figure 7 Attaching the Grounding Lug
Step 4 Attach the grounding lug with the wire on the left so the grounding wire does not overlap the power supply.
Figure 8 Attaching a Grounding Lug to the Chassis Ground Connector
1
|
Chassis ground connector
|
3
|
Screws
|
2
|
Grounding lug
|
4
|
Wire
|
Step 5 Locate the chassis ground connector on the rear of your router chassis.
Step 6 Insert the two screws through the holes in the grounding lug.
Step 7 Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the chassis. Do not overtighten the screws.
Step 8 Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an adequate chassis ground.
This completes the procedure for attaching a chassis ground connection. Go to the "Connect the Router to the Network" section for information on attaching cables.
4 Connect the Router to the Network
This section provides information about cables and ports and attaching the router to the network.
•Console and Auxiliary Port Cable Connections
•Connect the Fast Ethernet Management Port Cable
•Connect Native Gigabit Ethernet Cables
•Connect the Port Adapter Cables
•Install the Cables in the Cable-Management Bracket
Warning The ports labeled "Ethernet," "10BaseT," "Token Ring," "Console," and "AUX" are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits. Because the BRI circuits are treated like telephone-network voltage, avoid connecting the SELV circuit to the telephone network voltage (TNV) circuits. Statement 22
Console and Auxiliary Port Cable Connections
Figure 9 Console and Auxiliary Port RJ-45 Connectors
1
|
Auxiliary port
|
4
|
Cable to console terminal or DTE
|
2
|
Console port
|
5
|
Cable to modem or DCE
|
3
|
RJ-45 connector
|
|
|
Step 1 Before connecting a terminal to the console port, configure the terminal to match the router console port as follows: 9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
Step 2 After you establish normal router operation, you can disconnect the terminal.
The Cisco 7201 router uses RJ-45 ports for both the auxiliary port and the console port.
Note You must supply your own interface cable between the auxiliary port and the equipment you are connecting. For console and auxiliary port pinouts, see Appendix A, "Specifications," of the online Cisco 7201 Installation and Configuration Guide.
Table 1 Pinouts for the RJ-45-to-DB-25 Adapters
Adapter
|
|
DCE M/F Pins
|
|
1
|
4
|
5
|
5
|
2
|
20
|
6
|
8
|
3
|
2
|
3
|
3
|
4
|
7
|
7
|
7
|
5
|
7
|
7
|
7
|
6
|
3
|
2
|
2
|
7
|
6
|
20
|
20
|
8
|
5
|
4
|
4
|
Refer to Table 1 for a list of the pins used on the RJ-45-to-DB-25 adapters, used with an RJ-45 cable, to connect terminals and modems to the Cisco 7201 router. The cable you use may be a roll-over cable or a straight-through cable.
A roll-over cable can be detected by comparing the two modular ends of the cable. Holding the cables in your hand, side-by-side, with the tab at the back, the wire connected to the pin on the outside of the left plug should be the same color as the pin on the outside of the right plug. If your cable was purchased from Cisco, pin 1 will be white on one connector, and pin 8 will be white on the other (a roll-over cable reverses pins 1 and 8, 2 and 7, 3 and 6, and 4 and 5). (See Figure 10.)
Figure 10 Identifying a Roll-Over Cable
1
|
Pin 1
|
3
|
Pin 8
|
2
|
Pin 1 and pin 8 should be the same color
|
|
|
The Cisco 7201 router ships with a roll-over cable. Connection to a terminal or a modem will require an RJ-45-to-DB-25 adapter, and possibly a DB-25-to-DB9 adapter. Refer to Table 2 for the cable and adapter configurations that can be used to connect terminals and modems to the Cisco 7201 router.
Table 2 Asynchronous Device Cabling Options
Access Server Port
|
RJ-45 Cable Type
|
DB-25 Adapter
|
End Device
|
Console or auxiliary
|
Roll-over
|
FDTE1
|
Terminal
|
Console or auxiliary
|
Straight-through
|
FDCE
|
Terminal
|
Auxiliary or console
|
Roll-over
|
MMOD2
|
Modem
|
Connect the Fast Ethernet Management Port Cable
Figure 11 Installing the Fast Ethernet Management Port Cable
1
|
Fast Ethernet Management port
|
2
|
RJ-45 Fast Ethernet cable
|
When using the Fast Ethernet Management port in the default mode (speed-auto and duplex-auto) the port operates in auto-MDI/MDI-X mode. The port automatically provides the correct signal connectivity through the Auto-MDI/MDI-X feature. The port automatically senses a crossover or straight-through cable and adapts to it.
However, when the Fast Ethernet Management port is configured to a fixed speed (10 or 100 Mbps) through command-line interface (CLI) commands, the port is forced to MDI mode.
When in a fixed-speed configuration and MDI mode:
•Use a crossover cable to connect to an MDI port
•Use a straight-through cable to connect to an MDI-X port
Connect Native Gigabit Ethernet Cables
The Cisco 7201 router native Gigabit Ethernet ports use either optical fiber or RJ-45 Ethernet cables. For installation information see:
•Install the SFP Module Optical Fiber Cables
•Install the Native Gigabit RJ-45 Ethernet Cables
The SFP port is a 1000-Mbps optical interface in the form of an LC-type duplex port that supports IEEE 802.3z interfaces compliant with the 1000BASEX standard. (See Figure 13.)
Appendix A, "Specifications" of the online Cisco 7201 Installation and Configuration Guide, provides cabling specifications and configuration information for the SFP modules that you install in the Gigabit Ethernet SFP ports.
Warning Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70
Figure 13 shows the duplex LC-type connectors on your multimode or single-mode optical fiber cables. For simplex connectors, two cables are required, one cable for transmit (TX) and a second cable for receive (RX). For duplex connectors, only one cable that has both TX and RX connectors is required. You can use either simplex or duplex connectors to the SFP ports on the
Cisco 7201 router.
Install the SFP Module Optical Fiber Cables
The SFP module ports support IEEE 802.3z (optical Gigabit Ethernet) interfaces compliant with 1000BASESX and 1000BASELX specifications.
SFP modules ordered with the Cisco 7201 router come installed in the system. Optical fiber cables are commercially available; they are not available from Cisco.
Figure 12 Optical SFP Modules and Copper SFP Modules
1
|
RJ-45 cable
|
2
|
Copper SFP module RJ-45 connector
|

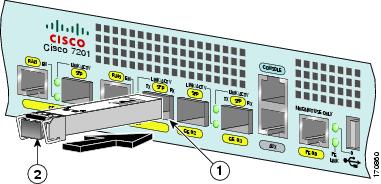

The optical SFP modules can occupy any of the four optical Gigabit Ethernet ports, 0/0 through 0/3. However, the copper SFP modules can occupy only optical Gigabit Ethernet ports 0/2 and 0/3.
Figure 13 SFP Port Connections
1
|
To external 1000BASEX network
|
4
|
TX (SFP port 0/1)
|
2
|
Duplex connector (TX and RX)
|
5
|
RX (SFP port 0/1)
|
3
|
SFP module
|
|
|
Note We strongly recommend cleaning optical fiber connections before attaching cables to equipment. For information about cleaning fiber-optic cable connectors and receptacles, see the Inspection and Cleaning Procedures for Fiber-Optic Connections document. It provides detailed illustrations and photos of procedures and equipment required to properly clean fiber-optic connections. Also see the Compressed Air Cleaning Issues for Fiber-Optic Connections document.
Warning Class 1 laser product. Statement 1008
Warning Class 1 LED product. Statement 1027
Step 1 Remove the plug from the SFP module so that you can insert the optical fiber cables. Keep the plug for use should you ever disconnect the optical fiber cables.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
Step 2 Attach the appropriate optical fiber cable directly to the SFP module. You can use either simplex or duplex connectors for most devices. (Figure 13 shows an SFP module with a duplex connector being installed in SFP port 0/1.)
•For simplex connectors, two cables are required, one cable for transmit (TX) and a second cable for receive (RX).
•For duplex connectors, only one cable that has both TX and RX connectors is required.
Caution If you plan to use a SFP-GE-L at distances greater than 984.25 feet (300 meters) over 50/125-micron or 62.5/125-micron multimode fiber, you must use the mode-conditioning patch cord to prevent data transmission problems.
Mode-Conditioning Patch Cord Description
A mode-conditioning patch cord can be used with the SFP-GE-L= (SFP module) to allow reliable laser transmission between the single-mode laser source on the SFP module and a multimode optical fiber cable.
When an unconditioned laser source designed for operation on single-mode optical fiber is directly coupled to a multimode optical fiber cable, an effect known as differential mode delay (DMD) might result in a degradation of the modal bandwidth of the optical fiber cable.
This degradation results in a decrease in the link span (the distance between a transmitter and a receiver) that can be supported reliably. The effect of DMD can be overcome by conditioning the launch characteristics of a laser source. A practical means of performing this conditioning is to use a device called a mode-conditioning patch cord.
A mode-conditioning patch cord is an optical fiber cable assembly that consists of a pair of optical fibers terminated with connector hardware. Specifically, the mode-conditioning patch cord is composed of a single-mode optical fiber permanently coupled off-center (see Offset in Figure 14) to a graded-index multimode optical fiber. Figure 14 shows a diagram of the mode-conditioning patch cord assembly.
Figure 14 Mode-Conditioning Patch Cord Assembly for an SFP Module
1
|
Gray color identifier
|
5
|
Single-mode bar
|
2
|
To Gigabit Ethernet interface
|
6
|
Offset
|
3
|
Blue color identifier
|
7
|
Beige color identifier
|
4
|
Multimode bar
|
8
|
To cable plant
|
The mode-conditioning patch cord assembly is composed of duplex optical fibers, including a single-mode-to-multimode offset launch fiber connected to the transmitter, and a second conventional graded-index multimode optical fiber connected to the receiver. The use of a plug-to-plug patch cord maximizes the power budget of multimode 1000BASE-LX and 1000BASE-LH links.
The mode-conditioning patch cord is required to comply with IEEE standards. The IEEE found that link distances could not be met with certain types of fiber-optic cable cores. The solution is to launch light from the laser at a precise offset from the center, which is accomplished by using the mode-conditioning patch cord. At the output of the patch cord, the SFP-GE-L= is compliant with the IEEE 802.3z standard for 1000BASE-LX.
Note We strongly recommend cleaning optical fiber connections before attaching cables to equipment. See the Inspection and Cleaning Procedures for Fiber-Optic Connections document and the Compressed Air Cleaning Issues for Fiber-Optic Connections document. Figure 14 shows one type of mode-conditioning patch cord.
Attach the Mode-Conditioning Patch Cord
To use a mode-conditioning patch cord, follow these steps:
Step 1 If you have not already done so, and the mode-conditioning patch cord has been in use, we strongly recommend cleaning optical fiber connections before attaching cables to equipment. For information about cleaning fiber-optic cable connectors and receptacles, see the Inspection and Cleaning Procedures for Fiber-Optic Connections document and the Compressed Air Cleaning Issues for Fiber-Optic Connections document.
Step 2 Attach a mode-conditioning patch cord to the SFP module. (See Figure 14.)
Step 3 Attach the network ends of your mode-conditioning patch cord to the appropriate 1000BASEX equipment in your building cable plant.
Ensure that you connect the TX and RX ports on one end of the patch cord to the RX and TX ports (respectively) on the other end. Connect TX to RX and RX to TX.
Install the Native Gigabit RJ-45 Ethernet Cables
This section provides information about installing the native Gigabit Ethernet RJ-45 cables.
Intra-Building Lightning Protection
Shielded cables, which are grounded at both ends, are required to be used on the 10/100/1000 Gigabit Ethernet RJ-45 ports in order to be in compliance with requirement R4-11 in GR-1089-Core for a Central Office environment. This is not a requirement for customer premises installations.
Warning To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables. Statement 1021
Connect the Cables
Figure 15 RJ-45 Port and Copper SFP RJ-45 Gigabit Ethernet Port Cabling
1
|
RJ-45 connector
|
2
|
Copper SFP module
|
Step 1 Insert an Gigabit Ethernet RJ-45 cable into Gigabit Ethernet RJ-45 ports 0/0 and 0/1 if you are not using Gigabit Ethernet SFP optical ports 0/0 and 0/1.
Step 2 Insert an Gigabit Ethernet RJ-45 cable into a copper SFP module in Gigabit Ethernet ports 0/2 and 0/3.
Connect the Port Adapter Cables
The instructions for connecting the cables for the port adapter installed in the Cisco 7201 router are contained in the respective configuration notes for each port adapter. For example, if you are connecting the optical fiber cables for the PA-GE port adapter, refer to the PA-GE Gigabit Ethernet Port Adapter Installation and Configuration document at http://www.cisco.com/en/US/products/hw/modules/ps2033/products_module_installation_guide_book09186a008060e081.html. Port adapter documents are also available on the Cisco Documentation DVD.
Install the Cables in the Cable-Management Bracket
Figure 16 Securing Interface Cables Through the Cable-Management Bracket
1
|
Input/output cables
|
2
|
Cable-management bracket
|
Secure port adapter interface cables and I/O cables by placing them through the cable-management bracket.
Proceed to the "Start the System" section to complete the installation.
5 Start the System
Before you start the system, you must connect power to it.
Connect Power to the Router
•If you have AC power supplies, go to the "Connect AC-Input Power" section.
•If you have DC power supplies, go to the "Connect DC-Input Power" section.
Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074
Warning Never install an AC power module and a DC power module in the same chassis. Statement 1050
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
Warning This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 120 VAC, 20A U.S. (240 VAC, 10A international). Statement 1005
Connect AC-Input Power
This section provides instructions for installing the AC power supply.
The Cisco 7201 router has two of the same type of power supplies in power supply slot 1 and power supply slot 2. (See Figure 17.) The power supply slot numbers are on the chassis to the left of the left power supply, and to the right of the right power supply.
Figure 17 Power Supply Slot 1 and Slot 2
1
|
Power supply slot 1
|
2
|
Power supply slot 2
|
Connect an AC-input power supply as follows:
Figure 18 Connecting AC-Input Power
1
|
AC power receptacle
|
2
|
Adjustable AC power cable-retention clip
|
Step 1 At the front of the router, check that the power switch is in the standby (|) position.
Step 2 Swing the wire cable-retention clip to the left.
Step 3 Plug the power cable into the AC connector of the power supply.
Step 4 Slide the cable-retention clip to the right, so that the power cable is held by the cable-retention clip.
Step 5 Plug the AC power supply cable into the AC power source. Repeat these steps if you have a dual-AC power supply.
Step 6 On the front of the router, place the power switch in on (O) the router to turn on the router.
Note After powering off the router, wait a minimum of 30 seconds before powering it on again.
Note If required, use Sinewave Output UPS (uninterruptable power supply), not Ferro-resonant type UPS.
This completes the procedure for connecting AC-input power. Your installation is complete. Proceed to the "Start the Router" section to start the router and to perform a basic configuration.
Connect DC-Input Power
This section provides instructions for installing the DC power supply ground leads and installing the DC-input power leads.
Figure 19 Power Supply Slot 1 and Slot 2
1
|
Power supply slot 1
|
2
|
Power supply slot 2
|
The Cisco 7201 has two of the same type of power supplies in power supply slot 1 and power supply slot 2. (See Figure 19.) The power supply slot numbers are on the chassis to the left of the left power supply, and to the right of the right power supply.
Caution Before you connect DC-input power, you must install the DC power ground leads to the DC power supply.
Warning Never install an AC power module and a DC power module in the same chassis. Statement 1050
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
Warning Before connecting or disconnecting ground or power wires to the chassis, ensure that power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position. Statement 140
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Caution To make sure that the equipment is reliably connected to earth ground, follow the grounding procedure instructions, and use a UL-listed lug suitable for 6-AWG wire and M5 screws.
Obtain these necessary tools and equipment:
•Ratcheting torque screwdriver with a Phillips head that exerts up to 15 pound force-inches (lbf in.) or 240 ounce force-inches (ozf in.) of pressure
•Panduit crimping tool with optional controlled cycle mechanism
•18-gauge copper ground wire (insulated or noninsulated)
•Four leads of 18-gauge copper wire
•Wire-stripping tool for stripping 18-gauge wire
Install the DC Grounding Leads
To install the DC grounding leads on the DC power supply, follow these instructions.
The DC power supply ships with the DC power supply ground lugs, star washers, and nut attached to the grounding stud on the DC power supply.
Figure 20 Locating the DC Grounding Stud and Grounding Materials
Step 1 Locate the grounding stud on the DC power supply.
Step 2 Remove the nut, ground lug, star washer, and second ground lug and star washer from the grounding stud.
Figure 21 Stripping the DC-Input Power Ground Wire
1
|
0.5 inch (12.7 mm) + 0.02 inch (0.5 mm)
|
|
|
Step 3 If your ground wire is insulated, use a wire stripping tool to strip the 18-gauge (or 16-gauge, but not smaller than the supply conductor) ground wire to 0.5 inch (12.7 mm)+ 0.02 inch (0.5 mm) as shown in Figure 21.
Step 4 Slide the open end of the ground lug over the exposed area of the 18-gauge wire.
Step 5 Use a crimping tool to crimp the ground wire to a ground lug.
Figure 22 Placing the Ground Lugs, Star Washers, and Nut
Step 6 Place the ground lugs, star washers, and nut on the grounding stud in this order:
a. Star washer
b. Ground lug
c. Star washer
d. Ground lug
e. Nut
Step 7 Tighten the nut to complete the installation.
Step 8 Attach the other end of the ground wires to an appropriate grounding point at your site.
Step 9 Repeat Step 1 through Step 8 on the second DC power supply.
Wire the DC-Input Power Source
Note The color coding of the DC-input power supply leads depends on the color coding of the DC power source at your site. Make certain the lead color coding you choose for the DC-input power supply matches lead color coding used at the DC power source.
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
Warning This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 120 VAC, 20A U.S. (240 VAC, 10A international). Statement 1005
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Use these instructions to wire the DC-input power source:
Step 1 At the front of the router, make sure the power switch is in the standby (|) position.
Step 2 Move the circuit-breaker switch handle to the off position, and apply tape to hold it in the off position.
Figure 23 Terminal Block Plug
Step 3 Locate and remove the terminal block plug.
Step 4 Identify the positive and negative feed positions for the terminal block connection. The wiring sequence is positive to positive and negative to negative for both the A and B feed wires.
Figure 24 Positive and Negative Positions
The rear panel of the power supply unit identifies the positive and negative positions for both the A and B feed wires. See Figure 24.
Figure 25 Stripping the DC-Input Power Source Wire
1
|
0.25 inch (6.3 mm) + 0.02 inch (0.5 mm)
|
|
|
Step 5 Using an 18-gauge wire-stripping tool, strip each of the four wires coming from the DC-input power source to
0.25 inch (6.3 mm) + 0.02 inch (0.5 mm). Do not strip more than 0.29 inch (7.4 mm) of insulation from the wire. Stripping more than the recommended amount of wire can leave exposed wire from the terminal block plug after installation.
Warning An exposed wire lead from a DC-input power source can conduct harmful levels of electricity. Be sure that no exposed portion of the DC-input power source wire extends from the terminal block plug. Statement 122
Figure 26 Inserting Wires into the Terminal Block Plug
1
|
Negative( -)
|
3
|
Negative (-)
|
2
|
Return (+)
|
4
|
Return (+)
|
Step 6 Insert the exposed wire of one of the four DC-input power source wires into the terminal block plug, as shown in Figure 26. Make sure that you cannot see any wire lead. Only wire with insulation should extend from the terminal block.
Figure 27 Torquing the Terminal Block Plug Captive Screws
1
|
Torque is from 0.5 Nm (4.425 lbf in.) to 0.6 Nm (5.310 lbf in.)
|
|
|
Caution Do not overtorque the terminal block plug captive screws. The recommended maximum torque is from 0.5 Nm (4.425 lbf in.) to 0.6 Nm (5.310 lbf in.).
Step 7 Use a ratcheting torque screwdriver to torque the terminal block plug captive screw (above the installed wire lead) to from 0.5 Nm (4.425 lbf in.) to 0.6 Nm (5.310 lbf in.), as shown in Figure 27.
Figure 28 Completed Wiring of Terminal Block Plug
1
|
Negative (-)
|
3
|
Negative (-)
|
2
|
Return (+)
|
4
|
Return (+)
|
Step 8 Repeat Step 6 and Step 7 for the remaining three DC-input power source wires. Figure 28 shows the completed wiring of a terminal block plug.
Note Each DC power supply accepts two power feeds, but works with only one. You may choose to install only one power feed per power supply. For example, DC power feed A to the power supply in power supply slot 1 and DC power feed B to the power supply in power supply slot 2.
Figure 29 Inserting the Terminal Block Plug in the Block Header
1
|
Tie wrap
|
2
|
Terminal block plug
|
Caution Secure the wires coming in from the terminal block plug so that they cannot be disturbed by casual contact.
Step 9 Use a tie wrap to secure the wires to the rack, so that the wires are not pulled from the terminal block plug by casual contact. Make sure the tie wrap allows for some slack in the ground wire.
Step 10 Insert the terminal block plug in the terminal block header on the DC power supply panel, as shown in Figure 29.
Step 11 Repeat Step 1 through Step 10 on the second DC power supply.
Step 12 Remove the tape from the circuit-breaker switch handle, and move the circuit-breaker switch handle to the on position.
Step 13 Switch the circuit breaker to the on position.
Step 14 On the front of the router, place the power switch in on (O) the router to turn on the router.
Note After powering off the router, wait a minimum of 30 seconds before powering it on again.
This completes the procedure for connecting DC-input power. Your installation is complete. Proceed to the "Start the Router" section to start the router.
Start the Router
Check the following conditions before you start your router:
•The port adapter is inserted in its slot and the port adapter lever is in the locked position.
•The network interface cable is connected to the port adapter.
•A CompactFlash Disk is installed.
•SFP modules and their optical-fiber or copper cables are installed.
•The optional USB Flash memory module or Aladdin eToken Pro key is installed.
•The optional Fast Ethernet Management port cable is installed.
•The console terminal is turned on.
Step 1 Place the power switch in the on (O) position.
Step 2 Listen for the fans; they should be operating as soon as power is turned on. The following table provides information about the LEDs as the system starts.

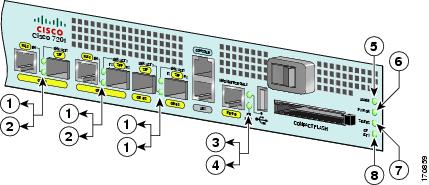

Figure 30 Cisco 7201 Router—Faceplate LEDs
No.
|
LED Label
|
LED
|
In the Power Up State
|
Color-Activityr
|
Behavior Description
|
1
|
LINK/ACTV (Link/Active) (0/0, 0/1, 0/2, 0/3)
|
SFP and RJ-45 ports
|
Solid green
|
Link with no activity
|
Flashing green
|
Link with activity
|
Off
|
|
