Configuring Cisco EnergyWise Feature for Branch Routers

---

OL-22157-01

First Published: March 12, 2010

Revised: May 16, 2011

Cisco EnergyWise is a technology that measures, monitors, and manages the power usage of powered devices, Cisco devices in a domain, and the end points connected to them. The end points communicate with the power management station through Cisco devices, such as the Cisco 800 series routers, Cisco 1900 series routers, Cisco 2900 series routers, and Cisco 3900 series routers. You can also configure policies to manage the power usage. For more information about how EnergyWise works, seee Cisco EnergyWise Configuration Guide, EnergyWise Phase 2 at Cisco.com.

Cisco EnergyWise is supported on the following Cisco branch routers and their modules:

•Cisco 3900 Series

•Cisco 2900 Series

•Cisco 1900 Series

•Cisco 890

•Cisco 880

•Cisco 860

•Cisco Service Module (SM)

•Cisco Internal Service Module (ISM)

•Cisco Next Generation of packet voice/data module (PVDM3)

Finding Feature Information in This Module

Your Cisco IOS software release may not support all of the features documented in this module. To reach links to specific feature documentation in this module and to see a list of the releases in which each feature is supported, see the "Feature Information for Cisco EnergyWise Branch Routers" section.

Finding Support Information for Platforms and Cisco IOS and Catalyst OS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Contents

•Prerequisites for Cisco EnergyWise Branch Routers

•Restrictions for Cisco EnergyWise Branch Routers

•About Cisco EnergyWise Branch Routers

•Configuring Cisco EnergyWise Branch Routers

•Configuration Examples for Cisco EnergyWise Branch Routers

•Additional References

•Command Reference

•Feature Information for Cisco EnergyWise Branch Routers

Prerequisites for Cisco EnergyWise Branch Routers

There are no specific hardware prerequisites for supporting Cisco EnergyWise on the ISR G2 platform. Cisco EnergyWise is available on all ISR G2 platforms with the exception of Cisco 3925E and Cisco 3945E, starting with Cisco  IOS Release 15.0(1)M2.

---

Note By default, Cisco EnergyWise is disabled. You must enable it using the command-line interface (CLI) to use this feature. For more details, see Configuring Cisco EnergyWise Branch Routers.

---

Restrictions for Cisco EnergyWise Branch Routers

The following are the restrictions for Cisco EnergyWise Branch Routers:

•Time-out for Cisco EnergyWise Level Change

•EnergyWise Activity Check for PoE

•Power Stacking

•Cisco EnergyWise Version

Time-out for Cisco EnergyWise Level Change

Service Ready Engine (SRE) modules require time to power down or bring up modules to a stable state. If the SRE module is running an application, it requires a 2-minute time-out interval to reflect the actual change in Cisco EnergyWise level. Any Cisco EnergyWise level change in this 2-minute time-out does not take effect and you must retry after the specified time-out interval. If the SRE module is not running an application, the time-out interval is less than two minutes.

This restriction is specific to the following service modules only:

•ISM-SRE-300-K9

•SM-SRE-700-K9

•SM-SRE-900-K9

EnergyWise Activity Check for PoE

The following HWIC/Etherswitch PoE ports do not support EnergyWise activity check:

•HWIC-4ESW with ILPM4 daughter card

•HWIC-D-9ESW with ILPM8 daughter card

•HWIC-4ESG-P

•EHWIC-9ESG-P

When energywise level is set to 0, connected Cisco IP phones are powered off irrespective of call status.

When PoE ports are configured to "power inline never", it takes precedence over energywise level settings on the port.

Power Stacking

Cisco EnergyWise power stacking is not supported on the Etherswitch modules supported on Cisco ISR and Cisco ISR G2 platforms.

Cisco EnergyWise Version

Both the branch router and switch must use the same Cisco EnergyWise specification and version. To check the version, use the show energywise version command.

About Cisco EnergyWise Branch Routers

ISR G2 supports the following EnergyWise entities:

•Parent—Motherboard is the energywise parent entity. The parent entity is responsible for collection and report of all the child power and nanny power.

•Child—All Service Module (SM), Integrated Service Module (ISM), PVDM3 module, and HWIC Ether switch PoE ports act as child entities.

•Nanny—End-points that are connected to Fast/Gigabit interface, which need energywise events to be handled by parent.

•Neighbor—Entity where another energywise instance is running on it. Neighbor communicates with other neighbors in energywise domain with CDP and UDP protocol. For example, routers and switches which run energywise fall in this category.

•Child and Neighbor (Special relationship)—Special switch modules that are plugged into the Cisco ISR G2 run separate instances of energywise. These modules act as a child and neighbor based on the status of the energywise instance.

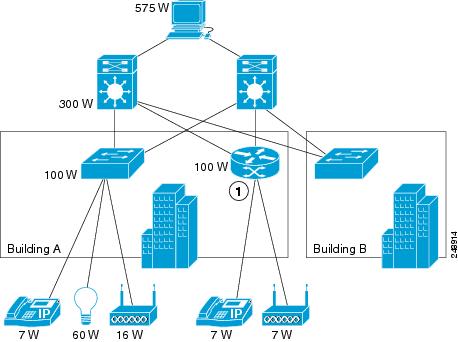

Figure 1 shows the total power consumed by a Cisco EnergyWise domain using a Cisco ISR G2 platform. The EnergyWise domain of a network is independent of the physical domain as long as there is connectivity between the physical domains. In the example below, Building B is outside the power domain; although it is connected to the distribution.

Figure 1 Cisco ISR G2 EnergyWise Solution

1	Cisco ISR G2 platform

Figure 2 shows a typical Cisco EnergyWise solution deployment in a network.

Figure 2 Cisco EnergyWise Deployment Network

1	Cisco EnergyWise Domain	3	Endpoints (child, neighbor, and so on)
2	Management Stations

Configuring Cisco EnergyWise Branch Routers

Perform these steps to configure Cisco EnergyWise Branch Routers.

SUMMARY STEPS

1. enable

2. configure terminal

3. energywise domain

4. show energywise domain

5. show energywise neighbors

6. show energywise children

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router# enable	Enables privileged EXEC mode. Note Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	energywise domain Example: Router(config)# energywise domain cisco security shared-secret lab protocol udp port 43440 interface vlan100	Creates EnergyWise domain to activate EnergyWise on the router.
Step 4	show energywise domain Example: Router# show energywise domain	Displays EnergyWise domain created.
Step 5	show energywise neighbors Example: Router# show energywise neighbors	Displays the modules connected in the domain. Note Cisco recommends the EnergyWise domain and password to be the same, otherwise they cannot communicate.
Step 6	show energywise children Example: Router# show energywise children	Displays the children connected to the motherboard and the power usage of each child.

Configuration Examples for Cisco EnergyWise Branch Routers

This section provides sample configurations for the following:

•Basic energywise domain configuration and show output

•Service-Module (SM) Configuration

•Integrated Service-module (ISM) Configuration

•DSP (PVDM3) Configuration

•Running Config After Configuration

---

Note The configurations mentioned here are for basic configuration and hw-module specific configuration. The remaining configurations and queries are the same as for Cisco Catalyst switches.

---

Basic energywise domain configuration and show output

The following section shows an example of basic energywise domain configuration and show output:

---

Note Use the show energywise version command to display the version of the Cisco EnergyWise component running on the platform.

---

Router# show energywise

  categories   The EnergyWise level descriptions

  children     A summary of EnergyWise information for this entity and active

               children

  domain       The domain this entity is a member of

  events       The last few events sent or received

  level        The currently provisioned level

  neighbors    The immediate neighbors of this entity

  recurrences  All recurring events that are configured for this entity and

               children

  statistics   Communication statistics for this entity

  usage        The usage of this parent entity

  version      The EnergyWise specification version

  |            Output modifiers

  <cr>

Router# show energywise

EnergyWise is Disabled

Router#

Router(config)# energywise domain cisco security shared-secret

  0     Specifies an UNENCRYPTED shared secret for the domain will follow

  7     Specifies a HIDDEN shared secret for the domain will follow

  WORD  Specify the shared secret for the EnergyWise domain (UNENCRYPTED)

Router(config)# energywise domain cisco security shared-secret 0

  WORD  Specify the shared secret for the EnergyWise domain (UNENCRYPTED)

Router(config)# energywise domain cisco security shared-secret 0 energywise

  protocol  Specify a communication protocol to use to communicate with the

            EnergyWise domain

  <cr>

Router(config)# energywise domain cisco security shared-secret 0 energywise

Router(config)# end

Router#  show energywise

Module/

Interface   Role              Name                  Usage      Lvl   Imp  Type

---------   ----              ----                  -----      ---   ---  ----

            CISCO3945         Router              81.0  (W)  10    1    parent

Router#

Router# show energywise children ?

Module/

Interface   Role              Name                  Usage      Lvl   Imp  Type

---------   ----              ----                  -----      ---   ---  ----

            CISCO3945         Router              79.0  (W)  10    1    parent

PVDM 0/3    *                 PVDM 0/3              6.0   (W)  10    1    module

SM 3        *                 SM 3                  20.0  (W)  10    1    module

ISM 0       *                 ISM 0                 16.0  (W)  10    1    module

Total Displayed: 4      Usage: 121.0

Router# show energywise children provisioned ?

Module/

Interface   Role              Name                  Usage      Lvl   Imp  Type

---------   ----              ----                  -----      ---   ---  ----

            CISCO3945         Router              80.0  (W)  10    1    parent

PVDM 0/3    *                 PVDM 0/3              6.0   (W)  10    1    module

SM 3        *                 SM 3                  20.0  (W)  10    1    module

ISM 0       *                 ISM 0                 16.0  (W)  10    1    module

Total Displayed: 4      Usage: 122.0

Router#

Router# show energywise level children

                                                                 Levels (Watts)

Interface   Name 	 0      1      2      3      4      5      6      7      8      9      10

---------   ----
------------------------------------------------------------------------

Router 	 	 		0.0    80.0   80.0   80.0   80.0   80.0   80.0   80.0   80.0   80.0   80.0

PVDM 0/3 PVDM 0/32.0    2.0    6.0    6.0    6.0    6.0    6.0    6.0    6.0    6.0    6.0

SM 3 		SM 3 		0.0    20.0   20.0   20.0   20.0   20.0   20.0   20.0   20.0   20.0   20.0

ISM 0 		ISM 0 		0.0    16.0   16.0   16.0   16.0   16.0   16.0   16.0   16.0   16.0   16.0

Router#

Router# show energywise level current children

Interface   Name                     Level  Value

---------   ----                     -----  -----

            Router                 10     81.0  (W)

PVDM 0/3    PVDM 0/3                 10     6.0   (W)

SM 3        SM 3                     10     20.0  (W)

ISM 0       ISM 0                    10     16.0  (W)

Router#

Router# show energywise level delta

                                                                  Levels (Watts)

Interface   Name 0      1      2      3      4      5      6      7      8      9      10

---------   ----
------------------------------------------------------------------------

            Router                 -77.0  0.0    0.0    0.0    0.0    0.0    0.0    0.0
0.0    0.0    0.0

Router# # show energywise level delta children

                                                                  Levels (Watts)

Interface   Name 0      1      2      3      4      5      6      7      8      9      10

---------   ----
------------------------------------------------------------------------

Router 				-79.0  0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0

PVDM 0/3 PVDM 0/3-4.0   -4.0   0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0

SM 3 		SM 3 		-20.0  0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0

ISM 0 		ISM 0 		-16.0  0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0

Router#

Router# show energywise categories

Level   Label       Color

-----   -----       -----

10      Full        Red

9       High        Red

8       Reduced     Yellow

7       Medium      Yellow

6       Frugal      Green

5       Low         Green

4       Ready       Blue

3       Standby     Blue

2       Sleep       Brown

1       Hibernate   Brown

0       Shut        Black

Router#

Router# show energywise domain

Name      : Router

Domain    : cisco

Protocol  : udp

IP        : 8.2.9.40

Port      : 43440

Router#

Router# show energywise usage

Interface   Name                     Usage      Caliber

---------   ----                     _____      _______

            Router                 81.0  (W)  actual

Router#

Router# show energywise version

EnergyWise is Enabled

IOS Version:  Cisco IOS Software, C3900 Software (C3900-UNIVERSALK9-M), Version
15.0(SWP_20091213) EARLY DEPLOYMENT DEVELOPMENT BUILD, synced to
PRE_RELEASE_FC4_V150_9999_M1

Copyright (c) 1986-2009 by Cisco Systems, Inc.

Compiled <date> 16:59 by <name>

EnergyWise Specification:  (rel2)5.0.12

Router#

Router# show running-config

Building configuration...

Current configuration : 3034 bytes

!

! Last configuration change at 13:37:15 IST Thu Dec 17 2009

!

version 15.0

service timestamps debug datetime msec localtime show-timezone

service timestamps log datetime msec localtime show-timezone

no service password-encryption

service internal

!

hostname Router

!

boot-start-marker

warm-reboot count 50

boot-end-marker

!

!

energywise domain cisco security shared-secret 0 energywise

!

hw-module ism 0

!

hw-module pvdm 0/3

energywise activitycheck

!

hw-module sm 3

!

interface GigabitEthernet3/0

ip address 1.1.1.1 255.0.0.0

shutdown

hold-queue 60 out

!

Router#

Service-Module (SM) Configuration

The following section is an example of the hw-module (service-module - SM) configuration:

Router(config)# hw-module sm 3

Router(config-hw)#

hw-module configuration commands:

  default      Set a command to its defaults

  description  Hardware module specific description

  energywise   EnergyWise interface configurations

  exit         Exit from hw-module configuration mode

  help         Description of the interactive help system

  no           Negate a command or set its defaults

Router(config-hw)#

Router(config-hw)# energywise importance 5

Router(config-hw)# energywise keywords sm3

Router(config-hw)# energywise level 5

Router(config-hw)# energywise name sm 3

Router(config-hw)# energywise role switch

Router(config-hw)#

Router# show energywise children

Module/

Interface   Role              Name                  Usage      Lvl   Imp  Type

---------   ----              ----                  -----      ---   ---  ----

            CISCO3945         Router              	75.0(W) 10    1    parent

PVDM 0/3    *                 PVDM 0/3              6.0   (W)  10    1    module

SM 3        switch            sm 3              	20.0  (W)  5     5    module

ISM 0       *                 ISM 0                 16.0  (W)  10    1    module

Integrated Service-module (ISM) Configuration

The following section is an example of the hw-module (integrated service-module - ISM) configuration:

Router# show energywise children

Module/

Interface   Role              Name                  Usage      Lvl   Imp  Type

---------   ----              ----                  -----      ---   ---  ----

            CISCO3945-MIDPLN  Router                75.0  (W)  10    1    parent

Fa0/0/0     IP Phone 7960     SEP003094C362F0       6.3   (W)  10    1    PoE

PVDM 0/0    *                 PVDM 0/0              6.0   (W)  10    1    module

PVDM 0/1    *                 PVDM 0/1              6.0   (W)  10    1    module

SM 2        *                 SM 2                  31.0  (W)  10    1    module

ISM 0       *                 ISM 0                 12.0  (W)  10    1    module

Total Displayed: 6      Usage: 136.3

Router#

Router# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)# hw-module ism 0

Router(config-hw)#

hw-module configuration commands:

  default      Set a command to its defaults

  description  Hardware module specific description

  energywise   EnergyWise interface configurations

  exit         Exit from hw-module configuration mode

  help         Description of the interactive help system

  no           Negate a command or set its defaults

Router(config-hw)# energywise role role

Router(config-hw)# energywise name name

Router(config-hw)# energywise level 10

Router(config-hw)# energywise keywords keyword

Router(config-hw)# energywise importance 10

Router(config-hw)# end

Router#

Router# show run

Building configuration...

!

hw-module ism 0

 energywise importance 10

 energywise role role

 energywise keywords keyword

 energywise name name

!

end

Router# show energywise children

Module/

Interface   Role              Name                  Usage      Lvl   Imp  Type

---------   ----              ----                  -----      ---   ---  ----

            CISCO3945-MIDPLN  Router                74.0  (W)  10    1    parent

Fa0/0/0     IP Phone 7960     SEP003094C362F0       6.3   (W)  10    1    PoE

PVDM 0/0    *                 PVDM 0/0              6.0   (W)  10    1    module

PVDM 0/1    *                 PVDM 0/1              6.0   (W)  10    1    module

SM 2        *                 SM 2                  31.0  (W)  10    1    module

ISM 0       role              name                  12.0  (W)  10    10   module

Total Displayed: 6      Usage: 135.3

Router#

DSP (PVDM3) Configuration

The following section is an example of the hw-module (DSP-pvdm3) configuration:

Router(config)# hw-module pvdm 0/3

Router(config-hw)#

hw-module configuration commands:

  default      Set a command to its defaults

  description  Hardware module specific description

  energywise   EnergyWise interface configurations

  exit         Exit from hw-module configuration mode

  help         Description of the interactive help system

  no           Negate a command or set its defaults

Router(config-hw)# energywise

  activitycheck  Apply an activity check before turning off power to this PoE

                 port

  allow          Configure which EnergyWise settings are allowed on this

                 interface

  importance     A rating of the importance this EnergyWise entity has in the

                 network

  keywords       EnergyWise keywords associated with this entity

  level          Set the EnergyWise level of this interface or attached entity

  name           EnergyWise name for this entity

  role           The role this EnergyWise entity has in the network

  <cr>

Router(config-hw)# energywise importance 7

Router(config-hw)# energywise keywords pvdm3

Router(config-hw)# # energywise level 7

Router(config-hw)# energywise name pvdm3

Router(config-hw)# energywise role dsp

Router(config-hw)# end

Router#

Router#

Router# show energywise children

Module/

Interface   Role              Name                  Usage      Lvl   Imp  Type

---------   ----              ----                  -----      ---   ---  ----

            CISCO3945         Router              	86.0  (W)  10    1    parent

PVDM 0/3    dsp               pvdm3              	6.0   (W)  7     7    module

SM 3        switch            sm 3              	20.0  (W)  5     5    module

ISM 0       linuxmodule       apex                  16.0  (W)  10    10   module

Total Displayed: 4      Usage: 128.0

Router#

Running Config After Configuration

The following section shows the running config after configuration:

Router# show run

Building configuration...

!

energywise domain cisco security shared-secret 0 energywise

!

hw-module ism 0

 energywise importance 10

 energywise role linuxmodule

 energywise keywords ism0

 energywise name ism

!

hw-module pvdm 0/3

 energywise level 7

 energywise activitycheck

 energywise importance 7

 energywise role dsp

 energywise keywords pvdm3

 energywise name pvdm3

!

hw-module sm 3

 energywise level 5

 energywise importance 5

 energywise role switch

 energywise keywords sm3

 energywise name sm 3`

!

end

Router#

---

Note In Cisco ISR G2 platform, the energywise activity-check command is supported in PVDM3, Etherswitch network module, and Enhanced etherswitch service module. The energywise activity-check command is not supported on HWIC Ether switch cards.

---

---

Note The energywise activity-check command is enabled by default for PVDM3 module. When energywise activity-check is enabled, active calls in PVDM3 are not disconnected. Energywise level [0|1] on PVDM3 are not executed if DSPs are used for signaling.

---

Additional References

The following sections provide references related to the Cisco EnergyWise feature.

Related Documents

Related Topic	Document Title
Cisco EnergyWise Configuration Guide	Cisco EnergyWise Configuration Guide, EnergyWise Phase 2

MIBs

MIB	MIBs Link
ENERGYWISE-MIB.my	This MIB is supported on the Cisco ISR G2 platform. To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL: http://www.cisco.com/go/mibs

Technical Assistance

Description

Link

The Cisco Support website provides extensive online resources, including documentation and tools for troubleshooting and resolving technical issues with Cisco products and technologies. To receive security and technical information about your products, you can subscribe to various services, such as the Product Alert Tool (accessed from Field Notices), the Cisco Technical Services Newsletter, and Really Simple Syndication (RSS) Feeds. Access to most tools on the Cisco Support website requires a Cisco.com user ID and password.

http://www.cisco.com/techsupport

Command Reference

This section lists the new and modified commands for this feature.

Cisco EnergyWise ISR G2 Specific Commands

The following Cisco EnergyWise ISR-G2 specific commands are described in this document:

•hw-module ism

•hw-module pvdm

•hw-module sm

•show platform energywise

Cisco EnergyWise Commands

For the following commands, see the EnergyWise commands in the Cisco EnergyWise Configuration Guide, EnergyWise Phase 2:

•clear energywise neighbors

•energywise (global configuration)

•energywise (interface configuration)

•energywise domain

•energywise query

•show energywise

---

Note The show energywise CLI has two new entity types: module type and connected type for Service Modules. When EnergyWise runs on the module, it has a connected type relationship. When the module is not running EnergyWise, it has a module type relationship.

---

hw-module ism

To configure energywise support on an internal service module (ISM), use the following command in global configuration mode.

hw-module ism <slot>/<subslot>

Syntax Description

<slot>/<subslot>

slot number Note For ISM, the slot number is motherboard slot number 0.

Command Default

None.

Command Modes

Global configuration mode

Command History

Release	Modification
15.0(1)M2	This command was introduced.
15.1(1)T	This command was integrated into Cisco IOS release 15.1(1)T.

Usage Guidelines

None.

Examples

This section contains sample output for hw-module pvdm command:

The following example shows the subcommands for this command.

Router# conf t

Router(config)# hw-module pvdm 0/0

Router(config-hw)# energywise ?

  allow			 Energywise allow query set command

  importance  A rating of the importance this EnergyWise entity has in the

              network

  keywords    EnergyWise keywords associated with this entity

  level       Set the EnergyWise level of this interface or attached entity

  name        EnergyWise name for this entity

  role        The role this EnergyWise entity has in the network

  <cr>

Table 1 Field Description

Field	Description
allow	Energywise allow query set command.
importance	A rating of the importance this EnergyWise entity has in the network.
keywords	EnergyWise keywords associated with this entity.
level	Sets the EnergyWise level of this interface or attached entity.
name	EnergyWise name for this entity.
role	The role this EnergyWise entity has in the network.

Table 4 describes the output fields from the command.

Related Commands

Command	Description
hw-module pvdm	Configures energywise on a PVDM3 module.

hw-module pvdm

To configure energywise support on a PVDM3 module, use the following command in global configuration mode.

hw-module pvdm <slot>/<subslot>

Syntax Description

<slot>/<subslot>

slot number Note For PVDM, the slot number is motherboard slot number 0.

Command Default

None.

Command Modes

Global configuration mode

Command History

Release	Modification
15.0(1)M2	This command was introduced.
15.1(1)T	This command was integrated into Cisco IOS release 15.1(1)T

Usage Guidelines

None.

Examples

The following example shows the subcommands for this hw-module pvdm command:

Router# conf t

Router(config)# hw-module pvdm 0/0

Router(config-hw)# energywise ?

activitycheck	Apply an activity check before turning off power to this PoE port

allow			Configure which Energywise settings are allowed on this interface

importance  	A rating of the importance this EnergyWise entity has in the

              network

keywords    	EnergyWise keywords associated with this entity

level       	Set the EnergyWise level of this interface or attached entity

name        	EnergyWise name for this entity

role        	The role this EnergyWise entity has in the network

<cr>

Table 2 Field Description

Field	Description
activitycheck	Allows you to apply an activity check before turning off power to this PoE port.
allow	Configures Energywise query set on this interface.
importance	Sets the rating of the importance this EnergyWise entity has in the network.
keywords	EnergyWise keywords associated with this entity
level	Sets the EnergyWise level of this interface or attached entity.
name	EnergyWise name for this entity.

Table 4 describes the output fields from the command.

Related Commands

Command	Description
hw-module ism	Configures energywise on an internal service module.

hw-module sm

To configure energywise support on a service module (SM), use the following command in global configuration mode.

hw-module sm <slot>/<subslot>

Syntax Description

<slot>/<subslot>

slot number

Command Default

None.

Command Modes

Global configuration mode.

Command History

Release	Modification
15.0(1)M2	This command was introduced.
15.1(1)T	This command was integrated into Cisco IOS release 15.1(1)T

Usage Guidelines

None.

Examples

Router(config)# hw-module sm 3

Router(config-hw)# energywise ?

  allow          Energywise allow query set command

  importance  A rating of the importance this EnergyWise entity has in the

              network

  keywords    EnergyWise keywords associated with this entity

  level       Set the EnergyWise level of this interface or attached entity

  name        EnergyWise name for this entity

  role        The role this EnergyWise entity has in the network

  <cr>

Table 3 Field Description

Field	Description
allow	Energywise allow query set command
importance	A rating of the importance this EnergyWise entity has in the network.
keywords	EnergyWise keywords associated with this entity
level	Set the EnergyWise level of this interface or attached entity
name	EnergyWise name for this entity
role	The role this EnergyWise entity has in the network

Table 4 describes the output fields from the command.

Related Commands

Command	Description
hw-module pvdm	Configures energywise on a PVDM3 module.

show platform energywise

To obtain information about power consumption details, power constant and maximum power, use the following command in global configuration mode.

show platform energywise

Syntax Description

This command has no keywords or arguments.

Command Default

None.

Command Modes

Privilege.

Command History

Release	Modification
15.0(1)M2	This command was introduced.
15.1(1)T	This command was integrated into Cisco IOS release 15.1(1)T

Usage Guidelines

This command is applicable only to modular platforms.

Examples

This section contains sample output for the show platform energywise command:

Router # show platform energywise

 POWER CONSTANT AND MAX_POWER DETAILS

 =====================================

 Motherboard power constant = 199

 Motherboard maximum power = 165.4 W

 Service module slot = 1: power details not present

 Service-module slot = 2: power constant =BE3, max_power = 38

 ETHSW_SM POE power consumption = 6.3 W

 PVDM3 Max Power consumption = 12.0 W

Router#

Table 4 Field Description

Field	Description
Motherboard power constant	The multiplier used to convert the raw power reading to Watts.
Motherboard maximum power	The calculated maximum power that the system can run at with all the modules and platforms.
ETHSW_SM POE power consumption	Power consumption of the ethernet switch.
PVDM3 Max Power consumption	Maximum power consumption of the PVDM3 module.

Table 4 describes the output fields from the command.

Feature Information for Cisco EnergyWise Branch Routers

Table 5 lists the release history for this feature.

Not all commands may be available in your Cisco IOS software release. For release information about a specific command, see the command reference documentation.

Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which Cisco IOS and Catalyst OS software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

---

Note Table 5 lists only the Cisco IOS software release that introduced support for a given feature in a given Cisco IOS software release train. Unless noted otherwise, subsequent releases of that Cisco IOS software release train also support that feature.

---

Table 5 Feature Information for Cisco EnergyWise Branch Routers

Feature Name	Releases	Feature Information
Report platform power (parent)	15.0(1)M2	For Cisco EnergyWise, every ISR G2 platform is an entity. The MCU device on the platform measures the total power consumed by the ISR G2 platforms. Platform power includes the following: •Various hardware parts on the motherboard: –Fan –CPU –ASICs) •HWICs •Legacy NM (plugged in via SM2NM port adaptor) The following are separately reported as child power, so these are not included in platform power: •Power consumed by PVDM3 •ISM •Service Module and Enhanced EtherSwitch Module •Power consumed by POE ports on modules On the Cisco 860, 880, and 890 platforms, the platform power consumption has a constant value.
Report SM power (child-neighbor)		SMs and Enhanced EtherSwitch Modules are the only two modules whose power is reported as separate child power. Also, SM does not have EnergyWise running (unlike Enhanced EtherSwitch, which may have EnergyWise running on the module). So, for Enhanced EtherSwitch the power consumed is reported as separate SM child power. EtherSwitch is a special kind of SM, which can never be the child of a platform. Its power is reported as part of platform power.
Report ISM power (child)		The power of ISMs is reported separately.
Report PVDM power (child)		Only Next Generation High Density PVDM3 Modules are supported as PVDM child. Its power is reported separately under the child's power, and is not included in the platform power. For other PVDMs, the power consumed is included in or as a part of platform power, and is not a separate child entity. The PVDM driver also supports activity-in-progress feature. If there are calls in the system and a query to shutdown is received, the driver reports back activity-in-progress and the module is not shutdown.
Report PoE power (child)	15.0(1)M2	The router can control the PoE power consumed by phone on HWIC. Only the Cisco HWIC-D-9ESW-POE and Cisco HWIC-4ESW-POE support PoE on the ISR G2 platforms. On the ISR G2 modules, the actual PoE power consumed cannot be measured. So power that is reported by phone or based on the class of the phone is reported. Like the Cisco ISR G2 modules, there is no capability to measure actual POE power on the 860, 880, and 890 platforms.
Nanny support (child)		All ethernet interfaces including front panel, as well as all the modules that have ethernet interfaces (like NM-16ESW) support Nanny negotiation. The ISRG2 platforms support Nanny Protocol on fast ethernet on the following: •POE interfaces. •Routed/L3 ports Enhanced Etherswitch Modules and 16 Port Ethernet Switch Module NM-16ESW. •Motherboard interfaces. The ISRG2 routers do not support Nanny Protocol on the remaining ethernet L2 interfaces, as well as other non-ethernet interfaces like DSL/E1/T1. The POE/L2 interfaces on Enhanced EtherSwitch Module and EtherSwitch support Nanny Protocol and the ISR G2 platforms do not directly control the POE ports on these modules. All Ethernet interfaces on Cisco 860, 880, and 890 platforms support Nanny negotiation.
Change SM power (child)		Based on the EnergyWise level supported, only Enhanced EtherSwitch and Service Module power can be changed. For both the modules, the supported power levels are 0 (shutdown) and 1 through 10 (full power).
Change ISM power (child)		Internal Service Modules (ISM) support a power level of 0 (shutdown) and 1 through 10 (full power).
Change PVDM power (child)	15.0(1)M2	The Next Generation High Density PVDM3 Modules support the following power levels: •0, 1: PVDM in reset mode (still consumes minimal power, approximately 2W) •2 through 10: Full (Normal operation).
Change POE power (child)		The ISR G2 platforms have the ability to shutdown POE ports on the modules that have POE ports. Levels supported are 0 (for shutdown) and 1 though 10 (all for full power). On the 860, 880, and 890 routers, the POE ports can be shut down or can be running full power.
MIB		All objects and traps in the CISCO-ENERGYWISE-MIB.my MIB are supported on the ISR G2 platforms and the 860, 880, and 890 platforms.
Etherswitch Network and Enhanced Etherswitch Module		Etherswitch Network and Enhanced Etherswitch Module is a special module which can run Cisco EnergyWise. The relationship between the router and the module is a child-neighbor relationship, that is, the module is the neighbor of the router, as well as a child of the router or platform. If Cisco EnergyWise is running on the module, it should be in the same domain as the router. Having the module and the router running in different domains is not supported. An IOS error message is displayed if this configuration is detected. EtherSwitch Module is not a child of the router. So, the power consumed by EtherSwitch Module is always reported or included in the platform power.

CCDE, CCENT, CCSI, Cisco Eos, Cisco HealthPresence, Cisco IronPort, the Cisco logo, Cisco Nurse Connect, Cisco Pulse, Cisco SensorBase, Cisco StackPower, Cisco StadiumVision, Cisco TelePresence, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for Good, Flip Mino, Flipshare (Design), Flip Ultra, Flip Video, Flip Video (Design), Instant Broadband, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn, Cisco Capital, Cisco Capital (Design), Cisco:Financed (Stylized), Cisco Store, Flip Gift Card, and One Million Acts of Green are service marks; and Access Registrar, Aironet, AllTouch, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Lumin, Cisco Nexus, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, Continuum, EtherFast, EtherSwitch, Event Center, Explorer, Follow Me Browsing, GainMaker, iLYNX, IOS, iPhone, IronPort, the IronPort logo, Laser Link, LightStream, Linksys, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, PCNow, PIX, PowerKEY, PowerPanels, PowerTV, PowerTV (Design), PowerVu, Prisma, ProConnect, ROSA, SenderBase, SMARTnet, Spectrum Expert, StackWise, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0910R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

Copyright © 2010 Cisco Systems, Inc. All rights reserved.
