Safety Warnings
Warning Read the installation instructions before connecting the system to the power source. Statement 1004
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Warning This equipment must be installed and maintained by service personnel as defined by AS/NZS 3260. Incorrectly connecting this equipment to a general-purpose outlet could be hazardous. The telecommunications lines must be disconnected 1) before unplugging the main power connector or 2) while the housing is open, or both. Statement 1043
Warning Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord. Statement 1
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the unit first. Statement 1026
Warning Before opening the unit, disconnect the telephone-network cables to avoid contact with telephone-network voltages. Statement 1041
Warning Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals. Statement 43
Warning Do not use this product near water; for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. Statement 1035
Warning Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Statement 1036
Warning Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Statement 1037
Warning Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Statement 1038
Warning To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
Warning There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Statement 1015
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
Warning No user-serviceable parts inside. Do not open. Statement 1073
Warning For connections outside the building where the equipment is installed, the following ports must be connected through an approved network termination unit with integral circuit protection.
T1 SFP Statement 1044
Accessing Internal Modules
See the following sections for instructions about accessing the internal modules on the router.
- Cisco 2900 series routers— Removing and Replacing the Chassis Cover
- Cisco 3900 series routers— Removing and Replacing the Services Performance Engine
Removing and Replacing the Chassis Cover
Cisco 2900 series routers have a removable cover. Cisco 3900 routers do not have a removable cover. All serviceable components and assemblies are easily removed on the Cisco 3900 series ISR by simply sliding them out of the chassis.
Warning Before opening the unit, disconnect the telephone-network cables to avoid contact with telephone-network voltages. Statement 1041
Note Use a number-2 Phillips screwdriver to perform the following tasks.
To remove the cover, perform the following steps.
Step 1 Read the “Safety Warnings” section and disconnect the power supply before you perform any module replacement.
Step 2 Confirm the router is turned off and disconnected from the power supply or power supplies. If a redundant power is used, disconnect from the redundant power supply.
Step 3 Place the chassis on a flat surface.
Step 4 Remove the three cover screws at the back of the router cover. See Figure 5-1.
Step 5 Lift the cover from the back edge to a 45-degree angle.
Step 6 Pull the cover toward you to disengage the slots along the front (bezel) edge of the chassis. See Figure 5-1.
To replace the cover, perform the following steps.
Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.
Step 2 Confirm the router is turned off and disconnected from the power supply or power supplies. If a redundant power is used disconnect from the redundant power supply.
Step 3 Place the chassis on a flat surface.
Step 4 Hold the cover at a 45-degree angle and insert the cover tabs into the slots along the front (bezel) edge of the chassis. See Figure 5-1.
Step 5 Center the cover over the chassis and lower it onto the chassis.
Step 6 Install the three cover screws.

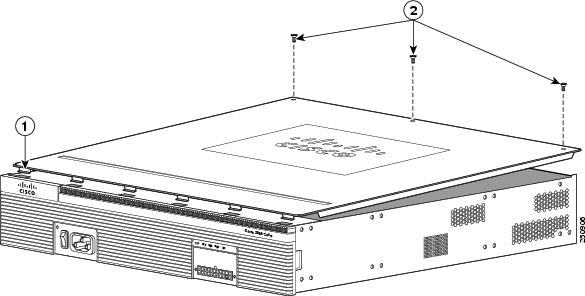

Figure 5-1 Installing Cover on Cisco 2900 Series Routers
Removing and Replacing the Services Performance Engine
Modular motherboards, also known as Services Performance Engines (SPEs), are field replaceable units (FRUs) for Cisco 3900 series ISRs. Install and replace SPEs in the Cisco 3900 series routers without removing the chassis from the rack. After the SPE is removed, you can access internal modules for replacement or upgrade.
Note Use a number-2 Phillips screwdriver for this task.
Step 1 Read the “Safety Warnings” section and disconnect the power supply before you perform any module replacement.
Step 2 Loosen the two captive thumbscrews on each side of the SPE. See Figure 5-2.
Step 3 Rotate the ejector levers outward on each side of the SPE and carefully slide it straight out of the router. Place it on an antistatic surface.

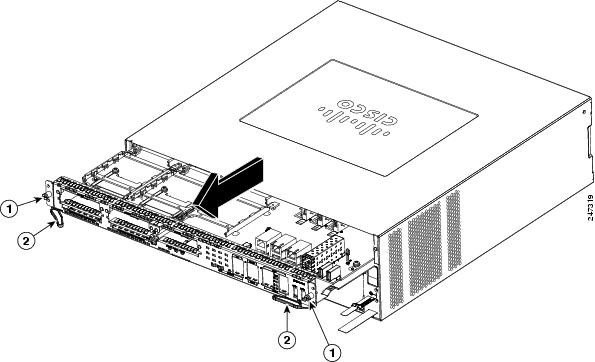

Figure 5-2 Removing the Services Performance Engine from a Cisco 3925 and 3945 Router
Step 4
Install or replace DRAM DIMMs, ISMs, or PVDMs
. See the “Locating Internal Modules” section to locate the slots on the router.
or
Install or replace the Services Performance Engine
. Check that the ejector levers on the replacement SPE are fully open outward. Carefully slide the SPE into the router tray until the connector is engaged, and then close the ejector levers to fully seat the SPE.
Step 5 Tighten the two captive retention screws on each side of the motherboard.
Locating Internal Modules
The following illustrations show the locations of internal modules on the router motherboard. Internal modules include DIMMs, Internal Services Modules (ISMs), next-generation Packet Voice Data Modules (PVDM3s), and power supply on Cisco 2900 series ISR.
- Cisco 2901—Figure 5-3
- Cisco 2911—Figure 5-4
- Cisco 2921 and Cisco 2951—Figure 5-5
- Cisco 3925 and Cisco 3945—Figure 5-6
- Cisco 3925E and Cisco 3945E—Figure 5-7
Figure 5-3 Module Locations in Cisco 2901 Router

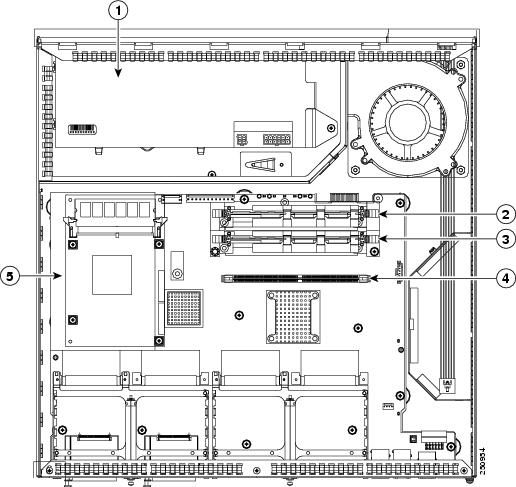

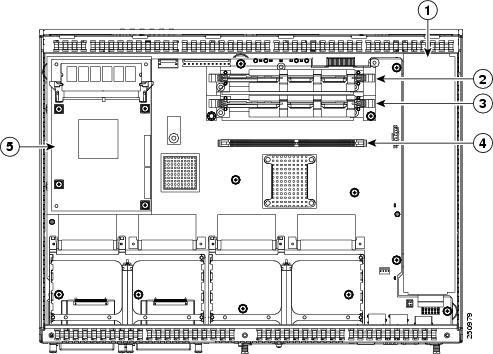

Figure 5-4 Module Locations in Cisco 2911 Router

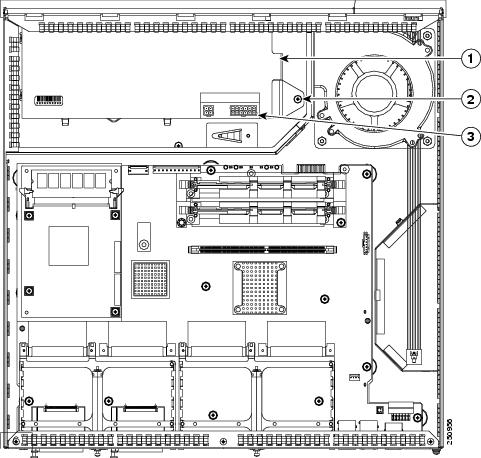

Figure 5-5 Module Locations in Cisco 2921 and Cisco 2951 Router

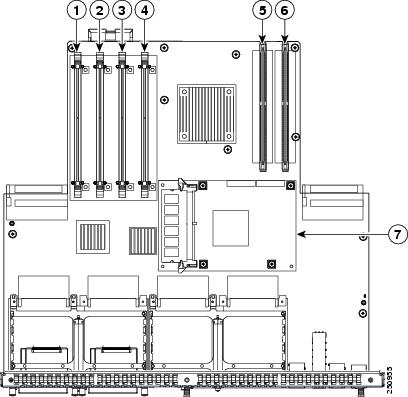

Figure 5-6 Module Locations in Cisco 3925 and Cisco 3945 Router

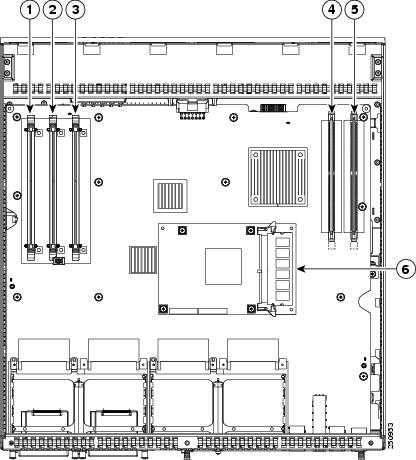

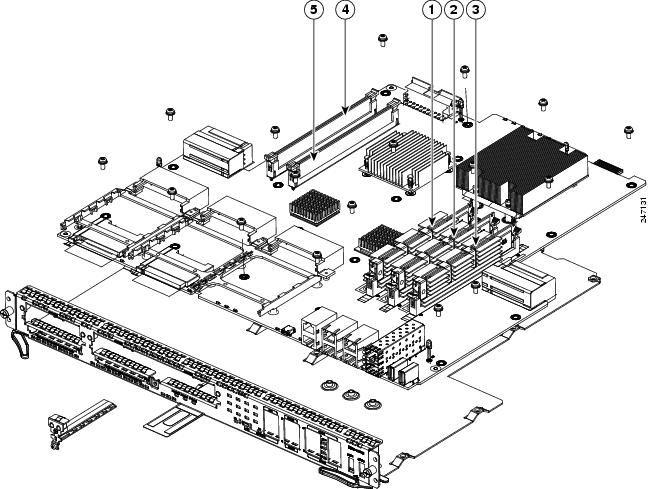

Figure 5-7 Module Locations on Cisco 3925E and 3945E
Installing and Removing DRAM DIMMs
Remove the chassis cover or remove the SPE as described in the “Accessing Internal Modules” section.
Locating and Orienting DRAM DIMM
Cisco 2901, 2911, and 2921 routers have a single DRAM DIMM socket on the system board. Cisco 2951 and Cisco 3900 series have two DRAM DIMM sockets on the system board that are identified as DIMM 0 and DIMM 1. See the “Locating Internal Modules” section to find DIMM connectors on the router.
DRAM DIMMs have a polarization notch on the mating edge to prevent incorrect insertion. Figure 5-8 shows the polarization notch on a DRAM DIMM.

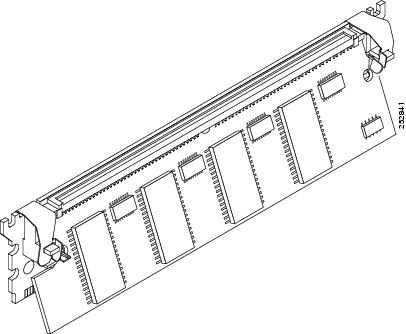

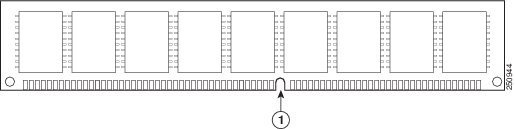

Figure 5-8 DRAM DIMM Showing Polarization Notch
Removing a DRAM DIMM
Follow these steps to remove a DRAM DIMM:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Remove the chassis cover. For Cisco 2900 series ISRs, see the “Removing and Replacing the Chassis Cover” section. For Cisco 3900 series ISRs, see the “Removing and Replacing the Services Performance Engine” section.
Step 3 Locate the DRAM DIMM module. See the “Locating Internal Modules” section to find the DRAM DIMM sockets on the router.
Step 4 Pull the latches away from the DRAM DIMM at both ends to lift the DIMM slightly. Pull the DIMM out of the socket as shown in Figure 5-9.

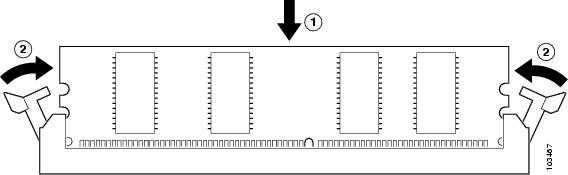

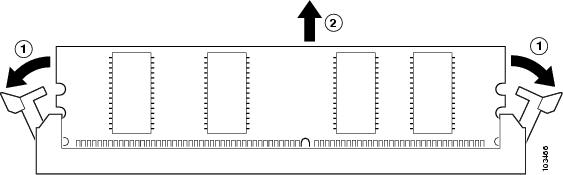

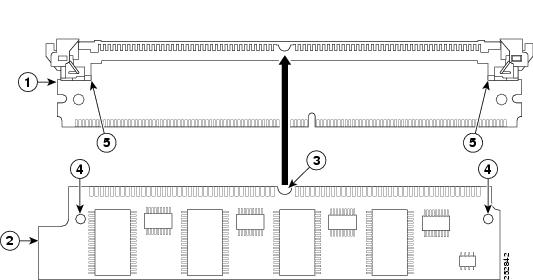

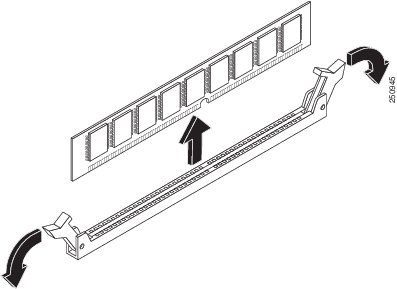

Figure 5-9 Removing a DRAM DIMM
Step 5 Place the DIMM in an antistatic bag to protect it from ESD damage.
Step 6 Replace the chassis cover. For Cisco 2900 series ISRs, see the “Removing and Replacing the Chassis Cover” section. For Cisco 3900 series ISRs, see the “Removing and Replacing the Services Performance Engine” section.
Installing a DRAM DIMM
Note Unregistered DIMMS (UDIMMs) and very low profile (VLP) RDIMMs are not interchangeable.
Follow these steps to install a DRAM DIMM:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Remove the chassis cover. For Cisco 2900 series ISRs, see the “Removing and Replacing the Chassis Cover” section. For Cisco 3900 series ISRs, see the “Removing and Replacing the Services Performance Engine” section.
Step 3 Locate the DRAM DIMM module. See the “Locating Internal Modules” section to find the DRAM DIMM sockets on the router.
Step 4 Make sure that both latches on the DIMM connector are in the open position.
Step 5 Orient the DIMM so that the polarization notch lines up with the polarization key on the connector. See Figure 5-10.
Figure 5-10 DRAM DIMM Showing Polarization Notch
Step 6 Insert the DIMM into the connector.
Step 7 Carefully and firmly press the DRAM DIMM into the connector until the latches close onto the DIMM. Make sure that both latches rotate to the closed position against the DIMM. See Figure 5-11.

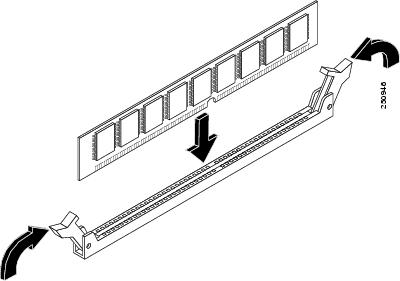

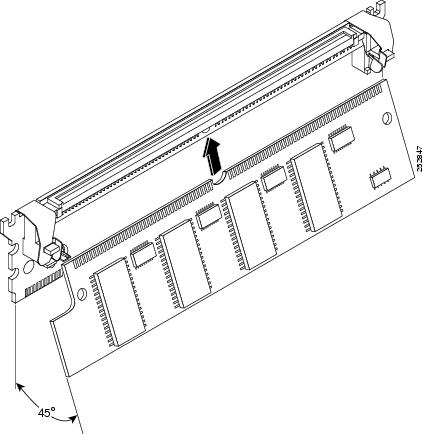

Figure 5-11 Installing a DRAM DIMM
Step 8 Replace the chassis cover. For Cisco 2900 series ISRs, see the “Removing and Replacing the Chassis Cover” section. For Cisco 3900 series ISRs, see the “Removing and Replacing the Services Performance Engine” section.
Installing and Removing ISMs
A Integrated Service Modules (ISMs) plug into the ISM slot on the motherboard. ISMs are sold as a spare part, and they have a label that identifies the ISM type. See the following sections for ISM installation tasks:
- Software Requirement for ISMs
- Locating an ISM
- Removing an ISM
- Installing an ISM
- Verifying ISM Installation
Software Requirement for ISMs
Cisco IOS software of a specified release or later release is required for using an ISM.
To determine the version of Cisco IOS software that is running on your router, log in to the router and enter the show version command:
Locating an ISM
See the “Locating Internal Modules” section to locate the ISM slot on the Services Performance Engine (SPE).
Removing an ISM
Use the following procedure to remove an ISM:
Step 1 Read the “Safety Warnings” section and disconnect the power supply before you perform any module replacement.
Step 2 Access the ISM slot. For Cisco 2900 series, see the “Removing and Replacing the Chassis Cover” section. For Cisco 3900 series, see the “Removing and Replacing the Services Performance Engine” section.
Step 3 Locate the ISM to be removed. See the “Locating Internal Modules” section.
Step 4 Remove the four screws from the ISM. See Figure 5-12.
Figure 5-12 Removing Screws from the ISM
Step 5 Lift the ISM off of the connector and the plastic standoff. Keep the ISM parallel with the motherboard to prevent damage to the slot and standoff.
Step 6 Place the ISM in an antistatic bag to protect it from ESD damage.
Step 7 Replace the chassis cover. For Cisco 2900 series, see the “Removing and Replacing the Chassis Cover” section. For Cisco 3900 series, see the “Removing and Replacing the Services Performance Engine” section.
Installing an ISM
To install an ISM, use a number 2 Phillips screwdriver or flat-blade screw drive, and a 1/4-inch nut driver or wrench. Cisco 2900 and Cisco 3900 series routers have one ISM connector on the system board.
Step 1 Read the “Safety Warnings” section and disconnect the power supply before you perform any module replacement.
Step 2 Access the ISM slot. For Cisco 2900 series, see the “Removing and Replacing the Chassis Cover” section. For Cisco 3900 series, see the “Removing and Replacing the Services Performance Engine” section.
Step 3 Locate the four standoffs from the accessory kit. See Figure 5-13.
Step 4 Install the four standoffs into the system board in the attachment locations, as shown in Figure 5-14. Use a 1/4-inch nut driver to tighten the standoffs. The locations for ISM standoffs have white plastic grommets surrounding the mounting hole location.

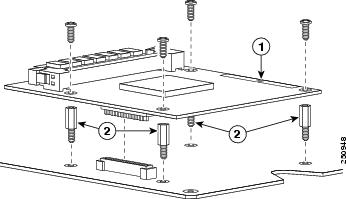

Figure 5-14 Connecting the ISM to the Cisco 2900 and 3900 Series System Board
Step 5 Insert the connector on the ISM and attach it to the system board. See Figure 5-15.
Note Be sure to press firmly on the ISM until the board seats onto the connector.
Step 6 Insert the screws from the accessory kit through the ISM into the standoffs. See Figure 5-13. Carefully tighten the screws with a Phillips screwdriver (torque 6 to 8 in-lb or 0.7 to 1.1 Nm.).
Step 7 Check that the ISM is installed correctly on the system board. See Figure 5-15.
Figure 5-15 Correctly Installed ISM
Step 8 Cisco 2900, See the “Accessing Internal Modules” section.
Cisco 3900, See the “Removing and Replacing the Services Performance Engine” section.
Installing and Removing PVDM3
The Cisco 2900 and 3900 series ISRs support next generation Packet Voice Data Modules (PVDM3) for enhanced digital signal processors (DSPs). Each router holds a different number of PVDM3s on the motherboard. See Table 5-1 for details.
PVDMs must be used in an homogeneous fashion. In other words, do not mix PVDM2s with PVDM3s in the same router.
PVDM slot numbering is defined in the “Locating Internal Modules” section. When using only one PVDM, ensure the module is installed in slot0.
PVDM2s must be installed in a PVDM II adapter for use in the PVDM3 slot on Cisco 2900 series and Cisco 3900 series ISRs. See the “Installing and Removing PVDM2s” section.
PVDM3 Location and Orientation
The PVDM3 connectors are located on the motherboard and are identified as PVDM3 0 through 3. See the “Locating Internal Modules” section for locations.
PVDM3s have a polarization notch on the mating edge to prevent incorrect insertion.
Removing a PVDM3
To remove a PVDM3 from the motherboard, follow these steps:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Locate the PVDM3 on the motherboard. See the “Locating Internal Modules” section.
Step 3 Pull the PVDM3 retaining clips away from the PVDM3 at both ends, and then lift the PVDM3 straight up from the connector. See Figure 5-16.
Step 4 Place the PVDM3 in an antistatic bag to protect it from ESD damage.
Installing a PVDM3
To install a PVDM3, follow these steps.
Note Fill PVDM3s slots sequentially, starting with connector 0.
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Locate the PVDM3 connector on the system board. See the “Locating Internal Modules” section for the PVDM3 locations.
Step 3 Orient the PVDM3 so that the polarization notch lines up with the polarization key on the connector. See Figure 5-17.
Figure 5-17 Installing a PVDM3
Step 4 Insert the PVDM3 firmly into the connector until seated.
Step 5 Replace the chassis cover. For Cisco 2900 series ISRs replace the cover. See the “Removing and Replacing the Chassis Cover” section. For Cisco 3900 series ISRs replace the SPE. See the “Removing and Replacing the Services Performance Engine” section.
Installing and Removing PVDM2s
A PVDM adapter must be used to insert a PVDM2 into the PVDM3 slot. The PVDM adapter is a small circuit board with connectors and clips that securely mount the PVDM2 into the PVDM3 slot. The clips are on the side of the adapter and require physical manipulation to secure the module in place. The following video clip shows how to install and remove a PVDM2 from the adapter.
http://cisco.com/en/US/docs/routers/access/2900/videos/PVDM/PVDM_Adapter.swf
- PVDM Adapter—Figure 5-18
- Clips and Guide Post—Figure 5-19
- Clips Open—Figure 5-20
- Clips Closed—Figure 5-21
Figure 5-18 PVDM Adapter Components
To install a PVDM2 into the PVDM3 slot, perform the following steps:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Ensure that both retainer clips are open (the UP position). (See Figure 5-19, Figure 5-20, and Figure 5-21.)
Figure 5-19 shows the retainer clip, connector clip, and guide post locations on the adapter.

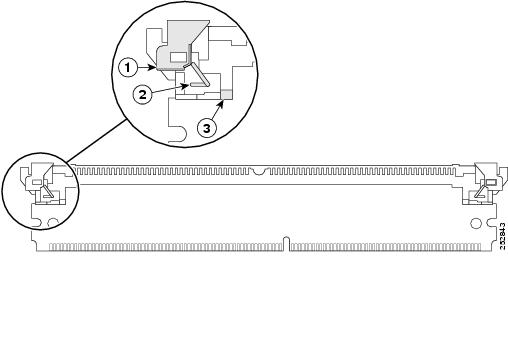

Figure 5-19 Adapter Retainer Clip, Connector Clips, and Guide Posts
Figure 5-20 shows a retainer clip open.
Figure 5-20 Retainer Clip Open (Up Position)
Figure 5-21 show a retainer clip closed (DOWN).

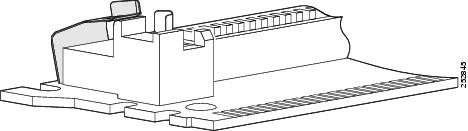

Figure 5-21 Retainer Clip Closed (Down Position)
Step 3 Insert the PVDM2 at a 45-degree angle to the adapter while aligning the key notch. Ensure that the entire connector seats into the adapter across its entire length, and push the PVDM2 firmly into the adapter.
Figure 5-22 Installing the PVDM2 into the PVDM Adapter
Step 4 Push the PVDM onto the guide posts. The guide posts should protrude through the guide holes. The connector clips seat themselves on top of the PVDM2, holding the PVDM2 in the adapter.
Step 5 Push both retainer clips over their respective catches. The retainer clips prevent the connector clips from releasing the PVDM2. Figure 5-23 shows the PVDM2 properly installed in the adapter.
Figure 5-23 Proper Installation of PVDM2 in the Adapter
Replacing Power Supplies and Redundant Power Supplies
Except for the Cisco 2901 router, all Cisco 2900 series routers have replaceable power supply modules and external redundant power supplies (RPS). The Cisco 3900 series routers cannot use an external RPS, and instead use one or two (optional) internal power supplies. All of the internal power supplies for the 2900 series and the 3900 series are modular and do not have internal cabling. These modular power supplies can be removed or installed using only a screwdriver.
- Replacing the Cisco 2901 Router Power Supply
- Replacing the Cisco 2911 Router Power Supply
- Installing and Removing the Cisco 2911 Router Optional DC Power Supply
- Installing the Cisco 2911 Router Power Supply Blank
- Replacing the Cisco 2911 Router Redundant Power Supply
- Replacing the Cisco 2921, Cisco 2951, or Cisco 3900 Series Power Supply
– Inserting POE supply in an Ethernet Switch Network Module
- Installing and Removing the Cisco 2921, Cisco 2951, or Cisco 3900 Series Optional DC Power Supply
- Installing and Removing a Redundant Power Supply Adapter
Note Replace power supplies with the types shown in Table 1-9.
Replacing the Cisco 2901 Router Power Supply
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
To replace the power supply in a Cisco 2901 router, perform the following steps. See Figure 5-3 for the locations of connectors and other components within the Cisco 2901 router.
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Disconnect the router from the external AC power supply.
Step 3 Remove the cover from the chassis. See the “Removing and Replacing the Chassis Cover” section.
Step 4 Disconnect the power supply cable from the main power supply connector. See Figure 5-24.

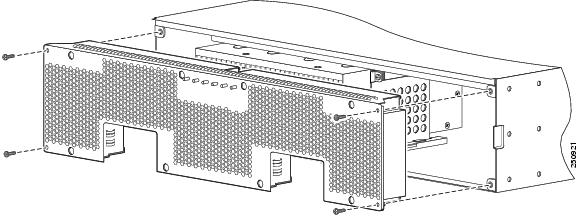

Figure 5-24 Cisco 2901 Power Supply Components
Step 5 Remove the screw that fastens the main power supply to the chassis.
Step 6 Lift the main power supply out of the chassis. See Figure 5-25.

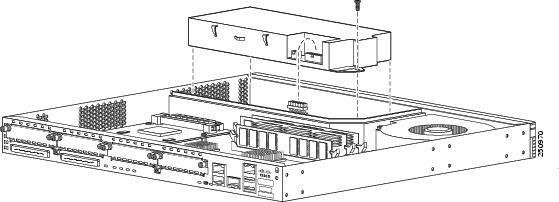

Figure 5-25 Lifting the 2901 Power Supply In or Out
Step 7 Insert the replacement power supply into the chassis. See Figure 5-25. Insert the screws that fasten the power supply to the chassis. See Figure 5-24.
Step 8 Connect the power supply cable to the power supply connector. Replace the chassis cover and connect power to the router.
Replacing the Cisco 2911 Router Power Supply
Several power supply options are available for the Cisco 2911 router. See Table 1-9 . All of the power supply options have the same modular form factor for easy removal and replacement.
Perform the following steps to replace the 2911 power supply:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Figure 5-26 Cisco 2911 Power Supply Components
Step 2 Loosen the two captive screws on the power supply module. See Figure 5-26.
Step 3 Slide the power supply module out of the chassis.
Step 4 Insert the replacement power supply module and tighten the captive screws.
Step 5 If you are not immediately replacing the power supply, install the blank cover over the empty supply slot. See the “Installing the Cisco 2911 Router Power Supply Blank” section.
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
Installing and Removing the Cisco 2911 Router Optional DC Power Supply
Several power supply options are available for the Cisco 2911 router. See Table 1-9 . All of the power supply options have the same modular form factor for easy removal and replacement.
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Installing the 2911 DC Power Supply
Perform the following steps to install the 2911 DC or DC+POE power supply:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module removal or installation.
Step 2 Remove the AC power supply module from the system by loosening the two captive screws using a number 1 Phillips head screwdriver (See Figure 5-26) and pulling the power supply out slowly from the I/O side (See Figure 5-27) of the chassis.
Step 3 Slide the power supply module out of the chassis.
Step 4 Insert the replacement DC power supply module and tighten the captive screws. Torque to 8 to10 in-lbf (0.9 to 1.1 N-m).
Removing the 2911 DC Power Supply
Perform the following steps to remove the 2911 DC power supply:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module removal or installation.
Step 2 Remove the power supply module from the system by loosening the two captive screws using a number 1 Phillips head screwdriver (See Figure 5-26) and pulling the power supply out slowly from the I/O side (See Figure 5-27) of the chassis.
Step 3 Slide the power supply module out of the chassis.
Step 4 If you are not immediately replacing the power supply, install the blank cover over the empty supply slot. See the “Installing the Cisco 2911 Router Power Supply Blank” section.
Installing the Cisco 2911 Router Power Supply Blank
For safety reasons, the power supply blank cap and panel must be installed immediately if the power supply is removed from the system and the system stays or will be energized before the power supply is replaced.
Note This procedure applies to customers who will maintain or supply power to the system with the RPS module.
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 If the power supply is present, make sure it is turned off and the power cord is detached.
Step 3 Remove it from the system by loosening the two captive screws using a number 1 Phillips head screwdriver and pulling the power supply out slowly from the I/O side of the chassis. See Figure 5-27.

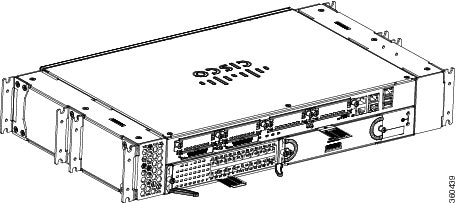

Figure 5-27 2911 Power Supply Blank I/O Side Installation

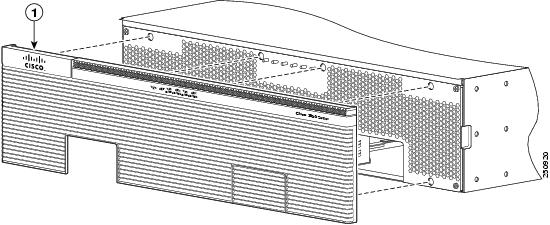

Step 4 Remove the bezel assembly from the bezel side of the router by pulling the bezel away from the face of the router. See Figure 5-28

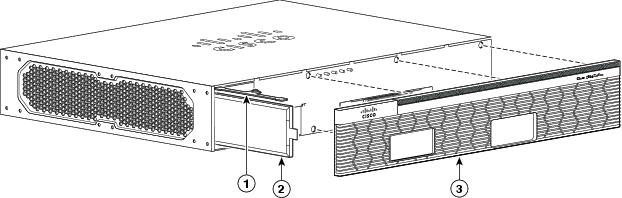

Figure 5-28 2911 Power Supply Blank Bezel Side Installation
Step 5 Install the power switch blank cap by slowly pushing it into the power supply opening on the bezel side of the chassis. Make sure that the “THIS SIDE UP” label is on top when installing the blank cap. You will feel it snap into place when it is fully seated. See Figure 5-28
Step 6 Replace the bezel assembly by lining up the holes in chassis with the connectors on the bezel. Slowly push the bezel assembly into place until it is fully seated.
Step 7 Install the power supply blank panel into the power supply opening on the I/O side of the chassis by pushing it into place, as shown in Figure 5-27. Make sure that the flange with the marking “THIS SIDE UP” is facing up.
Step 8 Tighten the two captive screws with a number 1 Phillips head screw driver after the power supply blank panel is fully seated.
Replacing the Cisco 2911 Router Redundant Power Supply
The redundant power supply (RPS) for the Cisco 2911 router is an external RPS. The external RPS attaches to a connector on the front of the router. For an RPS to be attached, the Cisco 2911 must be fitted with an RPS adapter. See Figure 5-29. See the “Installing and Removing a Redundant Power Supply Adapter” section.

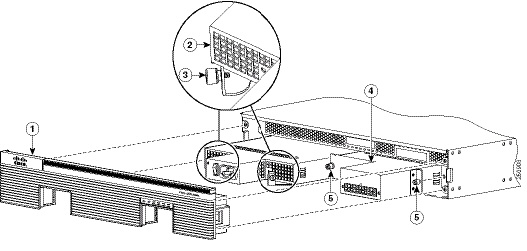

Figure 5-29 Cisco 2911 Redundant Power Supply Adapter
Replacing the Cisco 2921, Cisco 2951, or Cisco 3900 Series Power Supply
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
Several power supply options are available for the Cisco 2921, 2951, and 3900 series routers. See Table 1-9 . All of the power supply and RPS options have a similar modular form factor, with no cabling, for easy removal and replacement. If an RPS is attached, the power supply may be hot-swapped.
Note The 3900 series routers do not use an external RPS, and instead use an optional secondary internal power supply.
Note Read this entire procedure and have all of your tools and the replacement power supply ready before performing a hot-swap. The hot-swap procedure requires removal of the cooling fans. You have only a few minutes to replace the fans before the router powers off, because the router has reached the upper temperature limits.
Replacing the Power Supply on the Cisco 2921 and Cisco 2951 Routers
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Remove the fan tray and bezel assembly by pulling the fan tray and bezel assembly straight out. See Figure 5-30.
Step 3 Loosen the two captive screws on the power supply module. See Figure 5-30.
Step 4 Pull on the two captive power supply fastening screws to leverage the power supply from its connector, and then slide the power supply module out of the chassis.
Step 5 Insert the replacement power supply module, and tighten the captive screws.
Step 6 Reinstall the fan tray and bezel assemblies.

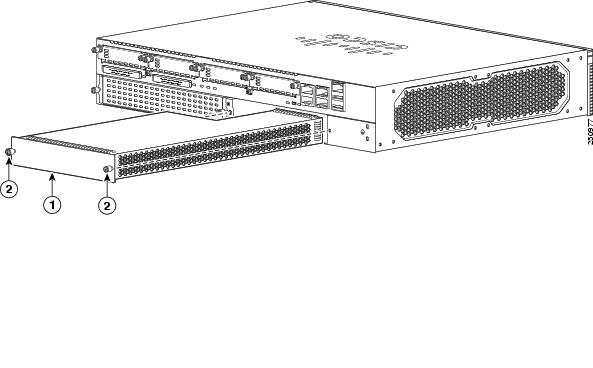

Figure 5-30 Cisco 2921 and 2951 Power Supply Components
Replacing the Power Supply on the Cisco 3900 Series Routers
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.

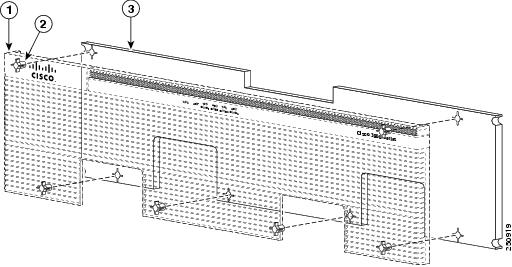

Step 3 Loosen the four captive screws on each corner of the fan tray and pull out the fan tray. See Figure 5-31.
Step 4 Loosen the two captive screws on the power supply module. See Figure 5-31.
Step 5 Pull on the two captive power supply fastening screws to leverage the power supply from its connector, and then slide the power supply module out of the chassis.
Step 6 Insert the replacement power supply module, and tighten the captive screws.
Step 7 Reinstall the fan tray and bezel.
Figure 5-31 Cisco 3900 Series Power Supply Components
Inserting POE supply in an Ethernet Switch Network Module
The POE power supply for Ethernet Switch Network Modules supports online insertion feature. The POE power supply does not support online removal.
The following messages are expected behavior when you try to reload or insert a POE supply in a router with Ethernet Switch Network Module:
This Warning message is not an indication of any ERROR in the system but a WARNING upon system reload or POE power supply restoration.
Upon POE power supply insetion, inline power supply restores automatically in the router. After the insertion, reset is needed for the switch modules in the router for the POE supply to work properly.
If there are two POE supplies, the power supplies can operate in a boost mode or redundant mode. In a boost mode, the total power supplied is a sum of the two power supplies capacity. In a redundant mode, if one of the POE supply fails, the other POE will supply power.
Installing and Removing the Cisco 2921, Cisco 2951, or Cisco 3900 Series Optional DC Power Supply
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Several power supply options are available for the Cisco 2921, 2951, and 3900 series routers. See Table 1-9 . All of the power supply and RPS options have a similar modular form factor, with no cabling, for easy removal and replacement. If an RPS is attached, the power supply may be hot-swapped.
Note The 3900 series routers do not use an external RPS, and instead use an optional secondary internal power supply.
Note Read this entire procedure and have all of your tools and the replacement power supply ready before performing a hot-swap. The hot-swap procedure requires removal of the cooling fans. You have only a few minutes to replace the fans before the router powers off, because the router has reached the upper temperature limits.
Installing the Cisco 2921, Cisco 2951, or Cisco 3900 Series Optional DC Power Supply
Perform the following steps to install the Cisco 2921, Cisco 2951, or Cisco 3900 Series Optional DC Power Supply:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Remove the fan tray and bezel assembly:
- For the Cisco 3900 series routers, pull straight out on the bezel to remove the bezel along with the optional air filter from the fan tray assembly.
- For the 2900 series routers, remove the bezel assembly, then loosen the four captive screws on each corner of the fan tray assembly and pull out the fan tray assembly. See Figure 5-30.
Step 3 Loosen the two captive screws on the AC power supply module. See Figure 5-30.
Step 4 Pull on the two captive AC power supply fastening screws to leverage the AC power supply from its connector, and then slide the power supply module out of the chassis.
Step 5 Insert the DC power supply module, and tighten the captive screws.
Step 6 Reinstall the fan tray and bezel assemblies.
Removing the Cisco 2921, Cisco 2951, or Cisco 3900 Series Optional DC Power Supply
Perform the following steps to remove the Cisco 2921, Cisco 2951, or Cisco 3900 Series Optional DC Power Supply:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Remove the fan tray and bezel assembly:
- For the Cisco 3900 series routers, pull straight out on the bezel to remove the bezel along with the optional air filter from the fan tray assembly.
- For the 2900 series routers, remove the bezel assembly, then loosen the four captive screws on each corner of the fan tray assembly and pull out the fan tray assembly. See Figure 5-30.
Step 3 Loosen the two captive screws on the DC power supply module. See Figure 5-30.
Step 4 Pull on the two captive DC power supply fastening screws to leverage the AC power supply from its connector, and then slide the power supply module out of the chassis.
Step 5 Reinstall the fan tray and bezel assemblies.
Installing and Removing a Redundant Power Supply Adapter
The redundant power supply (RPS) for the Cisco 2911, 2921, or 2951 router is an external Cisco RPS 2300. To connect the RPS, the router must be fitted with an RPS adapter. A blank panel must be removed before installing the RPS adapter. The external RPS attaches to a connector on the front of the adapter. See Figure 5-32.
Note After connecting to the RPS2300, Cisco 2900 series routers require a reboot.
Tip For information specific to the RPS 2300, see the Cisco Redundant Power Supply System Hardware Installation Guide at:
http://www.cisco.com/en/US/docs/switches/power_supplies/rps2300/hardware/installation/guide/2300hig.html
Depending upon RPS configuration, more than one router can be backed up.

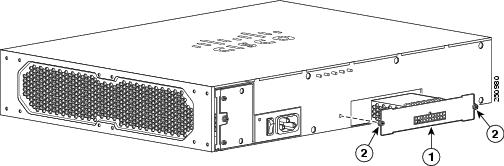

Figure 5-32 Cisco 2911 Redundant Power Supply Adapter
Table 5-2 shows RPS 2300 backup capabilities when coupled with Cisco 2900 series ISRs.
Installing an RPS Adapter
To install an RPS adapter, perform the following steps:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Ensure AC or DC power is disconnected from the router power supply.
Step 3 If connected, place the RPS 2300 into standby mode. Consult the Cisco Redundant Power System 2300 Hardware Installation Guide for operating the RPS 2300.
Step 4 If an RPS Adapter had never been installed, a blank panel is in its place. Remove the RPS Adapter blank panel.
Step 5 Insert the RPS adapter into the router (Figure 5-29 or Figure 5-30) and tighten the screws.
Step 6 Connect the RPS 2300 cable into the RPS adapter connector.
Step 7 Connect the other end of the RPS 2300 cable to the RPS 2300.
Step 9 Place the RPS into Active mode.
Removing an RPS Adapter
To remove an RPS adapter, perform the following steps:
Step 1 Read the Safety Warnings section and disconnect the power supply before you perform any module replacement.
Step 2 If connected, place the RPS 2300 into standby mode. Consult the Cisco Redundant Power System 2300 Hardware Installation Guide for operating the RPS 2300.
Step 3 Power off and disconnect the AC or DC power from the router power supply.
Step 4 Remove the RPS cable from the RPS 2300.
Step 5 Remove the other end of the RPS 2300 cable from the RPS adapter.
Step 6 Remove the RPS adapter.
Step 7 Install the RPS blank panel.
Cisco 2911, 2921, and 2951 Power and RPS Error Messages
There are many RPS error messages unique to the Cisco 2911, 2921, and 2951 routers. The messages appear on the router console terminal. Table 5-3 lists the messages and their meanings.
An unsupported RPS is connected or cable is not inserted properly |
During reload, IOS cannot read the RPS2300 PID, or the RPS2300 PID does not match. The RPS2300 PID is read over the I2C link between the Router and the RPS2300. The error could also indicate there is a cable connectivity problem. |
RPS 2300 FRUs are different. FRUs can be either 1150W or 750W. The RPS does not support differing FRUs. See Table 1-9 . |
|
During reload, the RPS2300 has an over-current, over-temperature, or under-voltage condition. |
|
RPS2300 is busy handling control or configuration commands from the connected LUs1, and the router is trying to send command to the RPS2300. |
|
RPS2300 is backing up other LUs and it cannot backup the current router. |
|
One critical RPS fault has occurred or RPS power supply is not good |
During runtime, the RPS2300 encountered an over-current, over-temperature, or under-voltage condition, or the power supplies is faulty. |
During reload or runtime, an unsupported RPS2300 is connected to the router. |
|
RPS OIR insertion is not supported. Reload the router for power redundancy. |
During runtime, the supported RPS2300 is connected to the router. |
During runtime, the power input source was removed from the internal power supply. |
|
During runtime, the power input source was removed from the internal power supply. |
|
During runtime, the PoE power from the internal power supply failed. |
|
Replacing a Fan Tray or Air Filter
The Cisco 2900 series and 3900 series routers have hot-swappable fan trays and air filters that are field replaceable units (FRUs). The fan tray includes all of the router fans in one assembly. If a fan fails, replace the tray using a flat-blade or Phillips screwdriver.
Note We recommended replacing fan filters every six months, or when dirty, whichever comes first.
Before Hot-Swapping a Fan Tray
Before hot-swapping a fan tray, read the safety precautions below.
- Read the entire procedure and have the required tools available.
- Do not attempt the hot-swap in ambient air temperature above 90°F (32°C).
- Do not attempt the hot-swap at an altitude above 6000 feet (1829 meters).
- When the router is being operated, it is recommended to change the fans within the following times to ensure the router does not overheat:
– Cisco 2921 or 2951 within 2 minutes
Replacing the Cisco 2911 Fan Tray
To hot-swap a fan tray, complete the following steps:
Note If hot-swapping the fan tray, it is recommended to complete the operation within 2 minutes to ensure the router remains within operating temperature.
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Unsnap the bezel by pulling it straight out from the chassis. See Figure 5-33.

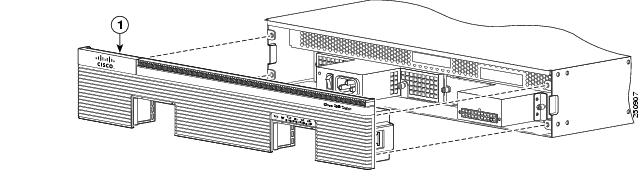

Figure 5-33 Cisco 2911 Fan Tray Replacement
Step 3 Loosen the two captive screws on the fan tray.
Step 5 Insert the replacement fan tray and tighten the two captive screws.
Step 6 Snap the bezel back in place.
Replacing the Cisco 2911 Air Filter
To replace the air filter, complete the following steps:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Unsnap the bezel by pulling it straight out from the chassis. See Figure 5-34.

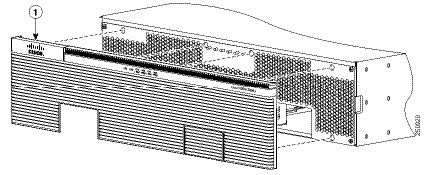

Figure 5-34 Cisco 2911 Filter Replacement
Step 3 Remove the screw from the air filter cover and remove the filter.
Step 4 Install the replacement air filter, the air filter cover, and the bezel
Replacing the Cisco 2921 or 2951 Fan Tray
To replace the fan tray, complete the following steps:
Note If hot-swapping the fan tray, it is recommended to complete the operation within two minutes to ensure the router remains within operating temperature. See Figure 5-35.
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Pry open the fan tray screw covers on the four captive fan tray screws.
Step 3 Completely loosen the four captive fan tray screws.
Step 5 Insert the replacement fan tray and tighten the four captive screws.
Step 6 Snap the screw covers in place.
Figure 5-35 Cisco 2921 and 2951 Fan Tray Replacement
Replacing the Cisco 3900 Series Fan Tray
To hot-swap the Cisco 3900 series router fan tray, perform the following steps:
Note If hot-swapping the fan tray, it is recommended to complete the operation within 1.5-minutes to ensure the router remains within operating temperature.
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.

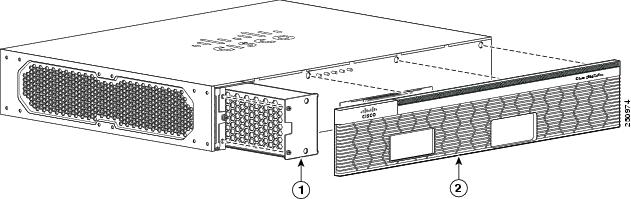

Step 2 Unsnap the bezel by pulling it straight out from the chassis. Initially, the bezel fits very tightly. See Figure 5-36.

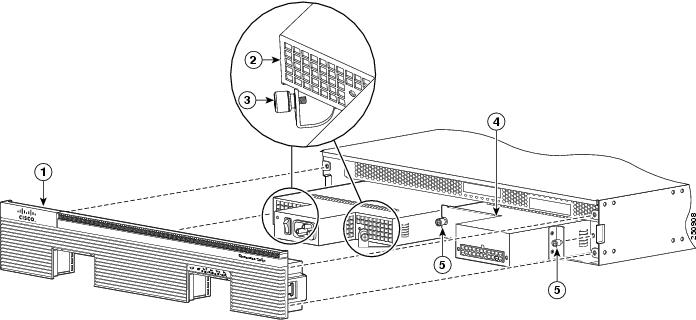

Figure 5-36 Removing the Cisco 3900 Series Router Bezel
Step 3 Loosen the four captive screws on the fan tray.
Step 5 Insert the replacement fan tray, and tighten the four captive screws as shown in Figure 5-37.
Figure 5-37 Cisco 3900 Series Fan Tray Replacement
Step 6 Snap the bezel in place.
Replacing the Cisco 3900 Series Air Filter
Perform the following steps to replace the air filter:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Unsnap the bezel by pulling it straight out from the chassis. See Figure 5-38.

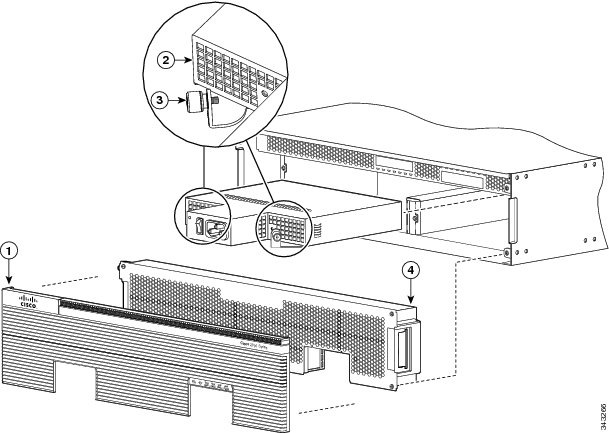

Figure 5-38 Removing the Cisco 3900 Series Router Bezel
Step 3 Locate the filter, recessed inside the bezel.
Step 4 Remove the filter and insert the replacement filter inside the bezel.
Step 5 Snap the bezel back in place. See Figure 5-39.
Figure 5-39 Replacing the Cisco 3900 Series Air Filters
Installing a FIPS Louver
A Federal Information Processing Standards (FIPS) louver can be installed to make a Cisco 2911 system compliant with FIPS 140-2. Complete the following steps to install the louver.
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Remove the screws to gain access to the side of the router as shown in Figure 5-40.
Step 3 Insert the four 8-32 screws through the FIPS louver plate, then position the FIPS spacers over the screws. See Figure 5-40.

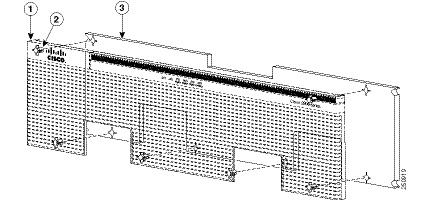

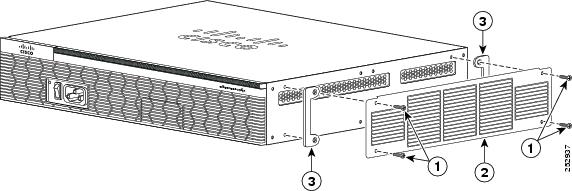

Figure 5-40 FIPS Louver Components and Installation)
Step 4 Tighten the screws to secure the louver and spacers onto the router.

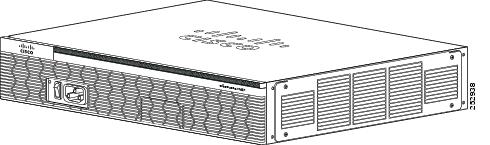

Figure 5-41 Properly Installed FIPS Louver
2911 Front to Back Air Flow Converter
The 2911 Air Converter forces the routers to take in (intake) air from the front (bezel) (Figure 5-42) and allow it to go out through (exhaust) the back (business) (Figure 5-43). Installation of the 2911 Front to Back Air Converter still allows the router to run over its full temperature operating range. The pieces of the 2911 Air Converter are symmetric, and hence, if required, instead of the default 2911 side to opposite side venting direction, they can be reversed to facilitate back-to-front air flow. The 2911 with 2911 Front to Back Air Converter installed adds width to the router and requires it to be installed only in a EIA 23-inch rack. Based on the requirement, the rack mount brackets can be positioned on the front, centre, Inside, or outside.
Note The installation of the 2911 Air Converter requires only two rack-mount brackets.
Figure 5-42 Front View of the Cisco 2911 Router with the 2911 Air Converter
Note The 2911 router view shows the rack mount brackets installed at all possible locations. You can choose one of these four positions to install rack mount brackets.

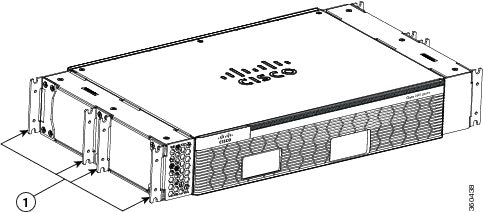

Figure 5-43 Back View of the Cisco 2911 Router with the 2911 Air Converter
Figure 5-44 Front View of the Cisco 2911 Router Showing Forced Front-to-Back Air Flow Scheme
Follow these steps to install the 2911 Air Converter:
Step 1 Remove the screws (three on top and three at the bottom) of the 2911 Air Converter. See Figure 5-45.

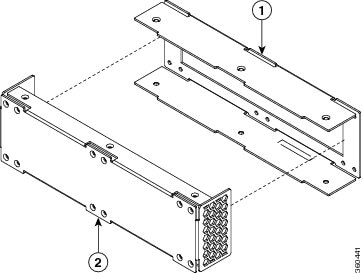

Note Set aside these six screws for joining the inner and outer piece in Step 4.

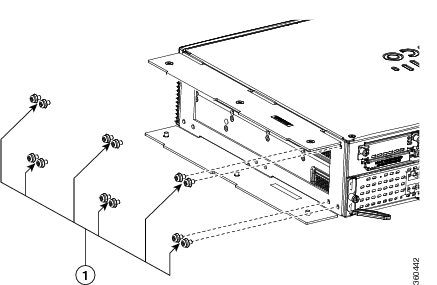

Figure 5-45 The 2911 Air Converter
Step 2 Slide apart the inner and outer pieces. See Figure 5-46.
Figure 5-46 Inner and Outer Pieces of the 2911 Air Converter
Step 3 Assemble the inner piece of the 2911 Air Converter on the chassis using the twelve pan head screws. See Figure 5-47.
Note Tigthen all the pan head screws to a minimum torque of 15 in-lb.

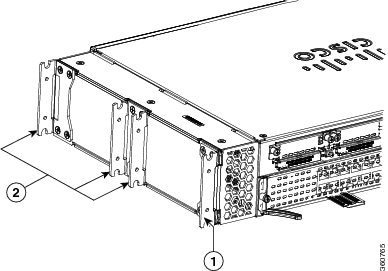

Figure 5-47 Assesmbling the Inner Piece of the 2911 Air Converter to the Chassis
Step 4 Slide the outer piece along with the rack-mount brackets attached, into the inner piece. See “Attaching Rack-Mount Brackets to Cisco 2911, Cisco 2921, and Cisco 2951 Routers” section for details on attaching rack-mount brackets. Insert and tighten the flat head screws (three on top and three at the bottom). See Figure 5-48.
Figure 5-48 Inserting the Outer Piece to the Chassis
Step 5 Repeat the same steps and assemble the 2911 Air Converter on the other side of the router. The rack mount brackets can stay in the position, as shown, or can be moved to any of the positions shown. See Figure 5-49.
Note The hexagonal vent patterns on each Air Converter assembly should be oriented in different directions when installed on opposite sides of the router, to facilitate front-to-back or back-to-front air movement.
Note Once both 2911 air converters are attached to the opposite sides of the router and all screws used to attach the converter pieces are tightened to at least 15 in-lb, user can then install the 2911 with air converter into an EIA 23" rack. See the “Mounting the Router in a Rack” section" for details on how to install router in a rack.

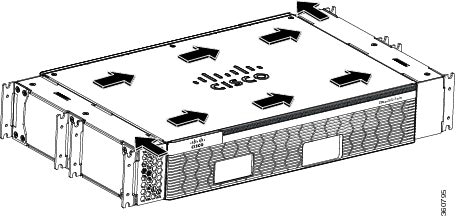

Figure 5-49 The Cisco 2911 Router After the installation of the 2911 Air Converter
Removing and Installing CompactFlash Memory Cards
This section describes installing and replacing CompactFlash (CF) memory cards in Cisco 2900 and 3900 series integrated services routers. It contains the following sections:
- Preventing Electrostatic Discharge Damage
- Removing a CompactFlash Memory Card
- Installing a CompactFlash Memory Card
Preventing Electrostatic Discharge Damage
CF memory cards are sensitive to electrostatic discharge (ESD) damage, which can occur when electronic cards or components are handled improperly. ESD results in complete or intermittent failures.
To prevent ESD damage, follow these guidelines:
- Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.
- Connect the equipment end of the strap to an unfinished chassis surface.
- Place CF memory cards on an antistatic surface or in a static shielding bag. If the card will be returned to the factory, immediately place it in a static shielding bag.
- Avoid contact between the card and clothing. The wrist strap protects the card from ESD voltages on the body only; ESD voltages on clothing can still cause damage.
- Do not remove the wrist strap until the installation is complete.
Removing a CompactFlash Memory Card
To remove a CF memory card from the chassis, perform the following steps: See Figure 5-52.
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Remove the CF cover by placing a flat-blade screwdriver in the slot and pushing sideways against the tensioner to release the cover door. (See Figure 5-50 and Figure 5-51.)

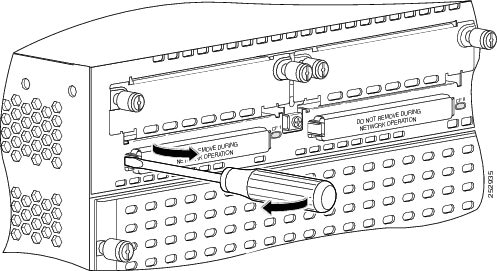

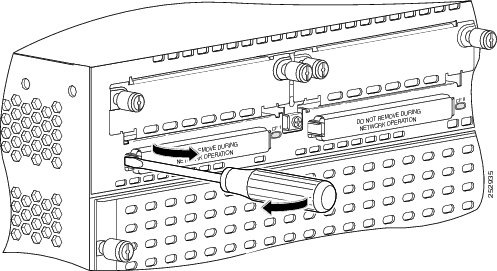

Figure 5-50 Inserting Screwdriver Into the CompactFlash Cover
Figure 5-51 Removing the CompactFlash Cover
Step 3 Press the ejector button next to the CompactFlash memory card. The ejector button moves outward so that it projects from the panel.

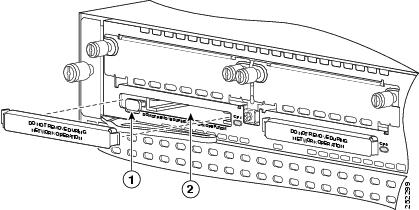

Figure 5-52 CompactFlash Memory Card Slot in Cisco 2900 Series Routers
Step 4 Press the ejector button again. See Figure 5-52. This ejects the CompactFlash memory card partially out of its slot.
Step 5 Pull the CF memory card out of its slot.
Step 6 Push the ejector button in until the button is flush with the bezel.
Installing a CompactFlash Memory Card
To install a CompactFlash memory card, perform the following steps (see Figure 5-52):
Step 1 Read the “Safety Warnings” section and disconnect the power supply before you perform any module replacement.
Step 2 Make sure that the ejector button is fully seated until it is flush with the bezel.
Note If the ejector button is projecting out from the panel, push it in until it is flush with the bezel.
Step 3 Insert the CompactFlash memory card into the slot until it is fully seated. The ejector button remains flush with the panel.
Note If the ejector button is projecting from the panel after you insert the CompactFlash memory card, remove the CompactFlash memory card, press the ejector button until it clicks, and reinsert the CompactFlash memory card.
Step 4 Replace the CompactFlash cover by inserting the cover lip into the chassis and pushing the cover to snap it back into place.
Installing SFP Modules
This section describes how to install optional small-form-factor pluggable (SFP) modules in Cisco 2900 and Cisco 3900 series integrated services routers to provide optical Gigabit Ethernet connectivity.
The SFP module installs into a slot on the router rear panel. When selected in Cisco IOS software, it is assigned port gigabitethernet 0/0 . The default is the built-in RJ-45 1000Base-T connector, which is enabled on this port.
Only SFP modules certified by Cisco are supported on Cisco 2900 series and Cisco 3900 series routers. Table 5-4 lists supported SFPs on Cisco 2900 and 3900 ISRs.
See Cisco Transceiver Modules Compatibility Information for compatibility issues.
Tip Use the show controller command at the Cisco IOS prompt to determine whether you are using an SFP certified by Cisco.
Laser Safety Guidelines
Optical SFPs use a small laser to generate the fiber-optic signal. Keep the optical transmit and receive ports covered whenever a cable is not connected to the port.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040
Follow these steps to install an SFP module in a Cisco 2900 or 3900 series router:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Slide the SFP into the router connector until it locks into position (see Figure 5-53).
Tip If the SFP uses a bale-clasp latch (see Figure 5-53), the handle should be on top of the SFP module.
Figure 5-53 Installing an SFP Module
Step 3 Connect the network cable to the SFP module.
Removing SFP Modules
Follow these steps to remove an SFP from a Cisco 2900 series or Cisco 3900 series router:
Step 1 Read the “Safety Warnings” section section and disconnect the power supply before you perform any module replacement.
Step 2 Disconnect all cables from the SFP.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
Step 3 Disconnect the SFP latch. See Figure 5-54.
Note SFP modules use various latch designs to secure the module in the SFP port. Latch designs are not linked to SFP model or technology type. For information on the SFP technology type and model, see the label on the side of the SFP.
Figure 5-54 Disconnecting SFP Latch Mechanisms
Tip Use a pen, screwdriver, or other small straight tool to gently release a bale-clasp handle if you cannot reach it with your fingers.
Step 4 Grasp the SFP on both sides and remove it from the router.
Feedback
