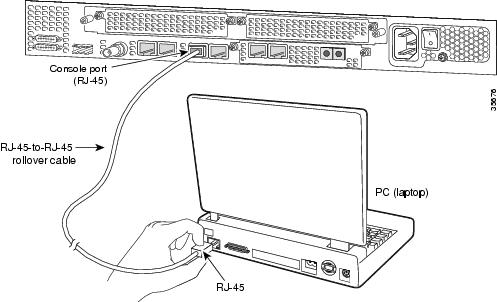

Connect a Console Terminal

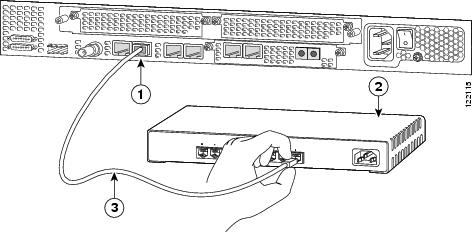

Connect to an Ethernet Network

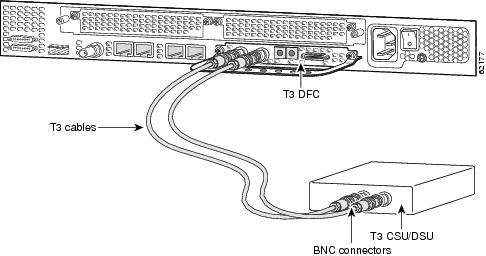

Connect to a WAN

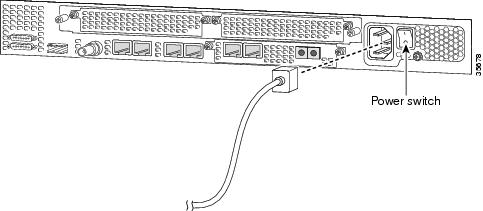

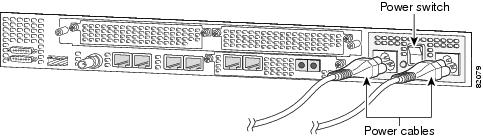

Connect AC Power

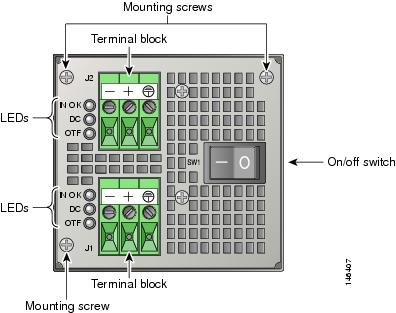

Connect DC Power
Power Up the Universal Gateway
Checklist for Power Up
Power-Up Procedure
Perform Initial Configuration
Initial Configuration Using the Setup Command Facility
Initial Configuration Using the CLI (Manual Configuration)
Verifying the Hostname and Passwords
Configuring Local AAA Security
Configuring Basic Dial Access
Configuring the Asynchronous Group Interface
Verifying the Group Interface Configuration
Configuring a T1 or E1 Feature Card
Verifying Channelized T1 or E1 Controller Operation
Configuring a Channelized T3 Feature Card
Verifying Channelized T3 Controller Operation
Configuring ISDN PRI
Request PRI Line and Switch Configuration from a Telco Service Provider
Configuring the D Channels for ISDN Signaling
Configuring the Universal Port or Dial-Only Feature Cards
SPE Firmware
Configuring the Voice Feature Card
Upgrade DSP Firmware on the Voice Feature Card
Configure Clocking
Feature Card Ports

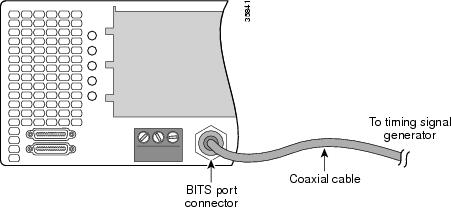

External Clock
Free-Running Clock
Voice over IP
Prerequisites
Configuration Tasks
Where to Go Next
Slot Numbering
Obtaining Documentation
Cisco.com
Product Documentation DVD
Ordering Documentation
Documentation Feedback
Cisco Product Security Overview
Reporting Security Problems in Cisco Products
Obtaining Technical Assistance
Cisco Technical Support & Documentation Website
Submitting a Service Request
Definitions of Service Request Severity
Obtaining Additional Publications and Information
Quick Start Guide
Cisco AS5350XM and Cisco AS5400XM Universal Gateways
INCLUDING LICENSE AND WARRANTY
1 Cisco 90-Day Limited Hardware Warranty Terms
There are special terms applicable to your hardware warranty and various services that you can use during the warranty period. Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available on Cisco.com. Follow these steps to access and download the Cisco Information Packet and your warranty and license agreements from Cisco.com.
1.
Launch your browser, and go to this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/cetrans.htm
The Warranties and License Agreements page appears.
2. To read the Cisco Information Packet, follow these steps:
a. Click the Information Packet Number field, and make sure that the part number 78-5235-03A0 is highlighted.
b. Select the language in which you would like to read the document.
c. Click Go.
The Cisco Limited Warranty and Software License page from the Information Packet appears.
d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).
Note You must have Adobe Acrobat Reader to view and print PDF files. You can download the reader from Adobe's website: http://www.adobe.com
3. To read translated and localized warranty information about your product, follow these steps:
a. Enter this part number in the Warranty Document Number field:
78-5236-01C0
b. Select the language in which you would like to read the document.
c. Click Go.
The Cisco warranty page appears.
d. Review the document online, or click the PDF icon to download and print the document in Adobe Portable Document Format (PDF).
You can also contact the Cisco service and support website for assistance:
http://www.cisco.com/public/Support_root.shtml
Duration of Hardware Warranty
Ninety (90) days.
Replacement, Repair, or Refund Policy for Hardware
Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after receipt of a Return Materials Authorization (RMA) request. Actual delivery times can vary, depending on the customer location.
Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.
To Receive a Return Materials Authorization (RMA) Number
Contact the company from whom you purchased the product. If you purchased the product directly from Cisco, contact your Cisco Sales and Service Representative.
Complete the information below, and keep it for reference:
Company product purchased from
|
|
Company telephone number
|
|
Product model number
|
|
Product serial number
|
|
Maintenance contract number
|
|
2 Documents, Equipment, and Tools
User Documentation
All of the documents described here are available online and on the Documentation DVD. To be sure of obtaining the latest information, you should access the online documentation.
Note The information in this document applies to the Cisco AS5350XM and Cisco AS5400XM universal gateways.
To access online user documentation:
From Cisco.com at http://www.cisco.com, choose Technical Support & Documentation.
Cisco AS5350XM and Cisco AS5400XM Universal Gateway Documentation
Regulatory Compliance and Safety Information
The Regulatory Compliance and Safety Information document provides essential safety information applicable to your universal gateway. A printed copy of this document is shipped with this device.
You can access this document at Technical Support & Documentation > Product Support > Universal Gateways and Access Servers > Cisco AS5300 or Cisco AS5400 Series Universal Gateways > Install and Upgrade Guides.
Hardware Installation
The chassis installation guide provides additional detailed description, installation, and cabling information.
You can access this document at Technical Support & Documentation > Product Support > Universal Gateways and Access Servers > Cisco AS5300 or Cisco AS5400 Series Universal Gateways > Install and Upgrade Guides.
Software Configuration
The software configuration guide provides additional detailed configuration information.
You can access this document at Technical Support & Documentation > Product Support > Universal Gateways and Access Servers > Cisco AS5300 or Cisco AS5400 Series Universal Gateways > Configuration Guides.
Cisco IOS Software Documentation
Master Index to Software Documentation
The master index provides links to topics and commands for specific Cisco IOS software releases.
You can access these documents at Technical Support & Documentation > Product Support > Cisco IOS Software > Cisco IOS Software Release you are using > Master Index.
Configuration Guides
The Cisco IOS software configuration guides provide detailed configuration procedures and examples.
You can access these documents at Technical Support & Documentation > Product Support > Cisco IOS Software > Cisco IOS Software Release you are using > Configuration Guides.
Command References
The Cisco IOS software command references provide detailed information about each command.
You can access these documents at Technical Support & Documentation > Product Support > Cisco IOS Software > Cisco IOS Software Release you are using > Command References.
New Feature Documentation
New feature documentation contains detailed information about new features introduced in specific Cisco IOS releases.
You can access these documents at Technical Support & Documentation > Product Support > Cisco IOS Software > Cisco IOS Software Release you are using > Feature Guides.
If you have an account on Cisco.com, you can get updated information about platform support for features by accessing Feature Navigator at the following URL:
http://www.cisco.com/go/fn
Release Notes
Cisco IOS release notes for all platforms provide up-to-date information about specific Cisco IOS software releases.
You can access these documents at Technical Support & Documentation > Product Support > Cisco IOS Software > Cisco IOS Software Release you are using > Release Notes.
Items Included with Cisco AS5350XM and Cisco AS5400XM Universal Gateways
•19-inch (48.26-cm) and 24-inch (60.96-cm) rack-mount kits
•Rubber feet for desktop installation
•RJ-45-to-DB-9 female DTE adapter (labeled TERMINAL)
•RJ-45-to-DB-25 female DTE adapter (labeled TERMINAL)
•RJ-45-to-DB-25 male DCE adapter (labeled MODEM)

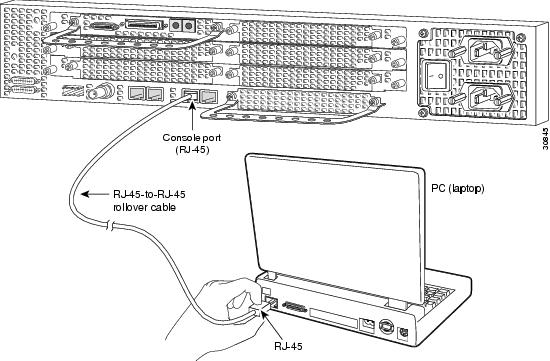

•RJ-45-to-RJ-45 rollover console cable
•ESD-preventive wrist strap
•Nylon cable ties
•Cable tie holder
•Grounding lug
•Cisco Information Package
Items Not Included
Individual items in this list may be required for your particular application:

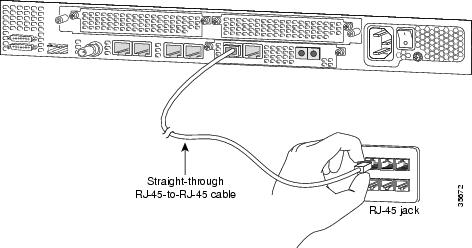

•Straight-through RJ-45-to-RJ-45 cable for an Ethernet connection

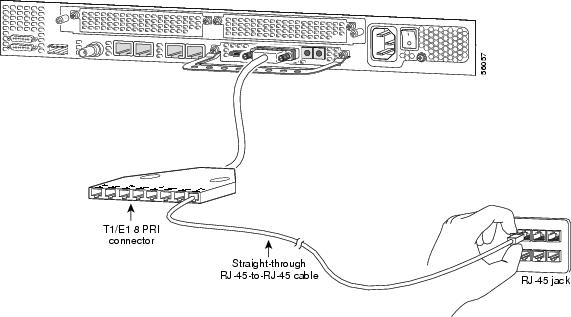

•Straight-through RJ-45-to-RJ-45 cables for T1 connections

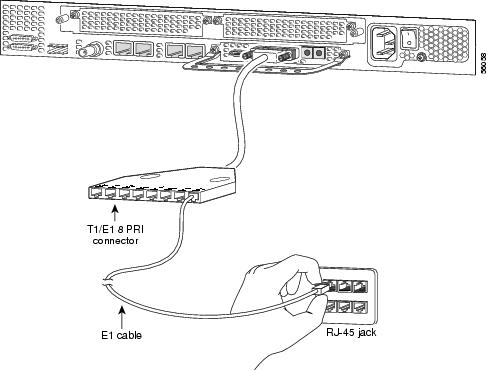

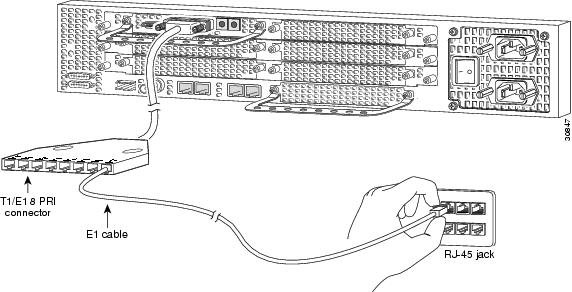

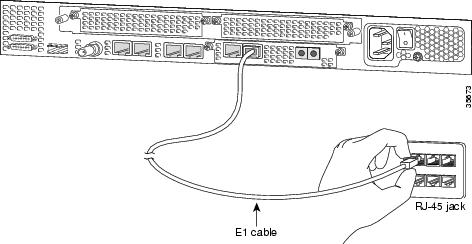

•E1 cables for E1 connections
•Ethernet hub, Gigabit Ethernet switch, or PC with a network interface card for Ethernet LAN connections
•PC running terminal emulation software for local administrative access
•Modem for remote administrative access

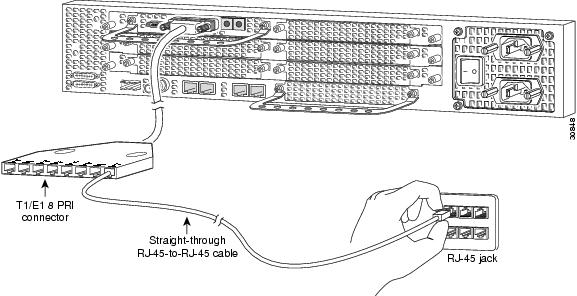

•One breakout cable consisting of a 36-pin connector connected to eight RJ-45 adapters for CT1/CE1 connections

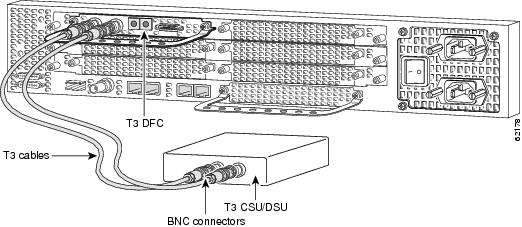

•75-ohm coaxial cable for a CT3 connection
3 Install Chassis
Note The information in this document applies to the Cisco AS5350XM and Cisco AS5400XM universal gateways.
Safety Information
For safety information you need to know before working on your Cisco universal gateway, see the Regulatory Compliance and Safety Information document that accompanied this device.
Setting Up the Chassis
You can install the chassis in a rack or set it on a desktop. Select the procedure that best meets the needs of your network:
•Rack-Mounting the Chassis
•Desktop Installation
Warning This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. Statement 1017
Rack-Mounting the Chassis
This section describes how to rack-mount the chassis. The universal gateway arrives with 19-inch (48.26-cm) rack-mount brackets and larger brackets for use with a 23-inch (58.42-cm) or 24-inch (60.96-cm) rack.
Figure 1 Cisco AS5350XM Universal Gateway Rack-Mount Brackets
Figure 2 Cisco AS5400XM Universal Gateway Rack-Mount Brackets
The following information will help you plan your equipment rack configuration:
•Enclosed racks must have adequate ventilation. Ensure that the rack is not congested, because each unit generates heat. An enclosed rack should have louvered sides and a fan to provide cooling air. Heat generated by equipment near the bottom of the rack can be drawn upward into the intake ports of the equipment above.
•When mounting a chassis in an open rack, ensure that the rack frame does not block the intake or exhaust ports. If the chassis is installed on slides, check the position of the chassis when it is seated in the rack.
•Baffles can isolate exhaust air from intake air, which also helps to draw cooling air through the chassis. The best placement of the baffles depends on the airflow patterns in the rack, which can be found by experimenting with different configurations.
•When equipment installed in a rack (particularly in an enclosed rack) fails, try operating the equipment by itself, if possible. Power down other equipment in the rack (and in adjacent racks) to allow the unit under test a maximum of cooling air and clean power.
•Install the chassis and external devices to which it will connect in a contiguous stack.
Required Tools and Equipment
You need the following tools and equipment to rack-mount the chassis:
•Number 2 Phillips screwdriver (not included)
•Medium flat-blade screwdriver (not included)
•Screws for attaching the chassis to the rack (not included)
•Standard rack-mount brackets (included)
•Screws for attaching the brackets to the chassis (included)
Attaching Brackets
Attach the mounting brackets to the chassis as shown, using the screws provided. Attach the second bracket to the opposite side of the chassis.
Note The chassis may be installed with either the front panel or the back panel facing forward.

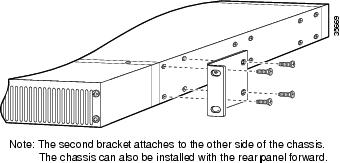

Figure 3 Cisco AS5350XM Universal Gateway Bracket Installation—Front Panel Forward (19-Inch Rack)
Figure 4 Cisco AS5400XM Universal Gateway Bracket Installation—Front Panel Forward (19-Inch Rack)
Installation in a Rack
Install the chassis in the rack. Rack-mounting screws are not provided. Use two screws for each side (supplied with the rack).

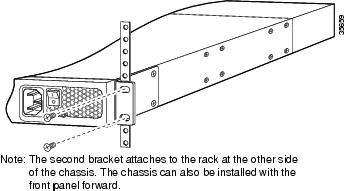

Figure 5 Installing the Cisco AS5350XM Universal Gateway in a Rack (19-Inch Rack)

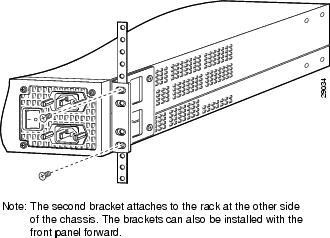

Figure 6 Installing the Cisco AS5400XM Universal Gateway in a Rack (19-Inch Rack)
Desktop Installation
For desktop or shelf mounting, use the rubber "feet" shipped on a black adhesive strip with the chassis. They protect the chassis and provide a nonskid surface.
The location of the chassis is extremely important for proper operation. Equipment placed too close together, inadequate ventilation, and inaccessible panels can cause malfunctions and shutdowns, and can make maintenance difficult. The following information will help you to plan the location of the chassis:
•Plan for access to both front and back panels of the chassis.
•Ensure that the room where the chassis operates has adequate ventilation. Remember that electrical equipment generates heat. Ambient air temperature may not cool equipment to acceptable operating temperatures without adequate ventilation.
To attach the rubber feet, follow these steps:
Step 1 Locate the rubber feet that shipped with the chassis.
Step 2 Place the universal gateway upside-down on a smooth, flat surface.
Step 3 Peel the rubber feet off the black adhesive strip, and attach them adhesive-side-down at each corner of the underside of the chassis.
Step 4 Place the universal gateway top-side-up on a flat, smooth, secure surface.
Caution Do not place anything on top of the universal gateway that weighs more than 10 lb (4.5 kg). Excessive weight on top could damage the chassis.
Chassis Ground Connection
You must connect the chassis to a reliable earth ground by using the ground lug (provided) and size AWG 6 (13 mm2) wire.
To attach the chassis ground, follow these steps:
Step 1 Strip one end of the ground wire to expose approximately 0.75 in. (20 mm) of conductor.
Step 2 Crimp the ground wire to the ground lug, using a crimp tool of the appropriate size.
Step 3 Attach the ground lug to the chassis as shown in Figure 7 and Figure 8. Use a medium flat-blade screwdriver and the screws supplied with the ground lug. Tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m).

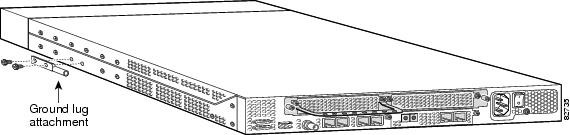

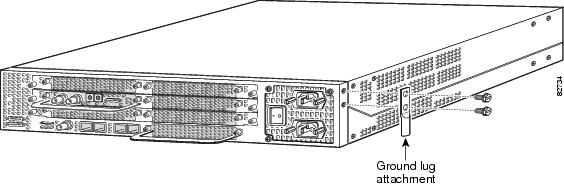

Figure 7 Cisco AS5350XM Universal Gateway Ground Lug Attachment
Figure 8 Cisco AS5400XM Universal Gateway Ground Lug Attachment
Step 4 Connect the other end of the ground wire to a suitable grounding point at your site.
4 Install Modules
Note The information in this document applies to the Cisco AS5350XM and Cisco AS5400XM universal gateways.
Note The Cisco AS5350XM and Cisco AS5400XM universal gateways come with carrier cards and feature cards already installed. If you are not installing additional carrier cards or feature cards, proceed to the "Connect Cables" section.
For additional information about installing carrier cards and feature cards, see the Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide.
You can access this document at Technical Support & Documentation > Product Support > Universal Gateways and Access Servers > Cisco AS5300 or Cisco AS5400 Series Universal Gateways > Install and Upgrade Guides.
Installing Carrier Cards
Caution The carrier cards that carry the feature cards are not hot-swappable. Removing or replacing a carrier card while the system is still powered up may cause permanent damage to electronic circuits on the card.
Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001
Warning Before opening the unit, disconnect the telephone-network cables to avoid contact with telephone-network voltages. Statement 1041
Installing a Carrier Card
If you need to install a carrier card, follow these steps:
Step 1 Make sure the chassis is powered down.
Warning Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units. Statement 12
Step 2 Attach an ESD-preventive wrist strap.
Step 3 Slide the carrier card into the slot until it touches the backplane connector. (See Figure 9 and Figure 10.)

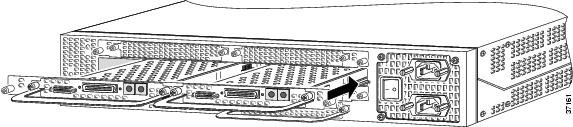

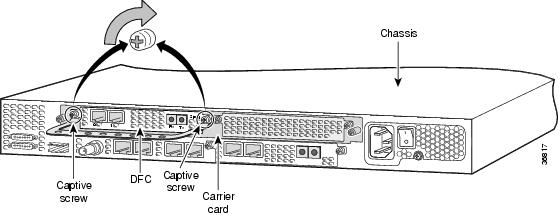

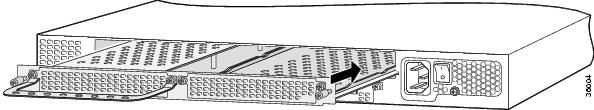

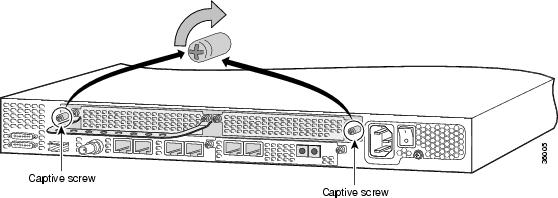

Figure 9 Install the Carrier Card in the Cisco AS5350XM Universal Gateway

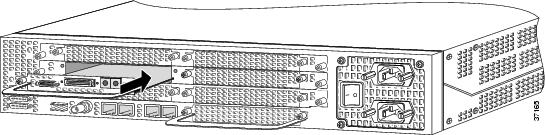

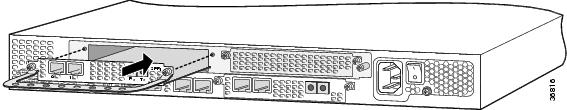

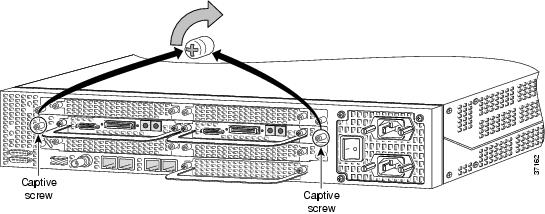

Figure 10 Install the Carrier Card in the Cisco AS5400XM Universal Gateway

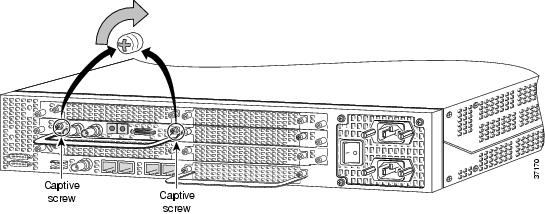

Step 4 Align the captive screws with their holes, and seat the card completely.
Step 5 Tighten the two captive screws to secure the carrier card to the chassis. (See Figure 11 and Figure 12.)
Figure 11 Tighten the Captive Screws on the Cisco AS5350XM Universal Gateway
Figure 12 Tighten the Captive Screws on the Cisco AS5400XM Universal Gateway
Step 6 If the carrier card has a blank feature card slot, install a blank cover over the open feature card slot to ensure proper airflow inside the chassis.
Figure 13 Blank Feature Card Cover
Step 7 For AC-powered units, reconnect the AC power cord. For DC-powered units, reinstate power at the circuit breaker. For more information on the AC and DC power supplies, see the chassis installation guide. To access the chassis installation guide, see the "Documents, Equipment, and Tools" section.
Step 8 Reconnect all interface cables.
Installing Feature Cards
For detailed information on installing and connecting feature cards, see the Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide.
You can access this document at Technical Support & Documentation > Product Support > Universal Gateways and Access Servers > Cisco AS5300 or Cisco AS5400 Series Universal Gateways > Install and Upgrade Guides.
Warning The telecommunications lines must be disconnected 1) before unplugging the main power connector and/or 2) while the housing is open. Statement 89
Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001
Note When you replace a feature card with a new feature card of the same type in the same slot, the system software recognizes the new trunk interfaces and brings them up automatically. If you replace the existing feature card with a new feature card of a different type, you must reconfigure the system. For configuration details, see the Cisco AS5350XM and Cisco AS5400XM Universal Gateways Software Configuration Guide.
Note The Cisco AS5350XM and Cisco AS5400XM universal gateways does not support the mixing of T1 and E1 feature cards in the same chassis. For more information about mixing WAN feature cards, see the Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide.
To install a feature card, follow these steps:
Step 1 Attach an ESD-preventive wrist strap.
Step 2 Slide the feature card into the slot until the connector pins make contact with the carrier card backplane connector. (See Figure 14 and Figure 15.)
Figure 14 Installing a Feature Card in a Cisco AS5350XM Universal Gateway
Figure 15 Installing a Feature Card in a Cisco AS5400XM Universal Gateway
Step 3 Align the captive screws with their holes, and seat the card completely.
Step 4 Tighten the screws to secure the feature card to the chassis. (See Figure 16 and Figure 17.)
Figure 16 Tighten the Captive Screws on the Cisco AS5350XM Universal Gateway
Figure 17 Tighten the Captive Screws on the Cisco AS5400XM Universal Gateway
Step 5 Check the card LEDs to verify that the card is working properly. The following table summarizes the LED functions for the feature cards.
Table 1 LEDs
Feature Card
|
LED
|
State
|
Description
|
T1 or E1 feature card
|
ACTIVITY (ACT)
|
Fast flicker (green)
|
The feature card is up and running.
|
Slow flicker (green)
|
The feature card is not yet fully functional.
|
OK/MAINT
|
Green
|
The feature card has passed initial power-up diagnostics tests and is operating normally.
|
Yellow
|
•The feature card is busied out, but there are active calls. Once all the calls are terminated the feature card will be powered off.
•The feature card is not functioning correctly.
|
Off
|
All calls associated with the card have been shut down, and it is safe to remove the card with the system powered on.
|
•Remote Alarm (RA)
•Local Alarm (LA)
•Loopback (LB)
|
On (yellow)
|
One LED below each T1/E1 port indicates one of the following:
•A local or remote loopback diagnostic test is running on the associated T1 port.
•An alarm has been received on the associated T1/E1 port, indicating loss of signal (LOS) or loss of multiframe alignment (LOF) at the local or remote node.
|
CT3 feature card
|
ACTIVITY (ACT)
|
Fast flicker
|
The feature card is up and running.
|
Slow flicker
|
The feature card is not yet fully functional.
|
OK/MAINT
|
On (green)
|
The feature card passed initial power-up diagnostics tests and is operating normally.
|
Yellow
|
•The feature card is busied out, but there are active calls. Once all the calls are terminated the feature card will be powered off.
•The feature card is not functioning correctly.
|
Off
|
All calls associated with the feature card have been shut down, and it is safe to remove the card with the system powered on.
|
M13 Alarm (MA)
|
On
|
One of the following is present on the T3 line:
•Received alarm indication signal (RAIS)
•Loss of signal (LOS)
•Receive RED alarm (RRED)
•Far-end receive failure (RFERF)1
|
Off
|
The operating condition is normal.
|
Remote Alarm (RA)
|
On
|
A T1 alarm condition has been encountered by software.
|
Off
|
The operating condition is normal.
|
Local Alarm (LA)
|
On
|
A T1 alarm condition has been encountered by software for a particular port.
|
Off
|
The operating condition is normal.
|
T3 EN/DIS
|
Green
|
A CT3 feature card line connection exists, enabling normal operation.
|
Yellow
|
Normal operation is disabled.
|
Low signal (LOS)
|
On
|
The T3 line interface unit (LIU) is experiencing a loss of signal.
|
Off
|
Remains off when operating condition is normal.
|
Network Loop (LOOP)
|
On
|
At least one T1 is unavailable.
|
Off
|
The operating condition is normal.
|
Universal port and dial-only feature card
|
ACTIVITY (ACT)
|
Flickering
|
There is call activity on the feature card.
|
OK/MAINT
|
Green
|
The feature card passed initial power-up diagnostic tests and is operating normally.
|
Yellow
|
•The feature card is busied out, but there are active calls. Once all the calls are terminated the feature card will be powered off.
•The feature card is not functioning correctly.
|
Off
|
All calls associated with the feature card have been shut down, and it is safe to remove the card with the system powered on.
|
Voice feature card
|
ACTIVITY
|
Green (blinking)
|
There is call activity on the feature card.
|
Off
|
There is no activity on the feature card.
|
OK/MAINT
|
Green
|
The feature card passed initial power-up diagnostic tests and is operating normally.
|
| |
Yellow
|
•The feature card is busied out, but there are active calls. Once all the calls are terminated the feature card will be powered off.
•The feature card is not functioning correctly.
|
| |
Off
|
All calls associated with the feature card have been shut down, and it is safe to remove the card with the system powered on.
|
5 Connect Cables
Note The information in this document applies to the Cisco AS5350XM and Cisco AS5400XM universal gateways.
System Management and Power Connections
The connections described here provide electrical power and management access. For cable pinouts, see the chassis and card installation guides for the Cisco AS5350XM and Cisco AS5400XM universal gateways.
You can access these documents at Technical Support & Documentation > Product Support > Universal Gateways and Access Servers > Cisco AS5300 or Cisco AS5400 Series Universal Gateways > Install and Upgrade Guides.
The following table summarizes the power and management cable connections.
Table 2 Power and Management Cable Connections
Port or Connection
|
Color or Type
|
Connection
|
Cable
|
Console
|
Light blue
|
PC or ASCII terminal communication port (usually labeled COM)
|
RJ-45-to-RJ-45 rollover cable (included) and terminal adapter (included).
|
Auxiliary
|
Black
|
Modem for remote access
|
RJ-45-to-RJ-45 rollover cable and a modem adapter (included).
|
Power (AC)
|
Power cable
|
100 to 240 VAC, 50 to 60 Hz
|
Grounding power cord (included).
|
Power (DC)
|
See the "Connect DC Power" section for instructions about the DC power connections.
|
Bantam jack port
|
|
Test device
|
|
Alarm
|
|
Alarm device
|
12 or 14 AWG copper wire
|
BITS port
|
|
Signal generator
|
Coax cable
|
WAN, LAN, and Voice Connections
The following table summarizes the WAN, LAN, and voice connections.
Table 3 WAN, LAN and Voice Connections
Port or Connection
|
Color or Type
|
Connection
|
Cable
|
Ethernet
|
RJ-45, yellow
|
Ethernet hub or Gigabit Ethernet switch
|
Straight-through Ethernet
|
T1 or E1 WAN
|
RJ-45
|
T1 or E1 network
|
RJ-45-to-DB-15
|
RJ-45 to BNC interface cable for unbalanced connections
|
RJ-45 to Twinax interface cable for balanced connections
|
RJ-45-to-RJ-45
|
RJ-45 to bare wire
|
36-pin serial
|
8-port interface cable
|
CT3 WAN
|
BNC
|
T3 network
|
BNC to BNC
|
Connect a Console Terminal
Use the console terminal for local administrative access to the universal gateway. You can connect a terminal only to the console port. You can use the auxiliary port to connect a terminal or a modem for remote access to the universal gateway.
To connect a terminal (an ASCII terminal or a PC running terminal emulation software) to the console port on a Cisco AS5350XM or Cisco AS5400XM universal gateway, follow this procedure.
Step 1 Connect the terminal to the console port by using an RJ-45 rollover cable and an RJ-45-to-DB-25 or RJ-45-to-DB-9 adapter. (See Figure 18 and Figure 19.) The adapters provided are labeled TERMINAL. The adapters and the rollover cable are included in the accessory kit that ships with the universal gateway.
Figure 18 Connecting the Cisco AS5350XM Universal Gateway to a Console Terminal
Figure 19 Connecting the Cisco AS5400XM Universal Gateway to a Console Terminal
Step 2 Configure your terminal or PC terminal emulation software for 9600 baud, 8 data bits, no parity, and 1 stop bit. To configure the console port, see the Cisco AS5350XM and Cisco AS5400XM Universal Gateways Software Configuration Guide.
Connect to an Ethernet Network
Connect the universal gateway to an Ethernet network by using a straight-through RJ-45-to-RJ-45 Ethernet cable to connect the Gigabit Ethernet port to an Ethernet hub or Gigabit Ethernet switch. (See Figure 20 and Figure 21.)
Figure 20 Connecting the Cisco AS5350XM Universal Gateway to an Ethernet Hub
1
|
GE1 10/100/1000BASE-T port
|
2
|
Ethernet hub
|
3
|
Straight-through Ethernet cable
|
Figure 21 Connecting the Cisco AS5400XM Universal Gateway to an Ethernet Hub
1
|
GE1 10/100/1000BASE-T port
|
2
|
Ethernet hub
|
3
|
Straight-through Ethernet cable
|
Connect to a WAN
Warning The telecommunications lines must be disconnected 1) before unplugging the main power connector and/or 2) while the housing is open. Statement 89
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the unit first. Statement 1026
Warning To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord. Statement 1023
Warning The ISDN connection is regarded as a source of voltage that should be inaccessible to user contact. Do not attempt to tamper with or open any public telephone operator (PTO)-provided equipment or connection hardware. Any hardwired connection (other than by a nonremovable, connect-one-time-only plug) must be made only by PTO staff or suitably trained engineers. Statement 23
Warning To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables. Statement 1021
Warning Incorrect connection of this or connected equipment to a general purpose outlet could result in a hazardous situation. Statement 87
You can connect the Cisco AS5350XM and Cisco AS5400XM universal gateways to a WAN in the following ways:
•Connect each T1/PRI port to an RJ-45 jack with a straight-through RJ-45-to-RJ-45 cable. (See Figure 22, Figure 23, and Figure 24.)
Figure 22 Connecting a 2-Port or 4-Port Feature Card on the Cisco AS5350XM Universal Gateway to an RJ-45 Jack
Figure 23 Connecting an 8-Port Feature Card on the Cisco AS5350XM Universal Gateway to an RJ-45 Jack
Figure 24 Connecting an 8-Port Feature Card on the Cisco AS5400XM Universal Gateway to an RJ-45 Jack
Note For other T1 cabling options, see the card installation guide for the Cisco AS5350XM and Cisco AS5400XM universal gateways. You can access this document at Technical Support & Documentation > Product Support > Universal Gateways and Access Servers > Cisco AS5300 or Cisco AS5400 Series Universal Gateways > Install and Upgrade Guides.
•Connect each E1/PRI port to an RJ-45 jack with a straight-through RJ-45-to-RJ-45 cable. (See Figure 25, Figure 26, and Figure 27.)
Note If you choose a port with 75-ohm input impedance, use an RJ-45-to-75-ohm coaxial cable adapter and plug it into that port. Use software commands to choose a particular port and the line termination on that port. For information on software commands, see the Cisco AS5350XM and Cisco AS5400XM Universal Gateways Software Configuration Guide.
Warning The E1 interface card may only be installed in an ACA-permitted customer equipment or a Data Terminal Equipment (DTE) that is exempted from ACA's permit requirements. The customer equipment must only be housed in a cabinet that has screw-down lids to stop user access to overvoltages on the customer equipment. The customer equipment has circuitry that may have telecommunications network voltages on them. Statement 90
Figure 25 Connecting a 2-Port or 4-Port Feature Card on the Cisco AS5350XM Universal Gateway to an RJ-45 Jack
Figure 26 Connecting an 8-Port Feature Card on the Cisco AS5350XM Universal Gateway to an RJ-45 Jack
Figure 27 Connecting an 8-Port Feature Card on the Cisco AS5400XM Universal Gateway to an RJ-45 Jack
•Connect each CT3 feature card to a T3 CSU/DSU with two 75-ohm BNC cables. (See Figure 28 and Figure 29.)
Figure 28 Connecting a Channelized T3 Feature Card on the Cisco AS5350XM Universal Gateway to a T3 CSU/DSU
Figure 29 Connecting a Channelized T3 Feature Card on the Cisco AS5400XM Universal Gateway to a T3 CSU/DSU
•Connect a synchronous serial port to a modem or a CSU/DSU with a serial transition cable. (See Figure 30 and Figure 31.)

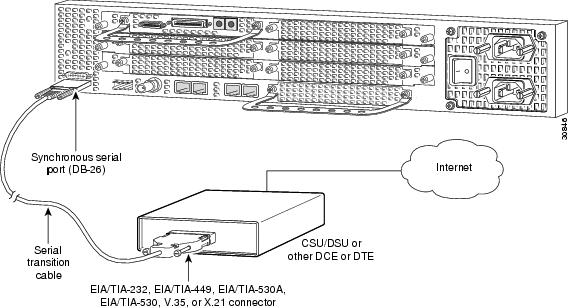

Figure 30 Connecting a Serial Port on the Cisco AS5350XM Universal Gateway to a CSU/DSU
Figure 31 Connecting a Serial Port on the Cisco AS5400XM Universal Gateway to a CSU/DSU
•Use a coaxial cable to connect a timing signal generator (TSG) to the building integrated timing supply (BITS) port. The BITS port is used for external clocking. (See Figure 32.)
Figure 32 Connecting the Cisco AS5350XM and Cisco AS5400XM Universal Gateways to a TSG
•Use a copper wire cable to connect to the alarm port.
Warning The plug-socket combination must be accessible at all times, because it serves as the main disconnecting device. Statement 1019
Warning Incorrect connection of this or connected equipment to a general purpose outlet could result in a hazardous situation. Statement 87
To connect an alarm device to the alarm port, follow these steps.
Note The alarm connector is a 3-wire connector that plugs into a receptacle on the back of the chassis. The connector is provided in the accessory kit that ships with the universal gateway.
Step 1 Insert the 3-pin alarm port connector (included in the accessory kit) into the alarm port terminal block.
Step 2 Strip a minimum of 1/4 in. (0.625 cm) off the wire insulation to connect the stranded wires to the alarm connector. The maximum insulation strip length is 0.31 in. (0.78 cm).
Note Use stranded number 12 or number 14 AWG copper wires to connect an alarm device to the alarm port connector.
Step 3 Secure the wires to the alarm connector with the screws on the connector. (See Figure 33 and Figure 34.)
Caution The maximum tightening torque on the screws is 7 in.-lb (0.79 N-m).

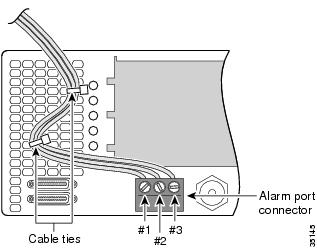

Figure 33 Connecting an Alarm Device to the Cisco AS5350XM Universal Gateway

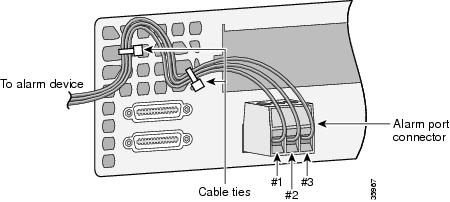

Figure 34 Connecting an Alarm Device to the Cisco AS5400XM Universal Gateway
Step 4 Attach two cable ties to the chassis, and connect the wires to the cable ties.
Step 5 Attach the alarm wires to the alarm device. Table 4 describes the alarm pinouts.
Table 4 Alarm Pinouts
|
|
Description
|
1
|
Normally open
|
2
|
Pole
|
3
|
Normally closed
|
Connect AC Power
To connect AC power, follow these steps:
Step 1 Connect the black power cable to the receptacle on the power supply at the back of the universal gateway. (See Figure 35, Figure 36, and Figure 37.)
Figure 35 Connecting the AC Power Cable to the Cisco AS5350XM Universal Gateway Single Power Supply
Note If you are using the Cisco AS5350XM redundant power supply, use the special power cable that came with your universal gateway.

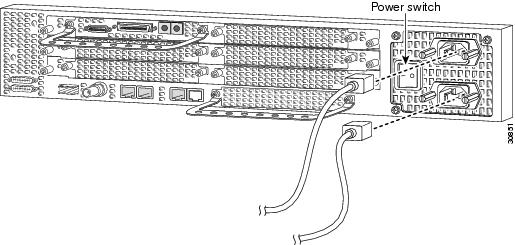

Figure 36 Connecting the AC Power Cables to the Cisco AS5350XM Universal Gateway Redundant Power Supply
Figure 37 Connecting the AC Power Cables to the Cisco AS5400XM Universal Gateway
Step 2 Connect the other end of the power cable to the electrical outlet.
Step 3 If your universal gateway has a redundant power supply installed, repeat Step 1 and Step 2 for the second power supply.
Connect DC Power
Warning A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. Statement 1022
Warning This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that a UL Listed and Certified fuse or circuit breaker no larger than 60 VDC, 15 A is used on all current-carrying conductors. Statement 96
If you ordered the universal gateway with a DC-input power supply, follow the directions in this section for proper wiring.
Caution In a DC power supply installation, do not connect the 48 VDC Return wire to chassis ground at the universal gateway. A single-point ground is recommended at the power distribution rack.
Note This product is intended for installation in restricted access areas and is approved for connection using number 12 or number 14 AWG copper conductors only. The installation must comply with all applicable codes.
To connect DC power, follow these steps:
Step 1 Remove power from the DC circuit.
Warning Before connecting or disconnecting ground or power wires to the chassis, ensure that power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position. Statement 140
Step 2 Note the orientation of the DC power supply. The power supply cord should have three wires: 48 VDC Return, -48 VDC, and a safety ground (green wire). (See Figure 38, Figure 39, and Figure 40.)
Warning The illustration shows the DC power supply terminal block. Wire the DC power supply using the appropriate lugs at the wiring end, or with no lugs, as illustrated. The proper wiring sequence is ground to ground, positive to positive, and negative to negative. Note that the ground wire should always be connected first and disconnected last. Statement 197
Figure 38 Cisco AS5350XM Universal Gateway DC Power Supply Connections—Single Power Supply
Figure 39 Cisco AS5350XM Universal Gateway DC Power Supply Connections—Redundant Power Supply
Figure 40 Cisco AS5400XM Universal Gateway DC Power Supply Connections
Step 3 Strip 1/4 in. (0.625 cm) of insulation off the safety ground, the 48 VDC Return, and the -48 VDC input wires.
Note If you are installing a redundant power supply in the Cisco AS5350XM universal gateway, you should attach spade terminals of the appropriate size to the stripped ends of the ground and input wires.
Step 4 Install the safety grounds (green wire) in the terminal block ground connectors and tighten the locking screws. Ensure that no bare wire is exposed.
Note For central office installations, we recommend using a green number 6 AWG copper ground wire with one end connected to reliable earth ground. The other end of the wire should be crimped onto the double-hole lug provided in the installation pack. The lug should be secured to the mating holes on either side of the chassis with the two screws included in the accessory pack.
Step 5 Insert the 48 VDC Return wires into the terminal block positive connectors (+) and tighten the locking screws. Ensure that no bare wire is exposed.
Caution Do not overtorque the terminal block contact screws. The recommended torque is 5 in.-lb (0.56 N-m).
Step 6 Insert the -48 VDC wires into the terminal block negative connectors (-) and tighten the locking screws. Ensure that no bare wire is exposed.
Step 7 Make sure that the power supply wires are secured to cable strain-relief clamps with cable ties.
Warning After wiring the DC power supply, remove the tape from the circuit breaker switch handle and reinstate power by moving the handle of the circuit breaker to the ON position. Statement 8
Step 8 Power up the universal gateway. The internal power supply fan should power up.
6 Power Up the Universal Gateway
Note The information in this document applies to the Cisco AS5350XM and Cisco AS5400XM universal gateways.
Checklist for Power Up
You are ready to power up the Cisco universal gateway if the following steps have been completed:
•The chassis is securely mounted.
•Power and interface cables are connected.
•Your PC terminal emulation program is configured for 9600 baud, 8 data bits, 1 stop bit, and no parity.
•You have selected passwords for access control.
•You have determined the IP addresses for the Ethernet and serial interfaces.
Power-Up Procedure
Perform this procedure to power up your Cisco universal gateway and verify that it goes through its initialization and self-test. When this is finished, the Cisco universal gateway is ready to configure.
Note To view the boot sequence through a terminal session, you must have a console connection to the Cisco universal gateway before it powers up. To connect to the console, see the "Connect a Console Terminal" section.
Step 1 Move the power switch to the ON position. The system board OK LED should come on, and messages will begin to appear in your terminal emulation program window.
Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are interpreted as the first command typed when the messages stop, which might cause the universal gateway to power down and start over. It takes a few minutes for the messages to stop.
Note A Cisco AS5350XM or Cisco AS5400XM universal gateway with the maximum number of packet voice data modules, version 2 (PVDM2) modules installed can take up to six minutes to boot from power-on to system ready.
Note The messages displayed depend on the Cisco IOS software release and on the cards that are installed in your system. The screen displays in this section are for reference only and might not exactly match the messages on your console.
The messages look similar to the following:
System Bootstrap, Version 12.3(12r)PI6, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2004 by cisco Systems, Inc.
AS5400XM platform with 524288 Kbytes of main memory
Self decompressing the image :
################################################################################################################
#################################################################################################### [OK]
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
San Jose, California 95134-1706
Cisco IOS Software, 5400 Software (C5400-JS-M), Version 12.3(14)T, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2005 by Cisco Systems, Inc.
Compiled Sat 29-Jan-05 02:10 by yiyan
Image text-base: 0x60011068, data-base: 0x61F80000
Cisco AS5400XM (BCM) processor (revision 0x21) with 393215K/131072K bytes of memory.
Processor board ID JAB082904P4
SB-1 CPU at 750MHz, Implementation 1025, Rev 0.3, 256KB L2 Cache
Last reset from IOS reload
EEPROM Version 0x4, Board ID 0x4BD,
Board Hardware Version 1.11, Item Number 800-6572289-01,
Board Revision 02, Serial Number JAB082904P4.
Processor 0x0, MAC Address badb.adba.d044
2 Gigabit Ethernet interfaces
125184K bytes of ATA External CompactFlash (Read/Write)
Press RETURN to get started!
Note If the rommon 1> prompt appears, your system has booted in ROM monitor mode. For information on the ROM monitor, see the universal gateway ROM monitor information in the Cisco IOS Configuration Fundamentals Configuration Guide for your Cisco IOS software release.
7 Perform Initial Configuration
Note The information in this document applies to the Cisco AS5350XM and Cisco AS5400XM universal gateways.
At this point you can continue, using the setup command facility, or you can configure the universal gateway manually using the command-line interface (CLI).
•The following section describes the procedure for the setup command facility for the initial configuration.
•See the "Initial Configuration Using the CLI (Manual Configuration)" section for information about manual configuration using the CLI.
Initial Configuration Using the Setup Command Facility
This section shows how to prepare the system to perform basic communication f
