Installing Cisco VG202 and Cisco VG204 Voice Gateways
This chapter provides the procedures for installing your Cisco VG202 and Cisco VG204 voice gateways and consists of the following sections:
•
Safety Recommendations
•Site Log
•Keeping Track—Checklist
•Mounting Tools and Equipment
•Unpacking and Inspection
•Wall-Mounting the Chassis
•Desktop-Mounting the Chassis
•Installing the Ground Connection
•Connecting Cables
Tip While you perform this installation, record your progress and site information. See the suggested format in the "Keeping Track—Checklist" section.
Warning Read the installation instructions before connecting the system to the power source. Statement 1004
Safety Recommendations
The following information is included to alert you to safety recommendations and best practices when working with this equipment.
Maintaining Safety with Electricity
Follow these guidelines when working on equipment powered by electricity.
Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001
Warning This equipment must be installed and maintained by service personnel as defined by AS/NZS 3260. Incorrectly connecting this equipment to a general-purpose outlet could be hazardous. The telecommunications lines must be disconnected 1) before unplugging the main power connector or 2) while the housing is open, or both. Statement 1043
General Safety Practices
Follow these guidelines to ensure personal safety and protect the equipment:
•Keep the chassis area clear and dust-free during and after installation.
•Put the removed chassis cover in a safe place.
•Keep tools away from walk areas where you and others could fall over them.
•Do not wear loose clothing that could get caught in the chassis.
•Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Safety Tips
Use these tips as safety guidelines when installing or working around this equipment:
•Locate the emergency power-off switch for the room in which you are working. Then, if an electrical accident occurs, you can act quickly to turn off the power.
•Disconnect all power before installing or removing a chassis.
•Do not work alone if potentially hazardous conditions exist.
•Never assume that power is disconnected from a circuit. Always check.
•Look carefully for possible hazards in your work area, such as moist floors, ungrounded power extension cables, and missing safety grounds.
•If an electrical accident occurs, proceed as follows:
–Use caution; do not become a victim yourself.
–Turn off power to the system.
–If possible, send another person to get medical aid. Otherwise, assess the condition of the victim and then call for help.
–Determine if the person needs rescue breathing or external cardiac compressions; then take appropriate action.
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD occurs when electronic components are improperly handled; it can result in complete or intermittent failures.
Always follow ESD-prevention procedures when removing and replacing components.
•Ensure that the chassis is electrically connected to earth ground.
•Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact.
•Connect the clip to the ESD-strap connection jack (to the left of the power switch on the back of the chassis) or to an unpainted chassis frame surface.
Caution For safety, periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohm (Mohm).
Site Log
We recommend that you maintain a Site Log to record all actions relevant to the system. Site Log entries might include the following:
•Installation—Print a copy of the Installation Checklist and insert it into the Site Log.
•Upgrades and maintenance—Use the Site Log to record ongoing maintenance and expansion history. Update the Site Log to reflect the following:
–Configuration changes
–Maintenance schedules, requirements, and procedures performed
–Comments, notes, and problems
–Changes and updates to Cisco IOS software
Keeping Track—Checklist
We recommend that you use an installation checklist and maintain a Site Log.
Installation Checklist
The Installation Checklist (see Figure 3-1) lists the tasks for installing Cisco VG202 and Cisco VG204 voice gateways. Print a copy of this checklist and mark the entries as you complete each task. For each Cisco VG202 or Cisco VG204 voice gateway, include a copy of the checklist in your Site Log.
Figure 3-1 Installation Checklist
Installation Checklist for site ______________________________________________
Cisco VG name/serial number _____________________________________________
Task
|
Verified by
|
Date
|
Background information placed in Site Log
|
|
|
Environmental specifications verified
|
|
|
Site power voltages verified
|
|
|
Installation site prepower check completed
|
|
|
Required tools available
|
|
|
Additional equipment available
|
|
|
Cisco VG received
|
|
|
Quick start guide received
|
|
|
Regulatory compliance and safety information received
|
|
|
Information packet, warranty card, and Cisco.com card received
|
|
|
Software version verified
|
|
|
Rack, desktop, or wall-mounting of chassis completed
|
|
|
Initial electrical connections established
|
|
|
ASCII terminal attached to console port
|
|
|
Modem attached to console port (for remote configuration)
|
|
|
Signal distance limits verified
|
|
|
Startup sequence steps completed
|
|
|
Initial operation verified
|
|
|
Mounting Tools and Equipment
Obtain the following tools and parts to install Cisco VG202 and Cisco VG204 voice gateways:
•Screws and anchors for wall-mounting
–Eight wood screws or other fasteners, for installing the chassis on a wall. An additional starter screw can be used to facilitate wall-mounting.
•ESD-preventive wrist strap
In addition, you might need the following external equipment:
•Console terminal or personal computer with terminal emulation software
•PC running terminal emulation software for administrative access
•Modem for remote access
•Analog voice RJ-11 cable
Unpacking and Inspection
Do not unpack the Cisco VG202 or Cisco VG204 voice gateway until you are ready to install the equipment. If the installation site is not ready, keep the chassis in its shipping container to prevent accidental damage.
The Cisco VG202 or Cisco VG204 voice gateway, cables, and any optional equipment that you ordered might be shipped in more than one container. When you unpack each shipping container, check the packing list to ensure that you received all the following items:
•Cisco VG202 or Cisco VG204 voice gateway
•Power cord, 6 feet (1.8-meters long)
•RJ-45-to-DB-25 adapter cable (labeled Console)
•Grounding lug and fasteners
Inspect all items for shipping damage. If anything appears damaged, or if you encounter problems when installing or configuring your system, contact a customer service representative. (See the "Obtaining Documentation and Submitting a Service Request" section on page xvi.)
Wall-Mounting the Chassis
The following warning applies only when the unit is wall-mounted:
Warning This unit is intended to be mounted on a wall. Please read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system. Statement 248
You can mount the voice gateway on a wall or other vertical surface by using the molded mounting-screw slots on the bottom of the voice gateway and two number-six, 3/4 inch (M3.5 x 20 mm) screws. You must provide the screws. Figure 3-2 shows the mounting-screw slots.
Figure 3-2 Mounting-Screw Slots for Wall-Mounting a VG202 or VG204 Voice Gateway
1
|
Rubber feet
|
2
|
Mounting-screw slots
|
The following conditions must be met when you mount the voice gateway:
•Because you will use the LEDs as status and problem indicators, the LEDs on the front panel must face upward and must be easily visible.
•The back panel must face downward to reduce strain on the cable connections.
•The power supply must rest on a horizontal surface such as the floor or a table. If the power supply is not supported, it could place strain on the power supply cable and cause it to disconnect from the connector on the voice gateway back panel.
To wall-mount a Cisco VG202 or VG204 voice gateway, follow these steps:
Step 1 Secure two screws 5 7/16 inches (13.81 centimeters) apart into a wall and 5/32 inch (0.40 centimeter) from the wall.
Step 2 Hang the voice gateway on the screws as shown in Figure 3-3.
Step 3 Place the power supply on a horizontal surface.

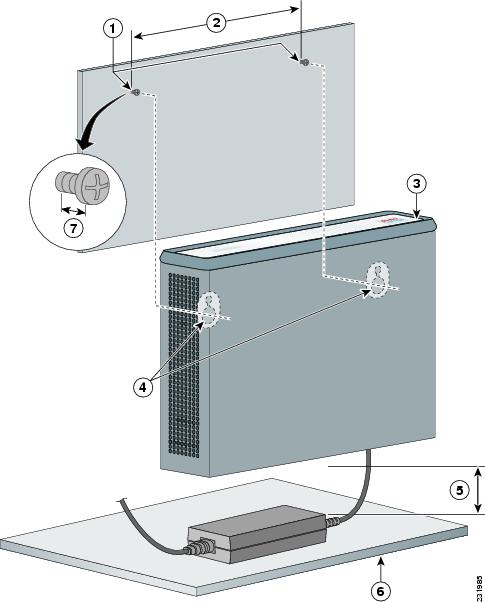

Figure 3-3 Mounting the VG202 or VG204 Voice Gateway on a Wall
1
|
Two number-six, 3/4-in. screws
|
2
|
Distance between the two screws (5 7/16 in. [13.8 cm])
|
3
|
Cisco VG202 or VG204 voice gateway
|
4
|
Mounting-screw slots
|
5
|
Maximum distance between the voice gateway and the power supply (6 ft [1.8 m])
|
6
|
Horizontal surface on which to place the power supply
|
7
|
Distance between the screw and the wall (5/32 in. [0.40 cm])
|
|
|
Caution If you are mounting the voice gateway on drywall, use hollow-wall anchors (1/8 inch with 5/16-inch drill bit, or M3 with 8-mm drill bit) to secure the screws. If the screws are not properly anchored, the strain of the network cable connections could pull the voice gateway from the wall.
Note For hollow-wall mounting, use two wall anchors with washers. Wall anchors and washers must be size number 10.
Desktop-Mounting the Chassis
To set the Cisco VG202 or Cisco VG204 voice gateway on a desktop, follow these steps:
Step 1 Place the four rubber feet (from the accessory kit) in the four indentations on the underside of the chassis. This helps provide proper airflow through and around the chassis.
Caution Do not place anything on top of the chassis that weighs more than 10 lb (4.5 kg). Excessive weight on top can damage the chassis.
Step 2 Place the Cisco VG202 or Cisco VG204 voice gateway on a smooth, flat surface.
Installing the Ground Connection
You must connect the chassis to a reliable earth ground; the ground wire must be installed in accordance with local electrical safety standards.
•For NEC-compliant grounding, use size AWG 14 (2 mm2) or larger wire and an appropriate user-supplied ring terminal.
•For EN/IEC 60950-compliant grounding, use size AWG 18 (1 mm2) or larger wire and an appropriate user-supplied ring terminal.
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning Use copper conductors only. Statement 1025
To connect the chassis to a reliable earth ground, perform the following steps:
Step 1 Locate a suitable ground.
Tip Using a multimeter, measure the resistance between various possible ground locations, such as between the ground of a junction box (outlet) and the ground of a power tap, between the ground of a junction box and a metal water pipe, between the Cisco VG202 or Cisco VG204 chassis and the ground of a power tap, and between the Cisco VG202 or Cisco VG204 chassis and the ground of a junction box. A good ground connection should read between 0.0 and 0.5 ohms.
Step 2 Strip one end of the ground wire to the length required for the ring terminal.
Step 3 Crimp the ground wire to the ground lug or ring terminal, using a crimp tool of the appropriate size. (See Figure 3-4.)
Figure 3-4 Crimping a Ground Lug onto the Ground Wire
Step 4 Attach the ring terminal to the chassis as shown in Figure 3-5. For a ring terminal, use one of the screws provided. Use a number-2 Phillips screwdriver, and tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m).

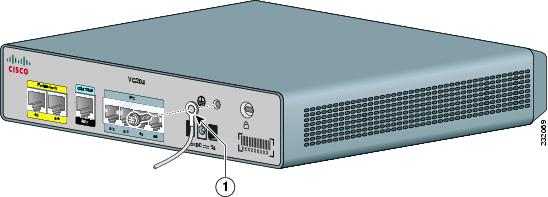

Figure 3-5 Chassis Ground Connection Using Ring Terminal
1
|
Ring terminal attachment
|
Step 5 Connect the other end of the ground wire to a grounding point at your site.
Connecting Cables
This section provides the procedures for connecting cables to your voice gateway.
Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001
Warning Take care when connecting units to the supply circuit so that wiring is not overloaded. Statement 1018
Warning This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than:
120 VAC, 15A (240 VAC, 10A international) Statement 1005
Warning To prevent accidental discharge in the event of a power line cross, route on-premise wiring away from power cables and off-premise wiring, or use a grounded shield to separate the on-premise wiring from the power cables and off-premise wiring. A power line cross is an event, such as a lightning strike, that causes a power surge. Off-premise wiring is designed to withstand power line crosses. On-premise wiring is protected from power line crosses by a device that provides overcurrent and overvoltage protection. Nevertheless, if the on-premise wiring is in close proximity to, or not shielded from, the off-premise wiring or power cables during a lightning strike or power surge, the on-premise wiring can carry a dangerous discharge to the attached interface, equipment, and nearby personnel. Statement 338
Connecting Input Power to the Voice Gateway
To connect input power to the Cisco VG202 or Cisco VG204 voice gateway, follow these steps:
Step 1 Connect the voice gateway to an AC power outlet as shown in Figure 3-6.
Figure 3-6 Connecting the External Power Supply to the Cisco Voice Gateway
1
|
Power lock clip
|
2
|
Power cord
|
3
|
Power adapter
|
4
|
AC plug
|
Step 2 To secure the power cord to the voice gateway, attach the power lock clip to the power cord, and slide the clip to the end of the DC plug. See location 1 in Figure 3-6.
Connecting a Terminal or PC to the Console Port
Connect a terminal or PC to the Console Aux port either to configure the software by using the command-line interface (CLI) or to troubleshoot problems with the voice gateway.
To connect a terminal or PC to the console port on the voice gateway and access the CLI, follow these steps:
Step 1 Connect the RJ-45 end of a DB-9-to-RJ-45 serial cable to the RJ-45 Console Aux port on the voice gateway. Figure 3-7 shows the RJ-45 end of the serial cable connected to the Console Aux port on the voice gateway.

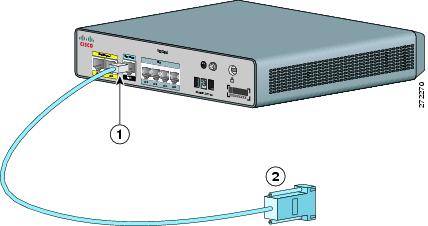

Figure 3-7 Connecting a Terminal or PC to the Console Port
1
|
RJ-45 connector to the Console Aux port on the voice gateway
|
2
|
DB-9 connector
|
Step 2 Connect the DB-9 end of the RJ-45-to-DB-9 serial cable to the to the COM port on your laptop or PC.
Note Some laptops and personal computers do not have DB-9 serial port connectors and may require a USB-to-serial port adapter.
Step 3 To communicate with the voice gateway, begin a terminal emulator application.
Connecting an FXS line
Use a standard straight-through RJ-11 modular telephone cable to connect a Foreign Exchange Service (FXS) port to a telephone or fax machine.
Warning This equipment contains a ring signal generator (ringer), which is a source of hazardous voltage. Do not touch the RJ-11 (phone) port wires (conductors), the conductors of a cable connected to the RJ-11 port, or the associated circuit-board when the ringer is active. The ringer is activated by an incoming call.
Warning For connections outside the building where the equipment is installed, the following ports must be connected through an approved network termination unit with integral circuit protection: FXS.
To connect the FXS line, follow these steps:
Step 1 Connect one end of the straight-through RJ-11 cable to the FXS port. Figure 3-8 shows an FXS line connection.

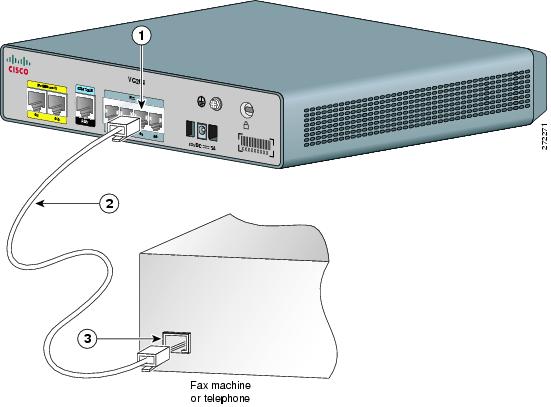

Figure 3-8 Connecting an FXS Line
1
|
FXS port
|
2
|
RJ-11 cable
|
3
|
RJ-11 port
|
|
|
Step 2 Connect the other end of the cable to the RJ-11 port on the telephone or fax machine.
