Cisco Nexus 1000V Layer 2 Switching Configuration Guide, Release 4.0(4)SV1(1)

Private VLAN Configuration

Use this chapter to configure a private VLAN (PVLAN) that divides a normal VLAN into isolated Layer 2 partitions.

The chapter contains the following topics:

•Information About Private VLANs

•Configuring a Private VLAN

•Verifying Private VLAN Configuration

•Private VLAN Example Configuration

•Private VLAN Using Port Profiles Example Configuration

•Default Settings

•Additional References

•Feature History for Private VLANs

Information About Private VLANs

PVLANs achieve device isolation through the use of three separate port designations, each having its own unique set of rules regulating each connected endpoint's ability to communicate with other connected endpoints within the same private VLAN domain.

This section includes the following topics:

•Private VLAN Domains

•Spanning Multiple Switches

•Private VLAN Ports

Private VLAN Domains

A private VLAN domain consists of one or more pairs of VLANs. The primary VLAN makes up the domain; and each VLAN pair makes up a subdomain. The VLANs in a pair are called the primary VLAN and the secondary VLAN. All VLAN pairs within a private VLAN have the same primary VLAN. The secondary VLAN ID is what differentiates one subdomain from another (see Figure 4-1).

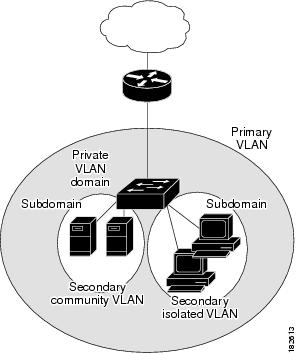

Figure 4-1 Private VLAN Domain

Spanning Multiple Switches

Private VLANs can span multiple switches, just like regular VLANs. Inter-switch link ports need not be aware of the special VLAN type and carry frames tagged with these VLANs just like they do any other frames. Private VLANs ensure that traffic from an isolated port in one switch does not reach another isolated or community port in a different switch even after traversing an inter-switch link. By embedding the isolation information at the VLAN level and by transporting it along with the packet, it is possible to maintain consistent behavior throughout the network. Therefore, the mechanism which restricts Layer 2 communication between two isolated ports in the same switch, also restricts Layer 2 communication between two isolated ports in two different switches.

Private VLAN Ports

Within a private VLAN domain, there are three separate port designations. Each port designation has its own unique set of rules which regulate the ability of one endpoint to communicate with other connected endpoints within the same private VLAN domain. The following are the three port designations:

•promiscuous

•isolated

•community

Figure 4-2 shows the private VLAN ports

Figure 4-2 Private VLAN Ports

Primary VLANs and Promiscuous Ports

The primary VLAN encompasses the entire private VLAN domain. It is a part of each subdomain and provides the Layer 3 gateway out of the VLAN. A private VLAN domain has only one primary VLAN. Every port in a private VLAN domain is a member of the primary VLAN. In other words, the primary VLAN is the entire private VLAN domain.

As the name suggests, a promiscuous port (p1 in Figure 4-2) can talk to all other types of ports. A promiscuous port can talk to isolated ports as well as community ports and vice versa. Layer 3 gateways, DHCP servers and other trusted devices that need to communicate with the customer endpoints are typically connected with a promiscuous port. A promiscuous port can be either an access port or a hybrid/trunk port according to the terminology presented in Annex D of the IEEE 802.1Q specification.

Secondary VLANs and Host Ports

Secondary VLANs provide Layer 2 isolation between ports in a private VLAN domain. A private VLAN domain can have one or more subdomains. A subdomain is made up of a VLAN pair consisting of the primary VLAN and a secondary VLAN. Since the primary VLAN is a part of every subdomain, secondary VLANs differentiate the VLAN subdomains.

In order to communicate to the Layer 3 interface, a secondary VLAN must be associated with at least one of the promiscuous ports in the primary VLAN. You can associate a secondary VLAN to more than one promiscuous port within the same private VLAN domain, for example, if needed for load-balancing or redundancy. A secondary VLAN that is not associated with any promiscuous port cannot communicate with the Layer 3 interface.

A secondary VLAN can be one of the following types:

•Isolated VLANs— Isolated VLANs use isolated host ports. An isolated port (i1 or i2 in Figure 4-2) cannot talk to any other port in that private VLAN domain except for promiscuous ports. If a device needs to have access only to a gateway router, then it should be attached to an isolated port. An isolated port is typically an access port, but in certain applications it can also be a hybrid or trunk port.

The distinct characteristic of an isolated VLAN is that it allows all its ports to have the same degree of segregation that could be obtained from using one separate dedicated VLAN per port. Only two VLAN identifiers are consumed in providing this port isolation.

Note While there can be multiple community VLANs in a private VLAN domain, one isolated VLAN is sufficient to serve multiple customers. All endpoints connected to its ports are isolated at Layer 2. Service providers can assign multiple customers to the same isolated VLAN, and be assured that their Layer 2 traffic cannot be sniffed by other customers sharing the same isolated VLAN.

•Community VLANs—Community VLANs use community host ports. A community port (c1 or c2 in Figure 4-2) is part of a group of ports. The ports within a community can have Layer 2 communications with one another and can also talk to any promiscuous port. If an ISP customer has, for example, 4 devices and wants them isolated from those of other customers but still be able to communicate among themselves, then community ports should be used.

Note Because trunks can support a VLAN carrying traffic between its ports, it is possible for VLAN traffic to enter or leave the device through a trunk interface.

Communication Between Private VLAN Ports

The following table shows how access is permitted or denied between private VLAN port types.

Configuring a Private VLAN

Use the following procedures in this section to configure a private VLAN.

•Creating a Private VLAN

•Configuring a VLAN as a Primary VLAN

•Configuring a VLAN as a Secondary VLAN

•Associating the VLANs in a PVLAN

•Configuring a Private VLAN Host Port

•Associating a Host Port with a Private VLAN

•Configuring a Layer 2 Interface as a Promiscuous Trunk Port

•Configuring a Private VLAN Promiscuous Access Port

•Associating a Promiscuous Access Port with a Private VLAN

•Removing a Private VLAN Configuration

Creating a Private VLAN

Use this procedure to create a private VLAN (PVLAN).

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•You have identified the VLAN IDs to include in this PVLAN; and they already exist on the switch.

Note If the VLAN does not already exist, you are prompted to create it. To create a VLAN, see the section, Creating a VLAN, page 3-3.

•You have identified which VLAN will be the primary VLAN.

•You have identified which VLANs will be the secondary VLANs and whether they will function as community VLANs or isolated VLANs.

SUMMARY STEPS

1. config t

2. vlan primary-vlan-id

3. private-vlan primary

4. vlan secondary-vlan-id

5. private-vlan {community | isolated}

6. vlan primary-vlan-id

7. private-vlan association {add | remove} secondary vlan-id

8. interface interface name

9. switchport mode private-vlan host

10. switchport private-vlan host-association primaryvlan-id secondary vlan-id(s)

11. interface type slot/port

12. switchport mode private-vlan trunk promiscuous

13. switchport private-vlan trunk allowed vlan all

14. switchport private-vlan mapping trunk primary_vlan_ID {secondary_vlan_list | add secondary_vlan_list | remove secondary_vlan_list}

15. exit

16. show vlan private-vlan

17. copy running-config startup-config

Configuring a VLAN as a Primary VLAN

Use this procedure to configure a VLAN to function as the primary VLAN in a PVLAN.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•The VLAN you are configuring as a primary VLAN already exists in the system as a normal VLAN, and you know the VLAN ID.

Note If the VLAN does not already exist, you are prompted to create it when you create the primary VLAN. To create a VLAN, see the "Creating a VLAN" procedure on page 3-3.

•For information about private VLANs, see the "Private VLANs" section on page 1-6.

SUMMARY STEPS

1. config t

2. vlan primary-vlan-id

3. private-vlan primary

4. exit

5. show vlan private-vlan

6. copy running-config startup-config

DETAILED STEPS

Example:

n1000v(config)# vlan 202

n1000v(config-vlan)# private-vlan primary

n1000v(config-vlan)# exit

n1000v(config-vlan)# show vlan private-vlan

Primary  Secondary  Type             Ports

-------  ---------  ---------------  -------------------------------------------

202                 primary

n1000v(config-vlan)#

Configuring a VLAN as a Secondary VLAN

Use this procedure to configure VLANs to function as secondary VLANs in a PVLAN.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•The VLANs you are configuring as secondary VLANs already exists in the system as normal VLANs, and you know their VLAN IDs.

Note If the VLAN does not already exist, you are prompted to create it when you create the secondary VLAN. To create a VLAN, see the section, Creating a VLAN, page 3-3.

•You know whether you want the secondary VLANs to be community VLANs or isolated VLANs, and the VLAN IDs for each.

•For information about private VLANs, see the section, Private VLANs, page 1-6.

SUMMARY STEPS

1. config t

2. vlan secondary-vlan-id

3. private-vlan {community | isolated}

4. exit

5. show vlan private-vlan

6. copy running-config startup-config

DETAILED STEPS

Example:

n1000v(config)# vlan 303

n1000v(config-vlan)# private-vlan community

n1000v(config-vlan)# exit

n1000v(config)# show vlan private-vlan

Primary  Secondary  Type             Ports

-------  ---------  ---------------  -------------------------------------------

202                 primary

303                 community

n1000v(config)#

Associating the VLANs in a PVLAN

Use this procedure to associate the primary VLANs in a PVLAN with the secondary VLANs.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•The primary VLAN for this PVLAN is already configured as a PVLAN.

•The secondary VLANs for this PVLAN are already configured as PVLANs.

•You know the VLAN IDs for each VLAN that is a part of the PVLAN.

•For information about private VLANs, see the "Private VLANs" section on page 1-6.

SUMMARY STEPS

1. config t

2. vlan primary-vlan-id

3. private-vlan association {add | remove} secondary vlan-id

4. exit

5. show vlan private-vlan

6. copy running-config startup-config

DETAILED STEPS

Example:

n1000v(config)# vlan 202

n1000v(config-vlan)# private-vlan association add 303

n1000v(config-vlan)# exit

n1000v(config)# show vlan private-vlan

Primary  Secondary  Type             Ports

-------  ---------  ---------------  -------------------------------------------

202      303        community        Veth1

n1000v(config)#

Configuring a Private VLAN Host Port

Use this procedure to configure an interface as a host port to function with a PVLAN.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•The primary VLAN for this PVLAN is already configured as a PVLAN.

•The secondary VLANs for this PVLAN are already configured as PVLANs.

•The secondary VLANs are already associated with the primary VLAN.

•You know the name of the interface to be used with the PVLAN as a host port.

•For information about private VLANs, see the section, Private VLANs, page 1-6.

SUMMARY STEPS

1. config t

2. interface interface name

3. switchport mode private-vlan host

4. exit

5. show interface interface name

6. copy running-config startup-config

DETAILED STEPS

Example:

n1000v# config t

n1000v(config)# interface veth1

n1000v(config-if)# switchport mode private-vlan host

n1000v(config-if)# exit

n1000v(config)# show interface veth1

Vethernet1 is up

    Hardware is Virtual, address is 0050.56b0.34c8

    Owner is VM "HAM61-RH5-32bit-ENVM-7.60.1.3"

    Active on module 2, host VISOR-HAM61.localdomain 0

    VMware DVS port 16777215

    Port-Profile is vlan631

    Port mode is Private-vlan host

    Rx

    48600 Input Packets 34419 Unicast Packets

    0 Multicast Packets 14181 Broadcast Packets

    4223732 Bytes

    Tx

    34381 Output Packets 34359 Unicast Packets

    22 Multicast Packets 0 Broadcast Packets 0 Flood Packets

    3368196 Bytes

    5 Input Packet Drops 11 Output Packet Drops

n1000v(config)#

Associating a Host Port with a Private VLAN

Use this procedure to associate the host port with the primary and secondary VLANs in a PVLAN.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•You know the VLAN IDs of the primary and secondary VLANs in the PVLAN.

•The primary and secondary VLANs are already configured as PVLAN.

•You know the name of the interface functioning in the PVLAN as a host port.

•For information about private VLANs, see the section, Private VLANs, page 1-6.

SUMMARY STEPS

1. config t

2. interface interface name

3. switchport private-vlan host-association primaryvlan-id secondary vlan-id(s)

4. exit

5. show interface interface name

6. copy running-config startup-config

DETAILED STEPS

Example:

n1000v# config t

n1000v(config)# interface veth1

n1000v(config-if)# switchport mode private-vlan host

n1000v(config-if)# exit

n1000v(config)# show interface veth1

Vethernet1 is up

    Hardware is Virtual, address is 0050.56b0.34c8

    Owner is VM "HAM61-RH5-32bit-ENVM-7.60.1.3"

    Active on module 2, host VISOR-HAM61.localdomain 0

    VMware DVS port 16777215

    Port-Profile is vlan631

    Port mode is Private-vlan host

    Rx

    48600 Input Packets 34419 Unicast Packets

    0 Multicast Packets 14181 Broadcast Packets

    4223732 Bytes

    Tx

    34381 Output Packets 34359 Unicast Packets

    22 Multicast Packets 0 Broadcast Packets 0 Flood Packets

    3368196 Bytes

    5 Input Packet Drops 11 Output Packet Drops

n1000v(config)#

Configuring a Layer 2 Interface as a Promiscuous Trunk Port

Use this procedure to configure a Layer 2 interface as a promiscuous trunk port that does the following:

•Combines multiple promiscuous ports into a single trunk port.

•Carries all normal VLANs.

•Carries multiple PVLAN primary VLANs each with selected secondary VLANs.

Note A promiscuous port can be either access or trunk. If you have one primary vlan you can use a promiscuous access port. If you have multiple primary vlans you can use a promiscuous trunk port.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•The private-vlan mapping trunk command does not decide or override the trunk configuration of a port.

•The port is already configured in a regular trunk mode before adding the private-vlan trunk configurations.

•Primary VLANs must be added to the list of allowed VLAN for the promiscuous trunk port.

•Secondary VLANs are not configured in the allowed VLAN list.

•The trunk port can carry normal VLANs in addition to primary VLANs.

SUMMARY STEPS

1. config t

2. interface type slot/port

3. switchport mode private-vlan trunk promiscuous

4. switchport private-vlan trunk allowed vlan all

5. switchport private-vlan mapping trunk primary_vlan_ID {secondary_vlan_list | add secondary_vlan_list | remove secondary_vlan_list}

6. exit

7. show interfaces [type slot/port] switchport

8. copy running-config startup-config

DETAILED STEPS

Example:

n1000v# config t

n1000v(config)# int eth2/6

n1000v(config-if)# switchport mode private-vlan trunk promiscuous

n1000v(config-if)# switchport private-vlan trunk allowed vlan all

n1000v(config-if)# switchport private-vlan mapping trunk 202 303, 440

n1000v(config-if)# switchport private-vlan mapping trunk 210 310, 450

n1000v(config-if)# show int switchport

Name: Vethernet1

  Switchport: Enabled

  Operational Mode: trunk

  Access Mode VLAN: 156(VLAN0156)

  Trunking Native Mode VLAN: 1 (default)

  Trunking VLANs Enabled: 1-3967,4048-4093

  Administrative private-vlan host-association: not available

  Administrative private-vlan mapping: not available

  Administrative private-vlan trunk native VLAN: none

  Administrative private-vlan trunk encapsulation: dot1q

  Administrative private-vlan trunk normal VLANs: none

  Administrative private-vlan trunk private VLANs: none

  Operational private-vlan: not available

n1000v(config-if)#

Configuring a Private VLAN Promiscuous Access Port

Use this procedure to configure a port to be used as a promiscuous access port in a PVLAN.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•You know the name of the interface that will function as a promiscuous access port.

•For information about private VLANs, see the section, Private VLANs, page 1-6.

SUMMARY STEPS

1. config t

2. interface type [slot/port | number]

3. switchport mode private-vlan promiscuous

4. exit

5. show interface type [slot/port | number]

6. copy running-config startup-config

DETAILED STEPS

Example:

n1000v# config t

n1000v(config)# interface eth3/2

n1000v(config-if)# switchport mode private-vlan promiscuous

n1000v(config-if)# exit

n1000v(config)# show int eth3/2

Ethernet3/2 is up

    Hardware is Ethernet, address is 0050.5655.2e85 (bia 0050.5655.2e85)

    MTU 1500 bytes, BW -1942729464 Kbit, DLY 10 usec,

       reliability 255/255, txload 1/255, rxload 1/255

    Encapsulation ARPA

    Port mode is promiscuous

    full-duplex, 1000 Mb/s

    Beacon is turned off

    Auto-Negotiation is turned on

    Input flow-control is off, output flow-control is off

    Rx

    276842 Input Packets 100419 Unicast Packets

    138567 Multicast Packets 37856 Broadcast Packets

    25812138 Bytes

    Tx

    128154 Output Packets 100586 Unicast Packets

    1023 Multicast Packets 26545 Broadcast Packets 26582 Flood Packets

    11630220 Bytes

    173005 Input Packet Drops 37 Output Packet Drops

n1000v(config)#

Associating a Promiscuous Access Port with a Private VLAN

Use this procedure to associate the promiscuous access port with the primary and secondary VLANs in a PVLAN.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•You know the VLAN IDs of the primary and secondary VLANs in the PVLAN.

•The primary and secondary VLANs are already configured as PVLAN.

•You know the name of the interface functioning in the PVLAN as a promiscuous access port.

•For information about private VLANs, see the section, Private VLANs, page 1-6.

SUMMARY STEPS

1. config t

2. interface type [slot/port | number]

3. switchport private-vlan mapping primary vlan-id secondary vlan-id(s)

4. exit

5. show interface type [slot/port | number]

6. copy running-config startup-config

DETAILED STEPS

Example:

n1000v(config)# int eth3/2

n1000v(config-if)# switchport private-vlan mapping 202 303

n1000v(config-if)# exit

n1000v(config)# show vlan private-vlan

Primary  Secondary  Type             Ports

-------  ---------  ---------------  -------------------------------------------

202      303        community        Eth3/2, Veth1

n1000v(config)#

Removing a Private VLAN Configuration

Use this procedure to remove a private VLAN configuration and return the VLAN to normal VLAN mode.

BEFORE YOU BEGIN

•You are logged in to the CLI in EXEC mode.

•The VLAN is configured as a private VLAN, and you know the VLAN ID.

•When you remove a PVLAN configuration, the ports associated with it become inactive.

•For information about private VLANs, see the section, Private VLANs, page 1-6.

SUMMARY STEPS

1. config t

2. vlan private vlan-id

3. no private-vlan {community | isolated | primary}

4. exit

5. show vlan private-vlan

6. copy running-config startup-config

DETAILED STEPS

Example:

n1000v# configure t

n1000v(config)# vlan 5

n1000v(config-vlan)# no private-vlan primary

n1000v(config-vlan)# exit

n1000v(config)# show vlan private-vlan

Primary Secondary Type Ports

------- --------- --------------- -------------------------------------------

n1000v(config)#

Verifying Private VLAN Configuration

Use the following commands to display configuration information about private VLANs.

Private VLAN Example Configuration

The following example shows how to configure interface Ethernet 2/6 as the following:

•private VLAN trunk port

•mapped to primary private VLAN 202 which is associated with secondary VLANs 303 and 440

•mapped to primary private VLAN 210 which is associated with secondary VLANs 310 and 450

Example:

n1000v# config t

n1000v(config)# int eth2/6

n1000v(config-if)# switchport mode private-vlan trunk promiscuous

n1000v(config-if)# switchport private-vlan trunk allowed vlan all

n1000v(config-if)# switchport private-vlan mapping trunk 202 303, 440

n1000v(config-if)# switchport private-vlan mapping trunk 210 310, 450

n1000v(config-if)# show int switchport

Name: Vethernet1

  Switchport: Enabled

  Operational Mode: trunk

  Access Mode VLAN: 156(VLAN0156)

  Trunking Native Mode VLAN: 1 (default)

  Trunking VLANs Enabled: 1-3967,4048-4093

  Administrative private-vlan host-association: not available

  Administrative private-vlan mapping: not available

  Administrative private-vlan trunk native VLAN: none

  Administrative private-vlan trunk encapsulation: dot1q

  Administrative private-vlan trunk normal VLANs: none

  Administrative private-vlan trunk private VLANs: none

  Operational private-vlan: not available

n1000v(config-if)#

Private VLAN Using Port Profiles Example Configuration

The following is a sample configuration showing interface eth2/6 using port-profile, uppvlanpromtrunk156.

In this configuration, packets from secondary interfaces 153, 154, and 155 are translated into the primary VLAN 156 as a result of the command, switchport private-vlan mapping trunk 156 153-155.

Example:

vlan 153-154

  private-vlan community

vlan 155

  private-vlan isolated

vlan 156

  private-vlan association 153-155,157-158

  private-vlan primary

vlan 157

  private-vlan community

vlan 158

  private-vlan isolated

n1000v# show run int eth2/6

version 4.0(1)

interface Ethernet2/6

  switchport

  inherit port-profile uppvlanpromtrunk156

n1000v# show port-profile name uppvlanpromtrunk156

port-profile uppvlanpromtrunk156

  description:

  status: enabled

  capability privileged: no

  capability uplink: yes

  port-group: uppvlanpromtrunk156

  config attributes:

    switchport mode private-vlan trunk promiscuous

    switchport private-vlan trunk allowed vlan all

    switchport private-vlan mapping trunk 156 153-155

    no shutdown

  evaluated config attributes:

    switchport mode trunk

    switchport trunk allowed vlan all

    switchport private-vlan mapping trunk 156 153-155

    no shutdown

  assigned interfaces:

    Ethernet2/6

    Ethernet3/3

n1000v# show int

mgmt0 is up

    Hardware is GigabitEthernet, address is 0000.0000.0000 (bia 0050.56b8.6790)

    Internet Address is 172.28.15.94/24

    MTU 1500 bytes, BW 0 Kbit, DLY 0 usec,

       reliability 255/255, txload 1/255, rxload 1/255

    Encapsulation ARPA

    full-duplex, 1000 Mb/s

    Beacon is turned off

    Auto-Negotiation is turned on

    Input flow-control is off, output flow-control is off

    61570 packets input, 15391960 bytes

    0 multicast frames, 0 compressed

    0 input errors, 0 frame, 0 overrun, 0 fifo

    4062 packets output, 967297 bytes

    0 underrun, 0 output errors, 0 collisions

    0 fifo, 0 carrier errors

Ethernet2/2 is up

    Hardware is Ethernet, address is 0050.565e.4c39 (bia 0050.565e.4c39)

    MTU 1500 bytes, BW 1826767368 Kbit, DLY 10 usec,

       reliability 255/255, txload 1/255, rxload 1/255

    Encapsulation ARPA

    Port mode is trunk

    full-duplex, 1000 Mb/s

    Beacon is turned off

    Auto-Negotiation is turned on

    Input flow-control is off, output flow-control is off

    Rx

    681251 Input Packets 161488 Unicast Packets

    365259 Multicast Packets 154504 Broadcast Packets

    54980953 Bytes

    Tx

    176537 Output Packets 172242 Unicast Packets

    4100 Multicast Packets 195 Broadcast Packets 5 Flood Packets

    19753822 Bytes

    98004 Input Packet Drops 9 Output Packet Drops

Ethernet2/6 is up

    Hardware is Ethernet, address is 0050.565b.b9db (bia 0050.565b.b9db)

    MTU 1500 bytes, BW 1689405960 Kbit, DLY 10 usec,

       reliability 255/255, txload 1/255, rxload 1/255

    Encapsulation ARPA

    Port mode is trunk

    full-duplex, 1000 Mb/s

    Beacon is turned off

    Auto-Negotiation is turned on

    Input flow-control is off, output flow-control is off

    Rx

    702 Input Packets 0 Unicast Packets

    702 Multicast Packets 0 Broadcast Packets

    46133 Bytes

    Tx

    95 Output Packets 0 Unicast Packets

    95 Multicast Packets 0 Broadcast Packets 0 Flood Packets

    6487 Bytes

    44 Input Packet Drops 10 Output Packet Drops

Ethernet3/2 is up

    Hardware is Ethernet, address is 0050.5653.98ac (bia 0050.5653.98ac)

    MTU 1500 bytes, BW 348735240 Kbit, DLY 10 usec,

       reliability 255/255, txload 1/255, rxload 1/255

    Encapsulation ARPA

    Port mode is access

    full-duplex, 1000 Mb/s

    Beacon is turned off

    Auto-Negotiation is turned on

    Input flow-control is off, output flow-control is off

    Rx

    579977 Input Packets 138070 Unicast Packets

    308931 Multicast Packets 132976 Broadcast Packets

    45973630 Bytes

    Tx

    165416 Output Packets 163449 Unicast Packets

    1830 Multicast Packets 137 Broadcast Packets 3 Flood Packets

    22602711 Bytes

    1975345 Input Packet Drops 0 Output Packet Drops

n1000v# show port-profile name uppvlanpromtrunk156

port-profile uppvlanpromtrunk156

  description:

  status: enabled

  capability privileged: no

  capability uplink: yes

  port-group: uppvlanpromtrunk156

  config attributes:

    switchport mode private-vlan trunk promiscuous

    switchport private-vlan trunk allowed vlan all

    switchport private-vlan mapping trunk 156 153-155

    no shutdown

  evaluated config attributes:

    switchport mode trunk

    switchport trunk allowed vlan all

    switchport private-vlan mapping trunk 156 153-155

    no shutdown

  assigned interfaces:

    Ethernet2/6

    Ethernet3/3

n1000v# show port-profile expand-interface

port-profile uplinkportprofile1

Ethernet2/2

    switchport mode private-vlan trunk promiscuous

    switchport private-vlan trunk allowed vlan all

    switchport trunk allowed vlan 150-152

    no shutdown

port-profile upaccess152

port-profile uppvlanpromaccess156

Ethernet3/2

    switchport mode private-vlan promiscuous

    switchport private-vlan mapping 156 153-155

    no shutdown

port-profile pvlancomm154

Vethernet49

    switchport mode private-vlan host

    switchport private-vlan host-association 156 154

    no shutdown

Vethernet81

    switchport mode private-vlan host

    switchport private-vlan host-association 156 154

    no shutdown

port-profile pvlaniso155

port-profile pvlancomm157

n1000v# show port-profile expand-interface ?

  <CR>

  >      Redirect it to a file

  name   Select a port profile by name

  |      Pipe command output to filter

n1000v# show port-profile expand-interface name uppvlanpromtrunk156

port-profile uppvlanpromtrunk156

Ethernet2/6

    switchport mode trunk

    switchport trunk allowed vlan 1-3967,4048-4093

    switchport private-vlan mapping trunk 156 153-155

        no shutdown

Ethernet3/3

    switchport trunk allowed vlan 1-3967,4048-4093

n1000v# show int eth2/6

Ethernet2/6 is up

    Hardware is Ethernet, address is 0050.565b.b9db (bia 0050.565b.b9db)

    MTU 1500 bytes, BW 1689405960 Kbit, DLY 10 usec,

       reliability 255/255, txload 1/255, rxload 1/255

    Encapsulation ARPA

    Port mode is trunk

    full-duplex, 1000 Mb/s

    Beacon is turned off

    Auto-Negotiation is turned on

    Input flow-control is off, output flow-control is off

    Rx

    953 Input Packets 0 Unicast Packets

    953 Multicast Packets 0 Broadcast Packets

    62600 Bytes

    Tx

    96 Output Packets 0 Unicast Packets

    96 Multicast Packets 0 Broadcast Packets 0 Flood Packets

    6683 Bytes

    44 Input Packet Drops 10 Output Packet Drops

Default Settings

Table 4-2 lists the default setting for private VLANs.

Additional References

For additional information related to implementing private VLANs, see the following sections:

•Related Documents

•Standards

Related Documents

Standards

Feature History for Private VLANs

This section provides the private VLAN release history.
