Configuring a Private VLAN
Use this chapter to configure private VLAN (PVLAN) to divide a normal VLAN into isolated Layer 2 partitions.
The chapter contains the following topics:
•
Information About Private VLANs
•Verifying a Private VLAN Configuration
•Example Configurations for Private VLAN
•Feature History for Private VLAN
Information About Private VLANs
PVLANs achieve device isolation through the use of three separate port designations, each having its own unique set of rules regulating each connected endpoint's ability to communicate with other connected endpoints within the same private VLAN domain.
This section includes the following topics:
Private VLAN Domains
A private VLAN domain consists of one or more pairs of VLANs. The primary VLAN makes up the domain; and each VLAN pair makes up a subdomain. The VLANs in a pair are called the primary VLAN and the secondary VLAN. All VLAN pairs within a private VLAN have the same primary VLAN. The secondary VLAN ID is what differentiates one subdomain from another (see Figure 4-1).
Figure 4-1 Private VLAN Domain
Spanning Multiple Switches
Private VLANs can span multiple switches, just like regular VLANs. Inter-switch link ports need not be aware of the special VLAN type and carry frames tagged with these VLANs just like they do any other frames. Private VLANs ensure that traffic from an isolated port in one switch does not reach another isolated or community port in a different switch even after traversing an inter-switch link. By embedding the isolation information at the VLAN level and by transporting it along with the packet, it is possible to maintain consistent behavior throughout the network. Therefore, the mechanism which restricts Layer 2 communication between two isolated ports in the same switch, also restricts Layer 2 communication between two isolated ports in two different switches.
Private VLAN Ports
Within a private VLAN domain, there are three separate port designations. Each port designation has its own unique set of rules which regulate the ability of one endpoint to communicate with other connected endpoints within the same private VLAN domain. The following are the three port designations:
•promiscuous
•isolated
•community
Figure 4-2 shows the private VLAN ports
Figure 4-2 Private VLAN Ports
Primary VLANs and Promiscuous Ports
The primary VLAN encompasses the entire private VLAN domain. It is a part of each subdomain and provides the Layer 3 gateway out of the VLAN. A private VLAN domain has only one primary VLAN. Every port in a private VLAN domain is a member of the primary VLAN. In other words, the primary VLAN is the entire private VLAN domain.
As the name suggests, a promiscuous port (p1 in Figure 4-2) can talk to all other types of ports. A promiscuous port can talk to isolated ports as well as community ports and vice versa. Layer 3 gateways, DHCP servers and other trusted devices that need to communicate with the customer endpoints are typically connected with a promiscuous port. A promiscuous port can be either an access port or a hybrid/trunk port according to the terminology presented in Annex D of the IEEE 802.1Q specification.
Secondary VLANs and Host Ports
Secondary VLANs provide Layer 2 isolation between ports in a private VLAN domain. A private VLAN domain can have one or more subdomains. A subdomain is made up of a VLAN pair consisting of the primary VLAN and a secondary VLAN. Since the primary VLAN is a part of every subdomain, secondary VLANs differentiate the VLAN subdomains.
In order to communicate to the Layer 3 interface, a secondary VLAN must be associated with at least one of the promiscuous ports in the primary VLAN. You can associate a secondary VLAN to more than one promiscuous port within the same private VLAN domain, for example, if needed for load-balancing or redundancy. A secondary VLAN that is not associated with any promiscuous port cannot communicate with the Layer 3 interface.
A secondary VLAN can be one of the following types:
•Isolated VLANs— Isolated VLANs use isolated host ports. An isolated port (i1 or i2 in Figure 4-2) cannot talk to any other port in that private VLAN domain except for promiscuous ports. If a device needs to have access only to a gateway router, then it should be attached to an isolated port. An isolated port is typically an access port, but in certain applications it can also be a hybrid or trunk port.
The distinct characteristic of an isolated VLAN is that it allows all its ports to have the same degree of segregation that could be obtained from using one separate dedicated VLAN per port. Only two VLAN identifiers are consumed in providing this port isolation.
Note While there can be multiple community VLANs in a private VLAN domain, one isolated VLAN is sufficient to serve multiple customers. All endpoints connected to its ports are isolated at Layer 2. Service providers can assign multiple customers to the same isolated VLAN, and be assured that their Layer 2 traffic cannot be sniffed by other customers sharing the same isolated VLAN.
•Community VLANs—Community VLANs use community host ports. A community port (c1 or c2 in Figure 4-2) is part of a group of ports. The ports within a community can have Layer 2 communications with one another and can also talk to any promiscuous port. If an ISP customer has, for example, 4 devices and wants them isolated from those of other customers but still be able to communicate among themselves, then community ports should be used.
Note Because trunks can support a VLAN carrying traffic between its ports, it is possible for VLAN traffic to enter or leave the device through a trunk interface.
Communication Between Private VLAN Ports
The following table shows how access is permitted or denied between private VLAN port types.
|
|
|
|
|
|
|
|---|---|---|---|---|---|
Isolated |
Deny |
Permit |
Deny |
Deny |
Permit |
Promiscuous |
Permit |
Permit |
Permit |
Permit |
Permit |
Community 1 |
Deny |
Permit |
Permit |
Deny |
Permit |
Community 2 |
Deny |
Permit |
Deny |
Permit |
Permit |
Interswitch Link Port |
Deny 2 |
Permit |
Permit |
Permit |
Permit |
1 An interswitch link port is a regular port that connects two switches and that happens to carry two or more VLANs. 2 This behavior applies to traffic traversing inter-switch link ports over an isolated VLAN only. Traffic from an inter-switch link port to an isolated port will be denied if it is in the isolated VLAN. Traffic from an inter-switch link port to an isolated port will be permitted if it is in the primary VLAN. |
Default Settings
Table 4-2 lists the default setting for a private VLAN.
|
|
|
|---|---|
Private VLANs |
Disabled |
Configuring a Private VLAN
Use the following procedures in this section to configure a private VLAN.
•Configuring a VLAN as a Primary VLAN
•Configuring a VLAN as a Secondary VLAN
•Associating the VLANs in a PVLAN
•Configuring a Private VLAN Host Port
•Associating a Host Port with a Private VLAN
•Configuring a Layer 2 Interface as a Promiscuous Trunk Port
•Configuring a Private VLAN Promiscuous Access Port
•Associating a Promiscuous Access Port with a Private VLAN
•Removing a Private VLAN Configuration

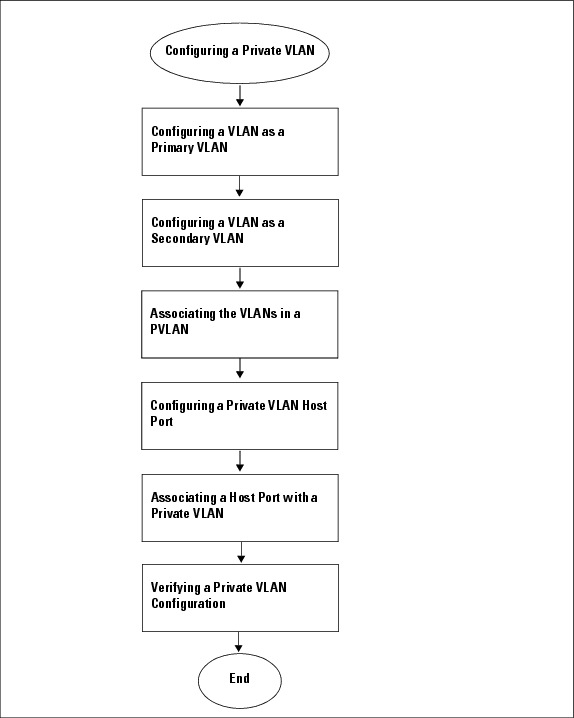

Flow Chart: Configuring a Private VLAN
The following flow chart will guide you through this process. After completing each procedure, return to this section to make sure you complete all required procedures in the correct sequence.
Figure 4-3 Flow Chart: Configuring a Private VLAN
Configuring a VLAN as a Primary VLAN
Use this procedure to configure a VLAN to function as the primary VLAN in a PVLAN.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•The VLAN you are configuring as a primary VLAN already exists in the system as a normal VLAN, and you know the VLAN ID.
Note If the VLAN does not already exist, you are prompted to create it when you create the primary VLAN. For information about creating a VLAN, see the "Creating a VLAN" procedure on page 3-4.
SUMMARY STEPS
1. config t
2. vlan primary-vlan-id
3. private-vlan primary
4. show vlan private-vlan
5. copy running-config startup-config
DETAILED STEPS
|
|
|
|
|---|---|---|
Step 1 |
config t Example: n1000v# configure t n1000v(config)# |
Enters global configuration mode. |
Step 2 |
vlan primary-vlan-id Example: n1000v(config)# vlan 202 n1000v(config-vlan)# |
Enters VLAN configuration mode for the specified VLAN and configures the primary |
Step 3 |
private-vlan primary Example: n1000v(config-vlan)# private-vlan primary |
Designates the primary VLAN as a private VLAN in the running configuration. |
Step 4 |
show vlan private-vlan Example: n1000v(config-vlan)# show vlan private-vlan |
(Optional) Displays the PVLAN configuration. |
Step 5 |
copy running-config startup-config Example: n1000v(config-vlan)# copy running-config startup-config |
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration. |
Step 6 |
You have completed this procedure. If using the flow chart, return to the Figure 4-3, Flow Chart: Configuring a Private VLAN, on page 4-6 |
|
Example:
n1000v(config)# vlan 202
n1000v(config-vlan)# private-vlan primary
n1000v(config-vlan)# show vlan private-vlan
Primary Secondary Type Ports
------- --------- --------------- -------------------------------------------
202 primary
n1000v(config-vlan)#
Configuring a VLAN as a Secondary VLAN
Use this procedure to configure VLANs to function as secondary VLANs in a PVLAN.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•The VLANs you are configuring as secondary VLANs already exists in the system as normal VLANs, and you know their VLAN IDs.
Note If the VLAN does not already exist, you are prompted to create it when you create the secondary VLAN. To create a VLAN, see the section, Creating a VLAN, page 3-4.
•You know whether you want the secondary VLANs to be community VLANs or isolated VLANs, and the VLAN IDs for each.
•For information about private VLANs, see the section, Private VLANs, page 1-6.
SUMMARY STEPS
1. config t
2. vlan secondary-vlan-id
3. private-vlan {community | isolated}
4. show vlan private-vlan
5. copy running-config startup-config
DETAILED STEPS
|
|
|
|
|---|---|---|
Step 1 |
config t Example: n1000v# configure t n1000v(config)# |
Enters global configuration mode. |
Step 2 |
vlan secondary-vlan-id Example: n1000v(config)# vlan 303 n1000v(config-vlan)# |
Enters VLAN configuration mode for the specified VLAN; and configures the secondary |
Step 3 |
private-vlan {community | isolated} Example: n1000v(config-vlan)# private-vlan community n1000v(config-vlan)# Example: n1000v(config-vlan)# private-vlan isolated n1000v(config-vlan)# |
Designates the VLAN as either a community or isolated private VLAN in the running configuration. |
Step 4 |
Do one of the following: • • |
|
Step 5 |
show vlan private-vlan Example: n1000v(config-vlan)# show vlan private-vlan |
(Optional) Displays the PVLAN configuration. |
Step 6 |
copy running-config startup-config Example: n1000v(config-vlan)# copy running-config startup-config |
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration. |
Step 7 |
You have completed this procedure. If using the flow chart, return to the Figure 4-3, Flow Chart: Configuring a Private VLAN, on page 4-6 |
|
Example:
n1000v(config)# vlan 303
n1000v(config-vlan)# private-vlan community
n1000v(config-vlan)# show vlan private-vlan
Primary Secondary Type Ports
------- --------- --------------- -------------------------------------------
202 primary
303 community
n1000v(config-vlan)#
Associating the VLANs in a PVLAN
Use this procedure to associate the primary VLANs in a PVLAN with the secondary VLANs.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•The primary VLAN for this PVLAN is already configured as a PVLAN.
•The secondary VLANs for this PVLAN are already configured as PVLANs.
•You know the VLAN IDs for each VLAN that is a part of the PVLAN.
•For information about private VLANs, see the "Private VLANs" section on page 1-6.
SUMMARY STEPS
1. config t
2. vlan primary-vlan-id
3. private-vlan association {add | remove} secondary vlan-id
4. show vlan private-vlan
5. copy running-config startup-config
DETAILED STEPS
|
|
|
|
|---|---|---|
Step 1 |
config t Example: n1000v# configure t n1000v(config)# |
Enters global configuration mode. |
Step 2 |
vlan primary-vlan-id Example: n1000v(config)# vlan 202 n1000v(config-vlan)# |
Enters VLAN configuration mode and associates the VLANs to function as a PVLAN in the running configuration. |
Step 3 |
private-vlan association {add | remove} secondary vlan-id Example: n1000v(config-vlan)# private-vlan association add 303 n1000v(config-vlan)# |
Associates a specified secondary VLAN with the primary VLAN to function as a PVLAN in the running configuration. |
Step 4 |
Do one of the following: • • |
|
Step 5 |
show vlan private-vlan Example: n1000v(config-vlan)# show vlan private-vlan |
(Optional) Displays the PVLAN configuration. |
Step 6 |
copy running-config startup-config Example: n1000v(config-vlan)# copy running-config startup-config |
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration. |
Step 7 |
You have completed this procedure. If using the flow chart, return to the Figure 4-3, Flow Chart: Configuring a Private VLAN, on page 4-6 |
|
Example:
n1000v(config)# vlan 202
n1000v(config-vlan)# private-vlan association add 303
n1000v(config-vlan)# show vlan private-vlan
Primary Secondary Type Ports
------- --------- --------------- -------------------------------------------
202 303 community Veth1
n1000v(config)#
Configuring a Private VLAN Host Port
Use this procedure to configure an interface as a host port to function with a PVLAN.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•The primary VLAN for this PVLAN is already configured as a PVLAN.
•The secondary VLANs for this PVLAN are already configured as PVLANs.
•The secondary VLANs are already associated with the primary VLAN.
•You know the name of the interface to be used with the PVLAN as a host port.
•For information about private VLANs, see the section, Private VLANs, page 1-6.
SUMMARY STEPS
1. config t
2. interface interface name
3. switchport mode private-vlan host
4. show interface interface name
5. copy running-config startup-config
DETAILED STEPS
|
|
|
|
|---|---|---|
Step 1 |
config t Example: n1000v# configure t n1000v(config)# |
Enters global configuration mode. |
Step 2 |
interface interface name Example: n1000v(config)# interface veth1 n1000v(config-if)# |
Enters interface configuration mode and creates a the named interface if it does not exist. |
Step 3 |
Do one of the following: • • |
|
Step 4 |
switchport mode private-vlan host Example: n1000v(config-if)# switchport mode private-vlan host n1000v(config-if)# |
Designates that the physical interface is to function as a PVLAN host port in the running configuration. |
Step 5 |
show interface interface name Example: n1000v(config-if)# show interface veth1 |
(Optional) Displays the interface configuration. |
Step 6 |
copy running-config startup-config Example: n1000v(config-if)# copy running-config startup-config |
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration. |
Step 7 |
You have completed this procedure. If using the flow chart, return to the Figure 4-3, Flow Chart: Configuring a Private VLAN, on page 4-6 |
|
Example:
n1000v# config t
n1000v(config)# interface veth1
n1000v(config-if)# switchport mode private-vlan host
n1000v(config-if)# show interface veth1
Vethernet1 is up
Hardware is Virtual, address is 0050.56b0.34c8
Owner is VM "HAM61-RH5-32bit-ENVM-7.60.1.3"
Active on module 2, host VISOR-HAM61.localdomain 0
VMware DVS port 16777215
Port-Profile is vlan631
Port mode is Private-vlan host
Rx
48600 Input Packets 34419 Unicast Packets
0 Multicast Packets 14181 Broadcast Packets
4223732 Bytes
Tx
34381 Output Packets 34359 Unicast Packets
22 Multicast Packets 0 Broadcast Packets 0 Flood Packets
3368196 Bytes
5 Input Packet Drops 11 Output Packet Drops
n1000v(config-if)#
Associating a Host Port with a Private VLAN
Use this procedure to associate the host port with the primary and secondary VLANs in a PVLAN.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•You know the VLAN IDs of the primary and secondary VLANs in the PVLAN.
•The primary and secondary VLANs are already configured as PVLAN.
•You know the name of the interface functioning in the PVLAN as a host port.
•For information about private VLANs, see the section, Private VLANs, page 1-6.
SUMMARY STEPS
1. config t
2. interface interface name
3. switchport private-vlan host-association primaryvlan-id secondary vlan-id(s)
4. show interface interface name
5. copy running-config startup-config
DETAILED STEPS
|
|
|
|
|---|---|---|
Step 1 |
config t Example: n1000v# configure t n1000v(config)# |
Enters global configuration mode. |
Step 2 |
interface interface name Example: n1000v(config-if)# interface veth1 n1000v(config-if)# |
Enters interface configuration mode and configures a name for the specified interface in the running configuration. |
Step 3 |
switchport private-vlan host-association primaryvlan-id secondary vlan-id(s) Example: n1000v(config-if)# switchport private-vlan host-association 202 303 n1000v(config-if)# |
Associates the host port with the primary and secondary VLAN IDs for the PVLAN in the running configuration. The interface is associated with the VLANs in the PVLAN. |
Step 4 |
show interface interface name Example: n1000v(config-if)# show interface veth1 |
(Optional) Displays the interface configuration. |
Step 5 |
copy running-config startup-config Example: n1000v(config-if)# copy running-config startup-config |
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration. |
Step 6 |
You have completed this procedure. If using the flow chart, return to the Figure 4-3, Flow Chart: Configuring a Private VLAN, on page 4-6 |
|
Example:
n1000v# config t
n1000v(config)# interface veth1
n1000v(config-if)# switchport mode private-vlan host
n1000v(config-if)# show interface veth1
Vethernet1 is up
Hardware is Virtual, address is 0050.56b0.34c8
Owner is VM "HAM61-RH5-32bit-ENVM-7.60.1.3"
Active on module 2, host VISOR-HAM61.localdomain 0
VMware DVS port 16777215
Port-Profile is vlan631
Port mode is Private-vlan host
Rx
48600 Input Packets 34419 Unicast Packets
0 Multicast Packets 14181 Broadcast Packets
4223732 Bytes
Tx
34381 Output Packets 34359 Unicast Packets
22 Multicast Packets 0 Broadcast Packets 0 Flood Packets
3368196 Bytes
5 Input Packet Drops 11 Output Packet Drops
n1000v(config-if)#
Configuring a Layer 2 Interface as a Promiscuous Trunk Port
Use this procedure to configure a Layer 2 interface as a promiscuous trunk port that does the following:
•Combines multiple promiscuous ports into a single trunk port.
•Carries all normal VLANs.
•Carries multiple PVLAN primary VLANs each with selected secondary VLANs.
Note A promiscuous port can be either access or trunk. If you have one primary vlan you can use a promiscuous access port. If you have multiple primary vlans you can use a promiscuous trunk port.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•The private-vlan mapping trunk command does not decide or override the trunk configuration of a port.
•The port is already configured in a regular trunk mode before adding the private-vlan trunk configurations.
•Primary VLANs must be added to the list of allowed VLAN for the promiscuous trunk port.
•Secondary VLANs are not configured in the allowed VLAN list.
•The trunk port can carry normal VLANs in addition to primary VLANs.
SUMMARY STEPS
1. config t
2. interface type slot/port
3. switchport mode private-vlan trunk promiscuous
4. switchport private-vlan trunk allowed vlan all
5. switchport private-vlan mapping trunk primary_vlan_ID {secondary_vlan_list | add secondary_vlan_list | remove secondary_vlan_list}
6. show interfaces [type slot/port] switchport
7. copy running-config startup-config
DETAILED STEPS
Example:
n1000v# config t
n1000v(config)# int eth2/6
n1000v(config-if)# switchport mode private-vlan trunk promiscuous
n1000v(config-if)# switchport private-vlan trunk allowed vlan all
n1000v(config-if)# switchport private-vlan mapping trunk 202 303, 440
n1000v(config-if)# switchport private-vlan mapping trunk 210 310, 450
n1000v(config-if)# switchport private-vlan mapping trunk 210 add 451,460
n1000v(config-if)# switchport private-vlan mapping trunk 210 remove 303,310
n1000v(config-if)#
Configuring a Private VLAN Promiscuous Access Port
Use this procedure to configure a port to be used as a promiscuous access port in a PVLAN.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•You know the name of the interface that will function as a promiscuous access port.
•For information about private VLANs, see the section, Private VLANs, page 1-6.
SUMMARY STEPS
1. config t
2. interface type [slot/port | number]
3. switchport mode private-vlan promiscuous
4. show interface type [slot/port | number]
5. copy running-config startup-config
DETAILED STEPS
|
|
|
|
|---|---|---|
Step 1 |
config t Example: n1000v# configure t n1000v(config)# |
Enters global configuration mode. |
Step 2 |
interface type [slot/port | number] Example: n1000v(config-if)# interface veth1 n1000v(config-if)# Example: n1000v(config-if)# interface eth3/2 n1000v(config-if)# |
Enters interface configuration mode for a specified interface. |
Step 3 |
switchport mode private-vlan promiscuous Example: n1000v(config-if)# switchport mode private-vlan promiscuous n1000v(config-if)# |
Designates that the interface is to function as a promiscuous access port for a PVLAN in the running configurtion. |
Step 4 |
show interface type [slot/port | number] Example: n1000v(config-if)# show interface eth3/2 |
(Optional) Displays the interface configuration. |
Step 5 |
copy running-config startup-config Example: n1000v(config-if)# copy running-config startup-config |
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration. |
Step 6 |
You have completed this procedure. If using the flow chart, return to the Figure 4-3, Flow Chart: Configuring a Private VLAN, on page 4-6 |
|
Example:
n1000v# config t
n1000v(config)# interface eth3/2
n1000v(config-if)# switchport mode private-vlan promiscuous
n1000v(config-if)# show int eth3/2
Ethernet3/2 is up
Hardware is Ethernet, address is 0050.5655.2e85 (bia 0050.5655.2e85)
MTU 1500 bytes, BW -1942729464 Kbit, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA
Port mode is promiscuous
full-duplex, 1000 Mb/s
Beacon is turned off
Auto-Negotiation is turned on
Input flow-control is off, output flow-control is off
Rx
276842 Input Packets 100419 Unicast Packets
138567 Multicast Packets 37856 Broadcast Packets
25812138 Bytes
Tx
128154 Output Packets 100586 Unicast Packets
1023 Multicast Packets 26545 Broadcast Packets 26582 Flood Packets
11630220 Bytes
173005 Input Packet Drops 37 Output Packet Drops
n1000v(config-if)#
Associating a Promiscuous Access Port with a Private VLAN
Use this procedure to associate the promiscuous access port with the primary and secondary VLANs in a PVLAN.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•You know the VLAN IDs of the primary and secondary VLANs in the PVLAN.
•The primary and secondary VLANs are already configured as PVLAN.
•You know the name of the interface functioning in the PVLAN as a promiscuous access port.
•For information about private VLANs, see the section, Private VLANs, page 1-6.
SUMMARY STEPS
1. config t
2. interface type [slot/port | number]
3. switchport private-vlan mapping primary vlan-id secondary vlan-id(s)
4. show interface type [slot/port | number]
5. copy running-config startup-config
DETAILED STEPS
|
|
|
|
|---|---|---|
Step 1 |
config t Example: n1000v# configure t n1000v(config)# |
Enters global configuration mode. |
Step 2 |
interface type [slot/port | number] Example: n1000v(config)# interface eth3/2 n1000v(config-if)# |
Enters interface configuration mode for the specified interface in the running configuration. |
Step 3 |
switchport private-vlan mapping primary vlan-id secondary vlan-id(s) Example: n1000v(config-if)# switchport private-vlan mapping 202 303 n1000v(config-if)# |
Associates the promiscuous access port with the VLAN IDs in the PVLAN in the running configuration. |
Step 4 |
show interface type [slot/port | number] Example: n1000v(config-if)# show vlan private-vlan |
(Optional) Displays the interface configuration. |
Step 5 |
copy running-config startup-config Example: n1000v(config-if)# copy running-config startup-config |
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration. |
Step 6 |
You have completed this procedure. If using the flow chart, return to the Figure 4-3, Flow Chart: Configuring a Private VLAN, on page 4-6 |
|
Example:
n1000v(config)# int eth3/2
n1000v(config-if)# switchport private-vlan mapping 202 303
n1000v(config-if)# show vlan private-vlan
Primary Secondary Type Ports
------- --------- --------------- -------------------------------------------
202 303 community Eth3/2, Veth1
n1000v(config-if)#
Removing a Private VLAN Configuration
Use this procedure to remove a private VLAN configuration and return the VLAN to normal VLAN mode.
BEFORE YOU BEGIN
•You are logged in to the CLI in EXEC mode.
•The VLAN is configured as a private VLAN, and you know the VLAN ID.
•When you remove a PVLAN configuration, the ports associated with it become inactive.
•For information about private VLANs, see the section, Private VLANs, page 1-6.
SUMMARY STEPS
1. config t
2. vlan private vlan-id
3. no private-vlan {community | isolated | primary}
4. show vlan private-vlan
5. copy running-config startup-config
DETAILED STEPS
Example:
n1000v# configure t
n1000v(config)# vlan 5
n1000v(config-vlan)# no private-vlan primary
n1000v(config-vlan)# show vlan private-vlan
Primary Secondary Type Ports
------- --------- --------------- -------------------------------------------
n1000v(config-vlan)#
Verifying a Private VLAN Configuration
Use the following commands to displayand verify a private VLAN configuration.
Example Configurations for Private VLAN
This section includes the following example configurations:
PVLAN Trunk Port
The following example shows how to configure interface Ethernet 2/6 as the following:
•private VLAN trunk port
•mapped to primary private VLAN 202 which is associated with secondary VLANs 303 and 440
•mapped to primary private VLAN 210 which is associated with secondary VLANs 310 and 450
Example:
n1000v# config t
n1000v(config)# int eth2/6
n1000v(config-if)# switchport mode private-vlan trunk promiscuous
n1000v(config-if)# switchport private-vlan trunk allowed vlan all
n1000v(config-if)# switchport private-vlan mapping trunk 202 303, 440
n1000v(config-if)# switchport private-vlan mapping trunk 210 310, 450
n1000v(config-if)# show int switchport
Name: Vethernet1
Switchport: Enabled
Operational Mode: trunk
Access Mode VLAN: 156(VLAN0156)
Trunking Native Mode VLAN: 1 (default)
Trunking VLANs Enabled: 1-3967,4048-4093
Administrative private-vlan host-association: not available
Administrative private-vlan mapping: not available
Administrative private-vlan trunk native VLAN: none
Administrative private-vlan trunk encapsulation: dot1q
Administrative private-vlan trunk normal VLANs: none
Administrative private-vlan trunk private VLANs: none
Operational private-vlan: not available
n1000v(config-if)#
PVLAN Using Port Profiles
The following example configuration shows how to configure interface eth2/6 using port-profile, uppvlanpromtrunk156.
In this configuration, packets from secondary interfaces 153, 154, and 155 are translated into the primary VLAN 156 as a result of the command, switchport private-vlan mapping trunk 156 153-155.
Example:
vlan 153-154
private-vlan community
vlan 155
private-vlan isolated
vlan 156
private-vlan association 153-155,157-158
private-vlan primary
vlan 157
private-vlan community
vlan 158
private-vlan isolated
n1000v# show run int eth2/6
version 4.0(1)
interface Ethernet2/6
switchport
inherit port-profile uppvlanpromtrunk156
n1000v# show port-profile name uppvlanpromtrunk156
port-profile uppvlanpromtrunk156
description:
status: enabled
capability privileged: no
capability uplink: yes
port-group: uppvlanpromtrunk156
config attributes:
switchport mode private-vlan trunk promiscuous
switchport private-vlan trunk allowed vlan all
switchport private-vlan mapping trunk 156 153-155
no shutdown
evaluated config attributes:
switchport mode trunk
switchport trunk allowed vlan all
switchport private-vlan mapping trunk 156 153-155
no shutdown
assigned interfaces:
Ethernet2/6
Ethernet3/3
n1000v# show int
mgmt0 is up
Hardware is GigabitEthernet, address is 0000.0000.0000 (bia 0050.56b8.6790)
Internet Address is 172.28.15.94/24
MTU 1500 bytes, BW 0 Kbit, DLY 0 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA
full-duplex, 1000 Mb/s
Beacon is turned off
Auto-Negotiation is turned on
Input flow-control is off, output flow-control is off
61570 packets input, 15391960 bytes
0 multicast frames, 0 compressed
0 input errors, 0 frame, 0 overrun, 0 fifo
4062 packets output, 967297 bytes
0 underrun, 0 output errors, 0 collisions
0 fifo, 0 carrier errors
Ethernet2/2 is up
Hardware is Ethernet, address is 0050.565e.4c39 (bia 0050.565e.4c39)
MTU 1500 bytes, BW 1826767368 Kbit, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA
Port mode is trunk
full-duplex, 1000 Mb/s
Beacon is turned off
Auto-Negotiation is turned on
Input flow-control is off, output flow-control is off
Rx
681251 Input Packets 161488 Unicast Packets
365259 Multicast Packets 154504 Broadcast Packets
54980953 Bytes
Tx
176537 Output Packets 172242 Unicast Packets
4100 Multicast Packets 195 Broadcast Packets 5 Flood Packets
19753822 Bytes
98004 Input Packet Drops 9 Output Packet Drops
Ethernet2/6 is up
Hardware is Ethernet, address is 0050.565b.b9db (bia 0050.565b.b9db)
MTU 1500 bytes, BW 1689405960 Kbit, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA
Port mode is trunk
full-duplex, 1000 Mb/s
Beacon is turned off
Auto-Negotiation is turned on
Input flow-control is off, output flow-control is off
Rx
702 Input Packets 0 Unicast Packets
702 Multicast Packets 0 Broadcast Packets
46133 Bytes
Tx
95 Output Packets 0 Unicast Packets
95 Multicast Packets 0 Broadcast Packets 0 Flood Packets
6487 Bytes
44 Input Packet Drops 10 Output Packet Drops
Ethernet3/2 is up
Hardware is Ethernet, address is 0050.5653.98ac (bia 0050.5653.98ac)
MTU 1500 bytes, BW 348735240 Kbit, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA
Port mode is access
full-duplex, 1000 Mb/s
Beacon is turned off
Auto-Negotiation is turned on
Input flow-control is off, output flow-control is off
Rx
579977 Input Packets 138070 Unicast Packets
308931 Multicast Packets 132976 Broadcast Packets
45973630 Bytes
Tx
165416 Output Packets 163449 Unicast Packets
1830 Multicast Packets 137 Broadcast Packets 3 Flood Packets
22602711 Bytes
1975345 Input Packet Drops 0 Output Packet Drops
n1000v# show port-profile name uppvlanpromtrunk156
port-profile uppvlanpromtrunk156
description:
status: enabled
capability privileged: no
capability uplink: yes
port-group: uppvlanpromtrunk156
config attributes:
switchport mode private-vlan trunk promiscuous
switchport private-vlan trunk allowed vlan all
switchport private-vlan mapping trunk 156 153-155
no shutdown
evaluated config attributes:
switchport mode trunk
switchport trunk allowed vlan all
switchport private-vlan mapping trunk 156 153-155
no shutdown
assigned interfaces:
Ethernet2/6
Ethernet3/3
n1000v# show port-profile expand-interface
port-profile uplinkportprofile1
Ethernet2/2
switchport mode private-vlan trunk promiscuous
switchport private-vlan trunk allowed vlan all
switchport trunk allowed vlan 150-152
no shutdown
port-profile upaccess152
port-profile uppvlanpromaccess156
Ethernet3/2
switchport mode private-vlan promiscuous
switchport private-vlan mapping 156 153-155
no shutdown
port-profile pvlancomm154
Vethernet49
switchport mode private-vlan host
switchport private-vlan host-association 156 154
no shutdown
Vethernet81
switchport mode private-vlan host
switchport private-vlan host-association 156 154
no shutdown
port-profile pvlaniso155
port-profile pvlancomm157
n1000v# show port-profile expand-interface ?
<CR>
> Redirect it to a file
name Select a port profile by name
| Pipe command output to filter
n1000v# show port-profile expand-interface name uppvlanpromtrunk156
port-profile uppvlanpromtrunk156
Ethernet2/6
switchport mode trunk
switchport trunk allowed vlan 1-3967,4048-4093
switchport private-vlan mapping trunk 156 153-155
no shutdown
Ethernet3/3
switchport trunk allowed vlan 1-3967,4048-4093
n1000v# show int eth2/6
Ethernet2/6 is up
Hardware is Ethernet, address is 0050.565b.b9db (bia 0050.565b.b9db)
MTU 1500 bytes, BW 1689405960 Kbit, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA
Port mode is trunk
full-duplex, 1000 Mb/s
Beacon is turned off
Auto-Negotiation is turned on
Input flow-control is off, output flow-control is off
Rx
953 Input Packets 0 Unicast Packets
953 Multicast Packets 0 Broadcast Packets
62600 Bytes
Tx
96 Output Packets 0 Unicast Packets
96 Multicast Packets 0 Broadcast Packets 0 Flood Packets
6683 Bytes
44 Input Packet Drops 10 Output Packet Drops
Additional References
For additional information related to implementing private VLANs, see the following sections:
Related Documents
Standards
|
|
|
|---|---|
No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature. |
— |
Feature History for Private VLAN
This section provides the private VLAN release history.
|
|
|
|
|---|---|---|
Private VLAN |
4.0(4)SV1(1) |
This feature was introduced. |
Feedback
