Cisco Aironet 3.5-dBi Articulated Dipole Antenna (AIR-ANT5135DW-R)

This document outlines the specifications and describes the Cisco Aironet 3.5-dBi Articulated Dipole Antenna. The antenna operates in the 5-GHz frequency band and is designed for use with Cisco Aironet 5-GHz radio products using an RP-TNC connector.

The following information is provided in this document.

Technical Specifications



Antenna type

Dipole



Operating frequency range

5150 – 5850 MHz

Nominal input impedance

50 Ohms

2:1 VSWR bandwidth

5150 – 5850 MHz

Gain

3.5 dBi

Polarization

Linear, vertical

E-plane 3-dB beamwidth

40 degrees

H-plane 3-dB beamwidth

Omnidirectional

Connector type

RP-TNC plug

Length

5.3 in. (13.4 cm)

Radome length

3.4 in. (8.6 cm)

Width

0.62 in. (1.5 cm)

Operating temperature

–22°F – 158°F (–30°C – 70°C)

Storage temperature

–40°F – 185°F (–40°C – 85°C)

Environment

Indoor, office

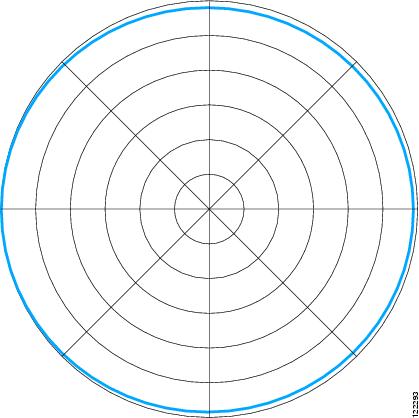

H-Plane Pattern

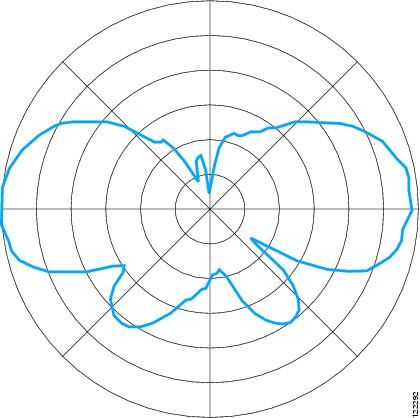

E-Plane Pattern



System Requirements

This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any 5-GHz Cisco Aironet radio device that uses RP-TNC connectors.

Features

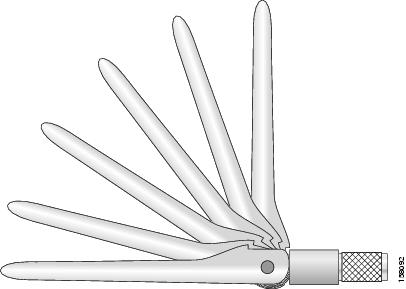

The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its knuckle with detents at 45 and 90 degrees. The articulated base is shown in the following illustration.
