Cisco SFP Optics For Packet-Over-Sonet/SDH and ATM Applications Data Sheet
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

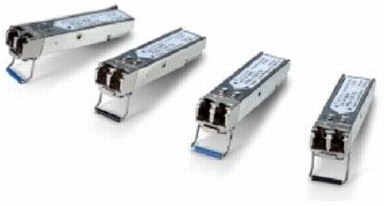

The Cisco industry-standard Small Form-Factor Pluggable Interface Converter (SFP) for Packet-Over-SONET/SDH (POS), optical networking, and ATM applications (Figure 1) are hot-swappable optical interfaces that plug into a variety of ports on Cisco router interfaces. These SFP optics support OC-3, OC-12, and OC-48 data rates for multimode, short-reach, intermediate-reach, and long-reach applications.
Cisco SFP Optics for POS/SDH and ATM Applications
Cisco® SFP optics for POS and ATM applications plug into a variety of SFP-based POS, TDM and ATM interfaces on Cisco router products. This line of SFP optics supports the following three data rates at various reaches: OC-3/STM-1 (155 Mbps), OC-12/STM-4 (622 Mbps), and OC-48/STM-16 (2,488 Gbps) (Table 1).
The SFPs are compatible with the SONET/SDH and ATM standards, and support the digital diagnostic functions specified in the SFF-8742 Multi-Source Agreement (MSA) and the extended operating temperature range from 23 to185°F (-5 to 85°C).
Table 1. Features
| Product Description |
Typical Distance (km) |
Fiber Type |
Temperature Range (°C) |
Digital Optical Monitoring Support |
| SFP OC-3/STM-1 Multimode |
2 |
multimode |
-5 to +85 |
Yes |
| SFP OC-3/STM-1 Short Reach |
2 |
single mode |
-5 to +85 |
Yes |
| SFP OC-3/STM-1 Intermediate-Reach |
15 |
single mode |
-5 to +85 |
Yes |
| SFP OC-3/STM-1 Long-Reach (40 km) |
40 |
single mode |
–5 to +85 |
Yes |
| SFP OC-3/STM-1 Long-Reach (80 km) |
80 |
single mode |
–5 to +85 |
Yes |
| SFP OC-12/STM-4 Multimode |
0.5 |
multimode |
-5 to +85 |
Yes |
| SFP OC-12/STM-4 Short-Reach |
2 |
single mode |
-5 to +85 |
Yes |
| SFP OC-12/STM-4 Intermediate-Reach |
15 |
single mode |
-5 to +85 |
Yes |
| SFP OC-12/STM-4 Long-Reach (40 km) |
40 |
single mode |
-5 to +85 |
Yes |
| SFP OC-12/STM-4 Long-Reach (80 km) |
80 |
single mode |
-5 to +85 |
Yes |
| SFP OC-48/STM-16 Short-Reach |
2 |
single mode |
–5 to +85 |
Yes |
| SFP OC-48/STM-16 Intermediate-Reach |
15 |
single mode |
–5 to +85 |
Yes |
| SFP OC-48/STM-16 Long-Reach (80 km) |
80 |
single mode |
–5 to +85 |
Yes |
Note: The temperature is intended as the case temperature on the SFP (not the ambient temperature).
The Cisco SFP optics for POS and ATM applications allow real-time access, through the digital diagnostic monitoring interface, to a set of transceiver parameters such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
The ability to read these parameters in real time greatly enhances the installation, activation, and troubleshooting of these SFP optics.
Tables 2 through 4 list the optical parameters for the Cisco SFP optics for POS and ATM applications.
Table 2. Optical Parameters for Cisco OC-3/STM-1 SFP
| OC-3/STM-1 SFP |
Transmitter Wavelength Range (nm) |
Transmit Power Range (dBm) |
Receiver Power Range (dBm) |
Optical Path Penalty (dB) |
| Multimode |
1270 to 1380 |
–14 to –20 |
–5 to –30 |
– |
| Short Reach |
1260 to 1360 |
-8 to -15 |
-8 to -23 |
1 |
| Intermediate Reach |
1261 to 1360 |
–8 to –15 |
–8 to –28 |
1 |
| Long Reach (40 km) |
1263 to 1360 |
0 to -5 |
-10 to -34 |
1 |
| Long Reach (80 km) |
1480 to 1580 |
0 to –5 |
–10 to –34 |
1 |
Table 3. Optical Parameters for Cisco OC-12/STM-4 SFP
| OC-12/STM-4 SFP |
Transmitter Wavelength Range (nm) |
Transmit Power Range (dBm) |
Receiver Power Range (dBm) |
Optical Path Penalty (dB) |
| Multimode |
1270 to 1380 |
-14 to -20 |
-6 to -26 |
- |
| Short Reach |
1261 to 1360 |
-8 to -15 |
-8 to -23 |
1 |
| Intermediate Reach |
1293 to1334 |
-8 to -15 |
–8 to –28 |
1 |
| Long Reach (40 km) |
1280 to 1335 |
+2 to -3 |
-8 to -28 |
1 |
| Long Reach (80 km) |
1480 to 1580 |
+2 to -3 |
–8 to –28 |
1 |
Table 4. Optical Parameters for Cisco OC-48/STM-16 SFP
| OC-48/STM-16 SFP |
Transmitter Wavelength Range (nm) |
Transmit Power Range (dBm) |
Receiver Power Range (dBm) |
Optical Path Penalty (dB) |
| Short Reach |
1266 to 1360 |
–3 to –10 |
–3 to –18 |
1 |
| Intermediate Reach |
1260 to 1360 |
0 to -5 |
0 to -18 |
1 |
| Long Reach (80 km) |
1500 to 1580 |
+3 to –2 |
–9 to –28 |
2 |
Connectors and cabling
Connectors: Dual LC/PC connector
Note: Only connections with patch cords with PC or UPC connectors are supported. Patch cords with APC connectors are not supported.
● Extended operating case temperature range: 23 to 185°F (–5 to 85°C)
● Storage temperature range: 23 to 185°F (–5 to 85°C)
● Dimensions (H x W x D): 8.6 mm x 13.7 mm x 56.5 mm
Regulatory and standard compliance
● Class 1 Laser per IEC60825-1 and CFR 21, Part 1040.01
● Optical Specification according to GR-253, ITU G.957, and G.707
● Optical Specification for SFP-OC3-MM ATM User-Network Interface Specification (v3.1)
To place an order, visit the Cisco Ordering Home Page. Table 5 lists the ordering information for the Cisco SFP transceivers for POS/SDH and ATM applications.
Table 5. Ordering information
| Product Description |
Part Number |
| SFP OC-3/STM-1 Multimode |
SFP-OC3-MM |
| SFP OC-3/STM-1 Short-Reach |
SFP-OC3-SR |
| SFP OC-3/STM-1 Intermediate-Reach |
SFP-OC3-IR1 |
| SFP OC-3/STM-1 Long-Reach (40 km) |
SFP-OC3-LR1 |
| SFP OC-3/STM-1 Long-Reach (80 km) |
SFP-OC3-LR2 |
| SFP OC-12/STM-4 Multimode |
SFP-OC12-MM |
| SFP OC-12/STM-4 Short-Reach |
SFP-OC12-SR |
| SFP OC-12/STM-4 Intermediate-Reach |
SFP-OC12-IR1 |
| SFP OC-12/STM-4 Long-Reach (40 km) |
SFP-OC12-LR1 |
| SFP OC-12/STM-4 Long-Reach (80 km) |
SFP-OC12-LR2 |
| SFP OC-48/STM-16 Short-Reach |
SFP-OC48-SR |
| SFP OC-48/STM-16 Intermediate-Reach |
SFP-OC48-IR1 |
| SFP OC-48/STM-16 Long-Reach (80 km) |
SFP-OC48-LR2 |
● Standard warranty: 5 years
● Expedited replacement available via a Cisco SMARTnet® Service support contract
Cisco environmental sustainability
