Cisco TelePresence 3200 [Cisco TelePresence System 3200]

The Cisco TelePresence^™ solution creates an immersive, face-to-face experience over the network - empowering you to collaborate with others like never before.

Through a powerful combination of technologies and design that allows you and remote participants to feel as if you are all in the same room, the solution can provide great productivity benefits and transform your business. Many organizations are already using this solution to control costs, make decisions faster, improve customer intimacy, scale scarce resources, and speed products to market.

The Cisco TelePresence meeting solution comprises several endpoint models to meet many types of meeting needs:

• The Cisco TelePresence System 500 is designed for 1 or 2 users, bringing the Cisco TelePresence virtual in-person experience directly into the private office.

• The Cisco TelePresence System 1000 is for small group meetings and one-on-one conversations.

• The Cisco TelePresence System 1300 Series is designed for group meetings in multipurpose conference rooms.

• The Cisco TelePresence System 3000 is for business meetings with up to 6 participants per room.

• The Cisco TelePresence System 3200 is for large group meetings of up to 18 participants per room.

These endpoints work with the complete Cisco TelePresence solution for easy call scheduling and setup; scalable, zero-latency multipoint calls; secure intercompany communications; and a host of compelling collaboration applications that scale a variety of meeting types, high-definition (HD) broadcasting, and industrial applications.

This data sheet discusses the Cisco TelePresence System 3200 (Figure 1).

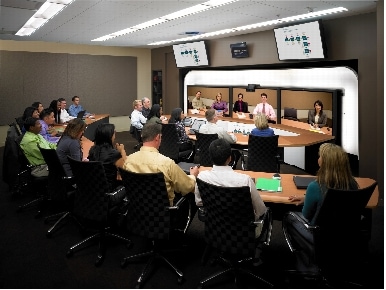

Figure 1. Cisco TelePresence System 3200

Product Overview

Cisco TelePresence combines life-size, ultra-high-definition video (1080p), spatial audio, a specially designed environment, and interactive elements to create the feeling of being "in person" with meeting participants in remote locations. This simple, easy-to-use solution allows you and other participants to communicate naturally and effectively.

For large, distributed organizations striving to succeed in today's global economy, the Cisco TelePresence System 3200 brings the power of Cisco TelePresence technology to larger room venues. Ideal for headquarters sites or large regional offices, the system allows large teams to meet and collaborate virtually using this solution when much of the team is in one physical location. With seating for up to 18 participants in a single room, the system delivers the same superior video and audio quality as the rest of the Cisco TelePresence portfolio. Applications for the Cisco TelePresence System 3200 include large team meetings, cross-functional team meetings, and training or classroom events. Cisco TelePresence can now scale to fit your organization's wide range of meeting needs today and into the future.

Applications

The Cisco TelePresence System 3200 is ideal for large group meetings with many participants in a single location, connecting to other satellite groups in remote locations. It provides an equal seat at the table for participants for applications such as operations reviews, status-update meetings, quarterly meetings with clients or partners, executive presentations, or meetings requiring staff to be present.

• Large teams: The seating capacity for up to 18 participants in a Cisco TelePresence System 3200 room allows the local team to meet in one physical room and use Cisco TelePresence technology to interact virtually with remote members of the team.

• Cross-functional groups: The extra seating capacity of a Cisco TelePresence System 3200 allows critical stakeholders from many organizations to participate in the Cisco TelePresence session. The attendance at many cross-functional meetings may vary widely, with many participants needed for critical decision points in a project. The extra capacity of a Cisco TelePresence System 3200 provides the flexibility needed for these events.

• Training: For corporate training and distance learning, the Cisco TelePresence System 3200 allows you to virtually bring in subject matter experts or guest lecturers from one or more remote locations. For such applications, the large room capacity of the Cisco TelePresence System 3200 along with the proven video and audio technology of the application brings the immersive, virtual meeting experience to larger venues and larger audiences.

Features and Benefits

The Cisco TelePresence System 3200 integrates transparently with the rest of the Cisco TelePresence portfolio to offer the same high-quality experience, including:

• The system integrates three 65-inch high-definition plasma displays for life-size images at 720p and 1080p resolutions.

• Specially designed, high-definition cameras provide high-quality, high-definition images, with excellent eye contact and no user operation required.

• Full-duplex, CD-quality audio facilitates a full, natural conversation with no perceivable latency. The microphone electronics are carefully designed to eliminate interference from mobile devices and cell phones.

• The specially designed, optimized environment offers high-quality lighting and sound treatment.

• The Cisco TelePresence meeting application supports multipoint meetings with up to 48 locations in any combination of Cisco TelePresence endpoints.

• Simplicity in scheduling and call launch through integration with enterprise groupware and Cisco^® Unified Communications makes scheduling Cisco TelePresence meetings as easy as sending a calendar invitation. Launching calls is as easy as the touch of a button. Point-to-point and point-to-multipoint meetings are equally easy to schedule and launch.

• Integration with the network helps ensure reliability with high availability, security, and quality of service (QoS) for an optimal experience with every call. Highly secure communications are enabled through encryption of both video and call signaling.

In addition to the benefits of the Cisco TelePresence System 3000 design, the Cisco TelePresence System 3200 offers the innovative features and benefits listed in Table 1.

Table 1. Cisco TelePresence System 3200 Features and Benefits

Feature	Description
Seating capacity for up to 18 active participants	Larger teams can more effectively and comfortably use the Cisco TelePresence solution for virtual meetings and collaboration.
Excellent audio and video quality, even for second-row participants	All of the facial expressions and visual cues needed to really participate in a meeting are clear. The audio clarity, overtones, and nuances make you feel like everyone is in the same room. The system delivers the same-quality virtual in-room experience as the Cisco TelePresence System 3000.
Power and Ethernet connections for all participants	Participants can use their laptops to access critical data for the meeting, join a Cisco MeetingPlace^® or Cisco WebEx^™ session, or stay in touch and productive throughout the meeting.
Connections for up to three additional graphics displays	You can show the data or graphics content from the meeting in multiple locations in the room for meeting participants' convenience.
Room for 10 or more additional seats along the back wall	The system offers extra capacity for spectators, note takers, or overflow. Others who may have limited or no active role in the meeting can listen to and see the meeting. (This option requires a room larger than the minimum depth dimensions.)
Use of existing conference rooms; no risers are required for second seating row	You can install a Cisco TelePresence System 3200 in an existing conference room with a minimum of room reconfiguration, making the room more of a conference room and less of a "stadium". Two-table second-row options are available, accommodating either 14 or 18 meeting participants in the room.
Upgrade kit available for Cisco TelePresence 3000 rooms	You can convert a Cisco TelePresence System 3000 room to a Cisco TelePresence System 3200 room in any room with Cisco TelePresence System 3200 dimensions (8 ft H x 31 ft W x 23 ft D [2.4 x 9.4 x 7.0m] for the 12-person table and 8 ft H x 24 ft W x 23 ft D [2.4 x 7.3 x 7.0m] for the 8-person table) or move an existing Cisco TelePresence System 3000 to a larger room.

Table 2 lists the features and benefits of the Cisco TelePresence solution.

Table 2. Cisco TelePresence Portfolio Features and Benefits

Feature	Description
Interoperability support	Cisco TelePresence systems can interoperate with standards-based H.323 video conferencing systems and other high-definition endpoints. In addition to protecting existing investments, interoperability expands dramatically the number of video conferencing endpoints that can communicate with a Cisco TelePresence system.
Cisco TelePresence Expert on Demand support	You can integrate Cisco TelePresence systems with Cisco Unified Communications and Cisco Unified Contact Center to deliver high-touch customer service and point-of-sale services.
Cisco TelePresence Recording Studio	Cisco TelePresence Recording Studio transforms Cisco TelePresence units into high-definition recording studios. Using an intuitive user interface on your existing Cisco TelePresence IP Phone, you can record high-quality video to deliver rich, immersive messages for internal and external communications, training, crisis management, etc. Viewing and distributing video content is easy; you can replay recordings on Cisco TelePresence endpoints or on standard browser-based players.
Network-adaptive bandwidth usage	The solution supports 720p or 1080p resolutions with three quality levels to optimize network bandwidth consumption. Cisco TelePresence can operate at several different bandwidth levels ranging from 2 to 5 Mbps for configurable, variable bandwidth consumption, maximizing the Cisco TelePresence experience while preserving frame rate and low latency, and reducing packet loss. The solution is supported by all existing install, deployment, and operation services.
Cisco TelePresence Extended Reach	An optimized 720p Cisco TelePresence mode provides wide-area bandwidth connections as low as 1.5-Mbps (T1/E1) speeds. The system maintains latency and packet loss while providing constrained bandwidth options for remote-office or telecommuter deployments.
Directories	Integration into the Cisco Unified Communications Manager general directory service provides a search function for thousands of directory entries.
Speed dial	Cisco TelePresence allows up to 40 favorites entries for convenient speed dialing.
Settings	The web-based interface allows administrators to securely log in to the system to make configuration changes to the Cisco TelePresence systems.
Scheduling services	Cisco TelePresence allows for email calendaring, and scheduling services from a web-enabled application. To use this feature you must install and configure the Cisco TelePresence Manager server to work with your calendar and email applications.
Mute and hold	The Cisco TelePresence system supports mute and hold functions.
Gigabit Ethernet switch	The internal Cisco Gigabit Ethernet switch allows for a direct connection to a 10/100/1000BASE-T Ethernet network through an RJ-45 interface with single LAN connectivity for both the Cisco TelePresence system and a co-located Cisco Unified IP Phone 7975G and Ethernet-attached PC. The system administrator can designate separate VLANs (802.1Q) for the PC and Cisco IP Phones, providing improved security and reliability of voice and data traffic.
Volume control	The convenient Volume Control button on the phone softkey menu provides for easy volume adjustments.
Audio mute	The mute feature has an on-screen mute indicator to alert participants that the mute feature was activated on the Cisco TelePresence microphone, causing all microphones to be simultaneously muted in remote rooms.
Video mute	The Hold/Resume button toggles the video and audio mute features and allows you to place Cisco TelePresence systems on hold for privacy.
Cisco TelePresence Auto Collaborate	This Cisco innovation allows people in all rooms to instantly see and share information or objects with others by simply plugging in a device such as a laptop computer or the integrated optional high-definition document camera.
High-frame rate Cisco TelePresence Auto Collaborate	An optional presentation codec is dedicated to the data channel to provide full-motion (30 fps) graphics and multimedia content on the Cisco TelePresence Auto Collaborate data channel.
Document camera controls	Software controls for the optional document camera have been incorporated into the Cisco TelePresence user interface on the Cisco IP Phone, providing for a more tightly integrated solution and more natural user controls. (This feature requires Cisco TelePresence Software Version 1.2 or later.)
Dialing buttons	These buttons allow for convenient manual or address-book dialing.
Multipoint support	Cisco TelePresence systems can participate in multipoint meetings by using the Cisco TelePresence Multipoint Switch.
Encryption	Cisco TelePresence supports full media and signaling encryption with no discernable latency to the Cisco TelePresence call for up to 48 segments. In addition, Cisco TelePresence meetings can be designated as nonsecure, secure best effort, and always secure. Meeting encryption status is indicated on-screen at the start of a call or when it changes, and on the phone at all times.
Power over Ethernet (PoE) power for high-definition cameras and Cisco Unified IP Phone 7975G	The Cisco high-definition cameras and Cisco Unified IP Phone 7975G receive power down the LAN from the Cisco IEEE 803.3af PoE switch incorporated into the Cisco TelePresence codec.
Interoperability support	Cisco TelePresence System 3200 can interoperate with standards-based H.323 video conferencing systems and other high-definition endpoints, both video conferencing and competitive TelePresence products. In addition to protecting existing investments, interoperability expands dramatically the number of video conferencing endpoints that can communicate with a Cisco TelePresence system.
U.S. Section 508 features	The dial pad on the Cisco Unified IP Phone 7975G conforms to U.S. Section 508 guidelines. The 5 key dial pad has a raised nib that provides a tactilely discernible home key. To access more accessibility features, you can obtain the U.S. 508 Voluntary Product Accessibility Template (VPAT) at the following URL: http://www.cisco.com/go/accessibility.
Signaling protocol support	The Cisco TelePresence system supports Session Initiation Protocol (SIP) on Cisco Unified Communications Manager.
Audio codec support	G.711 and advanced audio coding with low delay (AAC-LD) audio compression codecs are available.
Configuration options	You can statically configure IP address assignment or configure it through the Cisco TelePresence administrator web interface.
System lighting	The solution includes an integrated lighting assembly to eliminate facial shadows and provide natural-looking video without harsh studio lighting or makeup.
System lighting controls	You can configure the integrated lighting assembly of the Cisco TelePresence system to turn on or off with a Cisco TelePresence call or with normal working hours. This feature reduces power consumption and provides a "greener" overall solution. (It requires Cisco TelePresence Software Version 1.4 or later.)

Product Specifications

Tables 3 through 5 list specifications for the Cisco TelePresence System 3200.

Table 3. Product Specifications

Specification	Description
Product compatibility	• Cisco TelePresence System 500 with Cisco TelePresence System Software 1.4 or later • Cisco TelePresence System 1000 with Cisco TelePresence System Software 1.2 or later • Cisco TelePresence System 1300 Series with Cisco TelePresence System Software 1.5 or later • Cisco TelePresence System 3000 with Cisco TelePresence System Software 1.2 or later • Cisco Unified Communications Manager 6.0 or later • Cisco TelePresence Multipoint Switch 1.0 or later • Cisco TelePresence Manager 1.4 or later
Software compatibility	Cisco TelePresence System Software 1.4 or later
Protocols	Cisco Discovery Protocol, SIP, IP, Dynamic Host Configuration Protocol (DHCP), Secure Shell (SSH) Protocol, 802.1p/q, and Real-Time Transport Protocol (RTP)
Connectivity	Ethernet (1 LAN, RJ-45 connection -- 100/1000m), internal 4-port Ethernet switch, and high-definition video connector
Programming interfaces	Web-based user interface; you can configure IP address assignment statically or through the Cisco TelePresence administrator web interface
Physical dimensions (H x W x D)	8 x 24 x 23 ft (2.4 x 7.3 x 7.0m) minimum room dimensions for reduced back-row table configuration (total room capacity of 14 participants); dimensions for the 12-person second row table are 8 x 31 x 23 ft (2.4 x 9.4 x 7.0m) Note that higher ceilings may be required to mount an optional data display. Contact your Cisco Authorized Technology Provider (ATP) partner for data display options and mounting options.
Weight	Approximately 2595 lb (1177 kg; freight weight)
Power	8856W (73.8A @ 120V to 36.9A @ 240V maximum)
Topical heat dissipation*	4.17kW 14,200 BTU/Hr

*Typical accounts for a diversity of power consumption at 75% of max

Table 4. Video and Audio Specifications

Specification	Description
Bandwidth consumption	15.3 Mbps (1080p, best motion handling) or 11.7 Mbps (720p, best motion handling) for IP QoS connections recommended; 19.8 Mbps (1080p best) or 16.2 Mbps (720p best) when including at 30-fps presentation codec Note that the bandwidth recommendations for the Cisco TelePresence 3200 are identical to those for the Cisco TelePresence 3000.
Video standards	H.264
Video frame rate	30 frames per second using H.264
Data and graphics frame rate	• Graphics sharing at 5 frames per second (standard configuration) • Optional graphics sharing at 30 frames per second using a dedicated presentation codec
Native National Television Standards Committee (NTSC)	720p and 1080p
Resolution	1920 x 1080 native
Audio standards	G.711 and AAC-LD (22 kHz)
Audio features	Cisco Dynamic Echo Cancellation for spatial audio
Cisco TelePresence High-Definition Camera	• CMOS 2/3-inch sensor • C Mount lens • 1080p 30 • Minimum illumination 300 lux • Manual focus

Table 5. Additional Specifications

Specification	Description
Firmware upgrades	Downloadable from Cisco Unified Communications Manager
Video network features	Intelligent packet loss recovery of video transmission
Network interface	• 1 LAN or Ethernet (RJ-45); 100/1000 Mbps • Internal 4-port Ethernet switch with 2 PoE (IEEE 802.3af) ports on codec

Table 6 gives temperature ratings, and Table 7 provides certification information for the Cisco TelePresence System 3200.

Table 6. Temperature Ratings

Temperature	Description
Conference-room operating temperature	41 to 86ºF (5 to 30ºC)
Relative humidity	10 to 95% (noncondensing)

Table 7. Regulatory Compliance

Regulatory Compliance Certifications

• CE marking

• UL/CSA/IEC/EN/AS/NZS/ 60950

• FCC Part 15 Class A

• CISPR22/EN55022 Class A

• EN55024

Ordering Information

To place an order, visit the Cisco Ordering Home Page and refer to Table 8.

Table 8. Ordering Information

Product Name	Part Number
Cisco TelePresence System 3200	CTS-3200
Ordering Options for the CTS-3200
Power Cords	Select the appropriate power cord option to plug into the wall outlets in the country where the TelePresence system will be deployed.
Laptop Connectivity Modules	Select the appropriate connectivity modules based on the country where the TelePresence system will be deployed. These modules allow participants to plug their laptop PC's or other portable electronic devices into power outlets integrated into the system table legs.
Lighting Fixtures	Select the appropriate system lighting fixture based on the region where the TelePresence system will be deployed. Special lighting fixtures are required for Europe and Japan.
Projectors	Projector options are offered to meet country specific regulatory requirements. Select from standard, Chinese or none.
Presentation Codec	CTS-HFR-COLLAB This is a chargeable option to add a dedicated presentation codec to enable high frame rate Auto Collaboration.

Service and Support

Critical to delivering the innovative Cisco TelePresence experience are integrated lifecycle services delivered by Cisco and our certified partners. Designed specifically for multisite organizations, these services accelerate a successful deployment and deliver a high-quality, reliable, "in-person" Cisco TelePresence experience.

Initial Prepare, Plan, and Design services prepare your network and organization to deliver the expected consistent quality level of the Cisco TelePresence experience. Operate services provide continued Cisco TelePresence experience in addition to peace of mind for your IT staff by increasing availability with critical day-2 maintenance support, remote monitoring and management, and remote assistance service. These services use a proven lifecycle services approach to deliver on a Cisco TelePresence experience. For more information, please visit: http://www.cisco.com/go/telepresenceservices.

For More Information

For more information about the Cisco TelePresence System 3200, please visit: http://www.cisco.com/go/telepresence or contact your local Cisco account representative or authorized Cisco partner.
