The Cisco® MWR 1941-DC-A Mobile Wireless Edge Router can be used either in a redundant configuration or as a standalone device. For redundancy, the Cisco MWR 1941 uses the existing Hot Standby Router Protocol (HSRP) feature and provides 1:1 redundancy for the cell site router. The 1:1 redundancy solution requires an active Cisco MWR 1941 to be deployed with a second Cisco MWR 1941 that is connected to the same network but in standby mode. (See Figure 1, and refer to the "HSRP Operation" section for more information.) Custom Y-cable is used for connecting T1/E1 ports on two separate routers to a single T1/E1 line. Protection switching relays on the T1/E1 ports enable the routers to be deployed 1:1 with Y-cables. LEDs differentiate the active and standby routers. Custom health check software interfacing with HSRP is also used to monitor the redundancy status of the router pair.
Redundancy is one of the important functions that mobile operators require for deploying Cisco Radio Access Network Optimization in their Radio Access Network (RAN). Redundancy can help mobile operators increase system reliability and minimize service interruption in the event of a fatal error caused by hardware components or embedded software in the active Cisco MWR 1941.

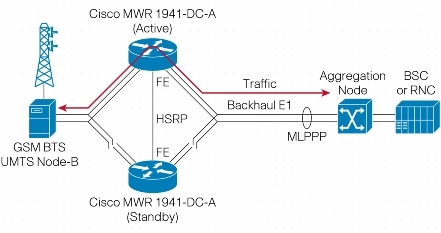

Figure 1. Logical Connections in a Redundant Cisco MWR 1941 Deployment
• Global System for Mobile Communications (GSM) base transceiver station (BTS)
• Universal Mobile Telecommunications Service (UMTS)
• Fast Ethernet (FE)
• Multilink Point-to-Point Protocol (MLPPP)
• Base station controller (BSC)
• Radio network controller (RNC)
HSRP Operation
HSRP is a network protocol designed specifically for providing network redundancy for IP networks. It helps ensure that user traffic immediately and transparently recovers from failures in network devices.
HSRP makes a set of routers work as a single virtual router to the hosts in the network. This set is known as an HSRP group or a standby group. A single router elected from the group is responsible for forwarding the packets that other hosts send to the virtual router. This router is known as the active router. Another router is elected as the standby router. In the event that the active router fails, the standby assumes the packet-forwarding duties of the active router.
HSRP consists of a virtual MAC address and a virtual IP address that are shared between two routers and a process that monitors both LAN and serial interfaces using a multicast protocol. The protocol works by the exchange of multicast messages that advertise priority among HSRP-configured routers. When the active router fails to send a hello message within a configurable period of time, the standby router with the highest priority becomes the active router and also assumes control of the virtual MAC and IP addresses. The transition of packet-forwarding functions between routers is completely transparent to all hosts on the network.
HSRP-configured routers exchange three types of multicast messages:
• Hello: The hello message conveys to other HSRP routers the router's HSRP priority and state information. By default, an HSRP router sends hello messages every three seconds.
• Coup: When a standby router assumes the function of the active router, it sends a coup message.
• Resign: An active router sends this message when it is about to shut down or when a router that has a higher priority sends a hello message.
At any time, HSRP-configured routers are in one of the following states:
• Active: The router is performing packet-transfer functions.
• Standby: The router is prepared to assume packet-transfer functions if the active router fails.
• Speaking and listening: The router is sending and receiving hello messages.
• Listening: The router is receiving hello messages.
HSRP uses a priority scheme to determine which HSRP-configured router is to be the default active router. In initial router configuration, you assign a priority to each HSRP-configured router. The default priority is 100. The router with the highest final priority in the HSRP group will become the default active router. To understand how to calculate the final priority for the MWR, see the following section.
Failover Scenarios
Router redundancy relies on three configured virtual interfaces to track the health status of the active Cisco MWR 1941.
• The first virtual loopback interface, typically loopback 101 and referred to as the health interface, is a proxy for router health. The interface is brought up or down by the health-monitoring function.
• The second virtual loopback interface, typically loopback 102, is the revertive interface and is maintained in the opposite state as the backhaul interface. This ensures that a healthy standby router has a higher score than a non-healthy active router, compensating for the absence of the MLPPP bundle on the standby.
• The third virtual loopback interface, typically loopback 103 and referred to as the short-haul interface, is a proxy for the Abis/Iub interfaces. Loopback 103 is brought up or down by tracking the short-haul interfaces as a whole.
Each virtual interface is assigned with a priority score in the Cisco MWR 1941 configuration. The default score is 10. The score of each virtual interface is used as a priority offset that indicates the amount to decrement the router's baseline priority in the event that the interface being tracked is down. The baseline priority is the value configured in an HSRP group with "standby <group> priority" command. Therefore,
Cisco MWR 1941 final priority = Baseline priority - Priority scores of the virtual interfaces that are down
Cisco MWR 1941 failover happens mostly in following scenarios:
• The whole router is down because of a power supply failure or software errors. This would either cause loopback 101 to change its state, or have HSRP detect the failure of the active Cisco MWR 1941. Failover will then take place.
• All backhaul interfaces are down. This would cause loopback 102 to change its state. Failover will then take place.
• All short-haul interfaces are down. This would cause loopback 103 to change its state. Failover will then take place.
Failover Time
When an active Cisco MWR 1941 failure is detected by HSRP, router failover will take place. Because current Cisco MWR 1941 redundancy implementation is stateless, after failover, the new active router would need to activate itself. The whole process includes bringing up all interfaces and controllers (for the short haul and the back haul), establishing MLPPP, negotiating IMA, establishing RAN Optimization peering, etc. Actual failover time would vary depending on how fast the Cisco MWR 1941 can finish negotiations with its peer and establish all the T1/E1 connections with the RAN equipment.
The Y-Cable

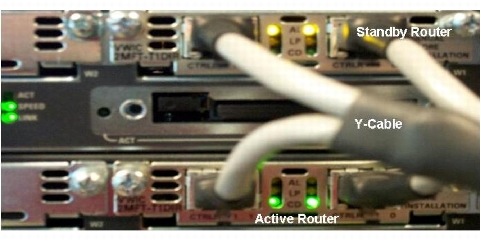

Figure 2. Cisco MWR 1941 Redundancy with a Y-Cable
A custom T1/E1 Y-cable is required for Cisco MWR 1941 redundancy (Figure 2). Y-cables connect the two interfaces on the Cisco 2-Port RJ-48 T1/E1 RAN WAN Interface Card to a single T1/E1 backhaul in the BTS or Node B. The Y-cable that is connected to a pair of redundant Cisco MWR 1941 routers can differentiate the active router from the standby router through the LEDs. The active router carrier detect is green, the standby alarm is amber with no carrier detect.
The Y-cable is available from Anixter, a third-party vendor. (Part number Q#00066036.) Please see http://www.anixter.com for local sales offices worldwide.
Redundancy Configuration
To configure Cisco MWR 1941 redundancy, three major tasks need to be performed in addition to regular RAN optimization configurations on the router:
• Enable gsm-redundancy, and indicate the three virtual loopback interfaces used for redundancy under mode y-cable.
• Configure three loopback interfaces for tracking the router health status.
• Configure HSRP group 1 and parameters under a Fast Ethernet interface. There can be multiple HSRP groups configured on a Cisco MWR 1941 at a time, and the voice/WAN interface card (VWIC) relays are only controlled by the HSRP group 1 when gsm-redundancy is configured.
