Data Sheet
The Cisco® Unified IP Phone Power Injector (Figure 1) increases the deployment flexibility of Cisco Unified IP phones by providing an alternative powering option to local power, multiport power patch panels, and inline-power-capable switches.

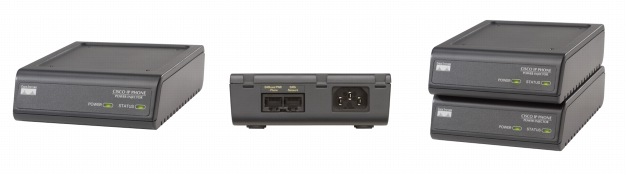

Figure 1. Cisco Unified IP Phone Power Injector (Front, Back, and Stacked Views)

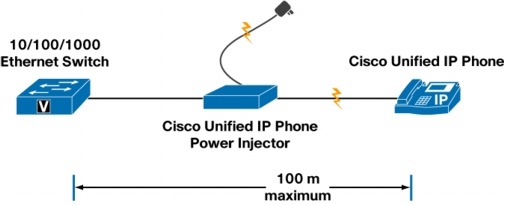

The Cisco Unified IP Phone Power Injector is a midspan power injector designed and tested for use with Cisco Unified IP phones. The Cisco Unified IP Phone Power Injector sits between a switch port and the Cisco Unified IP phone, providing inline power capability to an unpowered switch port. It supports Cisco midspan power, IEEE 802.3af modes for supplying power to the attached phone, and 10/100/1000BASE-T Ethernet connections. Figure 2 shows the maximum distance of the Cisco Unified IP Phone Power Injector between a Cisco Unified IP phone and an Ethernet switch.
Figure 2. Network Diagram
FEATURES
The Cisco Unified IP Phone Power Injector offers several features, including:
• A desktop and desk-area single-port midspan injector with integrated power
• 802.3af/IEEE Power over Ethernet (PoE) support
• Gigabit Ethernet support
• Full enterprise-level compliance
• Designed and tested for use with Cisco Unified IP Phones
SPECIFICATIONS
Table 1 lists specifications of the Cisco Unified IP Phone Power Injector.
Table 1. Specifications of the Cisco Unified IP Phone Power Injector
Specification
Description
Dimensions (H x W x D)
1.6 x 4.6 x 5.45 in. (4.1 x 11.8 x 13.8 cm)
Weight
.66 lb (.30 kg)
Phone casing composition
Polycarbonate acrylonitrile butadiene styerene (ABS) plastic in textured dark gray color
Power requirements
Power is integrated (see Table 5 for country-specific power cords used for connection to AC wall outlet)
Part number
CP-PWR-INJ
LAN connection
• Maximum Ethernet cable length: 100 m from switch to device
• Type: RJ-45
• Label: DATA
-Network
Device connection
• Maximum Ethernet cable length: 100 m from switch to device
• Type: RJ-45
• Label: DATA and PWR
-PHONE
LEDs
Two-"Power" and "Status"
Stackable
Yes-Two injectors can be stacked
Wired pairs used
Injects power into two unused pairs in the Ethernet cable: 4 and 5 (negative) and 7 and 8 (positive)
Electrical
Input:
• AC input voltage range: 90 to 264 VAC
• AC input current: 0.5A (RMS) @ 90 VAC at maximum load
• 53% minimum at 30-49% of maximum load and 120 VAC, 60 Hz
• 75% minimum at 50-100% of maximum load and 120 VAC, 60 Hz
TEMPERATURE
Table 2 gives temperature ratings for the Cisco Unified IP Phone Power Injector.
Table 2. Temperature Ratings for Cisco Unified IP Phone Power Injector
Temperature Variable
Description
Operating temperature
32 to 104°F (0 to 40°C)
Relative humidity
10 to 95% (noncondensing)
Storage temperature
14 to 140°F (-10 to 60°C)
CERTIFICATIONS
Table 3 gives certifications for the Cisco Unified IP Phone Power Injector.
Table 3. Certifications for Cisco Unified IP Phone Power Injector
Certification
Description
Regulatory compliance
• CE marking
Safety
• Underwriters Laboratories (UL) 60950
• Canadian Standards Association (CSA) C22.2 No. 60950
• IEC 60950
• EN 60950
• AS/NZS 60950
Electromagnetic compatibility (EMC)
• Federal Communications Commission (FCC) Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55022 Class B
• CISPR22 Class B
• AS/NZ 3548 Class B
• VCCI Class B
• EN55024
• EN 50082-1
• EN 61000-3-2
• EN 61000-3-3
• CISPR24
• EN61000-6-1
ORDERING INFORMATION
Table 4 gives ordering information for the Cisco Unified IP Phone Power Injector.
Table 4. Ordering Information for Cisco Unified IP Phone Power Injector
Part Number
Description
CP-PWR-INJ
Cisco Unified IP Phone Power Injector
CP-PWR-INJ=
Cisco Unified IP Phone Power Injector, spare
POWER CORDS
Table 5 lists the AC country power cords needed for the Cisco Unified IP Phone Power Injector. An AC power cord is required to power the unit.
Table 5. AC Country Power Cords
Part Number
Description
CP-PWR-CORD-AP=
Asia Pacific
CP-PWR-CORD-AR=
Argentina
CP-PWR-CORD-AU=
Australia
CP-PWR-CORD-CE=
European Community
CP-PWR-CORD-CN=
China
CP-PWR-CORD-JP=
Japan
CP-PWR-CORD-NA=
North America
CP-PWR-CORD-SW=
Switzerland
CP-PWR-CORD-UK=
United Kingdom
WARRANTY
The Cisco Unified IP Phone Power Injector is covered by a Cisco Systems
® standard one-year replacement warranty.
