PRODUCT OVERVIEW
CISCO SYSTEMS SUPPORT POLICY
CAVEATS
1. There is no need to turn off Virus scan during a Call Manager install. The supported version is headless on the server and this would need to be done on the IS server. This eliminates server venerability during the CM install.
2. There is no need for a reboot after install of ServerProtect client
3. Major Virus Scans should only be scheduled during non peak call hours, there is increased overhead while scanning is occurring. It is recommended to scan only "incoming" files.
4. Server Protect must be installed prior to the installation of CSA.
5. Even though the compressed file size limit is 4024MB for scanning, it is recommend to set the compressed scan size to 64mb, as it will dramatically impact performance on huge compressed files.
6. For remote install of ServerProtect, both the Remote RPC, and Remote Registry services are required to be running.
REQUIRED CISCO AVVID HARDWARE AND SOFTWARE LEVELS
• Cisco CallManager Version 4.0(1)
• Cisco CallManager Version 3.3(x) or greater within the CCM 3.3 version.
• Cisco CallManager Version 3.2(2c) or higher
INSTALLATION
To start the installation

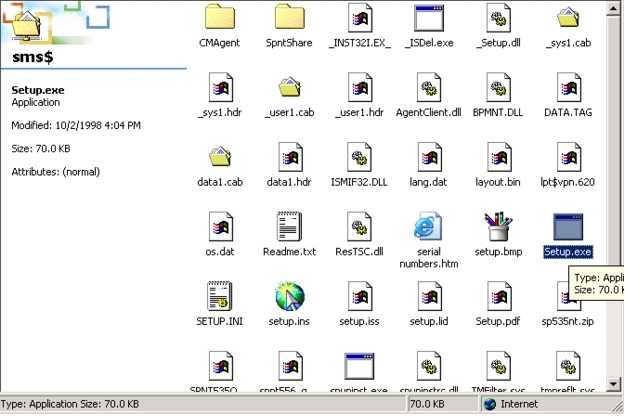

1. Access the shared install folder that has been created on your ServerProtect5 IS server.

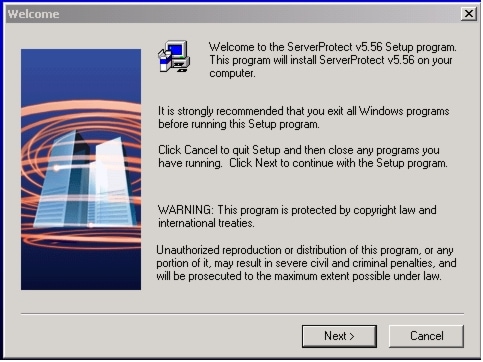

2. Execute the Setup.exe file. This will launch the install wizard
3. Click next

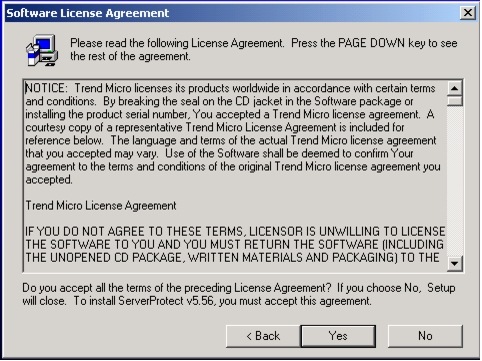

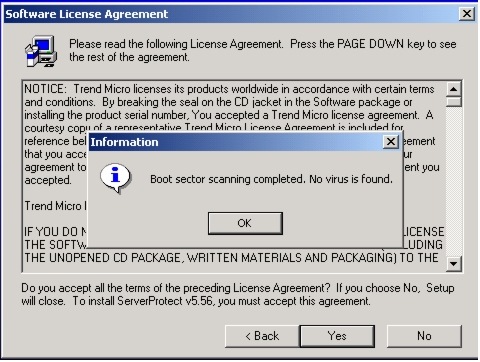

4. Click Yes, This will initiate a Scan of the Server's Boot Sector
5. Once the boot sector scan is completed, Click OK

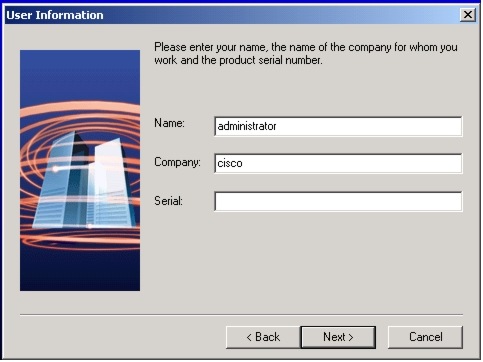

6. Enter your Name, Company and Serial Number and Click Next

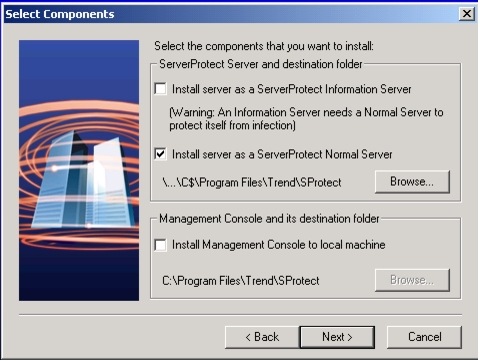

7. Under the "Select Components" screen, you ONLY want to check the one, "Install server as a ServerProtect normal server", and make sure the other two are un-selected. Click Next

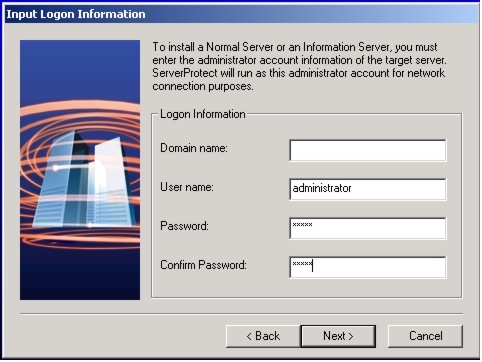

8. You will be prompted to enter the account which Trend will use to connect from the IS server to update dat's and engines. It is recommended to leave the domain name blank and use the local administrator's account and password in the following boxes. This way, if the user is for some reason removed from the domain, the server will still be updated and accessible.

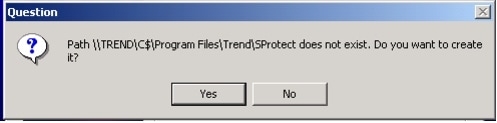

9. You will be prompted to create a directory, Click Yes.

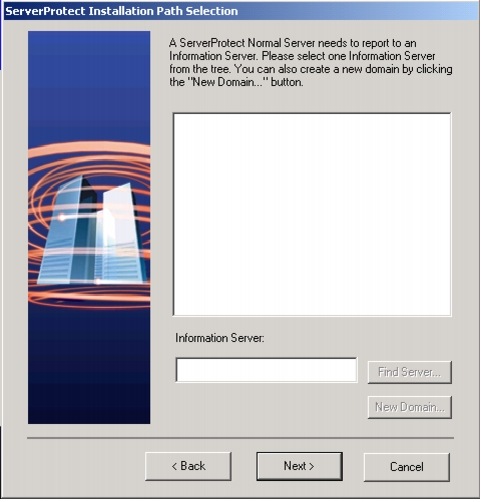

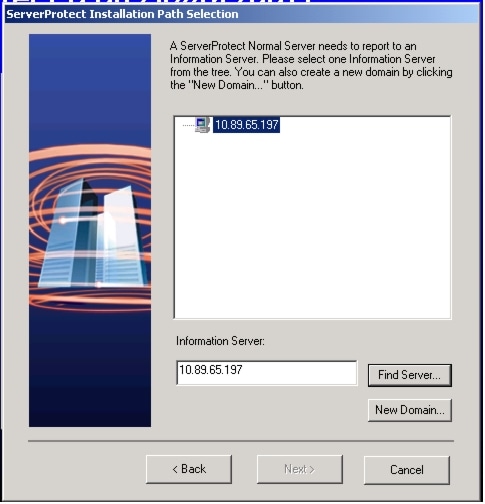

10. Under the label "Information Server:" there will be a text box. Enter your ServerProtect IS server name, (or IP address) AND CLICK ON FIND SERVER. If you hit "enter", you will be uninstalling, and starting over
11. The IS server name or IP address will appear in the upper text list. Double-click on it

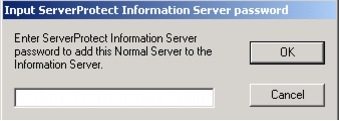

12. It will prompt you for a password, enter the password set up on you IS Server.

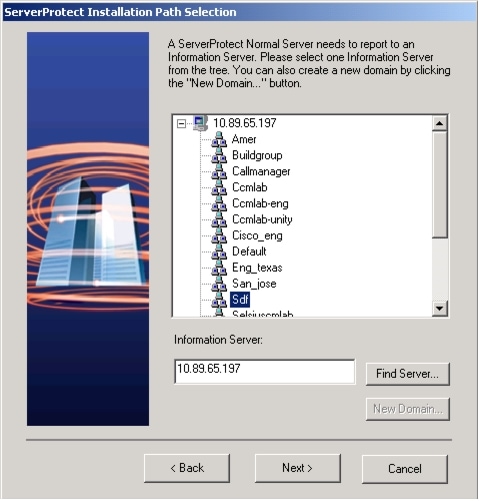

13. It will then prompt for a Domain/group to put the server in. Choose and Click next

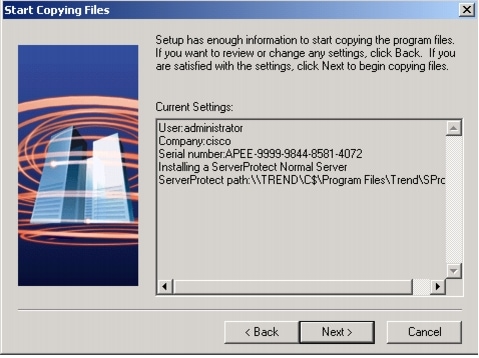

14. Installation is ready to begin, Click Next
15. There maybe an error message about a service starting, this is a bug and can be ignored

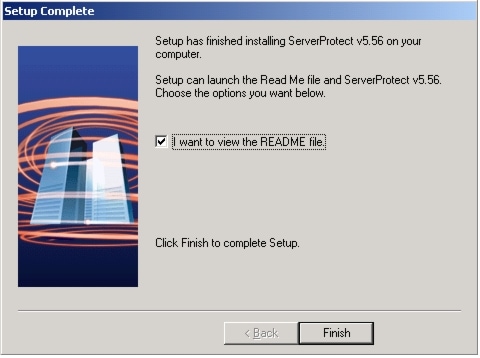

16. Click F
17. inish when completed, a reboot is not necessary.
