Cisco WAP121 Wireless-N Access Point with Single Point Setup

NOTE: This product is no longer being sold.

View the End-of-Life Notice to learn:

  • End-of-sale and end-of-life dates
  • What replacement products are available
  • Information about product support

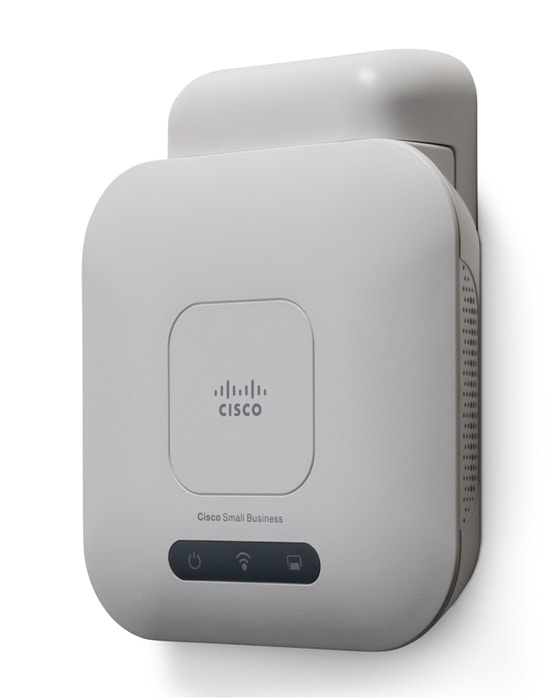

Cisco WAP121 Wireless-N Access Point with Single Point Setupview expanded image

Sleek, Easy-to Deploy, Affordable Wireless Access

The Cisco WAP121 combines business-class features, such as support for IPv6, Wireless-N technology, Power over Ethernet (PoE), quality of service, advanced security, ease of deployment, and flexible mounting options. With these features, it delivers a reliable, high-speed wireless network and helps small businesses easily expand their wired networks.

Feature and Capabilities

  • Compatible with Cisco Small Business Gigabit Power over Ethernet Injector
  • Provides affordable, high-bandwidth wireless-N connectivity for demanding applications
  • Features Fast Ethernet LAN ports to help enable quicker downloads for large files
  • Offers flexible installation options and attractive design with internal antennas
  • Makes configuration simple with Single Point Setup controllerless multi-access point deployment and management technology

Specifications at a Glance

Specifications Description
Interfaces 10/100 BASE-T autosensing (RJ45)
Powering Options 802.3af Ethernet Switch, Cisco SB-PWR-INJ-12V-xx power Injector or Local Power Supply (SB-PWR-12V-xx)
Frequency Single-band 2.4GHz
Wireless 802.11n, 2x2 multiple input multiple output (MIMO)
Operating modes Access Point mode, WDS bridging, Client Bridge mode
VLAN support Yes
Number of VLANs 1 management VLAN plus 4 VLANs for SSID
Multiple SSIDs 4
802.1X supplicant Yes
SSID to VLAN mapping Yes
Auto channel selection Yes
Spanning tree Yes
Load balancing Yes
IPv6 Yes
Layer 2 802.1Q-based VLANS, 4 active VLANS plus 1 management VLAN
Access control Yes, management access control list (ACL) plus MAC ACL
Rogue access point detection Yes
Quality of service (QoS) Wi-Fi Multimedia and Traffic Specification (WMM TSPEC)
Maximum AP’s per cluster 4
Active clients per cluster 40
Management protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
HTTP redirect Yes
Wireless isolation Wireless isolation between clients
Roaming Yes
Wi-Fi Multimedia (WMM) Yes, with unscheduled automatic power save
