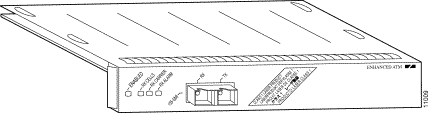

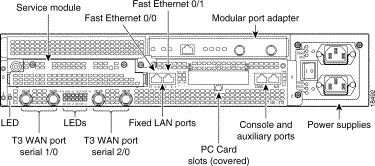

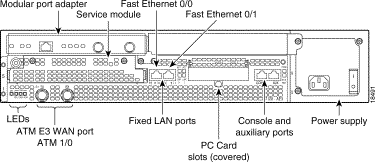

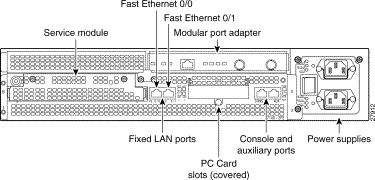

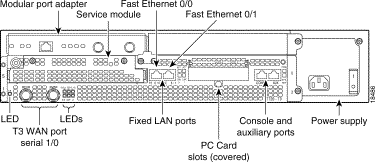

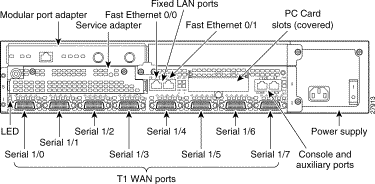

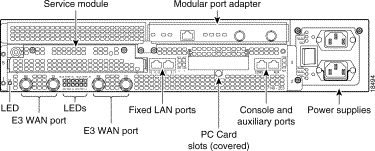

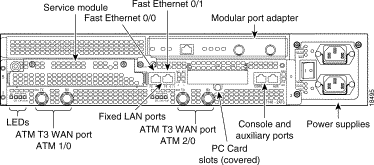

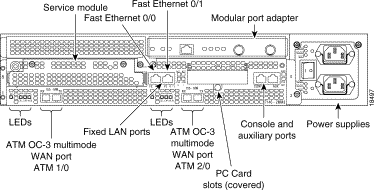

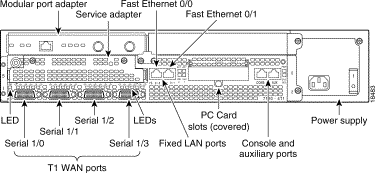

Cisco 7100 Series VPN Router - Large branch and central site VPN router, for a dedicated site-to-site VPN solution.

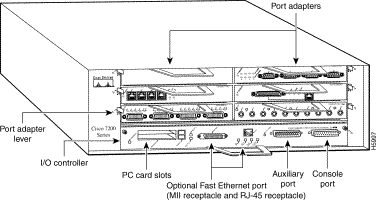

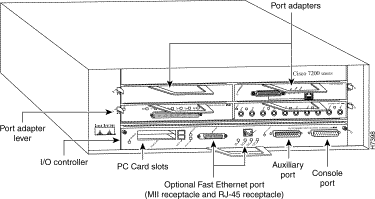

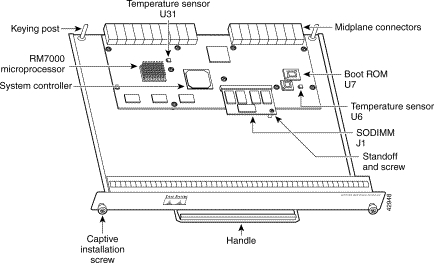

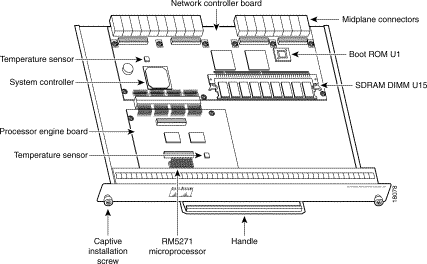

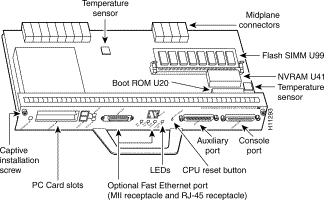

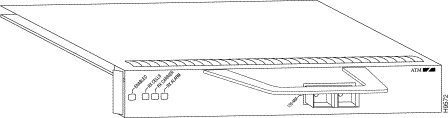

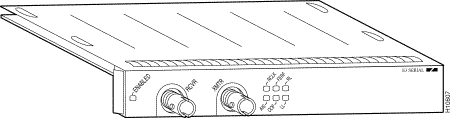

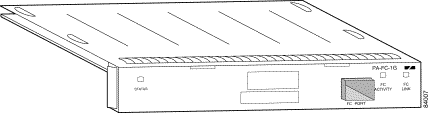

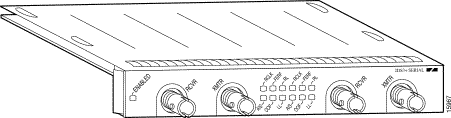

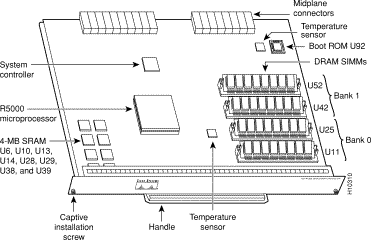

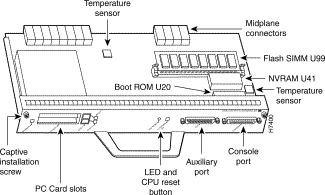

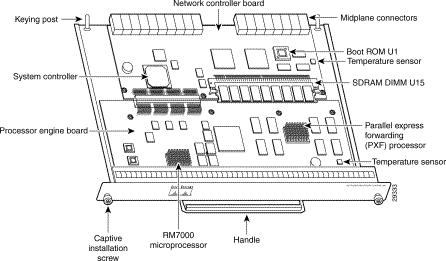

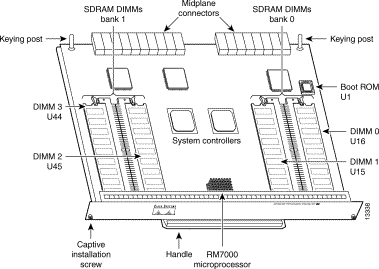

Cisco 7200 Series Router - WAN-edge router providing intelligent services, modularity, high performance, investment protection, and scalability in a small form factor. >Modular 3 RU Chassis, 4- or 6-slot models and choice of system processors for up to 1 Mpps performanc. Wide variety of LAN and WAN options, including Ethernet, Fast Ethernet, Gigabit Ethernet, Token Ring, FDDI, serial, ISDN, HSSI, ATM, Packet over SONET, DPT/RPR.

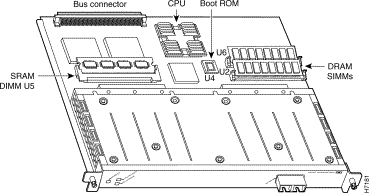

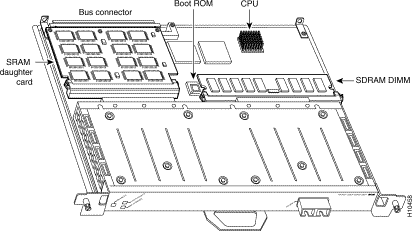

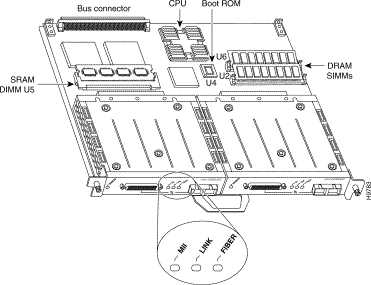

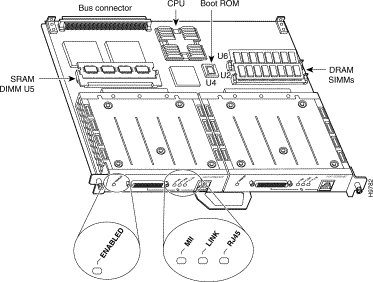

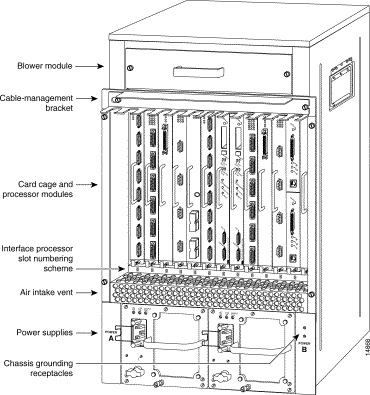

Cisco 7500 Series - High-end services-enabled core and WAN aggregation router for enterprise and service provider applications. 5-, 7-, and 13-slot models, 1-, 2-, or 4-bus models offering 1, 2, or 4 Gbps backplanes. Wide variety of LAN and WAN options including Ethernet, Fast Ethernet, Gigabit Ethernet, Token Ring, FDDI, serial, ISDN, HSSI, ATM, and Packet over SONET.

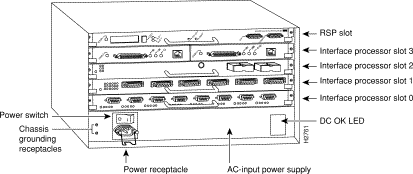

The Cisco 7505 has five slots: one slot for the Route Switch Processor (RSP) and slots 0, 1, 2, and 3 for the interface processors. The Cisco 7505 uses a single power supply, with two models available: DC input or AC input.

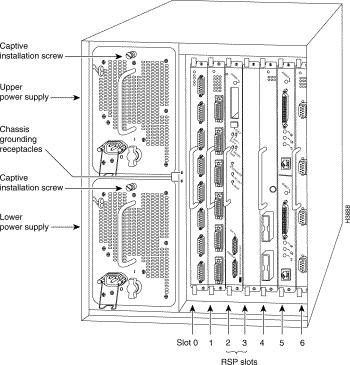

The Cisco 7507 has seven slots: slots 2 and 3 for the Route Switch Processors (RSPs), and slots 0, 1, 4, 5, and 6 for the interface processors. There are bays for up to two AC-input or DC-input power supplies. The MX model is MIX enabled. The new Cisco 7500 MIX-enabled chassis is identical to the current Cisco 7500 classic chassis plus the addition of a new multiservice capability: the Multiservice Interchange (MIX) backplane.

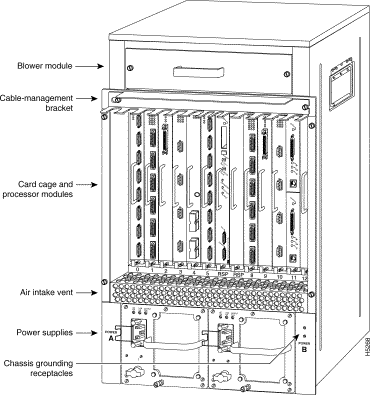

The Cisco 7513 has thirteen slots: slots 6 and 7 for the Route Switch Processors (RSPs), and slots 0, 1, 2, 3, 4, 5, 8, 10, 11, and 13 for the interface processors. There are bays for up to two AC-input or DC-input power supplies. The MX model is MIX enabled. The new Cisco 7500 MIX-enabled chassis is identical to the current Cisco 7500 classic chassis plus the addition of a new multiservice capability: the Multiservice Interchange (MIX) backplane.

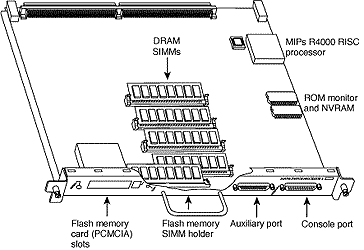

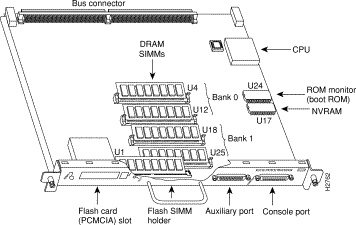

The RSP1 is one of the optional main system processors for the Cisco 7505 router, and provides all of the switched routing and high-speed switching functions.

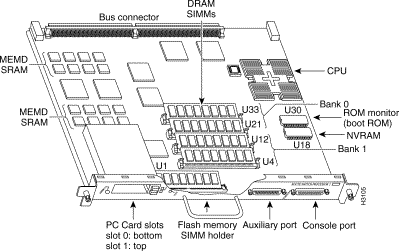

The RSP2 is one of the optional main system processors available for the Cisco 7507 and Cisco 7513 routers, and provides switched routing and high-speed switching functions.

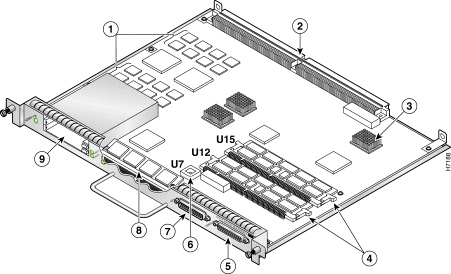

The RSP4 is one of the optional, main system processors available for the Cisco 7505, Cisco 7507, and Cisco 7513 routers. It is the main system processor for the Cisco 7576. The RSP4 provides switched routing and high-speed switching functions.
The RSP4+ is an enhanced version of the RSP4 with larger default program memory (64 MB), Error Correction Code (ECC) memory protection, and compatibility with Cisco IOS Software releases that support the current RSP4.

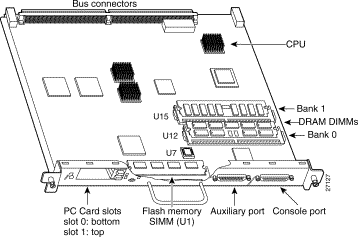

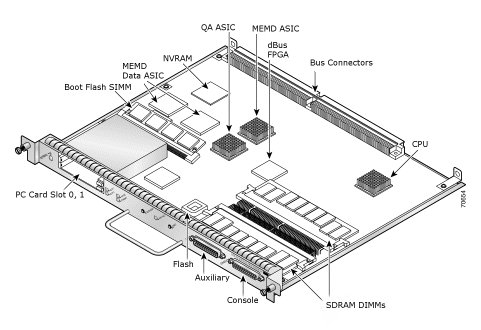

The Route Switch Processor 16 (RSP16) is the newest and highest performance main system processor for the Cisco 7500 Series Router. The RSP16 provides significant performance enhancements, increasing switching performance by 20 percent and 55 percent compared the RSP8 and RSP4+, respectively.

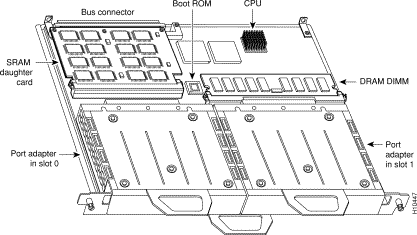

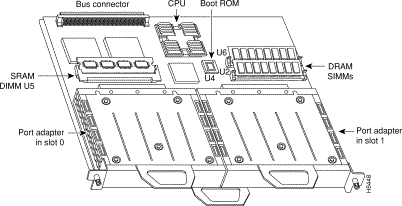

The VIP2-15, powered by a 150-MHZ MIPS R5000 processor, offers the best price per port of any of the VIP2 models but does not support the advanced VIP2 software features of distributed switching and distributed services. Through separately ordered upgrades, the VIP2-15 can be upgraded to the feature set and memory of the VIP2 Model 40.
VIP2-40: Moderate distributed switching and services performance, ~65kpps switching capacity, ~400Mbps aggregate bandwidth capacity.

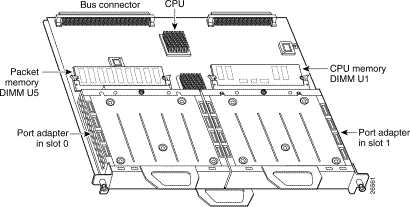

VIP4-50: High distributed switching and services performance, ~100kpps switching capacity, ~750Mbps aggregate bandwidth capacity.

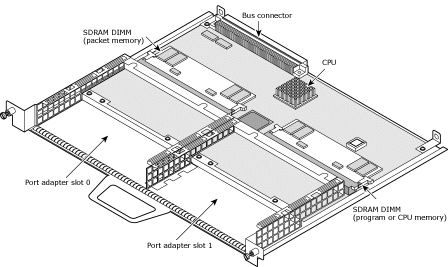

VIP4-80: Very high distributed switching and services performance and Very high port density and bus bandwidth, ~150-210kpps switching capacity, ~750Mbps aggregate bandwidth capacity.

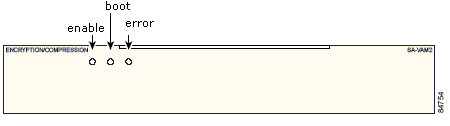

The VAM2 provides high-performance encryption/compression and key generation services for IPSec VPN applications. The Cisco VAM2 features hardware acceleration for ADvanced Encryption Standard (AES), Data Encryption Standard (DES), and Triple DES (3DES).

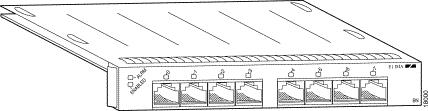

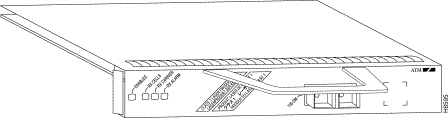

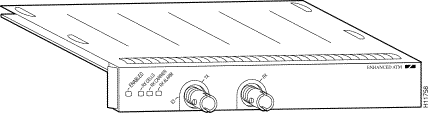

Provides four synchronous serial ports, and each port supports full-duplex operations at T1 and E1 speeds. The PA-4T+ provides enhanced performance over the PA-4T.
The PA-12E/2FE provides up to twelve 10-Mbps and two 10/100-Mbps switched Ethernet (10Base-T) and Fast Ethernet (100BaseTX) interfaces for the chassis. The PA-12E/2FE network interfaces provide a direct connection between the high-speed bus in the router and external networks. Each PA-12E/2FE provides an aggregate bandwidth of 435 Mbps, full-duplex. The PA-12E/2FE is a dual-width port adapter, which means it occupies two horizontally aligned port adapter slots when installed.
Each 100VG port adapter provides a single interface ports, which is compatible with and specified by IEEE 802.12, to provide 100-Mbps interface over Category 5, unshielded twisted-pair (UTP) cable (with RJ-45 connectors), supporting 802.3 Ethernet packets. The 100VG port adapter operates at 120 Mbps with a 5B/6B coding scheme, which provides a data rate of 100 Mbps.
Product Numbers: CX-AIP-TM=, CX-AIP-SM=, CX-AIP-SS=, CX-AIP-E3=, CX-AIP-DS3=, and CLIP-E3-EMI=

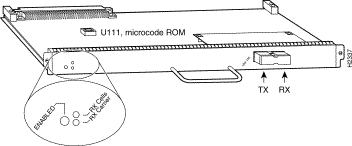

The ATM interface processor (AIP) provides a single ATM network interface for Cisco 7000 series and Cisco 7500 series routers. The AIP provides a direct connection between the high-speed Cisco Extended Bus (CxBus and CyBus) and external ATM networks. A physical layer interface module (PLIM) on the AIP determines the type of ATM connection. There are no restrictions on slot locations or sequence; you can install an AIP in any available interface processor slot.

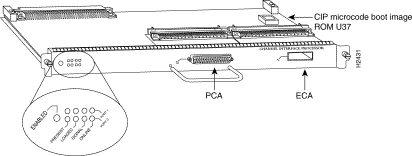

The CIP provides up to two channel-attached interfaces for Cisco 7000 series and Cisco 7500 series routers, eliminating the need for a separate front-end processor.
The CIP interfaces are combinations of a bus and tag (also called an original equipment manufacturer's interface [OEMI] and a parallel I/O interface) adapter and an Enterprise Systems Connection (ESCON) adapter.
The bus and tag adapter is called the Parallel Channel Adapter (PCA), and the ESCON adapter is called the ESCON Channel Adapter (ECA). The PCA and ECA connect directly to the CIP, and any combination of the two adapters can be used.

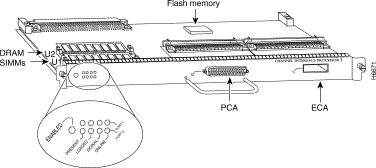

The CIP2 provides up to two channel interfaces for Cisco 7000 series and Cisco 7500 series routers; in some situations, this can eliminate the need for a separate front-end processor (FEP). The CIP2 contains combinations of a bus and tag (also called an original equipment manufacturer's interface [OEMI] and a parallel I/O interface) adapter and an Enterprise Systems Connection (ESCON) adapter. The bus and tag adapter is called the Parallel Channel Adapter (PCA), and the ESCON adapter is called the ESCON Channel Adapter (ECA). The PCA and ECA connect directly to the CIP2, and all combinations of the two adapters are available.
Dynamic Packet Transport Interface Processors - End Of Sale
The DPT Interface Processor (DPTIP) is a dual-width OC-12c interface processor based on VIP2 technology that provides shared IP over SONET capability in Cisco 7500 series routers. The DPTIP is available in four models:
The DPTIP provides Cisco 7500 series routers with two SC duplex ports. Each SC duplex port provides the physical connection to an adjacent device in a DPT ring.
The DPTIP is designed to be deployed in SONET OC-12 DPT rings. DPT rings can also be connected to SONET Add Drop Multiplexers (ADMs), thus allowing for the creation of small, or very large DPT rings.

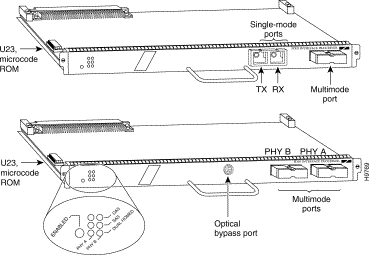

Each FIP provides a single network interface for both multimode and single-mode FDDI networks, and provides the interface for connection to a Class A dual attachment station (DAS) with primary and secondary rings, or to a Class B single attachment station (SAS) with only a primary ring.
Above figure shows a multimode/multimode FIP on the bottom (CX-FIP-MM) and a single-mode/multimode FIP on the top (CX-FIP-SM).

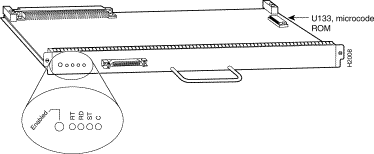

The HIP provides a single HSSI network interface for Cisco 7000 series and Cisco 7500 series routers. Network interfaces reside on modular interface processors, which provide a direct connection between the high-speed CxBus and CyBuses and the external networks. All interface processors support online insertion and removal (OIR), which allows you to remove or install interface processors without opening the chassis or shutting down the system.

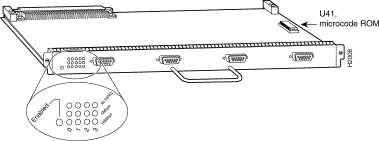

The TRIP provides two or four Token Ring ports for interconnection with IEEE 802.5 and IBM Token Ring media. The TRIP uses the IBM 16/4-Mbps chipset with an imbedded performance enhanced interface driver and 16.7 MHz bit slice processor for high speed processing. The speed on each port is set independently with a software command for either 4 or 16 Mbps. The TRIP and all other interface processors support online insertion and removal (OIR), which allows you to remove and install a TRIP while the system is operating, without shutting down system power.
The GEIP is a single-port, fixed-configuration interface processor that, when combined with the appropriate optical fiber cable, provides one 1000-Mbps, IEEE 802.3z-compliant Gigabit Ethernet (GE) interface. The GE interface on a GEIP operates in full-duplex mode at 1000 Mbps in each direction—transmit (TX) and receive (RX).
The GEIP+ is a single-port interface processor that, when combined with the appropriate optical fiber cable and a Gigabit Interface Converter (GBIC), provides one Gigabit Ethernet (GE) interface that is compliant with the IEEE 802.3z specification. The GE interface on a GEIP+ operates in full-duplex mode.

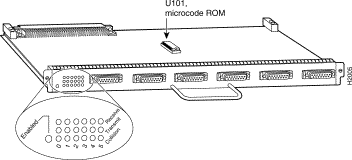

The Ethernet interface processor (EIP) provides two, four, or six high-speed AUI (10 Mbps) ports; The above figure shows a six-port EIP. Each port supports both Ethernet Version 1 and IEEE 802.3/Ethernet Version 2 interfaces. A 16-million-instructions-per-second (mips) bit-slice processor provides a high-speed data path between the EIP and other interface processors. The EIP firmware (microcode), which contains card-specific software instructions, resides in a ROM in socket U101.
