CISCO CATALYST 2970 Series Switches Hardware View

The CISCO Catalyst 2970 Series Switches are affordable Gigabit Ethernet switches that deliver wire-speed intelligent services for small and medium businesses and enterprise branch offices. Featuring a complete set of intelligent services, the Catalyst 2970 Series Switches can enhance network performance and increase productivity for today's knowledge workers by intelligently scaling beyond 100 Mbps over existing Category 5 copper cabling.

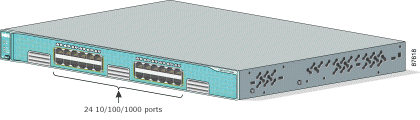

WS-C2970G-24T-E





24 10/100/1000BaseT ports.

Return to Top

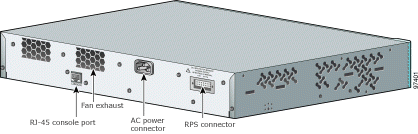

WS-C2970G-24TS-E






24 10/100/1000BaseT and 4 SFP-based Gigabit Ethernet slots.

Return to Top

GLC-T




The GLC-T 1000BASE-T SFP operates on standard Category 5 wiring of up to 100m link length.

Return to Top

GLC-LH-SM




The GLC-LH-SM, 1000BASE-LX/LH SFP operates on ordinary single-mode fiber optic link spans of up to 10,000 meters in length.

Return to Top

GLC-SX-MM




The GLC-SX-MM, 1000BASE-SX SFP operates on ordinary multimode fiber optic link spans of up to 550 meters in length.
