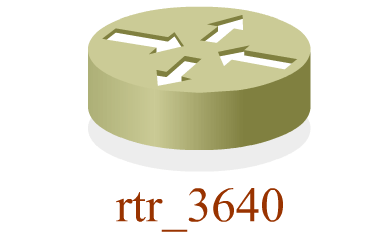

This lab provides practice using internal and Personal Computer Memory Card International Association (PCMCIA) Flash memory on a Cisco 3600 Series Router.
In this lab, you will determine basic device information with the show version command. You will review flash information with the commands show flash and dir slot0. You will then copy a system image from internal Flash memory to PCMCIA-card memory. You will also configure the router to boot from the PCMCIA Flash memory, and verify that this works.
These steps will help introduce the Flash environment on Cisco 3600 Series
routers, and will allow you to practice some basic memory management commands.
This lab has the following objectives:
Available Commands | ||
User EXEC enable |
Privileged EXEC configure terminal |
Global Configuration boot system flash flash:c3640-js-mz.bin |
The
above commands are not all available on all of the routers in the simulation.
Use the ? command to determine the commands available on each router.
Click on the Configuration Lab icon to the right to open the interactive simulation environment window in a new browser.
To
enter commands, activate the simulation environment Telnet window by clicking
in it.
To see a list of supported commands at each step of the exercise, you can enter the ? command (press the question mark at the prompt). If you need more help, check the tutorial to review the configuration instructions.
Next, go to Lab: CDP.
![]() |
![]() |
![]() |
