Card Installation
- Card Slot Assignments
- General Installation Sequence
- Card Interlock Switch
- Circuit Cards
- Baffles
- Save Shipping Cartons
Card Slot Assignments
The tables below show recommended card slot assignments for typical installation scenarios. The recommended card assignments are based on the multiple power planes sourcing power to the card slots. Refer to the Power Planes section of the Power Cabling chapter for additional information.
Following the recommendations preserves redundant operation if input power is lost to one or more of the power circuits on the PFUs.
Table 1 ASR 5500 Chassis Card Slot Assignments (prior to StarOS 18.0) Slot Card Sequence Requirement Rear of Chassis 1 DPC-5 or UDPC-5 Available 2 DPC-3 or UDPC-3 Required for all systems 3 DPC-1 or UDPC-1 Required for all systems 4 DPC-7 or UDPC-7 Available 5 MIO-1 or UMIO-1 Required for all systems 6 MIO-2 or UMIO-2 Required for all systems 7 DPC-8 or UDPC-8 Available 8 DPC-2 or UDPC-2 Required for all systems 9 DPC-4 or UDPC-4 Required for all systems 10 DPC-6 or UDPC-6 Available Front of Chassis 11 SSC-2 Required for all systems 12 SSC-1 Required for all systems 13 FSC-6 Available 14 FSC-4 Required for all systems 15 FSC-2 Required for all systems 16 FSC-3 Required for all systems 17 FSC-1 Required for all systems 18 FSC-5 Available 19 Reserved 20 Reserved
Table 2 ASR 5500 Chassis Card Slot Assignments (StarOS 18 and higher) Slot Card Sequence Requirement Rear of Chassis 1 DPC-5 or UDPC-5 DPC2-5 or UDPC2-5 Available 2 DPC-3 or UDPC-3 DPC2-3 or UDPC2-3 Required for all systems 3 DPC-1 or UDPC-1 DPC2-1 or UDPC2-1 Required for all systems 4 DPC-7 or UDPC-7 DPC2-7 or UDPC2-7 Available 5 MIO-1 or UMIO-1 Required for all systems 6 MIO-2 or UMIO-2 Required for all systems 7 DPC-8 or UDPC-8 DPC2-8 or UDPC2-8 Available 8 DPC-2 or UDPC-2 DPC2-2 or UDPC2-2 Required for all systems 9 DPC-4 or UDPC-4 DPC2-4 or UDPC2-4 Required for all systems 10 DPC-6 or UDPC-6 DPC2-6 or UDPC2-6 Available Front of Chassis 11 SSC-2 Required for all systems 12 SSC-1 Required for all systems 13 FSC-6 Available 14 FSC-4 Required for all systems 15 FSC-2 Required for all systems 16 FSC-3 Required for all systems 17 FSC-1 Required for all systems 18 FSC-5 Available 19 Reserved 20 Reserved General Installation Sequence
Circuit cards and baffles are installed in the ASR 5500 chassis as follows:Complete the installation of each card (includes securing the card in the chassis using a Phillips #2 screwdriver before proceeding to the next card.
You can install all circuit cards and then install baffles to cover empty chassis slots. It does not matter whether you install all front cards or all rear cards first.

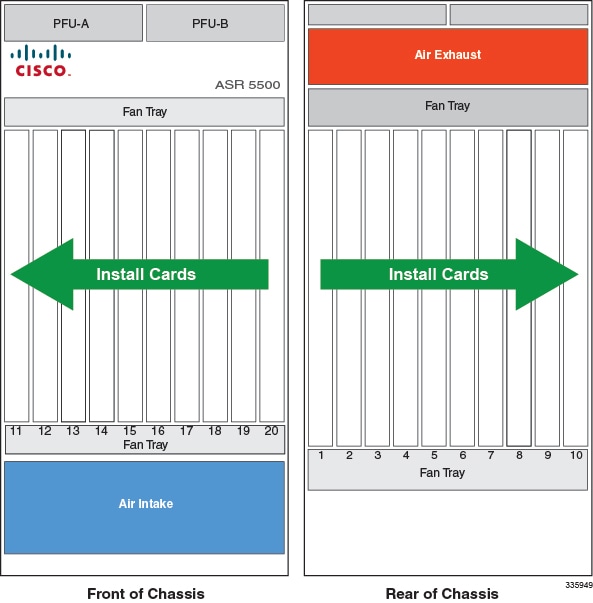

See the diagram below.
Card Interlock Switch
Except for rear baffles, ASR 5500 cards include top and bottom ejector handles that incorporate hooks that fit behind the upper and lower rails of the card cage. Lifting the ejector handles outwards ejects the card from the midplane. Pushing the ejector handles inwards seats the card into the midplane.
The top ejector handle incorporates an interlock switch that signals the system that a card is seated in the slot. The blue subhandle must be pushed fully upward to engage the interlock switch. The subhandle also locks the top ejector handle against the front of the card. Tightening the captive Phillips #2 screw within the top ejector handle secures the subhandle and circuit card to the card cage.
Circuit Cards
Prerequisites
Caution
During installation, maintenance, and/or removal, wear a grounding wrist strap connected to the ASR 5500 chassis to avoid ESD damage to the components. Failure to do so could result in damage to sensitive electronic components and potentially void your warranty.
Important:Save several of the shipping cartons and ESD protective bags for use if a card must be returned to Cisco for fault analysis.
Important:On a chassis equipped with the cable management tray, you must lower the tray to insert rear circuit cards. Refer to the Lowering the Cable Management Tray section in the Cable Management System Installation appendix. The cable management tray can be installed after all rear cards have been installed.
Important:Install cable management brackets on MIO cards before inserting the card into the chassis. Refer to the Installing Cable Management Brackets section in the Cable Management System Installation appendix.
Installing Circuit Cards
Baffles
Caution
To ensure proper ventilation, baffles must be used in any chassis slot that is not occupied by a circuit card.
Baffles consist of a blank front panel mounted to a formed metal baffle. The baffle slides into the card slots and provides a directed path for air flow. There are two types of baffles – front and rear.
Installing a Front Baffle
Step 1 Flip both ejector handles outward from the front of the card. Step 2 Install front baffles from Right to Left. Complete the installation sequence described in Steps 3 through 6 for each card before proceeding to the next card. This includes tightening the captive screws in the ejector handles using a Phillips #2 screwdriver. Step 3 Align the baffle within an unused chassis slot. Step 4 Slide the card into the slot until its front panel is flush with the upper and lower card rails. Step 5 Push the ejector handles inward until they are flush with the front of the card. Step 6 To secure the card to the chassis, use a Phillips #2 screwdriver to tighten the captive screws within the top and bottom ejector handles. Step 7 Repeat step 1 through step 5 for any additional unused chassis slots.
Installing a Rear Baffle
Step 1 Install rear baffles from Left to Right. Complete the installation sequence described in Steps 2 through 4 for each card before proceeding to the next card. This includes tightening the screws at the top and bottom of the baffle using a Phillips #2 screwdriver. Step 2 Align the baffle within an unused chassis slot. Step 3 Slide the card into the slot until its front panel is flush with the upper and lower card rails. Step 4 To secure the card to the chassis, use a Phillips #2 screwdriver to tighten the captive screws at the top and bottom of the baffle. Step 5 Repeat step 1 through step 3 for any additional unused chassis slots.
Save Shipping Cartons
Save several of the shipping cartons and protective ESD bags in which the circuit cards were packaged. Use the cartons to package a circuit card for shipment back to Cisco for failure analysis and replacement. For additional information, refer to the Returning Failed Components in the Replacing Components chapter, and the RMA Shipping Procedures appendix.
