Transform your workplace with simple and intelligent experiences while eliminating the friction from the employee journey. The wall-mount Cisco Room Navigator touch panel is designed to bring ease and convenience into modern workspaces by providing instant access to conference controls, smart room booking, room controls and third-party workspace applications.

Related image, diagram or screenshot

Product overview

The wall-mount Cisco Room Navigator is a 10-inch touch display that allows you to infuse intelligent room booking and workspace experiences into the office journey, supporting the native Cisco room booking and room controller applications, the native Microsoft Teams panel experience (coming soon), and other third-party or custom workspace solutions. It helps you easily check workspace availability, book a meeting room ad-hoc, check into a meeting, contro the meeting room, and run third-party apps for wayfinding, space reservation, and digital signage.

The Room Navigator provides the flexibility to be deployed as a standalone scheduling and control display to support spaces without a video device or can be paired with a Cisco video endpoint. This touch-based unit was designed to create uninterrupted workflows and help maximize the utilization of your collaboration spaces while delivering these experiences in a way that is scalable, secure and easy to manage.

Cisco Room Navigator is a versatile device that combines controls, an intuitive display and sensors within an elegant touch panel. It can be easily mounted on glass, dry and concrete walls and adapts well to different workspace use cases. In addition, the device can be either configured as a room controller inside meeting rooms with less table space (then behaving like its table-stand counterpart) or serve as a vendor-independent room booking and control display outside the meeting room.

Related image, diagram or screenshot

Figure 1.

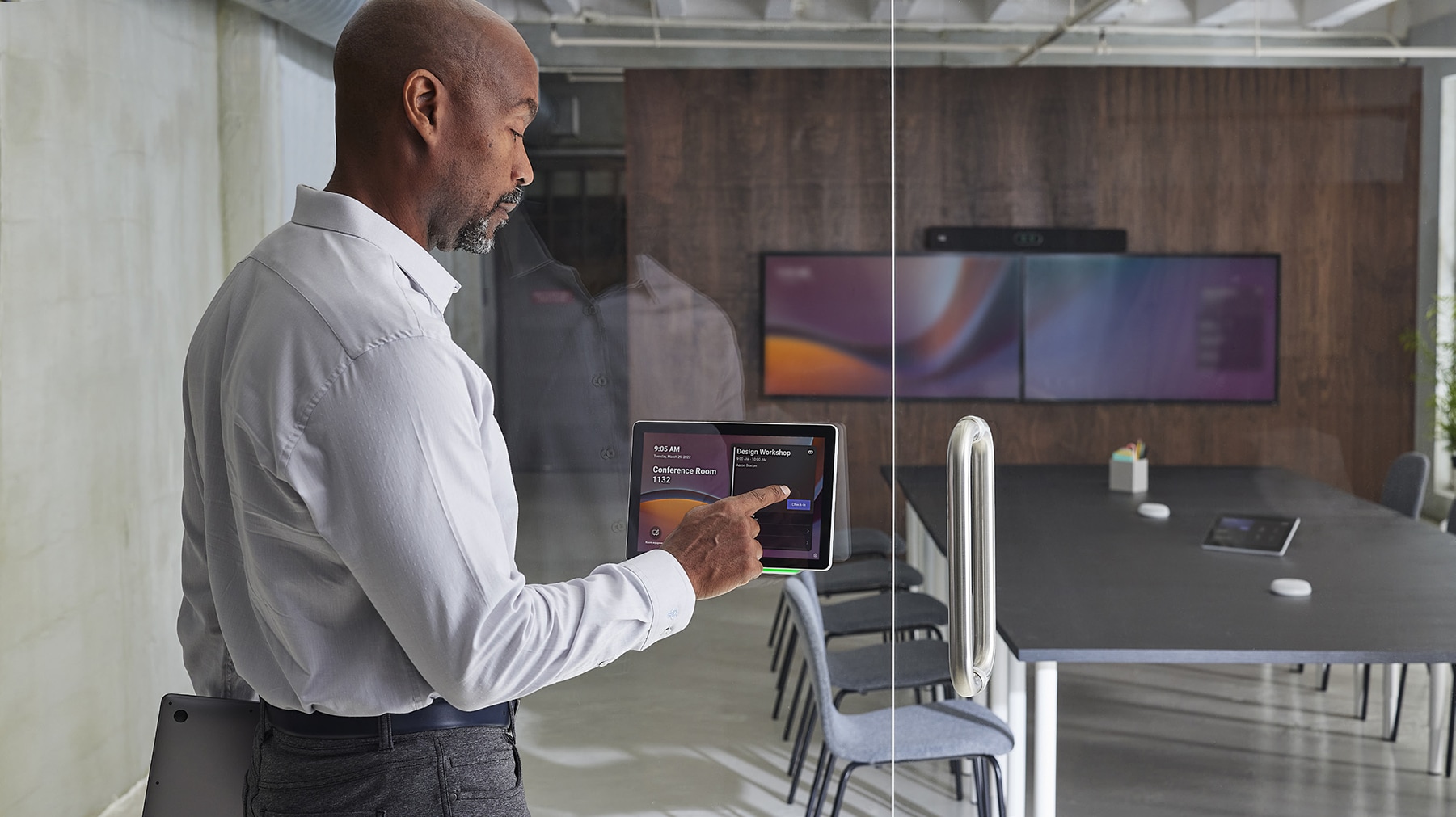

Cisco Room Navigator for Wall unit mounted on glass wall showing meeting room availability

The Room Navigator is designed to be accessible for everyone and comes with a 15-degree viewing angle to be mounted low and usable by anyone. When activated, a multicolor 360° LED shows room availability status, so that your employees can instantly see at a distance if the room is being used or ready to be reserved.

You only need a single Ethernet cable to power the device and access the network. In paired mode, the Room Navigator can be connected directly to a Cisco video device or remotely paired with an endpoint when plugged on a PoE network.

Features and benefits

The Cisco Room Navigator offers room intelligence in a box, bringing efficiency, usability and aesthetics to your workspaces. Recognized in the Red Dot Design Awards, this room panel delivers smooth integration with collaboration endpoints and third-party applications, unmatched room intelligence, and UI consistency in a cost-effective, scalable and simple way.

It unlocks the best combination of user centric design, purpose-built hardware, native software and an open approach to integration out of the box to help you transform your physical workspaces.

Cisco Room Navigator is a competitive, feature-rich and highly flexible solution that can be used either that can be used either as a room and conference control panel or a dedicated scheduling display, has a robust device management platform, and offers rich sensor data that supports creating a safer and optimized workspace environment.

A black and white checkered backgroundDescription automatically generated with medium confidence



Related image, diagram or screenshot

Figure 2.

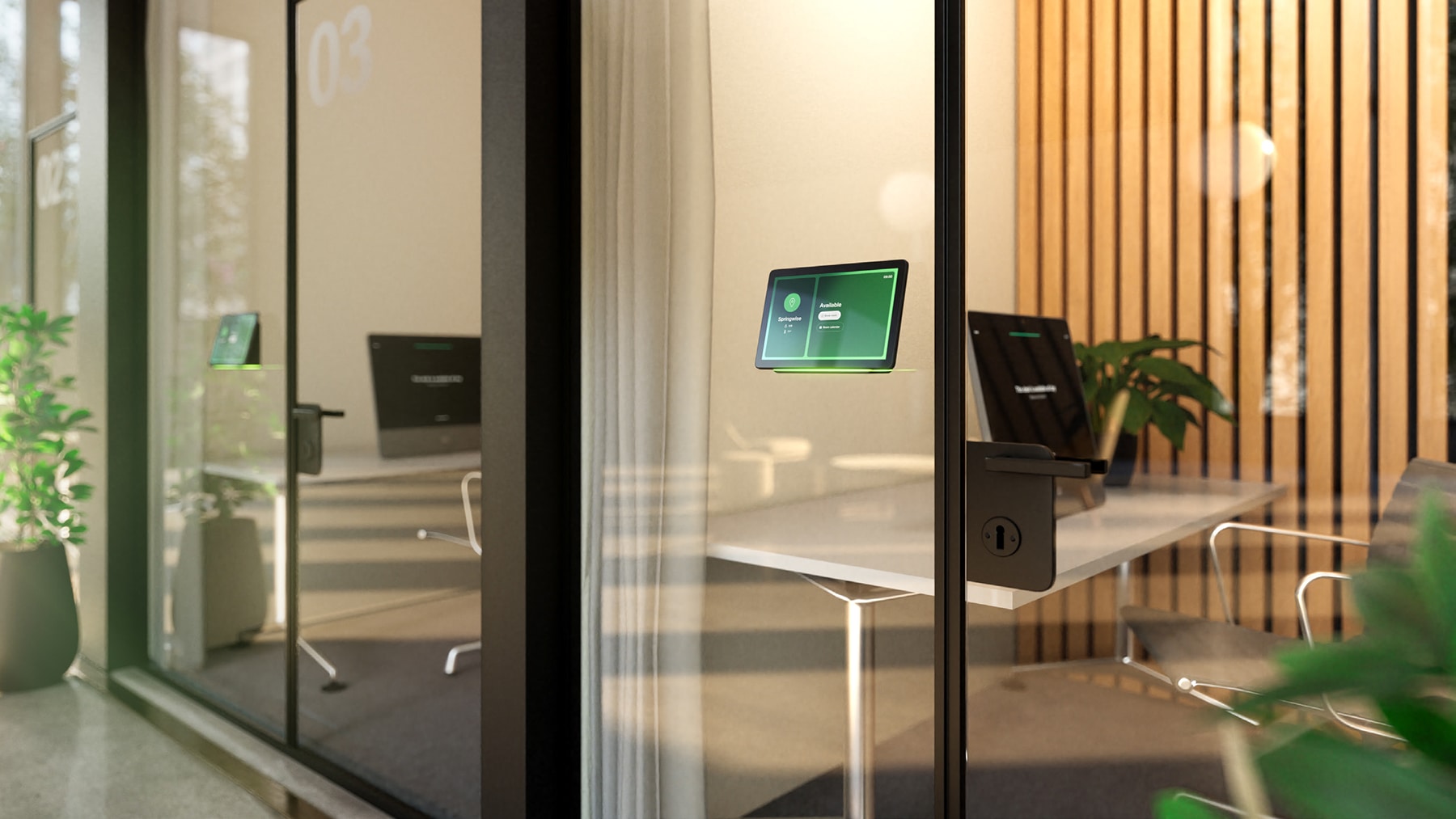

Cisco Room Navigator mounted on glass wall, running the native Cisco room booking application

It can be configured to run third-party applications to help you protect your existing workspace management and room booking investments. With the Room Navigator, you can experience frictionless meetings, effortless space reservation, and streamlined room anddevice integrations.

And when using the native Cisco solution for room booking, you can significantly simplify your deployment, lower total cost of ownership and ease management efforts by leveraging a single vendor to provide platform agnostic video collaboration devices, the underlying meeting service, the room control hardware, and the associated room bookingsoftware solution.

Room Navigator deployed as a native Microsoft Teams Panel

Figure 3.

Room Navigator deployed as a native Microsoft Teams panel

Table 1.           Features and benefits

Feature

Benefits

Room controls

  Brings intelligent scheduling and room controls to rooms without a video endpoint and Cisco Room Series, Room Kit Series, Board Series and Desk Series-enabled workspaces
  Optimized for an effortless user experience – from launching a video or audio conference with one button to push, controlling the camera and changing video layout, to sharing content, and viewing contact lists and directories
  The user interface can be configured by administrators to easily control other room peripherals such as lighting, blinds, room dividers, and curtains
  In-room controls customizations extends the features and functionality available in Room Navigator, such as controlling lights, blinds and room amenities

Room booking

  Can be configured as a room booking-only device, displaying room availability status and meeting details via the native Cisco room booking app, the native Microsoft Teams panel app (coming soon), or other space reservation solutions
  When used with the native Cisco room booking solution powered by RoomOS, it enables seamless room booking, room availability display, check-in, calendar view, and meeting information on the touch screen, and offers Webex hybrid calendar synchronization
  Cisco native room booking is license-free when paired with a Cisco video device
  A multicolor status LED with a 360° angle indicates room availability at a distance to help employees quickly identify an available room for ad-hoc meetings
  Can be configured to release the room in case of ghost meetings thus optimizing workspace utilization, and to enable check-in functionality
  Beyond the native Cisco room booking solution, Navigator can run third-party, persistent third-party web apps for room booking from Appspace, UMA, SharingCloud and other Cisco ecosystem partners
  Web apps running on Room Navigator get access to specific RoomOS APIs to build custom integrations for room booking, wayfinding, space reservation and digital signage

Workspace intelligence

  Room Navigator for Wall comes with embedded environmental sensors to track temperature, humidity, and air quality in the workspace (coming soon)
  When running the Cisco room booking app, it can be configured to display temperature and real-time people count in the room, thus easing the way to locate an optimal meeting space
  Allows facility managers to get a real-time health-check on their workspaces
  Sensors monitor comfort and supplies you with actionable insights through Control Hub via APIs, so you can make interventions to improve employee wellbeing
  Sensor data, alongside room occupancy and device utilization metrics, can be ingested to third-party analytics dashboards for workspace optimization and resource planning purposes

Easy setup and management

  The touch panel can be deployed as a fully managed IT asset in Control Hub providing advanced admin, monitoring, configurations and analytics, alongside the rest of your Cisco collaboration device deployment
  Flexibility to deploy the device in standalone mode or paired with a video endpoint. The standalone mode delivers the same rich room booking experience and third-party integrations
  In paired mode, Cisco Room Navigator can be connected directly to a Cisco video device or remotely paired to it when plugged on a PoE network
  Room Navigator can be configured either as a room booking device, a room controller or in persistent web app mode – users can select from default options when it is booted for the first time or can configure the device for the desired use case anytime



Room Navigator powering the Microsoft Teams panel experience

Figure 4.

Room Navigator powering the Microsoft Teams panel experience

Product specifications

Table 2.           Product specifications

Features

Cisco Room Navigator

Product compatibility

  Cisco Room Kit Series
  Cisco Room Series
  Cisco Room Panorama Series
  Cisco Board Series (Board S Series and Board Pro Series)
  Cisco Desk Series

Software compatibility

  RoomOS 9.14.3 or later
  Microsoft Teams panel (coming in 2024) - optimized hardware for Microsoft Teams panel compatibility

Call control compatibility

  Hosted: Controlled by codec, Cisco Unified Communications Manager 10.5.2 or newer, Webex Cloud
  Cloud: Webex Cloud

Native Ciscoroom booking

  Integrates with O365, Exchange and Google Calendar through Webex Hybrid Calendar service (requires Webex activation)
  Ad-hoc space reservation with a few taps
  View all upcoming meetings from room calendar
  Check into an upcoming meeting
  Extend your meetings
  Touchless booking inside the room with Cisco AI Assistant
  Meeting reminders with single tap extension

Third-party web applications

  Supports switching from native Cisco software to workplace experience solutions using persistent web applications for room booking, wayfinding, and digital signage
  Web apps running on Navigator get access to the meeting room sensors’ data and the Webex hybrid calendar to enhance custom integrations for wayfinding, room booking and digital signage

Default components

  Room Navigator touch panel
  Wall mounting bracket, sticker and template for wall mounting

Signaling protocols

TCP/IP

Display

  Capacitive touch LCD
  10.1-inch diagonal
  Anti-glare and anti-fingerprint

Resolution

1920 x 1200

Memory

4GB

Sensors

  Measures temperature, humidity, and air quality (TVOC) when installed inside a meeting room (coming soon). This is combined with general noise, ambient noise, and reverberation time (RT60) for room acoustics and room occupancy metrics originating from built-in sensors in the Cisco video endpoints
  Sensor values are accessible via RoomOS APIs, displayed in the Control Hub dashboard and can be extracted to Cisco Spaces, third-party analytics tools and workspace management solutions

Pairing with a video endpoint

Can be connected directly to a PoE-enabled network port on the Cisco video device or paired remotely via LAN (IP)

Digital signage

Configurable in Control Hub

Language support

English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian



Rear and side views of the Room Navigator

Figure 5.

Rear and side views of the wall-mount Room Navigator

Features

Cisco Room Navigator

Physical dimensions (H x L x D)

  2.8 x 9.53 x 6.3 in. (6.9 x 24.2 x 16.4 cm)
  Maximum height in vertical position 6.5 in (16.4 cm)
  For more information, please consult the Cisco Room Navigator CAD Drawings

Physical dimensions (H x L x D)

Wall mounting

  Integrated wall mounting works with all types of surfaces: glass walls, brick walls or dry walls
  15° tilted angle allows for ergonomic use and accessibility
  Please consult the Cisco Room Navigator Installation Guide for further guidance around device mounting and installation

Room availability display

  Multicolor, 360-degree viewable LED autoconfigured with red, yellow and green. LED lights activated automatically via native or third-party room booking functionality
  Green LED indicates that the meeting room is available and not in use
  Yellow LED indicates that the room is booked but not occupied, and signals and upcoming meeting
  Red LED shows that there is an ongoing, previously booked meeting in the room or it’s in use without prior booking

Weight

  2.03lb (0.920 kg)

Power

  Power over Ethernet (PoE) 802.3af Class 0
  100-240VAC, 0.5A max, 50/60Hz
  Option to set up office hours for the Room Navigator helping with energy savings and extends the lifetime of the touchscreen where digital signage, booking, and wake-up on motion detection is activated.

Interfaces

  1x Ethernet (RJ-45) 100/1000 Mbps for LAN (external network) or direct pairing
  1x microUSB (service port)
  1x factory reset pinhole

Storage and transport temperature

-20°C to 60° (-4° to 140°F) at RH 10% to 90% (noncondensing)

Regulatory compliance and standards

  2014/30/EU (EMC Directive) and Directive 2014/35/EU (Low-Voltage Directive)
  Directive 2011/65/EU (RoHS)
  Directive 2002/96/EU (WEEE)
  NRTL approved (product safety)
  EMC: EN 55032 - Class A, EN 55024
  Safety: EN 60950-1, EN 62479
  FCC CFR 47 Part 15B (EMC) – Class A

The list above reflects the regulations applicable at the time of publishing this document. For an updated list of regulations applicable, see the Product Approval Status Database for approval documents per country

Security

  Secure management using HTTPS and SSH protocols
  Password protection for IP administration
  Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
  WPA3TM and WPA3-Enterprise with CCMP128 Wi-Fi ® security
  Password protection to access administration
  Network settings protection
  Support for 802.1x authentication protocol (either when the device is paired directly or remotely with the video endpoint)

Registration

  Room Navigator can be registered directly to a Cisco video device (via direct or remote pairing) or registered to the Webex Cloud (requires Room Navigator license)
  Can be paired with a Cisco video device or deployed as a standalone hardware. Learn more about using the Room Navigator as a standalone device

Device management

  Centralized room and device management in Control Hub, with unified admin of video devices, room peripherals, headsets, desk cameras and desk phones
  Single dashboard for single and multi-tenant management, software upgrades, bulk configuration, room accupancy and workspace metrics based on sensor data
  Carbon Emission Insights coming soon to Control Hub providing visibility of the carbon footprint of Cisco devices and their usage, alongside recommendations to optimize energy consumption
  Workspace insights on a per workspace level and single dashboard for all workspaces
  Simple onboarding – PIN-based pairing with room device

Ordering information

Cisco Room Navigator devices are available as a part of an endpoint order and also as standalone units.

To place an order, visit the Cisco Ordering Home Page and refer to Table 2. To download software, visit the Cisco Software Center. See individual endpoint data sheets for whether Room Navigator comes standard with product.

Table 3.           Ordering information

Product Name

Part Number

Compliance Model Number

Cisco Room Navigator for Wall (First Light color)

CS-T10-WM-L-K9=

TTC5-15

Wall bracket, adhesive and plugs spare

CS-T10-WM-BR=
