Pluggable Interface Modules for the IoT Routing Portfolio Solution Overview
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
Keep pace without the full rip and replace
As organizations are automating and establishing remote fixed and mobile operations, extending connectivity to industrial IoT locations can be challenging, especially when requirements differ depending on location and use case. As cellular and wireless technologies evolve, in tandem with customer requirements, solutions need to keep pace without a full rip and replace.

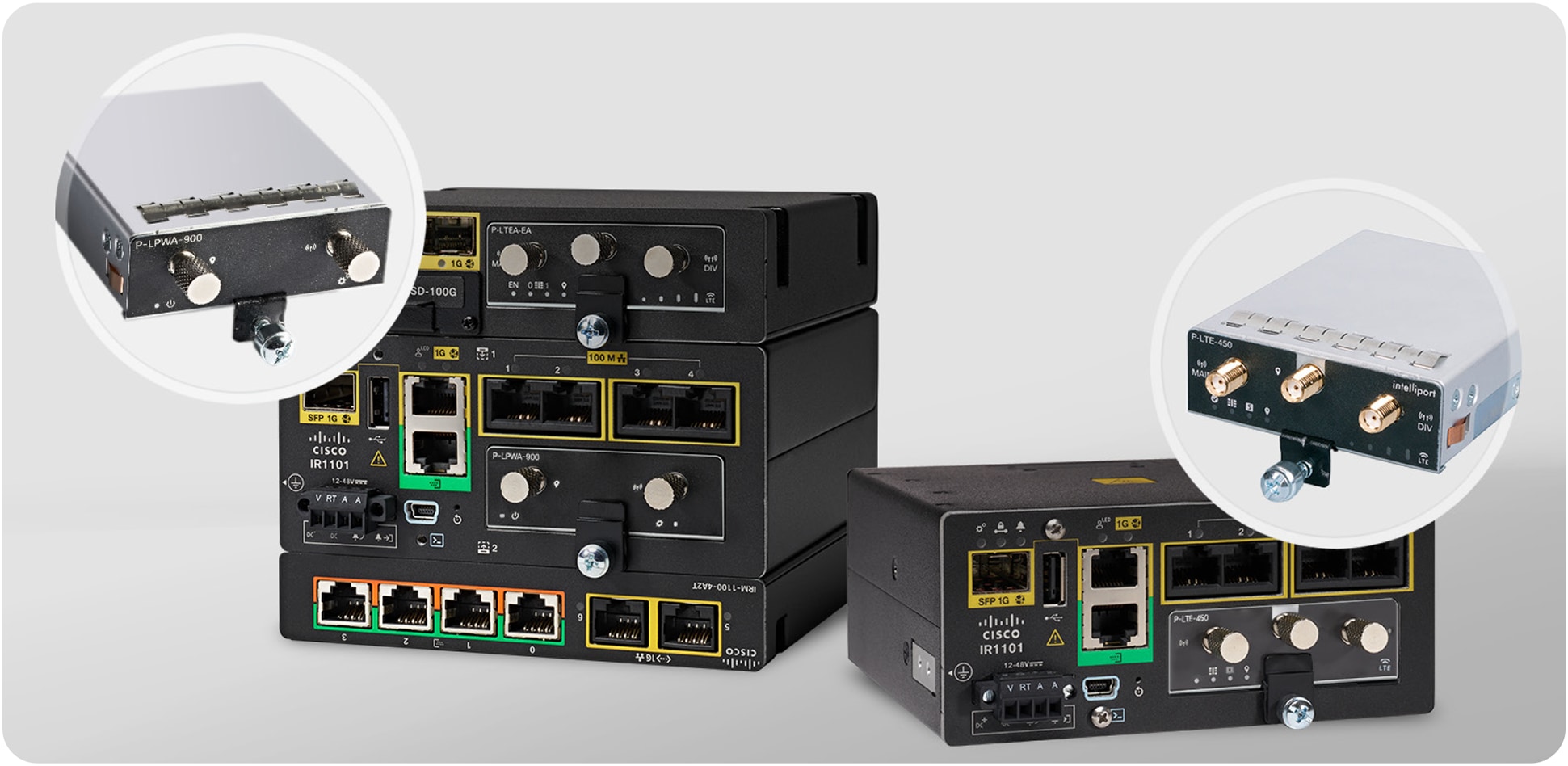

To meet these needs, Cisco’s industrial routers are modular, allowing you the flexibility to swap or upgrade as your requirements change or new technologies become available. We are continually expanding the capabilities of our industrial routers and modules. Check out our portfolio of Pluggable Interface Modules (PIMs) for each of our industrial routers:

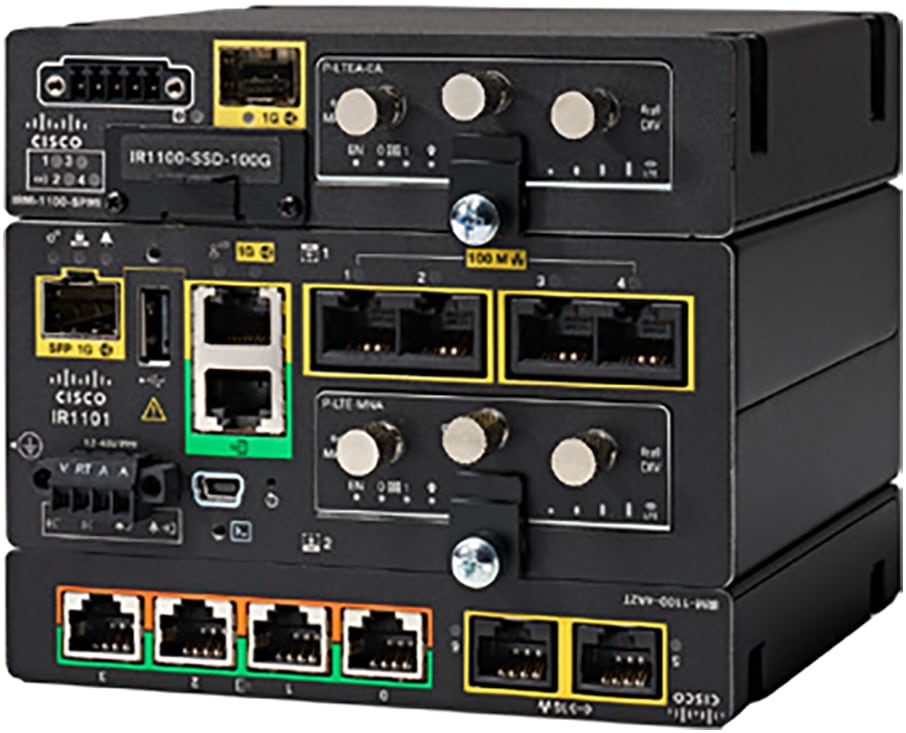

Pluggable Modules for the Cisco Catalyst IR1100 Rugged Series Routers
Table 1. Pluggable modules for the Cisco Catalyst IR1100 Rugged Series Routers
| Module name |
PID number |
Description |
| Expansion Model 1 |
IRM-1100-SP |
Expansion module for dual active Long-Term Evolution (LTE) and Small Form-factor Pluggable (SFP) |
| Expansion Model 2 |
IRM-1100-SPMI |
Expansion module for dual active LTE, local storage for applications, SFP and input/output port |
| Expansion Model 3 |
IRM-1100-4A2T |
Serial and Ethernet Expansion Module for Asynchronous Serial and GE interfaces |
| FirstNet Ready Category 4 LTE module |
P-LTE-XX (MNA, VZ, US, GB, IN, JN) |
FirstNet Ready Category 4 LTE multi-carrier module for the US (MNA) and category 4 LTE for Verizon (VZ), AT&T (US), and additional countries (GB, IN, JN) |
| Category 7 LTE module |
P-LTEA7-NA/P-LTEA7-EAL/ P-LTEA7-JP |
CAT 7 LTE for North America, (NA), Middle East, EMEA, APAC, LatAm, (EAL) and Japan (JP) |
| FirstNet Ready Category 18 LTE module |
P-LTEAP18-GL |
Category 18 LTE for North America, Europe, and Asia Pacific |
| 5G Sub 6 GHz module Standalone/Non-standalone |
P-5GS6-R16SA-GL |
Next-generation 5G supporting Standalone (SA) and Non-standalone (NSA) for public and private networks. Global PIM. Massive capacity and performance with lower latency. (CBRS/Private LTE-enabled and FirstNet Ready certification coming soon.) |
| 450MHz LTE module |
P-LTE-450 |
Provides large geographical coverage and high resiliency along with deep indoor signal penetration |
| LoRaWAN module |
P-LPWA-900/ P-LPWA-800 |
Provides low-power, Long-Range Wide Area Network LoRaWAN) connectivity to IoT end devices |
| 100 GB additional storage module |
IRM-SSD-100G |
Expandable industrial-grade field-replaceable 100 GB storage |
Visit cisco.com/go/ir1100 to learn more.

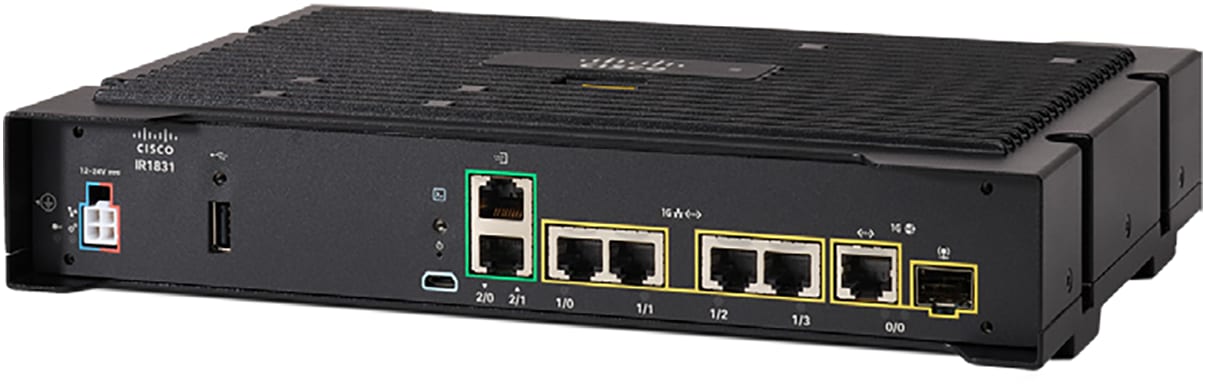

Pluggable Modules for the Cisco Catalyst IR1800 Rugged Series Routers
Table 2. Pluggable modules for the Cisco Catalyst IR1800 Rugged Series Routers
| Module name |
PID number |
Description |
| FirstNet Ready Category 4 LTE module |
P-LTE-XX (MNA, VZ, US, GB, IN, JN) |
FirstNet Ready Category 4 LTE multi-carrier module for the US (MNA) and Category 4 LTE for Verizon (VZ), AT&T (US), and additional countries (GB, IN, JN) |
| Category 7 LTE module |
P-LTEA7-NA/ P-LTEA7-EAL/ P-LTEA7-JP |
CAT 7 LTE for North America, (NA), Middle East, EMEA, APAC, LatAm, (EAL) and Japan (JP) |
| FirstNet Ready Category 18 LTE module |
P-LTEAP18-GL |
Category 18 LTE for North America, Europe and Asia Pacific |
| Wi-Fi 6 module |
WP-WIFI6 |
Enables access point and backhaul capabilities to connect to infrastructure Wi-Fi. Can run in Control and Provisioning of Wireless Access Points (CAPWAP), Embedded Wireless Controller (EWC), or Work Group Bridge (WGB) modes. |
| 5G Sub 6 GHz module Standalone/Non-standalone |
P-5GS6-R16SA-GL |
Next-generation 5G supporting Standalone (SA) and Non-standalone (NSA) for public and private networks. Global PIM. Massive capacity and performance with lower latency. (CBRS/Private LTE-enabled and FirstNet Ready certification coming soon.) |
| 450MHz LTE module |
P-LTE-450 |
Provides large geographical coverage and high resiliency along with deep indoor signal penetration |
| LoRaWAN module |
P-LPWA-900/ P-LPWA-800 |
Provides low-power, Long-Range Wide Area Network LoRaWAN) connectivity to IoT end devices |
| Automotive dead reckoning Global Navigation Satellite System (GNSS) module* |
IRM-GNSS-ADR |
Provides accurate estimates of a vehicle’s position by combining speed and heading data from internal sensors with On-Board Diagnostics (OBD-II) data from the vehicle’s CAN bus. |
| 100 GB storage module* |
IRM-SSD-100G |
Expandable industrial-grade field-replaceable 100 GB storage. |
Visit cisco.com/go/ir1800 to learn more.

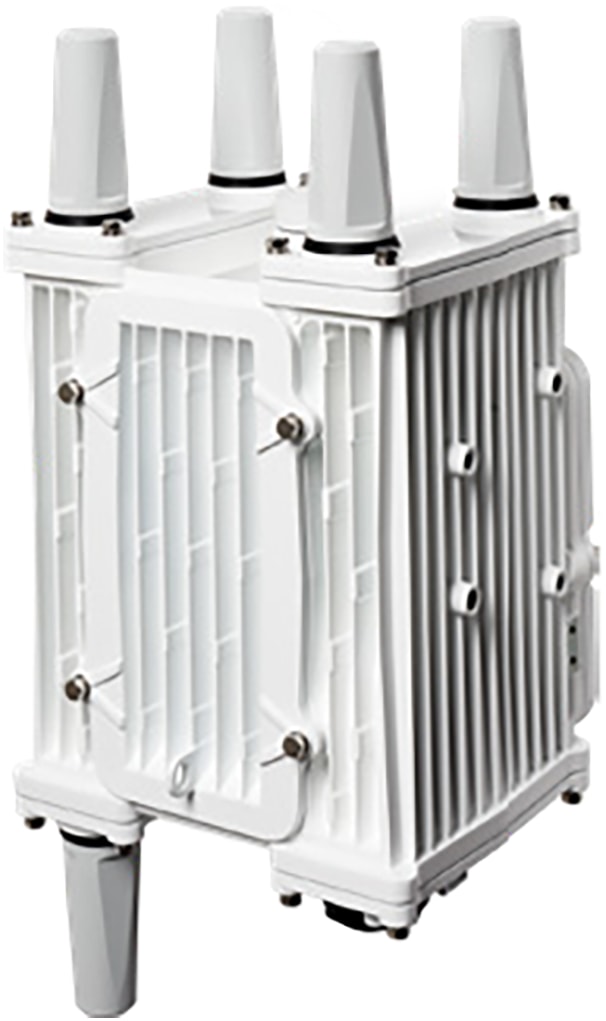

Pluggable Modules for the Cisco Catalyst IR8100 Heavy Duty Series Routers
Table 3. Pluggable modules for the Cisco Catalyst IR8100 Rugged Series Routers
| Module name |
PID number |
Description |
| FirstNet Ready Category 4 LTE module |
IRMH-LTE-MNA / IRMH-LTE-MNA-900 |
Category 4 LTE for AT&T |
| Category 6 LTE module |
IRMH-LTEA-EA / IRMHLTEA-EA-900 / IRMH-LTEA-LA |
Category 6 LTE for Europe and North America (EA) or 900MHz WPAN (EA-900) as well as category 6 LTE for APAC, LATAM, and ANZ |
| Category 7 LTE module (coming soon) |
IRMH-LTE7-NA-900 IRMH-LTE7-EA-900 |
CAT7 LTE module for North America w/900Mhz filter CAT7 LTE Module for Europe w/900Mhz filter |
| FirstNet Ready Category 18 LTE module |
IRMH-LTEAP18-GL3 |
Category 18 LTE for all global regions |
| 5G Sub 6 GHz module Standalone/Non-standalone (coming soon) |
P-5GS6-R16SA-GL |
Next-generation 5G supporting Standalone (SA) and Non-standalone (NSA) for public and private networks. Global PIM. Massive capacity and performance with lower latency. (CBRS/Private LTE-enabled and FirstNet Ready certification coming soon.) |
| 5G Sub 6GHz |
IRMH-5GS6-GL |
Deliver massive capacity, performance, and data with lower latency all with the power of 5Gce Module with 9 |
| 100 GB additional storage module |
IRM-SSD-100G |
Expandable industrial-grade field-replaceable 100 GB storage |
| Wireless Personal Area Network (WPAN) Wi-SUN module |
IRMH-WPAN-NA / IRMH-WPAN-BRZ |
WPAN module for Cisco Resilient Mesh or Wi-SUN mesh deployments for North America, Argentina, and Columbia (NA) as well as Brazil (BRZ) |
| Battery backup unit module |
IRMH-BATT-4AH |
Battery backup module for the IR8140H model |
| CPU/supervisor module |
IRMH-SUP-SP |
Supervisor module with 1 copper and 1 fiber port (for H) |
| 60-Watt AC power module |
IRMH-PWR60W-AC |
60W AC power supply module for the IR8140H |
Visit cisco.com/go/ir8100 to learn more.

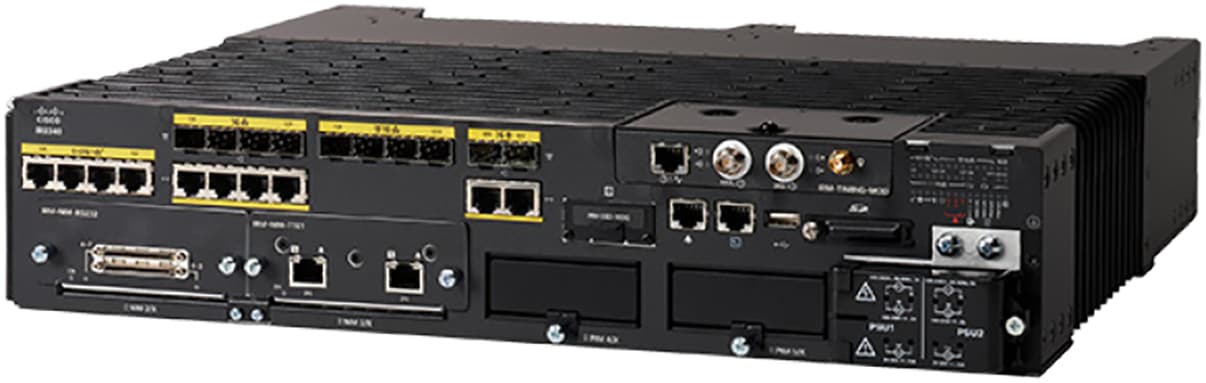

Pluggable Modules for the Cisco Catalyst IR8300 Rugged Series Router
Table 4. Pluggable modules for the Cisco Catalyst IR8300 Rugged Series Router
| Module name |
PID |
Description |
| FirstNet Ready Category 4 LTE module |
P-LTE-MNA |
Category 4 LTE module for North America and Europe |
| Category 7 LTE module |
P-LTEA7-NA / P-LTEA7-EAL/ P-LTEA7-JP |
CAT 7 LTE for North America, (NA), Middle East, EMEA, APAC, LatAm, (EAL) and Japan (JP) |
| FirstNet Ready Category 18 LTE module |
P-LTEAP18-GL |
Category 18 LTE module for all global regions |
| 5G Sub 6 GHz module Standalone/Non-standalone |
P-5GS6-R16SA-GL |
Next-generation 5G supporting standalone (SA) and Non-standalone (NSA) for public and private networks. Global PIM. Massive capacity and performance with lower latency. (CBRS/Private LTE-enabled and FirstNet Ready certification coming soon.) |
| 100GB additional storage module |
IRM-SSD-100G |
Expandable industrial-grade field-replaceable 100 GB storage |
| IR Series Timing module |
IRM-TIMING-MOD |
Pluggable timing module with various timing ports including Time of Day (ToD)+ 1 Pulse per Second (PPS). Output-provide or receive time of day message or 1 pulse per second, analog and digital input/output interfaces and GNSS receiver |
| IR Series RS232 8 Port Serial Network Interface module |
IRM-NIM-RS232 |
Provides serial connectivity to the router |
| IR Series T1/E1 Network Interface module |
IRM-NIM-2T1E1 |
Provides T1/E1 connectivity to the router |
Visit cisco.com/go/ir8300 to learn more.
Pluggable modules for the entire IoT Routing Portfolio
Table 5. Pluggable modules for the industrial routing portfolio
|
|
IR1101 |
IR1821-K9 |
IR1831-K9 |
IR1833-K9 |
IR1835-K9 |
IR8140H-K9 |
IR8140H-P-K9 |
IR8340-K9 |
| Category 4 LTE modules |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Category 7 LTE module |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| Category 18 LTE module |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| 5G Sub 6 GHz module |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
| 450MHz LTE module |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
|
| LoRaWAN module |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
|
| Automotive dead reckoning GNSS module |
|
|
|
✓ |
✓ |
|
|
|
| Wi-Fi 6 module |
|
✓ |
✓ |
✓ |
✓ |
|
|
|
| 100 GB additional storage module |
✓ |
|
|
✓ |
✓ |
✓ |
✓ |
✓ |
| Wireless Personal Area Network (WPAN) Wi-SUN module |
|
|
|
|
|
✓ |
✓ |
|
| Battery backup unit module |
|
|
|
|
|
✓ |
✓ |
|
| CPU/supervisor module |
|
|
|
|
|
✓ |
✓ |
|
| 60-Watt AC power module |
|
|
|
|
|
✓ |
✓ |
|
| IR Series Timing Module |
|
|
|
|
|
|
|
✓ |
| IR Series RS232 8 Port Serial Network Interface Module |
|
|
|
|
|
|
|
✓ |
| IR Series T1/E1 Network Interface Module |
|
|
|
|
|
|
|
✓ |
Learn more about Cisco’s industrial routing portfolio here.
