Cisco Integrated Services Virtual Router Data Sheet

The Cisco^®Integrated Services Virtual Router (ISRv) is a virtual form-factor Cisco IOS^® XE Software router that delivers comprehensive WAN gateway and network services functions into virtual environments. Using familiar, industry-leading Cisco IOS XE Software networking capabilities (the same features present on Cisco 4000 Series ISRs and ASR 1000 Series physical routers), the Cisco ISRv enables enterprises to deliver WAN services to their remote locations using the Cisco Enterprise Network Functions Virtualization (Enterprise NFV) solution (Figure 1). Similarly, service providers can use it to offer enterprise-class networking services to their tenants or customers.

To save costs and become more agile, businesses small and large are increasingly virtualizing their data center infrastructures and applications. Now they can extend the benefits of virtualization to their remote locations to become more operationally efficient and spin up WAN services faster and dynamically.

Enterprises and service providers face the following challenges today to provide network services to remote locations:

●      Remote location network services must be delivered on specialized dedicated hardware platforms that require local administration and dedicated rack space

●      A network service failure requires a service call and local IT expertise to recover the network service

●      Management and support are needed on separate physical appliances at the remote location

With Cisco ISRv, the challenges are addressed by taking advantage of the operational efficiency virtualization delivers.

●      Run Cisco ISRv on a shared x86 compute platform

●      Remotely configure the ISRv routing and traffic, redirecting technologies to service-chain other Virtual Network Function (VNF) services such as WAN optimization, Intrusion Prevention System (IPS), and Wi-Fi sharing the same x86 compute resources

In addition to bringing enterprise-class networking services and security in a virtual form factor, the Cisco ISRv can be used as a building block for scalable network service offerings. The included Enterprise NFV components allow the ISRv to fill roles traditionally reserved for hardware-based devices, including routing and security devices. Virtualizing these complex functions allows service providers to consolidate numerous instances onto a single server, and to easily scale as new customers come on board or networks are expanded.

Built on the same proven Cisco IOS XE Software platform that powers the Cisco ISR and Aggregation Services Router (ASR) product families, it offers a rich set of features, including routing, VPN, firewall, Network Address Translation (NAT), Quality of Service (QoS), application visibility, and failover features.

Product Overview and Benefits

The Cisco ISRv is a software router that an enterprise or a service provider can deploy as a virtual machine in a provider-hosted Cisco NFVIS (Network Functions Virtualization Infrastructure Software) virtual environment. The physical underlying hardware can be Cisco Unified Computing System^™ (Cisco UCS^®) servers or Cisco Enterprise Network Compute System (ENCS) platforms.

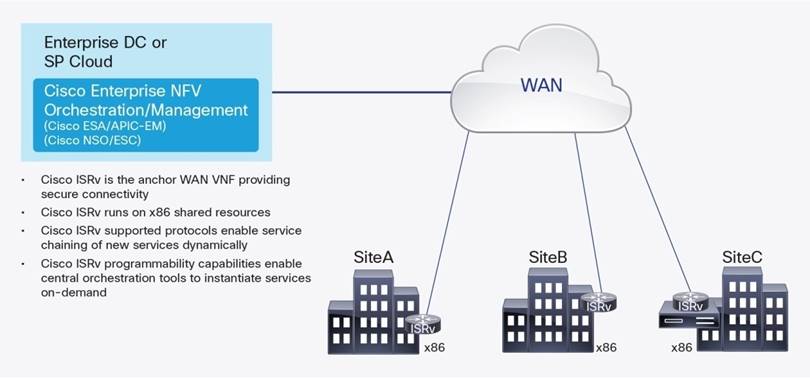

Cisco ISRv Positioned as a Branch WAN Services Router

There are several ways to use the Cisco ISRv:

●      Highly secure VPN gateway: The ISRv offers route-based IP Security (IPsec) VPNs (Dynamic Multipoint VPN [DMVPN], Easy VPN, and FlexVPN), and Secure Sockets Layer (SSL) VPN, along with the Cisco IOS Zone-Based Firewall (ZBFW) and access control, meaning an enterprise can connect distributed sites securely (Table 1).

Table 1.        Cisco ISRv as a Highly Secure VPN Gateway

●      Control point for networking services: The ISRv can redirect traffic to Cisco Virtual Wide Area Application Services (vWAAS) appliances deployed within the same x86 server. The Application Visibility and Control (AVC) feature of the ISRv offers end-to-end application visibility, performance monitoring, and control, allowing administrators to pinpoint application performance problems and offer performance SLAs that can be easily tracked (Table 2).

Table 2.        Cisco ISRv as a Traffic Control Point

The Cisco IOS XE Software Advantage

The Cisco ISRv runs the same operating system, Cisco IOS XE Software, as the Cisco 4000 Series ISRs and Cisco ASR 1000 Series. Providing control- and data-plane separation, multicore forwarding, and a modular architecture that allows for smooth insertion of networking features, Cisco IOS XE Software is well-suited for dynamic virtual environments. Cisco IOS XE Software is based on the stable, robust, and feature-rich Cisco IOS Software that has powered Cisco ISRs and other hardware routers in demanding enterprise, service provider, and government networks for more than two decades.

The key benefits of Cisco IOS XE Software follow:

●      Proven functions: Industry-leading Cisco IOS Software networking and security features

●      Operational efficiency: Rapid integration into any Cisco IOS Software environment, such as branch office, WAN, data center, or cloud

●      Consistent user experience: Same Cisco IOS CLI and management tools across all Cisco IOS Software platforms, including the Cisco ISR, Cisco ASR, Cisco Cloud Services Router (CSR) 1000v, and Cisco ISRv

Product Specifications

Table 3 lists the features the Cisco ISRv offers in Cisco IOS XE Software Release 16.3.

Table 3.        Cisco ISRv Features

Differences between Cisco ISRv and Cisco CSR 1000v

The Cisco ISRv runs on server platforms running the Cisco NFVIS virtualization software only. It can support the Network Interface Module (NIM) when running on a Cisco ENCS hardware platform and can also accelerate VM-to-VM traffic using the hardware-based switching on Cisco ENCS platforms. The Cisco CSR1000v does not have these capabilities. The Cisco CSR 1000v and Cisco ISRv will maintain Cisco IOS XE feature parity, and the Cisco CSR 1000v will continue to be supported across multiple hypervisors (VMware vSphere, Microsoft Hyper-V, Citrix XEN, RHEL KVM, Ubuntu KVM, Amazon AWS, and Microsoft Azure).

Ordering and Support

The Cisco ISRv is licensed based on throughput and feature set and can be purchased for a term of 1, 3, or 5 years.

Cisco IOS XE Software Release 16.3 of the ISRv offers numerous throughput options: 50, 100, 250, and 500 Mbps and 1 Gbps. Upon activation of a particular option, the ISRv limits its aggregate bidirectional throughput to that speed.

The Cisco ISRv comes in four technology packages or feature sets, which are shown in Table 4.

Table 4.        Cisco ISRv Packaging

Table 5.        ISRv Performance

The performance numbers are based off of the Cisco ENCS 5408 platform. Hardware configuration: Intel Xeon Processor D-1548 2.0GHz, 64GB RAM and 64GB of storage (Expandable to 4TB). The performance numbers are for reference only and not guaranteed. Performance will vary depending on hardware specifications and network I/O model (SR-IOV vs. vSwitch), as well as resource allocation across multiple VNFs

For Ordering information please refer to the ordering guide.

Please contact your local Cisco sales representative for more information.
