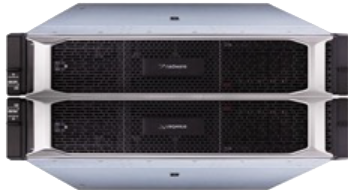

Alteon D-9800, Alteon D-9800S, Alteon D-9800SL
|
|
|
|
|
| Specifications |
Alteon® D-9800 |
Alteon D-9800S |
Alteon D-9800SL |
| Performance |
|||
| Maximum L4/L7 throughput |
320 Gbps / 210 Gbps |
320 Gbps / 210 Gbps |
320 Gbps / 210 Gbps |
| Layer 4 connections per second |
4.7M |
4.7M |
4.7M |
| Maximum Layer 4 concurrent connections |
280M |
280M |
280M |
| Layer 7 requests per second |
8M |
8M |
8M |
| SSL performance |
|||
| RSA CPS (2K keys) |
35K |
100K |
196K |
| ECC CPS (P256) |
35K |
50K |
115K |
| SSL bulk encryption throughput Gbps |
30 |
50 |
85 |
| Licenses |
|||
| Available throughput licenses |
240 and 320 Gbps |
240 and 320 Gbps |
240 and 320 Gbps |
| Max number of virtual ADC instances* |
72 |
72 |
72 |
| HW specifications |
|||
| Processor |
2 x Intel 18-core CPU |
2 x Intel 18-core CPU |
2 x Intel 18-core CPU |
| Memory |
192GB |
192GB |
192GB |
| Traffic ports |
8 x 100 GE / 40 GE / 25 GE / 10 GE QSFP28 |
8 x 100 GE / 40 GE / 25 GE / 10 GE QSFP28 |
8 x 100 GE / 40 GE / 25 GE / 10 GE QSFP28 |
| HPP (high-performance package) |
N/A |
N/A |
N/A |
| USB port |
Yes |
Yes |
Yes |
| RS-232C console |
Serial Connection |
Serial Connection |
Serial Connection |
| Environmental specifications |
|||
| Power |
Auto-range dual power supply 80 plus platinum certified (AC PSU) AC: 100-240 V, 47-63 Hz Power consumption: 800W DC power supply is optional |
Auto-range dual power supply 80 plus platinum certified (AC PSU) AC: 100-240 V, 47-63 Hz Power consumption: 800W DC power supply is optional |
Auto-range dual power supply 80 plus platinum certified (AC PSU) AC: 100-240 V, 47-63 Hz Power consumption: 800W DC power supply is optional |
| Heat dissipation |
1800 BTU/h |
1800 BTU/h |
1800 BTU/h |
| Dimensions |
445 mm (17.54") W x 730 mm (28.75") D x 87 mm (3.44" / 2U) H |
445 mm (17.54") W x 730 mm (28.75") D x 87 mm (3.44" / 2U) H |
445 mm (17.54") W x 730 mm (28.75") D x 87 mm (3.44" / 2U) H |
| Weight |
14.8 kg (32.6 lbs) |
15 kg (33 lbs) |
15.2 kg (33.5 lbs) |
| Operating environmental |
Temperature: 10-40°C (50-104°F) Humidity: 8% to 90% noncondensing |
Temperature: 10-40°C (50-104°F) Humidity: 8% to 90% noncondensing |
Temperature: 10-40°C (50-104°F) Humidity: 8% to 90% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
Front-to-Back |
| Compliance & certifications |
|||
| Compliance |
|||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
||
| Safety/EMC/EMI |
FCC Part 15B (Class A); ICES-003:2016 Issue 6, Class A; ANSI C63.4:2014; EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013; EN 62479:2010; EN 50581:2012; EN 55024:2010; EN 55032:2012 Class A; EN 61000-3-2:2014; EN 61000-3-3:2013; AS/NZS CISPR 32:2013; AS/NZS 60950.1: 2011 |
||
| Certifications |
CCC (China), UL (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), NRCS (South Africa), TCVN (Vietnam), BIS (India) |
||
Alteon D-8420, Alteon D-8420S, Alteon D-8420SL
|
|
|
|
|
| Specifications |
Alteon D-8420 |
Alteon D-8420S |
Alteon D-8420SL |
| Performance |
|||
| Maximum L4/L7 throughput |
160 Gbps / 140 Gbps |
160 Gbps / 140 Gbps |
160 Gbps / 140 Gbps |
| Layer 4 connections per second |
4.1M |
4.1M |
4.1M |
| Maximum Layer 4 concurrent connections |
318M |
318M |
318M |
| Layer 7 requests per second |
5.4M |
5.4M |
5.4M |
| SSL performance |
|||
| RSA CPS (2K keys) |
13.3K |
50K |
98K |
| ECC CPS (EC-P256) |
47K |
47K |
47K |
| Bulk encryption (Gbps) |
42 |
48 |
48 |
| Licenses |
|||
| Available throughput licenses |
160 Gbps |
160 Gbps |
160 Gbps |
| Max number of virtual ADC instances* |
100 |
100 |
100 |
| HW specifications |
|||
| Processor |
2 x Intel 10-core CPU |
2 x Intel 10-core CPU |
2 x Intel 10-core CPU |
| Memory |
128GB / up to 256GB |
128GB / up to 256GB |
128GB / up to 256GB |
| Traffic ports |
4 x 40 GbE QSFP+ 20 x 10 GbE SFP+ |
4 x 40 GbE QSFP+ 20 x 10 GbE SFP+ |
4 x 40 GbE QSFP+ 20 x 10 GbE SFP+ |
| HPP (high-performance package) |
Includes, 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR, 2 x 40 Gbps pluggable optics multimode SR |
Includes, 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR, 2 x 40 Gbps pluggable optics multimode SR |
Includes, 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR, 2 x 40 Gbps pluggable optics multimode SR |
| USB port |
Yes |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Environmental specifications |
|||
| Power |
Auto-range power supply 80 plus certified AC: 100-240 V, 47-63 Hz Power consumption: 670W dual power supply is optional DC power supply is optional |
Auto-range power supply 80 plus certified AC: 100-240 V, 47-63 Hz Power consumption: 670W Dual power supply is optional DC power supply is optional |
Auto-range power supply 80 plus certified AC: 100-240 V, 47-63 Hz Power consumption: 670W Dual power supply is optional DC power supply is optional |
| Heat dissipation |
2285 BTU/h |
2285 BTU/h |
2285 BTU/h |
| Dimensions |
426 mm (16.7”) W x 600 mm (23.6”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
426 mm (16.7”) W x 600 mm (23.6”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
426 mm (16.7”) W x 600 mm (23.6”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
| Weight |
Single power supply: 15 kg (33 lbs) Dual power supply: 16.15 kg (35.53 lbs) |
Single power supply: 15.5 kg (34.2 lbs) Dual power supply: 16.65 kg (36.63 lbs) |
Single power supply: 15.5 kg (34.2 lbs) Dual power supply: 16.65 kg (36.63 lbs) |
| Operating environmental |
Temperature: 0-40°C (32-104°F) Humidity: 10% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 10% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 10% to 95% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
Front-to-Back |
| Minimum CFM |
200 |
200 |
200 |
| Compliance & certifications |
|||
| Compliance |
|||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
||
| Safety/EMC/EMI |
FCC Part 15B (Class A); ANSI C63.4:2014; CISPR 32:2012/2015, Class A; AS/NZS CISPR 32:2013/2015, Class A; IEC 60950-1:2005/AMD1:2009; IEC 60950-1:2005/AMD2:2013; IEC 60950-1:2005; EN 60950-1: 2006 / A11: 2009 / A1:2010 / A12: 2011 / A2:2013; AS/NZS 60950.1:2015; IEC 62368-1:2014; EN 62368-1:2014/A11:2017; AS/NZS 62368.1:2018; EN 300 386 V2.1.1 (2016-07), Class A; EN 55032:2015 + AC:2016; EN 61000-3-2:2014, Class A; EN 61000-3-3:2013; EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + A2:2010; EN 61000-4-4:2012; EN 61000-4-5:2014; EN 61000-4-6:2014 |
||
| Certifications |
CCC (China), UL (US, Canada), CE (Europe), FCC (US), KCC (Korea), EAC (Russia), VCCI (Japan), Anatel (Brazil) |
||

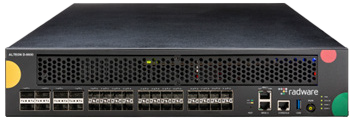

Alteon D-7220S, Alteon D-7220SL
|
|
|
|
| Specifications |
Alteon D-7220S |
Alteon D-7220SL |
| Performance |
||
| Maximum L4/L7 throughput |
200 Gbps / 125 Gbps |
200 Gbps / 125 Gbps |
| Layer 4 connections per second |
2.5M |
2.5M |
| Maximum Layer 4 concurrent connections |
184M |
184M |
| Layer 7 requests per second |
4M |
4M |
| SSL performance |
||
| RSA CPS (2K keys) |
50K |
101K |
| ECC CPS (EC-P256) |
30K |
47K |
| Bulk encryption (Gbps) |
45 |
45 |
| Licenses |
||
| Available throughput licenses |
200 Gbps |
200 Gbps |
| Max number of virtual ADC instances* |
64 |
64 |
| HW specifications |
||
| Processor |
Intel 12-core CPU |
Intel 12-core CPU |
| Memory |
96GB / up to 192GB |
96GB / up to 192GB |
| Traffic ports |
2 x 100 GbE QSFP28 20 x 25 GbE SFP28 / 10 GbE SFP+ |
2 x 100 GbE QSFP28 20 x 25 GbE SFP28 / 10 GbE SFP+ |
| HPP (high-performance package) |
Includes 500GB SSD, dual power supply 8 x 10 Gbps pluggable optics multimode SR |
Includes 500GB SSD, dual power supply 8 x 10 Gbps pluggable optics multimode SR |
| USB port |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Environmental specifications |
||
| Power |
Auto-range power supply 80 plus certified (AC PSU) AC: 100–240 V, 47–63 Hz Power consumption: 420W Dual power supply is optional DC power supply is optional |
Auto-range power supply 80 plus certified (AC PSU) AC: 100–240 V, 47–63 Hz Power consumption: 420W Dual power supply is optional DC power supply is optional |
| Heat dissipation |
1432 BTU/h |
1432 BTU/h |
| Dimensions |
438 mm (17.24") W x 438 mm (17.24") D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19") |
438 mm (17.24") W x 438 mm (17.24") D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19") |
| Weight |
Single power supply: 11 kg (24.2 lbs) Dual power supply: 12 kg (26.4 lbs) |
Single power supply: 11 kg (24.2 lbs) Dual power supply: 12 kg (26.4 lbs) |
| Operating environmental |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
| Minimum CFM |
200 |
200 |
| Compliance & certifications |
||
| Compliance |
||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
|
| Safety/EMC/EMI |
FCC Part 15, Subpart B; ANSI C63.4:2014; ICES-003 Issue 6:2016 (updated Apr. 2017); CISPR 22:2008; CAN / CSA-CISPR 22-10; IEC 60950-1:2005 / AMD1:2009; IEC 60950-1:2005 / AMD2:2013; IEC 60950-1:2005; EN 60950-1:2006 / A11:2009 / A1:2010 / A12:2011 / A2:2013; IEC 62368-1:2014; EN 62368-1:2014 / A11:2017; EN 55032:2015 + AC:2016 Class A; AS / NZS CISPR 32:2015, Class A; CISPR 32:2015 + C1:2016, Class A; EN 55024:2010 + A1:2015; EN 55035:2017; EN 61000-3-2:2014, Class A; EN 61000-3-3:2013; EN 61000-4-2:2009, EN 61000-4-3:2006 +A1:2008 + A2:2010; EN 61000-4-4:2012; EN 61000-4-5:2014; EN 61000-4-6:2014 + AC:2015; EN 61000-4-11:2004 + A1:2017; EN 300 386 V2.1.1 (2016-07) |
|
| Certifications |
CCC (China), UL (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), Anatel (Brazil) |
|

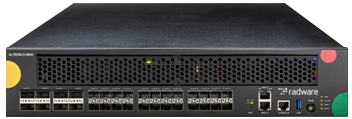

Alteon D-7612S, Alteon D-7612SL
|
|
|
|
| Specifications |
Alteon D-7612S |
Alteon D-7612SL |
| Performance |
||
| Maximum L4 / L7 throughput |
200 Gbps / 125 Gbps |
200 Gbps / 125 Gbps |
| Layer 4 connections per second |
2.5M |
2.5M |
| Maximum Layer 4 concurrent connections |
184M |
184M |
| Layer 7 requests per second |
4M |
4M |
| SSL performance |
||
| RSA CPS (2K keys) |
50K |
101K |
| ECC CPS (EC-P256) |
30K |
47K |
| Bulk encryption (Gbps) |
45 |
45 |
| Licenses |
||
| Available throughput licenses |
160 and 200 Gbps |
160 and 200 Gbps |
| Max number of virtual ADC instances* |
64 |
64 |
| HW specifications |
||
| Processor |
Intel 12-core CPU |
Intel 12-core CPU |
| Memory |
96GB / up to 192GB |
96GB / up to 192GB |
| Traffic ports |
6 x 40 GbE QSFP+ 12 x 10 GbE SFP+ |
6 x 40 GbE QSFP+ 12 x 10 GbE SFP+ |
| HPP (high-performance package) |
Includes 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR 2 x 40 Gbps pluggable optics multimode SR |
Includes 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR 2 x 40 Gbps pluggable optics multimode SR |
| USB port |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Environmental specifications |
||
| Power |
Auto-range power supply 80 plus certified (AC PSU) AC: 100–240 V, 47–63 Hz Power consumption: 400W Dual power supply is optional DC power supply is optional |
Auto-range power supply 80 plus certified (AC PSU) AC: 100–240 V, 47–63 Hz Power consumption: 400W Dual power supply is optional DC power supply is optional |
| Heat dissipation |
1364 BTU / h |
1364 BTU / h |
| Dimensions |
438 mm (17.24”) W x 438 mm (17.24”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
438 mm (17.24”) W x 438 mm (17.24”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
| Weight |
Single power supply: 11 kg (24.2 lbs) Dual power supply: 12 kg (26.4 lbs) |
Single power supply: 11 kg (24.2 lbs) Dual power supply: 12 kg (26.4 lbs) |
| Operating environmental |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
| Minimum CFM |
200 |
200 |
| Compliance & certifications |
||
| Compliance |
||
| RoHS2 |
Compliant (EU directive 2011 / 65 / EU) |
|
| Safety / EMC / EMI |
FCC Part 15, Subpart B; ANSI C63.4:2014; ICES-003 Issue 6:2016 (updated Apr. 2017); CISPR 22:2008; CAN / CSA-CISPR 22-10; IEC 60950-1:2005 / AMD1:2009; IEC 60950-1:2005 / AMD2:2013; IEC 60950- 1:2005; EN 60950-1:2006 / A11:2009 / A1:2010 / A12:2011 / A2:2013; IEC 62368-1:2014; EN 62368- 1:2014 / A11:2017; EN 55032:2015 + AC:2016 Class A; AS / NZS CISPR 32:2015, Class A; CISPR 32:2015 + C1:2016, Class A; EN 55024:2010 + A1:2015; EN 55035:2017; EN 61000-3-2:2014, Class A; EN 61000-3-3:2013; EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + A2:2010; EN 61000-4-4:2012; EN 61000-4-5:2014; EN 61000-4-6:2014 + AC:2015; EN 61000-4-11:2004 + A1:2017; EN 300 386 V2.1.1 (2016-07) |
|
| Certifications |
CCC (China), UL (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), Anatel (Brazil) |
|
Alteon D-6420S, Alteon D-6420SL
|
|
|
|
| Specifications |
Alteon D-6420S |
Alteon D-6420SL |
| Performance |
||
| Maximum L4/L7 throughput |
80 Gbps / 71 Gbps |
80 Gbps / 71 Gbps |
| Layer 4 connections per second |
1.4M |
1.4M |
| Maximum Layer 4 concurrent connections |
184M |
184M |
| Layer 7 requests per second |
1.95M |
1.95M |
| SSL performance |
||
| RSA CPS (2K keys) |
30K |
42K |
| ECC CPS (EC-P256) |
20K |
25.7K |
| Bulk encryption (Gbps) |
17 |
17 |
| Licenses |
||
| Available throughput capacity licenses |
60 and 80 Gbps |
60 and 80 Gbps |
| Max number of virtual ADC instances* |
64 |
64 |
| HW specifications |
||
| Processor |
2 x Intel 6-core CPU |
2 x Intel 6-core CPU |
| Memory |
32GB / up to 256GB |
32GB / up to 256GB |
| Traffic ports |
4 x 40 GbE QSFP+ 20 x 10 GbE SFP+ |
4 x 40 GbE QSFP+ 20 x 10 GbE SFP+ |
| HPP (high-performance package) |
Includes 64GB RAM upgrade, 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR, 2 x 40 Gbps pluggable optics multimode SR |
Includes 64GB RAM upgrade, 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR, 2 x 40 Gbps pluggable optics multimode SR |
| USB port |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Environmental specifications |
||
| Power |
Auto-range power supply 80 plus certified AC: 100-240 V, 47-63 Hz Power consumption: 600W Dual power supply is optional DC power supply is optional |
Auto-range power supply 80 plus certified AC: 100-240 V, 47-63 Hz Power consumption: 600W Dual power supply is optional DC power supply is optional |
| Heat dissipation |
2050 BTU/h |
2050 BTU/h |
| Dimensions |
426 mm (16.7”) W x 537 mm (21.1”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
426 mm (16.7”) W x 537 mm (21.1”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
| Weight |
Single power supply: 13.7 kg (30.2 lbs) Dual power supply: 14.85 kg (32.73 lbs) |
Single power supply: 13.7 kg (30.2 lbs) Dual power supply: 14.85 kg (32.73 lbs) |
| Operating environmental |
Temperature: 0-40°C (32-104°F) Humidity: 10% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 10% to 95% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
| Minimum CFM |
200 |
200 |
| Compliance & certifications |
||
| Compliance |
||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
|
| Safety/EMC/EMI |
FCC Part 15, Subpart B, Class A; UL 60950-1:2007 R12.11; CAN / CSA-C22.2 No. 60950-1-07 + A1:2011; EN 60950-1:2006 / A11:2009 / A1:2010 / A12:2011; IEC 60950-1:2005 (Second Edition) + Am 1:2009; EN 60950-1:2006 + A11:2009 + A1:2010; EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011; EN 60950-1:2006 + A11:2009; ICES-003, Issue 5:2012, Class A; NEBS |
|
| Certifications |
CCC (China), TUV (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), Anatel (Brazil), SDPPI (Indonesia) |
|
Alteon D-6024, AlteonD- 6024S, Alteon D-6024SL
|
|
|
|
|
| Specifications |
Alteon D-6024 |
Alteon D-6024S |
Alteon D-6024SL |
| Performance |
|||
| Maximum L4/L7 throughput |
80 Gbps / 74 Gbps |
80 Gbps / 74 Gbps |
80 Gbps / 74 Gbps |
| Layer 4 connections per second |
1.4M |
1.4M |
1.4M |
| Maximum Layer 4 concurrent connections |
82M |
82M |
82M |
| Layer 7 requests per second |
2.55M |
2.55M |
2.55M |
| SSL performance |
|||
| RSA CPS (2K keys) |
7.6K |
30K |
53K |
| ECC CPS (EC-P256) |
18K |
20K |
27.3K |
| Bulk encryption (Gbps) |
21 |
22 |
22 |
| FIPS RSA CPS (2k keys)** |
35K |
N/A |
N/A |
| FIPS bulk encryption (Gbps)** |
24 |
N/A |
N/A |
| Licenses |
|||
| Available throughput licenses |
30, 60, and 80 Gbps |
30, 60, and 80 Gbps |
30, 60, and 80 Gbps |
| Max number of virtual ADC instances* |
32 |
32 |
32 |
| HW specifications |
|||
| Processor |
Intel 6-core CPU |
Intel 6-core CPU |
Intel 6-core CPU |
| Memory |
32GB / up to 256GB |
32GB / up to 256GB |
32GB / up to 256GB |
| Traffic ports |
24 x 10 GbE SFP+ |
24 x 10 GbE SFP+ |
24 x 10 GbE SFP+ |
| HPP (high-performance package) |
Includes 64GB RAM, 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR |
Includes 64GB RAM, 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR |
Includes 64GB RAM, 500GB SSD, dual power supply, 6 x 10 Gbps pluggable optics multimode SR |
| USB port |
Yes |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Environmental specifications |
|||
| Power |
Auto-range power supply 80 plus certified AC: 100-240 V, 47-63 Hz Power consumption: 250W Dual power supply is optional DC power supply is optional |
Auto-range power supply 80 plus certified AC: 100-240 V, 47-63 Hz Power consumption: 250W Dual power supply is optional DC power supply is optional |
Auto-range power supply 80 plus certified AC: 100-240 V, 47-63 Hz Power consumption: 250W Dual power supply is optional DC power supply is optional |
| Heat dissipation |
850 BTU/h |
850 BTU/h |
850 BTU/h |
| Dimensions |
436 mm (17.1”) W x 480 mm (18.9”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
436 mm (17.1”) W x 480 mm (18.9”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
436 mm (17.1”) W x 480 mm (18.9”) D x 88 mm (3.4” / 2U) H EIA Rack or Standalone: 482 mm (19”) |
| Weight |
Single power supply: 10.5 kg (23.1 lbs) Dual power supply: 11.2 kg (24.7 lbs) |
Single power supply: 11 kg (24.2 lbs) Dual power supply: 11.7 kg (25.8 lbs) |
Single power supply: 11 kg (24.2 lbs) Dual power supply: 11.7 kg (25.8 lbs) |
| Operating environmental |
Temperature: 0-40°C (32-104°F) Humidity: 10% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 10% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 10% to 95% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
Front-to-Back |
| Minimum CFM |
200 |
200 |
200 |
| Compliance & certifications |
|||
| Compliance |
|||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
||
| Safety/EMC/EMI |
FCC Part 15, Class A; IC ICES-003; UL 60950-1:2007 R10.14; CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014; EN 55022:2010/AC:2011 Class A; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010; IEC 61000-4-2:2008; IEC 61000-4-3:2006+A1:2007; IEC 61000-4-4:2012; IEC 61000-4-5:2014; IEC 61000-4-6:2013; IEC 61000-4-8:2009; IEC 61000-4-11:2004; IEC 61000-4-12:2006; IEC 60950-1:2005 (Second Edition)+Am 1:2009+Am 2:2013; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; NEBS |
||
| Certifications |
CCC (China), TUV (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), Anatel (Brazil), SDPPI (Indonesia) |
||

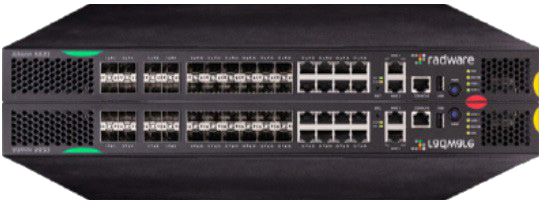

Alteon D-5820S, Alteon D-5820SL
|
|
|
|
| Specifications |
Alteon D-5820S |
Alteon D-5820SL |
| Performance |
||
| Maximum L4/L7 throughput |
40 Gbps / 32 Gbps |
40 Gbps / 32 Gbps |
| Layer 4 connections per second |
525K |
525K |
| Maximum Layer 4 concurrent connections |
44M |
44M |
| Layer 7 requests per second |
930K |
930K |
| SSL performance |
||
| RSA CPS (2K keys) |
10K |
20K |
| ECC CPS (EC-P256) |
7K |
12K |
| Bulk encryption (Gbps) |
10 |
10 |
| Licenses |
||
| Available throughput licenses |
12, 22, and 40 Gbps |
12, 22, and 40 Gbps |
| Max number of virtual ADC instances* |
10 |
10 |
| HW specifications |
||
| Processor |
Intel 12-core CPU |
Intel 12-core CPU |
| Memory |
32GB |
32GB |
| Traffic ports |
4 x 25 / 10 GE SFP28 4 x 10 GE SFP+ 12 x 1 GE SFP 8 x 1 GE RJ45 |
4 x 25 / 10 GE SFP28 4 x 10 GE SFP+ 12 x 1 GE SFP 8 x 1 GE RJ45 |
| HPP (high-performance package) |
N/A |
N/A |
| USB port |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Power |
Auto-range power supply 80 plus certified AC: 100-240Vac, 50-60 Hz Power consumption is 125W Dual power supply is optional |
Auto-range power supply 80 plus certified AC: 100-240Vac, 50-60 Hz Power consumption is 125W Dual power supply is optional |
| Heat dissipation |
427 BTU/h |
427 BTU/h |
| Dimensions |
481 mm (18.9”) W x 476 mm (18.7”) D x 44 mm (1.7”/1U) H EIA Rack or Standalone: 481 mm (18.9”) |
481 mm (18.9”) W x 476 mm (18.7”) D x 44 mm (1.7”/1U) H EIA Rack or Standalone: 481 mm (18.9”) |
| Weight |
Single power supply: 6.8 kg (15 lbs) Dual power supply: 7.5 kg (16.5 lbs) |
Single power supply: 6.8 kg (15 lbs) Dual power supply: 7.5 kg (16.5 lbs) |
| Operating environment |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
| Minimum CFM |
21.9 |
21.9 |
| Compliance & certifications |
||
| Compliance |
||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
|
| Safety/EMC/EMI |
FCC Part 15, Subpart B, Class A; IC ICES-003:2016 Issue 6, Class A; ANSI C63.4:2014; UL 60950-1:2007 R10.14; CAN/CSA-C22.2 No. 60950-1-07 + A1:2011+A2:2014; UL 62368-1:2007 R10.14; CAN/CSA-C22.2 No. 62368-1-14; EN 55024:2010; EN 55032:2015 + AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class A; EN 300 386 V2.1.1 (2016-07); EN 61000-3-2:2014; EN 61000-3-3:2013; EN 61000-4-2:2009; EN 61000-4-3:2006 +A1:2008 + A2:2010; EN 61000-4-4:2012; EN 61000-4-5:2014; EN 61000-4-6:2014; EN 61000-4-8:2010; EN 61000-4-11:2004 |
|
| Certifications |
CCC (China), TUV (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), Anatel (Brazil) |
|
Alteon D-5424S, Alteon D-5424SL
|
|
|
|
| Specifications |
Alteon D-5424S |
Alteon D-5424SL |
| Performance |
||
| Maximum L4/L7 throughput |
40 Gbps / 32 Gbps |
40 Gbps / 32 Gbps |
| Layer 4 connections per second |
525K |
525K |
| Maximum Layer 4 concurrent connections |
44M |
44M |
| Layer 7 requests per second |
930K |
930K |
| SSL performance |
||
| RSA CPS (2K keys) |
10K |
20K |
| ECC CPS (EC-P256) |
7K |
12K |
| Bulk encryption (Gbps) |
10 |
10 |
| Licenses |
||
| Available throughput licenses |
12, 22, and 40 Gbps |
12, 22, and 40 Gbps |
| Max number of virtual ADC instances* |
10 |
10 |
| HW specifications |
||
| Processor |
Intel 12-core CPU |
Intel 12-core CPU |
| Memory |
32GB |
32GB |
| Traffic ports |
4 x 25 GE / 10 GE SFP28 16 x 1 GE SFP 8 x 1 GE RJ45 |
4 x 25 GE / 10 GE SFP28 16 x 1 GE SFP 8 x 1 GE RJ45 |
| HPP (high-performance package) |
N/A |
N/A |
| USB port |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Power |
Auto-range power supply 80 plus certified AC: 100-240Vac, 50-60 Hz Power consumption is 125W Dual power supply is optional |
Auto-range power supply 80 plus certified AC: 100-240Vac, 50-60 Hz Power consumption is 125W Dual power supply is optional |
| Heat dissipation |
427 BTU/h |
427 BTU/h |
| Dimensions |
481 mm (18.9”) W x 476 mm (18.7”) D x 44 mm (1.7”/1U) H EIA Rack or Standalone: 481 mm (18.9”) |
481 mm (18.9”) W x 476 mm (18.7”) D x 44 mm (1.7”/1U) H EIA Rack or Standalone: 481 mm (18.9”) |
| Weight |
Single power supply: 6.8 kg (15 lbs) Dual power supply: 7.5 kg (16.5 lbs) |
Single power supply: 6.8 kg (15 lbs) Dual power supply: 7.5 kg (16.5 lbs) |
| Operating environment |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
| Minimum CFM |
21.9 |
21.9 |
| Compliance & certifications |
||
| Compliance |
||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
|
| Safety/EMC/EMI |
FCC Part 15, Subpart B, Class A; IC ICES-003:2016 Issue 6, Class A; ANSI C63.4:2014; UL 60950-1:2007 R10.14; CAN/CSA-C22.2 No. 60950-1-07 + A1:2011 + A2:2014; UL 62368-1:2007 R10.14; CAN /CSA-C22.2 No. 62368-1-14; EN 55024:2010; EN 55032:2015 +AC:2016 / CISPR 32:2015 + COR1:2016 / AS / NZS CISPR 32:2015, Class A; EN 300 386 V2.1.1 (2016-07); EN 61000-3-2:2014; EN 61000-3-3:2013; EN 61000-4-2:2009; EN 61000-4-3:2006 + A1:2008 + A2:2010; EN 61000-4-4:2012; EN 61000-4-5:2014; EN 61000-4-6:2014; EN 61000-4-8:2010; EN 61000-4-11:2004 |
|
| Certifications |
CCC (China), TUV (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), Anatel (Brazil) |
|
|
|
|
|
| Specifications |
Alteon D-5208 |
Alteon D-5208S |
| Performance |
||
| Maximum L4/L7 throughput |
26 Gbps / 20 Gbps |
26 Gbps / 20 Gbps |
| Layer 4 connections per second |
630K |
630K |
| Maximum Layer 4 concurrent connections |
50M |
50M |
| Layer 7 requests per second |
850K |
850K |
| SSL performance |
||
| RSA CPS (2K keys) |
2.3K |
20.5K |
| ECC CPS (EC-P256) |
9K |
12K |
| Bulk encryption (Gbps) |
10 |
10 |
| Licenses |
||
| Available throughput licenses |
6, 12, and 26 Gbps |
6, 12, and 26 Gbps |
| Max number of virtual ADC instances* |
22 |
22 |
| HW specifications |
||
| Processor |
Intel quad-core CPU |
Intel quad-core CPU |
| Memory |
16GB / up to 32GB |
16GB / up to 32GB |
| Traffic ports |
2 x 10 GbE SFP+ 8 x 1 GbE RJ45 |
2 x 10 GbE SFP+ 8 x 1 GbE RJ45 |
| HPP (high-performance package) |
Includes 32GB RAM upgrade, 500GB SSD, dual power supply, 2 x 10 Gbps pluggable optics multimode SR |
Includes 32GB RAM upgrade, 500GB SSD, dual power supply, 2 x 10 Gbps pluggable optics multimode SR |
| USB port |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Environmental specifications |
||
| Power |
Auto-range power supply 80 plus certified AC: 100-240V, 47-63 Hz Power consumption: 140W Dual power supply is optional DC power supply is optional |
Auto-range power supply 80 plus certified AC: 100-240V, 47-63 Hz Power consumption: 140W Dual power supply is optional DC power supply is optional |
| Heat dissipation |
480 BTU/h |
480 BTU/h |
| Dimensions |
436 mm (17.1”) W x 406 mm (16”) D x 44 mm (1.7” / 1U) H EIA Rack or Standalone: 482 mm (19”) |
436 mm (17.1”) W x 406 mm (16”) D x 44 mm (1.7” / 1U) H EIA Rack or Standalone: 482 mm (19”) |
| Weight |
Single power supply: 6 kg (13.2 lbs) Dual power supply: 7 kg (15.4 lbs) |
Single power supply: 6.5 kg (14.3 lbs) Dual power supply: 7.5 kg (16.5 lbs) |
| Operating environmental |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
| Airflow direction |
Front-Right/Front-Left-to-Back |
Front-Right/Front-Left-to-Back |
| Minimum CFM |
50 |
50 |
| Compliance & certifications |
||
| Compliance |
||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
|
| Safety/EMC/EMI |
FCC Part 15, Class A; IC ICES-003; UL 60950-1:2007 R12.11; CAN / CSA-C22.2 No. 60950-1-07 + A1:2011; EN 60950-1:2006 + A11:2009 + A1:2010+A12:2011 + A2:2013; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013; EN 60950-1:2006 + A11:2009; AS /NZS 60950.1:2015 |
|
| Certifications |
CCC (China), TUV (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), Anatel (Brazil), SDPPI (Indonesia) |
|
|
|
|
|

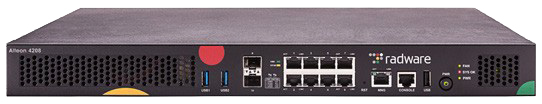

| Specifications |
Alteon D 4208 |
Alteon D 4208S |
| Performance |
||
| Maximum L4/L7 throughput |
12 Gbps / 11 Gbps |
12 Gbps / 11 Gbps |
| Layer 4 connections per second |
183K |
183K |
| Maximum Layer 4 concurrent connections |
24M |
24M |
| Layer 7 requests per second |
290K |
290K |
| SSL performance |
||
| RSA CPS (2K keys) |
3K |
7.4K |
| ECC CPS (EC-P256) |
3K |
4.3K |
| Bulk encryption (Gbps) |
3.5 |
3.5 |
| Licenses |
||
| Available throughput licenses |
6 and 12 Gbps |
6 and 12 Gbps |
| Max number of virtual ADC instances* |
N/A |
N/A |
| HW specifications |
||
| Processor |
Intel quad-core CPU |
Intel quad-core CPU |
| Memory |
8GB / up to 16GB |
8GB / up to 16GB |
| Traffic ports |
"2 x 10 GbE SFP+ 8 x 1 GbE RJ45" |
"2 x 10 GbE SFP+ 8 x 1 GbE RJ45" |
| HPP (high-performance package) |
N/A |
N/A |
| USB port |
Yes |
Yes |
| RS-232C console |
RJ-45 Serial Connection |
RJ-45 Serial Connection |
| Environmental specifications |
||
| Power |
Auto-range power supply 80 plus certified (dual PS version) AC: 100-240V, 47-63 Hz Power consumption: 55W Dual power supply is optional |
Auto-range power supply 80 plus certified (dual PS version) AC: 100-240V, 47-63 Hz Power consumption: 55W Dual power supply is optional |
| Heat dissipation |
188 BTU/h |
188 BTU/h |
| Dimensions |
436 mm (17.2”) W x 336 mm (13.2”) D x 44 mm (1.7” / 1U) H EIA Rack or Standalone: 482 mm (19”) |
436 mm (17.2”) W x 336 mm (13.2”) D x 44 mm (1.7” / 1U) H EIA Rack or Standalone: 482 mm (19”) |
| Weight |
Single power supply: 4.23 kg (7.1 lbs) Dual power supply: 5.4 kg (11.9 lbs) |
Single power supply: 4.23 kg (7.1 lbs) Dual power supply: 5.4 kg (11.9 lbs) |
| Operating environmental |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
Temperature: 0-40°C (32-104°F) Humidity: 5% to 95% noncondensing |
| Airflow direction |
Front-to-Back |
Front-to-Back |
| Minimum CFM |
21.9 |
21.9 |
| Compliance & certifications |
||
| Compliance |
||
| RoHS2 |
Compliant (EU directive 2011/65/EU) |
|
| Safety/EMC/EMI |
FCC Part 15, Subpart B, Class A; IC ICES-003:2016 Issue 6, Class A; ANSI C63.4:2014; UL 60950- 1:2007 R10.14; CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014; UL 62368-1:2007 R10.14; CAN/ CSA-C22.2 No. 62368-1-14; EN 55024:2010; EN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class A; EN 300 386 V2.1.1 (2016-07); EN 61000-3-2:2014; EN 61000-3-3:2013; EN 61000-4-2:2009; EN 61000-4-3:2006 +A1:2008 +A2:2010; EN 61000-4-4:2012; EN 61000-4-5:2014; EN 61000-4-6:2014; EN 61000-4-8:2010; EN 61000-4-11:2004 |
|
| Certifications |
CCC (China), TUV (US, Canada), CE (Europe), FCC (US), KCC (Korea), BSMI (Taiwan), EAC (Russia), VCCI (Japan), Anatel (Brazil) |
|
