Cisco Catalyst 1300 Series Switches Data Sheet
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
Critical building block for any branch office or SMB office network
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be top of mind, while ongoing management and operations add complexity that takes time and resources.
The Cisco Catalyst™ 1300 Series Switches are affordable, simple-to-use switches designed and built for enterprise branch offices as well as SMB networks. Managed through the Cisco® Business Dashboard and Cisco Business mobile app, the switch portfolio provides a simple and reliable experience.
Cisco Business Dashboard and Cisco Business mobile app

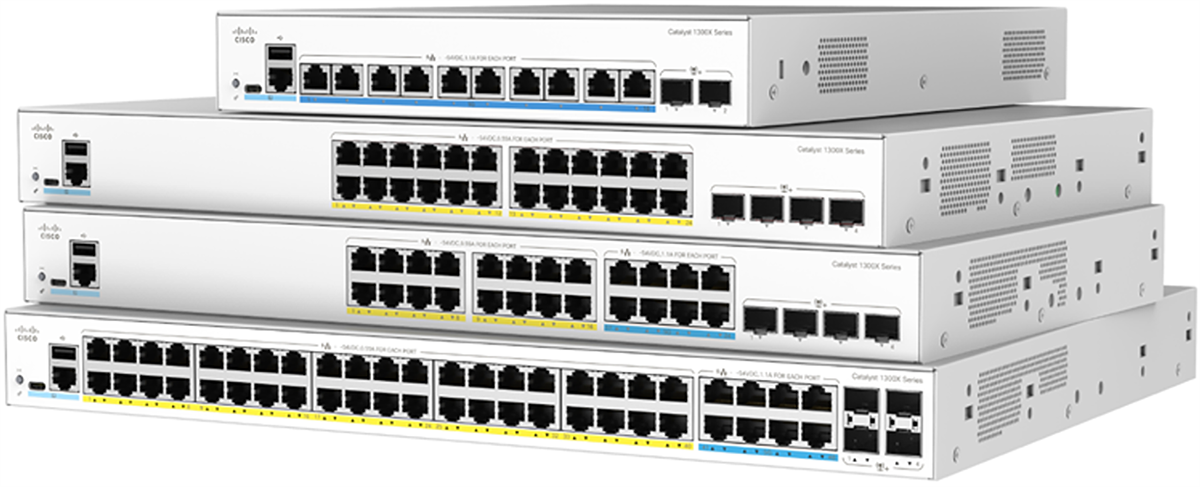

Cisco Catalyst 1300 Series switches
The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for branches and growing networks and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.
Cisco Catalyst 1300 Series switches
Whether you need a basic high-performance network to connect employee computers or a solution to deliver data, voice, and video services, the Cisco Catalyst 1300 Series Switches offer a solution to meet your needs. Possible deployment scenarios include:
● Secure office connectivity: The 1300 Series switches can simply and securely connect employees working in branch offices with each other and with all of the servers, printers, and other networking devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
● Unified communications: As a managed network solution, the 1300 Series switches provide the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for businesses. The 1300 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete business solution.
● Highly secure guest connectivity: The 1300 Series switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests’ network sessions private from each other.
The Cisco Catalyst 1300 Series Switches provide the advanced feature set that growing businesses require and that high-bandwidth applications and technologies demand. They provide the following benefits.
Ease of management and deployment
The 1300 Series switches are designed to be easy to use and manage by commercial customers or the partners that serve them, including the following features:
● The Cisco Business Dashboard is designed to manage Cisco Business switches, Cisco Catalyst 1200 and 1300 Series switches, routers, and wireless access points. It simplifies traditional challenges in deploying and managing business networks while automating the deployment, monitoring, and lifecycle management of the network. The 1300 Series switches support an embedded probe as well as direct management, eliminating the need to set up a separate hardware or virtual machine onsite. The device onboarding wizard simplifies the setup and onboarding of new devices to the network. For more information, visit https://www.cisco.com/go/cbd.
● The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provisioning Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.
● The intuitive user interfaces reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count.
● The switches also support text view, a full Command-Line Interface (CLI) option for partners that prefer it.
● Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations.
● The switches support an external Bluetooth dongle that plugs into the USB port on the switch and allows a Bluetooth-based RF connection with external laptops and tablets (Figure 2). Laptops and tablets can access the switch CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser.
High reliability and resiliency
In a branch office or a growing business where availability 24 hours a day, 7 days a week is critical, you need to provide business continuity and ensure that employees can always access the data and resources they need. The Cisco Catalyst 1300 Series Switches support dual images, allowing you to perform software upgrades with minimal network downtime.
Strong security
The Cisco Catalyst 1300 Series Switches provide the advanced security features you need to protect your business data and keep unauthorized users off the network:
● Support for advanced network security applications such as IEEE 802.1X and port security tightly limits access to specific segments of your network. Web-based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying 802.1X clients on each endpoint.
● Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IP/MAC/port binding (IPMB).
● IPv6 First Hop Security extends advanced threat protection to IPv6. This comprehensive security suite includes Neighbor Discovery (ND) inspection, Router Advertisement (RA) guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks.
Power over Ethernet
The Cisco Catalyst 1300 Series Switches are available with up to 48 Power over Ethernet (PoE) ports. This capability simplifies advanced technology deployments such as IP telephony, wireless, and IP surveillance by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communication technologies more quickly and at a lower cost. Models support 802.3af PoE and 802.3at PoE+.
IPv6 support
As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Catalyst 1300 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future.
Advanced Layer 3 traffic management
The Cisco Catalyst 1300 Series Switches enable a more advanced set of traffic management capabilities to help growing networks and expanding branch offices organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.
With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security.
Front Panel Stacking
The Cisco Catalyst 1300 Series Switches provide Front Panel Stacking capability for up to eight switches, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit with a single IP address.
This stack delivers a unified data and control plane, in addition to the management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. Front Panel Stacking also provides other cost savings and administrative benefits through features such as cross-stack Quality of Service (QoS), VLANs, Link Aggregation (LAG), and port mirroring, which clustered switches cannot support.
Compact design
The sleek and compact design for the Cisco Catalyst 1300 Series Switches provides additional deployment flexibility, including installation outside the wiring closet for sites such as retail stores, open-plan offices, and classrooms without disturbing the environment.
Power efficiency
The Cisco Catalyst 1300 Series Switches integrate a variety of power-saving features across all models, providing the industry’s most extensive energy-efficient switching portfolio. These switches are designed to conserve energy by optimizing power use, which helps protect the environment and reduce your energy costs. They provide an eco-friendly network solution without compromising performance. The switches feature:
● Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
● Automatic power shutoff on ports when a link is down.
● Embedded intelligence to adjust signal strength based on the length of the connecting cable.
● Fanless design in most models, which reduces power consumption, increases reliability, and provides quieter operation.
Peace of mind and investment protection
The Cisco Catalyst 1300 Series Switches offer the reliable performance and peace of mind you expect from a Cisco switch. They have been rigorously tested to help ensure optimal network uptime and provide business continuity. Complimentary one-year access to our Small Business Support Center for ongoing support and a limited lifetime warranty with Return-To-Factory (RTF) replacement help keep your business running smoothly.
Table 1 gives the product specifications for the Cisco Catalyst 1300 Series Switches.
Table 1. Product specifications
| Description |
||||||||||||||||
| Performance |
||||||||||||||||
| Switching capacity and forwarding rate All switches are wire speed and nonblocking |
Model |
Capacity in Millions of Packets Per Second (mpps) (64-byte packets) |
Switching capacity in Gigabits per second (Gbps) |
|||||||||||||
| C1300-8FP-2G |
14.88 |
20.0 |
||||||||||||||
| C1300-8T-E-2G |
14.88 |
20.0 |
||||||||||||||
| C1300-8P-E-2G |
14.88 |
20.0 |
||||||||||||||
| C1300-16T-2G |
26.78 |
36.0 |
||||||||||||||
| C1300-16P-2G |
26.78 |
36.0 |
||||||||||||||
| C1300-16FP-2G |
26.78 |
36.0 |
||||||||||||||
| C1300-24T-4G |
41.66 |
56.0 |
||||||||||||||
| C1300-24P-4G |
41.66 |
56.0 |
||||||||||||||
| C1300-24FP-4G |
41.66 |
56.0 |
||||||||||||||
| C1300-48T-4G |
77.38 |
104.0 |
||||||||||||||
| C1300-48P-4G |
77.38 |
104.0 |
||||||||||||||
| C1300-48FP-4G |
77.38 |
104.0 |
||||||||||||||
| C1300-16P-4X |
83.32 |
112.0 |
||||||||||||||
| C1300-24T-4X |
95.23 |
128.0 |
||||||||||||||
| C1300-24P-4X |
95.23 |
128.0 |
||||||||||||||
| C1300-24FP-4X |
95.23 |
128.0 |
||||||||||||||
| C1300-48T-4X |
130.94 |
176.0 |
||||||||||||||
| C1300-48P-4X |
130.94 |
176.0 |
||||||||||||||
| C1300-48FP-4X |
130.94 |
176.0 |
||||||||||||||
| C1300-8MGP-2X |
41.66 |
56 |
||||||||||||||
| C1300-24MGP-4X |
113.08 |
152 |
||||||||||||||
| C1300-48MGP-4X |
166.65 |
224 |
||||||||||||||
| C1300-12XT-2X |
208.33 |
280 |
||||||||||||||
| C1300-12XS |
178.57 |
240 |
||||||||||||||
| C1300-16XTS |
238.1 |
320 |
||||||||||||||
| C1300-24XS |
357.14 |
480 |
||||||||||||||
| C1300-24XT |
357.14 |
480 |
||||||||||||||
| C1300-24XTS |
357.12 |
480 |
||||||||||||||
| Layer 2 switching |
||||||||||||||||
| Spanning Tree Protocol |
Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported |
|||||||||||||||
| Port grouping/link aggregation |
● Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● Up to 8 groups
● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
|
|||||||||||||||
| VLAN |
Support for up to 4093 VLANs simultaneously Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication Customer premises equipment (CPE) VLAN Auto surveillance VLAN (ASV) |
|||||||||||||||
| Voice VLAN |
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices |
|||||||||||||||
| Multicast TV VLAN |
Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR) |
|||||||||||||||
| VLAN translation |
Support for VLAN one-to-one mapping, in which customer VLANs (C-VLANs) on an edge interface are mapped to service provider VLANs (S-VLANs), and the original C-VLAN tags are replaced by the specified S-VLAN |
|||||||||||||||
| Q-in-Q |
VLANs transparently cross a service provider network while isolating traffic among customers |
|||||||||||||||
| Selective Q-in-Q |
Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs Selective Q-in-Q also allows configuring of the Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag Layer 2 protocol tunneling over Q-in-Q is also supported |
|||||||||||||||
| Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) |
GVRP and GARP enable automatic propagation and configuration of VLANs in a bridged domain |
|||||||||||||||
| Unidirectional Link |
UDLD monitors physical connections to detect unidirectional links caused by incorrect |
|||||||||||||||
| Detection (UDLD) |
wiring or cable/port faults to prevent forwarding loops and blackholing of traffic in switched networks |
|||||||||||||||
| DHCP relay at Layer 2 |
Relay of DHCP traffic to a DHCP server in a different VLAN; works with DHCP Option 82 |
|||||||||||||||
| Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping |
IGMP limits bandwidth-intensive multicast traffic to only the requesters; it supports 2000 multicast groups (source-specific multicasting is also supported) |
|||||||||||||||
| IGMP querier |
IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
|||||||||||||||
| IGMP proxy |
The IGMP proxy provides a mechanism for multicast forwarding based on IGMP membership information without the need for more complicated multicast routing protocols |
|||||||||||||||
| Head-of-Line (HOL) blocking |
HOL blocking prevention |
|||||||||||||||
| Loopback detection |
Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP |
|||||||||||||||
| Layer 3 |
||||||||||||||||
| IPv4 routing |
Wire-speed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces |
|||||||||||||||
| IPv6 routing |
Wire-speed routing of IPv6 packets |
|||||||||||||||
| Layer 3 interface |
Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface |
|||||||||||||||
| Classless Interdomain Routing (CIDR) |
Support for CIDR |
|||||||||||||||
| Routing Information Protocol (RIP) v2 |
Support for RIP v2 for dynamic routing |
|||||||||||||||
| Policy-Based Routing (PBR) |
Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL) |
|||||||||||||||
| DHCP server |
Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes Support for DHCP options |
|||||||||||||||
| DHCP relay at Layer 3 |
Relay of DHCP traffic across IP domains |
|||||||||||||||
| User Datagram Protocol (UDP) relay |
Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets |
|||||||||||||||
| Stacking |
||||||||||||||||
| Hardware stacking |
Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover Stacking is supported on the following models:
● Family 1: C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-8MGP-2X, C1300-24MGP-4X, C1300-48MGP-4X
● Family 2: C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300-24XTS
● PIDs from the same Family can be stacked together. Cross-stacking between Families is not supported.
|
|||||||||||||||
| High availability |
Fast stack failover delivers minimal traffic loss. Support for LAG across multiple units in a stack |
|||||||||||||||
| Plug-and-play stacking configuration/management |
Active/standby for resilient stack control Auto-numbering Hot swap of units in stack Ring and chain stacking options, auto stacking port speed, flexible stacking port options |
|||||||||||||||
| High-speed stack interconnects |
Cost-effective high-speed 10 Gigabit Ethernet fiber interfaces |
|||||||||||||||
| Security |
||||||||||||||||
| Secure Shell (SSH) Protocol |
SSH is a secure replacement for Telnet traffic. Secure Copy Protocol (SCP) also uses SSH. SSH v1 and v2 are supported |
|||||||||||||||
| Secure Sockets Layer (SSL) |
SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch |
|||||||||||||||
| IEEE 802.1X (authenticator role) |
802.1X: RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions Supports time-based 802.1X, dynamic VLAN assignment, and MAC authentication |
|||||||||||||||
| IEEE 802.1X supplicant |
A switch can be configured to act as a supplicant to another switch. This enables extended secure access in areas outside the wiring closet (such as conference rooms) |
|||||||||||||||
| Web-based authentication |
Web-based authentication provides network admission control through a web browser to any host devices and operating systems |
|||||||||||||||
| STP Bridge Protocol Data Unit (BPDU) Guard |
A security mechanism to protect the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops |
|||||||||||||||
| STP Root Guard |
Prevents edge devices not in the network administrator’s control from becoming STP root nodes |
|||||||||||||||
| STP loopback guard |
Provides additional protection against Layer 2 forwarding loops (STP loops) |
|||||||||||||||
| DHCP snooping |
Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as DHCP servers |
|||||||||||||||
| IP Source Guard (IPSG) |
When IPSG is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing |
|||||||||||||||
| Dynamic ARP Inspection (DAI) |
The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination addresses in the ARP packet. This prevents man-in-the-middle attacks |
|||||||||||||||
| IP/MAC/port binding (IPMB) |
The preceding features (DHCP snooping, IPSG, and DAI) work together to prevent Denial-of-Service (DoS) attacks in the network, thereby increasing network availability |
|||||||||||||||
| Secure Core Technology (SCT) |
Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received |
|||||||||||||||
| Secure Sensitive Data (SSD) |
A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user |
|||||||||||||||
| Trustworthy systems |
Trustworthy systems provide a highly secure foundation for Cisco products Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC]) |
|||||||||||||||
| Private VLAN |
Provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks. |
|||||||||||||||
| Layer 2 isolation Private VLAN Edge (PVE) |
PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN; supports multiple uplinks |
|||||||||||||||
| Port security |
Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses |
|||||||||||||||
| RADIUS/TACACS+ |
Supports RADIUS and TACACS authentication. Switch functions as a client |
|||||||||||||||
| RADIUS accounting |
The RADIUS accounting functions allow data to be sent at the start and end of services indicating the number of resources (such as time, packets, bytes, and so on) used during the session |
|||||||||||||||
| Storm control |
Broadcast, multicast, and unknown unicast |
|||||||||||||||
| DoS prevention |
DoS attack prevention |
|||||||||||||||
| Multiple user privilege levels in CLI |
Level 1, 7, and 15 privilege levels |
|||||||||||||||
| ACLs |
Support for up to 1024 rules Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides Time-based ACLs supported |
|||||||||||||||
| Quality of service |
||||||||||||||||
| Priority levels |
8 hardware queues |
|||||||||||||||
| Scheduling |
Strict priority and Weighted Round-Robin (WRR) |
|||||||||||||||
| Class of service |
Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP and Class of Service (802.1p/CoS) |
|||||||||||||||
| Rate limiting |
Ingress policer; egress shaping and rate control per VLAN, per port, and flow based; dual-rate 3-color (2R3C) policing |
|||||||||||||||
| Congestion avoidance |
A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization |
|||||||||||||||
| iSCSI traffic optimization |
A mechanism for giving priority to iSCSI traffic over other types of traffic |
|||||||||||||||
| Standards |
||||||||||||||||
| Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330 |
|||||||||||||||
| IPv6 |
||||||||||||||||
| IPv6 |
IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration, path Maximum Transmission Unit (MTU) discovery Duplicate Address Detection (DAD), ICMP version 6 DHCPv6 stateful client IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) tunnel support |
|||||||||||||||
| IPv6 QoS |
Prioritize IPv6 packets in hardware |
|||||||||||||||
| IPv6 ACL |
Drop or rate-limit IPv6 packets in hardware |
|||||||||||||||
| IPv6 First Hop Security |
RA guard ND inspection DHCPv6 guard Neighbor binding table (snooping and static entries) Neighbor binding integrity check |
|||||||||||||||
| Multicast Listener Discovery (MLD v1/2) snooping |
Deliver IPv6 multicast packets only to the required receivers |
|||||||||||||||
| MLD proxy |
The MLD proxy provides a mechanism for multicast forwarding based on MLD membership information without the need for more complicated multicast routing protocols |
|||||||||||||||
| IPv6 applications |
Web/SSL, Telnet server/SSH, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, DNS client, Telnet client, DHCP client, DHCP auto-config, IPv6 DHCP relay, TACACS+ |
|||||||||||||||
| IPv6 RFCs supported |
RFC 4443 (which obsoletes RFC 2463): ICMP version 6 RFC 4291 (which obsoletes RFC 3513): IPv6 address architecture RFC 4291: IPv6 addressing architecture RFC 2460: IPv6 specification RFC 4861 (which obsoletes RFC 2461): neighbor discovery for IPv6 RFC 4862 (which obsoletes RFC 2462): IPv6 stateless address auto-configuration RFC 1981: path MTU discovery RFC 4007: IPv6 scoped address architecture RFC 3484: default address selection mechanism RFC 5214 (which obsoletes RFC 4214): ISATAP tunneling RFC 4293: MIB IPv6: textual conventions and general group RFC 3595: textual conventions for IPv6 flow label |
|||||||||||||||
| Management |
||||||||||||||||
| Cisco Business Dashboard |
Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe onsite |
|||||||||||||||
| Cisco Business mobile app |
Mobile app for Cisco Business and Catalyst 1200 and 1300 switches and wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips |
|||||||||||||||
| Cisco Network Plug and Play (PnP) agent |
The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience. Supports Cisco PnP Connect |
|||||||||||||||
| Web user interface |
Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS) Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search |
|||||||||||||||
| SNMP |
SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 User-Based Security Model (USM) |
|||||||||||||||
| Standard MIBs |
lldp-MIB lldpextdot1-MIB lldpextdot3-MIB lldpextmed-MIB rfc2674-MIB rfc2575-MIB rfc2573-MIB rfc2233-MIB rfc2013-MIB rfc2012-MIB rfc2011-MIB RFC-1212 RFC-1215 SNMPv2-CONF SNMPv2-TC p-bridge-MIB q-bridge-MIB rfc1389-MIB rfc1493-MIB rfc1611-MIB rfc1612-MIB rfc1850-MIB rfc1907-MIB rfc2571-MIB rfc2572-MIB rfc2574-MIB rfc2576-MIB rfc2613-MIB rfc2665-MIB |
rfc2668-MIB rfc2737-MIB rfc2925-MIB rfc3621-MIB rfc4668-MIB rfc4670-MIB trunk-MIB tunnel-MIB udp-MIB draft-ietf-bridge-8021x-MIB draft-ietf-bridge-rstpmib-04-MIB draft-ietf-hubmib-etherif-mib-v3-00-MIB draft-ietf-syslog-device-MIB ianaaddrfamnumbers-MIB ianaifty-MIB ianaprot-MIB inet-address-MIB ip-forward-MIB ip-MIB RFC1155-SMI RFC1213-MIB SNMPv2-MIB SNMPv2-SMI SNMPv2-TM RMON-MIB rfc1724-MIB dcb-raj-DCBX-MIB-1108-MIB rfc1213-MIB rfc1757-MIB |
||||||||||||||
| Private MIBs |
CISCOSB-lldp-MIB CISCOSB-brgmulticast-MIB CISCOSB-bridgemibobjects-MIB CISCOSB-bonjour-MIB CISCOSB-dhcpcl-MIB CISCOSB-MIB CISCOSB-wrandomtaildrop-MIB CISCOSB-traceroute-MIB CISCOSB-telnet-MIB CISCOSB-stormctrl-MIB CISCOSB-ssh-MIB CISCOSB-socket-MIB CISCOSB-sntp-MIB CISCOSB-smon-MIB CISCOSB-phy-MIB CISCOSB-multisessionterminal-MIB CISCOSB-mri-MIB CISCOSB-jumboframes-MIB CISCOSB-gvrp-MIB CISCOSB-endofmib-MIB CISCOSB-dot1x-MIB CISCOSB-deviceparams-MIB CISCOSB-cli-MIB CISCOSB-cdb-MIB CISCOSB-brgmacswitch-MIB CISCOSB-3sw2swtables-MIB CISCOSB-smartPorts-MIB CISCOSB-tbi-MIB CISCOSB-macbaseprio-MIB CISCOSB-policy-MIB CISCOSB-env_mib CISCOSB-sensor-MIB CISCOSB-aaa-MIB CISCOSB-application-MIB CISCOSB-bridgesecurity-MIB CISCOSB-copy-MIB CISCOSB-CpuCounters-MIB CISCOSB-Custom1BonjourService-MIB CISCOSB-dhcp-MIB CISCOSB-dlf-MIB CISCOSB-dnscl-MIB CISCOSB-embweb-MIB CISCOSB-fft-MIB CISCOSB-file-MIB CISCOSB-greeneth-MIB CISCOSB-interfaces-MIB CISCOSB-interfaces_recovery-MIB |
CISCOSB-ip-MIB CISCOSB-iprouter-MIB CISCOSB-ipv6-MIB CISCOSB-mnginf-MIB CISCOSB-lcli-MIB CISCOSB-localization-MIB CISCOSB-mcmngr-MIB CISCOSB-mng-MIB CISCOSB-physdescription-MIB CISCOSB-PoE-MIB CISCOSB-protectedport-MIB CISCOSB-rmon-MIB CISCOSB-rs232-MIB CISCOSB-SecuritySuite-MIB CISCOSB-snmp-MIB CISCOSB-specialbpdu-MIB CISCOSB-banner-MIB CISCOSB-syslog-MIB CISCOSB-TcpSession-MIB CISCOSB-traps-MIB CISCOSB-trunk-MIB CISCOSB-tuning-MIB CISCOSB-tunnel-MIB CISCOSB-udp-MIB CISCOSB-vlan-MIB CISCOSB-ipstdacl-MIB CISCOSB-eee-MIB CISCOSB-ssl-MIB CISCOSB-qosclimib-MIB CISCOSB-digitalkeymanage-MIB CISCOSB-tbp-MIB CISCOSMB-MIB CISCOSB-secsd-MIB CISCOSB-draft-ietf-entmib-sensor-MIB CISCOSB-draft-ietf-syslog-device-MIB CISCOSB-rfc2925-MIB CISCO-SMI-MIB CISCOSB-DebugCapabilities-MIB CISCOSB-CDP-MIB CISCOSB-vlanVoice-MIB CISCOSB-EVENTS-MIB CISCOSB-sysmng-MIB CISCOSB-sct-MIB CISCO-TC-MIB CISCO-VTP-MIB CISCO-CDP-MIB |
||||||||||||||
| Remote Monitoring (RMON) |
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis |
|||||||||||||||
| IPv4 and IPv6 dual stack |
Coexistence of both protocol stacks to ease migration |
|||||||||||||||
| Firmware upgrade |
Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH Dual images for resilient firmware upgrades |
|||||||||||||||
| Port mirroring |
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port |
|||||||||||||||
| VLAN mirroring |
Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port |
|||||||||||||||
| Flow-based redirection and mirroring |
Redirect or mirror traffic to a destination port or mirroring session based on flow |
|||||||||||||||
| Remote Switch Port Analyzer (RSPAN) |
Traffic can be mirrored across a Layer 2 domain to a remote port on a different switch for easier troubleshooting |
|||||||||||||||
| sFlow agent |
Switch can export sFlow sample to external collectors. sFlow provides visibility into network traffic down to the flow level |
|||||||||||||||
| DHCP (options 12, 59, 60, 66, 67, 82, 125, 129, and 150) |
DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration and image file download), DHCP relay, and hostname |
|||||||||||||||
| Secure Copy (SCP) |
Securely transfer files to and from the switch |
|||||||||||||||
| Auto-configuration with SCP file download |
Enables secure mass deployment with protection of sensitive data |
|||||||||||||||
| Text-editable configuration files |
Configuration files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment |
|||||||||||||||
| Smartports |
Simplified configuration of QoS and security capabilities |
|||||||||||||||
| Auto Smartports |
Applies the intelligence delivered through the Smartport roles and applies it automatically to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments |
|||||||||||||||
| Text view CLI |
Scriptable CLI. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI |
|||||||||||||||
| Localization |
Localization of GUI and documentation into multiple languages |
|||||||||||||||
| Login banner |
Configurable multiple banners for web as well as CLI |
|||||||||||||||
| Other management |
Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, Xmodem upgrade, cable diagnostics, ping, syslog, Telnet client (SSH secure support), automatic time settings from management station |
|||||||||||||||
| Green (power efficiency) |
||||||||||||||||
| Energy detect |
Automatically turns power off on an RJ-45 port when the detecting link down. Active mode is resumed without loss of any packets when the switch detects the link is up |
|||||||||||||||
| Cable length detection |
Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables |
|||||||||||||||
| EEE compliant (802.3az) |
Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
|||||||||||||||
| Disable port LEDs |
LEDs can be manually turned off to save energy |
|||||||||||||||
| Time-based port operation |
Link up or down based on user-defined schedule (when the port is administratively up) |
|||||||||||||||
| Time-based PoE |
PoE power can be on or off based on a user-defined schedule to save energy |
|||||||||||||||
| Persistent PoE |
Provides PoE power while the device is rebooting |
|||||||||||||||
| General |
||||||||||||||||
| Jumbo frames |
Frame sizes up to 9000 bytes. The default MTU is 2000 bytes |
|||||||||||||||
| MAC table |
16,000 addresses |
|||||||||||||||
| Chip guard |
Detects tampering attempts and responds during bootup |
|||||||||||||||
| Boot integrity |
Boot integrity visibility allows Cisco's platform identity and software integrity information to be visible and actionable |
|||||||||||||||
| Discovery |
||||||||||||||||
| Bonjour |
The switch advertises itself using the Bonjour protocol |
|||||||||||||||
| Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-Media Endpoint Discovery (MED) extensions |
LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones. |
|||||||||||||||
| Cisco Discovery Protocol |
The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via Cisco Discovery Protocol |
|||||||||||||||
| Power over Ethernet (PoE) |
||||||||||||||||
| 802.3af PoE, 802.3at PoE+ |
The following switches support 802.3at PoE+, 802.3af, and Cisco pre-standard (legacy) PoE. The total power available for PoE per switch is as follows: |
|||||||||||||||
| Model |
Power dedicated to PoE |
Number of ports that support PoE |
||||||||||||||
| C1300-8P-E-2G |
67W |
8 |
||||||||||||||
| C1300-8FP-2G |
120W |
8 |
||||||||||||||
| C1300-16P-2G |
120W |
16 |
||||||||||||||
| C1300-16FP-2G |
240W |
16 |
||||||||||||||
| C1300-24P-4G |
195W |
24 |
||||||||||||||
| C1300-24FP-4G |
375W |
24 |
||||||||||||||
| C1300-48P-4G |
375W |
48 |
||||||||||||||
| C1300-48FP-4G |
740W |
48 |
||||||||||||||
| C1300-16P-4X |
120W |
16 |
||||||||||||||
| C1300-24P-4X |
195W |
24 |
||||||||||||||
| C1300-24FP-4X |
375W |
24 |
||||||||||||||
| C1300-48P-4X |
375W |
48 |
||||||||||||||
| C1300-48FP-4X |
740W |
48 |
||||||||||||||
| C1300-8MGP-2X |
120W |
8 |
||||||||||||||
| C1300-24MGP-4X |
375W |
24 |
||||||||||||||
| C1300-48MGP-4X |
740W |
48 |
||||||||||||||
| Hardware |
||||||||||||||||
| Model |
System power consumption |
Power consumption (with PoE) |
Heat dissipation (BTU/hr) |
Idle Power |
||||||||||||
| C1300-8T-E-2G |
110V=10.63W 220V=10.65W |
N/A |
36.33 |
110V=4.58W 220V=4.72W |
||||||||||||
| C1300-8P-E-2G |
110V=13.04W 220V=13.33W |
110V=87.89W 220V=84.86W |
299.91 |
110V=7.76W 220V=7.46W |
||||||||||||
| C1300-8FP-2G |
110V=14.59W 220V=14.33W |
110V=145.44W 220V=141.80W |
496.26 |
110V=9.75W 220V=9.59W |
||||||||||||
| C1300-16T-2G |
110V=10.9W 220V=11.2W |
N/A |
38.2 |
110V=4.6W 220V=4.9W |
||||||||||||
| C1300-16P-2G |
110V=18.3W 220V=20.5W |
110V=152.7W 220V=151.8W |
520.7 |
110V=8.4W 220V=10.2W |
||||||||||||
| C1300-16FP-2G |
110V=20.6W 220V=22.1W |
110V=281.9W 220V=275.2W |
961.3 |
110V=12.6W 220V=13.6W |
||||||||||||
| C1300-24T-4G |
110V=14.6W 220V=14.8W |
N/A |
50.5 |
110V=4.9W 220V=5.2W |
||||||||||||
| C1300-24P-4G |
110V=27.1W 220V=27.5W |
110V=233.2W 220V=230.5W |
795.2 |
110V=13.9W 220V=12.9W |
||||||||||||
| C1300-24FP-4G |
110V=36.9W 220V=37.2W |
110V=452.3W 220V=436.9W |
1542.3 |
110V=21.7W 220V=22.5W |
||||||||||||
| C1300-48T-4G |
110V=38.80W 220V=38.07W |
N/A |
132.39 |
110V=13.36W 220V=13.09W |
||||||||||||
| C1300-48P-4G |
110V=44.81W 220V=43.93W |
110V=450.65W 220V=437.14W |
1537.68 |
110V=21.03W 220V=20.68W |
||||||||||||
| C1300-48FP-4G |
110V=45.66W 220V=45.14W |
110V=854.45W 220V=819.41W |
2915.50 |
110V=21.27W 220V=21.03W |
||||||||||||
| C1300-16P-4X |
110V=24.7W 220V=26.8W |
110V=157.6W 220V=156.3W |
537.4 |
110V=8.7W 220V=10.3W |
||||||||||||
| C1300-24T-4X |
110V=22.3W 220V=22.4W |
N/A |
76.4 |
110V=4.9W 220V=5.2W |
||||||||||||
| C1300-24P-4X |
110V=31.4W 220V=31.8W |
110V=235.8W 220V=232.9W |
804.1 |
110V=13.9W 220V=14.8W |
||||||||||||
| C1300-24FP-4X |
110V=40.9W 220V=40.9W |
110V=454.2W 220V=441.2W |
1548.8 |
110V=21.9W 220V=22.5W |
||||||||||||
| C1300-48T-4X |
110V=40.01W 220V=39.77W |
N/A |
136.50 |
110V=13.12W 220V=12.93W |
||||||||||||
| C1300-48P-4X |
110V=47.44W 220V=47.03W |
110V=462.84W 220V=449.48W |
1579.28 |
110V=20.51W 220V=20.27W |
||||||||||||
| C1300-48FP-4X |
110V=49.89W 220V=49.03W |
110V=874.52W 220V=831.71W |
2983.99 |
110V=21.78W 220V=21.05W |
||||||||||||
| C1300-8MGP-2X |
110V=21.4W |
110V=145.1W |
494.79 |
110V=10.4W |
||||||||||||
| C1300-24MGP-4X |
110V=46.3W |
110V=459W |
1565.19 |
110V=23.4W |
||||||||||||
| C1300-48MGP-4X |
110V=92.4W |
110V=883.4W |
3012.39 |
110V=54.6W |
||||||||||||
| C1300-12XT-2X |
110V=50.3W |
NA |
218.38 |
110V=20.7W |
||||||||||||
| C1300-12XS |
110V=24.3W |
NA |
132.39 |
110V=9.9W |
||||||||||||
| C1300-16XTS |
110V=33.36W |
NA |
195.86 |
110V=16.4W |
||||||||||||
| C1300-24XS |
110V=49.46W |
NA |
220.77 |
110V=21.5W |
||||||||||||
| C1300-24XT |
110V=87.3W |
NA |
341.21 |
110V=36.5W |
||||||||||||
| C1300-24XTS |
110V=88.2W |
NA |
300.76 |
110V=22.3W |
||||||||||||
| Ports |
Model |
Total system ports |
RJ-45 ports |
Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) |
||||||||||||
| C1300-8T-E-2G |
10 x Gigabit Ethernet |
8 x Gigabit Ethernet |
2 x Gigabit Ethernet combo |
|||||||||||||
| C1300-8P-E-2G |
10 x Gigabit Ethernet |
8 x Gigabit Ethernet |
2 x Gigabit Ethernet combo |
|||||||||||||
| C1300-8FP-2G |
10 x Gigabit Ethernet |
8 x Gigabit Ethernet |
2 x Gigabit Ethernet combo |
|||||||||||||
| C1300-16T-2G |
18 x Gigabit Ethernet |
16 x Gigabit Ethernet |
2 x SFP |
|||||||||||||
| C1300-16P-2G |
18 x Gigabit Ethernet |
16 x Gigabit Ethernet |
2 x SFP |
|||||||||||||
| C1300-16FP-2G |
18 x Gigabit Ethernet |
16 x Gigabit Ethernet |
2 x SFP |
|||||||||||||
| C1300-24T-4G |
28 x Gigabit Ethernet |
24 x Gigabit Ethernet |
4 x SFP |
|||||||||||||
| C1300-24P-4G |
28 x Gigabit Ethernet |
24 x Gigabit Ethernet |
4 x SFP |
|||||||||||||
| C1300-24FP-4G |
28 x Gigabit Ethernet |
24 x Gigabit Ethernet |
4 x SFP |
|||||||||||||
| C1300-48T-4G |
52 x Gigabit Ethernet |
48 x Gigabit Ethernet |
4 x SFP |
|||||||||||||
| C1300-48P-4G |
52 x Gigabit Ethernet |
48 x Gigabit Ethernet |
4 x SFP |
|||||||||||||
| C1300-48FP-4G |
52 x Gigabit Ethernet |
48 x Gigabit Ethernet |
4 x SFP |
|||||||||||||
| C1300-16P-4X |
16 x Gigabit Ethernet + 4 x 10G |
16 x Gigabit Ethernet |
4 x SFP+ |
|||||||||||||
| C1300-24T-4X |
24 x Gigabit Ethernet + 4 x 10G |
24 x Gigabit Ethernet |
4 x SFP+ |
|||||||||||||
| C1300-24P-4X |
24 x Gigabit Ethernet + 4 x 10G |
24 x Gigabit Ethernet |
4 x SFP+ |
|||||||||||||
| C1300-24FP-4X |
24 x Gigabit Ethernet + 4 x 10G |
24 x Gigabit Ethernet |
4 x SFP+ |
|||||||||||||
| C1300-48T-4X |
48 x Gigabit Ethernet + 4 x 10G |
48 x Gigabit Ethernet |
4 x SFP+ |
|||||||||||||
| C1300-48P-4X |
48 x Gigabit Ethernet + 4 x 10 G |
48x Gigabit Ethernet |
4x SFP+ |
|||||||||||||
| C1300-48FP-4X |
48 Gigabit Ethernet + 4 x 10G |
48 x Gigabit Ethernet |
4 x SFP+ |
|||||||||||||
| C1300-8MGP-2X |
4 Gigabit Ethernet + 4 x 2.5G + 2 x 10G |
4 x Gigabit Ethernet + 4 x 2.5G |
2 x SFP+ |
|||||||||||||
| C1300-24MGP-4X |
16 Gigabit Ethernet + 8 x 2.5G + 4 x 10G |
16 Gigabit Ethernet + 8 x 2.5G |
4 x SFP+ |
|||||||||||||
| C1300-48MGP-4X |
32 Gigabit Ethernet + 16 x 2.5G + 4 x 10G |
32Gigabit Ethernet + 16 x 2.5G |
4 x SFP+ |
|||||||||||||
| C1300-12XT-2X |
12 10G Copper + 2 x 10G SFP+ + 1 x GE OOB management |
12 x 10G Copper |
2 x SFP+ |
|||||||||||||
| C1300-12XS |
10 x 10G SFP+ + 2 x 10G copper/SFP+ combo + 1 x GE OOB management |
10 x 10G SFP+ |
2 x 10G copper/SFP+ combo |
|||||||||||||
| C1300-16XTS |
8 x 10G copper + 8 x 10G SFP+ + 1 x GE OOB management |
8 x 10G copper |
8 x SFP+ |
|||||||||||||
| C1300-24XS |
20 x 10G SFP+ + 4 x 10G copper/SFP+ combo + 1 x GE OOB management |
20 x 10G SFP+ |
4 x 10G copper/SFP+ combo |
|||||||||||||
| C1300-24XT |
20 x 10G copper + 4 x 10G copper/SFP+ combo + 1 x GE OOB management |
20 x 10G copper |
4 x 10G copper/SFP+ combo |
|||||||||||||
| C1300-24XTS |
12 x 10G copper + 12 x 10G SFP+ + 1 x GE OOB management |
12x10G Copper |
12 x 10G SFP+ |
|||||||||||||
| Console port |
Cisco standard RJ-45 console port and USB Type C port |
|||||||||||||||
| USB port |
USB Type C port on the front panel of the switch for easy file and image management as well as console port |
|||||||||||||||
| Buttons |
Reset button |
|||||||||||||||
| Cabling type |
Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
|||||||||||||||
| LEDs |
System, Link/Act, PoE, Speed |
|||||||||||||||
| Flash |
512 MB |
|||||||||||||||
| CPU |
ARM dual-core at 1.4 GHz |
|||||||||||||||
| DRAM |
1 GB DDR4 |
|||||||||||||||
| Packet buffer |
All numbers are aggregate across all ports, as the buffers are dynamically shared: |
|||||||||||||||
| Model |
Packet buffer |
|||||||||||||||
| C1300-8T-E-2G |
1.5 MB |
|||||||||||||||
| C1300-8P-E-2G |
1.5 MB |
|||||||||||||||
| C1300-8FP-2G |
1.5 MB |
|||||||||||||||
| C1300-16T-2G |
1.5 MB |
|||||||||||||||
| C1300-16P-2G |
1.5 MB |
|||||||||||||||
| C1300-16FP-2G |
1.5 MB |
|||||||||||||||
| C1300-24T-4G |
1.5 MB |
|||||||||||||||
| C1300-24P-4G |
1.5 MB |
|||||||||||||||
| C1300-24FP-4G |
1.5 MB |
|||||||||||||||
| C1300-48T-4G |
1.5 MB |
|||||||||||||||
| C1300-48P-4G |
1.5 MB |
|||||||||||||||
| C1300-48FP-4G |
1.5 MB |
|||||||||||||||
| C1300-16P-4X |
1.5 MB |
|||||||||||||||
| C1300-24T-4X |
1.5 MB |
|||||||||||||||
| C1300-24P-4X |
1.5 MB |
|||||||||||||||
| C1300-24FP-4X |
1.5 MB |
|||||||||||||||
| C1300-48T-4X |
1.5 MB |
|||||||||||||||
| C1300-48P-4X |
1.5 MB |
|||||||||||||||
| C1300-48FP-4X |
1.5 MB |
|||||||||||||||
| C1300-8MGP-2X |
1.5 MB |
|||||||||||||||
| C1300-24MGP-4X |
1.5 MB |
|||||||||||||||
| C1300-48MGP-4X |
3 MB |
|||||||||||||||
| C1300-12XT-2X |
3 MB |
|||||||||||||||
| C1300-12XS |
3 MB |
|||||||||||||||
| C1300-16XTS |
3 MB |
|||||||||||||||
| C1300-24XS |
8 MB |
|||||||||||||||
| C1300-24XT |
8 MB |
|||||||||||||||
| C1300-24XTS |
8 MB |
|||||||||||||||
| Supported SFP modules |
SKU |
Media |
Speed |
Maximum distance |
||||||||||||
| MGBSX1 |
Multimode fiber |
1000 Mbps |
500 m |
|||||||||||||
| MGBLX1 |
Single-mode fiber |
1000 Mbps |
10 km |
|||||||||||||
| MGBLH1 |
Single-mode fiber |
1000 Mbps |
40 km |
|||||||||||||
| MGBT1 |
UTP Cat 5e |
1000 Mbps |
100 m |
|||||||||||||
| GLC-SX-MMD |
Multimode fiber |
1000 Mbps |
550 m |
|||||||||||||
| GLC-EX-SMD |
Single-mode fiber |
1000 Mbps |
40 km |
|||||||||||||
| GLC-ZX-SMD |
Single-mode fiber |
1000 Mbps |
70 km |
|||||||||||||
| GLC-LH-SMD |
Single-mode fiber |
1000 Mbps |
10 km |
|||||||||||||
| GLC-BX-U |
Single-mode fiber |
1000 Mbps |
10 km |
|||||||||||||
| GLC-BX-D |
Single-mode fiber |
1000 Mbps |
10 km |
|||||||||||||
| GLC-TE |
UTP Cat 5e |
1000 Mbps |
100 m |
|||||||||||||
| CWDM-SFP-1470 |
Single-mode fiber |
1000 Mbps |
80 km |
|||||||||||||
| CWDM-SFP-1490 |
Single-mode fiber |
1000 Mbps |
80 km |
|||||||||||||
| CWDM-SFP-1510 |
Single-mode fiber |
1000 Mbps |
80 km |
|||||||||||||
| CWDM-SFP-1530 |
Single-mode fiber |
1000 Mbps |
80 km |
|||||||||||||
| CWDM-SFP-1550 |
Single-mode fiber |
1000 Mbps |
80 km |
|||||||||||||
| CWDM-SFP-1570 |
Single-mode fiber |
1000 Mbps |
80 km |
|||||||||||||
| CWDM-SFP-1590 |
Single-mode fiber |
1000 Mbps |
80 km |
|||||||||||||
| CWDM-SFP-1610 |
Single-mode fiber |
1000 Mbps |
80 km |
|||||||||||||
| SFP-H10GB-CU1M |
Copper coax |
10 Gigabit Ethernet |
1 m |
|||||||||||||
| SFP-H10GB-CU3M |
Copper coax |
10 Gigabit Ethernet |
3 m |
|||||||||||||
| SFP-H10GB-CU5M |
Copper coax |
10 Gigabit Ethernet |
5 m |
|||||||||||||
| SFP-10G-SR |
Multimode fiber |
10 Gigabit Ethernet |
26 m to 400 m |
|||||||||||||
| SFP-10G-LR |
Single-mode fiber |
10 Gigabit Ethernet |
10 km |
|||||||||||||
| SFP-10G-SR-S |
Multimode fiber |
10 Gigabit Ethernet |
26 m to 400 m |
|||||||||||||
| SFP-10G-LR-S |
Single-mode fiber |
10 Gigabit Ethernet |
10 km |
|||||||||||||
| SFP-10G-ER |
Single-mode fiber |
10 Gigabit Ethernet |
40 km |
|||||||||||||
| SFP-10G-ER-S |
Single-mode fiber |
10 Gigabit Ethernet |
40 km |
|||||||||||||
| SFP-10G-T-X |
UTP CAT6A/CAT7 or better |
10 Gigabit Ethernet |
30 m |
|||||||||||||
| SFP-10G-BXD-I |
Single-mode fiber |
10 Gigabit Ethernet |
10 km |
|||||||||||||
| SFP-10G-BXU-I |
Single-mode fiber |
10 Gigabit Ethernet |
10 km |
|||||||||||||
| SFP-H10GB-CU1-5M |
Twinax cable, passive, 30AWG cable assembly |
10 Gigabit Ethernet |
5 m |
|||||||||||||
| SFP-H10GB-CU2M |
Twinax cable, passive, 30AWG cable assembly |
10 Gigabit Ethernet |
2 m |
|||||||||||||
| SFP-H10GB-CU2-5M |
Twinax cable, passive, 30AWG cable assembly |
10 Gigabit Ethernet |
2.5 m |
|||||||||||||
| SFP-H10GB-ACU7M |
Twinax cable, passive, 30AWG cable assembly |
10 Gigabit Ethernet |
7 m |
|||||||||||||
| SFP-H10GB-ACU10M |
Twinax cable, passive, 30AWG cable assembly |
10 Gigabit Ethernet |
10 m |
|||||||||||||
| SFP-10G-AOC1M |
Active Optical Cable assembly |
10 Gigabit Ethernet |
1 m |
|||||||||||||
| SFP-10G-AOC2M |
Active Optical Cable assembly |
10 Gigabit Ethernet |
2 m |
|||||||||||||
| SFP-10G-AOC3M |
Active Optical Cable assembly |
10 Gigabit Ethernet |
3 m |
|||||||||||||
| SFP-10G-AOC5M |
Active Optical Cable assembly |
10 Gigabit Ethernet |
5 m |
|||||||||||||
| SFP-10G-AOC7M |
Active Optical Cable assembly |
10 Gigabit Ethernet |
7 m |
|||||||||||||
| SFP-10G-AOC10M |
Active Optical Cable assembly |
10 Gigabit Ethernet |
10 m |
|||||||||||||
| Environmental |
||||||||||||||||
| Unit dimensions (W x D x H) |
Model |
Unit dimensions |
||||||||||||||
| C1300-8T-E-2G |
268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
|||||||||||||||
| C1300-8P-E-2G |
268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
|||||||||||||||
| C1300-8FP-2G |
268 x 297 x 44 mm (10.56 x 11.71 x 1.73 in) |
|||||||||||||||
| C1300-16T-2G |
268 x 272 x 44 mm (10.56 x 10.69 x 1.73 in) |
|||||||||||||||
| C1300-16P-2G |
268 x 297 x 44 mm (10.56 x 11.69 x 1.73 in) |
|||||||||||||||
| C1300-16FP-2G |
268 x 323.3 x 43.94 mm (10.56 x 12.72 x 1.73 in) |
|||||||||||||||
| C1300-24T-4G |
445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in) |
|||||||||||||||
| C1300-24P-4G |
445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in) |
|||||||||||||||
| C1300-24FP-4G |
444.3 x 350 x 43.94 mm (17.49 x 13.77 x 1.73 in) |
|||||||||||||||
| C1300-48T-4G |
445 x 288 x 44 mm (17.5 x 11.33 x 1.73 in) |
|||||||||||||||
| C1300-48P-4G |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
|||||||||||||||
| C1300-48FP-4G |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
|||||||||||||||
| C1300-16P-4X |
268 x 297 x 44 mm (10.56 x 11.69 x 1.73 in) |
|||||||||||||||
| C1300-24T-4X |
445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in) |
|||||||||||||||
| C1300-24P-4X |
445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in) |
|||||||||||||||
| C1300-24FP-4X |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
|||||||||||||||
| C1300-48T-4X |
445 x 288 x 44 mm (17.5 x 11.33 x 1.73 in) |
|||||||||||||||
| C1300-48P-4X |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
|||||||||||||||
| C1300-48FP-4X |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
|||||||||||||||
| C1300-8MGP-2X |
268 x 298 x 44 mm (10.55 x 11.73 x 1.73 in) |
|||||||||||||||
| C1300-24MGP-4X |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
|||||||||||||||
| C1300-48MGP-4X |
445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
|||||||||||||||
| C1300-12XT-2X |
300 x 268 x 44 mm (11.81 x 10.55 x 1.73 in) |
|||||||||||||||
| C1300-12XS |
300 x 268 x 44 mm (11.81 x 10.55 x 1.73 in) |
|||||||||||||||
| C1300-16XTS |
300 x 268 x 44 mm (11.81 x 10.55 x 1.73 in) |
|||||||||||||||
| C1300-24XS |
444 x 286 x 44 mm (17.49 x 11.26 x 1.73 in) |
|||||||||||||||
| C1300-24XT |
444 x 286 x 44 mm (17.49 x 11.26 x 1.73 in) |
|||||||||||||||
| C1300-24XTS |
445 x 273 x 44 mm (17.5 x 10.76 x 1.73 in) |
|||||||||||||||
| Unit weight |
Model |
Unit weight |
||||||||||||||
| C1300-8T-E-2G |
1.39 kg (3.06 lb) |
|||||||||||||||
| C1300-8P-E-2G |
1.72 kg (3.79 lb) |
|||||||||||||||
| C1300-8FP-2G |
3.05 kg (6.72 lb) |
|||||||||||||||
| C1300-16T-2G |
2.18 kg (4.80 lb) |
|||||||||||||||
| C1300-16P-2G |
2.38 kg (5.25 lb) |
|||||||||||||||
| C1300-16FP-2G |
2.49 kg (5.49 lb) |
|||||||||||||||
| C1300-24T-4G |
2.63 kg (5.80 lb) |
|||||||||||||||
| C1300-24P-4G |
3.53 kg (7.78 lb) |
|||||||||||||||
| C1300-24FP-4G |
4.6 kg (10.14 lb) |
|||||||||||||||
| C1300-48T-4G |
3.95 kg (8.71 lb) |
|||||||||||||||
| C1300-48P-4G |
5.43 kg (11.97 lb) |
|||||||||||||||
| C1300-48FP-4G |
6.48 kg (14.28 lb) |
|||||||||||||||
| C1300-16P-4X |
2.49 kg (5.49 lb) |
|||||||||||||||
| C1300-24T-4X |
3.14 kg (6.92 lb) |
|||||||||||||||
| C1300-24P-4X |
3.95 kg (8.70 lb) |
|||||||||||||||
| C1300-24FP-4X |
4.92 kg (10.84 lb) |
|||||||||||||||
| C1300-48T-4X |
4.35 kg (9.59 lb) |
|||||||||||||||
| C1300-48P-4X |
6.37 kg (14.04 lb) |
|||||||||||||||
| C1300-48FP-4X |
5.16 kg (11.38 lb) |
|||||||||||||||
| C1300-8MGP-2X |
2.64kg (5.83 lb) |
|||||||||||||||
| C1300-24MGP-4X |
5.53kg (12.2 lb) |
|||||||||||||||
| C1300-48MGP-4X |
5.83kg (12.86 lb) |
|||||||||||||||
| C1300-12XT-2X |
2.64 kg (5.82 lb) |
|||||||||||||||
| C1300-12XS |
2.67 kg (5.89 lb) |
|||||||||||||||
| C1300-16XTS |
2.68 kg (5.91 lb) |
|||||||||||||||
| C1300-24XS |
4.15 kg (9.15 lb) |
|||||||||||||||
| C1300-24XT |
4.29 kg (9.45 lb) |
|||||||||||||||
| C1300-24XTS |
4.2kg (9.25 lb) |
|||||||||||||||
| Power |
100-240V 50-60 Hz, internal, universal: C1300-8FP-2G, C1300-16T-2G, C1300-16P-2G,C1300-16FP-2G, C1300-24T-4G, C1300-24P-4G, C1300-24FP-4G, C1300-48T-4G, C1300-48P-4G, C1300-48FP-4G, C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300-8MGP-2X, C1300-24MGP-4X, C1300-48MGP-4X, C1300-24XTS 100-240V 50-60 Hz, external: C1300-8T-E-2G, C1300-8P-E-2G, |
|||||||||||||||
| Certifications |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|||||||||||||||
| Operating temperature |
23° to 122°F (-5° to 50°C) C1300-8T-E-2G, C1300-8P-E-2G, C1300-8FP-2G, C1300-16T-2G, C1300-16P-2G, C1300-16FP-2G, C1300-24T-4G, C1300-24P-4G, C1300-24FP-4G, C1300-48T-4G, C1300-48P-4G, C1300-48FP-4G, C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-8MGP-2X, C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300-24MGP-4X, C1300-48MGP-4X, C1300-24XTS 32° to 122°F (0° to 50°C) |
|||||||||||||||
| Storage temperature |
-13° to 158°F (-25° to 70°C) |
|||||||||||||||
| Operating humidity |
10% to 90%, relative, noncondensing |
|||||||||||||||
| Storage humidity |
10% to 90%, relative, noncondensing |
|||||||||||||||
| Acoustic noise and mean time between failures (MTBF) |
Model |
FAN (number) |
Acoustic noise |
MTBF at 25°C (hours) |
||||||||||||
| C1300-8T-E-2G |
Fanless |
– |
2,865,360 |
|||||||||||||
| C1300-8P-E-2G |
Fanless |
– |
2,865,360 |
|||||||||||||
| C1300-8FP-2G |
Fanless |
– |
2,865,360 |
|||||||||||||
| C1300-16T-2G |
Fanless |
– |
912,776 |
|||||||||||||
| C1300-16P-2G |
Fanless |
– |
412,959 |
|||||||||||||
| C1300-16FP-2G |
Fanless |
– |
309,224 |
|||||||||||||
| C1300-24T-4G |
Fanless |
– |
664,987 |
|||||||||||||
| C1300-24P-4G |
Fanless |
– |
396,413 |
|||||||||||||
| C1300-24FP-4G |
1 |
25°C: 39 dBA |
500,161 |
|||||||||||||
| C1300-48T-4G |
1 |
25°C: 29.7 dBA |
1,473,382 |
|||||||||||||
| C1300-48P-4G |
1 |
25°C: 37.3 dBA |
1,662,884 |
|||||||||||||
| C1300-48FP-4G |
1 |
25°C: 48.7 dBA |
1,469,406 |
|||||||||||||
| C1300-16P-4X |
Fanless |
– |
426,778 |
|||||||||||||
| C1300-24T-4X |
Fanless |
– |
646,083 |
|||||||||||||
| C1300-24P-4X |
Fanless |
– |
337,232 |
|||||||||||||
| C1300-24FP-4X |
1 |
25°C: 39 dBA |
389,607 |
|||||||||||||
| C1300-48T-4X |
1 |
25°C: 29.7 dBA |
1,473,382 |
|||||||||||||
| C1300-48P-4X |
1 |
25°C: 37.3 dBA |
1,469,406 |
|||||||||||||
| C1300-48FP-4X |
1 |
25°C: 48.7 dBA |
1,469,406 |
|||||||||||||
| C1300-8MGP-2X |
Fanless |
– |
561,618 |
|||||||||||||
| C1300-24MGP-4X |
1 |
25°C: <39 dBA |
359,908 |
|||||||||||||
| C1300-48MGP-4X |
1 |
25°C: <39 dBA |
310,984 |
|||||||||||||
| C1300-12XT-2X |
1 |
25°C: 28.5 dBA |
1,198,404 |
|||||||||||||
| C1300-12XS |
1 |
25°C: 29.5 dBA |
1,226,587 |
|||||||||||||
| C1300-16XTS |
1 |
25°C: 28.7 dBA |
1,201,527 |
|||||||||||||
| C1300-24XS |
1 |
25°C: 27.6 dBA |
993,232 |
|||||||||||||
| C1300-24XT |
1 |
25°C: 28.7 dBA |
945,878 |
|||||||||||||
| C1300-24XTS |
1 |
25°C: <39 dBA |
427,188 |
|||||||||||||
| Warranty |
Limited lifetime with return-to-factory replacement |
|||||||||||||||
| Package contents |
||||||||||||||||
|
● Cisco Catalyst 1300 Series Switch
● Power cord (power adapter for select 8-port SKUs)
● Mounting kit (Only 24-and 48-port models include the 19-in mounting brackets with the switch)
● Pointer card
|
||||||||||||||||
| Minimum requirements |
||||||||||||||||
|
● Web browser: Chrome, Firefox, Edge, Safari
● Category 5e Ethernet network cable
● TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
|
||||||||||||||||
Table 2 provides ordering information for the Cisco Catalyst 1300 Series Switches.
Table 2. Ordering information
| Model |
Order product ID |
Description |
|
| Gigabit Ethernet |
|||
| C1300-8T-E-2G |
C1300-8T-E-2G |
● 8x 10/100/1000 ports
●
2x Gigabit copper/SFP combo ports
● Rack-mountable
|
|
| C1300-8P-E-2G |
C1300-8P-E-2G |
● 8x 10/100/1000 PoE+ ports with 67W power budget
●
2x Gigabit copper/SFP combo ports
● Rack-mountable
|
|
| C1300-8FP-2G |
C1300-8FP-2G |
● 8x 10/100/1000 PoE+ ports with 120W power budget
●
2x Gigabit copper/SFP combo ports
● Rack-mountable
|
|
| C1300-16T-2G |
C1300-16T-2G |
● 16x 10/100/1000 ports
● 2x Gigabit SFP
● Rack-mountable
|
|
| C1300-16P-2G |
C1300-16P-2G |
● 16x 10/100/1000 PoE+ ports with 120W power budget
● 2x Gigabit SFP
● Rack-mountable
|
|
| C1300-16FP-2G |
C1300-16FP-2G |
● 16x 10/100/1000 PoE+ ports with 240W power budget
● 2x Gigabit SFP
● Rack-mountable
|
|
| C1300-24T-4G |
C1300-24T-4G |
● 24x 10/100/1000 ports
● 4x Gigabit SFP
● Rack-mountable
|
|
| C1300-24P-4G |
C1300-24P-4G |
● 24x 10/100/1000 PoE+ ports with 195W power budget
● 4x Gigabit SFP
● Rack-mountable
|
|
| C1300-24FP-4G |
C1300-24FP-4G |
● 24x 10/100/1000 PoE+ ports with 370W power budget
● 4x Gigabit SFP
● Rack-mountable
|
|
| C1300-48T-4G |
C1300-48T-4G |
● 48x 10/100/1000 ports
● 4x Gigabit SFP
● Rack-mountable
|
|
| C1300-48P-4G |
C1300-48P-4G |
● 48x 10/100/1000 PoE+ ports with 370W power budget
● 4x Gigabit SFP
● Rack-mountable
|
|
| C1300-48FP-4G |
C1300-48FP-4G |
● 48x 10/100/1000 PoE+ ports with 740W power budget
● 4x Gigabit SFP
● Rack-mountable
|
|
| Gigabit Ethernet with 10 Gigabit Ethernet uplinks |
|||
| C1300-16P-4X |
C1300-16P-4X |
● 16x 10/100/1000 ports PoE+ ports with 120W power budget
● 4x 10 Gigabit SFP+
● Rack-mountable
|
|
| C1300-24T-4X |
C1300-24T-4X |
● 24x 10/100/1000 ports
● 4x 10 Gigabit SFP+
● Rack-mountable
|
|
| C1300-24P-4X |
C1300-24P-4X |
● 24x 10/100/1000 PoE+ ports with 195W power budget
● 4x 10 Gigabit SFP+
● Rack-mountable
|
|
| C1300-24FP-4X |
C1300-24FP-4X |
● 24x 10/100/1000 PoE+ ports with 370W power budget
● 4x 10 Gigabit SFP+
● Rack-mountable
|
|
| C1300-48T-4X |
C1300-48T-4X |
● 48x 10/100/1000 ports
● 4x 10 Gigabit SFP+
● Rack-mountable
|
|
| C1300-48P-4X |
C1300-48P-4X |
● 48x 10/100/1000 PoE+ ports with 370W power budget
● 4x 10 Gigabit SFP+
● Rack-mountable
|
|
| C1300-48FP-4X |
C1300-48FP-4X |
● 48x 10/100/1000 PoE+ ports with 740W power budget
● 4x 10 Gigabit SFP+
● Rack-mountable
|
|
| Multi Gigabit Ethernet |
|||
| C1300-8MGP-2X |
C1300-8MGP-2X |
● 4 x 10/100/1000 PoE+ports
● 4 x 2.5G PoE+ ports
● 2 x 10 Gigabit SFP+
● 120W PoE power budget
● Rack-mountable
|
|
| C1300-24MGP-4X |
C1300-24MGP-4X |
● 16 x 10/100/1000 PoE+ ports
● 8 x 2.5G PoE+ ports
● 4 x 10 Gigabit SFP+
● 375W PoE power budget
● Rack-mountable
|
|
| C1300-48MGP-4X |
C1300-48MGP-4X |
● 32 x 10/100/1000 PoE+ ports
● 16 x 2.5G PoE+ ports
● 4 x 10 Gigabit SFP+
● 740W PoE power budget
● Rack-mountable
|
|
| 10 Gigabit Ethernet |
|||
| C1300-12XT-2X |
C1300-12XT |
● 12 x 10 Gigabit copper ports
● 2 x 10 Gigabit SFP+
● 1 x GE management port
● Rack-mountable
|
|
| C1300-12XS |
C1300-12XS |
● 10 x 10 Gigabit SFP+
● 2 x 10 Gigabit copper ports (combo with 2 x SFP+)
● 1 x GE management port
● Rack-mountable
|
|
| C1300-16XTS |
C1300-16XTS |
● 8 x 10 Gigabit copper ports
● 8 x 10 Gigabit SFP+
● 1 x GE management port
● Rack-mountable
|
|
| C1300-24XS |
C1300-24XS |
● 20 x 10 Gigabit SFP+
● 4 x 10 Gigabit copper ports (combo with 4 x SFP+)
● 1 x GE management port
● Rack-mountable
|
|
| C1300-24XT |
C1300-24XT |
● 20 x 10 Gigabit copper ports
● 4 x 10 Gigabit SFP+ (combo with 4 x 10G copper ports)
● 1 x GE management port
● Rack-mountable
|
|
| C1300-24XTS |
C1300-24XTS |
● 12 x 10 Gigabit copper ports
● 12 x 10 Gigabit SFP+
● 1 x GE management port
● Rack-mountable
|
|
Table 3 describes the available accessories for the Cisco Catalyst 1300 Series Switches.
Table 3. Accessories
| Part number |
Description |
Compatibility |
| CAB-CONSOLE-RJ45 |
Console cable 6 feet with RJ-45 |
All models |
| CAB-CONSOLE-USB-C |
Console cable USB-C type |
All models |
| CAB-CONSOLE-USB-C= |
Console cable USB-C type |
All models |
| PWR-CLP |
Power cable restraining clip |
All models |
| Cisco rack-mounting kit |
||
| RCKMNT-1RU-1K= |
Rack-mount kit for 1 RU for C1000, C1200, C1300, |
All 24/48 port models* |
| RCKMNT-CMPCT-1K= |
19-in. rack-mount bracket for C1000, C1200, C1300, |
All 8/16/16P port models |
| Cisco power adapters |
|
| PWRADPT-WM-18-xx |
18W power adapter |
| PWRADPT-WM-18-NA= |
18W power adapter |
A powerful, affordable foundation for your office and business network
As you strive to make your employees as productive and effective as possible, your business applications and information and the network that delivers them become ever more vital parts of your business. You need a technology foundation that can meet your business’s needs today and in the future, and that delivers the right feature set at the right price. The Cisco Catalyst 1300 Series switches provide the reliability, performance, security, and capabilities you need to power your business.
Information about Cisco’s Environmental, Social, and Governance (ESG) initiatives and performance is provided in Cisco’s CSR and sustainability reporting.
Table 4. Cisco environmental sustainability information
| Sustainability topic |
Reference |
|
| General |
Information on product-material-content laws and regulations |
|
| Information on electronic waste laws and regulations, including our products, batteries, and packaging |
||
| Information on product takeback and reuse program |
||
| Sustainability Inquiries |
Contact: csr_inquiries@cisco.com |
|
| Material |
Product packaging weight and materials |
Contact: environment@cisco.com |
Flexible payment solutions to help you achieve your objectives
Cisco Capital® makes it easier to get the right technology to achieve your objectives, enable business transformation, and stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services, and complementary third-party equipment in easy, predictable payments. Learn more.
To find out more about the Cisco Catalyst 1300 Series Switches,
Visit https://www.cisco.com/c/en/us/products/switches/catalyst-1300-series-switches/index.html.
| New or revised topic |
Described in |
Date |
| Added Idle Power information and updated Power Consumption values |
September 30, 2023 |
