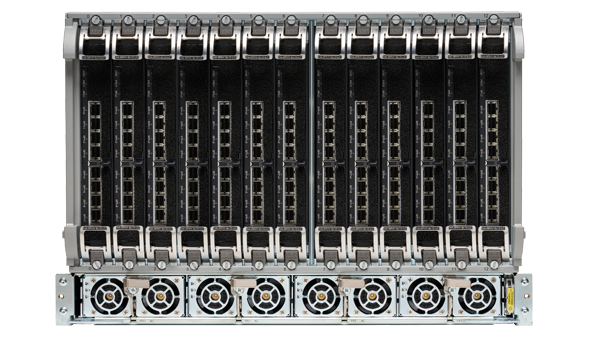

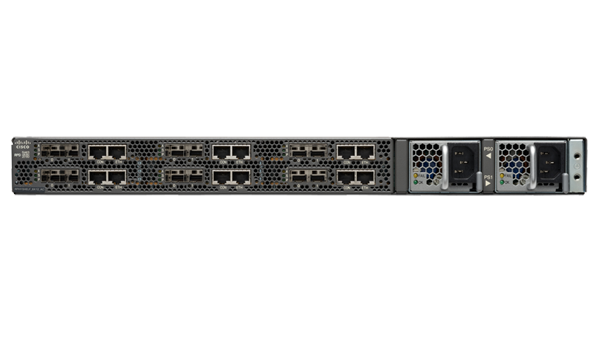

| Rack Units | 1 RU | 1 RU | 7 RU |
| Size (H x W x D) | 1.75 x 17.45 x 23.6 in.
(4.45 x 44.32 x 59.94 cm) | 1.75 x 17.45 x 23.6 in.
(4.45 x 44.32 x 59.94 cm) | 12.25 x 17.45 x 27.83 in.
(31.12 x 44.32 x 70.69 cm) |
| Weight | 23.8 lbs
(10.8 kg) | 24.46 lbs
(12 kg) | 226 lbs
(102.5 Kg) |
| Operating Temperature | -40 °F - 140 °F
(-40 °C- 60 °C) | -40 °F - 140 °F
(-40 °C - 60 °C) | nominal
32 °F to 104 °F
(0 °C to 40 °C)
short-term
32 °F to 122 °F
(0 °C to 50 °C) |
| Power | 320 W (max) | 530 W (max) | 4200W (max) |
| Power Input | AC:
Input 200-240 V; 50-60 Hz; 12 A maximum
DC:
Input -40 to -72 V; 16 A nominal, 50 A max
Supports 1+1 redundancy | AC:
Input 200-240 V; 50-60 Hz; 12 A maximum
DC:
Input -40 to -72 V; 16 A nominal, 50 A max
Supports 1+1 redundancy | AC:
Input: 200-240 V; 50/60 Hz; 16 A maximum
DC:
Input: -40 to -72 V; 60 A maximum
Supports 2+2 redundancy |
| Fans | N+1 modular field replaceable fan modules | N+1 modular field replaceable fan modules | 5 (4+1 redundant) modular field-replaceable fan modules |
| Service Groups | 3 | 6 | 72 Service Groups (12+1 redundancy) |
| CIN Connectivity | Dual 10 GBE SFP+ per Service Group | Dual 10 GBE SFP+ per Service Group | 8 SFP+ interfaces, which can be configured as:
4 + 4 mode (1+1 redundant)
6 + 2 mode (2 ports protect 6 ports) |
| Downstream/Upstream configurations | 1x1 (Downstream x Upstream)
1x2 (Downstream x Upstream) | 1x1 (Downstream x Upstream)
1x2 (Downstream x Upstream) | 6 x 12 (downstream x upstream) |
| Downstream Capacity | 160 narrowcast QAMS plus Six OFDM 192 MHz Orthogonal Frequency-Division Multiplexing (OFDM) blocks per Service Group | 160 narrowcast QAMS plus Six OFDM 192 MHz Orthogonal Frequency-Division Multiplexing (OFDM) blocks per Service Group | 160 narrowcast QAMs or six OFDM 192-MHz Orthogonal Frequency-Division Multiplexing (OFDM) blocks per port |
| Upstream Capacity | 12 US channels per port or
2 OFDMA blocks (96 MHz) per port | 12 US channels per port or
2 OFDMA blocks (96 MHz) per port | 12 US channels per port or
2 OFDMA blocks (96 MHz) per port |
