The latest enhancements in cellular technology are enabling enterprises to augment their wired WAN uplinks with cellular WAN - also known as Fixed Wireless Access (FWA). Faster speeds mean that wireless can be considered as primary connectivity alongside Internet and MPLS modes of transport. In addition, a wireless WAN also helps to bring up locations in remote places where MPLS or alternative connectivity is nonexistent.

Cisco’s gigabit-class wireless WAN solutions offer 5G with new bands, enhanced capabilities and the ability to easily utilize 5G as both primary or backup connectivity. In addition to the industry’s first SD-WAN 5G Standalone (SA) pluggable module, Cisco’s cellular innovations provide secure connectivity, additional WAN coverage, and increased deployment flexibility. With Cisco SD-WAN, both enterprises and managed service providers can enable simplified cellular deployment and management.

Cisco® embedded and modular cellular offerings combine the latest generation of cellular technology with Cisco SD-WAN to provide your network with best-in-class security, performance, and wireless access.

Cisco Catalyst 8000 Edge Platforms Family, in addition to higher performance and slot capacity, offers pluggable cellular options that bring fixed wireless access to both traditional and SD-WAN networks in the enterprise branch, allowing greater flexibility of WAN connectivity.

Cisco 1000 Series Integrated Services Routers (ISRs) offer both embedded and pluggable cellular options and are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices and in service provider-managed environments, as well as for environments requiring a smaller form factor and Machine-to-Machine (M2M) use cases.

Note:      Not all 5G/LTE SKU variants are available in every region with different technologies (check the Cisco Commerce, also known as CCW, price list for your region).

Cisco Cellular offerings

Cisco offers the broadest selection of SD-WAN ready cellular products together with the Catalyst WAN portfolio for all deployment types.

Related image, diagram or screenshot

Figure 1.

Cisco FWA Portfolio

Offering flexibility and investment protection

Cisco platforms offer the flexibility of fixed and modular options for enterprise deployments of all sizes. The 5G Standalone (SA) and Non-Standalone (NSA) Pluggable Interface Modules (PIMs) offer gigabit-plus throughput allowing customers to build their networks with cellular as a primary connection type.

Ordering the Cisco cellular platforms

Note:      Regarding the Product ID (PID) naming below: For WWAN LTE Advanced Mobility, “LTEEA” applies to Europe, the Middle East, Africa, and Russia (EMEAR) and North America, and “LTELA” applies to Asia Pacific (APAC) and Latin America (LATAM).

Tables 1 and 2 give the SKUs for all Cisco cellular-enabled modules (Table 1) and routers (Table 2), platforms the modules are supported on (Table 1 only), cellular category, throughput, supported cellular bands, and SD-WAN support.

Table 1.        Cisco cellular modules (for country availability, refer to CCW)

Product ID

Supported on

Cellular

Download/upload bandwidth

Bands supported

SD-WAN

P-5GS6-R16SA-GL(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

5G Standalone (SA)

3.6 Gbps/

450 Mbps

5G FR1 bands n1-3, n5, n7, n8, n12-14, n18, n20, n25, n26, n28-30, n38, n40, n41, n48, n66, n70, n71, n75-79

LTE bands 1-5, 7-8, 12-14, 17-20, 25, 26, 28-30, 32, 34, 38-43, 46(LAA), 48(CBRS), 66, 71

Yes

P-5GS6-GL(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

5G

3.3 Gbps/

400 Mbps

5G FR1 bands n1-3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77-79

LTE bands 1-5, 7, 8, 12-14, 17-20, 25, 26, 28-30, 32, 34, 38-43, 46(LAA), 48(CBRS), 66, 71

Yes

P-LTEAP18-GL(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT18

1.2 Gbps/

150 Mbps

LTE bands 1-5, 7, 8, 12-14, 17-20, 25, 26, 28-30, 32, 38-43, 46, 48, 66, 71

FDD LTE 600 MHz (band 71), 700 MHz (bands 12, 13, 14, 17, 28, and 29), 800 MHz (band 20), 850 MHz (bands 5, 18, 19, and 26), 900 MHz (band 8), 1500 MHz (band 32), 1700 MHz (bands 4 and 66), 1800 MHz (band 3), 1900 MHz (bands 2 and 25), 2100 MHz (band 1), 2300 MHz (band 30), 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), 2600 MHz (band 38), 3500 MHz (bands 42 and 48), 3700 MHz (band 43), 5200 MHz (band 46)

Yes

P-LTEA7-NA(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT7

300 Mbps/

150Mbps

LTE bands 2, 4, 5, 7, 12-14, 25, 26, 41-43, 48, 66, 71

3G HSPA+ bands 2, 4, 5

Yes

P-LTEA7-EAL(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T \

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT7

300 Mbps/

150Mbps

LTE bands 1, 3, 7, 8, 20, 28, 32, 38, 40-43

3G HSPA+ bands 1, 5, 8

Yes

P-LTEA7-JP(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT7

300 Mbps/

150Mbps

LTE bands 1, 3, 5, 8, 18, 19, 39, 41-43

3G HSPA+ bands 1, 5, 6, 19

Yes

P-LTEA-EA(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2, 5, 12, 13, 29); 3+(7,20); 4+(4,5, 12, 13, 29); 7+(7, 20); 12+30, 5+30, and 41+41

Yes

P-LTEA-LA(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

*Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39,40+40, 41+41

Yes

P-LTE-GB(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 7, 8, 20, 28

FDD LTE 700 MHz (band 28),

800 MHz (band 20), 900 MHz

(band 8), 1800 MHz (band 3), 2100 MHz (band 1), 2600 MHz (band 7)

No

P-LTE-US(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT4

150 Mbps/

50 Mbps

LTE bands 2, 4, 5, 12

FDD LTE 700 MHz (band 17),

700 MHz (band 12), 850 MHz (band 5 CLR), 1700 and 2100 MHz (band 4 AWS)

No

P-LTE-VZ(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT4

150 Mbps/

50 Mbps

LTE bands 4, 13

FDD LTE 700 MHz (band 13), 1700 and 2100 MHz (band 4 AWS)

No

P-LTE-IN(=)

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

* Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 5, 8, 40, 41

No

P-LTE-JN

C8200-1N-4T

C8200L-1N-4T

C8300-1N1S-4T2X

C8300-1N1S-6T

C8300-2N2S-4T2X

C8300-2N2S-6T

C1101-4PLTEP(W)*

C1109-4PLTE2P(W)*

C1121-4PLTEP*

C1121(X)-8PLTEP(W)*

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1131(X)-8PLTEPW*

C1161(X)-8PLTEP*

*Multiple variants available. Different variants have different characters behind nomenclature listed.

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 8, 11, 18, 19, 21

No

NIM-LTEA-EA(=)

All Cisco 4200, 4300, and 4400 Series ISRs and ENCS 5400

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, 41+41

Yes

NIM-LTEA-LA(=)

All Cisco 4200, 4300, and 4400 Series ISRs and ENCS 5400

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39, 40+40, 41+41

Yes

NIM-4G-LTE-LA(=)

All Cisco 4200, 4300, and 4400 Series ISRs and ENCS 5400

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39, 40+40, 41+41

No

NIM-4G-LTE-GA(=)

All Cisco 4200, 4300, and 4400 Series ISRs and ENCS 5400

CAT3

100 Mbps/

50 Mbps

Europe, Australia, LTE bands 1, 3, 7, 8, 20 (800 MHz [band 20], 900 MHz [band 8], 1800 MHz [band 3], 2100 MHz [band 1], and 2600 MHz [band 7])

No

NIM-4G-LTE-NA(=)

All Cisco 4200, 4300, and 4400 Series ISRs and ENCS 5400

CAT3

100 Mbps/

50 Mbps

North America (ATT), LTE band 2 PCS (1900 MHz), band 5 (850 MHz), band 4 AWS (1700/2100 MHz), band 17 (700 MHz)

No

NIM-4G-LTE-ST(=)

All Cisco 4200, 4300, and 4400 Series ISRs and ENCS 5400

CAT3

100 Mbps/

50 Mbps

Sprint, LTE band 25 extended PCS (1900 MHz)

No

NIM-4G-LTE-VZ(=)

All Cisco 4200, 4300, and 4400 Series ISRs and ENCS 5400

CAT3

100 Mbps/

50 Mbps

Verizon, LTE band 4 AWS (1700 and 2100 MHz), band 13 (700 MHz)

No

D-LTE-AS(=)

C1101-4P

C1101-4PLTEP(W)

C1121-4P

C1121-4PLTEP(W)

C1121-8P

C1121(X)-8PLTEP

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1161(X)-8P

C1161(X)-8PLTEP

CAT4

75 Mbps/

50 Mbps

  LTE bands 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz), 40 (2300 MHz), 41 (2500 MHz)

No

D-LTE-NA(=)

C1101-4P

C1101-4PLTEP(W)

C1121-4P

C1121-4PLTEP(W)

C1121-8P

C1121(X)-8PLTEP

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1161(X)-8P

C1161(X)-8PLTEP

CAT4

75 Mbps/

50 Mbps

  LTE bands 2 (1900 MHz), 4 (1700 MHz), 5 (850 MHz), 12 (700 MHz), 13 (700 MHz), 14 (700 MHz), 17 (700 MHz), 66 (1700 MHz)

No

D-LTE-GB(=)

C1101-4P

C1101-4PLTEP(W)

C1121-4P

C1121-4PLTEP(W)

C1121-8P

C1121(X)-8PLTEP

C1126(X)-8PLTEP

C1127(X)-8P(M)LTEP

C1128-8PLTEP

C1161(X)-8P

C1161(X)-8PLTEP

CAT4

75 Mbps/

50 Mbps

  LTE bands 1 (2100 MHz), 3 (1800 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)

No

WIM-LTE-AS

C841M-4X

C841M-8X

CAT4

150 Mbps/

50 Mbps

  LTE Category 4: Bands 1, 3, 5, 8, 40, 41
  HSPA+, UMTS: Bands 1, 8
  EDGE, GSM, GPRS: 900/1800
  Frequency (MHz): 1920–1980, 2110–2170, 1710–1785, 1805–1880, 824–849, 869–894, 880–915, 925–960, 2300–2400

No

WIM-LTE-LT

C841M-4X

C841M-8X

CAT4

150 Mbps/

50 Mbps

WIM-LTE-LT

  LTE Category 4: Bands 2, 4, 5, 12
  HSPA+: Bands 2, 4, 5

No

WIM-LTE-AL

C841M-4X

C841M-8X

CAT4

150 Mbps/

50 Mbps

WIM-LTE-AL

  LTE Category 4: Bands 1, 3, 7, 8, 20, 28
  HSPA+, UMTS: Bands 1, 8
  EDGE, GSM, GPRS: 900/1800

No

Table 2.        Cisco cellular embedded routers (for country availability, refer to CCW)

Product ID

Cellular

Download/upload Bandwidth

Bands supported

SD-WAN

C1109-2PLTEGB

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 7, 8, 20, and 28

FDD LTE 700 MHz (band 28), 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7)

Yes

C1109-2PLTEUS

CAT4

150 Mbps/

50 Mbps

LTE bands 2, 4, 5, and 12

FDD LTE 700 MHz (band 17),

700 MHz (band 12), 850 MHz (band 5 CLR), and 1700 and 2100 MHz (band 4 AWS)

Yes

C1109-2PLTEVZ

CAT4

150 Mbps/

50 Mbps

LTE bands 4 and 13

FDD LTE 700 MHz (band 13) and 1700 and 2100 MHz (band 4 AWS)

Yes

C1111-4PLTEEA

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1111-4PLTELA

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41.

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39,40+40, and 41+41

Yes

C1111-8PLTEEA

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7,8,12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1111-8PLTEEAWX*

(Wi-Fi domain WX; X = A, B, E, R)

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1111-8PLTELA

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39,40+40, and 41+41

Yes

C1111-8PLTELAWY*

(Wi-Fi domain WY; Y = D, F, H, N, Q, Z S, E, and A)

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39,40+40, and 41+41

Yes

C1112-8PLTEEA

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1112-8PLTEEAWE

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41.

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7).

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1113-8PLTEEA

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1113-8PLTEEAWX*

(Wi-Fi domain WX; X = B, E)

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1113-8PLTELA

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7).

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39,40+40, and 41+41

Yes

C1113-8PLTELAWZ

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8, 18, 19, 21); 3+(5, 7, 19, 28); 7+(5, 7, 28); 19+21, 38+38, 39+39, 40+40, and 41+41

Yes

C1113-8PMLTEEA

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2, 5, 12, 13, 29); 3+(7,20); 4+(4, 5, 12, 13, 29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1116-4PLTEEA

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7).

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2, 5, 12, 13, 29); 3+(7,20); 4+(4, 5, 12, 13, 29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1116-4PLTEEAWE

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2, 5, 12, 13, 29); 3+(7,20); 4+(4, 5, 12, 13, 29); 7+(7, 20); 12+30, 5+30, and 41+41

Yes

C1117-4PLTEEA

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2, 5, 12, 13, 29); 3+(7, 20); 4+(4, 5, 12, 13, 29); 7+(7, 20); 12+30, 5+30, and 41+41

Yes

C1117-4PLTEEAWX*

(Wi-Fi domain WX; X = A, E)

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2, 5, 12, 13, 29); 3+(7,20); 4+(4, 5, 12, 13, 29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1117-4PLTELA

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8, 18, 19, 21); 3+(5, 7, 19, 28); 7+(5, 7, 28); 19+21, 38+38, 39+39, 40+40, and 41+41

Yes

C1117-4PLTELAWZ

CAT6

300 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7)

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38)

Carrier aggregation band combinations:

1+(8, 18, 19, 21); 3+(5, 7, 19, 28); 7+(5, 7, 28); 19+21, 38+38, 39+39,40+40, and 41+41

Yes

C1117-4PMLTEEA

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5, 12, 13, 29); 3+(7, 20); 4+(4, 5, 12, 13, 29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C1117-4PMLTEEAWE

CAT6

300 Mbps/

50 Mbps

LTE bands 1-5, 7, 8, 12, 13, 20, 25, 26, 29, 30, and 41

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7)

TDD LTE 2500 MHz (band 41)

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41

Yes

C921-4PLTEAU

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, and 28

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7)

No

C921-4PLTEAS

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 5, 8, 40, 41

FDD LTE 850 MHz (band 5 CLR), 900 MHz (band 8), 1800 MHz (band 3), and 2100 MHz (band 1). TDD LTE 2300 MHz (band 40), and 2500 MHz (band 41)

No

C921-4PLTEGB

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 7, 8, 20, and 28

FDD LTE 700 MHz (band 28), 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7)

No

C926-4PLTEGB

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 7, 8, 20, and 28

FDD LTE 700 MHz (band 28), 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7)

No

C927-4PLTEAU

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 5, 7, 8, and 28

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7)

No

C927-4P(M)LTEGB

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 7, 8, 20, and 28

FDD LTE 700 MHz (band 28), 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7)

No

C927-4PLTENA

CAT4

150 Mbps/

50 Mbps

LTE bands 1, 3, 7, 8, 20, and 28

FDD LTE 700 MHz (band 28), 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7)

No

ISR1100-4GLTEGB

CAT4

150 Mbps/50 Mbps

LTE: Bands1, 3, 7, 8, 20, and 28

HSPA+, UMTS: Bands 1 and 8

GSM/GPRS/EDGE: E-GSM 900 MHz, DCS 1800 MHz

Yes

ISR1100-4GLTENA

CAT4

150 Mbps/

50 Mbps

LTE: Bands 2, 4, 5, 12, 13, 14, 17, and 66

UMTS: Bands 2, 4, and 5

Yes

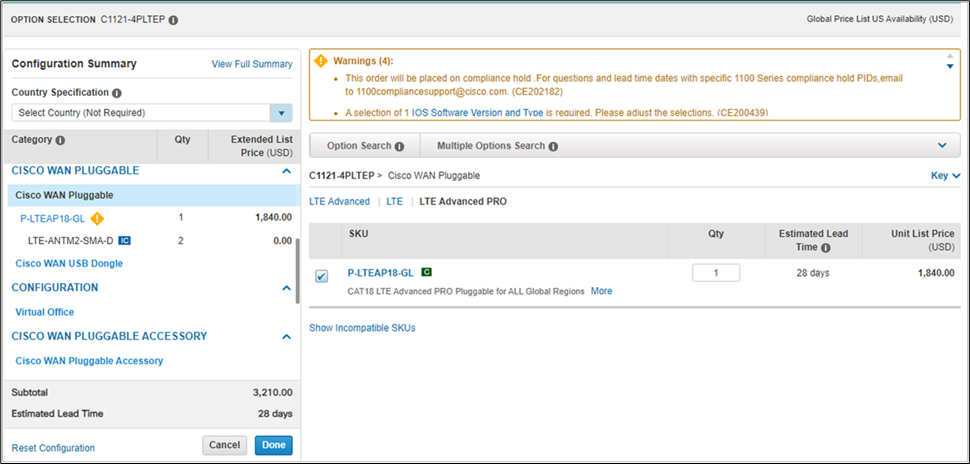

Optional WAN pluggable LTE module selection (5G, CAT18 LTE Advanced Pro, CAT6 LTE Advanced, or CAT4 LTE):

      Firmware selection is required for 5G, LTE Advanced and LTE Advanced Pro.

CCW firmware ordering

Figure 2.

CCW firmware ordering

CCW WAN pluggable firmware selection

Figure 3.

CCW WAN pluggable firmware selection

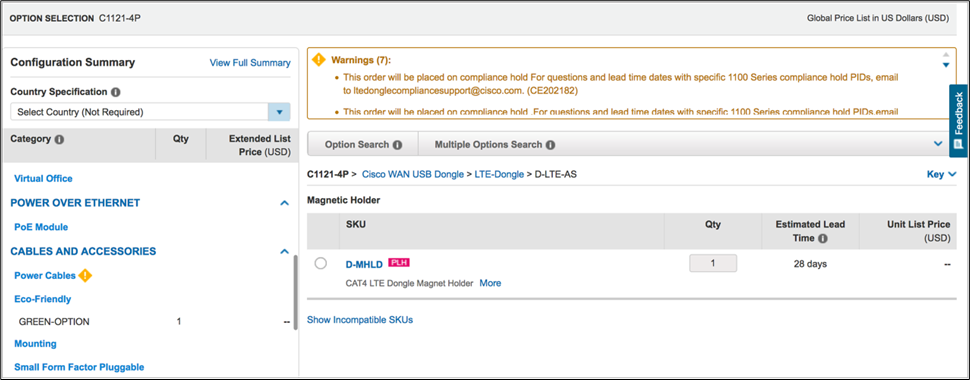

Optional WAN USB LTE selection (CAT 4 LTE dongle):

      Cisco IOS® Software version and type (16.12.X is required with dongle) must be selected.

      Magnetic holder is an accessory PID. It is available under LTE-Dongle.

CCW WAN USB dongle and WAN dongle accessory ordering for C1101-4PLTEP A



CCW WAN USB dongle and WAN dongle accessory ordering for C1101-4PLTEP_B

Figure 4.

CCW WAN USB dongle and WAN dongle accessory ordering for C1101-4PLTEP

Ordering information

To place an order, visit the Cisco Ordering homepage. To download software, visit the Cisco Software Center.

Cisco environmental sustainability

Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.

Reference links to information about key environmental sustainability topics (mentioned in the “Environment Sustainability” section of the CSR Report) are provided in the following table:

Sustainability topic

Reference

Information on product material content laws and regulations

Materials

Information on electronic waste laws and regulations, including products, batteries, and packaging

WEEE compliance

Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to date. This information is subject to change without notice.

Cisco and partner services

Services from Cisco and our certified partners can help you reduce the cost and complexity of branch-office deployments. Cisco Smart Net Total Care® technical support for the Cisco 1000 Series ISRs is available on a one-time or annual contract basis. Support options range from help-desk assistance to proactive, onsite consultation.

For more information, visit https://www.cisco.com/c/en/us/services/overview.html.

Cisco Capital

Flexible payment solutions to help you achieve your objectives

Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.

For more information

For more information about the Catalyst Edge Platforms, Cisco 1000 or 4000 Series ISRs, visit

https://www.cisco.com/site/us/en/products/networking/sdwan-routers/catalyst-8300-series-platform/index.html or https://www.cisco.com/c/en/us/products/routers/1000-series-integrated-services-routers-isr/index.html or https://www.cisco.com/c/en/us/products/collateral/routers/4000-series-integrated-services-routers-isr/data_sheet-c78-732542.html or contact your local Cisco account representative.







Learn more
