Field Notice: FN - 70071 - FTA-MISMATCH Alarm Might Be Observed on Certain NCS2006-FTA Units - Workaround Provided

Available Languages

Updated:February 27, 2019
Document ID:FN70071

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Notice

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Revision History

Revision Publish Date Comments
1.0
10-Nov-17
Initial Release
1.1
26-Feb-19
Updated the Problem Description, Background, Problem Symptom, Workaround/Solution, and How to Identify Affected Products sections

Products Affected

Affected Product ID Comments
NCS2006-FTA
NCS2006-FTA=
Part Alternate

Defect Information

Defect ID Headline
CSCvg27319 NCS2006-FTA missing CLEI, PID, Extra Info fields programming

Problem Description

The "FTA-MISMATCH" alarm might be triggered when a fan tray assembly from a specific batch of NCS2006-FTA fan tray assemblies is inserted into a system with line cards that require high cooling.

Background

A specific batch of NCS2006-FTA fan tray assemblies had a blank CLEI Code field, "N/A" in the Product ID field, and an incorrect Version ID when the EEPROM was programmed.

The "FTA-MISMATCH" alarm is triggered if a fan tray assembly from that batch is inserted into a system that contains at least one of these line cards:

NCS2K-MR-MXP-LIC= 10/40/100G MR Muxponder - Licensable for Encryption
NCS2K-200G-CK-C= 50G/100G/200G CPAK Multi Rate Line Card - SD FEC C Band
NCS2K-100G-CK-C= 100G CPAK Multi-Rate Line Card - CP-DQPSK - C-Band
NCS2K-100ME-CKC= 100G CPAK Multi-Rate Line Card - CP-DQPSK - Metro - C-Band
NCS2K-400G-XP= 400G CFP2 MR XPonder
NCS2K-400GXP-L-K9= 400G CFP2 MR XP licensed 100G client bandwidth + 1 port WDM
15454-M-WSE-K9= WSE Card



Problem Symptom

The problem symptoms are either:

  • The shelf raises an "FTA-MISMATCH" alarm when an affected NCS2006-FTA fan tray assembly is inserted. The "FTA-MISMATCH" alarm will be displayed if the system contains at least one of these cards: 100G, 200G, 400G, WSE, or MR-MXP.

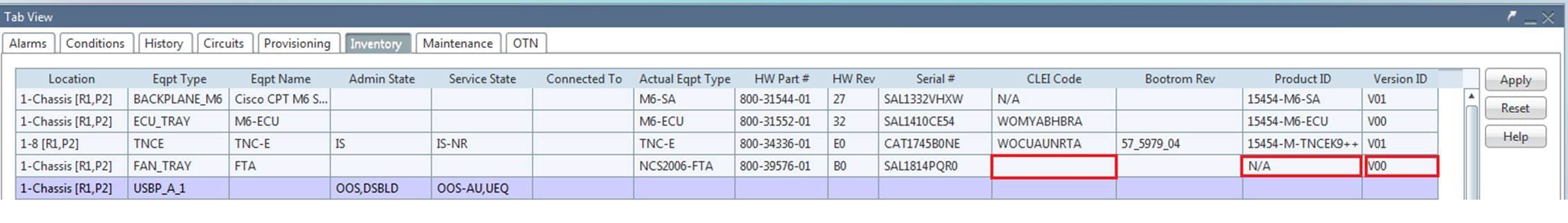

  • The Cisco Transport Controller (CTC) Inventory output for the affected fan tray has a blank CLEI Code, "N/A" in the Product ID field, and an incorrect Version ID, as shown below.

Representative Picture:

Workaround/Solution

If the "FTA-MISMATCH" alarm is observed, complete these steps in order to recover:

  1. Check the fan tray serial number in the Serial Number Validation Tool to see whether the fan tray is affected.

  2. If the fan tray is affected, open a Cisco Technical Assistance Center (TAC) case for resolution of this issue.

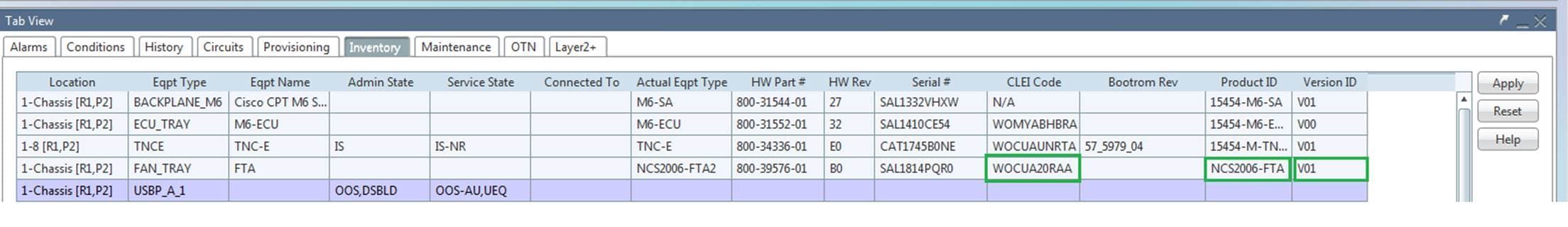

Sample CTC Inventory output on a corrected NCS2006-FTA is as shown below:

Representative Picture:



How To Identify Affected Products

A unit is deemed affected if it meets these criteria:

  • On the CTC, the NCS2006-FTA fan tray assembly raises the "FTA-MISMATCH" alarm.

  • The CTC inventory of the fan tray displays the CLEI Code as blank, the Product ID as "N/A," and an incorrect Version ID, as described in the "Problem Symptom" section.

  • The serial number of the unit shows Affected in the Serial Number Validation Tool.

For More Information

If you require further assistance, or if you have any further questions regarding this field notice, please contact the Cisco Systems Technical Assistance Center (TAC) by one of the following methods:
