Field Notice: FN74005 - Identity Services Engine: Java Heap Size May Significantly Impact System Performance - Software Upgrade Recommended

Available Languages

Updated:May 26, 2023
Document ID:FN74005

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Notice

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Products Affected


Affected Software Product Affected Release Affected Release Number Comments
Identity Services Engine System Software 2 2.7.0 p2, 2.7.0 p3, 2.7.0 p4, 2.7.0 p5, 2.7.0 p6, 2.7.0 p7
Identity Services Engine System Software 3 3.0.0, 3.0.0 p1, 3.0.0 p2, 3.0.0 p3, 3.0.0 p4, 3.0.0 p5, 3.0.0 p6, 3.1.0, 3.1.0 p1, 3.1.0 p2, 3.1.0 p3, 3.1.0 p4, 3.2.0

Defect Information


Defect IDHeadline
CSCwd45843Auth Step latency for policy evaluation due to Garbage Collection activity.
CSCwc74531ise hourly cron should cleanup the cached buffers instead of the 95% memory usage

Problem Description


Affected Cisco Identity Services Engine (ISE) releases may have system performance issues such as high memory utilization, high CPU utilization, high latency, and high load average.


Background


Starting with Cisco ISE Release 2.7 Patch 2, the minimum and initial size of the memory allocation for Java has decreased. This may cause a significant amount of CPU resource consumption.


Problem Symptom


RADIUS Live Logs in the ISE application may display the following behaviors:

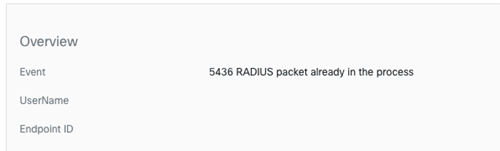

  1. Logs that indicate latency are represented by the ⏰icon and reference step latency as shown in the following example:

  2. The RADIUS packet is already in the process.



The issue exists if both symptoms 1 and 2 appear in Live Logs.

To access RADIUS Live Logs, choose Operations > RADIUS > Live Logs and click the 🔍 icon.

In addition, the following alarms may be observed in the Alarms dashlet on the main ISE dashboard:

  • High Authentication Latency
  • High Memory Utilization
  • High Load Average
  • Profiler Queue Size Limit Reached

Workaround/Solution


Workaround

Reloading the system may temporarily alleviate the issue, but the issue may reappear within minutes after reloading.

Solution

Cisco recommends upgrading to one of the following Cisco ISE releases if system performance issues are observed:

  • 2.7 Patch 9 or later
  • 3.0 Patch 7 or later
  • 3.1 Patch 5 or later
  • 3.2 Patch 1 or later

As an alternate solution, a Hot Patch to fix the issue for all versions of software is available for download from the Cisco Software Download Center.


Revision History


VersionDescriptionSectionDate
1.1Updated the Background and Workaround/Solution section.Background and Workaround/Solution2023-MAY-26
1.0Initial Release—2023-MAY-02
