Field Notice: FN74171 - Temperature Error System Logs Are Observed in Cisco Catalyst IE3x00 Rugged Series Switches - Software Upgrade Recommended
Available Languages
Notice
THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.
Products Affected
| Affected Product Name | Description | Comments |
|---|---|---|
| IE-3200-8P2S-E | Catalyst IE3200 with 8 GE PoE+ & 2 GE SFP, Fixed System, NE | |
| IE-3300-8P2S-E | Catalyst IE3300 with 8 GE PoE+ and 2 GE SFP, Modular, NE | |
| IE-3300-8T2S-A | Catalyst IE3300 with 8 GE Copper and 2 GE SFP, Modular, NA | |
| IE-3300-8T2S-E | Catalyst IE3300 with 8 GE Copper and 2 GE SFP, Modular, NE | |
| IE-3400-8P2S-E | Catalyst IE3400 with 8GE PoE/PoE+, 2GE SFP, Adv. Modular, NE | |
| IE-3400-8T2S-A | Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Modular, NA | |
| IE-3400-8T2S-E | Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Modular, NE |
Defect Information
| Defect ID | Headline |
| CSCwk70287 | Temperature error syslogs observed in IE3x00 platforms |
Problem Description
A limited number of Cisco Catalyst IE3x00 Rugged Series Switches do not report the correct temperature, and error system logs (syslogs) are generated every few seconds.
Background
Recent enhancements in manufacturing processes that were incorporated into the EEPROM data of the specified Cisco Catalyst IE3x00 platforms have resulted in an incompatibility that prevents Cisco IOS XE Software from accessing data from the temperature sensors of an affected device. This incompatibility triggers the generation of an error message within the syslog each time an attempt is made to read the temperature of the device.
Problem Symptom
The following issues may be seen in affected devices.
- After booting Cisco IOS Software, the show environment temperature command will not report the correct temperature for the unit, as shown in the following example:
Switch# show environment temperature
Supervisor Temperature Value: 1414750032 C
Temperature State:
System Temperature thresholds
Minor Threshold : 80 C (Yellow)
Major Threshold : 90 C (Red)

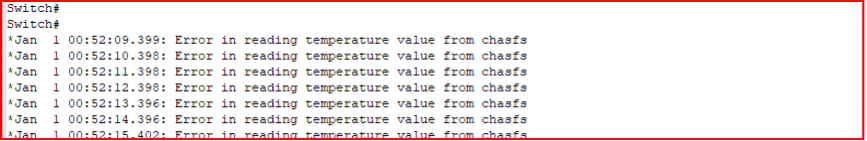

Critical Threshold : 96 C - The switch console will show the following syslog every few seconds:
Error in reading temperature value from chasfs
Workaround/Solution
Cisco strongly recommends that customers upgrade to the following fixed releases of Cisco IOS XE Software to resolve the issue that is described in this field notice:
- IOS XE 17.12.4
Note: To download the software, visit the Software Download page.
How to Identify Affected Products
To determine if a serial number is affected, see the Serial Number Validation section of this field notice.
Serial Number Validation
Cisco provides the Serial Number Validation Tool to verify whether a device is impacted by this issue. To check the device, enter the serial number in the Serial Number Validation Tool.
Important: For security reasons, you must click the Serial Number Validation Tool link that is provided in this section. Do not copy and paste the link into a browser. Use of the Serial Number Validation Tool URL external to this field notice will fail.
Revision History
| Version | Description | Section | Date |
| 1.0 | Initial Release | — | 2024-AUG-12 |
For More Information
For further assistance or for more information about this field notice, contact the Cisco Technical Assistance Center (TAC) using one of the following methods:
Receive Email Notification About New Field Notices
To receive email updates about Field Notices (reliability and safety issues), Security Advisories (network security issues), and end-of-life announcements for specific Cisco products, set up a profile in My Notifications.
