A Virtual Private Network (VPN) is the connection between the local network and a remote host through the Internet. The local and the remote hosts may be a computer, or another network whose settings have been synchronized to allow them to communicate. This is true on all types of VPN. It typically allows both networks to have access to the resources on both sides of the connection. A VPN connection is commonly utilized in connecting a second office to the main office, or allowing a remote worker to connect to the computer network of the office, even if he is not physically connected to the network infrastructure. Remote workers typically connect via a VPN software client like AnyConnect, Shrew Soft, GreenBow and many others.
This article aims to show you how to configure a site-to-site VPN connection between an RV340 and an RV345 Router. It will call the primary router the local router, and the secondary router will be called the remote router. Be sure to have remote or physical access to the secondary router.
You need to purchase client license(s) from a partner like CDW or through your company's device procurement. There are options for 1 user (L-AC-PLS-3Y-S5) or packets of licenses including one year for 25 users (AC-PLS-P-25-S). Other license options available as well, including perpetual licenses. For more details on licensing, check out the links in the Licensing Information section below.
For additional information on AnyConnect licensing on the RV340 series routers, check out the article AnyConnect Licensing for the RV340 Series Routers.
Step 1. Log in to the web-based utility of the local router and choose VPN > Site-to-Site.
Note: In this example, an RV340 is used.
Step 2. Click the plus icon.
Step 3. Ensure that the Enable check box is checked. It is checked by default.
Step 4. Enter the name of the connection in the Connection Name field.
Note: In this example, the name is TestVPN1.
Step 5. Choose the security settings of the connection from the IPSec Profile drop-down list. The options will depend on the IPSec Profiles created. For instructions on how to create an IPSec Profile, click here.
Note: In this example, CiscoTestVPN is chosen.
Step 6. Choose the interface to be used by the local router. The options are:
Note: In this example, WAN1 is chosen.
Step 7. Choose the identifier of the WAN interface of the remote router. The options are:
Note: Interface identifier on the remote router should be the same as the Interface identifier of the local router. In this example, Static IP is chosen.
Step 8. Enter the IP address of the WAN interface of the remote router.
Note: In this example, 124.123.122.123 is used.
Step 9. Click the radio button for the Internet Key Exchange (IKE) Authentication Method that you need. The options are:
Note: In this example, Preshared Key is chosen.
Step 10. Enter the preshared key for the VPN connection in the Preshared Key field.
Step 11. (Optional) Uncheck the Minimum Preshared Key Complexity Enable check box if you want to use a simple password for the VPN connection. This is checked by default.
Step 12. (Optional) Check the Show plain text when edit Enable check box to display the preshared key in plain text. This is unchecked by default.
Step 13. Choose the identifier type of the local network from the Local Identifier Type drop-down list. The options are:
Note: In this example, IP Address is chosen.
Step 14. Enter the identifier of the local network in the Local Identifier field.
Note: In this example, 124.123.122.121 is entered.
Step 15. Choose the IP Address type that may be accessed by the VPN Client from the Local IP Type drop-down list. The options are:
Note: In this example, Subnet is chosen.
Step 16. Enter the IP address of the network or host to be accessed by the VPN client in the IP Address field.
Note: In this example, the IP address is 10.10.10.1.
Step 17. Enter the Subnet Mask of the IP address in the Subnet Mask field.
Note: In this example, the subnet mask is 255.255.255.0.
Step 18. Choose the Remote Identifier Type from the drop-down list. The options are:
Note: In this example, Remote WAN IP is chosen.
Step 19. Enter the WAN IP address of the remote router in the Remote Identifier field.
Note: In this example, the remote identifier is 124.123.122.123.
Step 20. Choose the network type that the local network needs access to from the Remote IP Type drop-down list. The options are:
Step 21. Enter the LAN IP address of the remote network in the IP Address field.
Note: In this example, the IP address is 192.168.2.1.
Step 22. Enter the subnet mask of the remote network in the Subnet Mask field.
Note: In this example, the subnet mask is 255.255.255.0.
Step 23. Click Apply.
Step 24. Click Save.
You should now have configured the VPN settings on the local router.
Step 1. Determine the VPN settings of the local router such as:
Step 2. Log in to the web-based utility of the router and choose VPN > IPSec Profiles.
Step 3. Configure the VPN security settings of the remote router, matching the VPN security settings of the local router. For instructions, click here.
Step 4. On the web-based utility of the local router, choose VPN > Site-to-Site.
Step 5. Click the plus icon.
Step 6. Ensure that the Enable check box is checked. It is checked by default.
Step 7. Enter the name of the VPN connection in the Connection Name field. The connection name of the remote router may be different from the connection name specified in the local router.
Note: In this example, the Connection Name is TestVPN.
Step 8. Choose the IPSec Profile form the drop-down list. The options will depend on the IPSec Profiles created. For instructions on creating an IPSec Profile, click here.
Note: In this example, CiscoTestVPN is chosen.

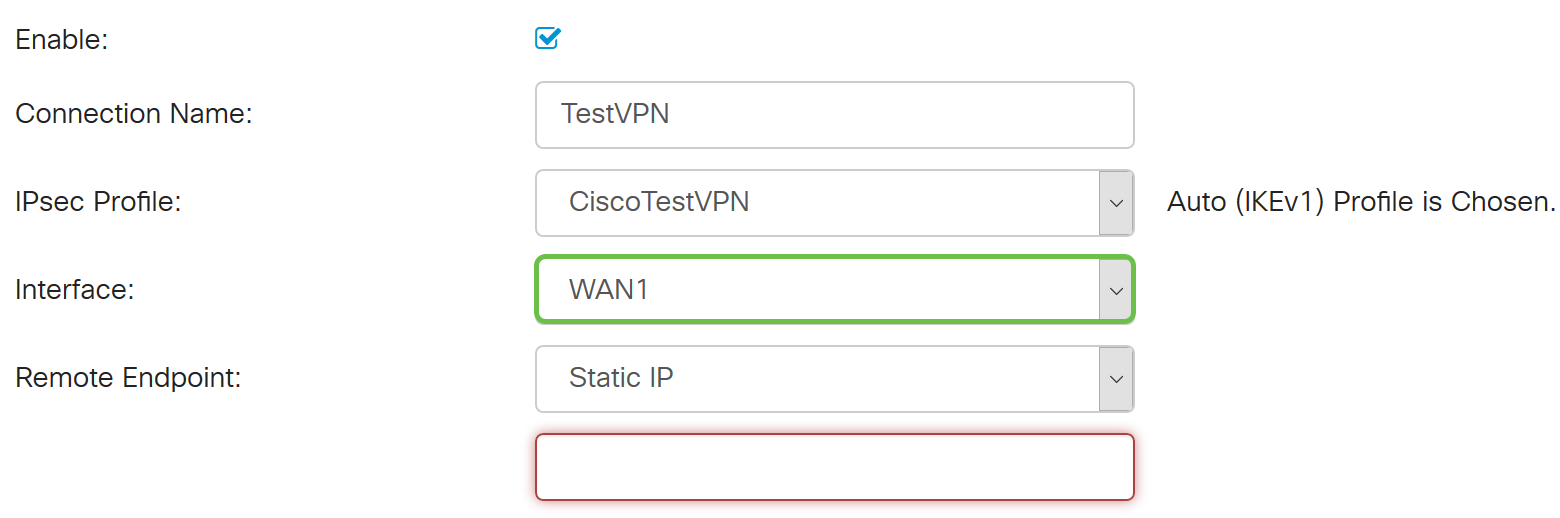

Step 9. Choose the interface that the remote router will use for the VPN connection from the drop-down list. The options are:
Note: In this example, WAN1 is chosen.
Step 10. Choose the identifier of the WAN interface of the local router from the Remote Endpoint drop-down list.. The options are:
Note: Interface identifier on the remote router should be the same as the Interface identifier of the local router. In this example, Static IP is chosen.
Step 11. Enter the WAN IP address of the local router.
Note: In this example, the IP address is 124.123.122.121.

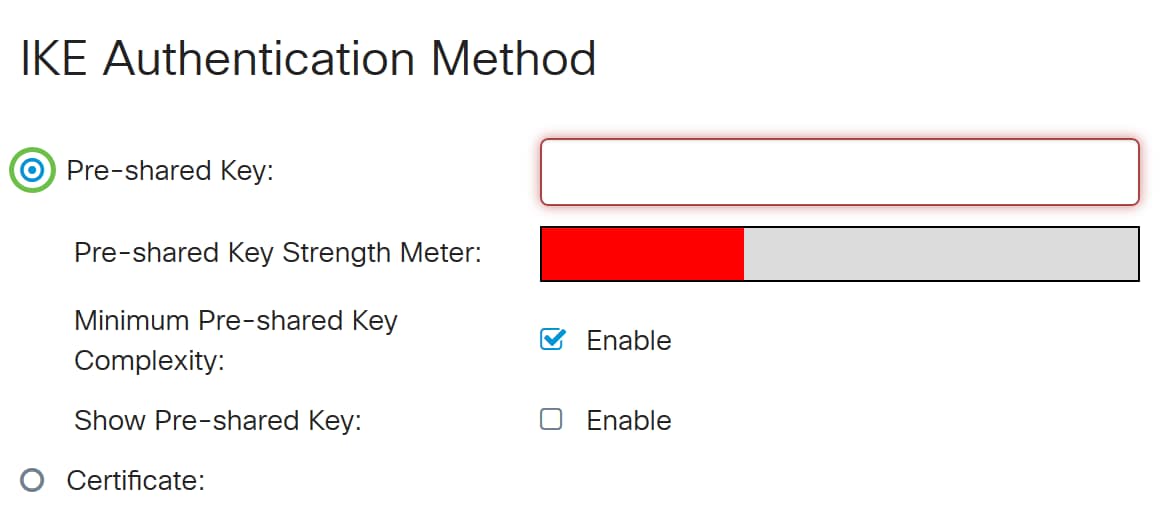

Step 12. Click the radio button for the Internet Key Exchange (IKE) Authentication Method that you need. The options are:
Note: In this example, Preshared Key is chosen.
Step 13. Enter the preshared key for the VPN connection in the Preshared Key field.

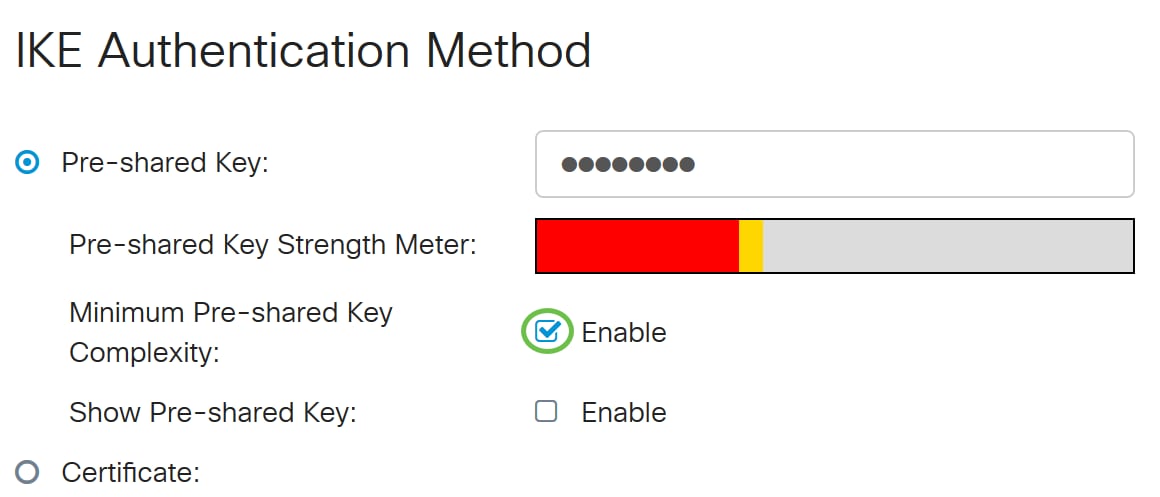

Step 14. (Optional) Uncheck the Minimum Preshared Key Complexity check Enable box if you want to use a simple password for the VPN connection. This is checked by default.
Step 15. (Optional) Check the Show plain text when edit Enable check box to display the preshared key in plain text. This is unchecked by default.
Step 16. Choose the identifier type of the remote network from the Local Identifier Type drop-down list of the remote router. The options are:
Note: In this example, IP Address is chosen.

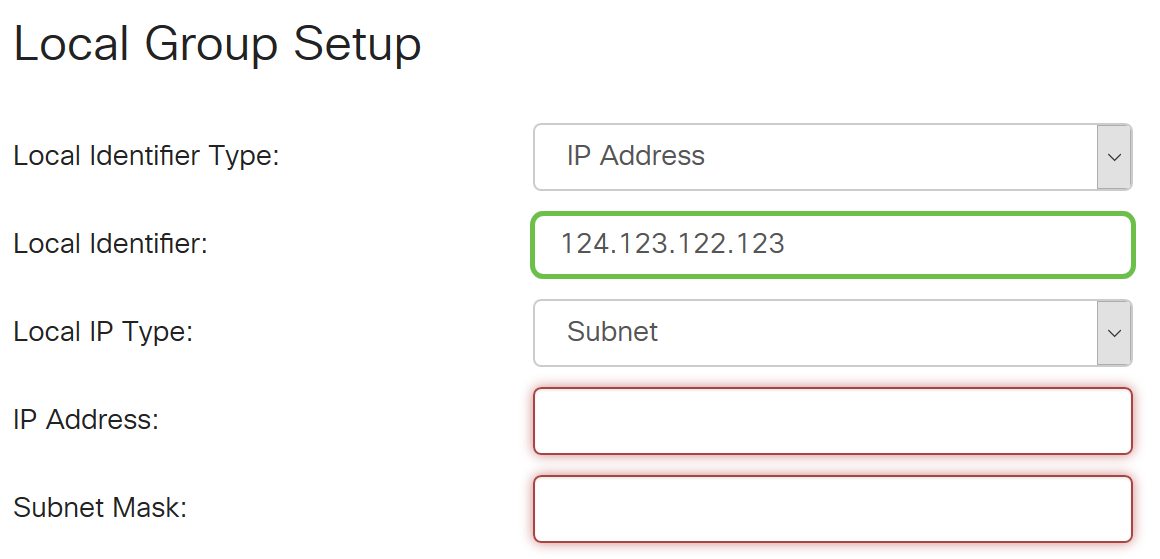

Step 17. Enter the identifier of the remote network in the Local Identifier field of the remote router.
Note: In this example, 124.123.122.123 is entered.

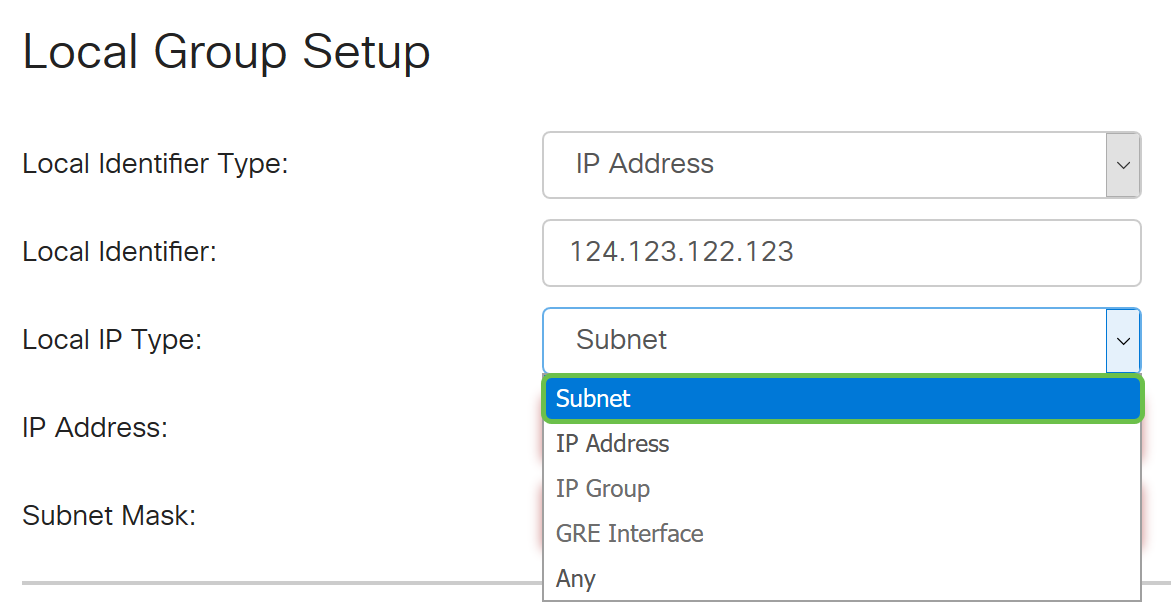

Step 18. Choose the IP Address type that may be accessed by the VPN Client from the Local IP Type drop-down list. The options are:
Note: In this example, Subnet is chosen.
Step 19. Enter the IP address of the network or host to be accessed by the VPN client in the IP Address field.
Note: In this example, the IP address is 192.168.2.1.
Step 20. Enter the Subnet Mask of the IP address in the Subnet Mask field.
Note: In this example, the subnet mask is 255.255.255.0.
Step 21. Choose the Local Identifier Type from the drop-down list. The options are:
Note: In this example, Remote WAN IP is chosen.
Step 22. Click Apply.
Step 23. Click Save.
You should now have configured the VPN settings on the remote router.
