Introduction
This document describes how to troubleshoot an error encountered while syncing license on Catalyst SD-WAN Manager through On-prem reporting mode.
Requirements
For scenarios in which Catalyst SD-WAN Manager is not connected directly to the internet, using a proxy server can provide access to internet-based services, such as Cisco SSM, or to a local on-prem SSM.
Minimum release: Catalyst SD-WAN Manager Release 20.9.1
Cisco Smart Software Manager on-prem (SSM on-prem) is a Cisco Smart Licensing solution that enables you to administer licenses from a server on your premises, instead of having to connect directly to Cisco SSM. The solution involves setting up a Cisco SSM on-prem license server, which synchronizes its license database with Cisco SSM periodically and functions similarly to Cisco SSM, while operating locally.
Catalyst SD-WAN Manager supports management of licenses using a Cisco SSM on-prem server, using a mode called on-prem. On-prem mode is useful for organizations that use Cisco SSM on-prem to accommodate a strict security policy that does not permit network devices to communicate with Cisco SSM by direct internet connection.
When operating in on-prem mode, Catalyst SD-WAN Manager synchronizes license information with the Cisco SSM on-prem license server every 24 hours. During this synchronization, Catalyst SD-WAN Manager receives any updates to available licenses and it sends license usage reports to the Cisco SSM on-prem license server. You can synchronize licenses at any time.

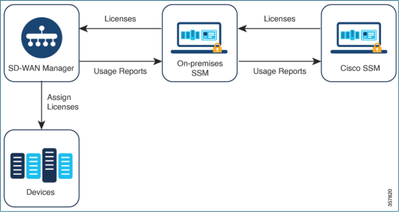

![License Sync Flow](/c/dam/en/us/support/docs/troubleshooting/222117-troubleshoot-license-sync-on-catalyst-sd-00.png)
Benefits of Using Cisco Smart Software Manager On-Prem
Organizations whose security policies, or other circumstances, require that Catalyst SD-WAN Manager not be connected to the internet have two options for managing licenses for Smart License Using Policy:
- Use offline mode, which requires transferring files manually between Catalyst SD-WAN Manager and Cisco SSM.
- Use a Cisco SSM on-prem server that is accessible through a local area connection to Catalyst SD-WAN Manager.
Both of these methods address the need to transfer license information between Cisco SSM and Catalyst SD-WAN Manager. Wherever it is possible to use the on-prem mode, this mode provides the significant benefit of reducing the maintenance overhead of transferring files manually between Catalyst SD-WAN Manager and Cisco SSM, as is necessary for offline mode.
Error
While syncing the Smart credentials from Catalyst SD-WAN Manager GUI, we get this error:
Failed to authenticate Smart Account credentials.: Failed to authenticate user - 'admin'. {"error":"invalid_client","error_message":"Grant not found. Ensure that the given grant details are correct."}
![Error](/c/dam/en/us/support/docs/troubleshooting/222117-troubleshoot-license-sync-on-catalyst-sd-01.png)
Troubleshooting Aprroach
- vManage must be on code 20.9.1 or later.
- Check logs on the Catalyst SD-WAN Manager (vmanage-server.logs) while putting Smart Account Credentials on the Catalyst SD-WAN Manager Licence Management Section.
- Make sure correct Client ID and Secret-key shared by on-prem SSM team.
- TCPDUMP on the vManage for CSSM Server IP
- Verify DNS is correctly configured on the Catalyst SD-WAN Manager and able to ping cloudsso.cisco.com
- Involve on-prem SSM team and request SSM team to debug at on-prem server end.
Catalyst SD-WAN Manager IP: 10.66.76.81 / 192.168.10.1
CSSM Server IP: 10.106.66.55
TCPDump on the vManage for SSM server IP:
um8_vManage# tcpdump vpn 0 interface eth0 options "host 10.106.66.55 -nn -vv"
tcpdump -p -i eth0 -s 128 host 10.106.66.55 -nn -vv in VPN 0
tcpdump: listening on eth0, link-type EN10MB (Ethernet), capture size 128 bytes
12:15:06.407513 IP (tos 0x0, ttl 64, id 24618, offset 0, flags [DF], proto TCP (6), length 52)
192.168.10.1.57886 > 10.106.66.55.8443: Flags [S], cksum 0xfadb (incorrect -> 0xdf91), seq 746386211, win 29200, options [mss 1460,nop,nop,sackOK,nop,wscale 7], length 0
12:15:06.651698 IP (tos 0x20, ttl 44, id 0, offset 0, flags [DF], proto TCP (6), length 52)
10.106.66.55.8443 > 192.168.10.1.57886: Flags [S.], cksum 0x1b34 (correct), seq 2758352947, ack 746386212, win 29200, options [mss 1380,nop,nop,sackOK,nop,wscale 7], length 0
12:15:06.651768 IP (tos 0x0, ttl 64, id 24619, offset 0, flags [DF], proto TCP (6), length 40)
192.168.10.1.57886 > 10.106.66.55.8443: Flags [.], cksum 0xfacf (incorrect -> 0xcce1), seq 1, ack 1, win 229, length 0
12:15:06.654592 IP (tos 0x0, ttl 64, id 24620, offset 0, flags [DF], proto TCP (6), length 212)
192.168.10.1.57886 > 10.106.66.55.8443: Flags [P.], seq 1:173, ack 1, win 229, length 172
12:15:06.899695 IP (tos 0x0, ttl 41, id 44470, offset 0, flags [DF], proto TCP (6), length 40)
10.106.66.55.8443 > 192.168.10.1.57886: Flags [.], cksum 0xcc2d (correct), seq 1, ack 173, win 237, length 0
12:15:06.911484 IP (tos 0x0, ttl 41, id 44471, offset 0, flags [DF], proto TCP (6), length 1420)
10.106.66.55.8443 > 192.168.10.1.57886: Flags [.], seq 1:1381, ack 173, win 237, length 1380
12:15:06.911542 IP (tos 0x0, ttl 41, id 44472, offset 0, flags [DF], proto TCP (6), length 254)
10.106.66.55.8443 > 192.168.10.1.57886: Flags [P.], seq 1381:1595, ack 173, win 237, length 214
12:15:06.911573 IP (tos 0x0, ttl 64, id 24621, offset 0, flags [DF], proto TCP (6), length 40)
192.168.10.1.57886 > 10.106.66.55.8443: Flags [.], cksum 0xfacf (incorrect -> 0xc6bb), seq 173, ack 1381, win 251, length 0
12:15:06.911598 IP (tos 0x0, ttl 64, id 24622, offset 0, flags [DF], proto TCP (6), length 40)
192.168.10.1.57886 > 10.106.66.55.8443: Flags [.], cksum 0xfacf (incorrect -> 0xc5cf), seq 173, ack 1595, win 273, length 0
12:15:06.923929 IP (tos 0x0, ttl 64, id 24623, offset 0, flags [DF], proto TCP (6), length 234)
192.168.10.1.57886 > 10.106.66.55.8443: Flags [P.], seq 173:367, ack 1595, win 273, length 194
On-prem Server Logs:
[root@SSM-On-Prem log]# tail -f messages
Jan 13 11:13:36 SSM-On-Prem chronyd[1319]: Source 172.20.226.229https://172.20.226.229 replaced with 172.30.5.123https://172.30.5.123
Jan 13 11:14:09 SSM-On-Prem b09c1e3b5d81: 1:M 13 Jan 2023 11:14:09.049 * 100 changes in 300 seconds. Saving...
Jan 13 11:14:09 SSM-On-Prem b09c1e3b5d81: 1:M 13 Jan 2023 11:14:09.050 * Background saving started by pid 4617
Jan 13 11:14:09 SSM-On-Prem b09c1e3b5d81: 4617:C 13 Jan 2023 11:14:09.052 * DB saved on disk
Jan 13 11:14:09 SSM-On-Prem b09c1e3b5d81: 4617:C 13 Jan 2023 11:14:09.053 * RDB: 0 MB of memory used by copy-on-write
Jan 13 11:14:09 SSM-On-Prem b09c1e3b5d81: 1:M 13 Jan 2023 11:14:09.150 * Background saving terminated with success
Jan 13 11:14:46 SSM-On-Prem 1a1fca641d0a: Redis#exists(key) will return an Integer in redis-rb 4.3. exists? returns a boolean, you should use it instead. To opt-in to the new behavior now you can set Redis.exists_returns_integer = true. To disable this message and keep the current (boolean) behaviour of 'exists' you can set Redis.exists_returns_integer = false, but this option will be removed in 5.0. (/usr/local/lib/ruby/gems/2.6.0/gems/redis-session-store-0.11.1/lib/redis-session-store.rb:70:in `session_exists?')
Jan 13 11:14:46 SSM-On-Prem 1a1fca641d0a: [active_model_serializers] Rendered UserSerializer with ActiveModelSerializers::Adapter::Attributes (3.0ms)
Jan 13 11:14:46 SSM-On-Prem 1a1fca641d0a: method=GET path=/sessions/get_user format=json controller=SessionsController action=get_user status=200 duration=24.86 view=3.23 db=7.98 params={"controller"=>"sessions", "action"=>"get_user", "session"=>{}} session_id=[FILTERED] uid=admin time=2023-07-13T11:14:46Z http_referer=https://172.20.85.137:8443/admin/ client_ip=10.110.35.124https://10.110.35.124 user_agent=Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/10.120.0.0 Safari/537.36
Jan 13 11:14:46 SSM-On-Prem 504f06c0d581: 10.110.35.124https://10.110.35.124 - - [13/Jan/2023:11:14:46 +0000] "GET /backend/sessions/get_user HTTP/1.1" 200 271 https://172.20.85.137:8443/admin/ "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/10.120.0.0 Safari/537.36" "-"
Jan 13 11:17:01 SSM-On-Prem 504f06c0d581: 2023/07/13 11:17:01 [error] 47#47: *1576 connect() failed (111: Connection refused) while connecting to upstream, client: 10.66.76.85, server: , request: "POST /backend/oauth/token?grant_type=password&client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf&client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx&username=admin&password=CiscoLab%21234567 HTTP/1.1", upstream: http://[fd00:dead:beef::5]:3000/oauth/token?grant_type=password&client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf&client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx&username=admin&password=CiscoLab%21234567, host: "172.20.85.137:8443"
Jan 13 11:17:01 SSM-On-Prem 504f06c0d581: 2023/07/13 11:17:01 [warn] 47#47: *1576 upstream server temporarily disabled while connecting to upstream, client: 10.66.76.85, server: , request: "POST /backend/oauth/token?grant_type=password&client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf&client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx&username=admin&password=CiscoLab%21234567 HTTP/1.1", upstream: http://[fd00:dead:beef::5]:3000/oauth/token?grant_type=password&client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf&client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx&username=admin&password=CiscoLab%21234567, host: "172.20.85.137:8443"
Jan 13 11:17:01 SSM-On-Prem 1a1fca641d0a: [active_model_serializers] Rendered ActiveModel::Serializer::Null with Hash (0.09ms)
Jan 13 11:17:01 SSM-On-Prem 1a1fca641d0a: method=POST path=/oauth/token format=json controller=Doorkeeper::OauthTokensController action=create status=403 duration=4.21 view=0.53 db=1.12
Jan 13 11:17:01 SSM-On-Prem 504f06c0d581: 10.66.76.85https://10.66.76.85 - - [13/Jan/2023:11:17:01 +0000] "POST /backend/oauth/token?grant_type=password&client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf&client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx&username=admin&password=CiscoLab%21234567 HTTP/1.1" 403 121 "-" "Apache-HttpClient/4.5.11 (Java/11.0.7)" "-"
Jan 13 11:17:14 SSM-On-Prem 1a1fca641d0a: [INFO] Session expiring outcome=success
Logs on the vManage while putting Smart Accounts details in vManage Licence Management Section:
13-Jan-2023 17:29:02,775 IST INFO [um8_vManage] [SmartLicensingIntegrationManager] (default task-24) |default| user is using in On Prem mode
13-Jan-2023 17:29:02,776 IST INFO [um8_vManage] [SmartLicensingIntegrationManager] (default task-24) |default| Authenticating on-prem server
13-Jan-2023 17:29:02,780 IST INFO [um8_vManage] [AbstractSettingsManager] (default task-24) |default| Found smart licensing mode is onprem
13-Jan-2023 17:29:02,781 IST INFO [um8_vManage] [SmartLicensingUtil] (default task-24) |default| intializing client Map {clientUrl=172.20.85.137https://172.20.85.137, client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx, client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf}
13-Jan-2023 17:29:02,781 IST INFO [um8_vManage] [SmartLicensingUtil] (default task-24) |default| Getting onPrem server details
13-Jan-2023 17:29:02,793 IST INFO [um8_vManage] [RestAPIClient] (default task-24) |default| RestAPI proxy host
13-Jan-2023 17:29:02,793 IST INFO [um8_vManage] [RestAPIClient] (default task-24) |default| RestAPI proxy port
13-Jan-2023 17:29:02,798 IST INFO [um8_vManage] [SmartLicensingUtil] (default task-24) |default| URL backend/oauth/token?grant_type=password&client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf&client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx&username=ptundalw&password=Carnation%2321
13-Jan-2023 17:29:02,798 IST INFO [um8_vManage] [SmartLicensingUtil] (default task-24) |default| Query Smart Account: backend/oauth/token?grant_type=password&client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf&client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx&username=ptundalw&password=*******
13-Jan-2023 17:29:03,490 IST ERROR [um8_vManage] [RestAPIClient] (default task-24) |default| Failed to process POST request uri: backend/oauth/token?grant_type=password&client_id=jF6qntGFm429n2B7tlgJPNHueoyjjn8p6zAn7BhYLUhjAY5BZlTUV9Q0r_Zk7uBf&client_secret=d1b_ZV4QWs4UzB00_YYHz0Ek_qxcvywN4d2GD40LQOyKfMOV6MoKmVchUBX3GsGx&username=ptundalw&password=******* . Code: 403 Message: {"error":"invalid_client","error_message":"Grant not found. Ensure that the given grant details are correct."}
13-Jan-2023 17:29:03,491 IST ERROR [um8_vManage] [SmartLicensingUtil] (default task-24) |default| Failed to authenticate user - 'ptundalw'.
13-Jan-2023 17:29:03,491 IST ERROR [um8_vManage] [SmartLicensingIntegrationRestfulResource] (default task-24) |default| Smart Account User Authentication failed.
Note: We are getting error 403 while syncing the smart account from vManage GUI which indicates that the server understands the request but refuses to authorize it.
Workaround
- Login to On Prem Server.
- Navigate to API Tool Kit.

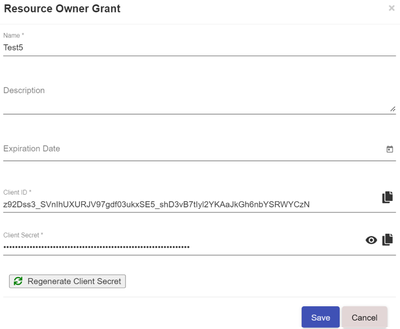

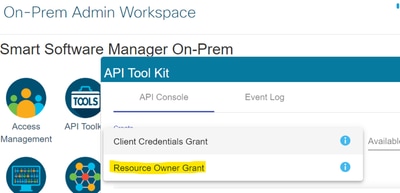

- Select "Resource Owner Grant", Enter the details as Name and save.
![On-Prem Admin Workspace](/c/dam/en/us/support/docs/troubleshooting/222117-troubleshoot-license-sync-on-catalyst-sd-02.png)
![Token](/c/dam/en/us/support/docs/troubleshooting/222117-troubleshoot-license-sync-on-catalyst-sd-03.png)

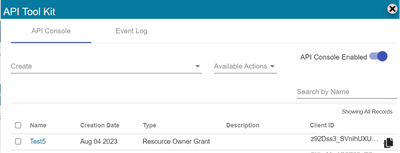

- Select the saved record (mentioned in previous snapshot) and check Client ID and Client Secret.
![API Toolkit](/c/dam/en/us/support/docs/troubleshooting/222117-troubleshoot-license-sync-on-catalyst-sd-04.png)
- Share and enter the shared Client ID and Client Secret in Catalyst SD-WAN Manager portal.
- Go to "Sync Licenses and Refresh Devices" in vManage and use the same on prem credentials with which you logged in to generate client ID and client secret.
