This document is a how-to-use guide for provisioning services for use in Cisco Crosswork Hierarchical Controller.
The services supported are:
● Cisco Crosswork Hierarchical Controller for optical services:
◦ IP Link
◦ OCH Link
◦ OCH-NC Link
◦ OTN-Line
◦ SDH-Liner
◦ Circuit E-Line
◦ Packet E-Line
● Cisco Crosswork Hierarchical Controller for dynamic IP VPN services:
◦ L2-VPN
◦ L3-VPN
Note: The optical services are provisioned in Service Manager and the dynamic IP VPN services are provisioned via NSO. The dynamic IP services may be viewed in the Service Assurance application.
The Crosswork Hierarchical Controller solution includes the Brain and embedded NSO. In the southbound interface, both the Brain and embedded NSO communicate with the domain controller.
Crosswork Hierarchical Controller Architecture
In the Northbound interface:
● The embedded NSO provides an RESTCONF, IETF-based interface to L2-VPN and L3-VPN service CRUD (Create, Read, Update, Delete).
● The Brain provides a REST-based interface to get full topology, inventory, and TE paths, all using SHQL queries embedded into REST APIs, and get traffic utilization APIs for ports and TE tunnels.
The document contains the following sections and explains:
● The need for services management
● Tunnels
● Point to Point
● NSO Provisioning
● Service Settings
● Service Manager Operations
● Network Services Orchestrator Crosswork Hierarchical Controller - Function Pack Appendix
Table 1. Terms
Term |
Definition |
Adapter |
The software used by Cisco Crosswork Hierarchical Controller to connect to devices or to device managers. |
Agg link |
A Link Aggregation Group (LAG) where multiple ETH links are grouped to create higher bandwidth and resilient link. |
BGP |
Border Gateway Protocol |
Circuit E-Line |
An Ethernet connection between two ETH client ports on Transponder or Muxponder over OTN signal. |
CNC |
Cisco Crosswork Network Controller. |
CO |
Domain controller. |
Device |
Optical network element, router, or microwave device. |
Device Manager |
The application that manages the deployed adapters. |
eMBB |
Enhanced Mobile Broadband. |
ETH link |
An ETH L2 link that spans from one ETH UNI port of an optical device to another, and rides on top of ODU. |
ETH chain |
A link whose path is a chain of Ethernet links cross-subnet-connected (found using Crosswork Hierarchical Controller cross-mapping algorithm). Eth-chain is a replacement for R_PHYSICAL link in cases where one side of the link is in a device out of the scope discovered by Crosswork Hierarchical Controller. |
Fiber segment |
Physical fiber line that spans from one passive fiber endpoint (manhole, splice etc.) to another and is used as a segment in a fiber link. |
Fiber |
Chain of fiber segments that spans from one optical device to another. |
GIS |
Geographic Information System. |
IGP |
The link between two routers that carries IGP protocol messages. The link represents an IGP adjacency. |
IP-MPLS |
IP multi-protocol label switching. |
L3-VPN link |
The connection between two sites of a specific L3-VPN (can be a chain of LSP connections or IGP path). |
L3 physical |
L3 physical is the physical link connecting two router ports. It may ride on top of an ETH link if the IP link is carried over the optical layer. |
L3-VPN |
A virtual private network based on L3 routing for control and forwarding. |
Logical link, IGP, LSP |
Logical link connects VLANs on two IP ports. |
LSP |
Label Switched Path, used to carry MPLS traffic over a label-based path. LSP is the MPLS tunnel created between two routers over IGP links, with or without Traffic Engineering (TE) options. |
MLPS Tunnels |
MPLS TP tunnels may use ETH (L1 Ethernet links) or R_PHYSICAL (L2 Ethernet links) underlay topologies, and can be used as an underlay for Packet E-Line services, |
NMC (OCH-NC, OTSiMC) |
The link between the xPonder facing ports on two ROADMs. This link is the underlay for OCH and it is an overlay on top of OMS links. This is relevant only for disaggregation cases where the ROADM and OT box are separated. |
NMS |
Network Management System. |
Nokia NSP |
Nokia Network Service Provider. |
OC/OCG |
SONET/SDH links that span from one optical device to another and carry SONET/SDH lower bandwidth services, the links ride on top of OCH links and terminate in TDM client ports. |
OCH |
OCH is a wavelength connection spanning between the client port one OT device (transponder, muxponder, regen) and another. 40 or 80 OCH links can be created on top of OMS links. The client port can be a TDM or ETH port. |
OCH-NC |
Wavelength link. New service is added as NMC link. |
ODU |
ODU links are sub-signals in OTU links. Each OTU links can carry multiple ODU links, and ODU links can be divided into finer granularity ODU links recursively. |
ONC |
Cisco Optical Controller (ONC). |
OSPF |
Open Shortest Path First, an Interior Gateway Protocol between routers. |
OTN-Line |
An OTN connection between two ODU client ports over OTN path. |
OTS |
OTS is the physical link connecting one line amplifier or ROADM to another. An OTS can be created over a fiber link. |
out |
OTU is the underlay link in OTN layer, used for ODU links. It can ride on top of an OCH. |
Packet E-Line |
A point-to-point connection between two routers or transponders/muxponders over MPLS-TP or IP-MPLS. |
PCC |
Path Computation Client. Delegated to controller. Router is responsible for initiating path setup and retains the control on path updates. |
PCE |
Path Computation Element. Controller-initiated. |
QAM |
Quadrature Amplitude Modulation. |
QPSK |
Quadrature Phase Shift Keying modulation. This carries less information per symbol than QAM modulation. |
Radio Media |
The media layer as a carrier of radio channels. |
Radio Channel |
Multiple radio channels can be on top of radio media, each channel represents a different ETH link with its own rate. |
RD |
Route Distinguisher. |
RSVP-TE |
Resource Reservation Protocol to control traffic engineered paths over MPLS network . |
RT |
Route Target. |
SCH |
A super-channel is an evolution of DWDM in which multiple, coherent optical carriers are combined to create a unified channel of a higher data rate, and which is brought into service in a single operational cycle. |
SDH-Line |
SDH line between STM-64 or STM-256 ports. |
SDN Controller |
Software that manages multiple routers or optical network elements. |
SR Policy |
Segment Routing Policy. A segment routing path between two nodes, with mapping to the IGP links based on SIDs list. |
STS |
Large and concatenated TDM circuit frame (such as STS-3c) into which ATM cells, IP packets, or Ethernet frames are placed. Rides on top of OC/OCG as optical carrier transmission rates. |
TDM |
Time Division Multiplexing. |
uRLLC |
Ultra-Reliable Low Latency Communications. |
VRF |
Virtual Routing Function, acts as a router in L3-VPN. |
ZR Media |
The media layer as a carrier of ZR channels, on top of OCH link. |
ZR Channel |
Multiple ZR channels can be on top of ZR media, each channel represents a different IP link with its own rate. |
Crosswork Hierarchical Controller supports the creation of new transport client services and photonic services.
Crosswork Hierarchical Controller abstracts the service model and provides users with a simple and intuitive user interface to provision new services.
It is assumed that domain controller implicitly handles the creation/use of the underlay path (OTSiMC, OTN, MPLS-TP) as required to fulfil the service request.
The table below defines the required parameters per service type.
Crosswork Hierarchical Controller requires the optical controller to support the connectivity-service API by TAPI. A proper use of the layers is needed per the service type.
Table 2. Provisioning parameters
Service Type |
Provisioning Parameters |
IP Links |
● Service name ● Service ID ● Link rate mode ● Endpoints and transmit power ● Link IP addresses ● L Band/C Band ● Frequency ● Digital-to-Analog Converter (DAC) rate ● Modulation ● Included nodes/links in path ● Excluded nodes/links from path ● Disjoint from a path of an existing service |
OCH-NC/OTSiMC (between ROADMs) |
● Service name ● Service ID ● Bandwidth ● Baud rate ● Frequency ● Protection option (1+1, 1+1+r) ● Endpoints ● Optimization goal (minimize path by admin cost, latency, or number of hops) ● Per path, for main, redundant, and restored paths ◦ Included nodes/links in path ◦ Excluded nodes/links from path ● Disjoint from a path of an existing service |
Photonic Services (OCH Trail between OT/Transponders) |
● Service name ● Service ID ● Bandwidth ● Baud rate ● Frequency ● Protection option (1+1, 1+1+r) ● Endpoints ● Optimization goal (minimize path by admin cost, latency, or number of hops) ● Per path, for main, redundant, and restored paths ◦ Included nodes/links in path ◦ Excluded nodes/links from path ● Disjoint from a path of an existing service |
Circuit E-Line /OTN Line/SDH Line |
● Service name ● Service ID ● ODU signal/ETH rate/SDH STM rate ● Protection option (1+1, 1+1+r) ● Endpoints ● Optimization goal (minimize path by admin cost, latency, or number of hops) ● Per path, for main, redundant, and restored paths ◦ Included nodes/links in path ◦ Excluded nodes/links from path ● Disjoint from a path of an existing service |
Packet E-Line |
● Service name ● Service ID ● Protection option (1+1, 1+1+r) ● Endpoints ◦ CIR/EIR ◦ VLAN IDs ● Optimization goal (minimize path by admin cost, latency, or number of hops) ● Per path, for main, redundant, and restored paths ◦ Included nodes/links in path ◦ Excluded nodes/links from path ● Disjoint from a path of an existing service |
Crosswork Hierarchical Controller in Brief
The Crosswork Hierarchical Controller product family is a set of software applications built on a common Crosswork Hierarchical Controller platform, designed to accelerate automation and to increase efficiency and reliability of service providers networks. Crosswork Hierarchical Controller addresses the role of the multi-domain, multi-layer, and multi-vendor network controller.
This innovative capability to learn the mapping between IP/MPLS and optical layer ports (cross-layer mapping) is key to providing a comprehensive view of the network. This has historically been a very difficult problem to solve since there are no standards to automatically provide discovery of such links. This process applies to IP/MPLS-optical links, as well as to cross-domain optical links.
Achieving automation of the complete process, without compromising on resiliency must involve fibers discovery and GIS information. Both enable the understanding of risks in planning phases and crucial information to assess failure impact on services in operations.
Crosswork Hierarchical Controller is fully multi-layer and multi-vendor. The system interfaces with SDN Domain Controllers for the packet layers (IP, MPLS) and transport layers (WDM, OTN, Packet-Optical, Microwave) to create a coherent view of the entire transport network, as shown in Figure 1 below, and enables automation of its functions and simplified abstracted interaction with Service Orchestrators and OSS tools.

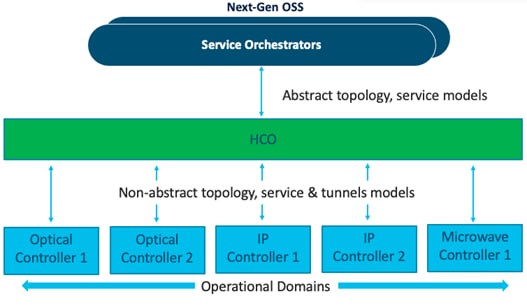

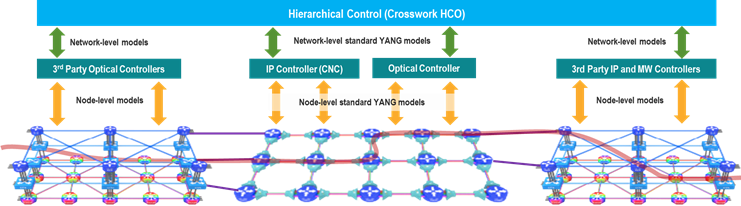

Transport SDN Architecture
Service Manager is a key Cisco Crosswork Hierarchical Controller application that allows for the creation of L1-L3 services and L1-L3 underlay tunnels and links across the entire SP network.
Crosswork Hierarchical Controller can discover L1-L3 services from area/domain controllers. It can discover intra-domain and inter-domain E-Line and L3-VPN services while completing the information on all LSPs along the path, VRFs, and all inter-AS options. This allows Crosswork Hierarchical Controller to discover existing services, as well as new services it has provisioned.
Crosswork Hierarchical Controller supports service lifecycle state (provisioned, pending, planned), operational state and admin state.
Basic service instantiation is supported by the Domain Controller for each domain. However, none of the Domain Controllers understand how to achieve a globally optimal path for an end-to-end service.
Using its own global Path Computation Element (PCE), Crosswork Hierarchical Controller can calculate the optimal end-to-end multidomain path for the service, set it up in each Domain Controller and make sure the service parts are stitched together across domain boundaries.
In fact, a service can span different layers for its delivery. For example, an E-Line service can start on an OTN metro network, then be handed off to the MPLS core network, where it is carried over a pseudowire (PW) in an MPLS tunnel, and then over a packet-optical access network to its final destination. Crosswork Hierarchical Controller figures out which layers should be used to set up the service, based on user-defined policies.
Crosswork Hierarchical Controller supports IP services as defined by IETF in L2NM, L3NM and optical services as defined by ONF TAPI interface.
Crosswork Hierarchical Controller abstracts the service configuration and provides simple, intent-based API and UI to create new services with endpoint details, SLA, and associations to a predefined template that can be overridden for better adjustment.
Services and tunnels currently supported for provisioning and modification by the Service Manager:
● Tunnels:
◦ RSVP-TE tunnel over single domain
◦ SR policy over single domain
◦ MPLS-TP tunnel
● Point-to-Point:
◦ IP links between two routers over ZR/+ and over alien lambda (as multi-vendor optical network)
◦ OCH Link
◦ OCH-NC Link
◦ OTN Line
◦ SDH Line
◦ Circuit E-Line
◦ Packet E-Line over packet-optical network
Endpoints can be added to the UI wizard by selecting them from the inventory. Ports enabled for selection are those applicable for the service type. Per endpoint, the bandwidth can be defined (as CIR, EIR, CBS, PBS) and VLAN and COS classification can be added.
Crosswork Hierarchical Controller has a sophisticated global multilayer PCE to calculate services and underlay paths. The calculation is based on the selected criteria: number of hops, latency, or admin cost. It also considers the preferences for protection, diversity, SRLG, specific links, devices, or service paths to include or exclude, and resources available per the requested bandwidth.
PCE works over multiple domains, where it can calculate paths’ diversity between domains as a full path of end-to-end service.
Depending on the implementation, PCE knows how to work with vendor-specific capabilities and constraints and how to verify the feasibility of a path before putting it in action.
Creation of a service is managed as a network transaction. Commands are sent to all participating Domain Controllers. Upon completion, the configuration undergoes validation in all domains before notifying the user of configuration success. In the event of failure, PCE knows to roll back and leave no broken configuration in any Domain Controller.
This transaction mechanism knows how to overcome a failure in Crosswork Hierarchical Controller because the backup system can continue tracking the transaction and act according to the response from the Domain Controllers.
Each action on a service or tunnel (creation, modification, deletion) done via the UI or via APIs is recorded as an operation. An operation contains the full details of the action and its results, log of the service scheme sent to the controllers, the returned results, error messages from domain controllers, and the operation status.

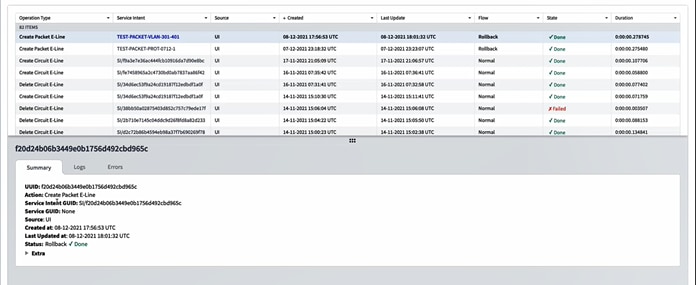

Operations can be viewed per selected service or tunnel and as a list of all operations.
Service Manager allows you to view and delete services that were not created by Crosswork Hierarchical Controller but are discovered and managed by the CO (domain controller). For these services, they appear as Is Brownfield: True.
The following delegated service types are supported: Packet E-Line, Circuit E-Line, OTN‑Line, and OCH (Wavelength) services.
A tunnel is a unidirectional link between source and destination routers, riding over IGP links with only primary, or primary and secondary LSPs. You can create tunnels of type:
● RSVP
● SR Policy
● MLPS-TP Tunnel

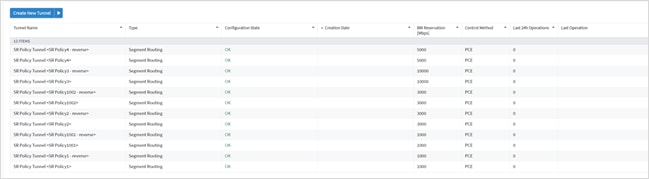

You can view a list of the tunnels.
To view tunnels:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Tunnels. A list of the tunnels appears in the Tunnels pane with the following information:
◦ Tunnel Name: The tunnel name.
◦ Type: The type of tunnel, for example, Segment Routing.
◦ Configuration State: The configuration state (OK, ABANDONED, REMOVED).
◦ Creation Date: The date the tunnel was created.
◦ BW Reservation (Mbps): The bandwidth reserved for the tunnel.
◦ Control Method: The control method: by device (PCC) or by controller (PCE).
◦ Last 24H Operations: The volume of operations in last 24 hours.
◦ Last Operation: The last operation executed on the tunnel.
2. Select the required tunnel.

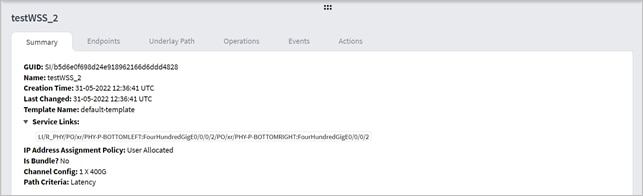

3. To view more tunnel details, see the lower pane view with the following tabs:
◦ Summary: Additional details about the tunnel, such as, Description, Admin State.
◦ Endpoints: The source and destination endpoint details.
◦ Underlay Path: The underlay path items traversed by the tunnel.
◦ Operations: The tunnel operations.
◦ Events: The tunnel events.
◦ Actions: The modification actions (if applicable) and the option to Delete Tunnel.
Add RSVP Tunnel
You can create an RSVP tunnel between source and target endpoints, with a bandwidth reservation, controlled by device or controller, associated with a specific virtual network. Various advanced settings and limitations (items to be included or excluded from the path) can be added. An RSVP tunnel can only be created over a single domain.
To add a RSVP tunnel:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
2. Click Create New Tunnel.
3. Select RSVP.

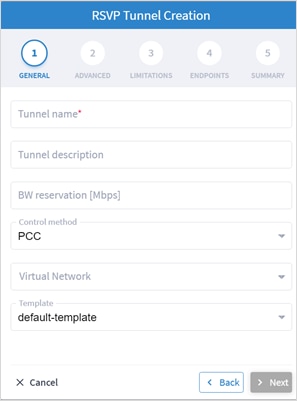

4. Specify the following GENERAL settings:
◦ Tunnel name: The unique user defined name of this tunnel.
◦ Tunnel description: A description of the tunnel.
◦ BW reservation (Mbps): The bandwidth reserved for this tunnel.
◦ Control method: The control method, by device (PCC) or by controller (PCE).
◦ Virtual Network: The virtual network (tunnels can be grouped using tags to construct a virtual network. L3-VPN can be assigned to specific virtual network).
◦ Template: This is not available in the current version (there is a default-template).
5. Click Next.

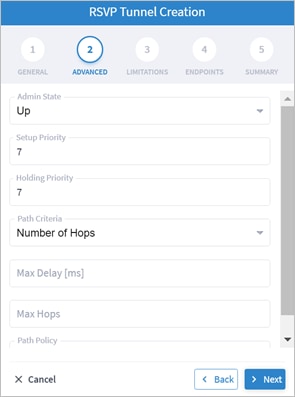

6. Specify the following ADVANCED settings:
◦ Admin State: The admin state (Up or Down).
◦ Setup Priority: The setup priority (between 0 and 7). Default is 7.
◦ Holding Priority: The holding priority (between 0 and 7). Default is 7.
◦ Path Criteria: The path control method (Number of Hops or Latency or Admin Cost).
◦ Max Delay (ms): The maximum permissible delay in 100 of ms (between 0 to 500). Only relevant when the path criteria is set to Latency.
◦ Max Hops: The maximum number of hops (between 1 to 100). Only relevant when path criteria is set to Number of Hops.
◦ Path Policy: Select a policy (Strict or Loose). If Strict, must include the list of nodes and IGP links to be included in the new tunnel path.
7. Click Next.

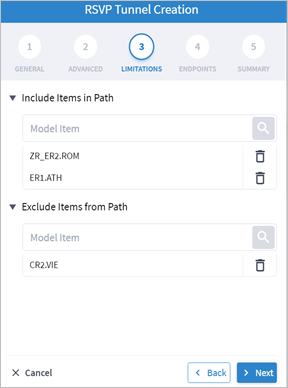

8. Specify the following LIMITATIONS settings:
◦ Include Nodes or Links: Click and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.
◦ Exclude Nodes or Links: Click and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.
◦ (Optional) Click to remove any of the include/exclude items.
9. Click Next.

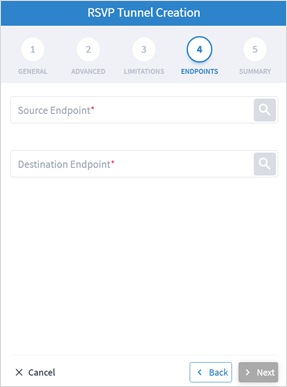

10. Specify the following ENDPOINTS settings:
◦ Source Endpoint: Click and select the node (router) or IGP interface as the source endpoint.
◦ Destination Endpoint: Click and select the node (router) or IGP interface as the destination endpoint.
11. Click Next.
12. Review the SUMMARY.
13. Click Finish.
The Crosswork Hierarchical Controller network model supports Segment Routing (SR) Policies and SR Segments over IGP links, and the Crosswork Hierarchical Controller adapters can discover policies from network controllers, with their SID list, color, preference, and candidate path attributes. It maps all discovered policies to create SR Segments as a layer between IGP links and SR policies. An SR Segment is the path between two SIDs, shared by multiple SR policies. An SR Policy tunnel can only be created over a single domain.

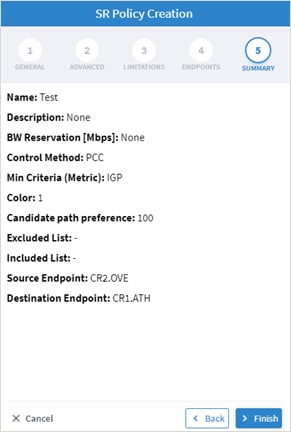

To add an SR Policy tunnel:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
1. Click Create New Tunnel.
2. Select SR Policy.
3. Specify the following GENERAL settings:
◦ Name: The unique user defined name of this SR Policy.
◦ Description: A description of the SR Policy.
4. Click Next.
5. Specify the following ADVANCED settings:
◦ Min Criteria (Metric): The criteria metric to minimize (IGP, TE, Delay or Number of Hops).
◦ Color: The SR Policy color (a unique identifier of the policy). This is a numerical value that distinguishes between two or more policies to the same node pairs.
◦ Candidate path preference: The candidate path preference (integer value). The highest preference path is the active one. Multiple candidate paths per policy are currently not support.
6. Click Next.
7. Specify the following LIMITATIONS settings:
◦ Include Nodes or Links: Click and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.
◦ Exclude Nodes or Links: Click and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.
◦ (Optional) Click to remove any of the include/exclude items.
8. Click Next.

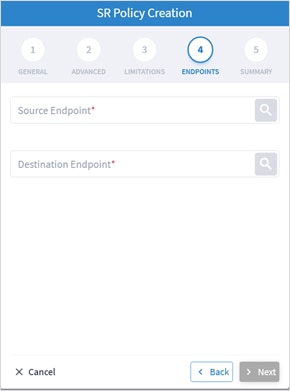

9. Specify the following ENDPOINTS settings:
◦ Source Endpoint: Click and select the node (router) or IGP interface as the source endpoint.
◦ Destination Endpoint: Click and select the node (router) or IGP interface as the destination endpoint.
10. Click Next.
11. Review the SUMMARY.
12. Click Finish.

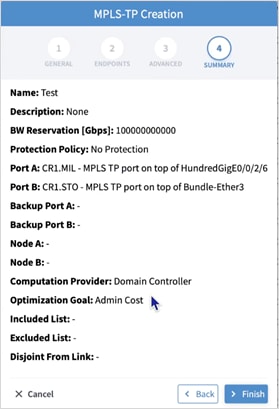

You can create an MPLS-TP tunnel as an underlay for Packet E-Line services between source and target endpoints, with a bandwidth reservation. Various advanced settings and limitations (items to be included or excluded from the path) can be added.
To add an MPLS-TS tunnel:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
2. Click Create New Tunnel.
3. Select MPLS-TS.
4. Specify the following GENERAL settings:
◦ Name: The unique user defined name of this MPLS-TS tunnel.
◦ Description: A description of the MPLS-TS tunnel.
◦ BW Reservation [Gbps]: The bandwidth reserved for the tunnel.
◦ Protection: The service protection (No Protection or Protection 1+1)
5. Click Next.

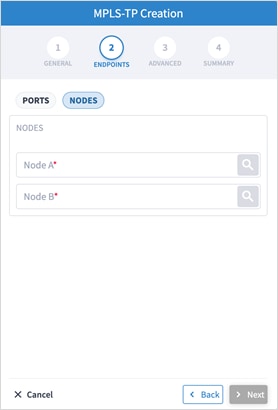

6. Specify the following ENDPOINTS settings, by selecting the PORTS or NODES:
◦ Port A: Click and select the source port.
◦ Port B: Click and select the destination port.
◦ Backup Port A: Click and select the backup source port (only available for Protection 1+1).
◦ Backup Port B: Click and select the destination port (only available for Protection 1+1).
◦ Node A: Click and select the source endpoint (only available for No Protection).
◦ Node B: Click and select the destination endpoint (only available for No Protection).
7. Click Next.
8. Specify the following ADVANCED settings:
◦ Path Computation By: Select Domain Controller or HCO.
◦ Optimization Goal: The optimization goal (Minimize Latency or Minimize Admin Cost).
◦ Include Nodes, Links, Sites: Click , select node, link, or site, or click on the 3D Explorer tab to select node, link, or site.
◦ Exclude Nodes, Links, Sites: Click and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.
◦ (Optional) Click to remove any of the include/exclude items.
9. Click Next.
10. Review the SUMMARY.
11. Click Finish.
Delete Tunnel
To delete a tunnel:
1. In the applications bar in Crosswork Hierarchical Controller, select Device Manager.
2. Select a tunnel.
3. Select the Actions tab.
4. Click Delete Tunnel. A confirmation message appears.
5. Click Confirm. The tunnel is deleted.
You can create a point-to-point service of type:
● IP Link
● OCH Link
● OCH-NC Link
● OTN-Line
● SDH-Line
● Circuit E-Line
● Packet E-Line

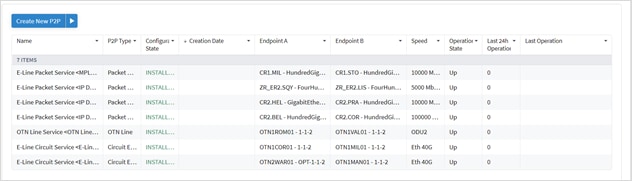

You can view a list of the Point to Point services.
To view PSP services:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Point to Point. A list of the point-to-point services appears in the Point to Point pane.
2. Select the required point-to-point service.
3. To view more point to point link details, see the lower pane view with the following tabs:
◦ Summary: Additional details about the point to point links.
◦ Endpoints: The source and destination endpoint details.
◦ Underlay Path: The underlay path items traversed by the link.
◦ Operations: The point to point link operations.
◦ Events: The point to point link events.
◦ Actions: The modification actions (if applicable) and the option to Delete P2P.
For services that were created by using the MCP controller and not the Services Management application, the service appears as Is Brownfield: True. The Crosswork Hierarchical Controller MCP adapter discovers these services and creates service intent for each of them. The following delegated service types are supported: Packet E-Line, Circuit E-Line, OTN‑Line, SDH-Line and OCH (Wavelength) services.
You can create an IP Link between two ZR pluggable components in routers (creating a new link or adding it to a LAG). Various advanced settings and limitations (such as node or link to be included in the path or excluded from the path of the OCH Link) can be added. The end-to-end service between ZR/+ ports may optionally traverse through OLSs (or ONEs, Optical Network Elements, Cisco, or 3rd party). Crosswork Hierarchical Controller decomposes the service into domains and provisions the optical line between ROADMs on the optical domain controller. The activation mode works directly from Crosswork Hierarchical Controller to IP and optical domain controllers (Cisco Crosswork Network Controller, ONC).
ZR and ZR+ pluggables manufactured by Cisco output a maximum of -10dBm. There are ROADM setups that can benefit from or require a stronger signal. The new ZR bright pluggable outputs 0dBm and is supported for IP provisioning. BRT appears in the device description, for example, Cisco QDD 400G BRT ZRP Pluggable Optics Module.
You can create L Band and C Band links. L-Band introduces a second OMS over the line-side OTS.
For example, Fiber-1 (OTS link is used) by two OMS-1 and OMS-2 (OMS links).
With both L Band and C Band, for a single OTS there are 2 (or more) OMS links.
For example:
port[.type = "OMS" and .provider = "onc-titan"] | link [.layer = "OMS"]
For a single OTS link, there are 2 OTS ports and 4 (or more) OMS ports where the UpperPorts field holds the “upper” OMS ports for each OTS port.
For example:
port[.type = "OMS"] | link | port | downward ("OTS")
For more info on how to view links and ports in SHQL, see the Cisco Crosswork Hierarchical Controller NBI and SHQL Reference Guide.
To create an IP Link:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
2. Select the Point to Point tab.
3. Click IP Link.
4. Specify the following GENERAL settings:
◦ Name: Enter a name for the service.
◦ Description: Enter a description for the service.
◦ Link Rate Mode: Select a link rate mode, for example, 100G – 1x100G. Bundles are offered when the selected rate is for muxponder mode. From version 7.0, a bundle option is offered for 400G.
◦ Router Configuration Only: Select this option when configuring a router only (direct routers connections, not via OLS).
5. Click Next.

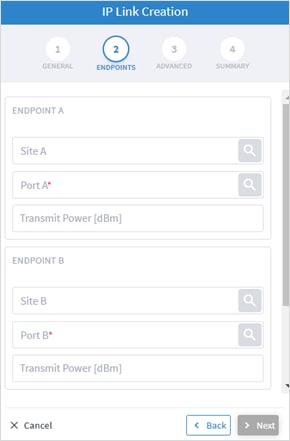

6. Specify the following ENDPOINTS settings:
◦ Site A: Click and in the Advanced tab, select a site, or click on the 3D Explorer tab to select a site.
◦ Port A: Click and in the Advanced tab, select an OCH port, or click on the 3D Explorer tab to select a port. If the port selected is an adjacency port, endpoint B is automatically updated and cannot be edited.
◦ Transmit Power (dBm): Select the transmit power for Endpoint A.
◦ Site B: Click and in the Advanced tab, select a site, or click on the 3D Explorer tab to select a site.
◦ Port B: Click and in the Advanced tab, select an OCH port, or click on the 3D Explorer tab to select a port.
◦ Transmit Power (dBm): Select the transmit power for Endpoint B.
◦ LINK #1 IP ADDRESSES: Enter the IP Address A (CIDR) and IP Address B (CIDR).
◦ (Optional depending on the Link Rate Mode selected) Enter the LINK #2 IP ADDRESSES, LINK #3 IP ADDRESSES and LINK #4 IP ADDRESSES.
7. Click Next.

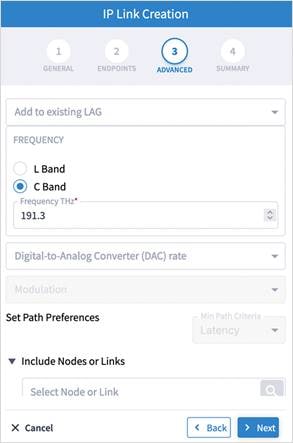

8. Specify the following ADVANCED settings:
◦ Add to existing LAG: Select one of the existing LAGs (bundles) between the two selected routers. This option is only available if there is a bundle already configured between the routers.
◦ Frequency: Select L Band or C Band and specify the Frequency Thz for this link. L-Band introduces a second OMS over the line-side OTS.
◦ Digital-to-Analog Converter (DAC) rate: The DAC rate is only relevant for ZR+ and bright ZR port selection. For 100G, there is no need to change the DAC rate. Select 1 X 1 (standard compatible mode) or 1 X 1.25 (Cisco-proprietary mode if both ends of the link are Cisco pluggables). For QAM modulation, only 1 x 1.25 is supported.
◦ Modulation: Select 8 QAM, 16 QAM or QPSK (default) to reduce the baud rate for 200G links. It is not necessary to apply modulation to 100G, 300G or 400G links as the correct modulation is automatically applied: 100G (QPSK), 300G (8 QAM) and 400G (16 QAM).
◦ Set Path Preferences: Not enabled. Set to Latency.
◦ Include Nodes or Links: Click and in the Advanced tab, select a ONE node or OTS/OMS link, or click on the 3D Explorer tab to select the required item.
◦ Exclude Nodes or Links: Click and in the Advanced tab, select a ONE node or OTS/OMS link, or click on the 3D Explorer tab to select the required item.
◦ Disjoint From Link: Not enabled.
◦ (Optional) Click to remove any of the include/exclude items.
9. Click Next.
10. Review the SUMMARY.
11. Click Finish.

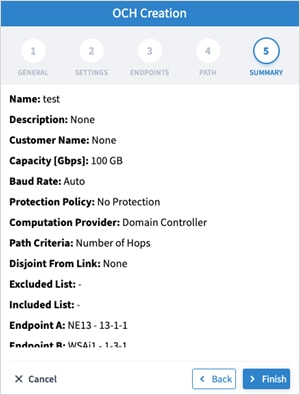

You can create an OCH Link between line side of Transponders/Muxponders, define its capacity, add 1+1 protection if required, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as nodes or links to be included or excluded from the OCH Link) can be added.
In this phase, the Transponder and the ROADM must be controlled by the same optical controller.
To create an OCH Link:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
2. Select the Point to Point tab.
3. Click OCH Link.
4. Specify the following GENERAL settings:
◦ Name: The unique user defined name of this link.
◦ Description: A description of the link.
5. Click Next.
6. Specify the following SETTINGS:
◦ Bandwidth Capacity (Gbps): The bandwidth capacity for this OCH link (100 GB, 200 GB, 300 GB, 400 Gb or 800 GB).
◦ Baud Rate: The baud rate for this IP link (Auto or 35 G or 56 G).
7. Click Next.
8. Specify the following ENDPOINTS settings:
◦ Endpoint A: Click and in the Advanced tab, select an OCH endpoint, or click on the 3D Explorer tab to select an OCH endpoint.
◦ Endpoint B: Click and in the Advanced tab, select an OCH endpoint, or click on the 3D Explorer tab to select an OCH endpoint.
9. Click Next.

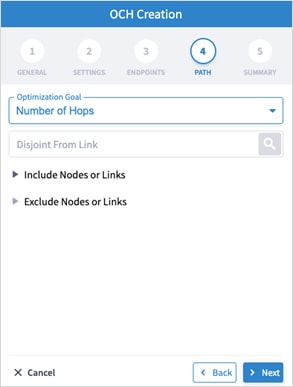

10. Specify the following PATH settings:
◦ Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).
◦ Disjoint From Link: and in the Advanced tab, select an OCH link, or click on the 3D Explorer tab to select an OCH link. This means that the new OTN-Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).
◦ Include Nodes or Links: Click and in the Advanced tab, select an optical node or OMS link, or click on the 3D Explorer tab to select an optical node or OMS link.
◦ Exclude Nodes or Links: Click and in the Advanced tab, select an optical node or OMS/OTS link, or click on the 3D Explorer tab to select an optical node or OMS/OTS link.
◦ (Optional) Click to remove any of the include/exclude items.
11. Click Next.
12. Click Finish.

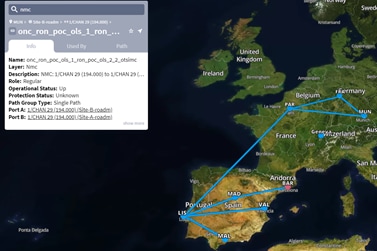

You can create an OCH-NC (or OTSiMC) link. This is the connection between client sides of ROADMs, the ports facing Transponder/Muxponder. You can define its capacity, add 1+1 protection, if required, and optimize based on number of hops or admin cost. Various advanced settings and limitations (such as nodes or links to be included or excluded from the OCH-NC Link) can be added.
Before using this wizard, go to the Settings page and upload a file of app codes. Once the file is uploaded, the wizard enables you to select specific codes, which selects an item from the list in the uploaded file.
This only works with Cisco Optical Controller (ONC). The new service is added as an NMC link.

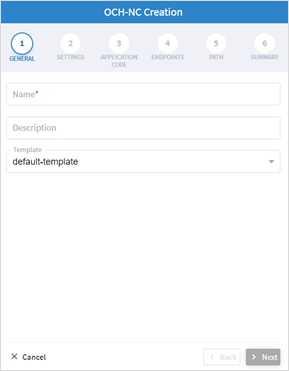

To create an OCH-NC Link:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
2. Select the Point to Point tab.
3. Click OCH-NC Link.
4. Specify the following GENERAL settings:
◦ Name: The unique user defined name of this link.
◦ Description: A description of the link.
5. Click Next.
6. Specify the following SETTINGS:
◦ Allow Auto Regeneration: Whether to allow auto regeneration.
◦ Optical Feasibility Threshold: Select RED, GREEN, YELLOW or NONE.
◦ Admin State: Select ENABLED or DISABLED.
◦ Central Frequency (Thz): The frequency for this OCH-NC link. A number in range of nine digits, with a dot after the first 3 digits (xxx.xxxxxx). Range is between 000.000000 to 999.999999 in steps of 000.000001.
7. Click Next.
8. Specify the following APPLICATION CODE settings to generate the required Application Code:
◦ Vendor Name: The vendor name.
◦ Product ID: The product ID.
◦ FEC: The FEC depending on the product, for example, CFEC or OFEC.
◦ Data Rate: The data rate supported by the selected product.
◦ Baud Rate: The baud rate supported by the selected product.
◦ Sub Mode: This may appear depending on the other settings.
9. Click Next.
10. Specify the following ENDPOINTS settings:
◦ Select Single Channel or Multiple Channel.
◦ Endpoint A: Click and in the Advanced tab, select an NMC port, or click on the 3D Explorer tab.
◦ Endpoint B: Click and in the Advanced tab, select an NMC port, or click on the 3D Explorer tab.
11. Click Next.

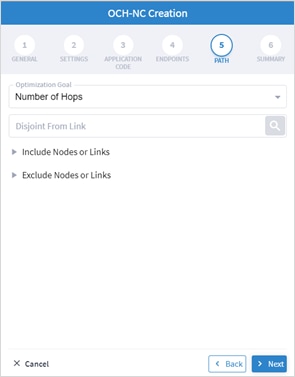

12. Specify the following PATH settings:
◦ Optimization Goal: The optimization goal (Number of Hops or Admin Cost).
◦ Disjoint From Link: and in the Advanced tab, select an OCH-NC link, or click on the 3D Explorer tab to select an OCH-NC link. This means that the new OCH-NC link must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).
◦ Include Nodes or Links: Click and in the Advanced tab, select a ONES or OMS link, or click on the 3D Explorer tab to select a ONES or OMS link.
◦ Exclude Nodes or Links: Click and in the Advanced tab, select a ONES or OMS/OTS link, or click on the 3D Explorer tab to select a ONES or OMS link.
◦ (Optional) Click to remove any of the include/exclude items.
13. Click Next.
14. Click Finish.
You can create an OTN Line service between OTN client ports on Transponders/Muxponders, define its capacity, add 1+1 protection and/or restoration if required, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as node or links to be included in or excluded from the OTN Line) can be added.

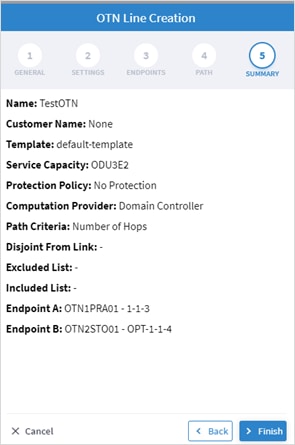

To create an OTN Line:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
2. Select the Point to Point tab.
3. Click OTN Line.
4. Specify the following GENERAL settings:
◦ Name: The unique user defined name of this OTN Line.
◦ Customer Name: The OTN Line customer name.
5. Click Next.
6. Specify the following SETTINGS:
◦ Service Capacity: The capacity for this OTN Line, for example, ODU2.
◦ Protection: The service protection (No Protection or Protection 1+ Restoration or Protection 1+1 or Protection 1+1+ Restoration).
7. Click Next.

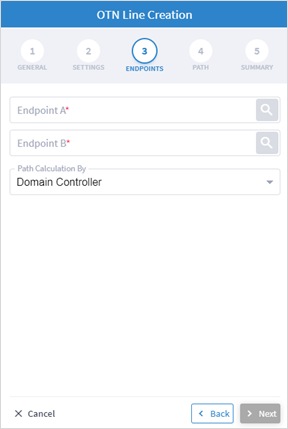

8. Specify the following ENDPOINTS settings:
◦ Endpoint A: Click and in the Advanced tab, select an endpoint as ODU client port, or click on the 3D Explorer tab to select an endpoint.
◦ Endpoint B: Click and in the Advanced tab, select an endpoint as ODU client port, or click on the 3D Explorer tab to select an endpoint.
◦ Path Calculation By: Select Domain Controller or HCO.
9. Click Next.
10. Specify the following PATH settings:
◦ Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).
◦ Disjoint From Link: and in the Advanced tab, select an OTN line, or click on the 3D Explorer tab to select an OTN line. This means that the new OTN Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).
◦ Include Nodes or Links: Click and in the Advanced tab, select a node or OTU link, or click on the 3D Explorer tab to select a node or OTU link.
◦ Exclude Nodes or Links: Click and in the Advanced tab, select a node or any optical link, or click on the 3D Explorer tab to select a node or any optical link.
◦ (Optional) Click to remove any of the include/exclude items.
11. Click Next.
12. Click Finish.
You can create an SDH Line service between STM client ports, define its capacity, add 1+1 protection if required, allow the path to be calculated by the Domain Controller or HCO, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as node or links to be included in or excluded) can be added.
To create an SDH Line:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
2. Select the Point to Point tab.
3. Click SDH Line.
4. Specify the following GENERAL settings:
◦ Name: The unique user defined name of this SDH Line.
◦ Customer Name: The SDH Line customer name.
5. Click Next.

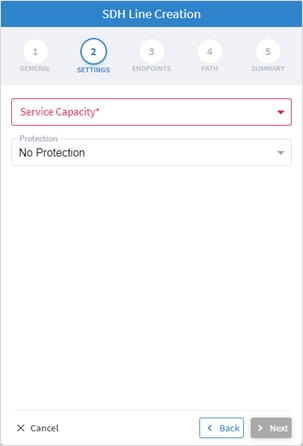

6. Specify the following SETTINGS:
◦ Service Capacity: The capacity for this SDH Line, for example, STM64 or STM256.
◦ Protection: The service protection (No Protection or Protection 1+1).
7. Click Next.
8. Specify the following ENDPOINTS settings:
◦ Endpoint A: Click and in the Advanced tab, select an endpoint as STM client port, or click on the 3D Explorer tab to select an endpoint.
◦ Endpoint B: Click and in the Advanced tab, select an endpoint as STM client port, or click on the 3D Explorer tab to select an endpoint.
◦ Path Calculation By: Select Domain Controller or HCO.
9. Click Next.

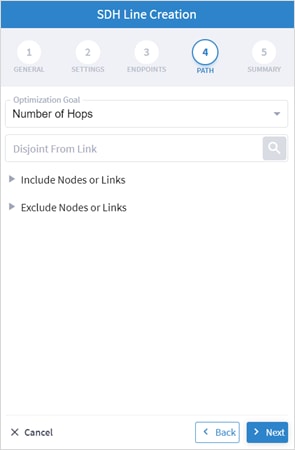

10. Specify the following PATH settings:
◦ Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).
◦ Disjoint From Link: and in the Advanced tab, select an OTN line, or click on the 3D Explorer tab to select an SDH line. This means that the new SDH Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).
◦ Include Nodes or Links: Click and in the Advanced tab, select a node or SDH link, or click on the 3D Explorer tab to select a node or SDH link.
◦ Exclude Nodes or Links: Click and in the Advanced tab, select a node or any optical link, or click on the 3D Explorer tab to select a node or any optical link.
◦ (Optional) Click to remove any of the include/exclude items.

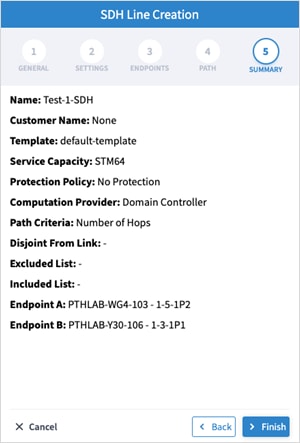

11. Click Next.
12. Click Finish.

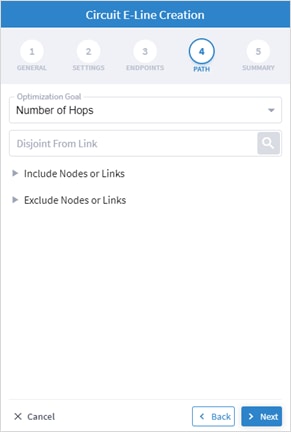

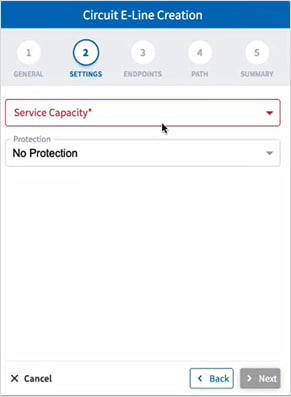

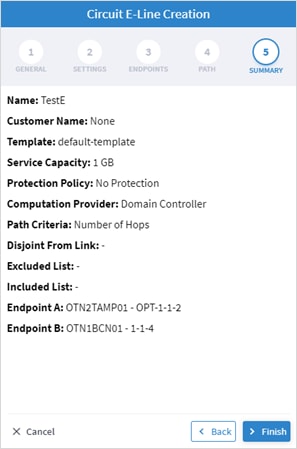

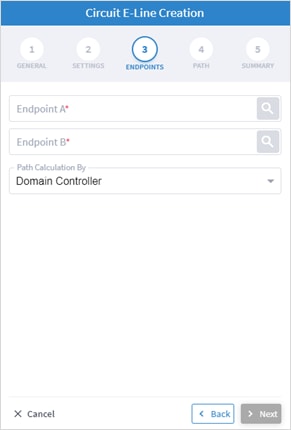

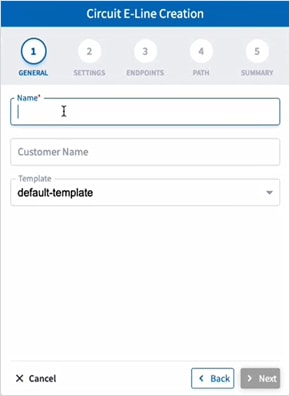

You can create a Circuit E-Line, as an Ethernet connection between ETH client ports on Transponders/Muxponders, define its capacity, add 1+1 protection if required, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as nodes or links to be included in or excluded from the Circuit E-line) can be added.
To create a Circuit E-Line:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
2. Select the Point to Point tab.
3. Click Circuit E-Line.
4. Specify the following GENERAL settings:
◦ Name: The unique user defined name of this Circuit E-Line.
◦ Customer Name: The Circuit E-Line customer name.
5. Click Next.
6. Specify the following SETTINGS:
◦ Service Capacity: The capacity for this Circuit E-Line, for example, 10 GB WAN.
◦ Protection: The service protection (No Protection or Protection 1+1).
7. Click Next.
8. Specify the following ENDPOINTS settings:
◦ Endpoint A: Click and in the Advanced tab, select an ETH endpoint, or click on the 3D Explorer tab to select an endpoint.
◦ Endpoint B: Click and in the Advanced tab, select an ETH endpoint, or click on the 3D Explorer tab to select an endpoint.
◦ Path Calculation By: Select Domain Controller or HCO.
9. Click Next.
10. Specify the following PATH settings:
◦ Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).
◦ Disjoint From Link: and in the Advanced tab, select Circuit E-Line, or click on the 3D Explorer tab to select Circuit E-Line. This means that the new Circuit E-Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).
◦ Include Nodes or Links: Click and in the Advanced tab, select a Circuit E-Line, or click on the 3D Explorer tab to select a Circuit E-Line.
◦ Exclude Nodes or Links: Click and in the Advanced tab, select node or any optical link, or click on the 3D Explorer tab to select node or any optical link.
◦ (Optional) Click to remove any of the include/exclude items.
11. Click Next.
12. Click Finish.
You can create a Packet E-Line as an Ethernet service between Routers over RSVP-TE tunnels or SR policies, or between Transponders/Muxponders over MPLS-TP tunnels, define its capacity, add 1+1 protection if required, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as items to be included or excluded from the Circuit E-line) can be added.

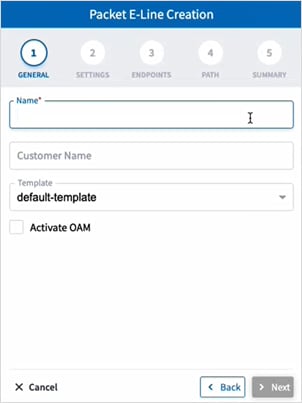

To create a Packet E-Line:
1. Before creating a Packet E-Line service, create the MPLS-TP tunnels to be used (this is assumed to be handled implicitly by the optical controller).
2. In the applications bar in Crosswork Hierarchical Controller, select Service Manager.
3. Select the Point to Point tab.
4. Click Packet E-Line.
5. Specify the following GENERAL settings:
◦ Name: The unique user defined name of this Packet E-Line.
◦ Customer Name: The Packet E-Line customer name.
◦ Activate OAM: Whether to enable OAM PM activation.
6. Click Next.

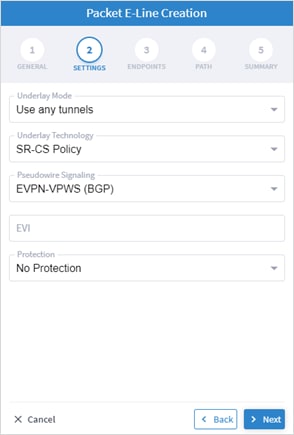

7. Specify the following SETTINGS:
◦ Underlay Mode: The underlay mode, for example, Use any tunnels.
◦ Underlay Technology: The underlay technology, for example, MPLS-TP.
◦ Pseudowire Signaling: The pseudowire signaling, for example, EVPN-VPWS (BGP).
◦ EVI: The EVPN instance.
◦ Protection: The service protection (No Protection or Protection 1+1).
8. Click Next.

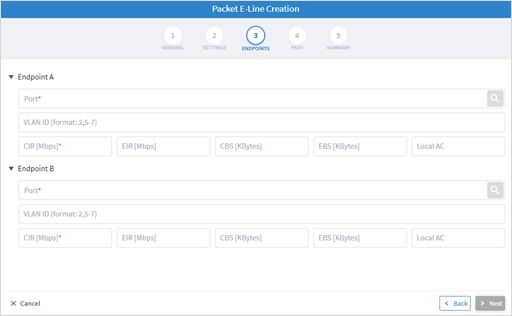

9. Specify the following ENDPOINTS settings for Endpoint A and Endpoint B:
◦ Port: Click and in the Advanced tab, select a port, or click on the 3D Explorer tab to select an Ethernet port. The port rates should be the same. In case selected ports has already a packet E-Line service defined, with VLAN IDs, the VLAN IDs must be specified for per endpoint for the new service.
◦ VLAN ID: The VLAN ID in a range of 1-4094. Enter a single value, multiple values separate by commas, and/or ranges, where ‘-‘ designates the range, for example: 390-780. . If the selected endpoint has no services on it, the VLAN ID field is optional. Once defined, a VLAN ID must be defined in both endpoints, although different values/ranges can be specified. If you specify multiple VLANs, you must use the same values for both endpoints.
Bandwidth parameters are all optional
◦ CIR (Mbps): The CIR rate in Mbps, range is 0 to <port rate>. The values can be different per endpoint.
◦ EIR (Mbps): The EIR rate in Mbps, range is 0 to <port rate>. The values can be different per endpoint.
◦ CBS (Kbytes): The CBS rate in Kbytes, range is 0 to <port rate>. The values can be different per endpoint.
◦ EBD (Kbytes): The CBS rate in Kbytes, range is 0 to <port rate>. The values can be different per endpoint.
◦ Local AC: The local AC.
◦ Endpoint B: Click and in the Advanced tab, select a port, or click on the 3D Explorer tab to select a port.
10. Click Next.

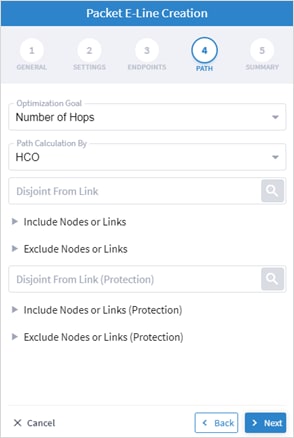

11. Specify the following PATH settings:
◦ (Only required if tunnels are implicitly created) Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).
◦ (Only required if tunnels are implicitly created) Path Calculation By: The path calculation mechanism: Domain Controller or HCO. Currently in this version only the Domain Controller option is available.
◦ Disjoint From Link: and in the Advanced tab, select a Packet E-Line, or click on the 3D Explorer tab to select a Packet E-Line. This means that the new Circuit E-Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).
◦ Include Nodes or Links: Click and in the Advanced tab, select node or underlay link (IGP or OTU), or click on the 3D Explorer tab to select node or underlay link (IGP or OTU).
◦ Exclude Nodes or Links: Click and in the Advanced tab, select node or underlay link (IGP or OTU) or click on the 3D Explorer tab to select node or underlay link (IGP or OTU).
◦ (Only required with protections) Disjoint From Link (Protection): and in the Advanced tab, select a Packet E-Line, or click on the 3D Explorer tab to select a Packet E-Line. This means that the new Circuit E-Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).
◦ (Only required with protections) Include Nodes or Links (Protection): Click and in the Advanced tab, select node or underlay link (IGP or OTU), or click on the 3D Explorer tab to select node or underlay link (IGP or OTU).
◦ (Only required with protections) Exclude Nodes or Links (Protection): Click and in the Advanced tab, select node or underlay link (IGP or OTU) or click on the 3D Explorer tab to select node or underlay link (IGP or OTU).
◦ (Optional) Click to remove any of the include/exclude items.
12. Click Next.
13. Click Finish.
To delete a P2P Link:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Point to Point.
2. Select a link.
3. Select the Actions tab.
4. Click Delete P2P. A confirmation message appears.
5. Click Accept. The link is deleted.
You can configure which rollbacks are allowed. For example, to prevent partial provisioning for IP Link, if the ONC provisioning succeeds and the CNC provisioning fails, and rollback is selected, the ONC provisioning is rolled back.
To view the service settings:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Settings. A list of the service settings appears.
2. In NSO ADDRESS, enter the NSO host name or IP address. This appears in the NSO Provisioning tab.
3. In OPTICAL TRANSCEIVERS APPLICATION CODES, click to select a file with the application codes. It is recommended to export the required JSON file from the ONC controller.
4. Select which rollbacks are allowed when the services are provisioned (RSVP Tunnel, L3-VPN, IP Link, SR Policy, TE++ Container, Circuit E-Line, OTN Line, OCH, Packet E-Line and/or OCH-NC).
You can view the latest Service Manager operations.
To view the operations:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Operations. A list of the operations appears.
2. Select the required operation.
3. To view more details, select the required tab:
◦ Summary: Additional details about the operation, e.g., Status: Rollback Done.
◦ Logs: The operation logs for normal and rollback flows.
◦ Errors: The operation errors, e.g., Discovery took too long.
Crosswork Hierarchical Controller provides APIs to create OTN Line, Packet E-line, and MPLS-TP tunnel service-intents, and provision OTN Lines, Packet E-Lines, and MPLS-TP tunnels on underlying controllers.
You can access the Shared Risk API using Swagger:
● https://<host>/8443/service-manager-app/public/rest/doc
The APIs include:
● Get the list of the operations created by calling the create/update/delete service intent APIs
● Get existing OTN Line service-intents and matching discovered services from underlying controllers
● Create new OTN Line service-intents and provision a new OTN Line on underlying controllers
● Get existing Packet e-Line service-intents and matching discovered services from underlying controllers
● Create new Packet e-Line service-intents and provision a new Packet e-Line on underlying controllers
● Get existing MPLS-TP tunnel service-intents and matching discovered tunnel services from underlying controllers
● Create new MPLS-TP tunnel service-intents and provision a new MPLS-TP tunnel on underlying controllers
● Delete and unprovision an existing service intent of any type
For more details, see the Cisco Crosswork Hierarchical Controller NBI and SHQL Reference Guide.
Network Services Orchestrator Crosswork Hierarchical Controller - Function Pack Appendix
Crosswork Hierarchical Controller uses the Network Services Orchestrator (NSO) Crosswork Hierarchical Controller - Function Pack to provision dynamic IP VPN services (L2-VPN and L3-VPN services).
Provisioning of L2-VPN and L3-VPN services in Crosswork Hierarchical Controller is based on the IETF RFC L2NM and L3NM service scheme. However, not all vendors support the same set of attributes in these models. To avoid failures in provisioning, it is recommended to review the available service scheme options.
There are several payload combinations that allow you to create or modify a service using Network Services Orchestrator:
· Common Payload: The attributes that are commonly supported by Nokia NSP and Cisco Crosswork Network Controllers. This is the minimum subset that supports both Nokia NSP and Cisco Crosswork Network Controllers.
· Nokia NSP Payload: All attributes supported by Nokia NSP IP controller. Although the Nokia NSP controller will accept the full set of parameters in the RFC LxNM, the Nokia NSP controller may not use all the data.
· Cisco Crosswork Network Controller Payload: All attributes supported by Cisco Crosswork Network Controller IP controller. The Cisco Crosswork Network Controller does not accept the full set of parameters in the RFC LxNM and if a parameter is not supported, Crosswork Network Controller returns an error message.

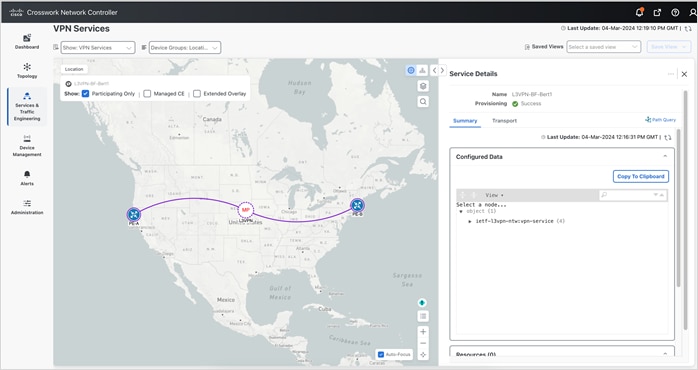

Once the services are provisioned using NSO (using the UI or JSON files), they are detected by Cisco Crosswork Hierarchical Controller and can be viewed in the Service Assurance application.
This appendix describes some examples of the Network Services Orchestrator (NSO) deployment, as part of Cisco Crosswork Hierarchical Controller.
Note: These payload examples were tested with specific versions of the adapters. There may be some variation in these payloads with different versions of the adapters.
Note: This appendix is intended to introduce you to the capabilities of the function pack. For full details on L2-VPN and L3-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide. There are sample templates included in the function pack, for example, cisco-nsp-l2vpn-service.xml, cisco-nsp-l3vpn-service.xml, cisco-cnc-l2vpn-service.xml, and cisco-cnc-l3vpn-service.xml.
NSO has two major components to provide the service CRUD:
● NED – a driver to map the relevant get and set operations towards a device or controller and provide them as a YANG model that can contain configuration, NED provides a device configuration model (device can be controller as well). The NEDs for IP COs implement the LxNM model as exposed by the vendors.
● Function pack – a template of service specific configuration and the mapping to NED model. A function pack can abstract the service request, can include a complex processing to generate the request to the NED. Such processing can be to decompose a request into multiple NEDs, use topology info to complete configuration not provided by user, and more.
Note: Since optical services are not handled in NSO, NSO has no role in the deployment of optical use cases.
Configure Common L3-VPN (JSON)
A subset of the L3NM service scheme, with the attributes that are commonly supported by Nokia NSP and Cisco Crosswork Network Controllers.
For full details on L3-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.
Table 3. Common L3-VPN Parameters
Parameter |
Description |
vpn-service |
|
vpn-id |
The VPN ID. |
vpn-service-topology |
The topology: ietf-vpn-common:hub-spoke or any-to-any. |
vpn-instance-profiles |
|
vpn-instance-profile |
|
profile-id |
|
role |
The profile role: ietf-vpn-common:hub-role |
rd |
For example: 0:171:171 |
address-family |
|
address-family |
The address family, for example: ietf-vpn-common:ipv4 |
vpn-targets |
|
vpn-target |
|
id |
The VPN target ID. |
route-targets |
|
route-targets |
The route target, for example: 0:71:71 |
route-target-type |
For example: both or import or export. |
vpn-nodes |
|
vpn-node |
|
vpn-node-id |
The VPN node ID. Use the vpn-id and add -R3 or -R4 as a suffix. |
local-as |
|
active-vpn-instance-profiles |
|
vpn-instance-profile |
|
profile-id |
The VPN instance profile ID. |
vpn-network-accesses |
|
vpn-network-access |
|
id |
The VPN network access ID. |
interface-id |
The VPN network access interface ID, for example, GigabitEthernet0/0/0/2. This is the access port and may change according to the router. |
connection |
|
encapsulation |
|
type |
The connection encapsulation type: ietf-vpn-common:dot1q (VLAN) or untagged (port-mode). |
dot1q
|
|
tag-type |
The tag type: ietf-vpn-common:c-vlan |
cvlan-id |
The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 2060. |
ip-connection |
|
ipv4 |
|
local-address |
|
prefix-length |
|
routing-protocols |
|
routing-protocol |
|
id |
The routing protocol id, for example: EBGP |
type |
The routing protocol type: ietf-vpn-common:bgp-routing |
peer-as |
|
address-family |
ietf-vpn-common:ipv4 |
neighbor |
|
multihop |
|
redistribute-connected |
|
address-family |
ietf-vpn-common:ipv4 |
Detailed JSON Example
{
"ietf-l3vpn-ntw:l3vpn-ntw": {
"vpn-services": {
"vpn-service": [
{
"vpn-id": "l3vpn-hub-spoke",
"vpn-service-topology": "ietf-vpn-common:hub-spoke",
"vpn-instance-profiles": {
"vpn-instance-profile": [
{
"profile-id": "l3vpn-p1-70",
"role": "ietf-vpn-common:hub-role",
"rd": "0:171:171",
"address-family": [
{
"address-family": "ietf-vpn-common:ipv4",
"vpn-targets": {
"vpn-target": [
{
"id": 71,
"route-targets": [
{
"route-target": "0:71:71"
}
],
"route-target-type": "both"
},
{
"id": 72,
"route-targets": [
{
"route-target": "0:72:72"
}
],
"route-target-type": "import"
},
{
"id": 73,
"route-targets": [
{
"route-target": "0:73:73"
}
],
"route-target-type": "export"
}
]
}
}
]
},
{
"profile-id": "l3vpn-p2-70",
"role": "ietf-vpn-common:spoke-role",
"rd": "0:171:171",
"address-family": [
{
"address-family": "ietf-vpn-common:ipv4",
"vpn-targets": {
"vpn-target": [
{
"id": 71,
"route-targets": [
{
"route-target": "0:71:71"
}
],
"route-target-type": "both"
},
{
"id": 72,
"route-targets": [
{
"route-target": "0:72:72"
}
],
"route-target-type": "import"
},
{
"id": 73,
"route-targets": [
{
"route-target": "0:73:73"
}
],
"route-target-type": "export"
}
]
}
}
]
},
{
"profile-id": "l3vpn-p3-70",
"role": "ietf-vpn-common:spoke-role",
"rd": "0:171:171",
"address-family": [
{
"address-family": "ietf-vpn-common:ipv4",
"vpn-targets": {
"vpn-target": [
{
"id": 71,
"route-targets": [
{
"route-target": "0:71:71"
}
],
"route-target-type": "both"
},
{
"id": 72,
"route-targets": [
{
"route-target": "0:72:72"
}
],
"route-target-type": "import"
},
{
"id": 73,
"route-targets": [
{
"route-target": "0:73:73"
}
],
"route-target-type": "export"
}
]
}
}
]
}
]
},
"vpn-nodes": {
"vpn-node": [
{
"vpn-node-id": "PE-A",
"local-as": 1,
"active-vpn-instance-profiles": {
"vpn-instance-profile": [
{
"profile-id": "l3vpn-p1-70"
}
]
},
"vpn-network-accesses": {
"vpn-network-access": [
{
"id": "1",
"interface-id": "GigabitEthernet0/0/0/2",
"connection": {
"encapsulation": {
"type": "ietf-vpn-common:dot1q",
"dot1q": {
"tag-type": "ietf-vpn-common:c-vlan",
"cvlan-id": 401
}
}
},
"ip-connection": {
"ipv4": {
"local-address": "70.70.10.1",
"prefix-length": 30
}
},
"routing-protocols": {
"routing-protocol": [
{
"id": "EBGP",
"type": "ietf-vpn-common:bgp-routing",
"bgp": {
"peer-as": 100,
"address-family": "ietf-vpn-common:ipv4",
"neighbor": [
"70.70.10.2"
],
"multihop": 11,
"redistribute-connected": [
{
"address-family": "ietf-vpn-common:ipv4"
}
]
}
}
]
}
}
]
}
},
{
"vpn-node-id": "PE-B",
"local-as": 1,
"active-vpn-instance-profiles": {
"vpn-instance-profile": [
{
"profile-id": "l3vpn-p2-70"
}
]
},
"vpn-network-accesses": {
"vpn-network-access": [
{
"id": "1",
"interface-id": "GigabitEthernet0/0/0/1",
"connection": {
"encapsulation": {
"type": "ietf-vpn-common:dot1q",
"dot1q": {
"tag-type": "ietf-vpn-common:c-vlan",
"cvlan-id": 401
}
}
},
"ip-connection": {
"ipv4": {
"local-address": "70.70.11.1",
"prefix-length": 30
}
},
"routing-protocols": {
"routing-protocol": [
{
"id": "EBGP",
"type": "ietf-vpn-common:bgp-routing",
"bgp": {
"peer-as": 100,
"address-family": "ietf-vpn-common:ipv4",
"neighbor": [
"70.70.11.2"
],
"multihop": 11,
"redistribute-connected": [
{
"address-family": "ietf-vpn-common:ipv4"
}
]
}
}
]
}
}
]
}
},
{
"vpn-node-id": "Spitfire-RON-16",
"local-as": 1,
"active-vpn-instance-profiles": {
"vpn-instance-profile": [
{
"profile-id": "l3vpn-p3-70"
}
]
},
"vpn-network-accesses": {
"vpn-network-access": [
{
"id": "1",
"interface-id": "FourHundredGigE0/0/0/1",
"connection": {
"encapsulation": {
"type": "ietf-vpn-common:dot1q",
"dot1q": {
"tag-type": "ietf-vpn-common:c-vlan",
"cvlan-id": 401
}
}
},
"ip-connection": {
"ipv4": {
"local-address": "70.70.12.1",
"prefix-length": 30
}
},
"routing-protocols": {
"routing-protocol": [
{
"id": "EBGP",
"type": "ietf-vpn-common:bgp-routing",
"bgp": {
"peer-as": 100,
"address-family": "ietf-vpn-common:ipv4",
"neighbor": [
"70.70.12.2"
],
"multihop": 11,
"redistribute-connected": [
{
"address-family": "ietf-vpn-common:ipv4"
}
]
}
}
]
}
}
]
}
}
]
},
"cisco-hco-nm:hco-controller": "CNC"
}
]
}
}
}
Configure Common L2-VPN using NSO (JSON)
A subset of the L2NM service scheme, with the attributes that are commonly supported by Nokia NSP and Cisco Crosswork Network Controllers.
For full details on L2-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.
Table 4. Common L2-VPN Parameters
Parameter |
Description |
vpn-services |
|
vpn-service |
|
vpn-id |
The VPN ID. |
vpn-type |
The VPN type: ietf-vpn-common:mpls-evpn. |
vpn-service-topology |
The topology: ietf-vpn-common:hub-spoke or any-to-any. |
global-parameters-profiles |
|
global-parameters-profile |
|
profile-id |
|
vpn-target |
|
id |
|
route-targets |
|
route-target |
The route target, for example: 0:12:12 |
route-target-type |
The route target type, for example: both |
vpn-nodes |
|
vpn-node |
|
vpn-node-id |
The VPN node ID. Use the vpn-id and add -R3 or -R4 as a suffix. |
role |
The VPN node role, for example: ietf-vpn-common:hub-role or |
signaling-option |
|
evpn-policies |
|
mac-learning-mode |
The mac learning mode: ietf-l2vpn-ntw:control-plane |
vpn-network-accesses |
|
vpn-network-access |
|
id |
The VPN network access ID in the format int_<number>, for example, int_223_1. |
interface-id |
The VPN network access interface ID, for example, GigabitEthernet0/0/0/2. This is the access port and may change according to the router. |
connection encapsulation |
|
encap-type |
The connection encapsulation type: ietf-vpn-common:dot1q (VLAN). |
dot1q cvlan-id |
The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 2060. |
tag-operations |
|
push |
null |
tag-1 |
The tag, for example: 202 |
cisco-hco-nm:hco-controller |
The controller, for example: CNC |
Detailed JSON Example
{
"ietf-l2vpn-ntw:l2vpn-ntw": {
"vpn-services": {
"vpn-service": [
{
"vpn-id": "ETREE-HS-ABCD",
"vpn-type": "ietf-vpn-common:mpls-evpn",
"vpn-service-topology": "ietf-vpn-common:hub-spoke",
"global-parameters-profiles": {
"global-parameters-profile": [
{
"profile-id": "test",
"vpn-target": [
{
"id": 1,
"route-targets": [
{
"route-target": "0:12:12"
}
],
"route-target-type": "both"
}
]
}
]
},
"vpn-nodes": {
"vpn-node": [
{
"vpn-node-id": "PE-A",
"role": "ietf-vpn-common:hub-role",
"signaling-option": {
"evpn-policies": {
"mac-learning-mode": "ietf-l2vpn-ntw:control-plane"
}
},
"vpn-network-accesses": {
"vpn-network-access": [
{
"id": "285",
"interface-id": "GigabitEthernet0/0/0/2",
"connection": {
"encapsulation": {
"encap-type": "ietf-vpn-common:dot1q",
"dot1q": {
"cvlan-id": 285,
"tag-operations": {
"push": [
null
],
"tag-1": 202
}
}
}
}
}
]
}
},
{
"vpn-node-id": "PE-B",
"role": "ietf-vpn-common:spoke-role",
"signaling-option": {
"evpn-policies": {
"mac-learning-mode": "ietf-l2vpn-ntw:control-plane"
}
},
"vpn-network-accesses": {
"vpn-network-access": [
{
"id": "285",
"interface-id": "GigabitEthernet0/0/0/2",
"connection": {
"encapsulation": {
"encap-type": "ietf-vpn-common:dot1q",
"dot1q": {
"cvlan-id": 285,
"tag-operations": {
"push": [
null
],
"tag-1": 202
}
}
}
}
}
]
}
},
{
"vpn-node-id": "PE-C",
"role": "ietf-vpn-common:spoke-role",
"signaling-option": {
"evpn-policies": {
"mac-learning-mode": "ietf-l2vpn-ntw:control-plane"
}
},
"vpn-network-accesses": {
"vpn-network-access": [
{
"id": "285",
"interface-id": "GigabitEthernet0/0/0/2",
"connection": {
"encapsulation": {
"encap-type": "ietf-vpn-common:dot1q",
"dot1q": {
"cvlan-id": 285,
"tag-operations": {
"push": [
null
],
"tag-1": 202
}
}
}
}
}
]
}
}
]
},
"cisco-hco-nm:hco-controller": "CNC"
}
]
}
}
}
Configure Nokia NSP L3-VPN using NSO (JSON)
For full details on Nokia NSP L3-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.
The L3-VPN JSON requires the following high-level structure.
{
"ietf-l3vpn-ntw:l3vpn-ntw":{
"vpn-services":{
"vpn-service":[
{
"vpn-id":"Abcd100",
"vpn-name":"Abcd100",
"vpn-description":"Abcd100",
"customer-name":"1",
"vpn-type":"ietf-vpn-common:l3vpn",
"vpn-service-topology":"ietf-vpn-common:hub-spoke",
"status":{},
"vpn-instance-profiles":{},
"underlay-transport":{},
"vpn-nodes":{}
}
]
}
}
}
This corresponds to the L3-VPN service page in the NSO user interface.
Table 5. Nokia NSP L3-VPN Parameters
Parameter |
Description |
vpn-service |
|
vpn-id |
The VPN ID. |
vpn-name |
The VPN name as a string. |
vpn-description |
The VPN description as a string. |
customer-name |
The customer’s name exactly as configured in the Nokia NSP controller (this is an integer and not a string) |
vpn-type |
The VPN type, ietf-vpn-common:l3vpn. |
vpn-service-topology |
The topology: ietf-vpn-common:hub-spoke or any-to-any. |
status admin-status status |
The status of the vpn-service: vpn-common:admin-up. |
vpn-instance-profiles |
|
vpn-instance-profile |
|
profile-id |
The profile ID. |
rd |
The rd. For example, 0:65000:223. |
address-family |
|
address-family |
The address family. For example, ietf-vpn-common:ipv4. |
vpn-targets |
|
vpn-policies |
|
import-policy |
The import policy. |
export-policy |
The export policy. |
underlay-transport protocol |
The underlay-transport: ietf-vpn-common:rsvp-te |
vpn-nodes |
|
vpn-node |
|
vpn-node-id |
The VPN node ID. |
description |
The VPN node description. |
ne-id |
The NE ID. |
router-id |
The router ID. |
active-vpn-instance-profiles vpn-instance-profile profile-id |
The profile ID. |
vpn-network-access |
|
id |
The VPN network access ID in the format int_<number>, for example, int_223_1. |
interface-id |
The VPN network access interface ID, for example, 1/1/c1/1. |
description |
The VPN network access description. |
vpn-instance-profile |
The VPN network access VPN instance profile. |
status admin-status status |
The status of the VPN network access interface. |
connection encapsulation |
|
type |
The connection encapsulation type: ietf-vpn-common:dot1q |
dot1q cvlan-id |
The CVLAN ID for the dot1q encapsulation. |
ip-connection ipv4 |
|
local-address |
The IP connection local address. |
prefix-length |
The IP connection prefix length. |
Detailed JSON Example
{
"ietf-l3vpn-ntw:l3vpn-ntw": {
"vpn-services": {
"vpn-service": [
{
"vpn-id": "Abcd100",
"vpn-name": "Abcd100",
"vpn-description": "Abcd100",
"customer-name": "1",
"vpn-type": "ietf-vpn-common:l3vpn",
"vpn-service-topology": "ietf-vpn-common:hub-spoke",
"status": {
"admin-status": {
"status": "ietf-vpn-common:admin-up"
}
},
"vpn-instance-profiles": {
"vpn-instance-profile": [
{
"profile-id": "profile_1",
"rd": "0:65000:223",
"address-family": [
{
"address-family": "ietf-vpn-common:ipv4",
"vpn-targets": {
"vpn-policies": {
"import-policy": "Alpha-223-Import",
"export-policy": "Alpha-223-Export"
}
}
}
]
}
]
},
"underlay-transport": {
"protocol": [
"ietf-vpn-common:rsvp-te"
]
},
"vpn-nodes": {
"vpn-node": [
{
"vpn-node-id": "Alpha-223-R1",
"description": "Alpha-223-R1",
"ne-id": "10.10.10.1",
"router-id": "10.10.10.1",
"active-vpn-instance-profiles": {
"vpn-instance-profile": [
{
"profile-id": "profile_1"
}
]
},
"status": {
"admin-status": {
"status": "ietf-vpn-common:admin-up"
}
},
"vpn-network-accesses": {
"vpn-network-access": [
{
"id": "int_223_1",
"interface-id": "1/1/c1/1",
"description": "int_223_1",
"vpn-instance-profile": "profile_1",
"status": {
"admin-status": {
"status": "ietf-vpn-common:admin-up"
}
},
"connection": {
"encapsulation": {
"type": "ietf-vpn-common:dot1q",
"dot1q": {
"cvlan-id": 223
}
}
},
"ip-connection": {
"ipv4": {
"local-address": "1.1.1.1",
"prefix-length": 24
}
}
}
]
}
},
{
"vpn-node-id": "Alpha-223-R5",
"description": "Alpha-223-R5",
"ne-id": "10.10.10.5",
"router-id": "10.10.10.5",
"active-vpn-instance-profiles": {
"vpn-instance-profile": [
{
"profile-id": "profile_1"
}
]
},
"status": {
"admin-status": {
"status": "ietf-vpn-common:admin-up"
}
},
"vpn-network-accesses": {
"vpn-network-access": [
{
"id": "int_223_1",
"interface-id": "1/1/3",
"description": "int_223_1",
"vpn-instance-profile": "profile_1",
"status": {
"admin-status": {
"status": "ietf-vpn-common:admin-up"
}
},
"connection": {
"encapsulation": {
"type": "ietf-vpn-common:dot1q",
"dot1q": {
"cvlan-id": 223
}
}
},
"ip-connection": {
"ipv4": {
"local-address": "5.5.5.5",
"prefix-length": 24
}
}
}
]
}
}
]
}
}
]
}
}
}
Configure Nokia NSP L3-VPN using NSO (UI)
To add a Nokia NSP L3-VPN service, add two VPN nodes, each with their interface. This is useful for testing a L3-VPN service.
To add a Nokia NSP L3-VPN:

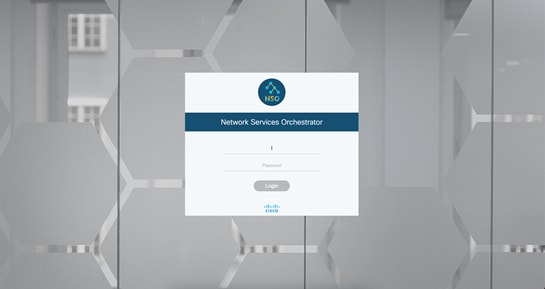

1. Launch NSO.

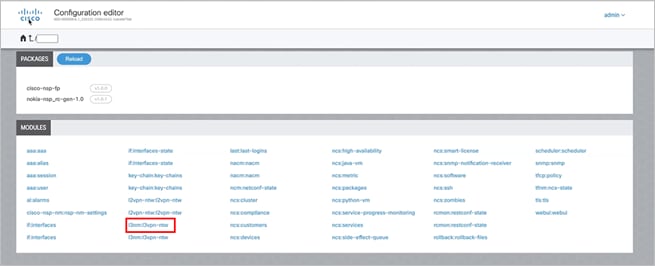

2. Click l3nm:l3vpn-ntw.

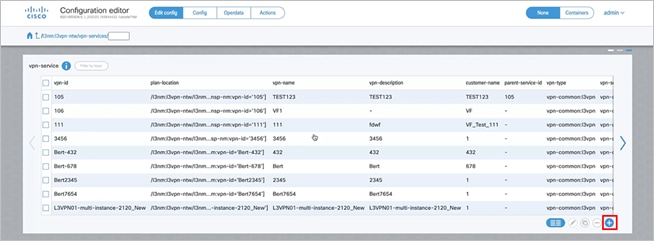

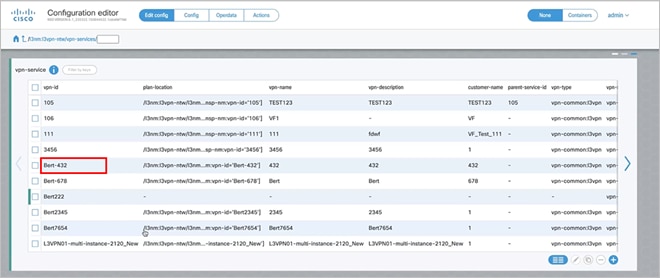

3. Click vpn-services.
4. Click +.
5. Enter a unique vpn-id and click confirm.

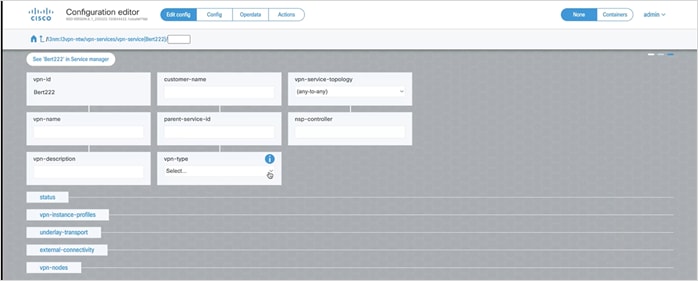

6. Click the vpn service.
7. Enter the customer-name exactly as configured in the Nokia NSP controller (this is an integer and not a string).
8. Enter the vpn-name as a string.
9. Enter the vpn-description as a string.
10. Set the vpn-type to l3vpn.
11. Set the vpn-service-topology to hub-spoke or any-to-any.
12. Select the nsp-controller (if there is a default nsp-controller, then you can skip this).
13. Click status.
14. Click admin-status, and then set the status to admin-up.
15. Return to the vpn (using the breadcrumbs at the top of the page).

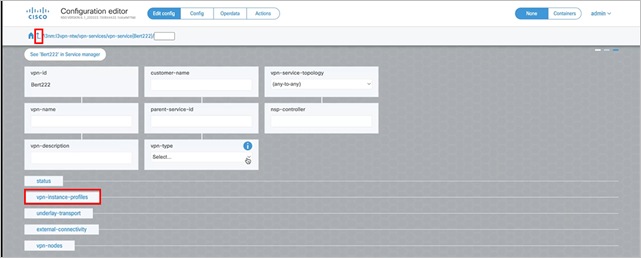

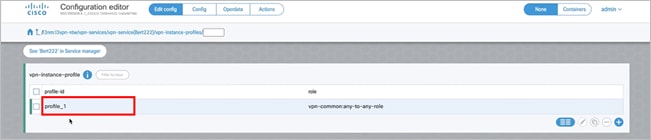

16. Click vpn-instance-profiles.
17. Click +.
18. Enter a profile-id and then click confirm.

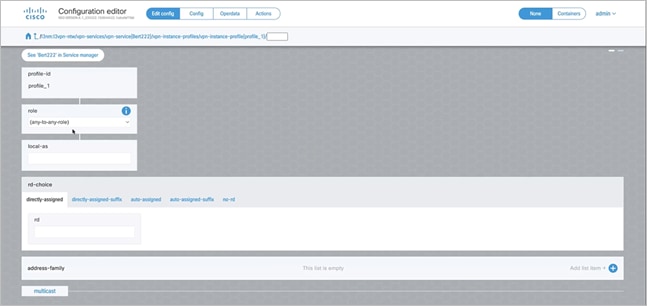

19. Click on the profile.

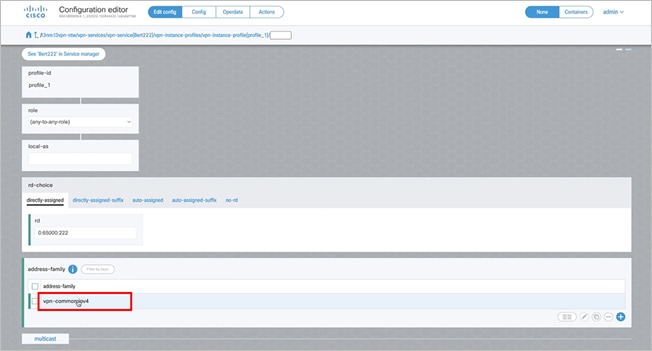

20. Enter the rd in the directly-assigned tab.
21. Click + in the address-family.
22. Select ipv4 and click confirm.
23. Click on the address-family.

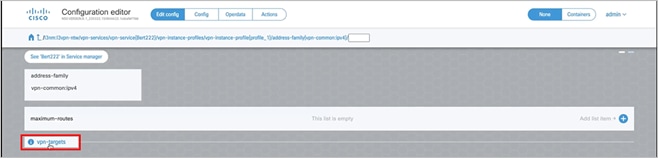

24. Click vpn-targets.
25. Click vpn-policies.

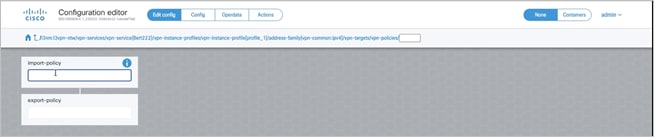

26. Specify the import-policy and export-policy.
27. Navigate back to the L3VPN service page and click underlay-transport.

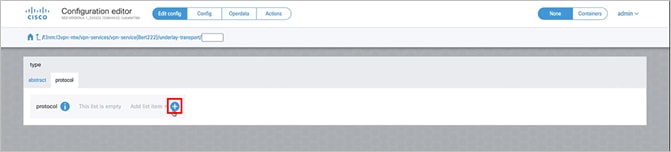

28. Select the protocol tab.
29. Click +.
30. Select rsvp-te and click confirm.

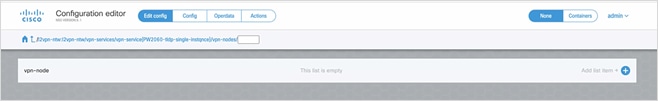

31. Navigate back to the L3VPN service page and click vpn-nodes (external-connectivity is not required).
32. Click +. The vpn=node is a router participating in the VPN. For example, R1 and R5 in this topology.

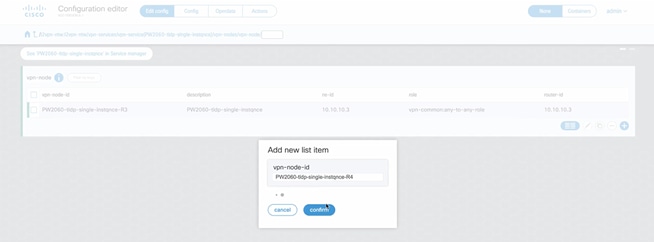

33. Enter the vpn-node-id and click confirm. This will appear on the router as the endpoint of the tunnel.

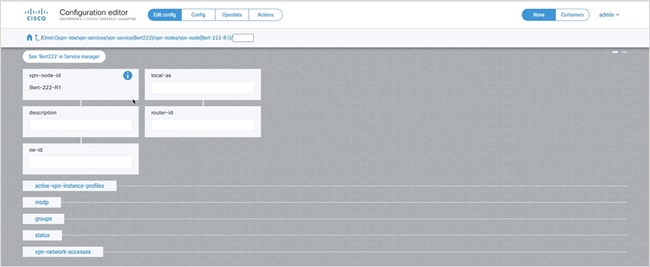

34. Click on the vpn-node.
35. Enter a description.
36. Specify the router-id and the ne-id.
37. Click active-vpn-instance-profiles.
38. Click +.
39. Enter a profile-id and click confirm.
40. Navigate back to the vpn-node page and click status. And as done previously, set this to admin-up.

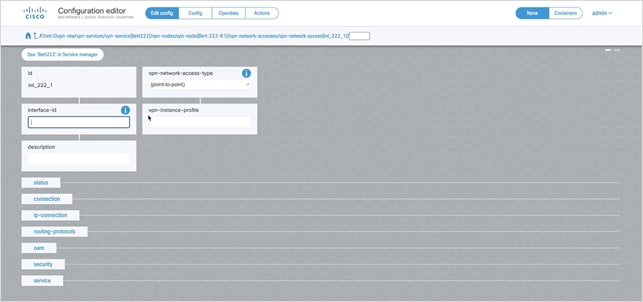

41. Navigate back to the vpn-node page and click vpn-network-accesses.
42. Click +. This defines the interfaces participating in the VPN.
43. Specify the interface id and click confirm. This is in the format int_<number>, for example, int_222_1.
44. Click on the interface.
45. Enter the interface_id. This is the interface name, for example, from R1
46. Enter the description as a string.
47. Select the vpn-instance-profile.
48. Click status.
49. Click admin-status, and then set the status to admin-up.
50. Navigate back to the interface page.
51. Click Connection.

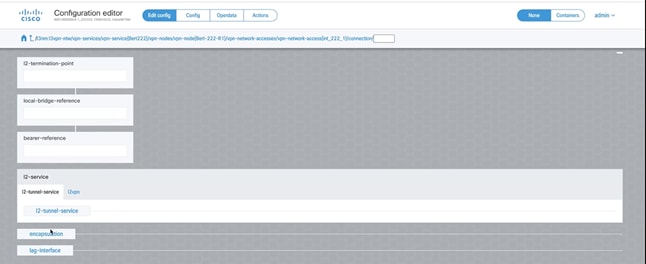

52. Click encapsulation.
53. Set the type to dot1q.
54. Click dot1q.

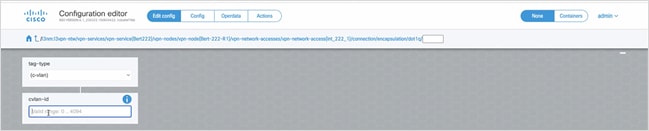

55. Enter the cvlan-id.
56. Navigate back to the interface page.
57. Click ip-connection.

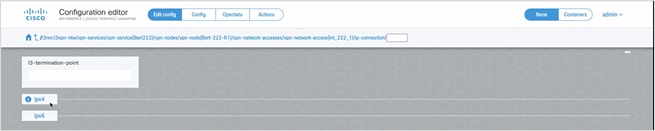

58. Select ipv4.

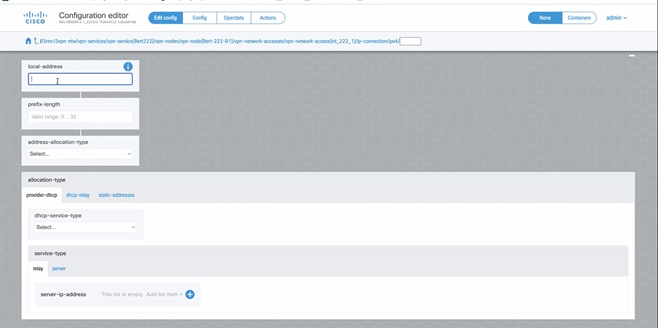

59. Enter the local-address.
60. Enter the prefix-length.
61. Navigate back to the VPN service page.
62. Add another vpn-node following the process previously described to also add an interface.
63. Click Commit Manager (at the bottom of the screen).
.
64. Review the configuration.
65. Click Commit.
66. Click Yes, commit.

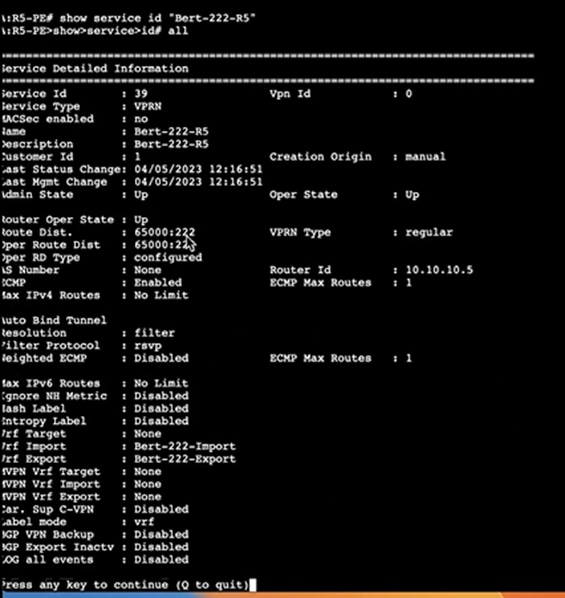

67. Once it has finished, check the VPN.
Configure Nokia NSP L2-VPN using NSO (JSON)
For full details on Nokia NSP L2-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.
The L2-VPN JSON requires the following high-level structure.
{
"ietf-l2vpn-ntw:l2vpn-ntw":{
"vpn-services":{
"vpn-service":[
{
"vpn-id":"Abcd100",
"vpn-name":"Abcd100",
"vpn-description":"Abcd100",
"customer-name":"1",
"vpn-type":"ietf-vpn-common:vpws",
"vpn-service-topology":"ietf-vpn-common:any-to-any",
"signaling-type":"ietf-vpn-common:ldp-signaling",
"underlay-transport":{},
"status":{},
"vpn-nodes":{}
}
]
}
}
}
This corresponds to the L2-VPN service page in the NSO user interface.
Table 6. Nokia NSP L2-VPN Parameters
Parameter |
Description |
vpn-service |
|
vpn-id |
The VPN ID. |
vpn-name |
The VPN name as a string. |
vpn-description |
The VPN description as a string. |
customer-name |
The customer’s name exactly as configured in the Nokia NSP controller (this is an integer and not a string) |
vpn-type |
The VPN type: ietf-vpn-common: vpws. |
vpn-service-topology |
The topology: ietf-vpn-common:hub-spoke or any-to-any. |
signaling-type |
The signaling type: ietf-vpn-common:ldp-signaling. |
underlay-transport |
|
protocol |
The underlay-transport: ietf-vpn-common:rsvp-te |
status admin-status status |
The status of the vpn-service: ietf-vpn-common:admin-up |
vpn-nodes |
|
vpn-node |
|
vpn-node-id |
The VPN node ID. Use the vpn-id and add -R3 or -R4 as a suffix. |
description |
The VPN node description. |
ne-id |
The NE ID. |
router-id |
The router ID. |
status admin-status status |
The status of the node: ietf-vpn-common:admin-up |
signaling-option |
|
signaling-type |
The signaling type: ietf-vpn-common:ldp-signaling |
ldp-or-l2tp |
|
t-ldp-pw-type |
The t-ldp-pw-type: ietf-l2vpn-ntw:vpws-type |
pw-type |
The pseudowire type: ietf-l2vpn-ntw:ethernet |
ac-pw-list |
|
peer-addr |
The peer address. When configuring R3, this is R4, and when configuring R4, this is R3. |
vc-id |
The pseudowire id, for example, 2060. |
pw-priority |
The PW priority, for example, 1. |
vpn-network-accesses |
|
vpn-network-access |
|
id |
The VPN network access ID in the format int_<number>, for example, int_223_1. |
interface-id |
The VPN network access interface ID, for example, Port 1/1/9. This is the access port and may change according to the router. |
status admin-status status |
The status of the interface: ietf-vpn-common:admin-up |
connection encapsulation |
|
encap-type |
The connection encapsulation type: ietf-vpn-common:dot1q (VLAN) or priority-tagged (port-mode). |
dot1q/priority-tagged cvlan-id |
The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 2060. |
service |
|
mtu |
The MTU. |
Detailed JSON Example
{
"ietf-l2vpn-ntw:l2vpn-ntw":{
"vpn-services":{
"vpn-service":[
{
"vpn-id":"PW2060-tldp-single-instqnce",
"vpn-name":"PW2060-tldp-single-instqnce",
"vpn-description":"PW2060-tldp-single-instqnce",
"customer-name":"1",
"vpn-type":"ietf-vpn-common:vpws",
"vpn-service-topology":"ietf-vpn-common:any-to-any",
"signaling-type":"ietf-vpn-common:ldp-signaling",
"underlay-transport":{
"protocol":[
"ietf-vpn-common:rsvp-te"
]
},
"status":{
"admin-status":{
"status":"ietf-vpn-common:admin-up"
}
},
"vpn-nodes":{
"vpn-node":[
{
"vpn-node-id":"PW2060-tldp-single-instqnce-R3",
"description":"PW2060-tldp-single-instqnce",
"ne-id":"10.10.10.3",
"router-id":"10.10.10.3",
"status":{
"admin-status":{
"status":"ietf-vpn-common:admin-up"
}
},
"signaling-option":{
"signaling-type":"ietf-vpn-common:ldp-signaling",
"ldp-or-l2tp":{
"t-ldp-pw-type":"ietf-l2vpn-ntw:vpws-type",
"pw-type":"ietf-l2vpn-ntw:ethernet",
"ac-pw-list":[
{
"peer-addr":"10.10.10.4",
"vc-id":"2060",
"pw-priority":1
}
]
}
},
"vpn-network-accesses":{
"vpn-network-access":[
{
"id":"1",
"interface-id":"Port 1/1/9",
"status":{
"admin-status":{
"status":"ietf-vpn-common:admin-up"
}
},
"connection":{
"encapsulation":{
"encap-type":"ietf-vpn-common:dot1q",
"dot1q":{
"cvlan-id":2060
}
}
},
"service":{
"mtu":1492
}
}
]
}
},
{
"vpn-node-id":"PW2060-tldp-single-instqnce-R4",
"ne-id":"10.10.10.4",
"router-id":"10.10.10.4",
"status":{
"admin-status":{
"status":"ietf-vpn-common:admin-up"
}
},
"signaling-option":{
"signaling-type":"ietf-vpn-common:ldp-signaling",
"ldp-or-l2tp":{
"t-ldp-pw-type":"ietf-l2vpn-ntw:vpws-type",
"pw-type":"ietf-l2vpn-ntw:ethernet",
"ac-pw-list":[
{
"peer-addr":"10.10.10.3",
"vc-id":"2060",
"pw-priority":1
}
]
}
},
"vpn-network-accesses":{
"vpn-network-access":[
{
"id":"1",
"interface-id":"Port 1/1/9",
"status":{
"admin-status":{
"status":"ietf-vpn-common:admin-up"
}
},
"connection":{
"encapsulation":{
"encap-type":"ietf-vpn-common:dot1q",
"dot1q":{
"cvlan-id":2060
}
}
},
"service":{
"mtu":1492
}
}
]
}
}
]
}
}
]
}
}
}
Configure Nokia NSP L2-VPN using NSO (UI)
To add a Nokia NSP L2-VPN service, add two VPN nodes, each with their interface. This is useful for testing an L2-VPN service.
To add a Nokia NSP L2-VPN:
1. Launch NSO.
2. Click l2vpn:ntw12vpn-ntw.

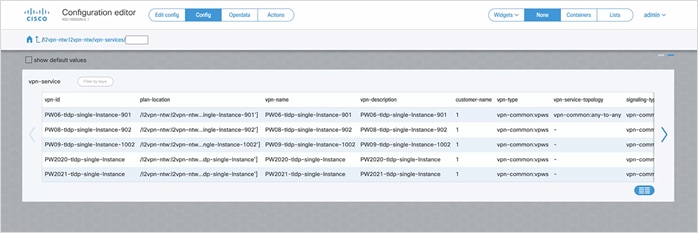

3. Click vpn-services.
4. Click +.
5. Enter a unique vpn-id, for example, PW2060-tldp-single-instance, and click confirm.
6. Click the vpn service.

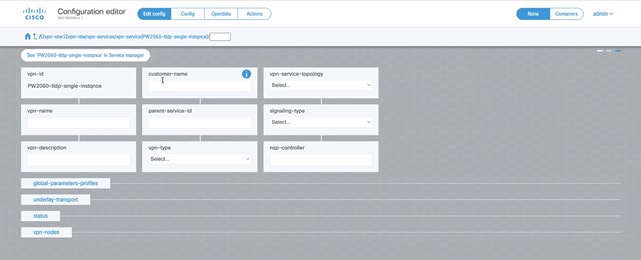

7. Enter the customer-name exactly as configured in the Nokia NSP controller (this is an integer and not a string).
8. Enter the vpn-name as a string.
9. Enter the vpn-description as a string.
10. Set the vpn-type to vpws.
11. Set the vpn-service-topology to hub-spoke or any-to-any or hub-spoke-disjoint.
12. Set the signaling-type to idp-signaling.

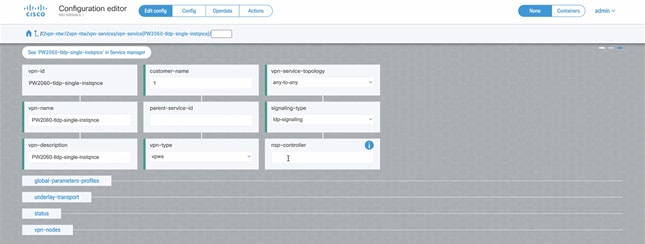

13. Select the nsp-controller (if there is a default nsp-controller, then you can skip this).
14. Click underlay-transport.

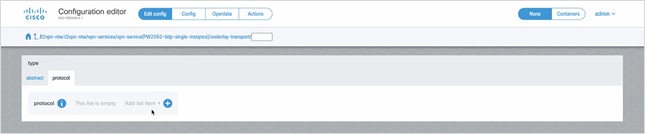

15. Click protocol.
16. Click +.
17. Select rsvp-te and click confirm.
18. Return to the vpn (using the breadcrumbs at the top of the page) and click status.
19. Click admin-status, and then set the status to admin-up.
20. Return to the vpn (using the breadcrumbs at the top of the page).

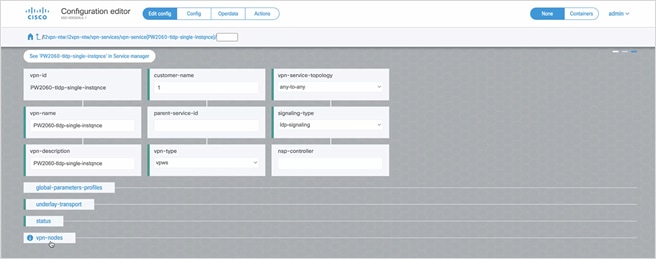

21. Click vpn-nodes.
22. Click +.
23. Use the vpn-id and add -R3 as a suffix (when you configure the second node use -R4).
24. Click confirm.

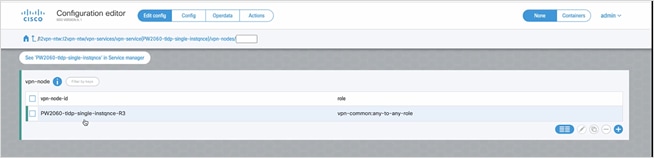

25. Click on the vpn-node.

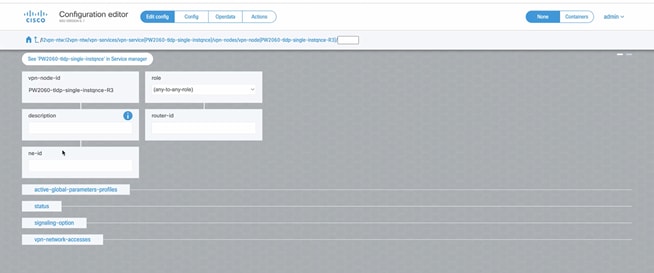

26. Enter a description.
27. Specify the router-id and the ne-id.
28. Click status. And as done previously, set this to admin-up.

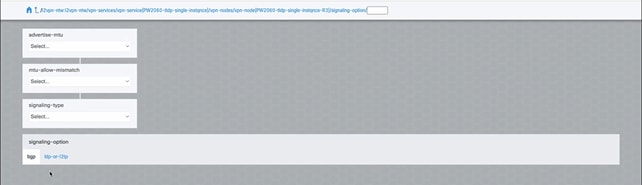

29. In the vpn-node, click signaling-option.
30. Click signaling-type and select ldp-signaling.

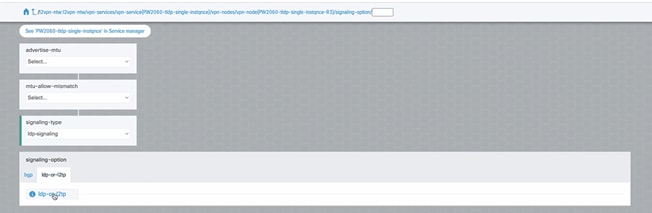

31. Select the ldp-or-l2tp tab and then click ldp-or-l2tp.

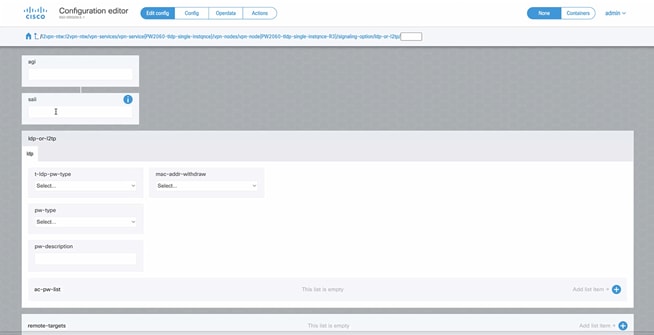

32. Click t-ldp-pw-type and select vpws-type.
33. Click pw-type and select ethernet.
34. In the ac-pw-list, click +.
35. Enter a peer-addr (of the router).
36. Enter the vc-id, for example, 2060, and click confirm.
37. Navigate back to the vpn-node page and click vpn-network-accesses.
38. Click +. This defines the interfaces participating in the VPN.
39. Specify the interface id and click confirm. This is in the format int_<number>, for example, int_222_1. In this example it is set to 1.
40. Click on the interface.

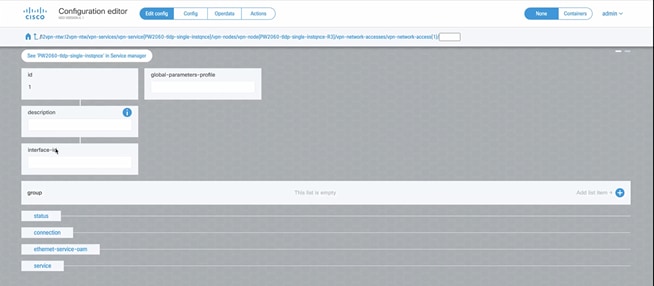

41. Enter the interface_id as Port 1/1/9 (this is the access port and may vary according to the router).
42. Enter the description as a string.
43. Click status.
44. Click admin-status, and then set the status to admin-up.
45. Navigate back to the interface page.

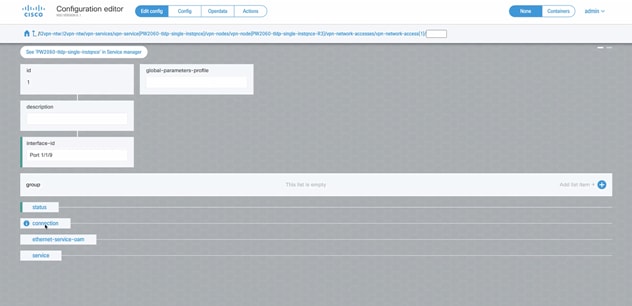

46. Click Connection.

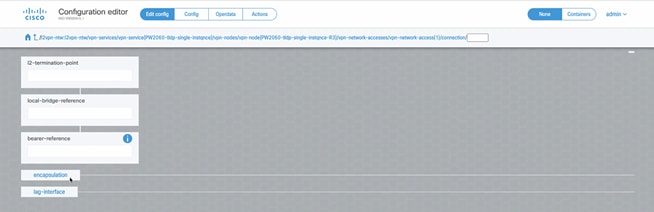

47. Click encapsulation.
48. Set the encap-type to dot1q.
49. Click dot1q.

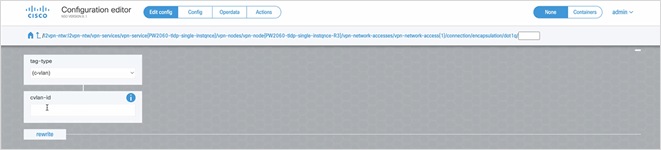

50. Enter the cvlan-id.

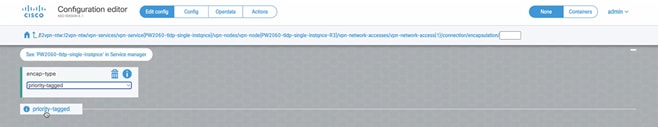

51. Alternatively, you can set the encap-type to priority-tagged, and then click priority-tagged and select the tag-type (c‑vlan).
52. Navigate back to the interface page.
53. Click ethernet-service-oam.

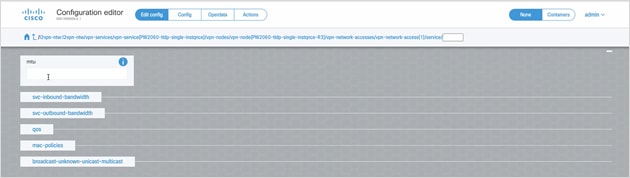

54. Enter the mtu.
55. Navigate back to the VPN service page.
56. Add another vpn-node following the process previously described, adding the suffix -R4 to the name.

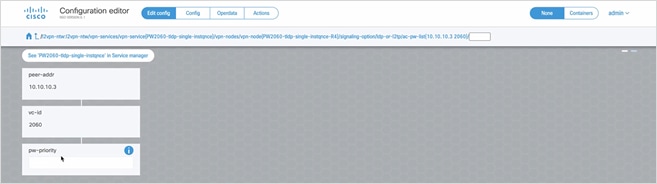

57. Follow the procedure above, but when you specify the peer-addr, you should also specify the pw-priority.
58. Once you have finished setting up the second vpn node, click Commit Manager (at the bottom of the screen).
.
59. Review the configuration.
60. Click Commit.
61. Click Yes, commit.
62. Once it has finished, check the VPN.
Configure Cisco Crosswork Network Controller L2-VPN using NSO (JSON)
For full details on Cisco Crosswork Network Controller L2-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide for instructions how to onboard the controller as a device to the NSO device tree and how to deploy the L2-VPN service on a default Cisco Crosswork Network Controller.
The L2-VPN JSON requires the following high-level structure.
{
"l2vpn-ntw":{
"vpn-services":{
"vpn-service":[
"vpn-id":"alpha",
"vpn-type":"vpn-common:vpws-evpn",
"vpn-nodes":{}
]
}
}
}
The example below is provided as an L2-VPN configuration example.
Table 7. Cisco Crosswork Network Controller L2-VPN Parameters
Parameter |
Description |
vpn-service |
|
vpn-id |
The VPN ID. |
vpn-type |
The VPN type: vpn-common:vpws-evpn. |
vpn-nodes |
|
vpn-node |
|
vpn-node-id |
The VPN node ID. |
vpn-network-accesses |
|
vpn-network-access |
|
id |
The VPN network access ID in the format <number>, for example, 3501. |
interface-id |
The VPN network access interface ID, for example, GigabitEthernet0/0/0/4. This is the access port and may change according to the router. |
connection encapsulation |
|
encap-type |
The connection encapsulation type: vpn-common:dot1q (VLAN). |
dot1q/priority-tagged cvlan-id |
The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 555. |
tag-operations |
|
tag-1 |
The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 555. |
Example
<config xmlns="http://tail-f.com/ns/config/1.0">
<l2vpn-ntw xmlns="urn:ietf:params:xml:ns:yang:ietf-l2vpn-ntw">
<vpn-services>
<vpn-service>
<vpn-id>alpha</vpn-id>
<vpn-type>vpn-common:vpws-evpn</vpn-type>
<vpn-nodes>
<vpn-node>
<vpn-node-id>PE-A</vpn-node-id>
<vpn-network-accesses>
<vpn-network-access>
<id>3501</id>
<interface-id>GigabitEthernet0/0/0/4</interface-id>
<connection>
<encapsulation>
<encap-type>vpn-common:dot1q</encap-type>
<dot1q>
<cvlan-id>555</cvlan-id>
<tag-operations>
<push/>
<tag-1>555</tag-1>
<!-- <mode xmlns="http://cisco.com/ns/nso/fp/examples/cisco-l2vpn-ntw">symmetric</mode> -->
</tag-operations>
</dot1q>
</encapsulation>
</connection>
</vpn-network-access>
</vpn-network-accesses>
</vpn-node>
<vpn-node>
<vpn-node-id>PE-B</vpn-node-id>
<vpn-network-accesses>
<vpn-network-access>
<id>3501</id>
<interface-id>GigabitEthernet0/0/0/4</interface-id>
<connection>
<encapsulation>
<encap-type>vpn-common:dot1q</encap-type>
<dot1q>
<cvlan-id>556</cvlan-id>
<tag-operations>
<push/>
<tag-1>556</tag-1>
<!-- <mode xmlns="http://cisco.com/ns/nso/fp/examples/cisco-l2vpn-ntw">symmetric</mode> -->
</tag-operations>
</dot1q>
</encapsulation>
</connection>
</vpn-network-access>
</vpn-network-accesses>
</vpn-node>
</vpn-nodes>
</vpn-service>
</vpn-services>
</l2vpn-ntw>
</config>
Configure Cisco Crosswork Network Controller L3-VPN using NSO (JSON)
For full details on Cisco Crosswork Network Controller L3-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide for instructions how to onboard the controller as a device to the NSO device tree and how to deploy the L3-VPN service on a default Cisco Crosswork Network Controller.
The example below is provided as an L3-VPN configuration example.
Table 8. Cisco Crosswork Network Controller L3-VPN Parameters
Parameter |
Description |
vpn-service |
|
vpn-id |
The VPN ID, for example, PE-A. |
vpn-nodes |
|
vpn-node |
|
vpn-node-id |
The VPN node ID. |
vpn-network-accesses |
|
vpn-network-access |
|
id |
The VPN network access ID in the format <number>, for example, 1. |
connection encapsulation |
|
type |
The connection encapsulation type: vpn-common:dot1q (VLAN). |
dot1q cvlan-id |
The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 1777. |
interface-id |
The VPN network access interface ID, for example, GigabitEthernet0/0/0/4. This is the access port and may change according to the router. |
ip-connection ipv4 |
|
local-address |
The IP connection local address. |
prefix-length |
The IP connection prefix length. |
active-vpn-instance-profiles |
|
vpn-instance-profile profile-id |
THE VPN instance profile. |
vpn-service-topology |
ietf-vpn-common:any-to-any |
vpn-instance-profiles vpn-instance-profile rd |
The profile ID. |
profile-id |
|
address-family vpn-targets vpn-target id |
The VPN target ID. |
route-target-type |
The route target type, for example, both. |
address-family |
|
JSON Example
{
"ietf-l3vpn-ntw:vpn-service":{
"vpn-id":"L3VPN-BF-Alpha1",
"vpn-nodes":{
"vpn-node":[
{
"vpn-node-id":"PE-A",
"vpn-network-accesses":{
"vpn-network-access":[
{
"id":"1",
"connection":{
"encapsulation":{
"type":"ietf-vpn-common:dot1q",
"dot1q":{
"cvlan-id":1777
}
}
},
"interface-id":"GigabitEthernet0/0/0/5",
"ip-connection":{
"ipv4":{
"local-address":"194.195.196.1",
"prefix-length":24
}
}
}
]
},
"active-vpn-instance-profiles":{
"vpn-instance-profile":[
{
"profile-id":"any"
}
]
}
},
{
"vpn-node-id":"PE-B",
"vpn-network-accesses":{
"vpn-network-access":[
{
"id":"1",
"connection":{
"encapsulation":{
"type":"ietf-vpn-common:dot1q",
"dot1q":{
"cvlan-id":1777
}
}
},
"interface-id":"GigabitEthernet0/0/0/5",
"ip-connection":{
"ipv4":{
"local-address":"194.195.196.2",
"prefix-length":24
}
}
}
]
},
"active-vpn-instance-profiles":{
"vpn-instance-profile":[
{
"profile-id":"any"
}
]
}
}
]
},
"vpn-service-topology":"ietf-vpn-common:any-to-any",
"vpn-instance-profiles":{
"vpn-instance-profile":[
{
"rd":"0:55:65",
"profile-id":"any",
"address-family":[
{
"vpn-targets":{
"vpn-target":[
{
"id":1,
"route-target-type":"both"
}
]
},
"address-family":"ietf-vpn-common:ipv4"
}
]
}
]
}
}
}
Comparison of L3-VPN Parameters for Nokia NSP and Cisco Crosswork Network Controller
The following table lists the parameters shared by Nokia NSP and Cisco Crosswork Network Controller L3-VPN. This list includes the most common parameters used and tested in the examples detailed in this guide. For the full schema, refer to the Network Services Orchestrator (NSO) Crosswork Hierarchical Controller - Function Pack documentation.
Table 9. L3-VPN Parameters
Common L3-VPN |
Nokia NSP L3-VPN |
Cisco Crosswork Network Controller L3-VPN |
vpn-service |
vpn-service |
vpn-service |
vpn-id |
vpn-id |
vpn-id |
vpn-name |
vpn-name |
vpn-name |
vpn-description |
vpn-description |
vpn-description |
customer-name |
customer-name |
customer-name |
|
vpn-type |
|
vpn-service-topology |
vpn-service-topology |
vpn-service-topology |
|
status |
|
|
admin-status |
|
|
status |
|
vpn-instance-profiles |
vpn-instance-profiles |
vpn-instance-profiles |
vpn-instance-profile |
vpn-instance-profile |
vpn-instance-profile |
profile-id |
profile-id |
profile-id |
role |
role |
role |
rd |
rd |
rd |
address-family |
address-family |
address-family |
address-family |
address-family |
address-family |
vpn-targets |
vpn-targets |
vpn-targets |
|
vpn-policies |
|
|
import-policy |
|
|
export-policy |
|
|
underlay-transport |
|
|
protocol |
|
vpn-target |
vpn-target |
vpn-target |
id |
id |
id |
route-targets |
route-targets |
route-targets |
route-targets |
route-targets |
route-targets |
route-target-type |
route-target-type |
route-target-type |
vpn-nodes |
vpn-nodes |
vpn-nodes |
vpn-node |
vpn-node |
vpn-node |
vpn-node-id |
vpn-node-id |
vpn-node-id |
local-as |
local-as |
local-as |
|
description |
|
|
ne-id |
|
|
router-id |
|
active-vpn-instance-profiles |
active-vpn-instance-profiles |
active-vpn-instance-profiles |
vpn-instance-profile |
vpn-instance-profile |
vpn-instance-profile |
profile-id |
profile-id |
profile-id |
|
status |
|
|
admin-status |
|
|
status |
|
vpn-network-accesses |
vpn-network-accesses |
vpn-network-accesses |
vpn-network-access |
vpn-network-access |
vpn-network-access |
id |
id |
id |
interface-id |
interface-id |
interface-id |
|
description |
|
|
vpn-instance-profile |
|
|
status |
|
|
admin-status |
|
|
status |
|
connection |
connection |
connection |
encapsulation |
encapsulation |
encapsulation |
type |
type |
type |
dot1q |
dot1q |
dot1q |
tag-type |
tag-type |
tag-type |
cvlan-id |
cvlan-id |
cvlan-id |
|
|
interface-id |
ip-connection |
ip-connection |
ip-connection |
ipv4 |
ipv4 |
ipv4 |
local-address |
local-address |
local-address |
prefix-length |
prefix-length |
prefix-length |
routing-protocols |
routing-protocols |
routing-protocols |
routing-protocol |
routing-protocol |
routing-protocol |
id |
id |
id |
type |
type |
type |
peer-as |
peer-as |
peer-as |
address-family |
address-family |
address-family |
neighbor |
neighbor |
neighbor |
multihop |
multihop |
multihop |
redistribute-connected |
redistribute-connected |
redistribute-connected |
address-family |
address-family |
address-family |
Comparison of L2-VPN Parameters for Nokia NSP and Cisco Crosswork Network Controller
The following table lists the parameters shared by Nokia NSP and Cisco Crosswork Network Controller L2-VPN. This list includes the most common parameters used and tested in the examples detailed in this guide. For the full schema, refer to the Network Services Orchestrator (NSO) Crosswork Hierarchical Controller - Function Pack documentation.
Table 10. L2-VPN Parameters
Common L3-VPN |
Nokia NSP L3-VPN |
Cisco Crosswork Network Controller L3-VPN |
vpn-services |
vpn-services |
vpn-services |
vpn-service |
vpn-service |
vpn-service |
vpn-id |
vpn-id |
vpn-id |
vpn-name |
vpn-name |
vpn-name |
vpn-description |
vpn-description |
vpn-description |
customer-name |
customer-name |
customer-name |
vpn-type |
vpn-type |
vpn-type |
vpn-service-topology |
vpn-service-topology |
vpn-service-topology |
|
signaling-type |
|
global-parameters-profiles |
global-parameters-profiles |
|
global-parameters-profile |
global-parameters-profile |
|
profile-id |
profile-id |
|
vpn-target |
vpn-target |
|
id |
id |
|
route-targets |
route-targets |
|
route-target |
route-targets |
|
route-target-type |
route-target-type |
|
|
underlay-transport |
|
|
protocol |
|
status |
status |
status |
admin-status |
admin-status |
admin-status |
status |
status |
status |
vpn-nodes |
vpn-nodes |
vpn-nodes |
vpn-node |
vpn-node |
vpn-node |
vpn-node-id |
vpn-node-id |
vpn-node-id |
description |
|
|
ne-id |
|
|
role |
role |
role |
|
router-id |
|
|
status |
|
|
admin-status |
|
|
status |
|
signaling-option |
signaling-option |
signaling-option |
evpn-policies |
evpn-policies |
evpn-policies |
mac-learning-mode |
mac-learning-mode |
mac-learning-mode |
|
signaling-type |
|
|
ldp-or-l2tp |
|
|
t-ldp-pw-type |
|
|
pw-type |
|
|
ac-pw-list |
|
|
peer-addr |
|
|
vc-id |
|
|
pw-priority |
|
vpn-network-accesses |
vpn-network-accesses |
vpn-network-accesses |
vpn-network-access |
vpn-network-access |
vpn-network-access |
id |
id |
id |
interface-id |
interface-id |
interface-id |
|
status |
|
|
admin-status |
|
|
status |
|
connection |
connection |
connection |
encapsulation |
encapsulation |
encapsulation |
encap-type |
encap-type |
encap-type |
dot1q |
dot1q |
dot1q |
cvlan-id |
cvlan-id |
cvlan-id |
|
priority-tagged |
|
tag-operations |
tag-operations |
tag-operations |
push |
push |
push |
tag-1 |
tag-1 |
tag-1 |
cisco-hco-nm:hco-controller |
|
|
service |
Service |
service |
mtu |
Mtu |
mtu |
Configure L2-VPN/L3-VPN via API
The API endpoint for provisioning L2-VPN and L3-VPN services using the Network Services Orchestrator Crosswork Hierarchical Controller - Function Pack is defined as:
● https://x.x.x.x:8443/nso/restconf/data
To execute the L3-VPN API from Postman:
● https://xx.x.x.x:8443/nso/restconf/data/ietf-l3vpn-ntw:l3vpn-ntw/vpn-services/
To execute the L2-VPN API from Postman:
● https://xx.x.x.x:8443/nso/restconf/data/ietf-l2vpn-ntw:l2vpn-ntw/vpn-services/
View L2-VPN and L3-VPN in Service Assurance

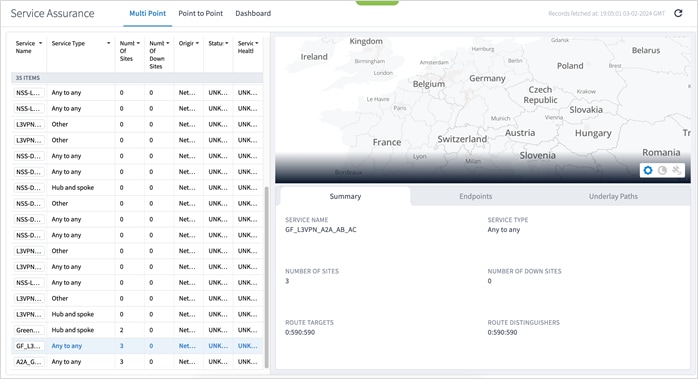

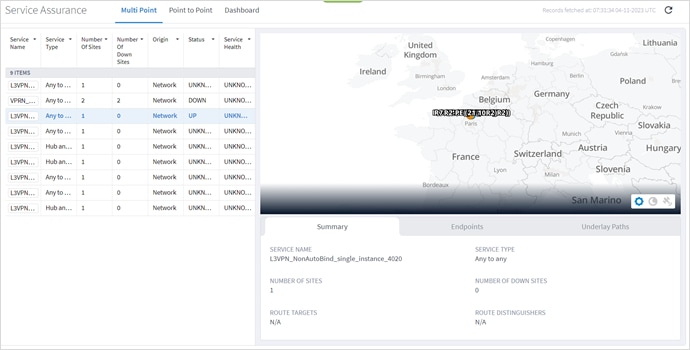

The services provisioned using NSO can be viewed in the Service Assurance application.
The services typically take the following period to be provisioned and appear in Crosswork Hierarchical Controller:
● NSP: Between 10 seconds and 3 minutes.
● Cisco Crosswork Network Controller: Between 30 seconds and 2 minutes.
You can view L2-VPNs and L3-VPNs provisioning tools. To access the NSO Web UI, configure the NSO Address in the Service Settings.
To view L2 VPN/L3 VPN:
1. In the applications bar in Crosswork Hierarchical Controller, select Service Manager > NSO Provisioning.
2. Select Manage VPNs.
3. Select L2 VPN or L3 VPN.

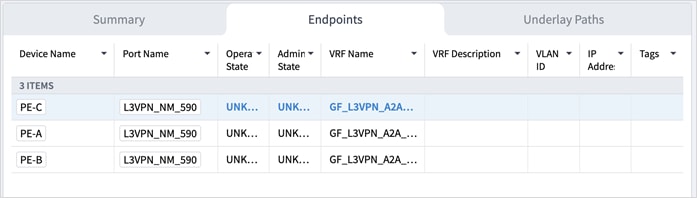

4. The log in to the server configured in the Service Settings appears.
