New and Changed Information

The following table provides an overview of the significant changes up to this current release. The table does not provide an exhaustive list of all changes or of the new features up to this release.

Cisco ACI CNI plug-in Release Version

Feature

5.2(1)

Support for Red Hat OpenShift 4.6 on VMware vSphere 7 User-Provisioned Infrastructure (UPI).

5.2(3)

Added the Decommissioning OpenShift section.

Openshift 4.6 on VMware vSphere

Cisco ACI supports Red Hat OpenShift 4.6 on VMware vSphere 7 User-Provisioned Infrastructure (UPI). This document provides the instructions on using Ansible playbooks to provision OpenShift 4.6 on VMware vSphere with the Container Network Interface (CNI) plug-in.

The Ansible playbooks provision virtual machines (VMs) with the needed interface configuration and generate the ignition configuration files. You must deploy your own DHCP, DNS, and load-balancing infrastructure following high-availability best practices.

The Ansible playbooks are available on Github.

The following are the Ansible playbooks:

  • asserts.yml: This playbook performs basic validations of variable declarations in the all.yml file.

  • setup.yml: This playbook performs the following tasks:

    • Configures the orchestrator node:

      • Installs Terraform, the OpenShift client, and the OpenShift installer. It creates the following: Terraform variables for the bootstrap, master, and worker nodes; the master and worker machine-config operator; the OpenShift install config file.

      • Configures load balancer node: It disables Security-Enhanced Linux (SELinux), configures HAProxy, sets up DHCP and DNS if selected.

        This optional step configures these three components only if you set the provision_dhcp, provision_dns, and provision_lb variables to true.

  • oshift_prep.yml:

    • Sets up the install and bootstrap directories.

    • Generates manifests using openshift-install.

    • Adds the additional machine-config operator manifests.

    • Adds the Cisco ACI-CNI manifests.

    • Creates a backup of the manifests.

    • Sets up the bootstrap, master, and worker nodes ignition files.

    • Copies the bootstrap ignition file to the loadbalancer node.

  • create_nodes.yml:

    • Provisions the bootstrap, master, and worker nodes, using Terraform.

    • Sets up a cron job to approve Cisco Certificate Signing Requests (CSRs), if selected.

  • delete_nodes.yml: Deletes all master and worker nodes.

Prerequisites for Installing OpenShift 4.6 on VMware vSphere

To install OpenShift Container Platform (OCP) 4.6 on VMware vSphere, fulfill the following prerequisites:

Cisco ACI

  • Download the acc-provision tool version 5.2.3.3 or later.

    Specify the “--flavor” option value as “openshift-4.6-esx,” and use the “-z” option. The tool creates a .tar archive file as specified by the “-z” option value. You need this archive file during installation.

    Make sure that the Cisco ACI container images that are specified as input to the acc-provision tool are version 5.2.3.3 or later.

VMware vSphere

Obtain user credentials with privileges to create virtual machines (VMs).

OpenShift

Obtain the following from the Red Hat website:

  • The OCP4 Open Virtualization Appliance (OVA)- ensure to download the relevant release of the OVA image. Navigate to the mirror page on the OpenShift website where all the RHCOS versions are listed, and select the required version. Download the rhcos-vmware.x86_64.ova file.

  • OCP4 client tools - navigate to the mirror page on the OpenShift website where the installation and client tool versions are listed, and select the required version. Download the openshift-client-linux.tar.gz and openshift-install-linux.tar.gz files.

  • Pull Secret

Installing OpenShift 4.6 on VMware vSphere


Note
See Sample Ansible group files section.

Before you begin

Complete the tasks in the Prerequisites section.

It is recommended to see the RedHat OpenShift documentation for prerequisites and other details about Installing a Cluster on vSphere.

Procedure

Step 1

Provision the Cisco ACI fabric using the acc-provision utility:

acc-provision -a -c acc_provision_input.yaml -u admin -p ### -f openshift-4.6-esx -z manifests.tar.gz

Note


See Sample acc-provision section.

Note



Due to Python 3 dependencies that are currently available only on RHEL8, acc-provision tool is supported to only run on RHEL8 operating system.

Step 2

After the Cisco ACI fabric is provisioned, verify that a port group with the name system_id_vlan_kubeapi_vlan is created under distributed switch.

This document refers to this port group as api-vlan-portgroup.

Note



api-vlan-progroup port-group in VMware Distributed Virtual Switch is created using custom VLAN ID provided in the acc_provision_input file as kubeapi_vlan.

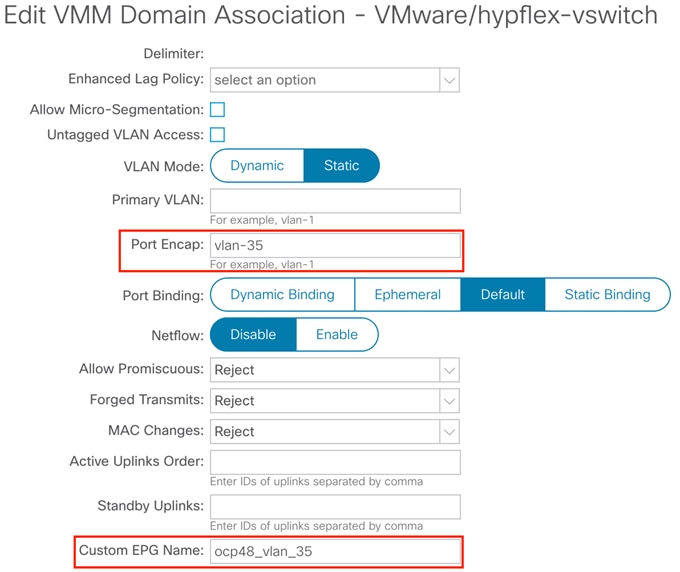

Figure 1. VMM VMware domain association with aci-containers-node EPG

Kube_api VLAN is added to the dynamic VLAN pool associated with the VMware VMM Domain. Allocation mode will be set to Static.

Figure 2. VLAN Pool used for VMM VMware domain

Step 3

In VMware vSphere, import the OpenShift Container Platform 4 (OCP4)Open Virtual Appliance (OVA) image.

Specify api-vlan-portgroup as the port group for the network interface.

Step 4

Provision a Red Hat Enterprise load balancer virtual machine (VM) with the network interface that is connected to the api-vlan-portgroup.

The Ansible playbooks optionally configure this VM as a load balancer, DNS server, and DHCP server for the OpenShift cluster.

Step 5

Provision a Red Hat Enterprise orchestrator VM with the network interface that is connected to the api-vlan-portgroup.

The Ansible playbooks play from the orchestrator VM.

Step 6

Perform the following tasks on the orchestrator VM:

  1. Clone the Git repository on GitHub: https://github.com/noironetworks/openshift_vsphere_upi.

  2. Checkout the "ocp46" branch.

  3. Generate Secure Shell (SSH) keys and copy them to the load balancer VM.

  4. Enable the ansible-2.9-for-rhel-8-x86_64-rpms repository.

  5. Update the Ansible package to the latest version.

  6. Change the directory to the Git-cloned directory.

  7. Install the Ansible module requirements:

    ansible-galaxy install -r requirements.yaml

  8. Edit the groups/all.yml and hosts.ini files and set the values that your site requires.

    Note


    See Sample hosts.ini files section. See the Sample Ansible File section.

  9. Perform basic validation of variable values using the asserts.yml playbook:

    ansible-playbook asserts.yml

  10. Copy the archive file that was created by the acc-provision utility to the files directory, giving it the name aci_manifests.tar.gz.

  11. Run the Ansible setup playbook:

    ansible-playbook setup.yml

    Running the setup playbook configures the orchestrator and load balancer VMs.

  12. Run the Ansible oshift_prep playbook:

    ansible-playbook oshift_prep.yml

    Running the oshift_prep generates the OpenShift manifests and ignition files.

  13. Run the Ansible create_nodes playbook:

    ansible-playbook create_nodes.yml

    The create_nodes playbook creates the VMs. After the VMs are created, the OCP4 installation process starts in the background. At this stage, you should be able to access the cluster APIs by using the kubeconfig files created by the installer.

    The kubeconfig files are located at base_dir/bootstrap/auth directory. The base_dir is set in group_vars/all.yml file, and the default value is /root/ocpinstall.

What to do next

You can use the commands openshift-install wait-for bootstrap-complete and openshift-install wait-for install-complete to check the progress of the installation. Execute the commands from the bootstrap directory.

Updating the Default Ingress Controller

For updating the default Ingress Controller publish strategy to use the ACI Loadbalancer, log in as a user with cluster-admin privileges and run the following:


oc replace --force --wait --filename - <<EOF
apiVersion: operator.openshift.io/v1
kind: IngressController
metadata:
  namespace: openshift-ingress-operator
  name: default
spec:
  endpointPublishingStrategy:
    type: LoadBalancerService
    loadBalancer:
      scope: External
EOF

For more details, see the Configuring the default Ingress Controller for your cluster to be internal section in the Ingress Operator in OpenShift Container Platform Red Hat guide.

Configuring MachineSets with ACI CNI

The Machine API is a combination of primary resources that are based on the upstream Cluster API project and custom OpenShift Container Platform resources.

For OpenShift Container Platform 4.6 clusters, the Machine API performs all node host provisioning management actions after the cluster installation is completed. OpenShift Container Platform 4.6 offers an elastic, dynamic provisioning method on top of public or private cloud infrastructure because of the Machine API.

The two primary resources are:

  • Machines-A fundamental unit that describes the host for a node. A machine has a providerSpec specification, which describes the types of compute nodes that are offered for different cloud platforms. For example, a machine type for a worker node on Amazon Web Services (AWS) might define a specific machine type and required metadata.

  • MachineSet-MachineSet resources are groups of machines. Machine sets are to machines as replica sets are to pods. If you need more machines or must scale them down, you change the replicas field on the machineset to meet your compute need.

Changes to operating systems on OpenShift Container Platform nodes can be done by creating MachineConfig objects that are managed by the Machine Config Operator.

Creating a MachineConfiguration File

Use this procedure to create a MachineConfig file that will configure network interfaces for the new nodes with:

  • ACI Infra interface (ens224)

  • ACI Infra SubInterface (ens224.{InfraVlanID})

  • Opflex-route for BUM traffic replication (224.0.0.0/4)

The required configurations (sample) are shown in the procedure below, however, they need to be customized to match your specific environment. In general the following changes are required:

  • Replace every occurence of {InfraVLAN} with the ACI Infra VLAN for your fabric.

  • Replace every occurence of {MTU} with the MTU you selected for your cluster.


Note

Ensure that your network interface is ens224 (not a different name).

Procedure

Step 1

Create an 80-opflex-route.


#!/bin/bash
 if [ "$1" == "ens224.{InfraVLAN}" ] && [ "$2" == "up" ]; then
 route add -net 224.0.0.0 netmask 240.0.0.0 dev ens224.{InfraVLAN}
 fi

Step 2

Create an ens224.nmconnection.


[connection]
id=ens224
type=ethernet
interface-name=ens224
multi-connect=1
permissions=

[ethernet]
mac-address-blacklist=
mtu={MTU}

[ipv4]
dns-search=
method=disabled

[ipv6]
addr-gen-mode=eui64
dns-search=
method=disabled

[proxy]

Step 3

Create an ens224.{InfraVLAN}.nmconnection.


[connection]
id=ens224.{InfraVLAN}
type=vlan
interface-name=ens224.{InfraVLAN}
multi-connect=1
permissions=

[ethernet]
mac-address-blacklist=

[vlan]
egress-priority-map=
flags=1
id={InfraVLAN}
ingress-priority-map=
parent=ens224

[ipv4]
dns-search=
method=auto

[ipv6]
addr-gen-mode=eui64
dns-search=
method=auto

[proxy]

Step 4

Convert the above three configurations (steps 1,2,3) into base64 encoded strings, and use it in the machineconfig (after base64) template, as shown below.


apiVersion: machineconfiguration.openshift.io/v1
kind: MachineConfig
metadata:
  labels:
    machineconfiguration.openshift.io/role: worker
  name: 00-worker-cni
spec:
  config:
    ignition:
      version: 3.1.0
    storage:
      files:
      - contents:
          source: data:text/plain;charset=utf-8;base64,
                  IyEvYmluL2Jhc2gKIGlmIFsgIiQxIiA9PSAiZW5zMjI0LjM0NTYiIF0gJiYgWyAi
                  JDIiID09ICJ1cCIgXTsgdGhlbgogcm91dGUgYWRkIC1uZXQgMjI0LjAuMC4wIG5ld
                  G1hc2sgMjQwLjAuMC4wIGRldiBlbnMyMjQuMzQ1NgogZmk=
        mode: 0755
        overwrite: true
        path: /etc/NetworkManager/dispatcher.d/80-opflex-route
      - contents:
          source: data:text/plain;charset=utf-8;base64,
                  W2Nvbm5lY3Rpb25dCmlkPWVuczIyNAp0eXBlPWV0aGVybmV0CmludGVyZmFjZS1uYW1lPWVuczIy
                  NAptdWx0aS1jb25uZWN0PTEKcGVybWlzc2lvbnM9CgpbZXRoZXJuZXRdCm1hYy1hZGRyZXNzLWJs
                  YWNrbGlzdD0KbXR1PTkwMDAKCltpcHY0XQpkbnMtc2VhcmNoPQptZXRob2Q9ZGlzYWJsZWQKCltpc
                  HY2XQphZGRyLWdlbi1tb2RlPWV1aTY0CmRucy1zZWFyY2g9Cm1ldGhvZD1kaXNhYmxlZAoKW3Byb3h5XQ==
        mode: 0600
        overwrite: true
        path: /etc/NetworkManager/system-connections/ens224.nmconnection
      - contents:
          source: data:text/plain;charset=utf-8;base64,
                  W2Nvbm5lY3Rpb25dCmlkPWVuczIyNC4zNDU2CnR5cGU9dmxhbgppbnRlcmZhY2UtbmFtZT1lbnMyMjQuMz
                  Q1NgptdWx0aS1jb25uZWN0PTEKcGVybWlzc2lvbnM9CgpbZXRoZXJuZXRdCm1hYy1hZGRyZXNzLWJsYWNrb
                  GlzdD0KClt2bGFuXQplZ3Jlc3MtcHJpb3JpdHktbWFwPQpmbGFncz0xCmlkPTM0NTYKaW5ncmVzcy1wcmlv
                  cml0eS1tYXA9CnBhcmVudD1lbnMyMjQKCltpcHY0XQpkbnMtc2VhcmNoPQptZXRob2Q9YXV0bwoKW2lwdjZd
                  CmFkZHItZ2VuLW1vZGU9ZXVpNjQKZG5zLXNlYXJjaD0KbWV0aG9kPWF1dG8KCltwcm94eV0=
        mode: 0600
        overwrite: true
        path: /etc/NetworkManager/system-connections/ens224.{InfraVLAN}.nmconnection

Note



Replace the {InfraVLAN} with your ACI InfraVLAN ID in path: /etc/NetworkManager/system-connections/ens224.{InfraVLAN}.nmconnection (last line in the sample above). You may also customize the name of the MachineConfig. In the above example, the name is 00-worker-cni.

Step 5

Use the oc create -f command to create the MachineConfig for your cluster.

The machineconfig is applied to the pre-existing workers nodes (two) and replaces the three files already existing with identical copies. When you include the md5 configuration in the machine config, three files are created on the node. The pre-existing worker nodes will reboot one at a time.

Step 6

Get you cluster id using the oc get -o jsonpath='{.status.infrastructureName}{"\n"}' infrastructure cluster command.

Step 7

Create the machineset.


apiVersion: machine.openshift.io/v1beta1
kind: MachineSet
metadata:
  name: ocp4aci-jlff9-worker
  namespace: openshift-machine-api
  labels:
    machine.openshift.io/cluster-api-cluster: ocp4aci-jlff9
spec:
  replicas: 1
  selector:
    matchLabels:
      machine.openshift.io/cluster-api-cluster: ocp4aci-jlff9
      machine.openshift.io/cluster-api-machineset: ocp4aci-jlff9-worker
  template:
    metadata:
      labels:
        machine.openshift.io/cluster-api-cluster: ocp4aci-jlff9
        machine.openshift.io/cluster-api-machine-role: worker
        machine.openshift.io/cluster-api-machine-type: worker
        machine.openshift.io/cluster-api-machineset: ocp4aci-jlff9-worker
    spec:
      metadata: {}
      providerSpec:
        value:
          numCoresPerSocket: 1
          diskGiB: 120
          snapshot: ''
          userDataSecret:
            name: worker-user-data
          memoryMiB: 8192
          credentialsSecret:
            name: vsphere-cloud-credentials
          network:
            devices:
              - networkName: ocp4aci_vlan_35
              - networkName: ocp4aci
          metadata:
            creationTimestamp: null
          numCPUs: 2
          kind: VSphereMachineProviderSpec
          workspace:
            datacenter: my-dc
            datastore: mydatastore
            folder: /mydatastore/vm/ocp4aci
            server: myvsphere.local.lab
          template: RHCOS46
          apiVersion: vsphereprovider.openshift.io/v1beta1

The above is a sample configuration, you may need to modify as below:

  • Cluster ID is ocp4aci-jlff9. Replace it with the relevant cluster ID.

  • Replace ocp4aci_vlan_35 and ocp4aci with your port-groups names (the order is important, ensure not to swap it).

  • Set the replicas value to how many new workers you want on top of the one that were created during cluster bring up.

  • Edit all the workspace parameters (such as, datacenter, datastore), to match your vSphere settings.

  • Edit the VM specifications, if required (memoryMiB, numCPUs and diskGiB).

Note



The original workers are not managed by the MachineSet and you can choose to delete them. If you delete a worker, wait for the OCP routers to be started on the new node.

Scaling of Compute Nodes Using MachineSet

Use this procedure to scale compute nodes using MachineSet.

Procedure

Step 1

Create a VM folder - /DC name/vm/cluster name in vCenter; the cluster name is the OpenShift cluster ID. In the example, the folder has been named: /mydatastore/vm/ocp4aci.

Step 2

Create a Template in vCenter.

Ensure that the template name matches the cluster name in the RHCOS46 template.

Step 3

Create a TAG category called id in vCenter.

Step 4

Configure the DHCP server to allocate IP addresses to the nodes.

Sample Files for Installing OpenShift 4.6 on VMware vSphere

This section contains sample files that you need for installing OpenShift 4.6 on VMware vSphere.

Sample acc-provision-input File

The following is a sample acc-provision-input.yaml. The highlighted or bold values are those that you must modify to meet your site requirements.

#
# Configuration for ACI Fabric
#
aci_config:
  system_id: ocp4aci
  #apic-refreshtime: 1200
  apic_hosts:
  - 1.1.1.1
  vmm_domain:
    encap_type: vxlan
    mcast_range:                # Every opflex VMM must use a distinct range
      start: 225.28.1.1
      end: 225.28.255.255
    nested_inside:
      type: vmware
      name: my-vswitch
	elag_name: <eLAG_name>   # Beginning Cisco APIC 5.0(1), you can configure VMware teaming policy
                               # when link aggregation groups (LAGs) are used.
    installer_provisioned_lb_ip: 10.213.0.201

  # The following resources must already exist on the APIC.
  # They are used, but not created, by the provisioning tool.
  aep: my-aep
  vrf:                          # This VRF used to create all kubernetes EPs
    name: myl3out_vrf
    tenant: common
  l3out:
    name: myl3out
    external_networks:
    - myl3out_net

#
# Networks used by ACI containers
#
net_config:
  node_subnet: 192.168.18.1/24
  pod_subnet: 10.128.0.1/16     # Subnet to use for Kubernetes
                                #   Pods/CloudFoundry containers

  extern_dynamic: 10.3.0.1/24   # Subnet to use for dynamic external IPs
  extern_static: 10.4.0.1/24    # Subnet to use for static external IPs
  node_svc_subnet: 10.5.0.1/24  # Subnet to use for service graph
  kubeapi_vlan: 35
  service_vlan: 36
  infra_vlan: 3901
  #interface_mtu: 1600
  #service_monitor_interval: 5  # IPSLA interval probe time for PBR tracking
                                # default is 0, set to > 0 to enable, max: 65535
  #pbr_tracking_non_snat: true  # Default is false, set to true for IPSLA to
                                # be effective with non-snat services

#
# Configuration for container registry
# Update if a custom container registry has been setup
#
kube-config:
  image_pull_policy: Always
  ovs_memory_limit: 1Gi

registry:
  image_prefix: quay.io/noiro

Sample Ansible group_vars/all.yml File

The following is a sample group_vars/all.yml. The highlighted or bold values are those that you must modify to meet your site requirements.


#domainname
#   type: string, base dns domain name, cluster metadata name is added as subdomain to this
#   required: yes
domainname: ocplab.local

#provision_dns
#   type: boolean, True or False
#   required: yes
#   notes: If set to true, load balancer is configured as dns server.
#          If false, it is assumed that the dns server pre-exists.
provision_dns: True

#dns_forwarder:
#   type: ip address
#   required: yes
#   notes: This value is used when setting up a dhcp service and also for 'forwarders' value in dns configuration.
dns_forwarder: 172.28.184.18

#loadbalancer_ip:
#   type: ip address or resolvable hostname
#   required: yes
#   notes: This host is configured as load balancer for cluster and also as dhcp and dns server if required . This IP address is the same as the one that you configure in installer_provisioned_lb_ip in the acc-provision config.
loadbalancer_ip: 192.168.18.201. This IP address is the same as the one that you configure in installer_provisioned_lb_ip in the acc-provision config.

#auto_approve_csr:
#   type: boolean
#   required: yes
#   notes: when set to true, sets up a cron job to auto approve openshift csr
auto_approve_csr: True

#proxy_env
#
proxy_env:
   #donot remove dummy field, irrespective of whether setup needs a proxy or not.
   dummy: dummy
   #set the http/https proxy server, if setup does not need proxy, comment the below values.
   #these values are used for ansible tasks and also passed on to openshift installer
   http_proxy: http://1.1.1.1:80
   https_proxy: http://1.1.1.1:80
   no_proxy: 1.2.1.1,1.2.1.2

#packages
#  defines the urls to download terraform, openshift client and openshift-install tools from.
packages:
   validate_certs: False
   terraform_url: https://releases.hashicorp.com/terraform/0.13.6/terraform_0.13.6_linux_amd64.zip
   openshift_client_linux_url: https://mirror.openshift.com/pub/openshift-v4/clients/ocp/4.6.21/openshift-client-linux-4.6.21.tar.gz
   openshift_install_linux_url: https://mirror.openshift.com/pub/openshift-v4/clients/ocp/4.6.21/openshift-install-linux-4.6.21.tar.gz

#default_aci_manifests_archive:
#  default filename that is searched under files directory.
#  this can be overridden by passing extra parameter aci_manifests_archive on ansible command line
default_aci_manifests_archive: aci_manifests.tar.gz

#opflex_interface_mtu:
# required: yes
# MTU size for interface connected to fabric, must be greater than 1564
opflex_interface_mtu: 1800


#vsphere
vsphere:
   server: myvshpere.local.lab
   user: administrator@vsphere.local
   passwd: xxxx
   allow_unverified_ssl: true
   datacenter_name: my-dc
   cluster_name: my-cluster
   datastore_name: mydatastore
   RHCOS_template_name: RHCOS46

#base_dir
#  type: directory path
#  required: yes
#  notes: All install files and directories are created under this directory
base_dir: /root/ocpinstall

#node network details. This is common for bootstrap, master and worker nodes.
node_network_cidr: 192.168.53.0/24
node_network_gateway: 192.168.53.1
node_network_netmask: 255.255.255.0

#bootstrap node variables
bootstrap_vars:
   node_ip: 192.168.18.210       #required
   cpu_count: 8                  #optional: defaults to 4
   memory_KB: 16384              #optional: defaults to 8192
   disk_size_MB: 40              #optional: defaults to 40

masters_vars:
   cpu_count: 8                  #optional: defaults to 4
   memory_KB: 16384              #optional: defaults to 16384
   disk_size_MB: 40              #optional: defaults to 40
   nodes:
      #mac address and ip address for each node is required
      - master-1:
         ip: 192.168.18.211
      - master-2:
         ip: 192.168.18.212
      - master-3:
         ip: 192.168.18.213

workers_vars:
   cpu_count: 8                #optional: defaults to 4
   memory_KB: 16384            #optional: defaults to 16384
   disk_size_MB: 40            #optional: defaults to 40
   nodes:
      #mac address and ip address for each node is required
      - worker-1:
          ip: 192.168.18.214
      - worker-2:
          ip: 192.168.18.215

#user_ssh_key:
#  required: no
#  notes: if specified this key is setup on nodes, else ssh key of current
#        user is used.
user_ssh_key: ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQD...

#additional_trust_bundle:
#  required: no
#  notes: use this field to add a certificate for private repository
#
# example:
#additional_trust_bundle: |
#   -----BEGIN CERTIFICATE-----
#   MIIDDDCCAfQCCQDuOnV7XBjpODANBgkqhkiG9w0BAQsFADBIMQswCQYDVQQGEwJV
#   UzELMAkGA1UECAwCQ0ExDDAKBgNVBAcMA1NKQzEOMAwGA1UECgwFQ2lzY28xDjAM
#  -----END CERTIFICATE-----

#openshift_pullsecret:
#  required: yes
#  notes: refer to https://cloud.redhat.com/openshift/install/pull-secret
#  example:
#    openshift_pullsecret: {"auths":{"cloud.openshift.com":{"auth":.........}
openshift_pullsecret: xxx

Sample hosts.ini file

The following is a sample hosts.ini. The highlighted or bold values are those that you must modify to meet your site requirements.

[orchestrator]
192.168.18.200

[lb]
192.168.18.201

Decommissioning OpenShift

Use this procedure to decommission OpenShift and remove the ACI-provisioned configuration from ACI.


Note

Starting with Cisco APIC release 5.2, VMM domains for OpenShift cannot be removed from the APIC GUI. It is only possible using REST API, therefore, it is convenient to use the acc-provision tool to remove the VMM domain, and other related objects used by the decommissioned OpenShift cluster. Ensure you have the acc-input-config.yaml file and certificates used by the acc-provision tool to access APIC.

Before you begin

In case of decommissioning or removing Openshift cluster, ACI configuration provisioned for that cluster should be removed from ACI. The acc-provision tool can be used to remove that configuration.

Procedure

Use the following command from the machine and folder which was used to provision the ACI infrastructure, to delete the pre-provisioned configurations and the VMM domain.

acc-provision -d -f openshift-4.6-esx -c acc-input-file -u user -p password

Example:

acc-provision -d -f openshift-4.6-esx -c acc-input-config.yaml -u admin -p password
