New and Changed Information
The following table provides an overview of the significant changes up to the current release. The table does not provide an exhaustive list of all changes or the new features up to this release.
New Features and Changed Behavior in the Cisco Nexus Dashboard Insights
Feature | Description | Release | Where Documented |
---|---|---|---|
Navigation Update |
Inventory is now accessible from Manage > Inventory |
6.4.1 |
Entire document |
Support of LACP/PIM/IGMP/IGMP Snooping protocols |
LACP, PIM, IGMP, and IGMP Snooping protocols are supported for switches. |
6.4.1 |
|
Real Time Visualization |
Real Time Visualization (RTEV) feature facilitates real-time event rendering within a user interface (UI) environment. |
6.4.1 |
|
Endpoint support in Layer 2 ToR |
Layer 2 ToR is now a supported topology. |
6.4.1 |
|
ToR role for hardware telemetry support |
ToR role is available in Nexus Dashboard Insights for flow telemetry support. |
6.4.1 |
This document is available from your Cisco Nexus Dashboard Insights GUI as well as online at www.cisco.com. For the latest version of this document, visit Cisco Nexus Dashboard Insights Documentation.
Inventory
About Inventory
Inventory provides information on switches in Nexus Dashboard Insights.
Click Manage > Inventory to access Inventory.
At the top of Inventory, choose whether you want to view the inventory from Online Sites or Snapshot Sites.
Click Switches to see high-level information on the switches.
If a switch or hostname is modified, it takes around 2 hours for the updated switch or hostname to be reflect in Inventory.
Switches
About Switches
Switches provides the following high-level information on the switches. The gear icon allows you to customize the table by hiding some of the columns. By default, all columns are visible. The table can also be filtered based on the columns available. Click on the site name to be redirected to all the site details. See Sites for more information.
To get additional information on any single switch, click that switch under Name.
![ndi-inventory-switches-dashboard.jpg](/c/dam/en/us/td/i/500001-600000/500001-510000/adoc-ndi-641/ndi-inventory-switches-dashboard.jpg)
Field | Description |
---|---|
Name |
The name of each switch |
Anomaly Level |
The anomaly levels experienced by each switch |
Advisory Level |
The advisory levels experienced by each switch |
Site |
The site where each switch resides |
Model |
The model type for each switch |
Switch Role |
Displays the role of switch. |
Connectivity to Insights |
The connectivity of the switches |
Serial Number |
The serial number for the specific switch |
Software Version |
The software version in which the switch is available |
Site Type |
Displays the type of switch:
|
You’ll see Overview, Connectivity, Anomalies, and Advisories that will provide more information on the switch, with Overview shown first by default.
Overview
The Overview tab shown first by default when you view switch details. The following appear below Overview.
-
Anomaly level :
Hover over the Anomaly Level to see what category the anomalies belong to. Click the Anomaly Level to get more specific information on the anomalies present for this controller. A slide-in appears, showing all the anomalies that occurred for this controller. See Anomalies to understand how to navigate across the anomalies.
-
Advisory level :
Hover over the Advisory Level to see what category the advisories belong to. Click the Advisory Level to get more specific information on the advisories present for this switch. A slide-in appears, showing all the advisories that occurred for this switch. See Advisories to understand how to navigate across the advisories tab.
-
Interfaces :
Interfaces provides the following information:
-
The total number of interfaces in this switch
-
The number of physical interfaces
-
The overall status of the interfaces in the switch (the number of interfaces that are up, down, or physical not in use)
Click on the number above the Total text to get additional information on the interfaces in this switch.
You can filter the list of interfaces based on Anomaly Level, Interface, Type, Operational status and Admin status. Click on a specific interface listed under the Interface column to get additional information on that particular interface. See Interfaces for more information.
-
-
Switch View :
Within the Switch View, you can see the status of the interfaces, where the state could be Up (green),Down (red), or Not in Use (gray).
If the switch has multiple modules installed, you can switch the views between the different modules.
Real Time Visualization (RTEV) feature facilitates real-time event rendering within a user interface (UI) environment. This feature allows for the smooth integration of real-time events directly into the UI, ultimately enhancing the user experience and delivering the most up-to-date information in real-time. RTEV supported features provide the current data in 10 seconds when the change happens which otherwise takes 5 minutes to get updated via the regular pipeline.
Real-time values are shown to the right of the vertical bar. Historical values (past 2 hours) are shown to the left of the bar and may have larger gaps between data points.
Click View All to see the switch view for all modules installed. Click these links in the Switch View to get additional information:
View Hardware Resources :
Click View Hardware Resources to view a slide-in which appears with information on the hardware resources for this switch in real time. Real Time Visualization helps view up to date information about the resources. Hardware resources shows the variations in the hardware resources over the time range selected. The hardware resources displayed with the percentage utilized per component are CPU, Fan Utilization, Memory, Power Supply, Storage, and Temperature. Click any resource to view further details about it.
![ndi-ndfc-inventory-rtev.jpg](/c/dam/en/us/td/i/500001-600000/500001-510000/adoc-ndi-641/ndi-ndfc-inventory-rtev.jpg)
View Capacity :
Click View Capacity to view a slide-in appears with capacity information for the switch. Capacity details shows the variations in operational, configuration and interface resources over the time range selected.
Type of Resource | List of resources |
---|---|
Operational Resources |
|
Configuration Resources |
|
Interface Resources |
|
The port diagram key helps understand the switch view. Click any interface in the switch view to get more details about the interface. See Interfaces for more information.
-
General :
General provides the following information:
Field | Description |
---|---|
Site |
The site where each switch resides |
Role |
The role defines what the device is |
Type |
Displays what type of switch this is:
Nexus Dashboard Insights will now onboard ToR switches to provide complete visibility into the fabric. This requires creating an Layer 3 interface (SVI) in the ToR switch prior to onboarding. Layer 2 ToR is a supported topology for headless and monitored mode fabrics. You need to push PTP configuration to the TOR. For NDFC managed mode fabrics this isn’t supported. |
Connectivity to Insights |
Connectivity status for switch |
Telemetry Collection Status |
Telemetry collection status provides insights into the health and performance of the switches and devices in your network. The different telemetry collection statuses at the site level include:
|
Software Version |
The version of the software on the switch |
Last Software Update |
The date when the software was last updated on this switch |
Uptime |
The amount of time that this switch has been up. You will also see when the switch was last rebooted |
Model |
The model type for this switch |
Serial Number |
The serial number for this switch |
Out-of-Band IPv4 Address |
The IPv4 address for the out-of-band management of this switch |
Out-of-Band IPv6 Address |
The IPv6 address for the out-of-band management of this switch |
In-Band IPv4 Address |
The IPv4 address for the in-band management of this switch |
Switch ID |
The ID of the switch |
Created At |
The date and time the switch was created |
-
Connectivity :
Connectivity provides the following information:
Field | Description |
---|---|
Endpoints |
The number of endpoints associated with this switch |
L3 Neighbors |
The number of Layer 3 neighbors associated with this switch |
Click on the number shown in either of these areas to get additional information on the endpoints or the Layer 3 neighbors.
-
Analytics Summary :
Analytics summary displays the congestion level of the switch.
Connectivity
Click Connectivity to view connectivity information for this switch. The following appear below Connectivity, with Interfaces shown first by default.
Click any of these to view additional connectivity information for this switch:
-

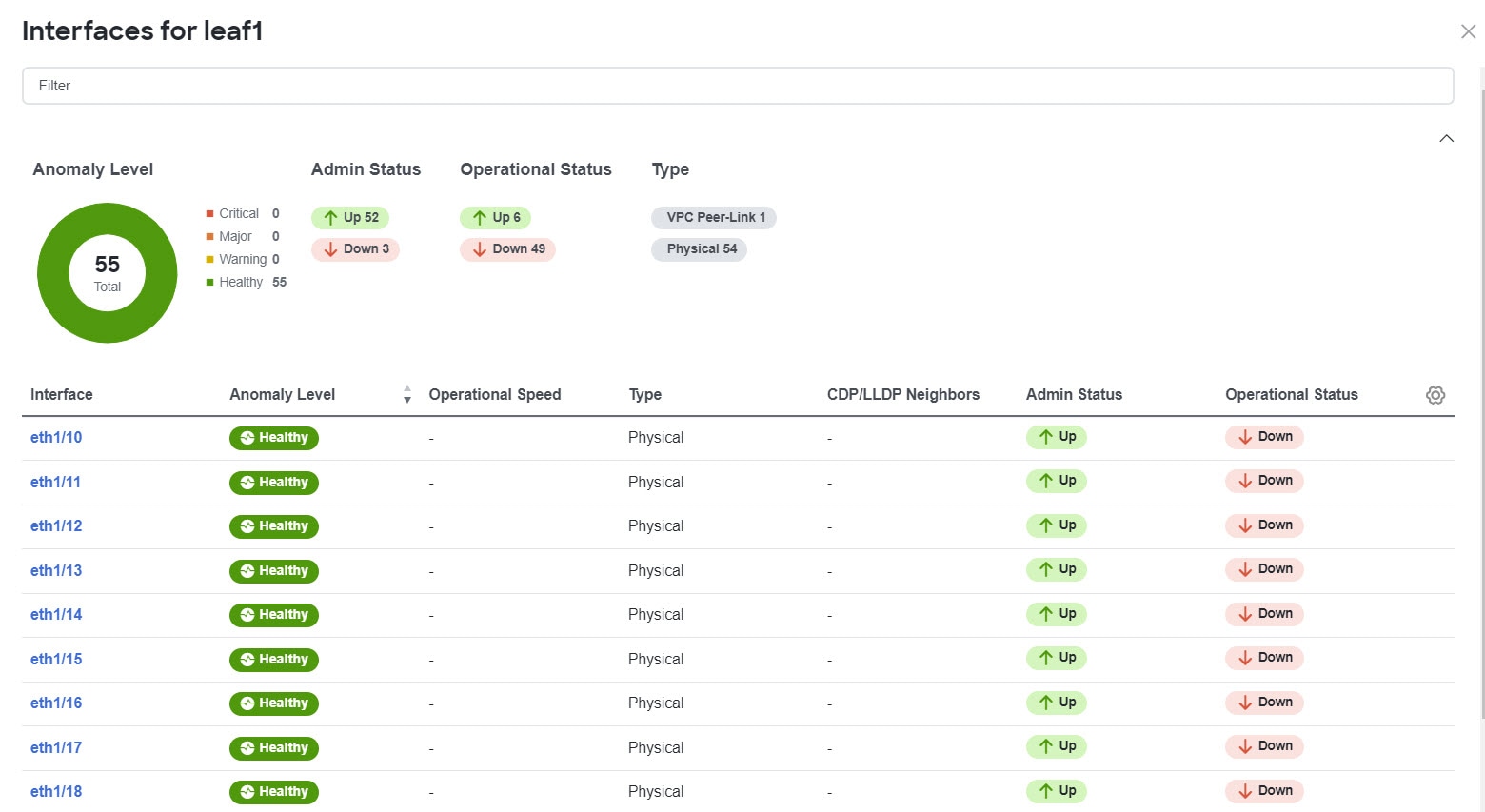

Interfaces :
Click Interfaces to view the Interfaces for this switch. The following information is available in Interfaces:
-
Anomaly level (Only Interface down anomaly is in Realtime)
-
Admin Status (Real time visualization)
-
Operational status (Real time visualization)
-
Type
The Interfaces are listed in a tabular form. The following data is available for the interfaces in the table:
-
Anomaly level
-
Operational speed
-
Type
-
CDP/LLDP
-
Admin Status
-
Operational Status
-
There are various other columns that are optional and can be added to the table by clicking on the gear icon using the toggle to show or hide. See Interfaces for more information.
-
L3 Neighbors :
Click the L3 Neighbors to view L3 Neighbors for this switch. You can filter the results based on Neighbor, Local Switch, VRF and Operational Status. Click the IP address in the Neighbor column to view details on this neighbor.
-
Endpoints :
Click Endpoints to view the Endpoints for this switch. You can filter the results based on Anomaly Level, MAC Address, IP Addresses, host names, Connected To, Interface, Time, Status, Tenant, VRF, BD, EPG/L3out, Search Deleted IPs, VM Name, Hypervisor.
Click a MAC address, IP address or a hostname to get the following additional information on that endpoint. You can view Overview, Endpoint History and Anomalies for the selected endpoint.
-
Routes :
Click Routes to view the route details for this switch. You can choose from the drop-down list to view the details for either IPv4 or IPv6 routes. Download allows you to download the details. The following details are available for the routes. The View History button allows you view the route history for the switch. The table has the following information available:
-
Route
-
Protocol
-
VRF
-
Next Hop
-
Local Interface
-
Route History
-
-
vPC Domains :
Click vPC Domains to view the vPC Domain for this switch. You can filter the results based on Domain ID. Click a domain in the Domain ID column to view vPC domain details on that domain. Click an interface in the Interface column to view additional information on that interface.
-
Multicast :
The Multicast card lists the IGMP, IGMP snooping and the PIM details for the switch. The Instances table shows the following information:
Protocol Type Fields for Instances Table IGMP DETAILS
-
Interface
-
Admin State
-
Operational Status
-
Tenant
-
VRF
-
IP Address
-
Querier Address
-
Membership Count
-
Querier Version
-
Errors
-
View Stats
IGMP SNOOPING DETAILS
-
VLAN
-
Admin State
-
Querier Address
-
Querier Version
-
Multicast Routing State
-
Switch Querier State
-
Errors
-
View Stats
PIM DOMAINS DETAILS
-
VRF
-
Rendezvous Point Addresses
-
Guidelines and limitations for switches
These guidelines and limitations apply when using the Real Time Visualization (RTEV) feature:
-
Controller events are not in real-time and RTEV is limited to switches only.
-
Only 10 sessions per pod can have real-time data for physical and virtual deployment profiles. If there are more than 10 sessions then the data will be sent through the regular pipeline. All other deployment profiles support 20 sessions.
-
For the real-time connection to be established, you must enable the NX-API feature in NDFC and in Cisco NX-OS sites that do not have a controller.
-
On Cisco NX-OS switches, you must set the DME load interval to 10, which you can do using the following command:
hardware profile dme load-interval 10
These guidelines and limitations apply when viewing hardware resources:
-
All parameters are updated in real-time based on the cadence from the switch when it sends the data.
Interfaces
Supported Interface Types (Real time visualization)
-
Physical Interface: To view the interface details of the node such as,node name, physical interface name, operational status, and admin state. The page also displays protocols, QoS, and DOM properties of the physical interface.
-
Port Channel Interface: The port channel is an aggregate of physical interfaces and they can be statistically channeled or can be dynamic using LACP protocols. The statistical data that collects the counters for packets, bytes and various errors are similar to that of physical interface. The 150 sourcename differentiates the physical interface from port-channel (aggregated interfaces). The operational data is obtained by looking at an additional set of objects that gives the admin-status, oper-status and list of member interfaces for both PC and vPC.
-
vPC Interface: The vPC is a logical interface that spans across two physical switches for fault tolerance. For a vPC interface type, the Logical Neighbors information is also displayed. The categories that are supported are L3Out, IPN, ISN, L4-L7.
-
SVI Interface: An SVI is a virtual routed interface that connects a VLAN on the device to the Layer 3 router engine on the same device. Specific information such as Member Interfaces over which the SVI is deployed, VLAN ID, VLAN Type, Encap VLAN are displayed for the SVI interface.
Click an interface to view more details about it.
Overview
The Anomaly level is available at the top. The fields for overview change depending on the type of interface supported.
-
INTERFACE TYPE : PHYSICAL
Section | |
---|---|
General |
If LLDP is disabled, the tag will show 'LLDP disabled', otherwise it will show the count. This is applicable for CDP neighbors as well. |
VLANs Allowed on Interface (This is available for Access Single Port and Trunk Multiple Ports) |
|
Sub interfaces (This is available for Access Single Port and Trunk Multiple Ports) |
|
Associated Routing Protocols (For L3 Port) |
|
-
INTERFACE TYPE : PORT CHANNEL
Section | |
---|---|
General |
If LLDP is disabled, the tag will show 'LLDP disabled', otherwise it will show the count. This is applicable for CDP neighbors as well. |
LACP Details |
|
VLANs Allowed on Interface (This is available for Access Single Port and Trunk Multiple Ports) |
|
SFP Diagnostics (DOM) |
|
-
INTERFACE TYPE : vPC
If a VPC has virtual peer-link mode enabled, the CDP/LLDP for virtual interface is blank as endpoint will not show for vMCT.
Section | |
---|---|
General |
If LLDP is disabled, the tag will show 'LLDP disabled', otherwise it will show the count. This is applicable for CDP neighbors as well. |
Members |
|
VLANs Allowed on Interface (This is available for Access Single Port and Trunk Multiple Ports) |
|
SFP Diagnostics (DOM) |
|
-
INTERFACE TYPE : SUB-INTERFACE
Section | |
---|---|
General |
If LLDP is disabled, the tag will show 'LLDP disabled', otherwise it will show the count. This is applicable for CDP neighbors as well. |
Associated Routing Protocols (For L3 Port) |
|
-
INTERFACE TYPE : NVE
Section | |
---|---|
General |
|
VNIs |
|
-
INTERFACE TYPE : SVI
Section | |
---|---|
General |
|
Associated Routing Protocols (This is available only if the routing protocol is configured) (Real Time Visualization) |
|
Multicast
Click Multicast to bring up details for multicast routes on this interface.
Section | |
---|---|
General |
|
Multicast Groups |
|
For any interface, you can choose to view either the IGMP details or the PIM details.
IGMP DETAILS -
-
General Information
-
Fast-leave
-
Allow V3 ASM
-
Report Link-local Groups
-
-
Statistics
-
V2 Leave Received
-
V2 Leave Sent
-
V2 Query Received
-
V2 Query Sent
-
V2 Report Received
-
V2 Report Sent
-
V3 Query Received
-
V3 Query Sent
-
V3 Report Received
-
V3 Report Sent
-
PIM DETAILS -
-
Neighbor Details
-
Neighbor
-
BFD Config
-
Bi-Dir Config
-
-
Statistics
-
Authentication failed
-
Bad Version Packet
-
Checksum Errors
-
Invalid Packet Received
-
Invalid Packet Sent
-
Join No RP
-
Join Wrong RP
-
Packet from Self
-
Packet Length Error
-
Packet on Passive Interface
-
Trends and Statistics
Click Trends and Statistics to view trends and statistics information on this specific interface in this switch. You see information about the traffic that is flowing over the interface, the usage and various statistics for Microbursts and errors. All of the information is now available in real time. Real Time Visualization helps view up-to-date information.
NX-OS switches support the new subscription service and will send notifications to all interested clients for every sample (every 10 seconds). In the event of any issues with the dial-in connection, it will automatically fall back to the regular update cadence, which is at 1-minute intervals.
-
Admin Status (Real time visualization)
-
Operational Status (Real time visualization)
-
Errors (Real time visualization)
-
Traffic (by bytes or by packets) (Real time visualization)
-
Flood
-
Multicast
-
Unicast
-
Total
-
-
Bandwidth (Real time visualization)
-
Utilization
-
Rate
-
-
Congestion
-
Congestion score
-
PFC
-
ECN
-
Drops
-
RED/WRED/AFD
-
Errors
-
The congestion statistics show the ECN and PFC counters for the traffic received and transmitted. This is used to display where the congestion occurs. Click on any of the counter graphs displayed to view the per queue counters. This displays the list of the counters in the queue along with the number of packets in the respective queue.
Anomalies
Click to view anomaly information on this specific interface in this switch. See Anomalies for more information.
The Anomaly level shows the total number of anomalies that have occurred and the number of anomalies that have occurred in the last week.
Hover over the Anomaly Level to view the category of the anomalies occurred. Click the Anomaly Level to get specific information on the anomalies present for the specific controller or switch.
The View all anomalies takes you to the Anomalies tab. See Anomalies to understand how to navigate across the anomalies.
Filtering Information
In some cases, you might be able to filter results to find information more easily.
For example, you might have a situation where there a large number of endpoints under a single leaf switch, but you are only interested in endpoints that have a certain VLAN value.
You could filter the information to show only those specific endpoints in this situation.
Use the following operators for the filter refinement:
Operator | Description |
---|---|
== |
With the initial filter type, this operator, and a subsequent value, returns an exact match. |
!= |
With the initial filter type, this operator, and a subsequent value, returns all that do not have the same value. |
contains |
With the initial filter type, this operator, and a subsequent value, returns all that contain the value. |
!contains |
With the initial filter type, this operator, and a subsequent value, returns all that do not contain the value. |
< |
With the initial filter type, this operator, and a subsequent value, returns a match less than the value. |
< = |
With the initial filter type, this operator, and a subsequent value, returns a match less than or equal to the value. |
> |
With the initial filter type, this operator, and a subsequent value, returns a match greater than the value. |
> = |
With the initial filter type, this operator, and a subsequent value, returns a match greater than or equal to the value. |
Copyright
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: http://www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
© 2017-2024 Cisco Systems, Inc. All rights reserved.
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
Need help?
- Open a Support Case
- (Requires a Cisco Service Contract)
