New and Changed Information

The following table provides an overview of the significant changes up to the current release. The table does not provide an exhaustive list of all changes or the new features up to this release.

New Features and Changed Behavior in the Cisco Nexus Dashboard Insights
Feature Description Release Where Documented

Terminology change

The term "sites" is renamed to "fabrics".

6.5.1

Entire document

This document is available from your Cisco Nexus Dashboard Insights GUI as well as online at www.cisco.com. For the latest version of this document, visit Cisco Nexus Dashboard Insights Documentation.

Fabrics

Fabrics

Fabrics are on-premises network regions that consist of a group of switches and other networking devices that provide connectivity for your applications and endpoints. You can split fabrics into different availability zones, such as pods, that are analyzed and managed by Nexus Dashboard Insights.

Types of on-premises fabrics

  • Online fabrics: Multiple Nexus switches running ACI or NX-OS that can be represented by a controller such as APIC or NDFC and connected to Nexus Dashboard Insights to continuously stream telemetry. Types of online fabrics include:

    • ACI: Multiple Nexus switches with Cisco ACI and represented by a Cisco APIC.

    • NDFC: Multiple Nexus switches with Cisco NX-OS and represented by a Cisco NDFC.

    • NX-OS: A group of Cisco Nexus 9000 switches running NX-OS without a controller.

  • Snapshot fabrics: Controller-based fabrics, that are referenced by a snapshot, for use in one-time analysis or demonstrations. They may or may not be connected to Nexus Dashboard Insights over the network.

To learn about how to prepare fabrics for onboarding, see Add fabrics.

Once your fabric is onboarded and fully prepared, Nexus Dashboard Insights will start the fabric analysis to collect data from your fabric and display the fabric information in the Fabrics page. See Fabric Details. From there, you can view your fabric’s general information, inventory, L2 and L3 connectivity, endpoints, anomalies and advisories and more! To learn more see Fabric Details.

Prerequisites

Guidelines and Limitations

When you onboard a Cisco ACI fabric using the Ready to Add option in Nexus Dashboard Insights, you cannot specify the Login Domain in Nexus Dashboard Insights. You can specify the Login Domain in Nexus Dashboard’s Admin Console.

Add fabrics

You can add a fabric to Nexus Dashboard Insights using the following methods:

  • Online fabrics

    • Enable the fabric that has already been added to Nexus Dashboard. Fabrics added to the Nexus Dashboard are not enabled in the services by default, so you will need to explicitly enable them directly from Nexus Dashboard Insights.

    • Add a fabric directly to Nexus Dashboard Insights.

  • Snapshot fabrics

    • Add a snapshot fabric.

Add an online fabric

  1. Navigate to Manage > Fabrics.

  2. Click Add Fabric.

    1. If you are adding a fabric in Nexus Dashboard Insights for the very first time, you will receive the following message. Click Add Fabric to proceed.


  3. To enable a fabric that has been already added to Nexus Dashboard, choose Ready to Add. The fabrics added to Nexus Dashboard are displayed. To add a fabric to Nexus Dashboard, see Cisco Nexus Dashboard Fabrics Management.


  4. Complete the following fields for Ready to Add.

    1. Choose the fabric.

    2. Click Next.

    3. Click See on map and click the fabric location on the map to identify the fabric in the Admin Console.

    4. Click Next.

    5. For Insights Collector Configuration, use the toggle to choose IPv4 or IPv6 to onboard the fabric. Based on this setting, Nexus Dashboard Insights will configure its collector to receive telemetry from this fabric. This setting should match your fabrics IP address configuration.

      note.svg

      IPv6 is only supported for Cisco APIC release 6.0(3) and later.

    6. In the EPG drop-down list, choose the in-band EPG. For Nexus Dashboard Insights, the in-band EPG is used for connectivity between Nexus Dashboard and the fabric.

    7. Click Next.

    8. Verify the configuration.

    9. Click Save.

  5. To add a fabric to Nexus Dashboard and then enable the fabric using Nexus Dashboard Insights, choose Manually Add.


  6. Complete the following fields for Manually Add.

    1. In the Hostname field, enter the IP address used to communicate with the fabric’s controller.

    2. In the User Name and Password field, provide the login credentials for a user with admin privileges on the fabric you are adding.

    3. In the Domain field, enter the controller login domain name.

    4. Click Next.

    5. Enter the fabric name to identify the fabric on Nexus Dashboard.

    6. Choose the fabric location from the map to identify the fabric on Nexus Dashboard.

    7. Click Next.

    8. Choose the in-band EPG from the drop-down list. For Nexus Dashboard Insights, in-band EPG is used for connectivity between Nexus Dashboard and the fabric.

    9. For Insights Collector Configuration, use the toggle to choose IPv4 or IPv6 to onboard the fabric. Based on this setting, Nexus Dashboard Insights will configure its collector to receive telemetry from this fabric. This setting should match your fabrics IP address configuration.

      note.svg

      IPv6 is only supported for Cisco APIC release 6.0(3) and later.

    10. Enter the username and password. Enter the username with this format:

      apic#<domain>\\<username>

      Example: apic#MyDomain.com\\MyUsername

    11. Click Next.

    12. Verify the configuration.

    13. Click Submit.

Add a snapshot fabric

  1. Navigate to Manage > Fabrics.

  2. Click Add Fabric.

  3. To add a snapshot fabric, choose Add Fabric Snapshot.


  4. Click Download Snapshot Script to download the data-collectors.tar.gz to your machine.

  5. Extract the file you downloaded and run the data collection script. Follow the instructions provided in the readme.md file. After the script is completed successfully, the data is collected in a <filename>.tar.gz file.

    note.svg

    The collection script requires that you have Python3 installed on your system.

  6. Upload the file in Nexus Dashboard Insights and click Next

  7. Enter the fabric name to identify the fabric on Nexus Dashboard.

  8. Choose the fabric location from the map to identify the fabric on Nexus Dashboard.

  9. Click Next.

  10. Verify the configuration.

  11. Click Submit.

After your fabric is onboarded and fully prepared, Nexus Dashboard Insights will start the analysis to collect data from your fabric and display the fabric information in the Fabrics page. See Fabric Details. The Fabric Analysis banner displays the progress of the analysis. The time to run the analysis depends on the size of the fabric.


Fabric Details

In Nexus Dashboard Insights, Global View provides bird’s eye view of your global network infrastructure for all your fabrics. The Fabrics page provides the details for an individual fabric.

For multi-cluster deployments see section Multi-Cluster Connectivity in Journey and Global View.

Fabric Details in Global View

After you add the first fabric, Global View gives you a bird’s eye view of your global network infrastructure for all your fabrics, their locations, and the key health metrics.

Navigate to Overview> Global View.

The map visually shows the physical location and total number of your fabrics in each continent, and their names. Click a fabric to jump directly to the details for that fabric, or scroll down to the Fabrics area to navigate to your fabric. You can also use the the zoom control icons in the page to change your view of the map.

See an at-a-glance summary for each individual fabric in the Fabrics area. It includes their anomaly and advisory health levels, fabric-external traffic with total data transferred, and connectivity data for endpoints and Layer 3 neighbors. To learn about fabrics in Global View, see Journey and Global View.

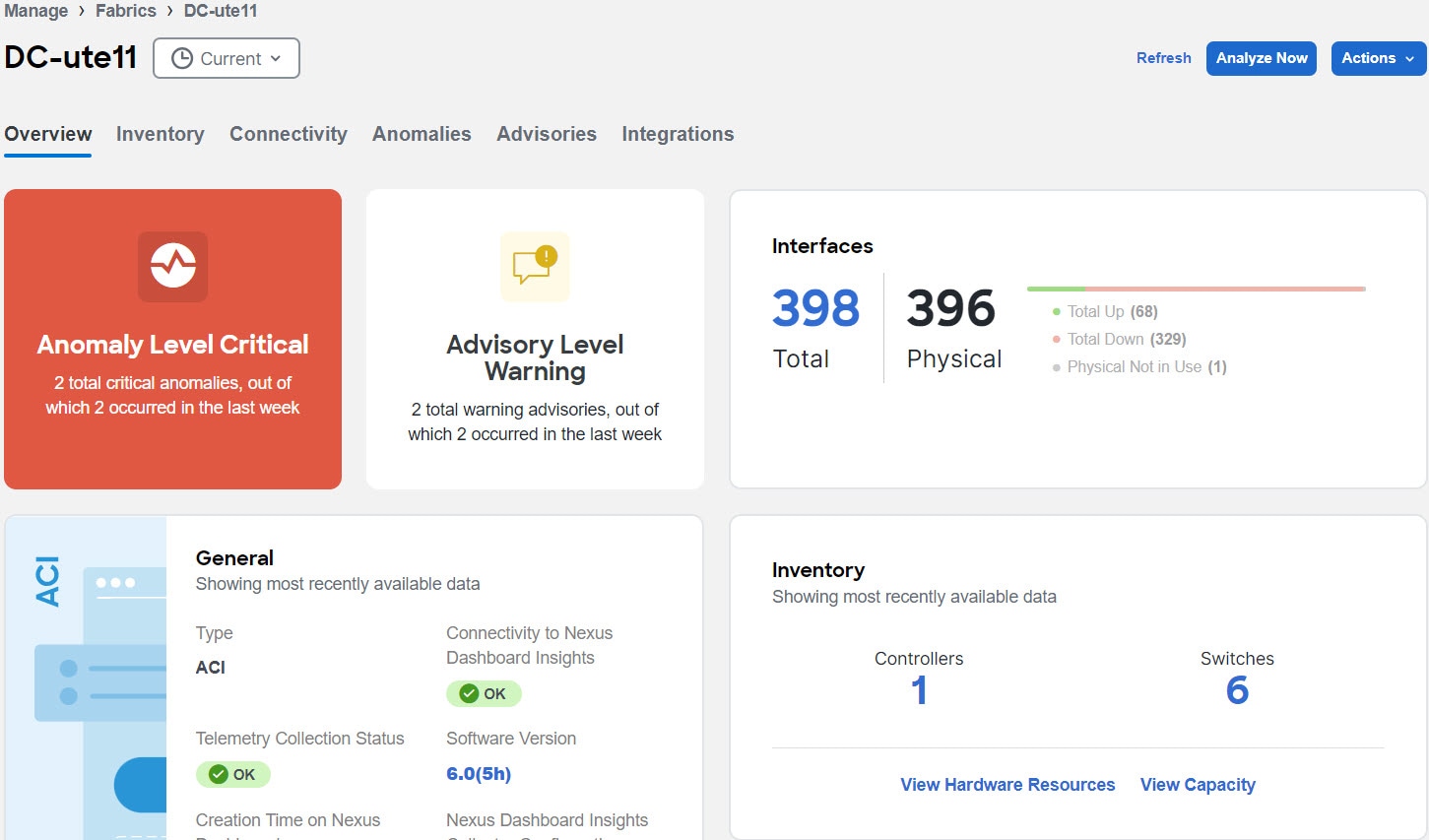

Individual Fabric Details

In the Fabrics page, you can dive into the details for an individual fabric, switch, or interface, with a comprehensive dashboard, simple topology, per-device summaries and more. You can also manage anomalies and advisories at a fabric level.

  1. Navigate to Manage > Fabrics.

  2. Choose Online or Snapshot fabrics from the drop-down list.

  3. Use the search bar to filter the fabrics. The Fabrics table, displays the fabric type, connectivity status, anomaly and advisory level, onboarding time.

  4. Click the fabric name to view details for your fabric.

  5. From the Time Selection drop-down menu select the time. All sections will show data based on time selection and data availability. By default, the current time is selected.

  6. Click Overview.


    1. In the The Anomaly and Advisory area you can view the status of your anomaly and advisory levels, and a list of your top anomaly and advisory categories.

      1. Click Anomaly to view the level, category, and count for your anomalies for the fabric.

      2. Click the anomaly name to view additional details.

      3. Click Advisory to view the level, category, and count for your advisories for the fabric.

      4. Click the advisory name to view additional details.

    2. The General area shows you the type of fabric, the software version used, the connectivity status to Nexus Dashboard, conformance status, onboarding time, and telemetry status. In the General area hover on the software version and click View Bugs to view the active and susceptible bugs for that fabric. See Getting Started. Telemetry collection status provides insights into the health and performance of the switches and devices in your network. The different telemetry collection statuses at the fabric level include:

      1. OK - This status indicates that the telemetry data streaming from all the switches to Nexus Dashboard Insights is functioning correctly. This is the desired state, as it ensures comprehensive monitoring and visibility into the network’s performance.

      2. Not OK - This status indicates the telemetry data streaming from all the switches to Nexus Dashboard Insights is not functioning correctly. This could be as a result of various problems such as network outages, misconfigurations, or hardware failures.

      3. Partial OK - This status indicates that telemetry data streaming from all the switches to Nexus Dashboard Insights is not functioning correctly from some of the switches but it is functioning correctly from others. This suggests an inconsistent or partial telemetry data flow within the network which could be caused by various factors, such as switch-specific issues or misconfigurations on some switches.

    3. In the Analytics Summary area, you can see an overview of the multiple analytics collected from across the fabric. It displays the status for conformance, sustainability and traffic analytics.

    4. In the External Traffic area, you can see the External Traffic that the fabric has sent and received in the last 7 days. The donut helps view the how much traffic is sent and received by the fabric. Click the information icon to view more information about what External Traffic is and how it can be measured for the different types of fabrics.

    5. In the Interfaces area, you can see the summary of the interfaces for the fabric. Click Total to view additional details such as Anomaly Level, Admin Status, Operational Status, and Interface Type. Click the interface name to view additional details.

    6. In the Connectivity area, you can view details about your endpoints, and L3 neighbors.

    7. In the Inventory area, you can view the summary of the controllers and switches for the fabric.

      1. Click View Hardware Resources to view the hardware resources for the fabric. Click and choose a resource from the Top Devices By drop-down list to see a graph for that resource. In the table that follows, see the resource usage by switch. Click the switch name to view additional details.

      2. Click View Capacity to view the different resources with their maximum capacity and current usage. Fabric Summary shows you the trends for the week, as well as the capacity by resource for the entire fabric. You see the number of resources used out of the total available capacity for each resource in this fabric (for example, Bridge Domains 2829 of 15000). The percentage indicates the percentage of resource used. The Switch Summary displays the capacity breakout of resources by switch. The graph shows you the timeline for the parameter that you have chosen from the Top Switches By drop-down list. In the table, click Operational Resources, Configuration Resources, or Hardware Resources, to see the capacity and usage for each switch in the fabric.

  7. Click Inventory to view the the controllers and switches information for the fabric. To learn more, see Inventory.

  8. Click Connectivity to view the details of interfaces, endpoints, L3 neighbors, vPC Domains, flows for the fabric. To learn more, see Inventory.

  9. Click Anomalies to view all the anomalies for the fabric. To learn more, see Anomalies and Advisories.

  10. Click Advisories to view all the advisories for the fabric. To learn more, see Anomalies and Advisories.

  11. Click Integrations to view all the integrations associated with the fabric. To learn more, see Integrations.

  12. Click File History to view he history of files that are attached to the snapshot fabric. It shows the file name, the file size, when the file was uploaded, upload status, and when the last analysis was run.

    note.svg

    File History is displayed only for snapshot fabrics.

    1. For the currently active snapshot, which is the latest file that you uploaded, you can click Run Analysis to run the same snapshot analysis again. This can be useful when additional features are added and you want to re-run an analysis so that the additional features are included in your analysis.

    2. You can also upload a snapshot file for the same fabric at a different time interval. Click Upload File to upload the file and then click Run Analysis to run the snapshot analysis.

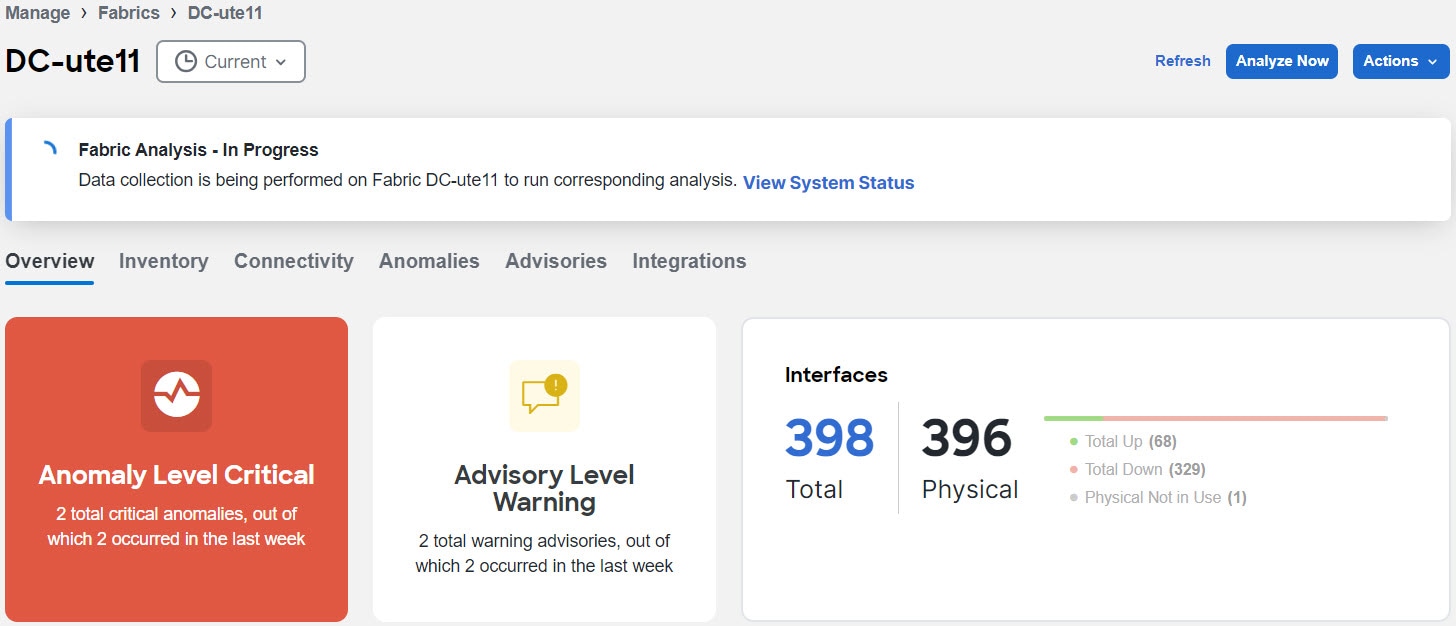

Working with Fabrics

  1. Navigate to Manage > Fabrics.

  2. To add a fabric, click Add Fabric. See Add fabrics.

  3. Choose Online or Snapshot fabrics from the drop-down list.

  4. Click the fabric name to view the Fabric Details.


  5. From the Actions drop-down menu, choose Edit Fabric to edit the fabric details. After you update the information, click Save.

  6. From the Actions drop-down menu, choose View in Topology to view the topology for the fabric.

  7. From the Actions drop-down menu, choose System Status to view the status of the data analysis for your fabric. See Getting Started.

  8. To delete a fabric from Nexus Dashboard Insights, perform the following steps:

    1. From the Actions drop-down menu, choose Pause Telemetry Collection to pause data collection.

    2. From the Actions drop-down menu, choose Remove from Insights to remove the fabric. The fabric is removed from Nexus Dashboard Insights only and not from Nexus Dashboard’s Admin Console.

  9. From the Actions drop-down menu, choose Resume Telemetry Collection to resume data collection.

  10. Click Analyze Now to perform an on-demand analysis. Choose the service such as Assurance or Bug Scan and click Run Now. See Getting Started.
