Release Notes for Cisco IoT Field Network Director, Release 5.0.x
Introduction To Cisco IoT Field Network Director
Cisco IoT FND offers high security, scalability, and modularity. Its pluggable architecture allows network connectivity to a multi-vendor ecosystem of Cisco and third-party IoT devices.
The Cisco IoT FND software platform enables a clear separation between communications network management and operational applications, such as distribution management systems, outage management systems, and meter data management in utilities. You can manage a multi-service network of routers or a combination of routers and endpoint devices with end-to-end security tailored to your specific use case using Cisco IoT FND. For more information, see the Introduction to Cisco IoT FND.
What's New In Cisco IoT FND Release 5.0.x
New Features
|
Feature Name |
Description |
Business Outcome |
|---|---|---|
|
Starting from Cisco IoT FND Release 5.0, you can manage up to 50,000 routers using Cisco IoT FND on a VM using Postgres + Influx database. |
Scale your network operations significantly, accommodating growth without the need for additional hardware investments. |
|
|
Cisco IoT FND ensures that any changes made to the CGMS properties file, whether inside or outside the container, are automatically mirrored in the corresponding file. This synchronization maintains consistency across configurations, reducing the risk of errors and ensuring seamless application performance. |
Maintain consistent configurations across Cisco IoT FND deployments. This reduces the likelihood of configuration errors that could disrupt operations, leading to fewer application downtimes and improved performance reliability. |
|
|
Check the Remove unused firmware images from bootflash check box to remove unused firmware bin files from the bootflash when Cisco IoT FND uploads the image to the router. The check box is enabled for the following devices running Cisco IOS-XE:
|
Clears up space in the bootflash when there is no more space available for an efficient firmware upload. |
|
|
Enhancement to Firmware Update Page for Down and Active Device Status |
Cisco IoT FND includes two additional device statuses in the Firmware Update page: Down Devices and All Devices. |
Filter your search based on the device statuses for routers running a firmware group. View the count of all devices that are part of a given firmware group of routers. |
|
When you add or remove or edit files using .CSV files on Cisco IoT FND, a log is generated in the Audit Trail page. You can download the .CSV file that you used to change the devices. |
Provides a clear and detailed record of all changes made to devices via .CSV files, enhancing accountability and traceability. You can download the .CSV file used for these changes, it facilitates easier audits and ensures that you can verify and review modifications. |
|
|
Manage Router Firmware upload, install and retry counts using Cisco IoT FND, instead of editing the CGMS properties file. |
Automating the firmware upgrade process and tracking install counts with Cisco IoT FND reduces the time and effort required for manual updates. |
|
|
Cisco IoT FND includes a Router Firmware Upload Retry Count in the Firmware Update page. Customize the retry count at the router group level, allowing for tailored firmware update strategies for specific groups of routers. |
Customizing the retry count at the router group level in Cisco IoT FND's Firmware Update page enhances the efficiency of firmware update strategies, resulting in improved operational uptime and reduced network downtime for specific groups of routers. |
|
|
Define the number of router configuration changes or updates that you want to apply to routers within a specific group. Manage and track the number of configuration changes applied to a group of routers during the configuration push using Cisco IoT FND. |
Defining and managing the number of router configuration changes for specific groups using Cisco IoT FND ensures precise control over network configurations, enhancing network stability and streamlining operations. |
|
|
The Device Configuration page has a new search bar for you to search through the various device configurations. |
The search bar on the Device Configuration page allows you to search through various device configurations, helping you narrow down your scope to easily identify a device. |
|
|
Search through the existing firmware updates using the filters introduced in this release |
The filters introduced allow you to search through the existing firmware updates, making the firmware updates page searchable. |
|
|
Cisco IoT FND includes username and password validation check for CSV file input. |
The username and password validation helps in enhancing the security standards for usernames and passwords. |
Modified Features
|
Feature Name |
Description |
Business Outcome |
|---|---|---|
|
The Cisco IoT FND supports Cisco Catalyst 8500 and 8300 series HER platforms: Cisco Catalyst 8500-12X and Cisco Catalyst 8300-1N1S-4T2X. |
The additional HER platforms enhance network scalability and reliability, enabling more efficient management and monitoring of Cisco IoT devices. The additional HER support improves operational efficiency and reduces downtime. |
|
|
The Cisco IoT FND dashboard includes pre-defined dashlets, where an additional Name field is added along with the Element Identifier (EID). You can delete the default views of the devices you select in the Devices > Field Devices page. You can also add the user-defined properties in the customized tab in the Field Devices page. |
Easy to use dashlets which are more accessible, enhance your experience. The intuitive tab navigation facilitates faster task completion, allowing you to seamlessly switch between different tasks and functionalities. Additionally, you can also customize the dashboard to suit your specific needs, providing a more personalized and efficient workflow. |
|
|
You can push the configurations at the device level using the Push Configuration tab in the Field Devices page when you click the device using two options: Config push without-rollback or Config push with-rollback. |
You can manage configuration at the device level, providing more flexibility for managing siloed devices and reducing the time it takes to push new configuration |
|
|
In the Running Config tab of a device page, you can see both the Registration Config and the active running config of the device. |
You can track configuration changes at the device level which helps in managing and reducing configuration drift and provides better visibility to your network devices. |
|
|
The Cisco IoT FND tools package includes a new script rotate_admin_password.sh with CSV input file. This script enables the seamless rotation of administrator passwords across Cisco IoT FND devices, supporting both Cisco IOS and Cisco IOS XE device types. |
This enhancement streamlines the process of updating administrator credentials periodically, ensuring consistent security practices, and simplifying password management across your network infrastructure. |
|
|
A Vendor TLV 127 value support is added to the Full Open CoAP Simple Management Protocol (CSMP) for the Cisco IoT FND devices. A new tab Vendor TLV Info is introduced where you can add the TLV details for a selected device. You can modify and retrieve Vendor TLV details and push the modified configuration to new endpoints. You can also upgrade and manage the firmware with supported TLVs. |
This feature allows customization and flexibility, improves control over device settings and behaviors, enhances operational efficiency, and provides better visibility and monitoring. |
|
|
EID field is added in most of the Cisco IoT FND pages for you to access the Device Info of the devices which are associated with the EID. |
The EID hyperlinks enhance your experience by allowing easy access to device information from any page which has device details in Cisco IoT FND. |
|
| Update Target Firmware Versions For All Users |
In Cisco IoT FND Release 4.12.x and earlier releases, when you change the target firmware versions in the Router Bootstrap Configuration tab, the target firmware changes don't reflect in Cisco IoT FND. Starting from Cisco IoT FND Release 5.0, when you make changes to the target firmware version, the changes reflects for all the other associated Cisco IoT FND users. |
Starting from Cisco IoT FND Release 5.0, you experience seamless synchronization of target firmware version changes across all associated accounts. |
Important Notes For Cisco IoT FND Release 5.0.x
Install SUDI Certificate with 2099 expiry in FND and TPS keystore. The SUDI 2099 has to be installed in FND and TPS for compatibility with newer versions of images for devices.
GUI Changes In Cisco IoT FND Release 5.0.x
This section presents a summary of the significant GUI changes between Cisco IoT FND Release 4.12.1 and Cisco IoT FND Release 5.0.

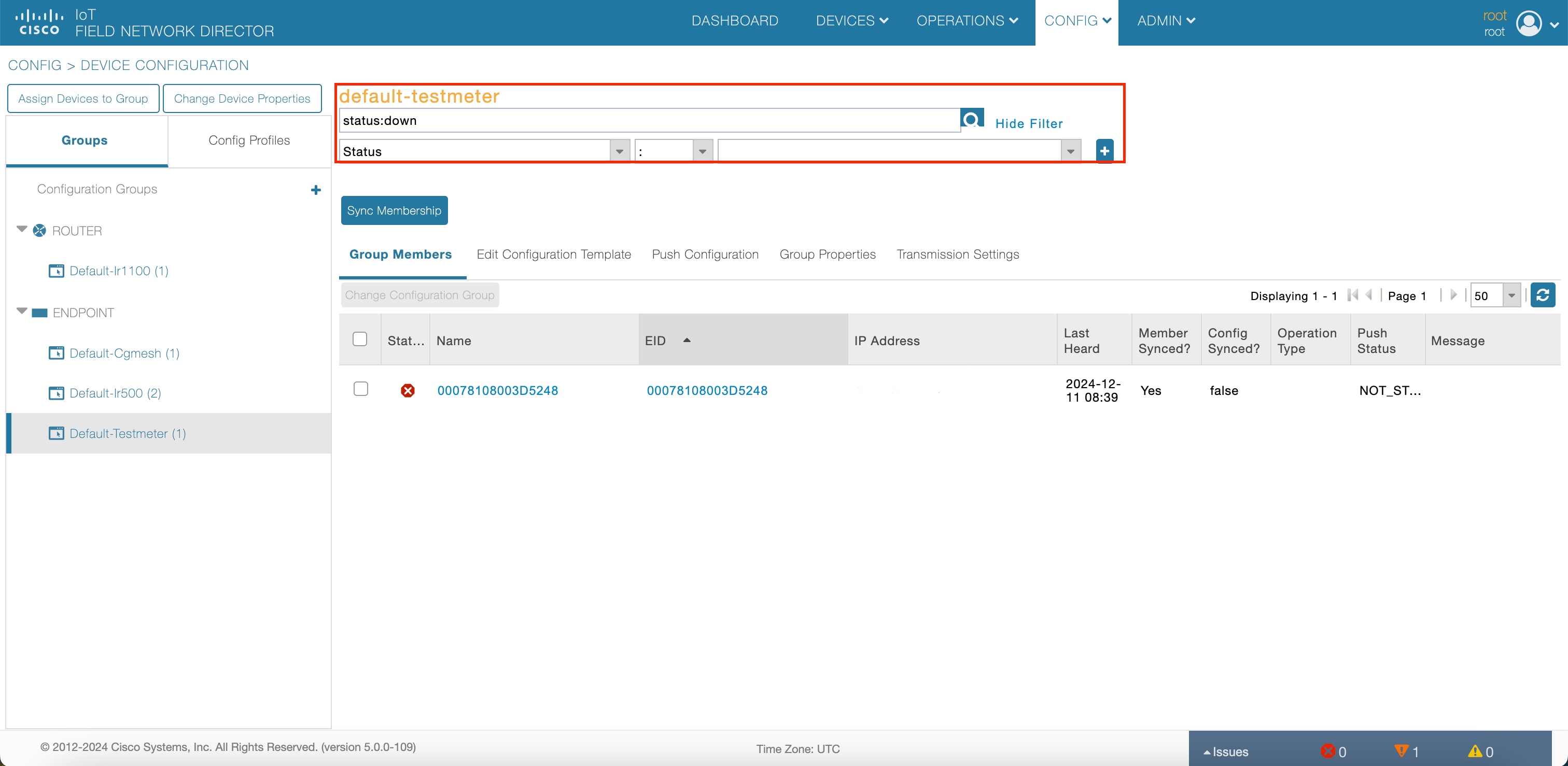

Search bar in the Device Configuration page

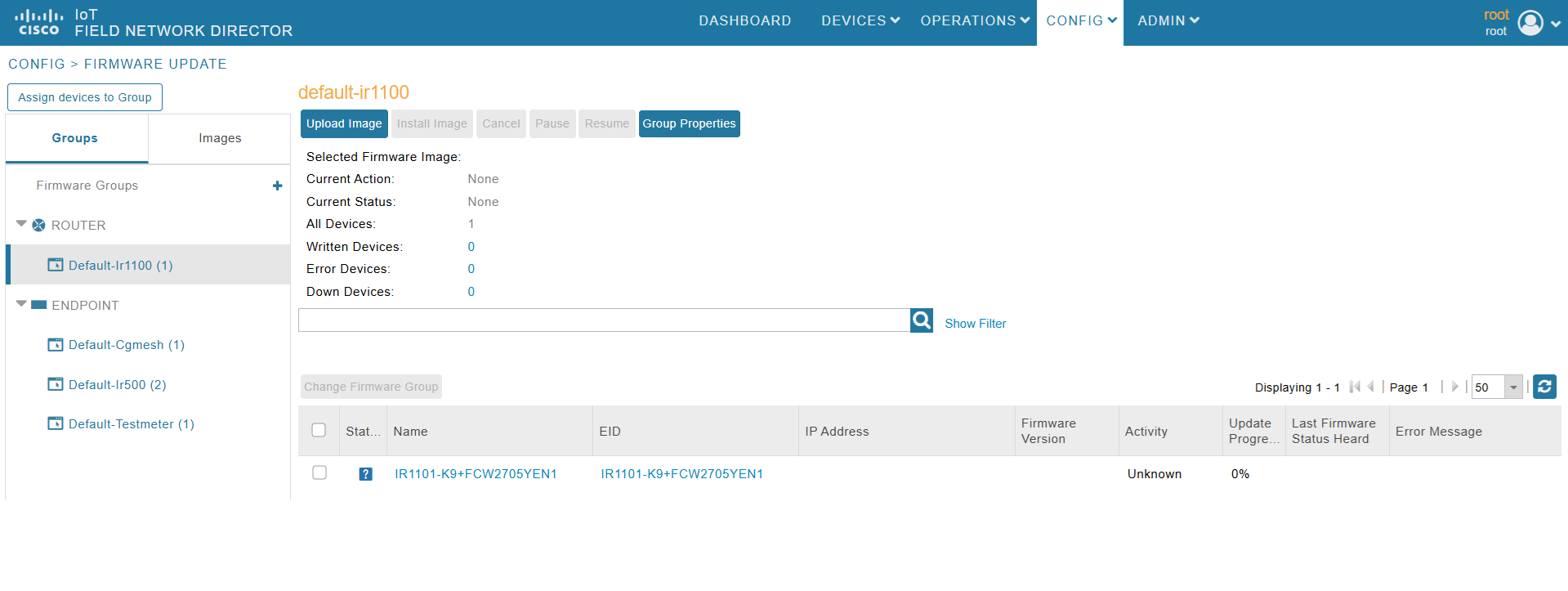

Search bar in the Firmware Update page
New property settings in the Server Settings page.
The Remove unused firmware images from bootflash check box is added to the upload firmware image pane.

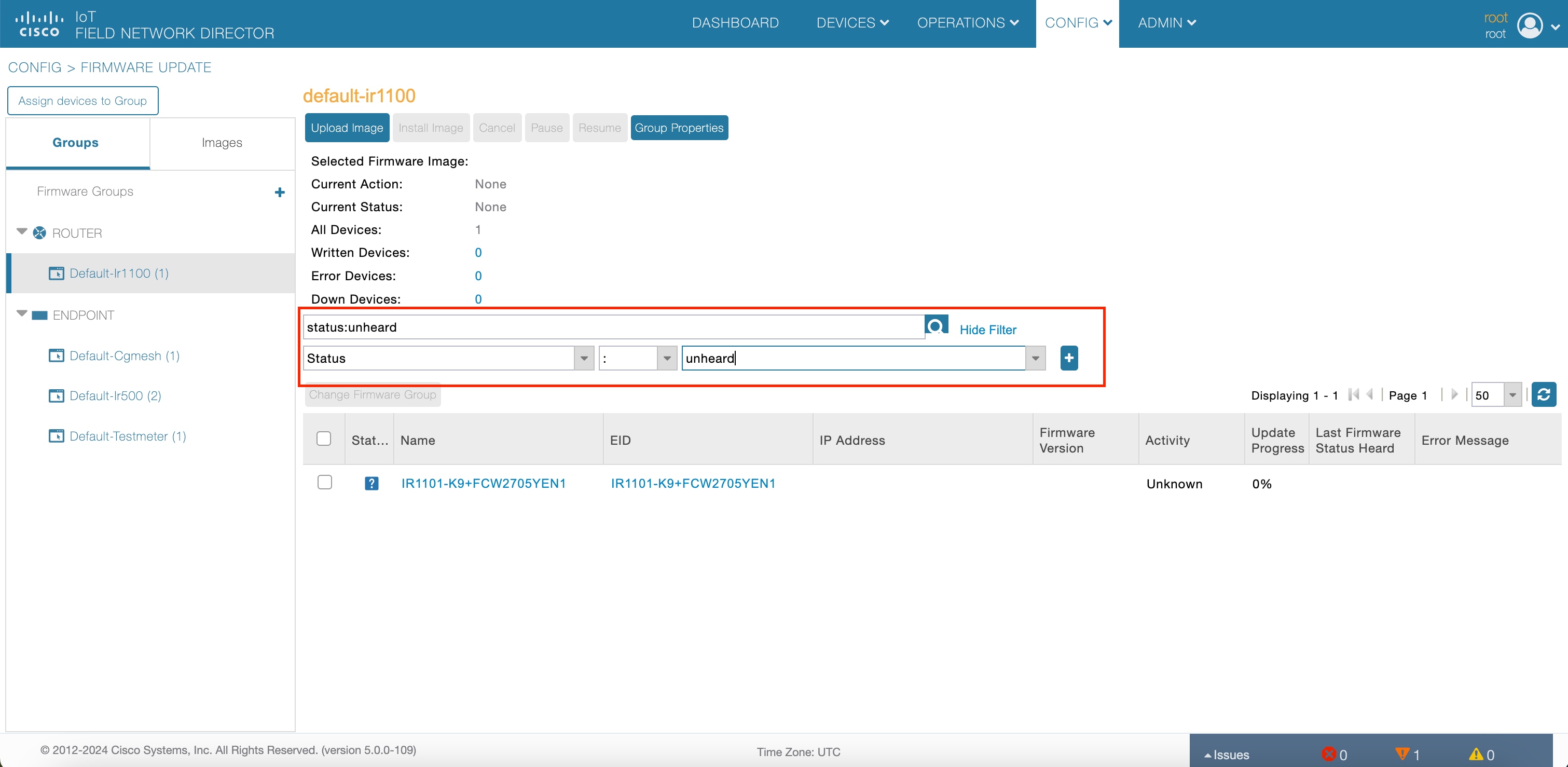

Firmware Update page adds two new device statuses in addition to existing ones: All Devices and Down Devices.
Supported Devices And Device Types
Supported Devices
|
Device Name |
Description |
|---|---|
|
Routers |
|
|
The Cisco Catalyst IR1800 Rugged Series Routers are secure, 5G routers designed with a high level of modularity that supports private LTE, FirstNet, Wi-Fi6, and Gigabit Ethernet. These routers offer enterprise-grade security from the hardware to the network communications all the way to the industrial assets. The routers are powered by Cisco IOS® XE, Cisco’s fully programmable next-generation operating system. Automotive certifications and features such as Controller Area Network (CAN) bus support, dead reckoning and Global Navigation Satellite System (GNSS), and ignition power management make it ideal for secure, reliable connectivity in transit and public safety applications. |
|
|
The IP 67-rated Cisco Catalyst IR8100 Heavy-Duty Series Router is a modular, secure, rugged and outdoor router that is suitable for harsh physical environments. It has multiple WAN (LTE, LTE-Advanced, LTE Advanced Pro, 5G Sub-6GHz1, RJ45/SFP Ethernet) and storage options. The router supports wireless and wired connectivity such as 5G, public, or private LTE, Wi-SUN, LoRaWAN, and has more connectivity options making it more adaptable. It runs on Cisco IOS XE and Cisco IOS XE provides both autonomous and controller (SD-WAN) mode support. |
|
|
Cisco 1101 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The Cisco 1101 Series ISRs are well-suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases. |
|
|
Cisco 800 Series Industrial Integrated Services Routers (IR800s) are ruggedized small-form factor cellular routers for mobile/vehicle applications. IR829 includes Wi-Fi providing connectivity in non-carpeted IT spaces, industrials, utilities, transportation, infrastructure, industrial M2M application, asset monitoring, Smart Grid, and utility applications. These devices are referred to as FARs in this document and identified by product ID (for example, IR800) on the Field Devices page. You can use Cisco IoT FND to manage the following IR800 models: IR809 and IR829. |
|
|
Cisco 500 Series Wireless Personal Area Network (WPAN) Industrial Routers |
Cisco 500 Series Wireless Personal Area Network (WPAN) Industrial Routers (IR500) supply RF mesh connectivity to IPv6 and serial Internet of Things (IoT) devices (for example, recloser control, cap bank control, voltage regulator controls, and other remote terminal units).  NoteCGRs, IR800s, IR500s and other types of mesh endpoint devices can coexist on a network, but cannot be in the same device group (see Creating Device Groups and Working with Mesh Endpoint Firmware Images) or firmware management group. See the following sections in the IoT Field Network Director User Guide for more information on Creating Device Groups, Working with Mesh Endpoint Firmware Images, and Configuring Firmware Group Settings. |
|
The Cisco Wireless Gateway for LoRaWAN (IXM-LPWA-800, IXM-LPWA-900) |
The Cisco Wireless Gateway for LoRaWAN (IXM-LPWA-800, IXM-LPWA-900) can be a standalone product that connects to Ethernet switches or routers or connects to LAN ports of the Cisco 800 Series Industrial Integrated Services Routers. This gateway can be configured as a radio interface of the Cisco Industrial Routers 809 and 829. One or multiple gateways are connected to the LAN port(s) of the IR809 or IR829 via Ethernet or VLANs with encrypted links. Through this configuration, it provides LoRaWAN radio access while the IR809 or IR829 offer backhaul support for Gigabit Ethernet (electrical or fiber), 4G/LTE, or Wi-Fi. |
|
Cisco Interface Module for LoRaWAN is an extension module for the industrial routers, Cisco IR809 and IR829, and serves as a carrier-grade gateway for outdoor deployments. The module provides unlicensed low-power wide area (LPWA) wireless connectivity for a range of Internet of Things (IoT) use cases such as asset tracking, water and gas metering, street lighting, smart parking/building/agriculture, and environment monitoring. There are two models supported, which are differentiated by their band support (863-870 MHz ISM or 902-928 MHz ISM). The module is identified by product ID (for example, IXM-LORA-800-H-V2). |
|
|
Cisco ASR 1000 Series Aggregation Services Routers, Cisco 8000 Series Routers, and Cisco 4000 Series Integrated Service Routers |
These routers are referred to as head-end routers or HERs in this document. |
|
Access Points and Endpoints |
|
|
Cisco 800 Series Access Points are integrated with IR829 platforms |
These access points are referred to as FARs in this document and identified by product ID (for example, AP800). |
|
Cisco IPv6 RF mesh endpoints (smart meters and range extenders) |
Cisco IPv6 RF mesh endpoints, including smart meters and range extenders, are designed to enhance smart grid networks by providing reliable, scalable, and secure communication for utility management. These devices leverage IPv6 technology to ensure efficient data transmission and robust connectivity across extensive utility infrastructures. |
Supported Device Types And Versions
| Device Types | Software Release Requirements |
|---|---|
|
FAR |
|
|
|
|
|
|
Cisco 1101 Series Industrial Integrated Services Routers (IR1101) |
|
|
Cisco CGR1000 Series Connected Grid Router (CGR1120 and CGR1240) |
|
|
Cisco 800 Series Industrial Integrated Services Router (IR800) |
|
|
Cisco 800 Series Access Points (AP800) are integrated with IR829 platforms. |
|
| HER | |
|
|
|
Cisco ASR 1001 or 1002 Aggregation Services Router (ASR) serving as a head-end router |
Cisco IOS XE Release 17.6.7 (MD) |
|
|
| Cisco IOS XE Release 17.3.4a(MD) | |
|
Note C8000, ASRs, and ISRs with different releases can coexist on the network. |
|
| Compute Gateway | |
|
|
|
Long Range Wide Area Network (LoRaWAN) Interface Module for Cisco 800 Series Industrial Integrated Services Routers (IR800) |
|
|
Mesh Endpoints |
|
|
Cisco 500 Series Wireless Personal Area Network (WPAN) Industrial Routers (IR500) |
The firmware versions supported for the following router series are:
|
System Requirements and Recommended Computing Resources
Validated Browsers
-
Microsoft Edge
-
Firefox 3.5 or higher
NoteAll the listed browsers require the Adobe Flash Player 11 plug-in.
Supported Cisco IoT FND Deployment Methods
-
Bare Metal with Oracle DB
-
OVA with Oracle DB
-
OVA with Postgres + Influx DB
System Requirements For Mesh Deployments
Mesh Deployments Using Bare Metal With Oracle
Using Cisco IoT FND Application Server
| Nodes (Routers/Endpoints) |
CPU (Virtual Cores) |
Memory (RAM GB) |
Disk Space (GB) |
|---|---|---|---|
|
500/500,000 |
4 |
16 |
250 |
|
1,000/1,000,000 |
8 |
16 |
250 |
|
2,000/2,000,000 |
8 |
16 |
500 |
|
6,000/6,000,000 |
8 |
16 |
500 |
|
8,000/8,000,000 |
8 |
32 |
500 |
Note-
Four application servers are recommended for 8,000/ 8,000,000 routers/endpoints.
-
We recommend you to use the cluster method for application server if you are using over 2,000/20,000 routers/endpoints.
NoteCisco IoT FND can process approximately 90 CSMP packets per second per node.
Using Oracle Database Server
| Nodes (Routers/Endpoints) |
CPU (Virtual Cores) |
Memory (RAM GB) |
Disk Space (GB) |
|---|---|---|---|
|
500/500,000 |
8 |
32 |
500 |
|
1,000/1,000,000 |
12 |
48 |
1000 |
|
2,000/2,000,000 |
16 |
64 |
1000 |
|
6,000/6,000,000 |
20 |
96 |
1000 |
|
8,000/8,000,000 |
32 |
160 |
2000 |
Mesh Deployments Using Virtual Machines With Oracle
| Nodes (Routers/Endpoints) |
CPU (Virtual Cores) |
Memory (RAM GB) |
Disk Space (GB) |
|---|---|---|---|
|
2,000/2,000,000 |
24 |
96 |
1500 |
System Requirements For Router-Only Deployments
Router-Only Deployments Using Bare Metal With Oracle
Using Cisco IoT FND Application Server
|
Routers |
CPU (Virtual Cores) |
Memory (RAM GB) |
Disk Space (GB) |
|---|---|---|---|
|
25,000 |
32 |
64 |
500 |
|
10,000 |
16 |
48 |
500 |
Using Oracle Database Server
|
Routers |
CPU (Virtual Cores) |
Memory (RAM GB) |
Disk Space (GB) |
|---|---|---|---|
|
25,000 |
32 |
96 |
1000 |
|
10,000 |
16 |
96 |
1000 |
Router-Only Deployments Using Virtual Machines With Postgres
| Routers | CPU (Virtual Cores) |
Memory (RAM GB) |
Disk Space (GB) |
|---|---|---|---|
|
50,000 |
24 (cores per socket: 4 and sockets: 6) |
96 |
800 |
|
25,000 |
24 (cores per socket: 4 and sockets: 6) |
96 |
800 |
|
15,000 |
16 |
64 |
500 |
NoteSet the Java Heap memory to 12 GB to achieve a 25,000 scale, and increase the heap memory to 18 GB for anything greater than a 25,000 scale. For more information see, Achieve Scale Beyond 25,000 Routers.
OpenSSH Version
Since Cisco IoT FND is supported on a variety of Red Hat Enterprise Linux (RHEL) 5 update releases, the OpenSSH version that comes with a given release might be an older version with known security holes. Consequently, we recommend ensuring that OpenSSH on the RHEL Cisco IoT FND server is up-to-date. On initial installation, upgrade the OpenSSH package in the Cisco IoT FND server to RHEL version 8.8 and later versions.
Caveats
The Caveats section includes the bug ID and a short description of the bug. For details on the symptoms, conditions, and workaround for a specific caveat, use the Cisco Bug Search Tool (BST).
Open Caveats
There are no open caveats captured in the Cisco IoT FND Release 5.0.
Resolved Caveats
|
Bug ID |
Description |
|---|---|
|
ERROR: duplicate key value violates unique constraint "net_tunnels_pkey" Detail |
|
|
FND[4.9.0-62] UI with IR8140 Scrolling issue on Mesh Router Tree tab |
|
|
DHCPv4 and DHCPv6 Loopback Link address not used in DHCP DISCOVER message |
|
|
Target FW version under pnp not updating across all the users |
|
|
Meters mesh tree map links stop at the first hop |
|
|
FW upload MD5 checksum is not occurring for IR8100 and IR1800 device types |
|
|
Increase CPU and Memory notices when Router Upgrade / Downgrade triggered as part of PNP |
|
|
FND UI does not include Last GPS Heard for the IR8140 |
|
|
FND IR8140 lat and long are overwritten by 0,0 coordinates |
|
|
UI Error rendering view - failed with NullPointerException |
|
|
Metric Retrieval Failure - java.lang.NullPointerException |
Upgrade Cisco IoT FND
Cisco IoT FND Release Upgrade Matrix
|
Current Release |
Target Release |
|---|---|
|
4.12.0-69 (OVA), 4.12.0-69 (ISO), 4.11.0-69 (OVA), and 4.11.0-69 (ISO) |
5.0-xxx |
|
4.11.0-69 (OVA), 4.11.0-69 (ISO), 4.10.0-45 (OVA), and 4.10.0-46 (ISO) |
4.12.0-xxx |
|
4.10.0-45 (OVA), 4.10.0-46 (ISO), 4.9.0-62 (ISO, OVA), 4.9.1-8 (Postgres OVA), and 4.9.2-4 (ISO) |
4.11.0-xxx |
|
4.9.1-8, 4.9.0-62, 4.8.1-72, 4.8.0-130 (ISO), and 4.8.0-133(OVA) |
4.10.0-xxx |
|
4.9.0-62, 4.8.1-72, 4.8.0-130 (ISO), 4.8.0-133 (OVA), 4.7.2-8, 4.7.1-60, and 4.7.0-100 |
4.9.1-xxx NoteThis release is only for Postgres OVA deployment. |
|
4.8.1-72, 4.8.0-130 (ISO), 4.8.0-133 (OVA), 4.7.2-8, 4.7.1-60, and 4.7.0-100 |
4.9.0-xxx |
|
4.8.0-xxx, 4.7.2-8, 4.7.1-60, and 4.7.0-100 |
4.8.1-xxx |
|
4.7.2-8, 4.7.1-60, 4.7.0-100, 4.6.2-16, and 4.6.1-61 |
4.8.0-xxx |
|
4.7.1-60, 4.7.0-100, and 4.6.1-61 |
4.7.2-8 |
|
4.7.0-100 and 4.6.1-61 |
4.7.1-60 |
|
4.6.1-61 and 4.5.1-11 |
4.7.0-100 |
|
4.5.1-11, 4.4.4-9, 4.4.3-4, 4.4.2-11, 4.4.1-10, and 4.4.0-79 |
4.6.1-61 |
|
4.4.2-11, 4.4.1-10, 4.4.0-79, 4.3.2-7, 4.3.1-7, and 4.3.0-133 |
4.5.1-11 |
|
4.3.1-7, 4.3.0-133, and 4.2.0-123 |
4.4.x |
|
4.2.0-123 and 4.1.1-64.1.0-257 |
4.3.x |
|
4.1.0-257 and 4.0.0-299 |
4.2.0-123 |
NoteSometimes, firmware images are not displayed in the Cisco IoT FND while upgrading the Cisco IoT FND from earlier versions to 4.8.x. To resolve this issue, we recommend that you clear the browser cache.
Note-
The target release versions allow upgrades from the two prior major releases and its maintenance releases unless the maintenance release was released after the target version.
-
If the current version is not within the two prior versions of the target release, then multiple upgrade hops are required to get to the target release. Use the table above to plan your upgrade.
Upgrade each intermediate version(s) and initiate the Cisco IoT FND application. If you are able to login to Cisco IoT FND, it is the best indication that your upgrade is successful.
Upgrading Hardware Security Module (HSM)
Starting from Cisco IoT FND Release 4.6.2 and later, within the Cisco IoT FND image bundle, there are new subfolders for the .jar and API files, here's the filepath: /opt/cgms/safenet/LunaX.
NoteCisco IoT FND application software is backward compatible with the HSM client versions. For example, Cisco IoT FND version 4.7.1 is compatible with older versions of HSM clients such as 5.4, 6.3.
| Cisco IoT FND Software Release | HSM Client | HSM Software |
|---|---|---|
|
5.0.0 |
10.12 with software patch |
7.4 |
|
4.7.1 to 4.12.x |
10.2 |
7.4 |
|
4.6 |
7.3 with software patch |
7.4 |
|
4.5 |
7.3 with software patch |
7.3 |
|
4.4 |
7.3 with software patch |
7.0 |
Cisco IoT FND Documentation
The following documents are available for Cisco IoT FND:
-
Cisco IoT FND Deployment on an Open Virtual Appliance, VMware ESXi 5.5/6.0
-
Cisco IoT Field Network Director Installation Guide-Oracle Deployment, Releases 4.3.x and Later
-
Cisco IoT Field Network Director—Oracle DB Installation and Upgrade Guide
-
North Bound API User Guide for Cisco IoT Field Network Director, Release 4.x
