Configuring SGM Security

---

This chapter provides the following information about configuring SGM security and limiting access to SGM:

•Configuring SGM User-Based Access

•Implementing SSL Support in SGM

•Implementing a Client Password (Solaris Only)

•Limiting SGM Client Access to the SGM Server (Solaris Only)

Configuring SGM User-Based Access

SGM enables you to control who is allowed to do what in SGM, beyond simply specifying root and non-root users. SGM calls this ability User-Based Access.

User-Based Access provides multi-level password-protected access to SGM features. Each user can have a unique username and password. Each user can also be assigned to one of five levels of access, which control the list of SGM features accessible by that user.

To configure SGM User-Based Access, perform the tasks in the following sections. Required and optional tasks are indicated.

•Implementing SGM User-Based Access (Solaris Only) (Required)

•Creating Secure Passwords (Required)

•Configuring SGM User Authentication Levels (Solaris Only) (Required)

•Automatically Disabling Users and Passwords (Solaris Only) (Optional)

•Manually Disabling Users and Passwords (Solaris Only) (Optional)

•Enabling and Modifying Users and Passwords (Solaris Only) (Optional)

•Maintaining Your SGM Security System (Solaris Only) (Optional)

•Specifying a Super User (Solaris Only) (Optional)

Implementing SGM User-Based Access (Solaris Only)

Before you can access SGM's full suite of security commands, you must enable SGM User-Based Access, configure the type of security authentication you want to use, and begin adding users to your authentication lists.

To implement SGM User-Based Access, use the following procedure:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section, or as a super user, as described in the "Specifying a Super User (Solaris Only)" section.

Step 2 Enter the following commands:

# cd /opt/CSCOsgm/bin

# ./sgm useraccess enable

SGM User-Based Access is enabled the next time you restart the SGM server.

Step 3 If you have already configured the type of SGM security authentication you want to use, skip to Step 4.

Otherwise, configure the type of SGM security authentication you want to use:

•Local authentication allows you to create user accounts and passwords local to the SGM system. When using this method, you can use SGM User-Based Access commands manage usernames, passwords, and access levels.

To enable local authentication, enter the following command:

# ./sgm authtype local

•Solaris authentication uses standard Solaris-based user accounts and passwords, as specified in the /etc/nsswitch.conf file. Authentication can be provided by the local /etc/passwd file or from a distributed Network Information Services (NIS) system. You can use all SGM User-Based Access commands except the following commands:

–sgm disablepass

–sgm passwordage

–sgm userpass

You must use Solaris commands, such as passwd, to manage passwords.

Users also cannot change their passwords using the SGM client. Instead, they must manage their passwords on the external authentication servers, using Solaris commands, such as passwd.

All new passwords take effect the next time SGM automatically synchronizes local SGM passwords with Solaris, or you can manually synchronize passwords at any time using the sgm syncusers command.

In addition, you must be logged in as the root user, not a super user, to use the following SGM commands:

–sgm adduser

–sgm disableuser

–sgm enableuser

–sgm updateuser

To enable Solaris authentication, enter the following command:

# ./sgm authtype solaris

See the "SGM Commands and Descriptions" section for more information on the use of each of the above SGM commands.

Step 4 To add a user to your SGM User-Based Access authentication list, use the following command:

# ./sgm sgm adduser username

where username is the name of the user.

---

Note If sgm authtype is set to solaris, you must be logged in as the root user, not as a super user, to enter this command.

---

SGM also prompts you for the authentication level for the user. Valid levels are:

•1—Basic User

•2—Power User

•3—Network Operator

•4—Network Administrator

•5—System Administrator

For more information about authentication levels, see the "Configuring SGM User Authentication Levels (Solaris Only)" section.

If sgm authtype is set to local, SGM also issues the following prompts:

•SGM prompts you for the user's password. When setting the password, follow the rules and considerations in the "Creating Secure Passwords" section.

•SGM asks whether you want to force the user to change the password at the next login. The default is not to force the user to change the password.

(Whenever a user needs to change a password, SGM issues an appropriate message and prompts for the user name and new password.)

---

Note If sgm authtype is set to solaris, users cannot change their passwords using the SGM client. Instead, they must manage their passwords on the external authentication servers, using Solaris commands, such as passwd. All new passwords take effect the next time SGM automatically synchronizes local SGM passwords with Solaris, or you can manually synchronize passwords at any time using the sgm syncusers command. See the "SGM Commands and Descriptions" section for more information on the use of this command.

---

---

At this point, you have implemented your basic SGM User-Based Access. Users must now log in before using the SGM client, the GTT client, and SGM Web-based functions. Use the remaining procedures in this section to customize your SGM security system.

---

Note After you implement SGM User-Based Access, if a user logs in on one SGM or GTT client, then logs in on a second SGM or GTT client, SGM closes the first client and records the event in the system security log.

---

Creating Secure Passwords

When setting passwords in SGM, keep in mind the following rules and considerations:

•The password must be at least 6 characters, up to an unlimited number of characters. However, passwords longer than 15 characters are not recommended.

•The password cannot be identical to the username.

•The new password cannot be the same as the old password.

•SGM does not allow users to switch back-and-forth between two passwords.

•The password cannot be a common word. SGM uses the dictionary located at /usr/lib/share/dict/words to determine whether a word is common. To override the SGM dictionary, change the DICT_FILE entry in the System.properties file:

–To disable the SGM dictionary and allow common words, change the DICT_FILE entry to:

DICT_FILE=/dev/null

–To use a custom dictionary, change the DICT_FILE entry to:

DICT_FILE=/new-dictionary

where new-dictionary is the path and filename of the custom dictionary file, such as /users/rolive/words. Each line in the custom dictionary must contain a single word, with no leading or trailing spaces.

Configuring SGM User Authentication Levels (Solaris Only)

This section describes the user authentication levels in SGM, and the SGM functions and Web displays available at each level:

•Basic User (Level 1) Access

•Power User (Level 2) Access

•Network Operator (Level 3) Access

•Network Administrator (Level 4) Access

•System Administrator (Level 5) Access

The authentication level that includes a function is the lowest level with access to that function. The function is also available to all higher authentication levels. For example, a System Administrator also has access to all Network Administrator functions.

---

Note Access to SGM information and downloads on Cisco.com is already protected by Cisco.com, and is not protected by SGM.

---

To configure the authentication level for a user, use the sgm adduser command, as described in the "Implementing SGM User-Based Access (Solaris Only)" section, or the sgm updateuser or sgm newlevel command, as described in the "Enabling and Modifying Users and Passwords (Solaris Only)" section.

Basic User (Level 1) Access

Basic Users can view SGM data, load SGM files, and use SGM drill-down menus.

Basic Users have access to the following SGM functions:

•Connecting to a new server

•Loading the DEFAULT view and existing views, but not saving them

•Editing, loading, and applying preferences files, but not saving them

•Viewing and manipulating the topology map, and saving it as a JPEG, but not saving icon locations

•Viewing nodes, linksets, events, details, and notes

•Loading existing event filters, but not saving them

Basic Users have access to the following SGM Web displays:

•Server Homepage

•Network Status

•System Data Files

–Notes

–Views

–Preferences

•Viewing SGM documentation

•Downloading client software

Power User (Level 2) Access

Power Users can change some aspects of the way SGM works.

Power Users have access to the following SGM functions:

•Applying changes to views

•Printing SGM windows

•Editing nodes, linksets, events, and views

•Saving preferences files, event filters, and views

•Acknowledging events

•Viewing router statistics

Power Users have access to the following SGM Web displays:

•System Status, excluding User Accounts and System Troubleshooting

•Accounting Statistics Reports

•Network Statistics Reports

•Point Code Inventories

Network Operator (Level 3) Access

Network Operators can make changes to SGM network files.

Network Operators have access to the following SGM functions:

•Launching CiscoWorks2000 and HP OpenView

•Polling nodes

•Viewing the router homepage

•Telnetting to the router

•Viewing route table files and GTT files, but not editing them

Network Operators have access to the following SGM Web displays:

•System Data Files

–Route table files

–Global Title Translation (GTT) table files

•System Information

–System ITP IOS README

Network Administrator (Level 4) Access

Network Administrators have access to all SGM client functions, but not all functions in Solaris.

Network Administrators have access to the following SGM functions:

•SNMP configuration

•Network Discovery

•Deleting nodes, linksets, and links

•Managing and unmanaging nodes

•Editing and saving route table files and GTT files

Network Administrators have access to the following SGM Web displays:

•System Data Files

–Discovery Seeds

System Administrator (Level 5) Access

System Administrators have access to all functions in SGM and in Solaris.

System Administrators have access to the SGM Process Manager.

System Administrators have access to the following SGM Web displays:

•System Messages and Logs

•System Status, including User Accounts and System Troubleshooting

•System Information

–System README

–System Install Log

–System Root Variables

–System Process Services

–System Properties

Automatically Disabling Users and Passwords (Solaris Only)

After you have implemented the basic SGM User-Based Access security system, you can customize the system to automatically disable users and passwords when certain conditions are met.

To automatically disable users and passwords, use the following procedures:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section, or as a super user, as described in the "Specifying a Super User (Solaris Only)" section.

Step 2 Enter the following command:

# cd /opt/CSCOsgm/bin

Step 3 (Optional) You can configure SGM to generate an alarm after a specified number of unsuccessful login attempts by a user. To do so, enter the following command:

# ./sgm badloginalarm number-of-attempts

where number-of-attempts is the number of unsuccessful login attempts allowed before SGM generates an alarm.

The valid range is 1 unsuccessful attempt to an unlimited number of unsuccessful attempts. The default value is 5 unsuccessful attempts.

To disable this function (that is, to prevent SGM from automatically generating an alarm after unsuccessful login attempts), enter the following command:

# ./sgm badloginalarm clear

Step 4 (Optional) You can configure SGM to disable a user's security authentication automatically after a specified number of unsuccessful login attempts. To do so, enter the following command:

# ./sgm badlogindisable number-of-attempts

where number-of-attempts is the number of unsuccessful login attempts allowed before SGM disables the user's authentication. SGM does not delete the user from the authentication list, SGM only disables the user's authentication.

The valid range is 1 unsuccessful attempt to an unlimited number of unsuccessful attempts. The default value is 10 unsuccessful attempts.

To re-enable the user's authentication, use the sgm enableuser command.

To disable this function (that is, to prevent SGM from automatically disabling a user's authentication after unsuccessful login attempts), enter the following command:

# ./sgm badlogindisable clear

Step 5 (Optional) SGM keeps track of the date and time each user last logged in. You can configure SGM to disable a user's security authentication automatically after a specified number of days of inactivity. To do so, enter the following command:

# ./sgm inactiveuserdays number-of-days

where number-of-days is the number of days a user can be inactive before SGM disables the user's authentication. SGM does not delete the user from the authentication list, SGM only disables the user's authentication.

The valid range is 1 day to an unlimited number of days. There is no default setting.

To re-enable the user's authentication, use the sgm enableuser command.

This function is disabled by default. If you do not specify the sgm inactiveuserdays command, user accounts are never disabled as a result of inactivity.

If you have enabled this function and you want to disable it (that is, to prevent SGM from automatically disabling user accounts as a result of inactivity), enter the following command:

# ./sgm inactiveuserdays clear

Step 6 (Optional) If sgm authtype is set to local, you can configure SGM to force users to change their passwords after a specified number of days.

To configure SGM to force users to change their passwords after a specified number of days, enter the following command:

# ./sgm passwordage number-of-days

where number-of-days is the number of days allowed before users must change their passwords.

The valid range is 1 day to an unlimited number of days. There is no default setting.

This function is disabled by default. If you do not specify the sgm passwordage command, users never need to change their passwords.

If you have enabled this function and you want to disable it (that is, prevent SGM from forcing users to change passwords), enter the following command:

# ./sgm passwordage clear

---

Note If sgm authtype is set to solaris, you cannot use the sgm passwordage command. Instead, you must manage passwords on the external authentication servers.

---

Step 7 (Optional) You can configure SGM to disconnect an SGM or GTT client automatically after a specified number of minutes of inactivity. To do so, enter the following command:

# ./sgm clitimeout number-of-minutes

where number-of-minutes is the number of minutes an SGM or GTT client can be inactive before SGM disconnects the client.

The valid range is 1 minute to an unlimited number of minutes. There is no default value.

This function is disabled by default. If you do not specify the sgm clitimeout command, clients are never disconnected as a result of inactivity.

If you have enabled this function and you want to disable it (that is, never disconnect a client as a result of inactivity), enter the following command:

# ./sgm clitimeout clear

---

Manually Disabling Users and Passwords (Solaris Only)

As described in the "Automatically Disabling Users and Passwords (Solaris Only)" section, you can customize SGM to automatically disable users and passwords when certain conditions are met. However, you can also manually disable SGM User-Based Access users and passwords when the need arises. To do so, use the following procedures:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section, or as a super user, as described in the "Specifying a Super User (Solaris Only)" section.

Step 2 Enter the following command:

# cd /opt/CSCOsgm/bin

Step 3 (Optional) To delete a user entirely from the SGM User-Based Access authentication list, enter the following command:

# ./sgm deluser username

where username is the name of the user.

If you later decide to add the user back to the authentication list, you must use the sgm adduser command.

Step 4 (Optional) If sgm authtype is set to local, you can disable a user's password. To do so, enter the following command:

# ./sgm disablepass username

where username is the name of the user. SGM does not delete the user from the authentication list, SGM only disables the user's password.

---

Note If sgm authtype is set to solaris, you cannot use the sgm disablepass command. Instead, you must manage passwords on the external authentication servers.

---

The user must change his password the next time he logs in.

You can also re-enable the user's authentication with the same password, or with a new password:

•To re-enable the user's authentication with the same password as before, use the sgm enableuser command.

•To re-enable the user's authentication with a new password, use the sgm userpass command.

Step 5 (Optional) To disable a user's authentication, but not the user's password, use the following command:

# ./sgm disableuser username

where username is the name of the user.

---

Note If sgm authtype is set to solaris, you must be logged in as the root user, not as a super user, to enter this command.

---

SGM does not delete the user from the authentication list, SGM only disables the user's authentication. The user cannot log in until you re-enable the user's authentication:

•To re-enable the user's authentication with the same password as before, use the sgm enableuser command.

•To re-enable the user's authentication with a new password, use the sgm userpass command.

---

Enabling and Modifying Users and Passwords (Solaris Only)

Of course, SGM also enables you to re-enable users and passwords, and modify user accounts. To enable and modify users and passwords, use the following procedures:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section, or as a super user, as described in the "Specifying a Super User (Solaris Only)" section.

Step 2 Enter the following command:

# cd /opt/CSCOsgm/bin

Step 3 (Optional) To re-enable a user's authentication, which had been disabled either automatically by SGM or by a super user, enter the following command:

# ./sgm enableuser username

where username is the name of the user. SGM re-enables the user's authentication with the same password as before.

---

Note If sgm authtype is set to solaris, you must be logged in as the root user, not as a super user, to enter this command.

---

Step 4 (Optional) If sgm authtype is set to local, you can change a user's password, or re-enable the user's authentication with a new password, if the user's authentication had been disabled either automatically by SGM or by a super user. To change a password or to re-enable a user's authentication with a new password, enter the following command:

# ./sgm userpass username

where username is the name of the user.

SGM prompts you for the new password. When setting the password, follow the rules and considerations in the "Creating Secure Passwords" section.

If the user's authentication has also been disabled, SGM re-enables the user's authentication with the new password.

---

Note If sgm authtype is set to solaris, you cannot use the sgm userpass command. Instead, you must manage passwords on the external authentication servers.

---

Step 5 (Optional) To change a user's authentication level and password, enter the following command:

# ./sgm updateuser username

where username is the name of the user.

---

Note If sgm authtype is set to solaris, you must be logged in as the root user, not as a super user, to enter this command.

---

SGM prompts you for the new authentication level. Valid levels are:

•1—Basic User

•2—Power User

•3—Network Operator

•4—Network Administrator

•5—System Administrator

For more information about authentication levels, see the "Configuring SGM User Authentication Levels (Solaris Only)" section.

If sgm authtype is set to local, SGM also prompts you for the user's new password. When setting the password, follow the rules and considerations in the "Creating Secure Passwords" section.

Step 6 (Optional) To change a user's authentication level, but not the user's password, enter the following command:

# ./sgm newlevel username

where username is the name of the user.

SGM prompts you for the new authentication level. Valid levels are:

•1—Basic User

•2—Power User

•3—Network Operator

•4—Network Administrator

•5—System Administrator

For more information about authentication levels, see the "Configuring SGM User Authentication Levels (Solaris Only)" section.

---

Maintaining Your SGM Security System (Solaris Only)

SGM provides the following procedures that help you monitor and maintain your security system:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section, or as a super user, as described in the "Specifying a Super User (Solaris Only)" section.

Step 2 Enter the following command:

# cd /opt/CSCOsgm/bin

Step 3 (Optional) You can configure SGM to display a message of the day (Figure 4-1), which is a user-specified SGM system notice. You can use the message of the day to inform users of important changes or events in the SGM system. The message of the day also gives users an opportunity to exit the SGM or GTT client before launching.

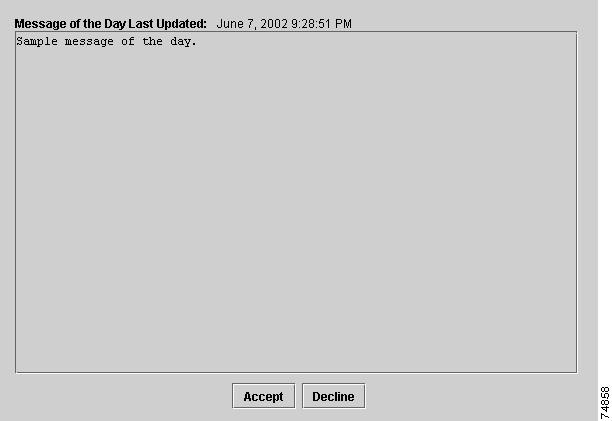

Figure 4-1 Message of the Day Dialog

If the message of the day is enabled, it is displayed whenever a user attempts to launch an SGM or GTT client:

•If the user accepts the message, the client launches.

•If the user declines the message, the client does not launch.

If you want to configure SGM to display a message of the day, you must first enable the function. To do so, enter the following command:

# ./sgm motd enable

SGM displays the following prompt:

Enter location of the message of the day file: [/opt/CSCOsgm/etc/motd]

To accept the default value, press Enter; or type a different location and press Enter. SGM displays the following messages:

Setting Message of the Day File to: [/opt/CSCOsgm/etc/motd]

Message of the Day File set to: [/opt/CSCOsgm/etc/motd]

SGM server must be restarted for changes to take effect.

Initially, the file is blank; enter the following command to specify the message text:

# ./sgm motd edit

You can also use the sgm motd edit command at any time to modify the text of the message of the day.

To display the contents of the message of the day file, enter the following command:

# ./sgm motd cat

To disable this function (that is, to stop displaying the message of the day whenever a user attempts to launch an SGM or GTT client), enter the following command:

# ./sgm motd disable

Step 4 (Optional) If sgm authtype is set to solaris, SGM automatically synchronizes local SGM passwords with Solaris at 11:59 each night. However, you can also manually synchronize passwords at any time by entering the following command:

# ./sgm syncusers

---

Note You must be logged in as the root user, not as a super user, to enter this command.

---

Step 5 (Optional) To list all currently defined users in the SGM User-Based Access authentication list, enter the following command:

# ./sgm listusers

SGM displays the following information for each user:

•Username

•Last time the user logged in

•User's authentication access level

•User's current authentication status, such as Account Enabled or Password Disabled

To list information for only a specific user, enter the following command:

# ./sgm listusers username

where username is the name of the user.

---

Note You can also view user account information on the SGM User Accounts Web page. For more information, see the "Viewing SGM User Account Information" section.

---

Step 6 (Optional) To display the contents of the system security log with PAGER, enter the following command:

# ./sgm seclog

The following security events are recorded in the log:

•All changes to system security, including adding users

•Login attempts, whether successful or unsuccessful, and logoffs

•Attempts to switch to another user's account, whether successful or unsuccessful

•Attempts to access files or resources of higher authentication level

•Access to all privileged files and processes

•Operating system configuration changes and program changes, at the Solaris level

•SGM restarts

•Failures of computers, programs, communications, and operations, at the Solaris level

To clear the log and restart the server, enter the following command:

# ./sgm seclog clear

The default path and filename for the system security log file is /opt/CSCOsgm/logs/sgmSecurityLog.txt. If you installed SGM in a directory other than /opt, then the system security log file is located in that directory.

---

Note You can also view the system security log on the SGM System Security Log Web page. For more information, see the "Viewing the SGM System Security Log" section.

---

Step 7 (Optional) If you inadvertently delete your user accounts, or make other unwanted changes to your SGM security information, SGM enables you to restore the security-related parts of the SGM data files from the previous night's backup. To restore the files, enter the following command:

# ./sgm restore security

---

Note You must be logged in as the root user, not as a super user, to enter this command.

---

Step 8 (Optional) If for some reason you want to completely disable SGM User-Based Access, enter the following command:

# ./sgm useraccess disable

SGM User-Based Access is disabled the next time you restart the SGM server.

---

Specifying a Super User (Solaris Only)

SGM enables you to specify one or more super users. A super user can perform most functions that otherwise require the user to be logged in as the root user. (The root user can still perform those functions, too.) If you specify a super user, the server also runs as the super user and not as the root user.

---

Caution As a super user, you can adversely affect your operating environment if you are unaware of the effects of the commands you use. If you are a relatively inexperienced UNIX user, limit your activities as a super user to the tasks described in this document.

---

To specify a super user, use the following procedure:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section.

Step 2 Enter the following commands:

# cd /opt/CSCOsgm/bin

# ./sgm superuser username

where username is the name of the user.

---

When you specify a super user, keep in mind the following considerations:

•The user must exist in the local /etc/passwd file. You cannot specify a user that is defined in a distributed Network Information Services (NIS) system.

•The super user does not have access to all SGM commands. You must still be logged in as the root user to enter the following commands:

–sgm backup

–sgm browserpath

–sgm certtool

–sgm clean

–sgm cleanall

–sgm clientpass

–sgm cw2ksetup

–sgm evilstop

–sgm jspport

–sgm keytool

–sgm killclients

–sgm reboot

–sgm restore

–sgm restoreprops

–sgm ssl

–sgm sslstatus

–sgm stopclients

–sgm superuser

–sgm syncusers

–sgm trapsetup

–sgm uninstall

–sgm webport

•If sgm authtype is set to solaris, you must still be logged in as the root user to enter the following commands:

–sgm adduser

–sgm disableuser

–sgm enableuser

–sgm updateuser

•If the SNMP trap port number on the SGM server is less than 1024, you cannot use the sgm superuser command. To correct this situation, you must specify a new SNMP trap port number that is greater than 1024:

–To change the SNMP trap port number in the ITP routers in your network, use the snmp-server host command. By default, SGM listens for traps from trap multiplexing devices and NMS applications on port 44750, so that is a good port number to choose. The SNMP trap port number must be the same on all ITP routers in your network.

–See the description of the snmp-server host command in the "ITP Router Requirements" section of the Cisco Signaling Gateway Manager Installation Guide for more information.

–Use the sgm trapsetup command to change the SNMP trap port number in the SGM server to match the port number in the ITP routers in your network. See the description of the sgm trapsetup command in the "SGM Command Reference" section for more information.

Implementing SSL Support in SGM

You can implement Secure Sockets Layer (SSL) support in your SGM system. When you do so, SGM uses secure sockets to encrypt all communication between the SGM clients and server.

This section includes the following information:

•Enabling SSL Support in SGM

•Downloading the SGM Server's Self-Signed SSL Certificate

•Importing an SSL Certificate to an SGM Client

•Exporting an SSL Certificate

•Managing SSL Support in SGM

•Disabling SSL Support in SGM

Enabling SSL Support in SGM

To enable SSL support in SGM, perform the following tasks:

---

Step 1 Obtain the SSL-enabled version of SGM.

Due to US government restrictions on the export of SSL-enabled software, Cisco provides two versions of SGM: Basic SGM, which does not provide SSL support, and SSL-enabled SGM, which does.

To obtain SSL-enabled SGM, you must contact Cisco TAC or your Cisco Account Team. They will help you apply for an export licence and download and install SSL-enabled SGM.

Step 2 Install an SSL key/certificate pair in SGM, using one of the following procedures:

•To install a new SSL key and a self-signed certificate, generate the key and certificate by logging in as the root user on the SGM server and entering the sgm keytool genkey command.

SGM stops the SGM server and issues the following prompts:

Country Name (2 letter code) []:

State or Province Name (full name) []:

Locality Name (eg, city) []:

Organization Name (eg, company) []:

Organizational Unit Name (eg, section) []:

Common Name (your hostname) []:

Email Address []:

Enter the requested information.

SGM generates the following files:

–/opt/CSCOsgm/etc/ssl/server.key is the SGM server's private key. Ensure that unauthorized personnel cannot access this key.

–/opt/CSCOsgm/etc/ssl/server.cer is the self-signed SSL certificate.

–/opt/CSCOsgm/etc/ssl/server.csr is a certificate signing request (CSR). It is not used if you are using a self-signed SSL certificate.

•To install a new SSL key and a CA-signed certificate, generate the key and a CSR by logging in as the root user on the SGM server and entering the sgm keytool genkey command.

SGM stops the SGM server and issues the following prompts:

Country Name (2 letter code) []:

State or Province Name (full name) []:

Locality Name (eg, city) []:

Organization Name (eg, company) []:

Organizational Unit Name (eg, section) []:

Common Name (your hostname) []:

Email Address []:

Enter the requested information.

SGM generates the following files:

–/opt/CSCOsgm/etc/ssl/server.key is the SGM server's private key. Ensure that unauthorized personnel cannot access this key.

–/opt/CSCOsgm/etc/ssl/server.csr is a CSR.

–/opt/CSCOsgm/etc/ssl/server.cer is the self-signed SSL certificate. It is not used if you are using a CA-signed SSL certificate; the CA-signed certificate overrides the self-signed certificate.

Print the CSR in X.509 format, by logging in as the root user on the SGM server and entering the sgm keytool print_csr command.

Send the CSR to a certificate authority (CA) to be signed.

After the CA signs the certificate, log in as the root user on the SGM server and enter the following command:

# ./sgm keytool import_cert cert_filename

where cert_filename is the name of the signed certificate.

SGM stops the SGM server and imports the certificate in X.509 format.

•To use an existing signed key/certificate pair, log in as the root user on the SGM server and enter the following command:

# ./sgm keytool import_key key_filename cert_filename

where key_filename is the name of the existing SSL key and cert_filename is the name of the existing signed certificate.

SGM stops the SGM server and imports the SSL key in OpenSSL format and the signed SSL certificate in X.509 format.

Step 3 Enable SSL support in SGM, by logging in as the root user on the SGM server and entering the sgm ssl enable command.

Step 4 Set up the SGM client-side SSL certificate trust relationship, by downloading and importing the self-signed or CA-signed certificate on every remote SGM client, Windows as well as Solaris, that connects to the SGM server.

a. (Self-signed certificate only) Download the self-signed certificate (server.cer), using the procedure in the "Downloading the SGM Server's Self-Signed SSL Certificate" section.

b. Import the self-signed or CA-signed certificate, using the procedure in the "Importing an SSL Certificate to an SGM Client" section.

Step 5 Restart the SGM client.

---

The SGM clients can now connect to the SGM server using SSL. All communication between the server and clients is encrypted.

If an SGM or GTT client that is not SSL-enabled attempts to connect to an SSL-enabled SGM server, SGM displays an appropriate warning message and opens the SGM client download page. The user can then download and install a new SGM client to use to connect to that SGM server.

If the client is SSL-enabled but does not have the correct certificate, SGM displays an appropriate warning message and opens the SGM Server SSL Certificate page. The user can then download the signed SSL certificate in X.509 format to the client.

Downloading the SGM Server's Self-Signed SSL Certificate

If you have implemented Secure Sockets Layer (SSL) support in your SGM system, you can download the SGM server's signed SSL certificate to all remote SGM clients that connect to the server using SSL.

To download the certificate from the SGM Server SSL Certificate page, use the following procedure on each remote SGM client:

---

Step 1 Use one of the following procedures to access the SGM Server Home page:

•Select Web Links > Server Home Page from the SGM Main Menu.

•Enter the following URL in a Web browser:

https://server_name:1774

where server_name is the name or IP address of the server on which the SGM server is running and 1774 is the Web port being using by SGM. (1774 is the default port number.) If you do not know the name or Web port of the SGM Web Server, contact the system administrator who installed the SGM server software.

SGM displays the SGM Server Home page.

Step 2 Select Server SSL Certificate from the SGM Server Home Page. SGM displays the SGM Server SSL Certificate page.

Step 3 Right-click Download SGM Server SSL Certificate.

Step 4 Select Save Link As from the right-click menu.

Step 5 Select a directory in which to save the certificate (server.cer), and click Save. SGM downloads the server.cer file into the specified directory.

---

Importing an SSL Certificate to an SGM Client

If you have implemented Secure Sockets Layer (SSL) support in your SGM system, you can import the SGM server's self-signed SSL certificate, or a CA-signed SSL certificate, to all remote SGM clients that connect to the server using SSL.

To import an SSL certificate, use the following procedure on each remote SGM client:

---

Step 1 Launch the SGM SSL Certificate Tool:

•In Solaris, log in as the root user and enter the following command:

# cd /opt/CSCOsgm/bin

# ./sgm certgui

See the "SGM Commands and Descriptions" section for more information on the use of this command.

•In Windows, select Start > Programs > Cisco SGM Client > SGM SSL Certificate Tool.

SGM displays the SGM Certificate Tool dialog (Figure 4-1).

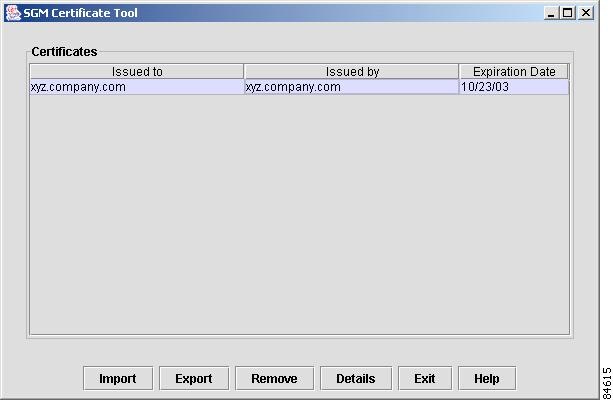

Figure 4-2 SGM Certificate Tool Dialog

The SGM Certificate Tool dialog lists all SSL certificates that have been imported by the SGM client, and enables you to import, export, and display detailed information about SSL certificates.

The SGM Certificate Tool dialog displays the following information about each SSL certificate:

•Issued to—Host name of the SGM server to which the SSL certificate was issued.

•Issued by—Certificate authority (CA) that issued the SSL certificate. Self-signed SSL certificates display the host name of the SGM server.

•Expiration Date—Date on which the SSL certificate expires.

Step 2 Click Import. SGM displays the Open dialog for SSL certificates (Figure 4-1).

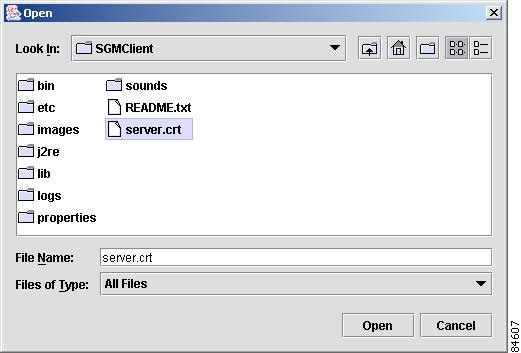

Figure 4-3 Open Dialog for SSL Certificates

Use the Open dialog to locate the SSL certificate that you want to import. The Open dialog for an SSL certificate provides the following options:

•To select the directory in which the SSL certificate is located, either accept the default directory displayed in the Look In field, or select a new directory from the drop-down list box. For a self-signed certificate, locate the directory in which you downloaded the certificate.

•To display the sub-folders and files that are in the folder that is up one level from the currently displayed folder, click the Up One Level button.

•To display the sub-folders and files that are on your workstation desktop, click the Desktop button.

•To create a new sub-folder in the displayed folder, click the Create New Folder button.

•To display only icons for sub-folders and files, click the List button.

•To display detailed information for sub-folders and files, including their size, type, date they were last modified, and so on, click the Details button.

•To specify the type of file to find, and to display all files of that type in the selected directory, select a file type from the Files of Type drop-down list box:

–All files—Displays all files in the selected directory.

When you have located the SSL certificate, select it. SGM displays the name of the certificate in the File Name field.

Step 3 Click Open. SGM closes the Open dialog for an SSL certificate and populates the SGM Certificate Tool dialog with the SSL certificate's information.

Step 4 Click Exit. SGM imports the self-signed SSL certificate and closes the SGM Certificate Tool dialog.

---

Exporting an SSL Certificate

If you have implemented Secure Sockets Layer (SSL) support in your SGM system, you can export SSL certificates that have been imported to the SGM client.

To export an SSL certificate, use the following procedure:

---

Step 1 Launch the SGM SSL Certificate Tool:

•In Solaris, log in as the root user and enter the following command:

# cd /opt/CSCOsgm/bin

# ./sgm certgui

See the "SGM Commands and Descriptions" section for more information on the use of this command.

•In Windows, select Start > Programs > Cisco SGM Client > SGM SSL Certificate Tool.

SGM displays the SGM Certificate Tool dialog (Figure 4-1).

Step 2 Select a certificate from the list and click Export. SGM displays the Save dialog for SSL certificates (Figure 4-1).

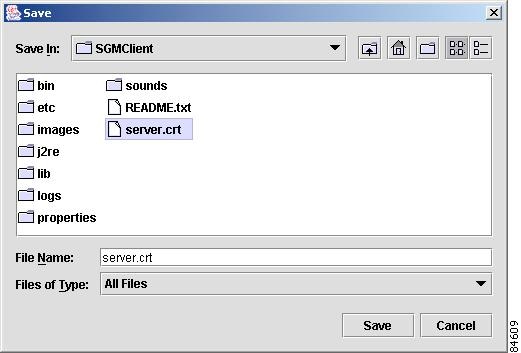

Figure 4-4 Save Dialog for SSL Certificates

Use the Save dialog to export the SSL certificate to another directory. The Save dialog for an SSL certificate provides the following options:

•To select the directory in which the SSL certificate is located, either accept the default directory displayed in the Save In field, or select a new directory from the drop-down list box. For a self-signed certificate, locate the directory in which you downloaded the certificate.

•To display the sub-folders and files that are in the folder that is up one level from the currently displayed folder, click the Up One Level button.

•To display the sub-folders and files that are on your workstation desktop, click the Desktop button.

•To create a new sub-folder in the displayed folder, click the Create New Folder button.

•To display only icons for sub-folders and files, click the List button.

•To display detailed information for sub-folders and files, including their size, type, date they were last modified, and so on, click the Details button.

•To specify a new name for the SSL certificate, enter the name in the File Name field, or select a file from those listed in the Save In field.

•To specify the type of file to export, and to display all files of that type in the selected directory, select a file type from the Files of Type drop-down list box:

–All files—Displays all files in the selected directory.

When you have located the SSL certificate, select it. SGM displays the name of the certificate in the File Name field.

Step 3 Click Save. SGM closes the Save dialog for an SSL certificate.

Step 4 Click Exit. SGM closes the SGM Certificate Tool dialog and exports the self-signed SSL certificate in X.509 format.

---

Viewing Detailed Information About an SSL Certificate

If you have implemented Secure Sockets Layer (SSL) support in your SGM system, you can view detailed information about SSL certificates that have been imported to the SGM client.

To view detailed information about an SSL certificate, use the following procedure:

---

Step 1 Launch the SGM SSL Certificate Tool:

•In Solaris, log in as the root user and enter the following command:

# cd /opt/CSCOsgm/bin

# ./sgm certgui

See the "SGM Commands and Descriptions" section for more information on the use of this command.

•In Windows, select Start > Programs > Cisco SGM Client > SGM SSL Certificate Tool.

SGM displays the SGM Certificate Tool dialog (Figure 4-1).

Step 2 Select a certificate from the list and click Details. SGM displays the Certificate Information dialog (Figure 4-1).

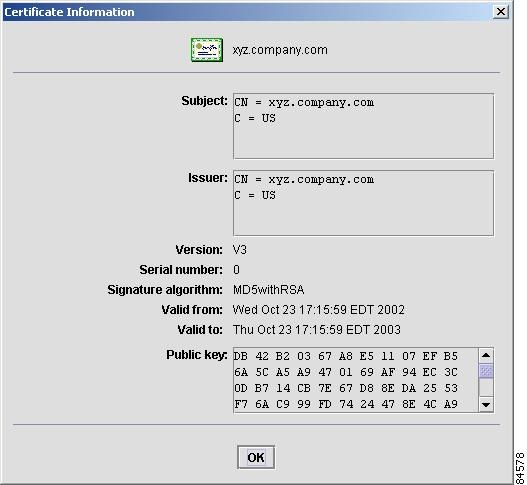

Figure 4-5 Certificate Information Dialog

You can also display the Certificate Information dialog by clicking the "locked padlock" symbol in the bottom left corner of any SGM window.

The Certificate Information dialog displays the following detailed information for the selected SSL certificate:

•Subject—Device to which the SSL certificate was issued.

The Subject field always includes the Common Name (CN) of the subject, which must match the fully qualified host name of your SGM server, such as sgm-sun8.cisco.com.

The Subject field might also contain other information, such as the Country (C), Organizational Unit (OU), or Organization (O) of the subject.

•Issuer—CA that issued the SSL certificate.

The Issuer field might include the Common Name (CN) of the issuer, as well as the Country (C), Organizational Unit (OU), or Organization (O) of the issuer.

•Version—Version of the SSL certificate, such as V1.

•Serial number—Serial number associated with the SSL certificate.

•Signature algorithm—Asymmetric algorithm used to ensure that the digital signature is secure, such as MD5withRSA.

•Valid from—Date and time on which the SSL certificate was created or became valid.

•Valid to—Date and time on which the SSL certificate expires.

•Public key—Public key associated with the SSL certificate, used for encryption and for verifying signatures.

Step 3 When you are ready to close the dialog, click OK. SGM closes the Certificate Information dialog.

Step 4 Click Exit. SGM closes the SGM Certificate Tool dialog.

---

Managing SSL Support in SGM

SGM enables you to perform the following tasks to make it easier to manage SSL support in SGM:

•To display the current status of SSL support in SGM, including whether SSL support is enabled or disabled and which SSL keys and certificates exist, use either the sgm ssl status or sgm sslstatus command.

•To print the SGM server's SSL certificate in X.509 format, use the sgm keytool print_crt command.

•To list the SSL key/certificate pair on the SGM server, use the sgm keytool list command.

•To list all SSL certificates on the SGM client, launch the SGM SSL Certificate Tool. SGM lists each imported certificate, including to whom the certificate was issued, who issued the certificate, and when the certificate expires.

See the "SGM Commands and Descriptions" section for more information on the use of these commands.

See the "Importing an SSL Certificate to an SGM Client" section for more information on launching the SGM SSL Certificate Tool.

Disabling SSL Support in SGM

SGM enables you to disable SSL support in SGM, and to remove SSL keys and certificates from the SGM server and clients:

•To disable SSL support in SGM, use the sgm ssl disable command.

See the "SGM Commands and Descriptions" section for more information on the use of this command.

•To remove all SSL keys and certificates from the SGM server, use the sgm keytool clear command. SGM stops the SGM server, if necessary, and removes the keys and certificates. Before restarting the server, you must either generate new SSL keys using the sgm keytool genkey command, or you must completely disable SSL using the sgm ssl disable command.

See the "SGM Commands and Descriptions" section for more information on the use of these commands.

•To remove an SSL certificate from the SGM client, launch the SGM SSL Certificate Tool. SGM lists each imported certificate. Select the certificate you want to remove, and click Remove. SGM deletes the certificate from the list.

See the "Importing an SSL Certificate to an SGM Client" section for more information on launching the SGM SSL Certificate Tool.

Implementing a Client Password (Solaris Only)

To provide an extra level of control, SGM enables you to define a password to control the ability to start any SGM client from the command line on a Solaris system. With this password set, if you enter the sgm start client command, SGM prompts you for the password before starting the client.

This password is independent of, and in addition to, any passwords configured using SGM User-Based Access.

The following sections provide details for setting up SGM client security:

•Enabling the SGM Client Password

•Disabling the SGM Client Password

Enabling the SGM Client Password

To enable the SGM client password:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section.

Step 2 Enter the following commands:

# cd /opt/CSCOsgm/bin

# ./sgm clientpass

SGM displays the following prompt:

Password protection on Local Client Launching is Disabled. Enable? [y]

Step 3 Press Enter.

Step 4 SGM prompts you to enter a password. When setting the password, follow the rules and considerations in the "Creating Secure Passwords" section. Enter a password and press Enter.

Step 5 SGM prompts you to confirm the password. Enter the password again and press Enter.

Step 6 SGM displays the following message:

Password protection on Local Client Launching is Enabled.

Enter the password when launching local Solaris client.

The SGM password for starting SGM clients on the Solaris system is enabled. All users must now enter this password after launching the client, as well as responding correctly to any SGM User-Based Access login prompts.

---

Disabling the SGM Client Password

To disable the SGM client password:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section.

Step 2 Enter the following commands:

# cd /opt/CSCOsgm/bin

# ./sgm clientpass

SGM displays the following prompt:

Password protection on Local Client Launching is Enabled. Disable? [y]

Step 3 Press Enter.

Step 4 SGM displays the following messages:

Password protection on Local Client Launching is Disabled.

The SGM password for starting SGM clients on the Solaris system is disabled.

---

Limiting SGM Client Access to the SGM Server (Solaris Only)

By default, when you first install SGM, all SGM client IP addresses are allowed to connect to the SGM server. However, SGM enables you to limit client access to the server by creating and maintaining the ipaccess.conf file.

You can create the ipaccess.conf file and populate it with a list of SGM client IP addresses that can connect to the SGM server. SGM allows connections from only those clients, plus the local host. If the file exists but is empty, SGM allows connections only from the local host. (SGM always allows connections from the local host.)

When you first install SGM, the ipaccess.conf file does not exist and SGM allows all client IP addresses to connect to the SGM server. To create the ipaccess.conf file and work with the list of allowed client IP addresses, use the following procedure:

---

Step 1 Log in as the root user, as described in the "Becoming the Root User (Solaris Only)" section, or as a super user, as described in the "Specifying a Super User (Solaris Only)" section.

Step 2 Enter the following command:

# cd /opt/CSCOsgm/bin

Step 3 Create the ipaccess.conf file:

•To create the ipaccess.conf file and add a client IP address to the list, enter the following command:

# ./sgm ipaccess add

•To create the ipaccess.conf file and open the file to edit it directly, enter the following command:

# ./sgm ipaccess edit

The default directory for the file is located in the SGM installation directory:

•If you installed SGM in the default directory, /opt, then the default directory is /opt/CSCOsgm/etc.

•If you installed SGM in a different directory, then the default directory is located in that directory.

In the ipaccess.conf file, begin all comment lines with a pound sign (#).

All other lines in the file are SGM client IP addresses, with one address per line.

Wildcards (*) are allowed, as are ranges (for example, 1-100). For example, the address *.*.*.* allows all clients to connect to the SGM server.

After you create the ipaccess.conf file, you can use the full set of sgm ipaccess keywords to work with the file:

•clear—Remove all client IP addresses from the ipaccess.conf file, and allow connections from any SGM client IP address.

•list—List all client IP addresses currently in the ipaccess.conf file. If no client IP addresses are listed (that is, the list is empty), connections from any SGM client IP address are allowed.

•rem—Remove the specified client IP address from the ipaccess.conf file.

•sample—Print out a sample ipaccess.conf file.

See the description of the sgm ipaccess command in the See the "SGM Command Reference" section for more details.

---

Any changes you make to the ipaccess.conf file take effect when you restart the SGM server.
