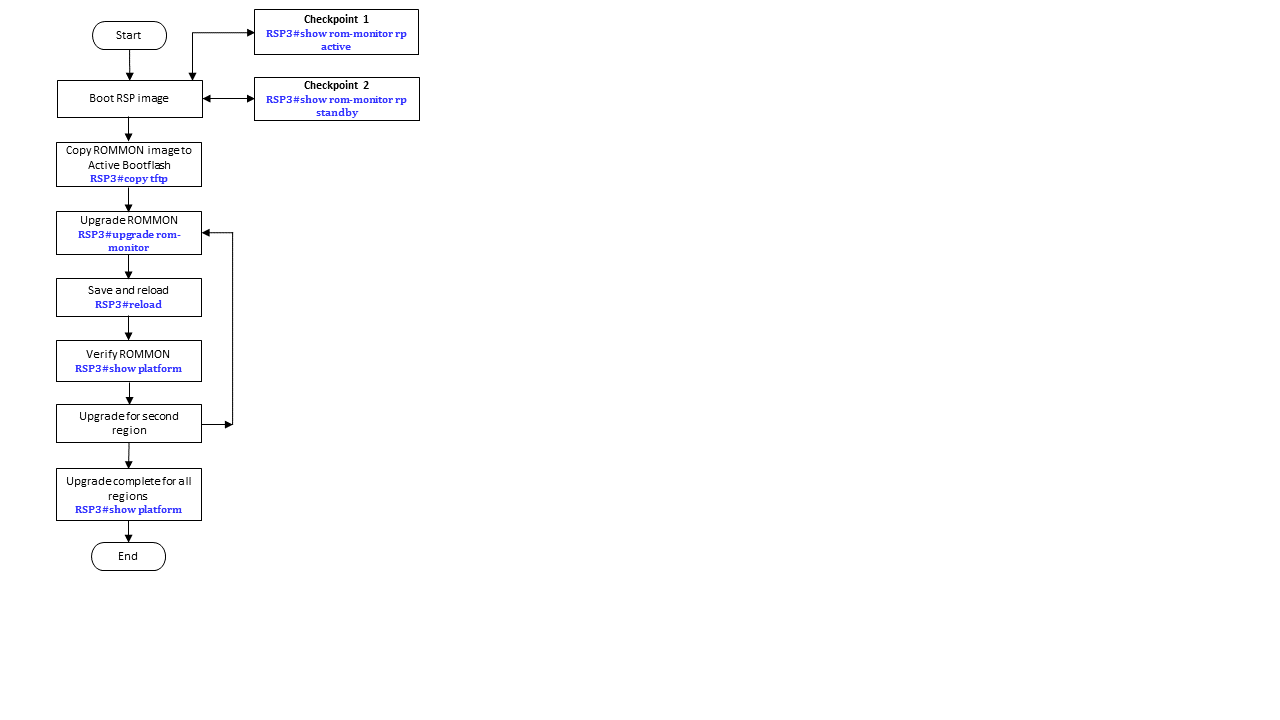

ROMMON Upgrade – Reload
Show ROMMON Active
RSP3#show rom-monitor rp active
System Bootstrap, Version 15.6(4r)S, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2015 by cisco Systems, Inc.
Show ROMMON Standby
RSP3#show rom-monitor rp standby
System Bootstrap, Version 15.6(4r)S, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2015 by cisco Systems, Inc.
Copy ROMMON
RSP3#copy tftp://202.153.144.25//tftpboot/kathkath/rsp3_rommon_156_12r_s.pkg bootflash:
Accessing tftp://202.153.144.25//tftpboot/kathkath/rsp3_rommon_156_12r_s.pkg...
Loading /tftpboot/kathkath/rsp3_rommon_156_12r_s.pkg from 202.153.144.25 (via GigabitEthernet0): !!!!
[OK - 975844 bytes]
975844 bytes copied in 2.348 secs (415606 bytes/sec)
Upgrade ROMMON
RSP3#upgrade rom-monitor filename bootflash:rsp3_rommon_156_12r_s.pkg all
Upgrade rom-monitor on Route-Processor 0
Target copying rom-monitor image file
Checking upgrade image...
2097152+0 records in
4096+0 records out
Upgrade image MD5 signature is 52747d1cd17d73f5e1ece61ed6212840
Burning upgrade partition...
2097152+0 records in
2097152+0 records out
Checking upgrade partition...
2097152+0 records in
2097152+0 records out
Upgrade flash partition MD5 signature is 52747d1cd17d73f5e1ece61ed6212840
ROMMON upgrade complete.
To make the new ROMMON permanent, you must restart the RP.
Upgrade rom-monitor on Route-Processor 1
Target copying rom-monitor image file
Checking upgrade image...
2097152+0 records in
4096+0 records out
Upgrade image MD5 signature is 52747d1cd17d73f5e1ece61ed6212840
Burning upgrade partition...
2097152+0 records in
2097152+0 records out
Checking upgrade partition...
2097152+0 records in
2097152+0 records out
Upgrade flash partition MD5 signature is 52747d1cd17d73f5e1ece61ed6212840
ROMMON upgrade complete.
To make the new ROMMON permanent, you must restart the RP.
Save Configuration
RSP3#show bootvar
BOOT variable = bootflash:issu/asr900rsp3-universalk9_npe.03.18.00.SP.156-2.SP-ext.bin,12;
CONFIG_FILE variable =
BOOTLDR variable does not exist
Configuration register is 0x202
Standby BOOT variable = bootflash:issu/asr900rsp3-universalk9_npe.03.18.00.SP.156-2.SP-ext.bin,12;
Standby CONFIG_FILE variable =
Standby BOOTLDR variable does not exist
Standby Configuration register is 0x202
RSP3#write memory
RSP3#reload
Proceed with reload? [confirm]
*Nov 12 16:03:59.275 IST: %SYS-5-RELOAD: Reload requested by console.
Reload Reason: Reload Command.Nov 12 16:04:22.169 R0/0: %PMAN-5-EXITACTION: Process manager is exiting: process exit with reload chassis code
BootPage Setting Done - Next DDR-init
System Bootstrap, Version 15.6(4r)S, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2015 by cisco Systems, Inc.
Compiled Thu 29-Oct-15 23:24 by ccai
Starting Initialization of FMAN0
Loading ucode for FMAN0, size: 31424, ver: 106.04.14
fixup address:7ffff278 contentsoffixup:7ffff000
DCFG_CCSR_PORSR1(cfg_0_9 pins):22FB7F7F
RC Vendor ID[0x8241957]
PEX up stream Vendor ID[0x860910b5]
PEX down stream vendor ID [0x860910b5]
FPGA vendor ID[0x5f1137]
PCI Configuration done..
IOFPGA version[16040627]
Current image running: Boot ROM0
Last reset cause: RSP-Board
Rommon upgrade requested
Flash upgrade reset 1 in progress
......BootPage Setting Done - Next DDR-init
System Bootstrap, Version 15.6(12r)S, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2016 by cisco Systems, Inc.
Compiled Sun 29-May-16 08:45 by sabind
Starting Initialization of FMAN0
Loading ucode for FMAN0, size: 31424, ver: 106.04.14
fixup address:7ffff278 contentsoffixup:7ffff000
DCFG_CCSR_PORSR1(cfg_0_9 pins):22FB7F7F
RC Vendor ID[0x8241957]
PEX up stream Vendor ID[0x860910b5]
PEX down stream vendor ID [0x860910b5]
FPGA vendor ID[0x5f1137]
PCI Configuration done..
IOFPGA version[16040627]
Current image running: *Upgrade in progress* Boot ROM1
Last reset cause: BootRomUpgrade
Configuring zarlink...
We're coming up from a flash upgrade reset cookie
UEA platform with 3670016 Kbytes of main memory
We're coming up from a flash upgrade reset cookie
Verify ROMMON
RSP3#show rom-monitor rp active
System Bootstrap, Version 15.6(12r)S, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2016 by cisco Systems, Inc.
RSP3#show rom-monitor rp standby
System Bootstrap, Version 15.6(12r)S, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2016 by cisco Systems, Inc.
RSP3#show platform
Chassis type: ASR-903
Slot Type State Insert time (ago)
--------- ------------------- --------------------- -----------------
0/0 A900-IMA1X ok 00:18:41
0/1 A900-IMA2Z ok 00:18:41
0/2 A900-IMA8S1Z ok 00:18:40
0/3 A900-IMA8Z ok 00:18:41
0/4 A900-IMA2F ok 00:18:41
0/5 A900-IMA1C ok 00:18:40
R0 A900-RSP3C-400-S ok, active 00:20:48
R1 A900-RSP3C-400-S ok, standby 00:20:48
F0 ok, active 00:20:48
F1 ok, standby 00:20:48
P0 A900-PWR1200-A ok 00:19:59
P1 Unknown N/A never
P2 A903-FAN ok 00:19:57
Slot CPLD Version Firmware Version
--------- ------------------- ---------------------------------------
R0 16040627 15.6(12r)S
R1 16040627 15.6(12r)S
F0 16040627 15.6(12r)S
F1 16040627 15.6(12r)S
Upgrade ROMMON on other region
RSP3#upgrade rom-monitor filename bootflash:rsp3_rommon_156_12r_s.pkg all
Upgrade rom-monitor on Route-Processor 0
Target copying rom-monitor image file
Checking upgrade image...
2097152+0 records in
4096+0 records out
Upgrade image MD5 signature is 52747d1cd17d73f5e1ece61ed6212840
Burning upgrade partition...
2097152+0 records in
2097152+0 records out
Checking upgrade partition...
2097152+0 records in
2097152+0 records out
Upgrade flash partition MD5 signature is 52747d1cd17d73f5e1ece61ed6212840
ROMMON upgrade complete.
To make the new ROMMON permanent, you must restart the RP.
Upgrade rom-monitor on Route-Processor 1
Target copying rom-monitor image file
Checking upgrade image...
2097152+0 records in
4096+0 records out
Upgrade image MD5 signature is 52747d1cd17d73f5e1ece61ed6212840
Burning upgrade partition...
2097152+0 records in
2097152+0 records out
Checking upgrade partition...
2097152+0 records in
2097152+0 records out
Upgrade flash partition MD5 signature is 52747d1cd17d73f5e1ece61ed6212840
ROMMON upgrade complete.
To make the new ROMMON permanent, you must restart the RP.
RSP3#reload
Proceed with reload? [confirm]
*Nov 12 16:43:33.593 IST: %SYS-5-RELOAD: Reload requested by console.
Reload Reason: Reload Command.Nov 12 16:43:55.919 R0/0: %PMAN-5-EXITACTION: Process manager is exiting: process exit with reload chassis code
BootPage Setting Done - Next DDR-init
System Bootstrap, Version 15.6(12r)S, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2016 by cisco Systems, Inc.
Compiled Sun 29-May-16 08:45 by sabind
Starting Initialization of FMAN0
Loading ucode for FMAN0, size: 31424, ver: 106.04.14
fixup address:7ffff278 contentsoffixup:7ffff000
DCFG_CCSR_PORSR1(cfg_0_9 pins):22FB7F7F
RC Vendor ID[0x8241957]
PEX up stream Vendor ID[0x860910b5]
PEX down stream vendor ID [0x860910b5]
FPGA vendor ID[0x5f1137]
PCI Configuration done..
IOFPGA version[16040627]
Current image running: Boot ROM1
Last reset cause: RSP-Board
Rommon upgrade requested
Flash upgrade reset 1 in progress
......BootPage Setting Done - Next DDR-init
System Bootstrap, Version 15.6(12r)S, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2016 by cisco Systems, Inc.
Compiled Sun 29-May-16 08:45 by sabind
Starting Initialization of FMAN0
Loading ucode for FMAN0, size: 31424, ver: 106.04.14
fixup address:7ffff278 contentsoffixup:7ffff000
DCFG_CCSR_PORSR1(cfg_0_9 pins):22FB7F7F
RC Vendor ID[0x8241957]
PEX up stream Vendor ID[0x860910b5]
PEX down stream vendor ID [0x860910b5]
FPGA vendor ID[0x5f1137]
PCI Configuration done..
IOFPGA version[16040627]
Current image running: *Upgrade in progress* Boot ROM0
Last reset cause: BootRomUpgrade
Configuring zarlink...
We're coming up from a flash upgrade reset cookie
UEA platform with 3670016 Kbytes of main memory
We're coming up from a flash upgrade reset cookie
