This chapter describes how to install the router and includes the
following sections:
Prerequisites
Before installing the router, it is important to prepare for the
installation by:
Preparing the site (site planning) and reviewing the installation plans or method of procedures (MOP). See Site Planning section.
Unpacking and inspecting the router. See Chassis-Lifting Guidelines section.
Gathering the tools and test equipment required to properly install the router. See Tools and Equipment section.
For more instructions on how to prepare for the installation of the router, see Preparing for Installation section.
Installing the Router in a Rack
Each Cisco ASR 920 Series Aggregation Services Router router includes
rack-mounting brackets. Using the rack-mounting brackets, you can mount the
router in a 19-inch, 23-inch, or an ETSI rack that conforms to the EIA-310-D
specification.
Using the two rack-mounting brackets for mounting, you can recess the
router in the equipment rack. This arrangement provides extra space in front of
the router for the cables and allows you to close the doors of racks equipped
with front-close doors.
To attach or replace the rack-mounting brackets, see the Attaching Brackets to the Router section.
The rack-mounting brackets are slotted to allow the router to be mounted in racks with EIA 1.25-inch (3.175-cm) or WECO 1.0-inch
(2.54-cm) hole spacing. When installed in the rack, the router requires one EIA 1.75-inch (4.4-cm) vertical mounting space
(or 1 rack unit [RU]) for mounting (see the Mounting the Router in a Rack section).
Caution
Allow clearance on either side of the router for cooling air to be drawn in through the right side and circulated through
the chassis and out the three-fan exhaust ports mounted on the other side of chassis.
The sections describe how to install the router in a rack. The procedures in this section apply to both horizontal and vertical
mounting of the router in a rack:
Attaching Brackets to the Router
The bracket orientation and the brackets that you use depend on whether you are attaching the brackets for a 19-inch, 23-inch,

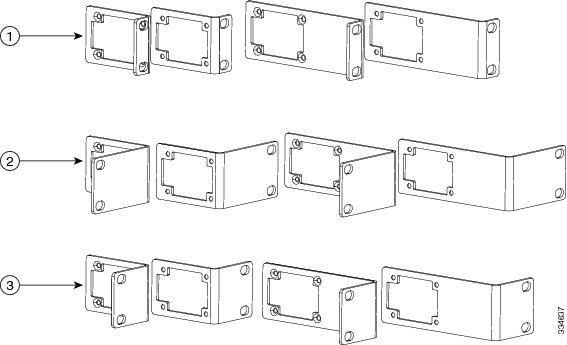

or an ETSI rack. The following figure shows the types of mounting brackets.
1
19-inch brackets
2
23-inch brackets
3
ETSI-rack brackets
—
—
For 19-inch racks, use part number 700-39959-01 (see Attaching Brackets for 19-Inch Racks section).
For 23-inch racks, use part number 700-40065-01 (see Attaching Brackets for 23-Inch Racks section).
For ETSI racks, use part number 700-40067-01 (see Attaching Brackets for ETSI Racks section).
Note
The bracket mounting screws are pre-installed on the router.
Depending on the bracket mounting position of the chassis, you must remove the
appropriate screws, fix the bracket, and install the screws again.
Attaching Brackets for 19-Inch Racks

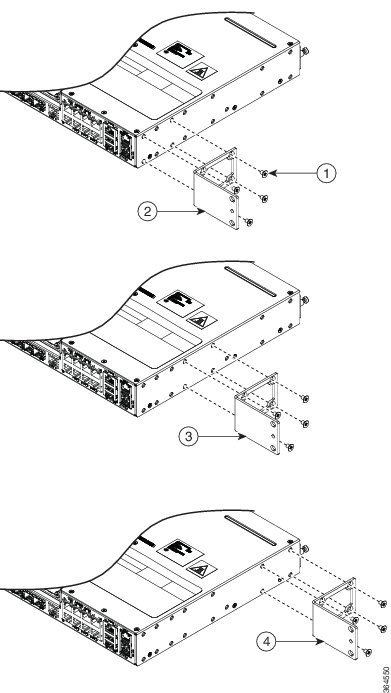

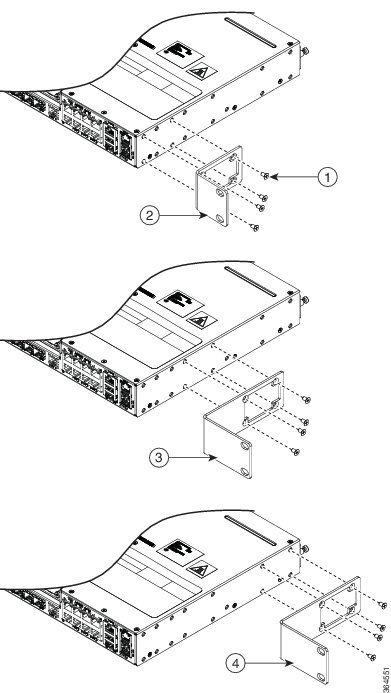

The following figure shows how to attach brackets for 19-inch racks on the router.
1
Phillips flat-head screws
2
Front-mounting position
3
Mid-mounting position
4
Rear-mounting position
Attaching Brackets for 23-Inch Racks
The following figure shows how to attach brackets for 23-inch racks on the router.
1
Phillips flat-head screws
2
Front-mounting position
3
Mid-mounting position
4
Rear-mounting position
Attaching Brackets for ETSI Racks
The following figure shows how to attach brackets for ETSI racks on the router.
1
Phillips flat-head screws
2
Front-mounting position
3
Mid-mounting position
4
Rear-mounting position
Mounting the Router in a Rack
Perform the steps given below to mount the router into the equipment rack.
Note
To secure the router to the equipment rack, you must use the two mounting screws (provided) for each side or follow your
local practices for installing the router into your equipment rack. Ensure that the rack-mount brackets are securely fastened.
For more information, see the Attaching Brackets to the Router section.
Procedure
Step 1
Locate the equipment rack position where you plan to install the router.
Step 2
Verify that there are no obstructions and ensure that the equipment rack is stabilized.
Step 3
Determine whether you are mounting the router on a 19-inch, 23-inch, or an ETSI rack. Rack-Mounting Brackets figure shows the types of mounting brackets.
Step 4
Determine the mounting position (Front-, Mid-, or Rear-mounting) of the router. (For 19-inch racks, see Attaching Brackets for 19-Inch Racks section. For 23-inch racks, see Attaching Brackets for 23-Inch Racks section. For ETSI racks, see Attaching Brackets for ETSI Racks section.)
Step 5
Locate the mounting holes of the router.
Step 6
Align the rack-mounting bracket with the router and position with the four #6-32 x 0.25-inch screws (provided).
Step 7
Insert the screws (four places) and tighten using a Number 2 Phillips screwdriver (each side).
Step 8
Position the router in the equipment rack lining up the bracket holes on the router with the holes on the rack and secure
with four #6-32 x 0.25-inch mounting screws (two on each side).
Step 9
Tighten the screws using a 1/4-inch flat-blade screwdriver (each side). The recommended maximum torque is 10 in.-lb.
Installing the Router Chassis in the Rack
Note
Ensure adequate air flow when mounting the router in a rack. For more information, see the Air Flow Guidelines section in the Cisco ASR-920-12SZ-IM and ASR-920U-12SZ-IM Aggregation Services Router Hardware Installation Guide.
Note
Install the cable guides before installing the router in a 19-inch EIA rack. See the Attaching the Cable Guides section in the Cisco ASR-920-12SZ-IM and ASR-920U-12SZ-IM Aggregation Services Router Hardware Installation Guide.
To install the router chassis in the equipment rack, perform these steps:
Procedure
Step 1
Position the chassis in the rack as follows:
If the front of the chassis (front panel) is at the front of the rack, insert the rear of the chassis between the mounting
posts.
If the rear of the chassis is at the front of the rack, insert the front of the chassis between the mounting posts.
Step 2
Align the mounting holes in the bracket (and optional cable guide) with the mounting holes in the equipment rack.

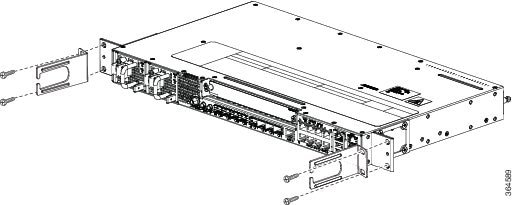

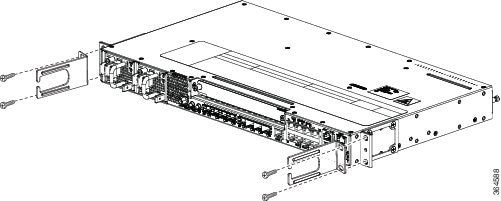

The following figure shows how to install the router in a 19-inch EIA rack.
Step 3
Install the four M6x12mm zinc-plated steel screws through the holes in the bracket and into the threaded holes in the equipment
rack posts.
Step 4
Use a tape measure and level to verify that the chassis is installed straight and level.
Attaching the Cable Guides
The Cisco ASR 920 Series Router supports the following cable guides:
A920-CBL-GUIDE (left and right)—help in routing the cables from all components on the front panel thereby enabling a proper
cable-bending radius.
Note
If the chassis is mounted using 19-inch brackets, you must assemble the cable guides before installing the chassis on the
rack.
To install the cable guides, perform these steps:
Procedure
Step 1

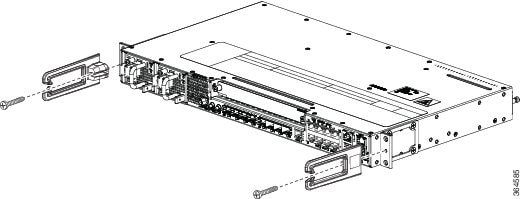

Position the cable guide-left and cable guide-right against the front of the chassis and align the four screw holes, as shown
in the following figure.
Step 2
Secure the cable guides with the four M6x12mm screws supplied with the cable kit. The recommended maximum torque is 3N-m.
Wall Mounting the Router
To install the router on a wall, follow the instructions in these
procedures:
Attaching the Brackets to the Router for Wall-Mounting
Note
While wall mounting the router, always ensure that the power supplies are at the top position.

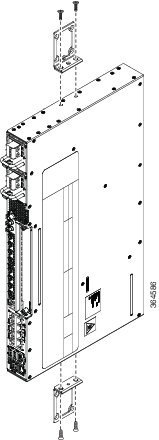

The following figure shows how to attach a 19-inch bracket to one side of the router. Follow the same steps to attach the
second bracket to the opposite side.
Mounting Router on the Wall
For the best support of the router and cables, ensure the router is attached securely to wall studs or to a firmly attached
plywood mounting backboard.
Warning
Suitable for mounting on and over a concrete or other non-combustible surface only. Statement 345

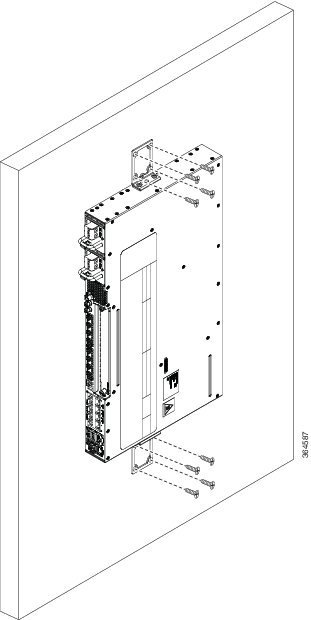

Mount the router with the front panel as shown in the following figure.
Caution
When mounting the router vertically, ensure that the power supplies are at the top.
Installing and Removing SFP Modules
These sections describe how to install and remove SFP modules. The modules are inserted into the SFP module slots as depicted
in Installing an SFP Module into an SFP Module Slot figure. These field-replaceable modules provide interfaces.
Each port must match the wavelength specifications on the other end of the cable. For reliable communications, the cable must
not exceed the stipulated cable length.
Use only Cisco SFP modules on the Cisco router. Each SFP module has an internal serial EEPROM that is encoded with security
information. This encoding provides a way for Cisco to identify and validate that the SFP module meets the requirements for
the router.
For detailed instructions on installing, removing, and cabling the SFP module, see the SFP module documentation.
Installing SFP Modules

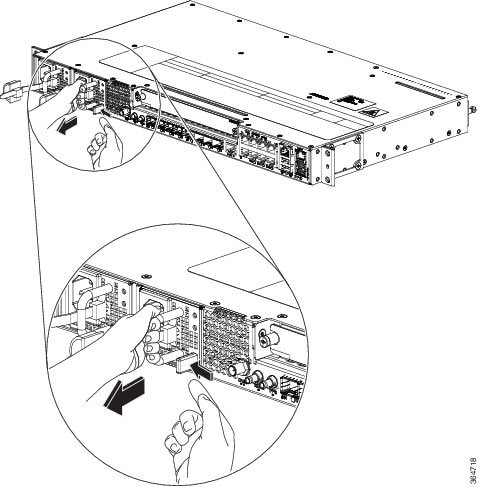

The following figure shows an SFP module that has a bale-clasp latch.
Caution
We strongly recommend that you do not install or remove fiber-optic SFP modules with cables attached because of the potential
damage to the cables, the cable connector, or the optical interfaces in the SFP module. Disconnect all cables before removing
or installing an SFP module.Removing and installing an SFP module can shorten its useful life. Do not remove and insert SFP
modules more often than is absolutely necessary.
To insert an SFP module into the module slot, follow these steps:
Procedure
Step 1
Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface on the chassis.
Some SFP modules identify the top side of the module with send (TX) and receive (RX) markings or arrows that show the direction
of the connection.
Step 2
If the SFP module that you are using has the markings, use them to identify the top side of the module.
Step 3
Align the SFP module in front of the slot opening.
Step 4
Insert the SFP module into the slot until you feel the connector on the module snap into place in the rear of the slot.
Caution
Do not remove the dust plugs from the fiber-optic SFP module port or the rubber caps from the fiber-optic cable until you
are ready to connect the cable. The plugs and caps protect the SFP module ports and cables from contamination and ambient
light. Store the dust plugs for later use.
Step 5
Insert the cable connector into the SFP module:
For fiber-optic SFP modules, insert the LC cable into the SFP module.
For copper 1000BASE-T SFP modules, insert the RJ-45 cable connector into the SFP module.
Removing SFP Modules
To remove an SFP module from a module receptacle, follow these steps:
Procedure
Step 1
Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface on the chassis.
Step 2
Disconnect the cable from the SFP module, and insert a dust plug into the cable end.
Tip
For reattachment, note which cable connector plug is send (TX) and which is receive (RX).
Step 3

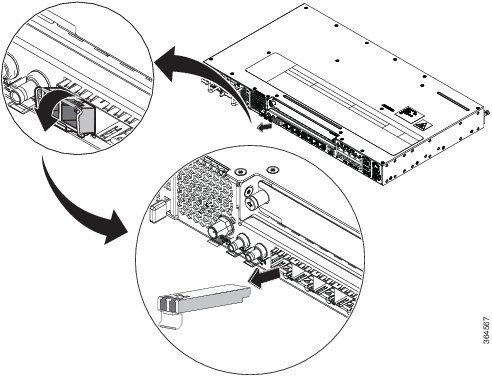

Unlock and remove the SFP module, as shown in the following figure.
If the module has a bale-clasp latch, pull the bale out and down to eject the module. If the bale-clasp latch is obstructed
and you cannot use your index finger to open it, use a small, flat-blade screwdriver or other long, narrow instrument to open
the bale-clasp latch.
Step 4
Grasp the SFP module between your thumb and index finger, and carefully remove it from the module slot.
Step 5
For fiber-optic SFP modules, insert a dust plug into the optical ports of the SFP module to keep the optical interfaces clean.
Step 6
Place the removed SFP module in an antistatic bag or other protective environment.
Connecting to the Copper Ports
Copper ports [0:7] are capable of working 10/100/1000 Mbps.
Note
The router copper ports configure themselves to operate at the speed of attached devices. If the attached ports do not support
autonegotiation, you can explicitly set the speed and duplex parameters. Connecting devices that do not autonegotiate or that
have their speed and duplex parameters manually set can reduce performance or result in no linkage.
To maximize performance, choose one of these methods for configuring the Ethernet ports:
Let the ports autonegotiate both speed and duplex.
Set the port speed and duplex parameters on both ends of the connection.
Procedure
Step 1
When connecting to workstations, servers, and routers, connect a straight-through cable to an RJ-45 connector on the front
panel.When connecting to routers or repeaters, use a crossover cable.
Note
You can use the mdixauto interface configuration command in the CLI to enable the automatic medium-dependent interface crossover (auto-MDIX) feature.
When the auto-MDIX feature is enabled, the router detects the required cable type for copper Ethernet connections and configures
the interfaces accordingly. Therefore, you can use either a crossover or a straight-through cable for connections to a copper
100/1000, or an SFP module port on the router, regardless of the type of device on the other end of the connection.
Step 2
Connect the other end of the cable to an RJ-45 connector on the other device. The port LED turns on when both the router
and the connected device have established link.
If the port LED does not turn on, the device at the other end might not be turned on, or there might be a cable problem or
a problem with the adapter installed in the attached device.
Note
On user network interface (UNI) ports, the port LED is green after the link is established.
Step 3
Reconfigure and reboot the connected device, if necessary.
Step 4
Repeat Steps 1 through 3 to connect each device.
Connecting to SFP Modules
This section describes how to connect to SFP modules. For instructions on how to connect to fiber-optic SFP modules, see
the Connecting to Fiber-Optic SFP Modules section.
For instructions about how to install or remove an SFP module, see the Installing and Removing SFP Modules section.
Connecting to Fiber-Optic SFP Modules
Follow these steps to connect a fiber-optic cable to an SFP module:
DANGER
Class 1 laser product. Statement 1008
Caution
Do not remove the rubber plugs from the SFP module port or the rubber caps from the fiber-optic cable until you are ready
to connect the cable. The plugs and caps protect the SFP module ports and cables from contamination and ambient light.
Procedure
Step 1
Remove the rubber plugs from the module port and fiber-optic cable, and store them for future use.
Step 2
Insert one end of the fiber-optic cable into the SFP module port.
Step 3
Insert the other cable end into a fiber-optic connector on a target device.
Step 4
Observe the port status LED.
The LED turns green when the router and the target device have an established link.
If the LED is off, the target device might not be turned on, there might be a cable problem, or there might be problem with
the adapter installed in the target device.
Step 5
If necessary, reconfigure and restart the router or target device.
Installing the Chassis Ground Connection
Before you connect the power or turn on the power to the router, you must provide an adequate chassis ground (earth) connection
to your router.
This section describes how to ground the chassis. The grounding lug location is on the back panel of the router.
Tip
Ensure that the grounding lug wire does not cover the fan opening.
1
Grounding-lug
To ensure that the chassis ground connection that you provide is adequate, you need the following parts and tools:
Ratcheting torque screwdriver with Phillips head that exerts up to 15 in.-lb (1.69 N-m) of torque for attaching the ground
wire to the router
Crimping tool as specified by the ground lug manufacturer
6-AWG or larger copper wire for the ground wire
Wire-stripping tools appropriate to the wire you are using
Caution
Before making connections to the router, ensure that you disconnect the power at the circuit breaker. Otherwise, severe injury
to you or damage to the router may occur.
Caution
Electric Shock Hazard: This fan tray has to be serviced by trained personnel only.
Warning
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably
installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
Warning
Use copper conductors only. Statement 1025
Warning
When installing the unit, the ground connection must always be made first and disconnected last. Statement 42
This unit is to be installed in a restrictive access location and must be permanently grounded to a minimum 6-AWG copper
ground wire.
Perform the following procedure to ground the router using a 2-hole lug and the corresponding mounting point. Most carriers
require a minimum 6-AWG ground connection. Verify your carrier’s requirements for the ground connection.
Procedure
Step 1
If your ground wire is insulated, use a wire-stripping tool to strip the ground wire to 0.5 inch ± 0.02 inch (12.7 mm ±0.5
mm).
Step 2
Slide the open end of your 2-hole ground lug over the exposed area of the ground wire.
Step 3
Using a crimping tool (as specified by the ground lug manufacturer), crimp the ground lug to the ground wire as shown in
the following figure.
Step 4
Use a Phillips head screwdriver to attach the 2-hole ground lug and wire assembly to the router with the 2 pan-head Phillips
head screws.
Step 5
Connect the other end of the ground wire to a suitable grounding point at your site.
Installing and Removing the Fan Tray
This section describes how to install and remove fan trays.
Installing the Fan Tray
Follow these steps to install the fan tray in the chassis:
Caution
Electric Shock Hazard: This fan tray has to be serviced by trained personnel only.
Caution
Always wear the ESD wrist strap when installing or uninstalling the fan tray.
Caution
Unplug all power sources before performing this procedure.
Procedure
Step 1
Orient the fan tray so that the captive screws are aligned to the chassis cavity on the back panel. See the following figure.
Step 2
Push the fan assembly into the chassis until the power connector seats in the backplane and the captive installation screws
make contact with the chassis.
Step 3
Tighten the captive installation screws, using a flat-blade or number 2 Phillips-head screwdriver.
Removing the Fan Tray
To remove the existing fan assembly, follow these steps:
Caution
When removing the fan tray, keep your hands and fingers away from the spinning fan blades. Let the fan blades stop completely
before you remove the fan tray.
Caution
Unplug all power sources before performing this procedure.
Caution
Always wear the ESD wrist strap when installing or uninstalling the fan tray.
Procedure
Step 1
Locate the fan assembly in the chassis. The fan tray is located to the left of the chassis on the rear side. See the following
figure.
Step 2
Loosen the two fan tray captive installation screws by turning them counterclockwise, using a flat-blade or number 2 Phillips-head
screwdriver.
Step 3
Grasp the fan assembly with both hands, and pull it outward; rock it gently, if necessary, to unseat the fan assembly power
connector from the backplane.
Step 4
Pull the fan assembly clear of the chassis, and set it aside.
Interface Module Installation
The following sections describe the various tasks of associated with interface module installation:
Installing an Interface Module
Caution
Before inserting an interface module, make sure that the chassis is grounded.
Procedure
Step 1
To insert the interface module, carefully align the edges of the interface module between the upper and lower edges of the
router slot.
Step 2
Carefully slide the interface module into the router slot until the interface module makes contact with the backplane.
Step 3
Tighten the locking thumbscrews on both sides of the interface module. The recommended maximum torque is 5.5 in.-lb (.62
N-m).
Step 4
Connect all the cables to each interface module.
Removing an Interface Module
Procedure
Step 1
To remove an interface module, disconnect all the cables from the interface module.
Step 2
Loosen the locking thumbscrews on both sides of the interface module.
Step 3
Slide the interface module out of the router slot by pulling on the handles. If you are removing a blank filler plate, pull
the blank filler plate completely out of the router slot using the captive screws.
Installing Patch Panel
To install the
brackets on the rear of the patch panel, perform these steps:
Procedure
Step 1
Remove the larger (M4) rack mount screws (as indicated in the Rack Mount Screws figure below) from both sides. To secure the brackets, follow the instructions in Step-3.
Step 2
Remove the
patch panel rack-mount brackets from the accessory kit and position them beside
the patch panel.
Step 3
Position the brackets against the patch panel sides, and align with the screw holes. Secure the rack mount bracket to patch
panel using a torque of 13.2 in.-lb (1.5 N-m) see the figure below.
(1) Rack mount screws to secure rack mount brackets on both the sides.
Step 4
Position the cable management guides against the mounting brackets on the patch panel, see the figure below.
Step 5
Secure the
guides to the brackets with the screws. The recommended maximum torque is 28
in.-lb (3.16 N-m).
Step 6
Position the patch panel with brackets and guide onto the rack and secure with screws provided. The recommended maximum torque
is 28 in.-lb (3.16 N-m), see the figure below.
Note
Cable brackets should be assembled according to the PID used as different
PIDs have different set and quantity of brackets. Refer figures 110 to 115
for PID and cable bracket details.
Note
The installation of PANEL-48-1-AMP64, PANEL-48-1-DIN, PANEL-48-1-RJ48,
and PANEL-48-3-DIN is similar to the installation steps mentioned
above.
The following table shows details of the 120⁰ exit cable hood:
Table 1. Cable Routing Recommendation for Panel-144-1-AMP64
1
120⁰ exit cable hood with left routing should be used for centre ports on the Tx
side.
2
120⁰ exit cable hood with right routing should be used for centre ports on the Rx
side.
Install 3G Patch Panel
You can choose to either set up the Cisco ASR 903 3G patch panel on a rack or wall mount it.
Install Rack Brackets
Procedure
Step 1
Connect the grounding lugs using a crimping tool (as specified by the ground lug manufacturer), crimp the ground lug to the
ground wire.
Step 2
Use a 6 AWG ground wire to connect the other end to a suitable grounding point at your site.
Step 3
Position the patch panel in the rack as follows:
If the front of the patch panel is at the front of the rack, insert the rear of the chassis between the mounting posts.
If the rear of the patch panel is at the front of the rack, insert the front of the chassis between the mounting posts.
Step 4
Align the mounting holes in the bracket with the mounting holes in the equipment rack.
Step 5
Secure the brackets to the chassis with the screws. The recommended maximum torque is 28 in.-lb (3.16 N-m).
EIA 19 and 23 inches mounting brackets for both single and double 3G interface module patch panels.
ETSI 21 inches mounting brackets for both single and double 3G interface module patch panels.
Set up 3G Patch Panel on Rack
To install the optional cable management brackets, perform these steps:
Procedure
Step 1
Position the cable management brackets against the front of the chassis and align the screw holes, as shown in the figure.
Step 2
Secure the cable management brackets with the screws. The recommended maximum torque is 10 in.-lb (1.12 N-m).
Wall Mount 3G Patch Panel
Before you begin
You must first install the mounting brackets and cable guides on to the patch panel before you mount it on the wall. You can
use the same rack mount brackets (700-113653-01) for wall mount.
Procedure
Step 1
Remove the mounting brackets from the accessory kit and position them beside the device.
Note
You can install the brackets as shown in the figure.
Step 2
Secure the bracket to the device with the recommended maximum torque of 10 inch-pounds (1.1 newton meters).
Step 3
Position the device vertically on the wall.
Caution
Before mounting the device, ensure that all unused holes at the sides of the device are protected with screws.
Step 4
Use a tape measure and level to verify that the device is installed straight and on level.
Patch Panel Dimensions
Following are the various patch panel dimensions.
Patch Panel Pinout
Given below are the pinout information for the regular crossover and the straight-through cable patch panel.
Table 2. Pinout Details
Pin #
Crossover
Straight-through
1
Receive Tip
Transmit Tip
2
Receive Ring
Transmit Ring
3
—
—
4
Transmit Tip
Receive Tip
5
Transmit Ring
Receive Ring
6
—
—
7
—
—
8
—
—
Panel and Bracket
Table 3. Panel and Bracket Details
Panel
Bracket Description
PANEL-3G-COMBO-1
Single 12E1 + 4xDS3 patch panel for 3G CEM/IMSG IM (requires crossover cable)
PANEL-3G-COMBO-2
Double 12E1 + 4xDS3 patch panel for 3G CEM/IMSG IM (requires crossover cable)
PANEL-3G-COMBO-1S
Single 12E1 + 4xDS3 patch panel for 3G CEM/IMSG (requires a straight-through cable)
PANEL-3G-COMBO-2S
Double 12E1 + 4xDS3 patch panel for 3G CEM/IMSG IM (requires a straight-through cable)
P3G1-RCKMNT-19IN
EIA 19 inches mounting brackets for single 3G CEM/IMSG IM patch panel
P3G1-RCKMNT-ETSI
ETSI 21 inches mounting brackets for single 3G CEM/IMSG IM patch panel
P3G1-RCKMNT-23IN
EIA 23 inches mounting brackets for single 3G CEM/IMSG IM patch panel
P3G2-RCKMNT-19IN
EIA 19 inches mounting brackets for double 3G CEM/IMSG IM patch panel
P3G2-RCKMNT-ETSI
ETSI 21 inches mounting brackets for double 3G CEM/IMSG IM patch panel
P3G2-RCKMNT-23IN
EIA 23 inches mounting brackets for double 3G CEM/IMSG IM patch panel
Installing the Power Supply
The router provides the choice of two different power supplies:
DC power—The DC power
supply uses 2-position terminal block-style connector with positive
latching/securing and labeled connections for +24/48V, GRD, -24/48V. The
terminal block connector is of suitable size to carry the appropriate AWG wire
size to handle the input current of the power supply. No ON/OFF switch is
provided.
AC power—The AC power
supply has an IEC 320-type power receptacle and a 15 Amp service connector. You
can use standard right angle power cords with the AC power supply. The power
supply includes a power cord retainer. No ON/OFF switch is provided.
You can install dual power supplies for redundancy.
Warning
Read the installation instructions before connecting the system to the power source. Statement 10
Note
Products that have an AC power connection are required to have an
external surge protective device (SPD) provided as part of the building
installation to comply with the Telcordia GR-1089 NEBS standard for
electromagnetic compatibility and safety.
Caution
Do not use interface module and power supply ejector handles to lift the chassis; using the handles to lift the chassis can
deform or damage the handles.
Power Connection Guidelines
This section provides guidelines for connecting the router’s power
supplies to the site power source.
Warning
Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact
the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.
Statement 213
Warning
The plug-socket combination must be accessible at all times because it serves as the main disconnecting device. Statement
1019
Warning
This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation. Install
only in accordance with national and local wiring regulations. Statement 1045
Guidelines for DC-Powered Systems
Basic guidelines for DC-powered systems include the following:
Each chassis power supply
should have its own dedicated input power source. The source must comply with
the safety extra-low voltage (SELV) requirements in the UL 60950, CSA 60950, EN
60950, and IEC 60950 standards.
The circuit must be
protected by a dedicated two-pole circuit breaker. The circuit breaker should
be sized according to the power supply input rating and local or national code
requirements.
The circuit breaker is considered the disconnect device and should
be easily accessible.
The system ground is the power supply and chassis ground.
Do not connect the DC return wire to the system frame or to the
system-grounding equipment.
Use the grounding lug to attach a wrist strap for ESD protection
during servicing.
If the chassis is powered with -48V grounding of the positive, the
it should be done at the power source side and chassis should protected by a
dedicated two-pole circuit breaker.
Guidelines for AC-Powered Systems
Basic guidelines for AC-powered systems include the following:
Each chassis power supply
should have its own dedicated branch circuit.
The circuit breaker should
be sized according to the power supply input rating and local or national code
requirements.
The AC power receptacles used to plug in the chassis must be the
grounding type. The grounding conductors that connect to the receptacles should
connect to protective earth ground at the service equipment.
Preventing Power Loss
Use the following guidelines to prevent power loss to the router:
To prevent loss of input
power, ensure that the total maximum load on each circuit supplying the power
supplies is within the current ratings of the wiring and breakers.
In some systems, you can
use an UPS to protect against power failures at your site. Avoid UPS types that
use ferroresonant technology. These UPS types can become unstable with systems
such as the Cisco ASR 920 Series Router, which can have substantial
current-draw fluctuations due to bursty data traffic patterns.
Use the information in the Cisco ASR-920-12SZ-IM Router Specifications table to estimate the power requirements and heat dissipation of the router based on a given configuration of the router.
Determining power requirements is useful for planning the power distribution system needed to support the router.
Installing the DC Power Supply Module
This equipment is suitable for installation in Network Telecommunications Facilities and locations where the NEC applies.
This equipment is suitable for installations utilizing the Common Bonding Network (CBN).
The grounding architecture of this product is DC-Isolated (DC-I) for DC-powered products. DC-powered products have a nominal
operating DC voltage of 48 VDC.
Perform the following procedure to install the power supply module:
Procedure
Step 1
Ensure that the system (earth) ground connection has been made. See the following figure.
Step 2
If necessary, remove the blank power supply filler plate from the chassis power supply bay opening by loosening the captive
installation screws.
Step 3
Verify that power to the DC circuit connected to the power supply you are installing is off. To ensure that power has been
removed from the DC circuits, locate the circuit breakers for the DC circuits, switch the circuit breakers to the OFF position,
and tape the circuit-breaker switches in the OFF position.
Step 4
Grasp the power supply handle with one hand. Place your other hand underneath the power supply. Slide the power supply into
the power supply bay. Make sure that the power supply is fully seated in the bay.
Step 5
Tighten the captive installation screws of the power supply. The recommended maximum torque is 5.5 in.-lb (0.62 N-m).
Activate a DC Power Supply Module
Perform the following procedure to activate a DC power supply:
Procedure
Step 1
Remove the tape from the circuit-breaker router handle, and restore power by moving the circuit-breaker router handle to
the On (|) position.
Step 2
Verify the power supply operation by checking whether the respective power supply front panel LED (PM0 or PM1) is green.
Step 3
If the LEDs indicate any issues with power problem, see
Troubleshooting.
Step 4
If you are also connecting a redundant DC power supply, repeat these steps for
the second power source.
Note
If you are connecting a redundant DC power supply, ensure that each power
supply is connected to a separate power source in order to prevent power
loss in the event of a power failure.
Install the DC Power Cables
Note
When installing DC power supply, use 12AWG, 90°C temperature rated cable. The recommended
cable length is 3 meters maximum from source. Up to 5 meters use 10AWG, and up
to 3 meters use 12AWG, 90°C temperature rated cable and for other length contact
Cisco.
Note
For N540X-16Z4G8Q2C-A/D and N540X-16Z8Q2C-D, when installing DC power supply, use 14-16AWG,
90°C temperature rated cable. The recommended cable length is 3 meters maximum
from source. Up to 5 meters use 14AWG, and up to 3 meters use 16AWG, 90°C
temperature rated cable and for other length contact Cisco.
Note
Always ensure that the building’s installation for short-circuit (overcurrent) protection does not exceed 15A.
We recommended using a Circuit breaker or a fast acting fuse with a maximum DC rating of 10A for over current protection.
Note
The DC connector or terminal block has an in built screw and cage nut to which torque of 1.3 to 1.8 N-m can be applied.
A
0.74 in. (1.88 cm)
C
0.18 in. (0.46 cm)
B
0.25 in. (0.64 cm)
D
0.14 in. (0.36 cm)
M
0.62 in. (1.58 cm)
To attach the DC power supplies:
Procedure
Step 1
Locate the terminal block plug.
Step 2
Insert the DC-input power source wires into the terminal block plug.
Step 3
Attach the DC supply wires using the designated screws.
Step 4
Use a ratcheting torque screwdriver to torque the terminal block plug captive screw. See the following figure.
Note
These images are for only representation purposes. Certain variants of Cisco NCS 540 may vary.
Removing the DC Power Supply Module
This section provides information about removing and replacing the DC power supply.
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Follow these steps to remove and replace the DC power supply:
Procedure
Step 1
Before servicing the power supply, switch off the circuit breaker in your equipment area. As an additional precaution, tape
the circuit-breaker switch in the Off position.
Step 2
Slip on the ESD-preventive wrist strap that was included in the accessory kit.
Step 3
Switch the power supply circuit-breaker switch to the Off (O) position.
Step 4
Pull the terminal block plug connector out of the terminal block head in the power supply. See the following figure.
Step 5
Loosen the captive screws on the DC power supply.
Step 6
Grasp the power supply handle. Simultaneously press the power supply lock towards the left and pull the power supply out
from the chassis while supporting it with the other hand.
Installing the AC Power Supply Module
Follow these steps to install the AC power supply module:
Procedure
Step 1
Ensure that the system (earth) ground connection has been made.
Step 2
If necessary, remove the blank power supply filler plate from the chassis power supply bay opening by loosening the captive
installation screws.
Step 3
Grasp the power supply handle with one hand. Place your other hand underneath the power supply. Slide the power supply into
the power supply bay. Make sure that the power supply is fully seated in the bay. See the following figure.
Step 4
Slide the AC power supply cord inside the tie of the tie-and-holder and tighten the tie around the power supply cord.
Step 5
Plug the power supply cord into the AC power supply.
Install the AC Power Cables
To install the AC power cables in the power supply slots:
Procedure
Step 1
Plug the power supply cord in the power supply module.
Step 2
Insert the power supply cord into the tie [1,3] and tighten the tie around the power supply cord as shown in [2,4] in the
figure below.
Note
These images are for only representation purposes. Certain variants of Cisco NCS 540 do not include a tie for the power supply
cord.
Activate an AC Power Supply Module
Perform the following procedure to activate an AC power supply:
Procedure
Step 1
Plug the power cord into the power supply.
Step 2
Connect the other end of the power cord to an AC-input power source.
Step 3
Verify power supply operation by checking if the respective power supply front panel LED (PM0 or PM1) is green.
Step 4
If the LEDs indicate a power problem, see Troubleshooting for troubleshooting information.
Step 5
If you are also connecting a redundant AC power supply, repeat these steps for
the second power source.
Note
If you are connecting a redundant AC power supply, ensure that each power
supply is connected to a separate power source in order to prevent power
loss in the event of a power failure.
Removing the AC Power Supply Module
This section describes how to remove and replace the AC power supply.
Warning
When you install the unit, the ground connection must always be made first and disconnected last. Statement 1046
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Warning
Installation of the equipment must comply with local and national electrical codes. Statement 1074
Follow these steps to remove and replace the AC power supply:
Procedure
Step 1
Disconnect the power cord from the power source. Do not touch any metal on the power cord when it is still connected to the
power supply.
Step 2
Loosen the tie and remove the power cord from the tie-and holder.
Step 3
Remove the power cord from the power connection on the power supply. Do not touch the metal prongs embedded in the power
supply.
Step 4
Grasp the power supply handle. Simultaneously press the power supply lock towards the left and pull the power supply out
from the chassis while supporting it with the other hand.
Powering On the Router
After the router is either rack mounted or mounted on the wall, perform
these tasks to complete the installation:
Power on the router.
Connect the front-panel ports. See the Connecting to SFP Modules section to complete the installation.
Connecting the Router to the Network
The sections describe how to connect a router to the network:
Note
Connect only SELV services to all the ports.
Connecting Console Cables
The sections describe how to connect to the router using console cables:
Connecting to the USB Serial Port Using Microsoft Windows
This procedure shows how to connect to the USB serial port using Microsoft Windows.
Note
Install the USB device driver before establishing a physical connection between the router and the PC, by using the USB console
cable plugged into the USB serial port. Otherwise, the connection will fail. For more information, see the Installing the Cisco USB Device Driver section in the Cisco ASR-920-12SZ-IM and ASR-920U-12SZ-IM Aggregation Services Router Hardware Installation Guide.
Procedure
Step 1
Connect a USB Type A-to-Type A cable to the USB console port. If you are using the USB serial port for the first time on
a Windows-based PC, install the USB driver now according to the instructions in the following sections:
Note
You cannot use the USB port and the EIA port concurrently. When the USB port is used, it takes priority over the EIA port.
Step 2
Connect the USB Type A cable to the PC.
Step 3
To communicate with the router, start a terminal emulator application, such as Microsoft Windows HyperTerminal. This software
should be configured with the following parameters:
9600 baud
8 data bits
no parity
1 stop-bit
no flow control
Connecting to the Console Port Using Mac OS X
This procedure describes how to connect a Mac OS X system USB port to the console using the built-in OS X terminal utility.
Procedure
Step 1
Use the Finder to choose Applications > Utilities > Terminal.
Step 2
Connect the OS X USB port to the router.
Step 3
Enter the following commands to find the OS X USB port number:
Example:
macbook:user$ cd /dev
macbook:user$ ls -ltr /dev/*usb*
crw-rw-rw- 1 root wheel 9, 66 Apr 1 16:46 tty.usbmodem1a21 DT-macbook:dev user$
Step 4
Connect to the USB port with the following command followed by the router USB port speed:
Example:
macbook:user$ screen /dev/tty.usbmodem1a21 9600
To disconnect the OS X USB console from the terminal window, enter Ctrl-a followed by Ctrl-\
Connecting to the Console Port Using Linux
This procedure shows how to connect a Linux system USB port to the console using the built-in Linux terminal utility.
Procedure
Step 1
Open the Linux terminal window.
Step 2
Connect the Linux USB port to the router.
Step 3
Enter the following commands to find the Linux USB port number:
Example:
root@usb-suse# cd /dev
root@usb-suse /dev# ls -ltr *ACM*
crw-r--r-- 1 root root 188, 0 Jan 14 18:02 ttyACM0
root@usb-suse /dev#
Step 4
Connect to the USB port with the following command, followed by the router USB port speed:
Example:
root@usb-suse /dev# screen /dev/ttyACM0 9600
To disconnect the Linux USB console from the terminal window, enter Ctrl-a followed by : then quit
Installing the Cisco USB Device Driver
A USB device driver must be installed the first time a Microsoft Windows-based PC is connected to the USB serial port on
the router.
This procedure describes how to install the Microsoft Windows USB device driver in Microsoft Windows XP, Windows Vista, Windows
2000, Windows 7, and Windows 8. Download the driver for your router model from the Tools and Resources Download Software site, USB Console Software category.
Note
To download the driver, you must have a valid service contract associated to your Cisco.com profile.
Procedure
Step 1
Unzip the file asr-9xx_usbconsole_drivers.zip.
Step 2
Double-click xrusbser_ver2100_installer.exe in the XR21x141x-Win-DriversOnly-Vers2.1.0.0/EXE folder.
Installation Wizard GUI is displayed.
Step 3
Click Next. The InstallShield Wizard Completed window is displayed.
Step 4
Click Finish.
Step 5
Connect the USB cable to the PC and router USB console ports. Follow the on-screen instructions to complete the installation
of the driver.
Step 6
XR21V1401 USB UART Device driver successfully installed message is displayed.
The USB console is ready for use.
Uninstalling the Cisco USB Driver

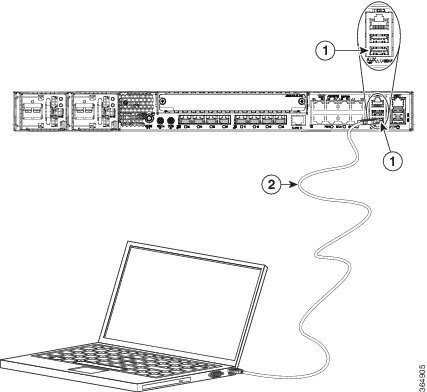

1
USB Type-A console port
2
USB Type-A to USB Type-A console cable
This procedure describes how to uninstall the Microsoft Windows USB device driver in Microsoft Windows XP, Windows Vista,
Windows 2000, Windows 7, and Windows 8.
Note
Disconnect the router console terminal before uninstalling the driver.
Procedure
Step 1
Choose Start > Control Panel > Add or Remove Programs .
Step 2
Scroll to WindowsDriverPackage-Exarcorporation(xrusbser)Ports and click Remove. The ProgramMaintenance window is displayed.
Step 3
Click Yes to uninstall the driver.
Connecting to the EIA Console Port
Note
The US-to-RJ45 adapter cable and the DB9 console cable are not included with the router; they can be ordered separately from
Cisco.
Note
The serial console cable kit is not included with the router; it is ordered separately.
To connect a terminal to the EIA Console port on the router, follow these steps:
Procedure
Step 1
Connect the USB end of the USB-to RJ-45 cable to the EIA Console port.
Step 2
Connect the RJ-45 end of the DB-9 adapter cable to the USB-to RJ-45 cable, as shown in the following figure.
Label
Component
Label
Component
1
EIA Console port
3
RJ-45 to DB-9 cable
2
USB-to-RJ45 adapter
4
Desktop or system
Step 3
Connect the DB-9 end of the console cable to the DB-9 end of the terminal.
Step 4
To communicate with the router, start a terminal emulator application, such as Microsoft Windows HyperTerminal. This software
should be configured with the following parameters:
9600 baud
8 data bits
no parity
1 stop-bit
no flow control
Connecting a Management Ethernet Cable
When using the Ethernet Management port in the default mode (speed-auto
and duplex-auto) the port operates in the auto-MDI/MDI-X mode. The port
automatically provides the correct signal connectivity through the
Auto-MDI/MDI-X feature. The port automatically senses a crossover or
straight-through cable and adapts to it.
However, when the Ethernet Management port is configured to a fixed
speed (10, 100, or 1000 Mbps) through command-line interface (CLI) commands,
the port is forced to the MDI mode.
When in a fixed-speed configuration and MDI mode:
Use a crossover cable to
connect to an MDI port
Use a straight-through
cable to connect to an MDI-X port
Caution
To comply with the Telcordia GR-1089 NEBS standard for
electromagnetic compatibility and safety, connect the Management Ethernet ports
only to intra-building or unexposed wiring or cable. The intrabuilding cable
must be shielded and the shield must be grounded at both ends. The
intra-building port(s) of the equipment or subassembly must not be metallically
connected to interfaces that connect to the OSP or its wiring. These interfaces
are designed for use as intra-building interfaces only (Type 2 or Type 4 ports
as described in GR-1089-CORE) and require isolation from the exposed OSP
cabling. The addition of Primary Protectors is not sufficient protection in
order to connect these interfaces metallically to OSP wiring.
Installing and Removing SFP and SFP+ Modules
The Cisco ASR 920 Series Router supports a variety of SFP and SFP+ modules, including optical and Ethernet modules. For information
on how to install and remove SFP and SFP+ modules, see the documentation for the SFP or SFP+ module at:
We recommend that you wait for 30 seconds between the removal and insertion of an SFP on an interface module. We recommend
this to allow the transceiver software to initialize and synchronize with the Cisco ASR 920 Series Router. Changing an SFP
more quickly could result in transceiver initialization issues that disable the SFP.
Connecting a USB Flash Device
To connect a USB flash device to the router, insert the memory stick in the USB port labeled USB MEM. The Flash memory module
can be inserted only one way, and can be inserted or removed regardless of whether the router is powered up or not.
The following figure shows the USB port connector on the Cisco ASR 920 Series Router.
Removing a USB Flash Device
To remove and replace a USB flash token memory stick from and into a router, follow these steps:
Note
If the USB flash device is abruptly removed, the constant sync operations of the
file system in progress fail due to the USB device removal. These errors occur
with ext2 or ext3 or ext4 file systems and are not seen with fat32 file system.
This is a default behavior on any Linux platform.
The following error messages are displayed when you remove the USB device:
Execute the eject usb0: command before removing the USB from the router.
Example:
rommon 2 > eject usb0
rommon 2 >
If you do not run this command before removing the USB, the following error message is displayed:
rommon 2 > dir usb0:
usb_stor_BBB_comdat:usb_bulk_msg error
failed to send CBW status 34
RESET:stall
usb_stor_BBB_comdat:usb_bulk_msg error
failed to send CBW status 34
RESET:stall
usb_stor_BBB_comdat:usb_bulk_msg error
Step 2
Pull the memory stick from the USB port.
Step 3
To replace the Cisco USB Flash memory stick, simply insert the module into the USB port labeled USB MEM. The Flash memory
module can be inserted only one way, and can be inserted or removed regardless of whether the router is powered up or not.
This completes the USB Flash memory installation procedure.
Connecting Timing Cables
The section describes how to connect timing cables to the Cisco ASR 920 Series Router:
Connecting Cables to a GPS Interface
The sections describe how to connect cables from the Cisco ASR-920-12SZ-IM Router to a GPS unit for input or output timing
of frequency:
Connecting a Cable to the Input 10-Mhz or 1-PPS Interface
Procedure
Step 1
Connect one end of a shielded mini-coax cable to the GPS unit.
Step 2
Connect the other end of the shielded mini-coax cable to the 10-Mhz or 1-PPS port on the Cisco ASR 920 Series Router.
Connecting a Cable to the Output 10-Mhz or 1-PPS Interface
Procedure
Step 1
Connect one end of a shielded mini-coax cable to the Slave unit.
Step 2
Connect the other end of the shielded mini-coax cable to the 10-Mhz or 1-PPS port on the Cisco ASR 920 Series Router.
Connecting a Cable to the ToD Interface
Procedure
Step 1
Connect one end of a straight-through Ethernet cable to the GPS unit.
Step 2
Connect the other end of the straight-through Ethernet cable to the ToD or 1-PPS port on the Cisco ASR 920 Series Router.
What to do next
Note
For instructions on how to configure clocking, see the Cisco ASR 920 Series Aggregation Services Routers Configuration Guide .
Warning
To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the ToD ports only
to intra-building or unexposed wiring or cable. The intrabuilding cable must be shielded and the shield must be grounded at
both ends. The intra-building port(s) of the equipment or subassembly must not be metallically connected to interfaces that
connect to the OSP or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or Type
4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of Primary Protectors
is not sufficient protection in order to connect these interfaces metallically to OSP wiring.
Note
For more information about GPS-port pinouts, see Troubleshooting section.
Connecting a Cable to the GNSS Antenna Interface
Procedure
Step 1
Connect one end of a shielded coaxial cable to the GNSS RF IN port.
Step 2
Connect the other end of the shielded coaxial cable to the GNSS antenna after the primary protector.
Note
The GNSS RF In port should have a primary protector installed to meet the Local Safety guidelines.
The GNSS RF In coaxial cable shield must be connected to the Facility Equipment Ground through the chassis. The chassis must
have the ground wire connected to the Facility Equipment Ground.
Connecting Ethernet Cables
The Cisco ASR 920 Series Router interface modules support RJ-45 and Ethernet SFP ports. For instructions on how to connect
cables to Ethernet SFP ports, see the Connecting Cables to SFP Modules section.
The RJ-45 port supports standard straight-through and crossover Category 5 unshielded twisted-pair (UTP) cables. Cisco does
not supply Category 5 UTP cables; these cables are available commercially.
Warning
To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the Gigabit Ethernet
ports only to intra-building or unexposed wiring or cable. The intrabuilding cable must be shielded and the shield must be
grounded at both ends. The intra-building port(s) of the equipment or subassembly must not be metallically connected to interfaces
that connect to the OSP or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or
Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of Primary Protectors
is not sufficient protection in order to connect these interfaces metallically to OSP wiring.
Follow these steps to connect a cable to a copper Gigabit Ethernet port:
Procedure
Step 1
Confirm that the router is powered off.
Step 2
Connect one end of the cable to the Gigabit Ethernet port on the router.
Step 3
Connect the other end to the BTS patch or demarcation panel at your site.
Connecting Cables to SFP Modules
For information on connecting cables to Cisco optical and Ethernet SFP interfaces, see:
