Before you can manage devices in Security Manager, you must prepare the devices for management, then add those devices to the Security Manager device inventory. After you add the devices, you can view and edit device information, configure policies on devices, copy and share policies, clone devices, and so on. The following topics describe how to manage the device inventory:
•Understanding the Device Inventory
•Working with the Device Inventory
Security Manager maintains an inventory of the devices that it manages. The inventory includes the information required to locate and log into the device, so that your policies can be deployed to the devices. The following topics describe some general concepts related to the device inventory:
•Understanding the Device View
•Understanding Device Names and What Is Considered a Device
•Understanding Device Credentials
•Understanding Device Properties
The Device View button opens the Devices page, from which you can add and delete devices from the Security Manager inventory and manage device policies, properties, and interfaces centrally.
This is a device-centric view in which you can see all devices that you are managing and you can select specific devices to view their properties and define their settings and policies. You can define security policies locally on specific devices. You can then share those policies to make them globally available to be assigned to other devices.
The Devices page contains two panes. The left pane contains two elements: the Device selector, located in the top left pane, and the Policy selector, located in the bottom left pane. The right pane is the main content area. Figure 5-1 shows the Devices page.

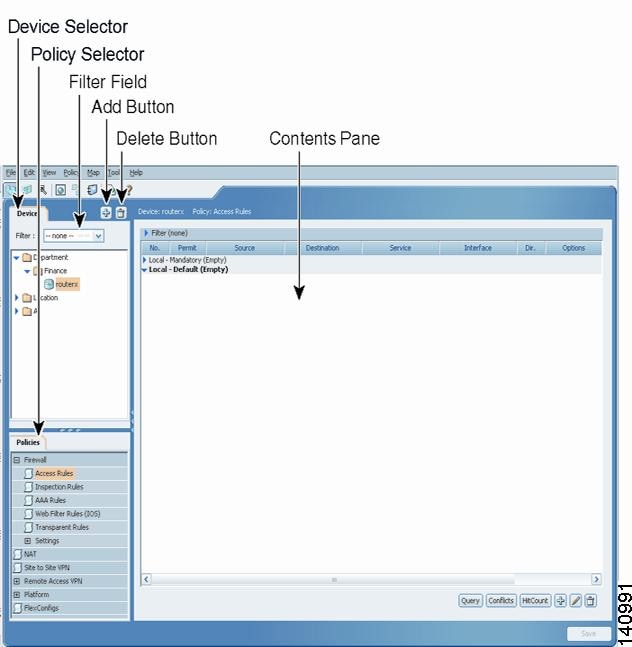

Figure 5-1 Devices Page
Device selector—Contains the following:
•Add and Delete buttons—Enables you to add and delete devices from the Security Manager inventory.
•Filter field—Enables you to display a subset of devices based on the filtering criteria you define. For details, see Filtering Items in Selectors, page 2-14.

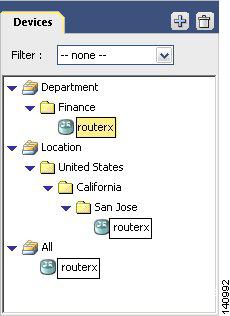

•Device tree—Lists the device groups and devices that exist in the system. Each device type is represented by an icon. For information about the icons, see Figure 5-2.
Figure 5-2 Device Icons
•Shortcut menu options—When you right-click a device or device group, you get a menu of commands related to that device or group. These commands are shortcuts to commands available in the regular menus.
Policy selector—Contains the following:
•Policy groups—Lists the policy groups that are supported on the selected device type. The policy groups that are displayed are dependent on four factors:
–The type of device selected in the Device selector.
–The operating system running on the device.
–The target operating system version selected for determining which commands will be available for generated configurations.
–Whether the device contains supported service modules.
For more information about policies, see Understanding Policies, page 6-1.
•Shortcut menu options—When you right-click a policy, you get a menu of commands related to that policy. These commands are shortcuts to commands available in the regular menus.
Contents pane—The main content area.
The information displayed in this area depends on the device you select from the Device selector and the option you select from the Policy selector.
Besides managing traditional devices, you can use Security Manager to manage virtual devices that you can define on some types of security devices. These virtual devices are treated as separate devices in the device inventory, and they appear as separate entries in the device selectors. Because these virtual devices actually reside on a host physical device, many actions, such as deployment, will have to include the host device as well as the virtual device.
All physical devices appear in the device selectors. In addition, these are the types of virtual devices that appear in the device selectors:
•Security Contexts—You can define security contexts on PIX Firewall, FWSM, and ASA devices. Security contexts act as virtual firewalls. By default, security contexts appear in the device selectors using this naming convention: host-display-name_context-name, where host-display-name is the display name of the device on which the context is defined, and context-name is the name of the security context. For example, the admin security context on the device named firewall12 would be called firewall12_admin.
Tip You can control whether the display name is added to the context name using the Prepend Device Name when Generating Security Context Names property on the Discovery settings page (see Discovery Page, page A-16). However, if you do not add the display name, it is very difficult to determine the hosting device for a context, and the context names are not sorted with the host device (they do not appear in a folder attached to the host device). If you do not add the display name, Security Manager adds a numeric suffix to the context name if more than one context of the same name is added to the inventory (for example, admin_01, admin_02), and these numbers are not related to the host device.
•Virtual Sensors—You can define virtual sensors on IPS devices. Virtual sensors appear in device selectors using the host-display-name_virtual-sensor-name naming convention, and there is not a discovery setting to control this convention.
Tip You can always change the display name for a virtual sensor, security context, or other type of device in the device's properties.
Besides the naming conventions for virtual devices, you also need to understand the relationship between various types of device names:
•Display name—The display name is simply the name that appears within Security Manager in device selectors. This name does not have to be related to any name actually defined on the device. When you add devices to the inventory, a display name is suggested based on the DNS name or IP address you enter, but you can use whatever naming convention you want to use.
•DNS name—The DNS name you define for a device must be resolvable by the DNS server configured for the Security Manager server.
•IP address—The IP address you define for a device should be the management IP address for the device.
•Hostname—When you discover a device, the hostname property that is shown in the device properties is taken from the device's configuration. If you add devices using configuration files, and a file does not contain a hostname command, the initial hostname is the name of the configuration file.
However, the hostname device property is not updated if you change the hostname on the device. There is a Hostname policy in the device platform policy area, and it is this Hostname policy that determines the hostname that is defined on the device.
Security Manager requires credentials for logging in to devices. The credentials can be used by other applications that you start from Security Manager, such as Resource Manager Essentials (RME) or Monitoring Center for Performance (Performance Monitor). For this reason, the Device Credentials page includes a wider range of optional fields for credentials that you might want to store for possible use by these other applications, or ignore if not required for your purposes.
You can provide device credentials in two ways:
•When you add a device manually or from network discovery. For more information, see these topics:
–Adding Devices from the Network
–Adding Devices by Manual Definition
•By editing the device properties. For more information, see Viewing or Changing Device Properties.
You can provide the following device credentials:
•Primary Credentials—The username and password for logging into the device using SSH or Telnet. This information is required for device communication.
•HTTP Credentials—Some devices allow HTTP or HTTPS connections, and some devices (such as IPS devices) require it. By default, Security Manager uses the primary credentials for HTTP/HTTPS access, but you can configure unique HTTP/HTTPS credentials.
•RX-Boot Mode—(Optional) Some Cisco routers are designed to run from flash memory where they boot only from the first file in flash. This means that you must run an image other than the one in flash to upgrade the flash image. That image is a reduced command-set image referred to as RX-Boot (a ROM-based image).
•SNMP Credentials—(Optional) The Simple Network Management Protocol (SNMP) facilitates the exchange of management information between network devices. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.
Note PIX/ASA/FWSM devices require that user names be at least four characters. Passwords can be three to 32 characters; we recommend that passwords be at least eight characters.
Rather than using device-based credentials, you can configure Security Manager to use the credentials you use when you log into Security Manager. You can then use the AAA server's accounting facilities to track configuration changes by user. Using user login credentials is suitable only if your environment is configured according to these standards:
•You use TACACS+ or RADIUS for change auditing. User-login credentials will be reflected in these accounting records. If you use device credentials, all changes made through Security Manager will come from the same account, regardless of which user made the change.
•User accounts are configured in the AAA server, and they have appropriate device-level access to perform configuration changes.
•You configure Security Manager and the managed devices to use the AAA server for authorization. For information on configuring Security Manager to use AAA, see the Installation Guide for Cisco Security Manager
•You do not use one-time passwords.
If your network setup supports using user-login credentials, you can configure Security Manager to use them by selecting Tools > Security Manager Administration. Select Device Communication from the table of contents, and select Security Manager User Login Credentials in the Connect to Device Using field. The default is to use device credentials for all device access.
Related Topics
•Device Credentials Page, page C-18
•Adding Devices to the Device Inventory
•Device Communication Page, page A-11
You define device properties when you add devices to Security Manager. Device properties are general information about the device, credentials, the group the device is assigned to, and policy overrides. You must provide some device property information, such as device identity and primary credentials, when you add the device, but you can add or edit the properties from the Device Properties dialog box.
To view the device properties, do one of the following in the Device selector:
•Double-click a device.
•Right-click a device and select Device Properties.
•Select a device and select Tools > Device Properties.
The Device Properties dialog box has two panes. The left pane contains a table of contents with these items:
•General—Contains general information about the device, such as device identity, the operating system running on the device, and device communication settings.
•Credentials—Contains device primary credentials (username, password, and enable password), SNMP credentials, Rx-Boot Mode credentials, and HTTP credentials.
•Device Groups—Contains the groups to which the device is assigned.
•Policy Object Overrides—Contains global settings of certain types of reusable policy objects that you can override for this device.
When you select an item in the table of contents, the corresponding information is displayed in the right pane. For information about the elements in this page, see Device Properties Page, page C-28.
Notes
•Security Manager does not assume that the DNS hostname that appears on the Device Properties page is the same as the hostname that you configured on the device.
•When you add a device to Security Manager, you must enter either the management IP address or the DNS hostname. Because it is not possible to determine the management interface and, therefore, the management IP address when you discover from a configuration file, the hostname in the configuration file is used as the DNS hostname. If the hostname is missing in the CLI of the configuration file, the configuration filename is used as the DNS hostname.
•When you discover a device from the network, the DNS hostname in the Device Properties page is not updated with the hostname configured on the device. Therefore, if you want to specify the DNS hostname for the device, you must specify it manually when you add the device to Security Manager or on the Device Properties page.
For more information about device properties, see Viewing or Changing Device Properties.
The following topics describe tasks related to managing the device inventory:
•Adding Devices to the Device Inventory
•Adding, Editing, or Deleting Auto Update Servers or Configuration Engines
•Viewing or Changing Device Properties
•Changing Critical Device Properties
•Managing Device Communication Settings and Certificates
•Discovering or Changing the CS-MARS Server for a Device
•Deleting Devices from the Security Manager Inventory
•Exporting the Device Inventory
•Managing the Device Operating System
When you add a device to Security Manager, you specify the identifying information for the device, such as its DNS name and IP address. This information is added during device discovery. You can also bring in existing network configurations associated with a device by initiating policy discovery. For complete information on policy discovery, see Discovering Policies, page 6-11. Once you add the device, it appears in the Security Manager device inventory.
The New Device wizard guides you through the process of adding devices to the inventory. You can add devices from many different sources, and the path through the wizard differs significantly based on the method you are using.
Tip For PIX Firewalls and FWSM and ASA devices that are configured for failover, add only the active unit to Security Manager. Ensure that the device is configured with a management IP address and use that address for discovery.
The following topics describe the various methods of adding devices:
•To add devices that are currently active on the network, see Adding Devices from the Network. Security Manager connects directly and securely to the device and discovers its identifying information and properties.
–Pros—You need to specify minimal information about a device, and Security Manager obtains the detailed information directly from the device, ensuring accuracy.
–Cons—You can add only one device at a time. You cannot add devices that have dynamic IP addresses, unless you determine the device's current IP address, add it using that address, and then update the device properties in Security Manager to identify the Configuration Engine that is managing the device.
•To add devices by using a copy of the device configuration files, see Adding Devices from Configuration Files.
–Pros—You can add more than one device at a time.
–Cons—You cannot use this method to add Catalyst 6500/7600 or IPS devices. When adding groups of configuration files, all files must be for the same device type.
Also, you cannot successfully discover policies that require a connection with the device. For example, if a policy points to a file that resides on the device, adding the device using the configuration file will result in a Security Manager configuration that includes the no form of the command, because Security Manager cannot retrieve the referenced file from the device. For example, the svc image command for web VPNs might be negated.
•To add a device that does not yet exist in the network, so that you can pre-provision it in Security Manager, see Adding Devices by Manual Definition. You can create the device in the system, assign policies to the device, and generate configuration files before installing the device hardware.
–Pros—You can pre-provision devices that do not yet exist in the network.
–Cons—You must specify more information than that required by any other method. If you create a Catalyst 6500 device, or a router that contains an IPS module, you should discover its modules by selecting Policy > Discover Policies on Device.
•To add devices from an inventory file in comma-separated values (CSV) format, see Adding Devices from an Inventory File.
–Pros—You can add multiple devices of different types at one time. You can reuse the inventory list from your other network management applications, including CiscoWorks Common Services, Cisco Security Monitoring, Analysis and Response System (CS-MARS), and other Security Manager servers. If you use a file exported from another Security Manager server, you can optionally add the devices without discovering policies, which is convenient for adding offline or standby devices.
–Cons—You cannot use this method to update the properties of devices already defined in the inventory. Also, policy discovery can fail if you attempt to import more than 100 devices at one time, and might fail for even fewer devices. In the case of IPS devices, do not add more than four IPS devices at a time to avoid policy discovery failures.
One of the easiest and most reliable ways to add devices to the inventory is to identify devices that are active in the network. By providing the IP address (or DNS hostname) of a device, and the credentials required to log into it, Security Manager can obtain much of the information it needs directly from the device, ensuring the accuracy of the information.
Before You Begin
Before beginning this procedure, ensure the following preparations have been made:
•Prepare the devices to be managed by Security Manager. For more information, see Chapter 4, "Preparing Devices for Management".
•If you are using ACS for authentication, define the devices in ACS. See the Installation Guide for Cisco Security Manager.
Related Topics
•Understanding the Device View
•Viewing or Changing Device Properties
Step 1 In Device view, select File > New Device or click the New Device button in the Device selector. The New Device wizard opens to the Choose Method page.
Step 2 On the Choose Method page, select Add Device from Network and click Next to open the Device Information page.
Step 3 On the Device information page, at minimum fill in the following fields. For a detailed explanation of all fields, see Device Information Page - Add Device from Network, page C-4.
•Enter either a hostname and DNS name, or an IP address (or both).
•Enter a display name, which is the name that will appear in the Security Manager Device selector.
•Select the correct operating system and version. If you are configuring a Catalyst switch or a 7600 router, ensure that you select IOS - Catalyst Switch/7600 rather than one of the other IOS entries.
•Select the transport protocol that should be used to log into the device, if the device is configured to use a protocol that differs from the default defined in Security Manager. The default is set on the Device Communication administration page (see Device Communication Page, page A-11).
Click Next.
Step 4 On the Device Credentials page, enter the usernames and passwords required to log into the device. Enter at least the primary device credentials, which are the traditional User EXEC mode and Privileged EXEC mode passwords.
For information on the different types of credentials, see Device Credentials Page, page C-18.
Tip When you click Next or Finished from the Device Credentials page, Security Manager tests whether it can connect to the device. You cannot add the device unless the test succeeds. For more information, see Testing Device Connectivity.
Step 5 (Optional) Click Next to open the Device Grouping page, and select the device group to which the imported devices should be added (see Device Grouping Page, page C-26).
Step 6 Click Finish. Security Manager opens the Discovery Status dialog box where you can view the status of the device discovery and policy analysis (see Discovery Status Dialog Box, page D-12).
Tip If you are discovering policies while adding a device, carefully read any messages that are presented to you. These messages can contain important recommendations on the next steps you should take. For example, when you add Cisco IOS routers or Catalyst devices, we recommend that you immediately deploy the discovered configuration to a file so that Security Manager can take over ownership of the configuration. For more information about deployment methods, see Understanding Deployment Methods, page 17-10.
Step 7 If you are adding a device that contains modules, you are notified when the discovery of the device chassis is complete and you are asked if you want to discover the device's modules. When you click Yes, you are prompted for this information:
•Catalyst 6500 service modules—The Service Module Credentials dialog box opens prompting for the following information, based on the modules contained in the chassis. For more information, see Service Module Credentials Dialog Box, page C-23.
–FWSM—The management IP address (recommended), the username and passwords, and the type of discovery you want to perform.
–IDSM—The username and password and the type of discovery you want to perform.
•IPS Router Module—The type of discovery you want to perform, the management IP address, the username and password, and other SSL connection information. For more information, see IPS Module Discovery Dialog Box, page C-25.
You can skip discovery for any module you do not want to manage in Security Manager.
Click OK. You are returned to the Discovery Status dialog box, where you can view the progress of service module discovery.
You can add devices to the inventory by having Security Manager process the device configurations without logging into the devices. For each device, you must copy the device configuration to a file and put the file on the Security Manager server.
You cannot use this procedure to add IPS or Catalyst 6500/7600 devices to the inventory.
Before You Begin
Before beginning this procedure, ensure the following preparations have been made:
•Prepare the devices to be managed by Security Manager. For more information, see Chapter 4, "Preparing Devices for Management".
•If you are using ACS for authentication, define the devices in ACS. See the Installation Guide for Cisco Security Manager.
•Copy the device configuration files to a directory on the Security Manager server. You cannot use a mounted drive. Use a naming convention that will help you select the correct device type for each configuration.
Related Topics
•Understanding the Device View
•Viewing or Changing Device Properties
Step 1 In Device view, select File > New Device or click the New Device button in the Device selector. The New Device wizard opens to the Choose Method page.
Step 2 On the Choose Method page, select Add from Configuration File and click Next to open the Device Information page (see Device Information Page—Configuration File, page C-8).
Step 3 Select the device type for the configuration files from the Device Type selector, and select the appropriate system object ID. If you have configuration files for more than one device type, add them in batches based on device type.
Step 4 Click Browse and select the configuration files that contain the devices (of the specified type) that you want to add.
Step 5 Select the appropriate discovery options to indicate which types of policies you want to discover, if any.
Step 6 (Optional) Click Next and select the device groups to which the new devices should belong.
Step 7 Click Finish. Security Manager opens the Discovery Status dialog box where you can view the status of the configuration file analysis (see Discovery Status Dialog Box, page D-12).
Tip If you are discovering policies and get unexpected errors, it might be because the configuration file includes only the major Cisco IOS software version and not the point release information. Some policies defined on the device might use features that became available in a point release, which means that Security Manager might not recognize them as being supported. To resolve the problem, after adding the device, select it in the Device selector, right-click, and select Device Properties. On the General page, update the Target OS Version field with the software version closest to the one running on the device without being higher than it (you can get the version number using the show version command on the device's CLI). You can then rediscover policies by right-clicking and selecting Discover Policies on Device.
If a device is not yet active on the network, you can add it to Security Manager and preprovision a configuration for the device. In general, you should not use manual definition for a device that exists in the network, because it is much easier to use one of the other techniques for adding devices.
Before You Begin
Before beginning this procedure, ensure the following preparations have been made:
•Prepare the devices to be managed by Security Manager. For more information, see Chapter 4, "Preparing Devices for Management".
•If you are using ACS for authentication, define the devices in ACS. See the Installation Guide for Cisco Security Manager.
Related Topics
•Understanding the Device View
•Viewing or Changing Device Properties
Step 1 In Device view, select File > New Device or click the New Device button in the Device selector. The New Device wizard opens to the Choose Method page.
Step 2 On the Choose Method page, select Add New Device and click Next to open the Device Information page.
Step 3 On the Device Information page, at minimum fill in the following fields. For a detailed explanation of all fields, see Device Information Page—New Device, page C-10.
•Select the device type from the Device Type selector at the left of the page, and select the system object ID at the bottom of the selector.
•In the IP Type field, select whether the device uses a static address (the IP address is defined on the device) or a dynamic one (the address is provided by a DHCP server).
•For devices with static addresses, enter either a DNS hostname and domain name, or an IP address (or both).
•Enter a display name, which is the name that will appear in the Security Manager Device selector.
•Ensure that the correct operating system and version are selected.
•If you use a server to manage configurations for the device, which is required for dynamically addressed devices, select the Auto Update Server or Configuration Engine that manages the device and enter the device identity string the server uses for the device. If the server is not listed, select Add Server and add it to the inventory. For information on adding servers, see Adding, Editing, or Deleting Auto Update Servers or Configuration Engines
When you are finished filling in the device information, click Next to proceed to the Device Credentials page.
Step 4 (Optional) On the Device Credentials page, enter the usernames and passwords required to log into the device. Typically, you need to enter the primary device credentials, which are the traditional User EXEC mode and Privileged EXEC mode passwords. If you do not enter credentials, you can add them later on the Device Properties page.
For information on the different types of credentials, see Device Credentials Page, page C-18.
Click Next.
Step 5 (Optional) On the Device Grouping page, select the group to which the device should belong, if any. See Device Grouping Page, page C-26
Step 6 Click Finish. The device is added to the inventory.
Tip If you are adding a PIX, ASA, or FWSM device, you should discover the factory default settings for the device and its security contexts. For more information, see Discovering Policies on Devices Already in Security Manager, page 6-14.
You can add devices from an inventory file in comma-separated values (CSV) format. For example, an inventory file you exported from CiscoWorks Common Services Device Credential Repository (DCR) or another Security Manager server, or the seed file you used with Cisco Security Monitoring, Analysis and Response System (CS-MARS). For detailed information about the inventory file formats, see Exporting the Device Inventory from the Security Manager Client.
Tip If you want to build an inventory file by hand, the easiest approach is to export the Security Manager inventory in the desired format and use that file as the basis for your inventory file.
The devices you import cannot be duplicates of devices already in the device inventory. You cannot, for example, update device information in the inventory by re-importing the device.
Before You Begin
Before beginning this procedure, ensure the following preparations have been made:
•Prepare the devices to be managed by Security Manager. For more information, see Chapter 4, "Preparing Devices for Management".
•If you are using ACS for authentication, define the devices in ACS. See the Installation Guide for Cisco Security Manager.
•Put the inventory file you want to use on the Security Manager server. You cannot import devices from a file on your client system.
•If you are using a non-standard communication protocol for a type of device, update the global device communication properties to specify the correct protocol. For more information, see Device Communication Page, page A-11.
Related Topics
•Understanding the Device View
•Viewing or Changing Device Properties
Step 1 In Device view, select File > New Device or click the New Device button in the Device selector. The New Device wizard opens to the Choose Method page.
Step 2 On the Choose Method page, select Add Device from File and click Next to open the Device Information page (see Device Information Page—Add Device from File, page C-15).
Step 3 Click Browse and select the inventory file that contains the devices that you want to import. Make sure that you select the correct file type to indicate how the file is formatted.
Security Manager evaluates the contents of the inventory file and displays the list of devices in the import table. All devices that have the status Ready to Import are automatically selected. The list identifies the reasons the unselected devices cannot be imported. You can deselect any devices that you do not want to import.
To see detailed information on a device, select it in the import table. The details are displayed in the bottom pane. You can select different discovery options or transport settings per device.
Tip If you selected an inventory file in the Security Manager format, you have the option to import the devices without performing policy discovery. This makes it possible for you to add devices that are not currently active in the network. If you want to perform policy discovery on a device, select the device, select Perform Device Discovery in the bottom panel, and select your discovery options. You can select policy discovery settings for all devices in a folder by selecting the folder instead of individual devices. The other CSV formats require that you perform policy discovery during import.
When you are finished analyzing the list and modifying discovery and transport settings, click Next to continue to the optional step of selecting groups, or click Finish to complete the wizard. In either case, Security Manager attempts to log into each device and perform the discovery you selected unless you are using a CSV file in Security Manager format and elected not to perform discovery. For the other formats, Security Manager must be able to log into the device to add it to the inventory. The status is displayed in the Discovery Status dialog box (see Discovery Status Dialog Box, page D-12).
Tip If you are discovering policies while adding a device, carefully read any messages that are presented. These messages can contain important recommendations on the next steps you should take. For example, when you add Cisco IOS routers or Catalyst devices, we recommend that you immediately deploy the discovered configuration to a file so that Security Manager can take ownership of the configuration. For more information about deployment methods, see Understanding Deployment Methods, page 17-10.
Step 4 (Optional) On the Device Grouping page, select the device group to which the imported devices should be added (see Device Grouping Page, page C-26).
Click Finish.
Step 5 If you are adding a device that contains modules and you are performing device discovery, you are notified when the discovery of the device chassis is complete and you are asked if you want to discover the device's modules. When you click Yes, you are prompted for this information:
•Catalyst 6500 service modules—The Service Module Credentials dialog box opens prompting for the following information, based on the modules contained in the chassis. For more information, see Service Module Credentials Dialog Box, page C-23.
–FWSM—The management IP address (recommended), the user name and passwords, and the type of discovery you want to perform.
–IDSM—The user name and password and the type of discovery you want to perform.
•IPS Router Module—The type of discovery you want to perform, the management IP address, the user name and password, and other SSL connection information. For more information, see IPS Module Discovery Dialog Box, page C-25.
You can skip discovery for any module you do not want to manage in Security Manager.
Click OK. You are returned to the Discovery Status dialog box, where you can view the progress of service module discovery.
If you want to use Security Manager to manage devices that use other servers to manage their configuration (for example, devices that have dynamic IP addresses supplied by a DHCP server, an address that might not stay constant between device reboots), you must identify the server in Security Manager. These are the servers you can use:
•Auto Update Server (AUS), which is used for upgrading device configuration files on PIX Firewall and ASA devices that use the auto update feature.
•Cisco Configuration Engine, which is used for upgrading device configuration files on Cisco IOS routers and PIX Firewalls that use the configuration engine feature.
Security Manager cannot initiate direct communication with devices that acquire their interface addresses using DHCP because their IP addresses are not known ahead of time. Furthermore, these devices might not be running, or they might be behind firewalls and NAT boundaries when the management system must make changes. These devices connect to an Auto Update Server or Configuration Engine to get device information.
You can add AUS and Configuration Engine servers to the device inventory when you add devices manually or when you view device properties. You do not have to be adding or viewing the properties of a device that uses one of these servers, you just have to get to the appropriate field to access the controls to add, edit, or delete these servers.
You can also add these servers if you import them from an inventory file exported from CiscoWorks Common Services Device Credential Repository (DCR) or from another Security Manager server. If you import the server, you bypass the procedure described in this section. For more information about importing devices, see Adding Devices from an Inventory File.
Before You Begin
If you want to populate the Security Manager inventory with your list of AUS and Configuration Engine servers without respect to adding devices, the best approach is to use the New Device wizard and to select Add New Device as the add method. This approach is described in this procedure.
You can also add or edit servers by selecting a device in the Device selector and clicking Tools > Device Properties. Click General in the device properties table of contents. The Server field is in either the Auto Update or Configuration Engine groups. You can add or edit only the type of server identified in the group name.
Tip Security Manager cannot determine the software version running on a Configuration Engine when you add it. However, Security Manager cannot deploy configurations correctly to all versions of Configuration. Ensure that your Configuration Engines are running a supported release, such as 3.0. For more information on supported versions of Configuration Engine, see the supported devices document at http://www.cisco.com/en/US/products/ps6498/products_device_support_tables_list.html.
Related Topics
•Adding Devices from the Network
•Adding Devices by Manual Definition
•Viewing or Changing Device Properties
Step 1 Locate the field that allows you to identify and manage either AUS or Configuration Engine entries in the device inventory:
a. Select File > New Device to open the New Device wizard, select Add New Device on the Choose Method page, and click Next.
b. On the Device Information page, select an ASA device from the Device Type selector, for example, Cisco ASA-5580 Adaptive Security Appliance. The Server field in the Auto Update group should include Add Server in the drop-down list. It will also include Edit Server if there are servers already defined. If these entries have specific server types (for example, Add Auto Update Server or Add Configuration Engine), then you will be limited to adding, editing, or deleting that type of server (in this case, select other types of devices to find the appropriate server type).
Step 2 To add a new AUS or Configuration Engine server, select Add Server from the Server drop-down list to open the Server Properties dialog box (see Server Properties Dialog Box, page C-12).
Step 3 To edit a server, select Edit Server from the Server drop-down list to open the Available Servers dialog box (see Available Servers Dialog Box, page C-14). You can then select the server and click Edit, which opens the Server Properties dialog box where you can make your changes.
From the Available Servers dialog box, you can also:
•Click Create to add a server.
•Select a server and click Delete to remove it from the inventory. You are asked to confirm the deletion. Make sure that the server is not being used by a device in the inventory.
Security Manager must be able to connect to and log into a device in order to manage it. You can test whether Security Manager can use the credentials and transport method you have defined within Security Manager for this purpose.
You can test connectivity only for devices that have static IP addresses. You also cannot test connectivity for devices that use Token Management Server (TMS) as the transport protocol.
If you add a device from the network or from an inventory file to the inventory, Security Manager tests connectivity automatically.
You can manually test device connectivity for any device in the inventory or for new devices that you are adding manually. The following procedure describes how to test connectivity for devices that are already in the inventory. When adding devices manually, click Test Connectivity on the Device Credentials page of the New Device wizard to perform the test described below. For more information on adding devices manually, see Adding Devices by Manual Definition.
Before You Begin
Security Manager uses the settings on the Device Communication page to determine the connection timeout, how often to retry the connection, the transport protocol, and which credentials to use. To configure these settings, select Tools > Security Manager Administration and select Device Communication from the table of contents.
Related Topics
•Understanding the Device View
•Viewing or Changing Device Properties
•Device Communication Page, page A-11
Step 1 In Device view, do one of the following in the Device selector to open the Device Properties dialog box:
•Double-click a device.
•Right-click a device and select Device Properties.
•Select a device and select Tools > Device Properties.
Step 2 Select Credentials from the table of contents.
Step 3 Click Test Connectivity.
The Device Connectivity Test dialog box opens and displays the progress of the test, including the protocol being used (see Device Connectivity Test Dialog Box, page C-22). You can abort the test while it is running. When the test is finished, click Details to see:
•For successful tests, the output of the show version command or the getVersion command (for IPS Sensors and Cisco IOS IPS Sensors). You can select the text, press Ctrl+C to copy the text to the clipboard, and then paste it into another file for later analysis.
•For unsuccessful tests, the error information. Some common problems are:
–The username or password is incorrect.
–The wrong protocol is selected. For example, the device might not be configured to respond to the selected protocol.
–The device is not configured to accept connections correctly. Ensure that at least one supported protocol is configured.
–The wrong operating system is specified for the device (for example, you specified PIX for an ASA device).
–If you are using ACS authentication and the connection to the device is completed, you can get errors when Security Manager tries to obtain version information if you do not have Control authorization.
–There might be general network configuration problems. Test connectivity to the device from outside of Security Manager. Look for hardware, media, and booting errors, excessive traffic causing queues to overflow, duplicate MAC or IP addresses on the device, physical discrepancies, such as link, duplex, and speed mismatch, or logical discrepancies, such as VLAN and VTP inconsistencies or ATM network misconfiguration.
When you add a device to the inventory, you specify at least some of the device's properties, such as names and credentials. For devices that are in the inventory, you can view and change the device properties.
Related Topics
•Understanding the Device View
•Understanding Device Properties
•Understanding Policies, page 6-1
•Changing Critical Device Properties
Step 1 In Device view, do one of the following in the Device selector to open the Device Properties dialog box:
•Double-click a device.
•Right-click a device and select Device Properties.
•Select a device and select Tools > Device Properties.
Step 2 In the Device Properties dialog box, click these entries in the table of contents in the left pane to view or change the properties. You must click Save before moving from one page to another.
•General—General information about the device, such as the device identity, the operating system running on the device, and transport settings. For information about the fields, see General Page, page C-28.
•Credentials—The device credentials required to log into the device. For information about the fields, see Credentials Page, page C-31.
•Groups—The groups to which the device belongs. For information about the fields, see Device Groups Page, page C-33.
•Policy Object Overrides—The local overrides to policy objects for the device. Policy Object Overrides is a folder that contains the various policy object types that are available for the device. Click a specific policy object type to view the policy objects of that type used by the device and their overrides, if any. For more information about the fields, see Policy Object Override Pages, page C-34.
You must use caution when changing the image version of a device, the device type, or the security context or operational mode of FWSM and ASA devices that are managed by Security Manager. In certain cases, these changes enable a different set of features for the device. As a result, some of the policies that you configured for the device in Security Manager might no longer apply.
The key device changes, their effect on the policies available in Security Manager, and the procedure you should follow to implement these device changes, are described in the following sections:
•Image Version Changes That Do Not Change the Feature Set in Security Manager
•Changes That Change the Feature Set in Security Manager
The following image version changes do not affect the types of policies available for that device in Security Manager:
•Upgrading from any Cisco IOS version supported by Security Manager to any other Cisco IOS version supported by Security Manager.
•Upgrading from any PIX 6.x image to another PIX 6.x image.
•Upgrading from any PIX 7.x image to another PIX 7.x image, retaining the same security context and mode configuration.
•Upgrading from any ASA 7.x image to another ASA 7.x image, retaining the same security context and mode configuration.
•Upgrading from any ASA 8.x image to another ASA 8.x image, retaining the same security context and mode configuration.
•Upgrading from any FWSM 2.x image to another 2.x FWSM image, retaining the same security context and mode configuration.
•Upgrading from any FWSM 3.x image to another 3.x FWSM image, retaining the same security context and mode configuration.
•Upgrading a Catalyst 6500/7600 chassis from any IOS 12.x image to another IOS 12.x image.
Note This list applies only to images that are supported by Security Manager. For a list of supported images, see Supported Devices and Software Versions for Cisco Security Manager for this version of the product at http://www.cisco.com/en/US/products/ps6498/products_device_support_tables_list.html.
For these cases, use the following procedure to change the image version.
Related Topics
•Understanding the Device View
•Understanding Device Properties
•Understanding Policies, page 6-1
•Changes That Change the Feature Set in Security Manager
Step 1 Upgrade the image version on the device.
Step 2 In Device view, do one of the following in the Device selector to open the Device Properties dialog box:
•Double-click a device.
•Right-click a device and select Device Properties.
•Select a device and select Tools > Device Properties.
Step 3 In the Device Properties dialog box, change the Target OS Version property on the General page to the updated version number and click Save.
These are the main types of device changes that affect the policy feature set available for a device:
•Image version changes—The following image version changes affect the types of policies available for that device in Security Manager:
–Upgrading from a PIX 6.x to a PIX 7.x image or from a 7.x to an 8.x image.
–Downgrading from a PIX 7.x to a PIX 6.x image or from an 8.x to a 7.x image.
–Upgrading from an ASA 7.x to an ASA 8.x image.
–Downgrading from an ASA 8.x to an ASA 7.x image.
–Upgrading from a FWSM 2.x image to an FWSM 3.x image.
–Downgrading from a FWSM 3.x image to an FWSM 2.x image.
–Upgrading from an IPS 5.x to an IPS 6.x image, or from a 6.x to 7.x image.
–Downgrading from an IPS 6.x image to a 5.x image, or from a 7.x to a 6.x image.
–Upgrading from an IOS 12.1 or 12.2 image to an IOS 12.3 or 12.4 image.
–Downgrading from an IOS 12.3 or 12.4 image to an IOS 12.1 or 12.2 image.
Security Manager prevents you from changing the target OS version of a managed device to a version that changes the types of policies that are available for that device. Therefore, you must first delete the device from Security Manager, perform the image change, then add the device back.
Certain types of policies, such as access rules, are not affected by changes in image version or changes in platform type.
•Security context and operational mode changes—Changes that you make to the security context and operational mode settings on an FWSM or ASA device enable a different set of features on that device. These changes occur if you change the device from:
–Single context to multiple context (or vice-versa).
–Routed mode to transparent mode (or vice-versa).
Security Manager prevents you from changing the security context or operational mode settings of a managed device. Therefore, you must first delete the device from Security Manager, change the context or mode, then add the device back.
Certain policy types (for example, Banner, Clock, Console Timeout, and HTTP) are not affected by changes in operational mode. Other policy types (for example, ICMP, SSH, and TFTP, in addition to Banner and Clock) are not affected by changes in security context settings.
•Replacing device hardware—In some cases, you might replace a particular device but retain the original contact information (such as the IP address), for example:
–Replacing a PIX firewall with a Cisco IOS router.
–Replacing a PIX 7.x device with an ASA device.
–Replacing a Cisco IOS router with a firewall device.
In all of these cases, the new device changes the types of policies available for that device in Security Manager. Security Manager prevents you from modifying the hardware model of an existing device. Therefore, you must first delete the device from Security Manager, change the physical device, then add the device back.
Certain policy types (for example, access rules) are not affected by changes in device type.
We recommend that you share the policies configured on your device that will not be affected by the change before you remove it from Security Manager. This provides a useful method for reassigning the policies to the device (with any inheritance and policy object references intact) after you add it back to Security Manager. The following procedure describes how to do this.
Related Topics
•Understanding the Device View
•Understanding Device Properties
•Understanding Policies, page 6-1
•Image Version Changes That Do Not Change the Feature Set in Security Manager
Step 1 Submit and deploy all the changes you configured for the device in Security Manager. This ensures that the desired configuration is on the device before the image upgrade.
Step 2 Share the local policies defined on the device:
a. Right-click the device in the Device selector, then select Share Device Policies. By default, all policies configured on the device (local and shared) are selected for sharing in the Share Policies wizard.
b. Deselect the check box next to each existing shared policy, as indicated by the hand in the policy icon. You should do this because there is no need to create a copy of the shared policies that already exist; you will reassign the existing shared policies after the image version upgrade.
c. Enter a name for the shared policies. We recommend using the device name as a convenient means of identification. For example, if the device name is MyRouter, each shared policy is given the name MyRouter. Make a note of all the policies you are creating for this purpose.
d. Click Finish. The selected local policies become shared policies.
Step 3 Delete the device from Security Manager.
Step 4 Make the desired change to the device, for example, upgrade the image version, change the operational mode, or replace the device.
Step 5 Add the device back to Security Manager and perform policy discovery.
Step 6 Reassign the policies to the device:
a. Right-click the first policy type displayed in the Device Policies selector, then select Assign Shared Policy.
b. In the Assign Shared Policy dialog box, do one of the following:
•If a local policy was previously defined on the device, select the shared policy you created for this procedure and click OK.
•If a shared policy of this type was previously assigned to the device, select it and click OK.
c. (Local policies only) Right-click the policy type again in the Device Policies selector, then select Unshare Policy.
d. Repeat the process for each policy type that is relevant to the device's configuration. If a shared policy is not available, this indicates that this is a policy type that was not available for the previous image version.
Step 7 (Optional) Delete the shared policies created for this procedure from Policy view:
a. Select View > Policy View or click the Policy View icon on the toolbar.
b. Select one of the policies you want to delete and click the Assignments tab in the work area to verify that the policy is not assigned to any devices.
c. Click the Delete Policy button beneath the Shared Policy selector to delete the policy.
d. Repeat the process for each policy type that you want to delete.
If you discover device inventory and policies directly from devices, or deploy configurations to devices rather than to files, you must configure Security Manager to use the transport protocols that your devices use. For some device types, only one transport protocol is supported, so you do not need to make a choice. For other devices, such as Cisco IOS routers, you have options concerning the protocols you use.
Security Manager has default settings for transport protocols that are the most-used protocols for each device type. To change these settings, select Tools > Security Manager Administration and select Device Communication from the table of contents (see Device Communication Page, page A-11).
For most users, the communication settings that require management are the certificates used for SSL (HTTPS) connections and the public keys used for SSH connections. You might update the certificates and keys on the device, which would leave Security Manager holding an outdated copy. To managing certificates and keys:
•SSL certificates—You can configure Security Manager to automatically replace certificates using the ones obtained from the device on the Device Communication page. If you decide to manually manage the SSL certificate store, see Manually Adding SSL Certificates for Devices that Use HTTPS Communications.
•SSH Public Keys—By default, Security Manager replaces public keys with the new ones obtained during SSH connections. If you have problems with SSH communications, see Troubleshooting SSH Connection Problems.
When you use SSL (HTTPS) as the transport protocol for communicating with IPS, PIX, ASA, or FWSM devices, or Cisco IOS routers, you can configure Security Manager to automatically retrieve the device authentication certificate when adding the device (see Device Communication Page, page A-11).
Tip Having an accurate certificate is required for successful HTTPS communications; Security Manager cannot communicate with the device without the correct certificate, which prevents configuration deployment. When using self-signed certificates, the device might create a new certificate if Security Manager attempts to access it using the wrong certificate. Thus, it is best to configure Security Manager to always retrieve the certificate from the device.
Instead of having Security Manager automatically retrieve the certificates, you can manually add them to increase the level of network security. On the Device Communication page, you would configure the device authentication setting for the device type as Manually add certificates.
The easiest way to manually update the certificate for a device is to retrieve it from the device. Right-click the device and select Device Properties. Click Credentials to open the Credentials page, and then click Retrieve From Device to the right of the Authentication Certificate Thumbprint field. Security Manager retrieves the certificate and prompts you to accept it. You might need to do this if you encounter certificate problems during configuration deployment.
You can also manually type in, or copy and paste, the certificate thumbprint without having Security Manager log into the device. Use the following procedure to manually enter the SSL certificate thumbprint for a device if you configured that device type to require manually added certificates.
Before You Begin
Obtain the certificate thumbprint (a hexadecimal string) for the device.
Tip If the thumbprint is not readily available, you can copy it from the error message that is displayed when you add the device from the network or from an export file.
Step 1 Select Tools > Security Manager Administration and select Device Communication from the table of contents to open the Device Communication page (see Device Communication Page, page A-11).
Step 2 Click Add Certificate to open the Add Certificate dialog box (see Add Certificate Dialog Box, page A-14).
Step 3 Enter the DNS hostname or IP Address of the device, the certificate thumbprint in hexadecimal format, and click OK. The thumbprint is added to the certificate store.
Tip To erase an existing thumbprint, leave the Certificate Thumbprint field empty.
For devices that use SSH as the transport protocol, Security Manager automatically detects the appropriate SSH version (1.5 or 2) to use with each device. During SSH version 2 connections, Security Manager automatically negotiates encryption algorithms or ciphers with the device. Security Manager also automatically overwrites the SSH public key for the device if the key changes. Thus, you typically will not run into SSH connection problems.
If you do have SSH connection problems, consider these fixes:
•If the public key on the device changed, and SSH connections are failing due to a key problem, remove the key for the device from the Program Files/CSCOpx/MDC/be/tmp/.shh/known_hosts file on the Security Manager server and retry the operation.
•Security Manager uses 3DES (Data Encryption Standard) as the default encryption algorithm. If this is not the correct algorithm for your devices, either change the configuration of your devices, or update the Program Files/MDC/athena/config/DCS.properties file to indicate the correct algorithm on the DCS.ssh.encipher property. (Contact Cisco TAC if you need more help). You must restart the Security Manager daemon manager if you change this file.
Related Topics
•Chapter 4, "Preparing Devices for Management"
•Device Communication Page, page A-11
If you use the Cisco Security Monitoring, Analysis and Response System (CS-MARS) servers to monitor devices, you can register them in Security Manager and then view syslogs and events that are related to firewall access or IPS signature rules for individual devices.
Security Manager can automatically discover the CS-MARS servers that monitor a device when you try to view events related to a rule. If more than one server monitors a device, you are prompted to select which server to use.
You can also proactively select the CS-MARS server for a device in its Device Properties window. Similarly, if you ever need to change the CS-MARS server assigned to a device, you can change the selection in its Device Properties window. This procedure explains how to discover or change the CS-MARS server for a device from its Device Properties window.
Before You Begin
The CS-MARS server that monitors the device must already be registered with Security Manager on the CS-MARS administration page (Tools > Security Manager Administration > CS-MARS). For more information, see Registering CS-MARS Servers in Security Manager, page 20-23.
Related Topics
•Understanding the Device View
•Understanding Device Properties
Step 1 In Device view, do one of the following in the Device selector to open the Device Properties dialog box:
•Double-click a device.
•Right-click a device and choose Device Properties.
•Select a device and choose Tools > Device Properties.
Step 2 Click General in the table of contents to open the General properties page (see General Page, page C-28).
Step 3 In the CS-MARS Monitoring group, click Discover CS-MARS. Security Manager determines which registered server is monitoring the device, if any. If there are more than one, you are prompted to select which CS-MARS server to use.
You can display the service modules, security contexts, and virtual sensors that are contained in devices that include them. Based on the type of device, you can view these contained elements:
•Catalyst 6500 devices—The IDSM and FWSM service modules, security contexts, and virtual sensors.
•For FWSM, PIX Firewall 7.0, and ASA devices—The security contexts defined on the device. For information about security contexts, see Configuring Security Contexts on Firewall Devices, page 14-82.
•IPS devices—The virtual sensors defined on the device.
To view contained items, in Device view, select one of these types of devices and then select Tools > Show Containment, or right-click the device and select Show Containment. The Composite View dialog box opens and displays elements contained in the selected device, if any.
A cloned (duplicate) device shares the configurations and properties of the source device. Cloning a device saves you time because you do not need to re-create configuration and properties on the new device.
The cloned device shares the device operating system version, credentials and grouping attributes with the source device, but it has its own unique identity, such as display name, IP address, hostname, and domain name. You can clone only one device at a time.
Note You cannot clone a Catalyst switch or a Catalyst 6500/7600 device.
Related Topics
•Understanding the Device View
•Copying Policies Between Devices, page 6-22
Step 1 In Device view, right-click the device to clone in the Device selector and select Clone Device. The Create a Clone of Device dialog box appears (see Create a Clone of Device Dialog Box, page C-27).
Tip You can also right click a device in Map view and select Clone Device.
Step 2 Enter the IP address and names for the clone in the appropriate fields. At minimum, you must enter a new display name.
Step 3 Click OK. A clone of the source device with its unique display name is created in the Device selector.
If you do not want to continue managing a device in Security Manager, you can delete it from the inventory. Deleting a device from Security Manager does not delete it from any other network management program. The deletion also does not change any configuration settings on the device.
Tip If you delete a device that contains other devices, the contained devices are also deleted. For example, if you added a Catalyst switch and its contained FWSM, if you delete the switch, the FWSM is also deleted. You are warned if contained devices will be deleted.
Before You Begin
Ensure that no one is configuring policies on the device or deploying configurations to the device. Basic device management, such as adding and deleting devices, does not happen within an activity or configuration session, so locks are not acquired. You can inadvertently delete a device while policies are being deployed to it, which will result in errors during deployment such as "failed to generate edit config delta." Use the Deployment Manager to determine if there are active jobs that include the device before you delete it (select Tools > Deployment Manager).
Step 1 In Device view, select the device to delete from the Device selector.
Step 2 Click the Delete button or select File > Delete Device. You are asked to confirm the deletion.
If problems occur during the deletion, the Device Delete Validation dialog box opens (see Device Delete Validation Page, page C-26). The problem is described and you can elect to continue with the deletion (if possible) by clicking OK.
You can view a summary of device properties for all devices that you are authorized to view. The summary includes device contact information and all device configurations, indicating which settings are local and which are using a shared policy, and indicating any policy object overrides in effect.
If you are using Performance Monitor to monitor your devices, status information from Performance Monitor can be included in the inventory summary if Security Manager is configured to provide it. You can also view the status of configuration deployment to the device. For information on how to configure the inventory status to show this information, see Configuring Status Providers, page 20-11.
The report is in table format, allowing you to organize information by filtering, sorting, reordering and removing columns. You can also export the table contents to a comma-separated values (CSV) file on the Security Manager server.
Step 1 In Device view, select Tools > Inventory Status. The Inventory Status appears (see Inventory Status Window, page C-39).
•To view a subset of the devices listed, select a filter from the Filter list, or you can create a filter. For more information, see Filtering Tables, page 2-16.
•To view information for a specific device, use the scroll buttons or click on a row to highlight the device.
•To export the inventory status report to a CSV file, click Export. In the Export Inventory Status dialog box, select the directory where you want to create the file, enter a name for the file, and click OK.
Step 2 Click Close to close the Inventory Status window.
Exporting the device inventory allows you to import the inventory into other network management applications or to manipulate the output for your own reporting purposes. There are two unrelated methods to export the device inventory:
•Use the Tools > Export Inventory command—Using this command, you can export the inventory in a format suitable for importing into the CiscoWorks Common Services Device Credential Repository (DCR), Cisco Security Monitoring, Analysis and Response System (CS-MARS), or Security Manager. For more information, see Exporting the Device Inventory from the Security Manager Client.
•Use the CSMgrDeviceExport Perl script—Using this Perl script, you can export the inventory without starting the Security Manager client. You can direct the output to the screen or to a comma-separated values (CSV) file. For more information, see Exporting the Device Inventory from the Command Line.
You can export the Security Manager device inventory and then use the exported file to import the inventory into a program that supports the format. The format types you can use are:
•Device Credential Repository (DCR)—The device management system for CiscoWorks Common Services. For information on this format, see the description of sample version 3.0 CSV file in the Common Services documentation at this URL: http://www.cisco.com/en/US/docs/net_mgmt/ciscoworks_common_services_software/3.2/user/guide/dcr.html#wp1193611
•CS-MARS—Cisco Security Monitoring, Analysis and Response System. For information on this format, see the CS-MARS documentation at this URL: http://www.cisco.com/en/US/docs/security/security_management/cs-mars/5.3/user/guide/local_controller/cfgover.html#wp1212140
•Cisco Security Manager—The Security Manager format, which is the DCR version 3.0 format with additional fields. If you are importing the inventory into another Security Manager server, selecting this format will allow you to import the inventory without discovering policies on the devices.
Note If the file does not specify os_type and os_version for a device, you must discover policies directly from the device when adding it.
The additional fields, which appear at the end of each row, are:
–os_type. The operating system type, which can be one of the following: PIX, ASA, IOS, FWSM, IPS. This field is required for all device types.
–os_version. The target operating system version, which can be any of the version numbers listed in the New Device wizard when you select Add New Device. The acceptable version numbers differ depending on the device model, so if you are creating a CSV file by hand, look over this list carefully. For more information about adding devices using this method, see Adding Devices by Manual Definition. This field is required for all device types.
–fw_os_mode. The mode in which a firewall device is running, which can be one of the following: TRANSPARENT, ROUTER, MIXED. This field is required for ASA, PIX, and FWSM devices.
–fw_os_context. The context in which a firewall device is running, which can be one of the following: SINGLE, MULTI. This field is required for ASA, PIX, and FWSM devices.
–anc_os_type. The ancillary operating system type for Cisco IOS-IPS devices. If present, it is IPS. This field is required for IOS IPS devices.
–anc_os_version. The ancillary target operating system version, which is the IPS target operating system version. If present, it can be any of the supported IOS-IPS versions. This field is required for IOS IPS devices.
You can export information on devices to which you have Modify Device permissions.
Before You Begin
If you select a device that uses an AUS or Configuration Engine to manage its configuration, you must also select the server in the list of devices to export. You can export AUS or Configuration Engine information only in DCR or Security Manager format.
Step 1 In Device view, select Tools > Export Inventory to open the Export Inventory dialog box (see Export Inventory Dialog Box, page C-35).
Step 2 Select the devices that you want to include in the export file and click >> to add them to the Selected Devices list. You can select a folder to select all devices in the folder.
Step 3 Click Browse to select the folder on the Security Manager server in which to create the export file and to enter a name for the file. For File Type, select the type of CSV file you want to create.
Click Save to return to the Export Inventory dialog box. The Export Inventory To field is updated with the export file information.
Step 4 Click OK to create the export file.
If there are problems during the export, the Issues Encountered dialog box opens explaining the problems for each device. For more detailed information for an issue, select a device and click Details.
Security Manager includes a Perl script that you can use to export the device inventory without starting the Security Manager client. You can use this script to automate various offline reporting tasks that your organization might require. You can pipe the output to a comma-separated values (CSV) file or otherwise capture and manipulate the output.
The Perl command is located in $NMSROOT\bin, which is typically C:\Program Files\CSCSpx\bin. The syntax of the command is:
perl [path]CSMgrDeviceExport.pl -u username [-p password] [-s {Dhdoirtg}] [-h] [> filename.csv]
Syntax
Output Format
The output is in standard comma-separated values (CSV) format, which you can open in spreadsheet programs or process with your own scripts. The first line has column headings. The columns, left to right, are in the order of the fields described for the -s option above.
If there is no value for a particular field, that field is blank in the output.
The device group output field is enclosed in double-quotes and it can contain more than one group name. The group names include the path structure for the group. For example, the following output indicates the device is part of two groups, the East Coast group in the Department folder, and the NewGroup group in the New folder. Groups are separated by a semicolon.
"/Department/East Coast; /New/NewGroup"
Any error messages generated during the script are written to the output file.
Security Manager includes shortcut links to several key features in Resource Manager Essentials (RME). You can use software management to analyze individual device operating system versions (also known as image versions) and generate image analysis reports. You can use the report to import and distribute operating system images to groups of devices. You can also schedule operating system upgrade jobs to ensure up-to-date versions and minimize errors.
To enable the shortcut commands, you must configure Security Manager with the location of the RME server. For information on configuring the RME location, see Device OS Management Page, page A-15.
RME Software Image Management (SWIM) includes the following features:
•Software Repository—Determines the images that are missing from the network, imports these images into the software library, keeps the library up-to-date, and periodically synchronizes the library with the images running on the network devices. You can also schedule an image import for a later, more convenient time, as well as download an appropriate image from Cisco.com.
To access the software repository, select Tools > Device OS Management > Software Repository.
•Software Distribution—Generates upgrade analysis reports that allow you to determine prerequisites for image upgrade. You can either select a set of devices and perform an image upgrade, or select a software image and select a set of devices on which to perform the upgrade.
To manage software distribution, select Tools > Device OS Management > Software Distribution.
•Software Management Jobs—Allows you to view, edit, stop, or delete scheduled image upgrade jobs.
To manage software management jobs, select Tools > Device OS Management > Management Jobs.
For specific information on using these RME features, read the online help included with RME.
You can create device groups to help you organize your devices for more effective device management. The following topics explain device groups and how to use them:
•Understanding Device Grouping
•Deleting Device Groups or Group Types
•Adding Devices to or Removing Them From Device Groups
Device groups are simple, arbitrary, organizational collections of devices that you create for more effective network visualization. They are not policy-sharing entities. They are distinct from the various policy object groups (for example AAA server group objects and user group objects). For information on policy objects, see Chapter 8, "Managing Policy Objects."
Tip If you have a large number of devices, grouping them can make it easier to select a subset of devices when you deploy changes to them. For example, if there is a set of devices that you know you will want to deploy changes to simultaneously, if you put them in a single device group, you just have to select the group in the deployment job. For more information about policy deployment, see Chapter 17, "Managing Deployment."
Device grouping enables you to view a subset of devices in the inventory. The device group hierarchy has two types of folders:
•Device group types—Group types are the highest level in the hierarchy. A group type can contain specific device groups, but it cannot contain devices, except for the All group type, which includes all devices in the inventory. Security Manager comes with the group types Department and Location predefined, but you do not need to use them, and you can delete them. You can create a maximum of 10 group types.
•Device groups—Device groups are subfolders within a group type folder. You can create multiple levels of nested device groups. You can place devices within device groups. However, a device can be in only one group within a group type. For example, in Figure 5-3 under the group type, Location, you can assign routerx to San Jose, but you cannot assign routerx to San Jose and California.
Figure 5-3 shows an example of nested device groups with devices in some of the groups. Notice that an individual device can reside in multiple groups. In this example, routerx is in the Finance group (under the Department group type), and also in the Location > United States > California > San Jose nested group. If you select routerx in any of these places, you are configuring a single device (the configurations are not tied to the grouping).
Figure 5-3 Device Groups
Security Manager lets you create or delete group and group types, and put devices in groups, in many locations in the interface:
•When adding devices to the inventory—The New Device wizard includes a Device Grouping page, where you can create device group types and select a group for the newly-added device. You can also select a default group to which all new devices are added.
•When viewing the device inventory in Device view—The File > Edit Device Groups command opens a dialog box where you can create or delete groups and group types. If you select a group or group type in the Device selector, the File menu and the right-click shortcut menu includes commands for adding groups or adding devices to groups.
To add devices to a group, or remove them from a group, select the group and select File > Add Devices to Group.
•When viewing the properties for a device—The Device Grouping page allows you to select the groups to which the device belongs, and to set defaults for devices added to the inventory. This is the only place where you can remove a device from a device group. Double-click a device in the Device selector to open the device properties.
•When using the administration pages—Select Tools > Security Manager Administration > Device Groups to open the administration page for device groups, where you can create or delete groups and group types, but you cannot add devices to groups here.
Related Topics
•Deleting Device Groups or Group Types
•Adding Devices to or Removing Them From Device Groups
This procedure describes the most direct method to create device group types. For information on other methods of adding group types, see Understanding Device Grouping.
Device group types are the top-level categories in your device group hierarchy. If you want add a device group, see Creating Device Groups
Related Topics
•Understanding Device Grouping
•Deleting Device Groups or Group Types
•Adding Devices to or Removing Them From Device Groups
Step 1 Select File > Edit Device Groups.
The Edit Device Groups page opens (see Edit Device Groups Dialog Box, page C-36).
Step 2 Click Add Type. A new device group type entry is added to the selector.
Step 3 Enter a name for the group type and press Enter.
Step 4 Click OK to close the Edit Device Groups page.
This procedure describes the most direct method to create device groups. For information on other methods of adding groups, see Understanding Device Grouping.
Device groups are the lower-level categories in your device group hierarchy, and are added either within a device group type (top-level) or within another device group. If you would rather add a device type group, see Creating Device Group Types.
Related Topics
•Understanding Device Grouping
•Adding Devices to or Removing Them From Device Groups
•Deleting Device Groups or Group Types
Step 1 In the Device selector, right-click the device group type or a device group in which you want to create the group and select New Device Group. The Add Group dialog box appears.
Step 2 Enter a name for the device group and click OK. The new device group is added to the Device selector.
If you no longer need a device group or group type, you can delete it. The only group type that you cannot delete is the All group.
When you delete a group or group type, you delete any groups that are in it. However, you are not deleting any devices. The devices that are in the group remain in the inventory and can be found in other groups to which they belong (you can find all devices in the All group).
There are many ways to delete device groups and group types. This procedure explains the most direct way. For information on other methods of deleting them, see Understanding Device Grouping.
Step 1 In Device view, select File > Edit Device Groups. The Edit Device Groups page opens (see Edit Device Groups Dialog Box, page C-36).
Step 2 Select the group type or group you want to delete and click the Delete button. You are asked to confirm the deletion.
You must create a device group before you add devices to it. To create groups, see Creating Device Groups.
Related Topics
•Understanding Device Grouping
Step 1 Select the device group in the Device selector, right-click and select Add Devices to Group. The Add Devices to Group page appears.
Step 2 To add devices to the group, select the devices in the Available Devices selector and click >> to move them to the Selected Devices list.
To remove devices, select them in the Selected Devices list and click <<.
Step 3 Click OK. The device group membership is adjusted to include the devices that were in the Selected Devices list.
