Campus Software Image Management (SWIM) Using Cisco DNA Center Deployment Guide



Introduction

Audience

The audience for this document is network administrators who wish to automate the upgrade of a Catalyst 9000 series switch at a branch or campus using Cisco DNA Center software image management (SWIM) solution.

About The Solution

Cisco DNA Center stores all the unique software images according to image type and version for the devices in your network. It allows to view, import, and delete software images and also push software images to the devices in your network. Software upgrade can also be scheduled for later date and time.

About This Guide

This guide demonstrates the value of the Cisco DNA Center software image management (SWIM) solution using a specific combination of equipment, OS version, and configuration. You may apply this procedure to any Catalyst 9000 series switch but in this guide, we will only focus on Catalyst 9300 switch.



Use Cases

Standardize software images for your network devices with software image management (SWIM).



Implementation Flow

This document contains four major sections:

●      The Define section presents a high-level overview of how software image management (SWIM) within Cisco DNA Center can help reduce device installation and upgrade times from hours to minutes.

●      The Design section discusses the pre-requisites for setting up software image management (SWIM) in a network with Cisco DNA Center.

●      The Deploy section of the guide shows how to standardize an image by marking as a golden image and go through the update image workflow to distribute and activate the golden image on a network device.

●      The Operate section briefly discusses the known caveats of software image management (SWIM) in Cisco DNA Center.



Define

Solution overview

Cisco DNA Center can help with the non-fabric wired deployments in various different ways such as – network discovery, network inventory, return merchandise authorization, software image management (SWIM) etc.



Campus Topology highlighting Standardize software images for your network devices with SWIM.

Cisco DNA Center is designed for intent-based networking (IBN). The solution breaks the process in to Day 0 and Day N. The solution provides a unified approach to provision enterprise networks comprised of Cisco routers, switches, and wireless devices with a near zero touch deployment experience.

Zero-touch device connectivity and Software Image Management (SWIM) features reduce device installation and upgrade times from hours to minutes and bring new remote offices online with plug-and-play ease from an off-the-shelf Cisco device. Software Image Management (SWIM) manages software upgrades and controls the consistency of image versions across your network.

Design

Before you proceed you must make sure you already have Cisco DNA Center installed on your network.



Before performing an image upgrade, the following pre-requisites should be reviewed.

1.     Check the Minimum Software Releases Requirements on Devices

Cisco DNA Center requires the software releases on devices to meet the ones listed in Minimum Supported Software Version column of supported devices spreadsheet below: https://www.cisco.com/c/en/us/support/cloud-systems-management/dna-center/products-device-support-tables-list.html

2.     Devices have CLI /SNMP or HTTPS/SCP credentials.

Network devices should be in managed state or the administrators have CLI/SNMP or HTTPS/SCP credentials for Cisco DNA Center to discover them and bring them in managed state before performing a Software Image upgrade. This requirement is only for Day N scenario.

3.     CCO Credentials

Though this is not a mandatory requirement for SWIM but its strongly recommended to add CCO credentials. Otherwise, certain features like ROMMON upgrade or suggested and latest image display list of images will not function. CCO Credentials is also required to download the KGV file for Integrity Verification of Software Images.

4.     Integrity Verification of Software Images

The Integrity Verification application monitors software images that are stored in Cisco DNA Center for unexpected changes or invalid values that could indicate your devices are compromised. During the import process, the system determines image integrity by comparing the software and hardware platform checksum value of the image that you are importing to the checksum value identified for the platform in the Known Good Values (KVG) file to ensure that the two values match.



Process 1: Connect to Cisco and access software images

Cisco DNA Center must be connected to Cisco (CCO) to display and allow you to select Cisco-recommended software images for the devices that it manages.



Procedure 1.     Verify Cisco Credentials

Step 1.    Login to the Cisco DNA Center.

Step 2.    Click the hamburger icon, then select System > Settings.

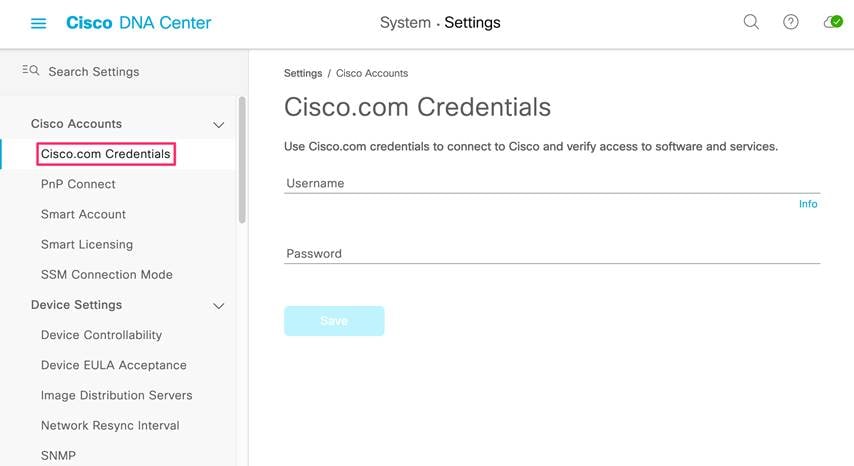

Step 3.    In System . Settings select Cisco.com Credentials from left.

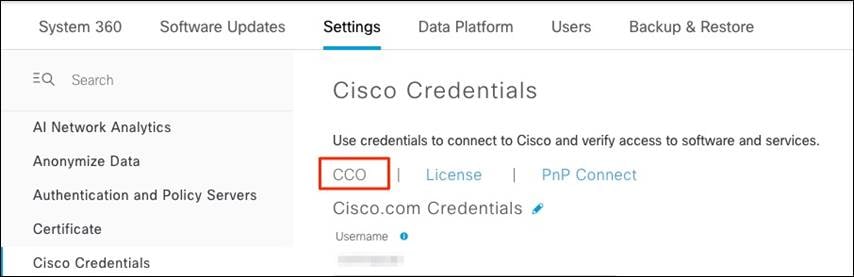

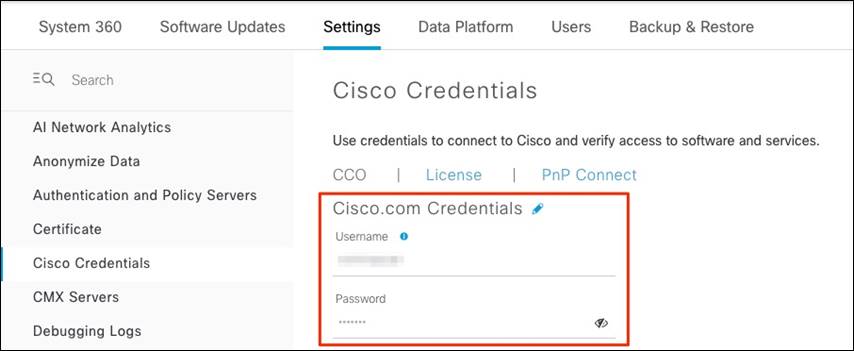

Step 4.    Under Cisco Credentials, select CCO



Step 5.    Enter the Cisco Connection Online (CCO) username and password.







Step 6.    Select Use Cisco.com user ID and click Apply.





Deploy

This section of the guide shows how to standardize an image by marking as a golden image and go through the update image workflow to distribute and activate the golden image on a network device (example: Catalyst 9300 Series Switch).

Process 2: Upgrade Workflow

This process is used to import and upload the latest software images for a network device (example: Catalyst 9300 Series Switch) to the Cisco DNA Center software image repository.

Table 1.    Software Images for the Catalyst 9300 Series Switches

The following procedures are required for this process:

●      Standardize the image by marking a Golden Image.

●      Distribute and activate the software image for the switch.

Procedure 1.     Standardize the image by marking a Golden Image

Images can be imported automatically through Cisco Connection Online (CCO) or manually uploaded. Cisco DNA Center perform the following.

·       Image Compliance Check (Pre/Post)

·       Automatically download of Software Maintenance Updates (SMU)

·       Prompt to provision Image updates

For the purpose of this guide, we will use the latter.

Cisco DNA Center displays the suggested and latest image list for each of the discovered device families.



Use the following steps to apply software updates of images and software maintenance updates (SMUs) to the devices, by importing the required images, marking images as golden, and applying images to devices.



Option 1 – (AUTO) Recommended Software Image

It’s highly recommended to mark a software image as golden from the list provided by Cisco-recommended images.



Step 1.    Login to Cisco DNA Center.

Step 2.    Go to Design > Image Repository

Step 3.    Click to expand to view the full list available Cisco-recommended images.





Step 4.    Mark the Cisco-recommended image as golden.

















Option 2 – (Manually) Upload Software Image

If the software image you would like to mark as golden is not available, you can upload the image manually.



Step 1.    Login to Cisco DNA Center.

Step 2.    Go to Design > Image Repository

Step 3.    Click +Import

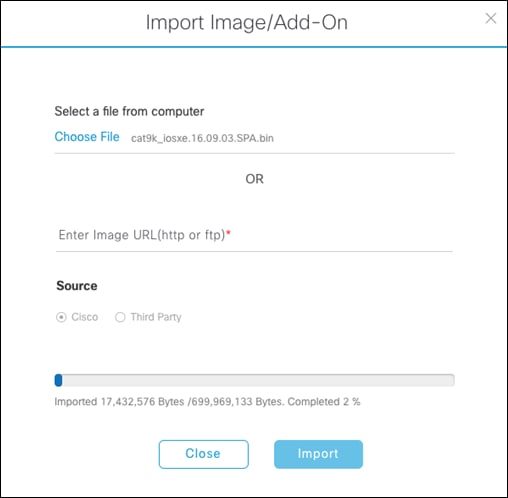

Step 4.    From the Import Image/Add-On dialog, choose a file location, and then click Import.

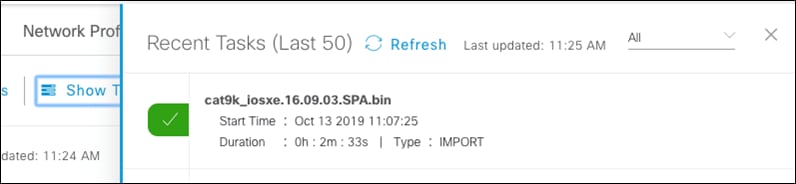

Step 5.    Under Image Repository, click Show Tasks to verify if the import was successful.

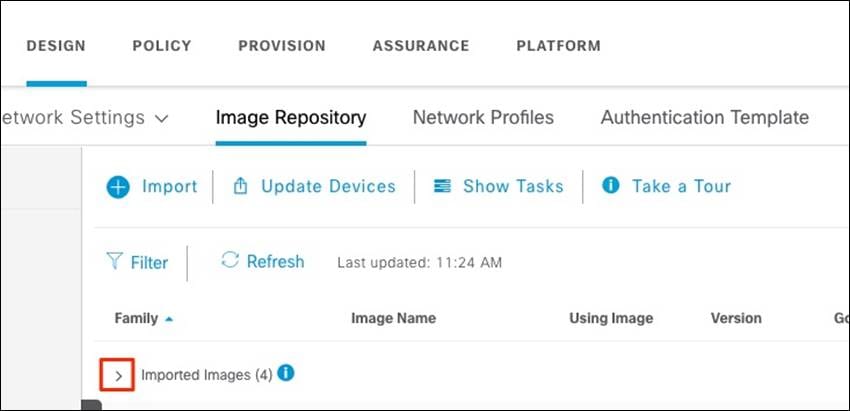

Step 6.    Under Image Repository, click Imported Images to expand the list of all the imported images that are pending to be assigned to a device family.



Step 7.    Click on Assign next to the image name need to be assigned.

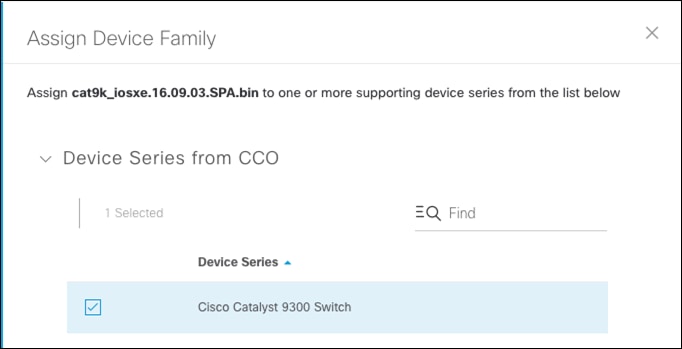

Step 8.    The slide out panel will show the list of device series from CCO based on the selected image. Check the box next to the Device Series and click Assign.

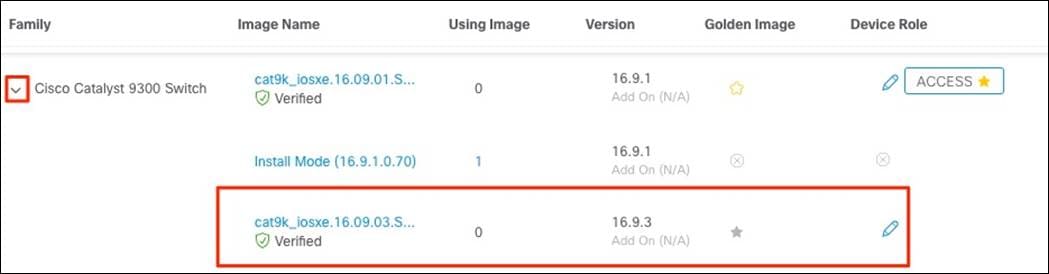

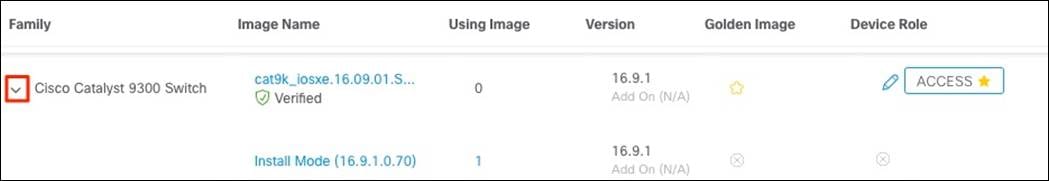

Step 9.    Go to the assigned Device Family and click the expand icon and verify the image imported is available to mark as golden.



Step 10.                       Mark the manually uploaded image as golden.

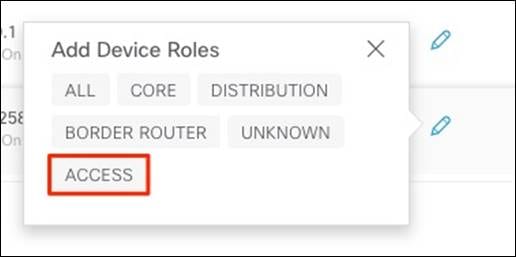

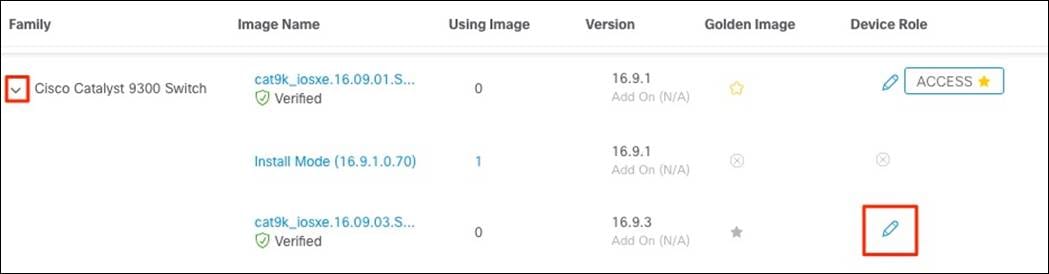

Step 11.                       (Optional) Click the pencil icon and select the appropriate role, to mark a Golden Image for specific device role.



Step 12.                        (Optional) Select ACCESS tag.



Step 13.                       Verify image is marked as golden and ACCESS tag is selected.

Procedure 2.     Provision and activate the software image

Now that the image is in repository, it can be distributed and activated on the network devices. It’s recommended to run the activation at a specified date and time to comply with existing network change windows.

Before pushing a software image to a device, Cisco DNA Center runs a compliance check of devices in inventory compared to the images marked golden. Devices out of compliance with the golden image are marked as Need Update in inventory.  If you have not designated a golden image for the device type, then the device's image cannot be updated.

Cisco DNA Center also performs pre-checks on the device, such as checking the health of the CPU, disk space, and the route summary etc. After it pushes a software image to a device, Cisco DNA Center repeats these checks to ensure that the state of the network remains unchanged.

The following are the steps for distributing software images to the Catalyst 9300 switch or any network device in the inventory.

Step 1.    From the main Cisco DNA Center dashboard navigate to Provision > Devices

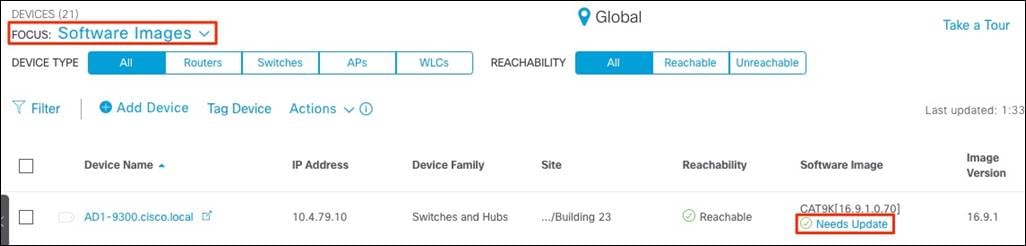

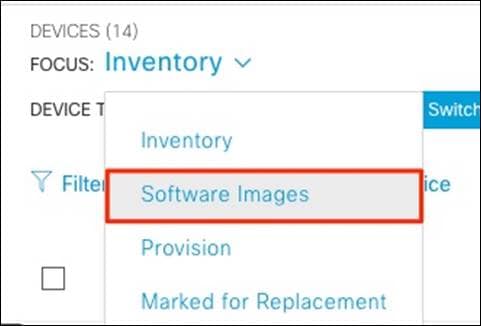

Step 2.    Click the devices focus which is set to Inventory by default and select Software Images.

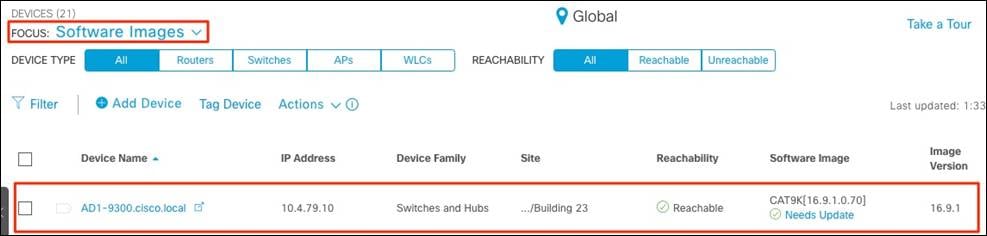

Step 3.    From the list of devices, locate the switch (example: AD1-9300.cisco.local)



Step 4.    Click Needs Update

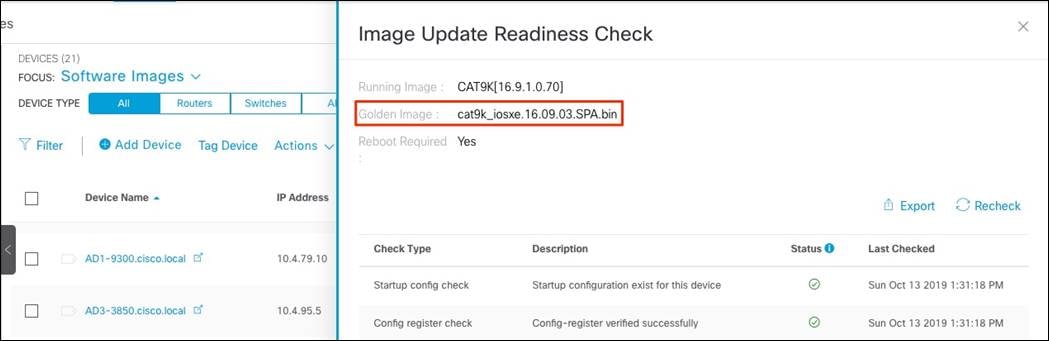

Step 5.    Under Image Update Readiness Check, verify the correct Golden Image is shown.





Step 6.    Under the Actions drop-down menu, select Software Image > Update Image.

Step 7.    Go through the 3-steps Update Image workflow.

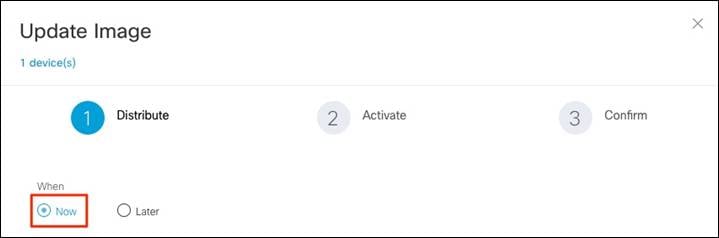

1.     Distribute: Select Now or Later (recommended for production devices) and click Next.

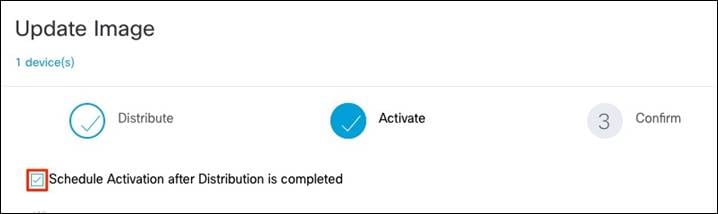

2.     Activate: Check Schedule Activation after Distribution is completed and click Next.

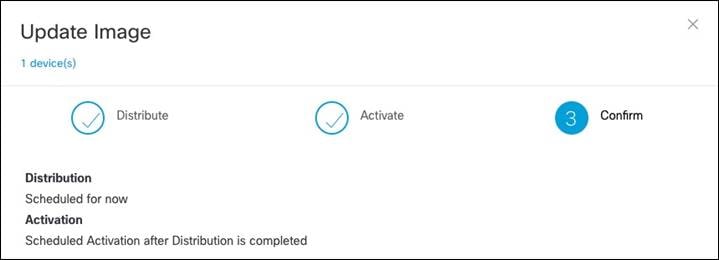

3.     Confirm: Review the summary and click Confirm.





A notification is displayed stating the image update initiated.

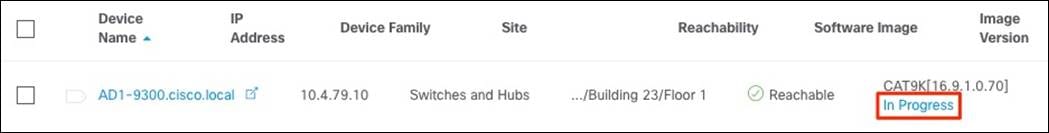

Step 8.    Verify the under the Software Image column, Need Update changed to In Progress.

Step 9.    Monitor the Update Status of the device.

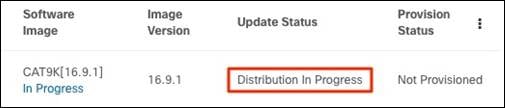

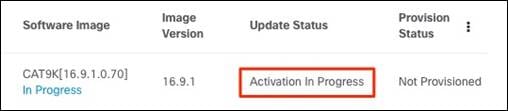

a. Update Status changes to Distribution in Progress

b. Update Status changes to Activation in Progress

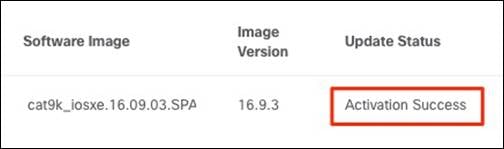

c. Update Status changes to Activation Success

Verify the software image of the switch (example: AD1-9300.cisco.local) is now updated to the golden image (example: 16.9.3).

Operate

Known Caveats

●      In Cisco DNA Center, it is mandatory to mark image as Golden for device family for upgrade at global or site levels. Golden image is essentially equivalent to the certified software image by Enterprise IT, which will be used to standardize the image for all relevant devices of this device family in customer network environment.

●      Golden image can be defined not only on a per device family, but also on device role. In general, you may only have one golden image per device family and for that, use ALL tag to apply in the device role.

●      Configuring a time zone within IOS XE devices via the clock time zone IOS CLI command may cause a warning to appear within the Image Upgrade Readiness Check panel, indicating the time is significantly different between your device and Cisco DNA Center.  You may be able to clear this warning by removing the clock time zone command from the device, resyncing the device within inventory, and clicking on the Recheck button to run the readiness assessment again. This will cause the time format of the device be displayed in UTC time, rather than the local time zone.

●      During the SWIM upgrade of the network switch, DNAC does not modify the boot variable like the packages.conf filename or its location in bootflash.  It takes the original file and modify the contents only to complete the upgrade after the device reboot.

Appendix A— Hardware and software used for validation

Table 2.    Hardware and software

Appendix B—Glossary

Cisco DNA  Cisco Digital Network Architecture

Cisco PnP  Cisco Plug and Play

SWIM  Software Image Management

SSL  Secure Sockets Layer

VLAN  Virtual Local Area Network



Feedback

For comments and suggestions about this guide and related guides, join the discussion on Cisco Community.
