Data Center Access Layer Design
This chapter provides details of Cisco tested access layer solutions in the enterprise data center. It includes the following topics:
•
Overview of Access Layer Design Options
•
•
Overview of Access Layer Design Options
Access layer switches are primarily deployed in Layer 2 mode in the data center. A Layer 2 access topology provides the following unique capabilities required in the data center:
•
•
•
•
•
The table in Figure 6-1 outlines the available access layer design models and provides a comparison of various factors to consider with each. Each access layer design model is covered in more detail in the remainder of this chapter.
Note
Figure 6-1 Comparison Chart of Access Layer Designs
The table in Figure 6-1 contains the following column headings:
•
•
•
•
•
•
Service Module Influence on Design
This section contains recommendations for service module implementations for each of the access layer design models described. Because service modules can be implemented in many different ways or none at all, the focus is on a single service module design that is commonly implemented using the FWSM and CSM modules (see Figure 6-2).
Note

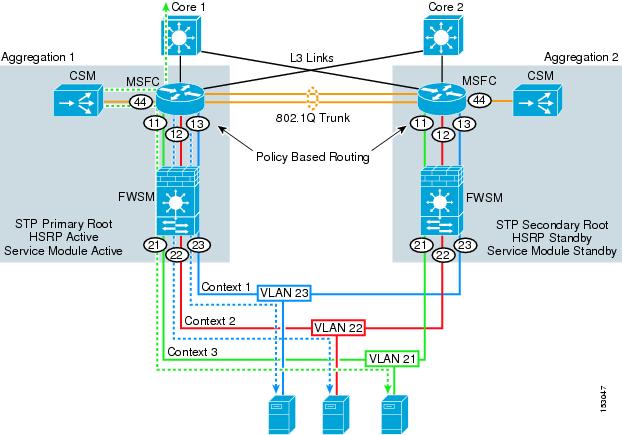

Figure 6-2 CSM One-arm and FWSM Transparent Mode Design
The CSM one-arm combined with the FWSM transparent mode is a common implementation in the enterprise data center and has particular advantages over other designs. The main advantages lie in the areas of performance and virtualization.
Regarding performance, the CSM in one-arm mode allows client-to-server traffic to use the load balancer as necessary to balance web layer server access while allowing server-to-server traffic to bypass the CSM and use the switching capacity on the MSFC. The one-arm design also permits the real client IP address to remain intact (no client NAT) so that server applications can use it for demographic or other purposes.
The FWSM can be virtualized when operating in transparent mode. This allows individual contexts of firewall instances to be created, configured, and managed independently of each other. This allows a single FWSM module to be used across different lines of business or operations as if multiple physical firewalls existed.
Service Module/Appliance and Path Preferences
To achieve redundancy, service modules are deployed in pairs. One module in the pair acts as the primary/active service module while the other module acts as the secondary/standby. Although service module pairs can deployed in the same aggregation chassis, they are typically placed in separate chasses to achieve the highest level of redundancy. Service modules are required to be Layer 2 adjacent on their configured VLAN interfaces to permit session state and monitoring to occur. For example, in Figure 6-2, vlan 11 on the FWSM in aggregation 1 must be extended to vlan 11 on the FWSM in aggregation 2 via the 802.1Q trunk inter-switch link. This is also true for vlans 12,13,21,22, and 23. This also applies to the server vlan 44 used by the CSM module in Figure 6-2.
Because only one service module in one aggregation switch can be active at any one time, Cisco recommends aligning traffic flow towards the primary service module(s). The active default gateway and spanning tree root bridge are two components that influence path selection in a Layer 2 network. If primary service modules are located in the aggregation 1 switch, it is desirable to define the HSRP primary default gateway and spanning tree root bridge to also be on the aggregation 1 switch. This prevents session flow from hopping back and forth between aggregation switches, optimizing inter-switch link usage and providing a more deterministic environment.
Note
When service modules/appliances are not used, access layer VLANs can be distributed across uplinks without concern for traffic flow issues. This can be achieved by alternating the HSRP active default gateway and spanning tree root configurations for each VLAN between the aggregation 1 and aggregation 2 switch, or by using Gateway Load Balancing Protocol (GLBP) in place of HSRP.
Because most data center implementations use service modules or appliances, the remainder of this chapter focuses on access layer topologies using service modules.
General Recommendations
The remainder of this chapter covers the details of the various access layer design models. Although each meets their own specific requirements, the following general recommendations apply to all:
•
•
•
There are specific situations where tracking can be of benefit, but for the most part Cisco recommends not using the various failover tracking mechanisms and relying instead on using the inter-switch aggregation links to reach active default gateway and service module(s) during failure conditions. For this reason, it is important to consider failure scenarios when determining the proper inter-switch link bandwidth to be used.
•
–
module ContentSwitchingModule 3ft group 1 vlan 102priority 20heartbeat-time 1failover 3preempt–
Unit Poll frequency 500 milliseconds, holdtime 3 secondsInterface Poll frequency 3 seconds•
Layer 2 Looped Access Layer Model
This section covers Layer 2 looped access topologies, and includes of the following topics:
•
Layer 2 Looped Access Topologies
In a Layer 2 looped access topology, a pair of access layer switches are connected to the aggregation layer using 802.1Q trunks. Looped access topologies consist of a triangle and square design, as shown in Figure 6-3.
Figure 6-3 Triangle and Square Looped Access Topologies
In Figure 6-3, a VLAN is configured on each access switch on the corresponding 802.1Q uplink, and is also extended between aggregation switches, forming a looped topology for that VLAN. The left side of the diagram shows an access layer with a triangle looped topology, and the right side shows a square looped topology. In the triangle looped topology, the access switch is dual homed to each aggregation switch. In the square looped topology, a pair of access switches are interconnected together, with each connected to a single aggregation switch.
Because a loop is present, all links cannot be in a forwarding state at all times. Because broadcasts/multicast packets and unknown unicast MAC address packets must be flooded, they would travel in an endless loop, completely saturating the VLAN and adversely affecting network performance. A spanning tree protocol such as Rapid PVST+ or MST is required to automatically block a particular link and break this loop condition.
The dashed black lines on the aggregation layer switches represent the demarcation between Layer 2 and Layer 3 for the VLANs that are extended to the access layer switches. All packets processed in the VLAN beneath this line are in the same Layer 2 broadcast domain and are Layer 3 routed above the line. As denoted by the double solid lines, spanning tree automatically blocks one path to break the loop condition.
In both looped topologies, the service module fault-tolerant VLANs are extended between aggregation switches over the 802.1Q inter-switch link. This permits active-standby hellos and session state communications to take place to support redundancy.
Triangle Looped Topology
The triangle looped topology is currently the most widely implemented in the enterprise data center. This topology provides a deterministic design that makes it easy to troubleshoot while providing a high level of flexibility (see Figure 6-4).
Figure 6-4 Triangle Looped Access Topology
Spanning Tree, HSRP, and Service Module Design
In a triangle looped access layer design, it is desirable to align the spanning tree root, HSRP default gateway, and active service modules on the same aggregation switch, as shown in Figure 6-4. Aligning the access layer switch uplink that is in the forwarding state directly to the same switch that is the primary default gateway and active service module/appliance optimizes the traffic flows. Otherwise, traffic flows can hop back and forth between aggregation switches, creating undesirable conditions and difficulty in troubleshooting.
Failure Scenarios
The level of resiliency that is incorporated into the access layer design can vary based on the model used. Other features such as route health injection and route tuning can influence this. This section describes the four main failure scenarios that can occur in a looped access design. Understanding the amount of exposure a customer faces in these scenarios helps in selecting the best access layer design.
Failure 1—Access Layer Uplink Failure
In this failure scenario, spanning tree unblocks the uplink to aggregation 2 because no loop exists (see Figure 6-5).

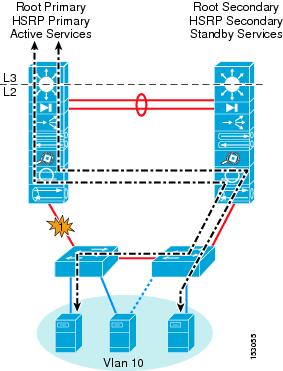

Figure 6-5 Triangle Looped Failure Scenario 1—Uplink Down
Default gateway and active service modules remain on aggregation 1 unless tracking mechanisms are configured and triggered. Traffic flow goes through aggregation 2 and uses the inter-switch link to aggregation 1 to reach the active HSRP default gateway and active service module.
The convergence characteristics of this failure scenario depend on spanning tree. Test lab results show that with Rapid-PVST+ implementations, this value should be under ~1.5 seconds, but can vary based on the number of spanning tree logical and virtual ports per line card values used.
Failure 2—Service Module Failure (Using CSM One-arm and FWSM Transparent Mode)
In this failure scenario, there is no spanning tree convergence, and the primary default gateway remains active on the aggregation 1 switch (see Figure 6-6).

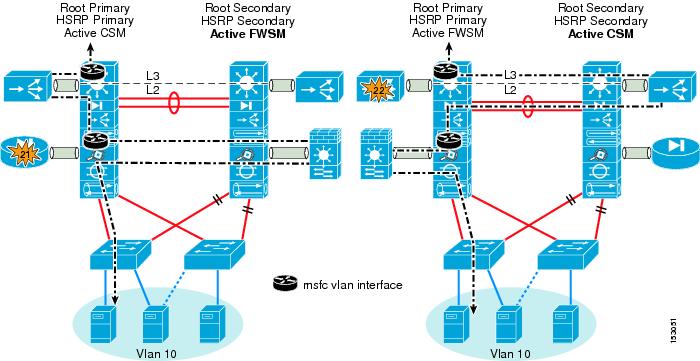

Figure 6-6 Triangle Looped Failure Scenario 2—Service Modules
The backup service module moves to the active state on aggregation 2 because it no longer receives hello packets from the active service module, and times out.
Figure 6-6 shows the two following failure instances:
•
•
Failure 3—Inter-Switch Link Failure

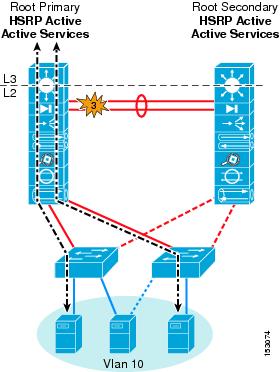

Figure 6-7 shows failure scenario 3.

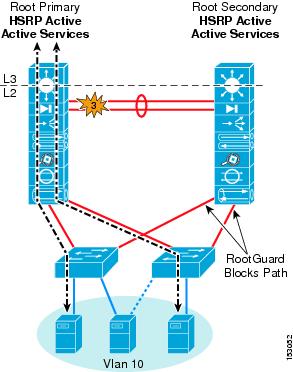

Figure 6-7 Triangle Looped Failure Scenario 3—Inter-Switch Link Failure
This failure scenario has many side effects to consider. First, spanning tree unblocks the uplink to aggregation 2 because no loop exists. RootGuard on the aggregation switch then automatically disables the link to access 2 because it sees root BPDUs on the now-unblocked path to Aggregation 1 via the access layer switch.
With the inter-switch link down and RootGuard disabling the path to Aggregation 1 via access2, HSRP multicast hello messages no longer have a path between Aggregation 1 and 2, so HSRP goes into an active state on both switches for all VLANs.
Because the service module failover VLANs are configured across the inter-switch link only, service modules in both aggregation switches determine that the other has failed and become active (this is referred to as a split-brain effect).
If inbound traffic from the core flows into the aggregation 2 switch during this failure scenario, it attempts to flow through the now-active service modules and stop, because RootGuard has the path to the servers blocked. If for some reason RootGuard is not configured, this still results in asymmetrical flows and breaks connectivity. It is for these reasons that Cisco recommends tuning the aggregation-core routing configuration such that the aggregation 1 switch is the primary route advertised to the core for the primary service module-related VLANs.
Route tuning plus RootGuard prevents asymmetrical connections and black holing in a split-brain scenario because traffic flows are aligned with the same default gateway and service module combination, preventing asymmetrical conditions. More detail on route tuning can be found in Establishing Path Preference with RHI.
Failure 4—Switch Power or Sup720 Failure (Non-redundant)

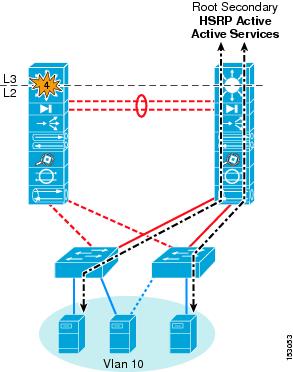

Figure 6-8 shows failure scenario 4.

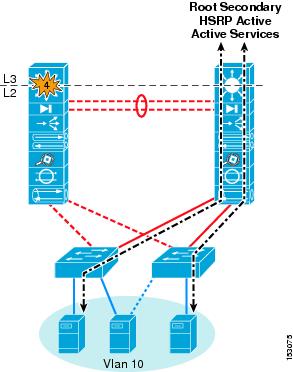

Figure 6-8 Triangle Looped Failure Scenario 4—Single Sup720 or Power Failure
In this failure scenario, the spanning tree root, primary default gateway, and active service modules transition to the aggregation 2 switch.
The convergence characteristics of this failure scenario depend on spanning tree, HSRP, and service module failover times. Because the spanning tree and HSRP failover times are expected to be under that of service modules, the actual convergence time depends on service module timer configurations.
Square Looped Topology
The square-based looped topology is not as common today in the enterprise data center but has recently gained more interest. The square looped topology increases the access layer switch density when compared to a triangle loop topology while retaining the same loop topology characteristics. This becomes particularly important when 10GE uplinks are used. This topology is very similar to the triangle loop topology, with differences in where spanning tree blocking occurs (see Figure 6-9).

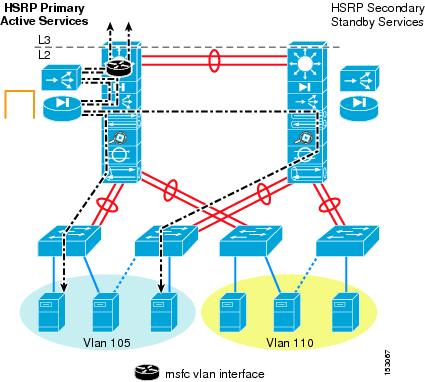

Figure 6-9 Square Looped Access Topology
Spanning tree blocks the link between the access layer switches, with the lowest cost path to root being via the uplinks to the aggregation switches, as shown in Figure 6-9. This allows both uplinks to be active to the aggregation layer switches while providing a backup path in the event of an uplink failure. The backup path can also be a lower bandwidth path because it is used only in a backup situation. This might also permit configurations such as 10GE uplinks with GEC backup.
The possible disadvantages of the square loop design relate to inter-switch link use, because 50 percent of access layer traffic might cross the inter-switch link to reach the default gateway/active service module. There can also be degradation in performance in the event of an uplink failure because, in this case, the oversubscription ratio doubles.
Figure 6-9 shows the spanning tree blocking point on the link between the access switch pair. This is ideal if active services are deployed in each aggregation switch because it permits the uplinks to be load balanced without traversing the aggregation layer inter-switch trunk. If active services are only on Agg1, it might be desirable to adjust the STP cost such that the uplink to Agg2 is blocking instead of the link between the access pair. This forces all traffic to the Agg1 switch without having to traverse the aggregation layer inter-switch trunk.
Spanning Tree, HSRP, and Service Module Design
Similar to a triangle design, it is desirable in a square looped access layer design to align the spanning tree root, HSRP default gateway, and active service modules on the same aggregation switch, as shown in Figure 6-9. By aligning the access layer switch uplink that is in the forwarding state directly to the same switch that is the primary default gateway and active service module/appliance, traffic flows are optimized. Otherwise, traffic flows can hop back and forth between aggregation switches, creating undesirable conditions that are unpredictable and difficult to troubleshoot.
Failure Scenarios
This section examines the square loop design in various failure scenarios.
Failure 1—Access Layer Uplink Failure
Figure 6-10 shows failure scenario 1.
Figure 6-10 Square Looped Failure Scenario 1—Uplink Down
In this failure scenario, spanning tree unblocks the link between access switches because a loop no longer exists. The default gateway and active service modules remain on aggregation 1 unless tracking mechanisms are configured and triggered. Traffic flows go through aggregation 2 and use the inter-switch link to aggregation 1 to reach the active HSRP default gateway and active service module.
The convergence characteristics of this failure scenario depend on spanning tree. Test lab results show that with Rapid-PVST+ implementations, this value should be under ~1.5 seconds, but can vary based on the number of spanning tree logical and virtual ports per line card values present.
Failure 2—Service Module Failure (using CSM One-arm and FWSM Transparent Mode)
In the failure scenario shown in Figure 6-11, there is no spanning tree convergence, and the primary default gateway remains active on the aggregation 1 switch.

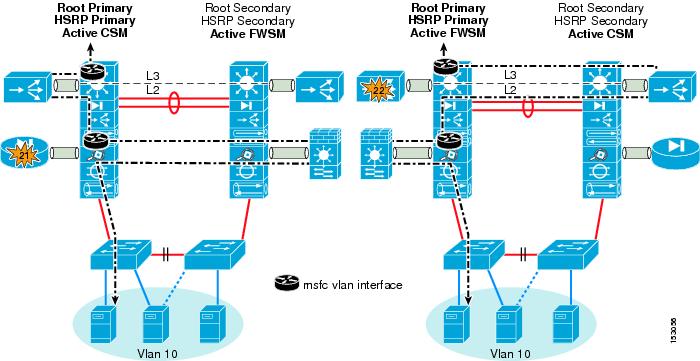

Figure 6-11 Square Looped Failure Scenario 2—Service Modules
The backup service module moves to the active state on aggregation 2 because it no longer receives hello packets from the active service module, and times out.
The following failure scenarios are shown:
•
•
Failure 3—Inter-Switch Link Failure
Figure 6-12 shows failure scenario 3.

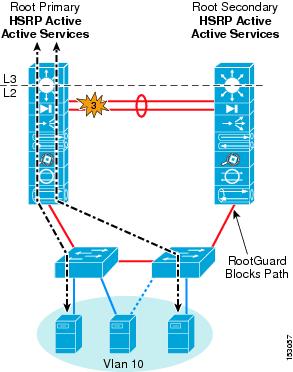

Figure 6-12 Square Looped Failure Scenario 3—Inter-Switch Link Failure
This failure scenario has many side effects to consider. First, spanning tree unblocks the access layer inter-switch link because a loop no longer exists. RootGuard on the aggregation switch then automatically disables the link to access 2 because it sees root BPDUs via the now-unblocked path to aggregation 1.
With the inter-switch link down and RootGuard disabling the path to aggregation 1 via access 2, HSRP multicast hello messages no longer have a path between aggregation 1 and 2, so HSRP goes into an active state on both switches for all VLANs.
Because the service module failover VLANs are configured across the inter-switch link only, service modules in both aggregation switches determine that the other has failed. This results in service modules in aggregation 1 remaining in the active state, and service modules in aggregation 2 moving from standby to the active state as well. This is commonly referred to as a split-brain effect and is very undesirable.
If inbound traffic from the core flows into the aggregation 2 switch during this failure scenario, it attempts to flow through the now-active service modules and stops, because RootGuard has the path to the servers blocked. If for some reason RootGuard is not configured, this still results in asymmetrical flows and breaks connectivity. For these reasons, Cisco recommends tuning the aggregation-core routing configuration such that the aggregation 1 switch is the primary route advertised to the core for the primary service module-related VLANs.
Route tuning plus RootGuard prevents asymmetrical connections and black holing in a split-brain scenario because traffic flows are aligned with the same default gateway and service module combination, preventing asymmetrical conditions.
Failure 4—Switch Power or Sup720 Failure (Non-redundant)
Figure 6-13 shows failure scenario 4.
Figure 6-13 Square Looped Failure Scenario 3—Switch Power or Sup720 Failure
In this failure scenario, the spanning tree root, primary default gateway, and active service modules transition to the aggregation 2 switch.
The convergence characteristics of this failure scenario depend on spanning tree, HSRP, and service module failover times. Because the spanning tree and HSRP failover times are expected to be under that of service modules, the actual convergence time depends on service module timer configurations.
Layer 2 Loop-Free Access Layer Model
This section covers Layer 2 looped access topologies and includes the following topics:
•
•
Layer 2 Loop-Free Access Topologies
Figure 6-14 illustrates the access layer using the Layer 2 loop-free model, with loop-free U and loop-free inverted U topologies.
Figure 6-14 Access Layer Loop-Free Topologies
Note that the Layer 2/Layer 3 line of demarcation is different in each design. In a loop-free U, a VLAN is configured on each access switch, and on the 802.1Q inter-switch link between access switches and its corresponding 802.1Q uplink, but it is not extended between aggregation switches; thereby avoiding a looped topology.
In a loop-free inverted U design, a VLAN is configured on each access switch and its corresponding 802.1Q uplink, and is also extended between aggregation switches, but is not extended between access switches, avoiding a looped topology.
Although no loop is present in either loop-free design topology, it is still necessary to run STP as a loop prevention tool. In the event that a cabling or configuration error that creates a loop is encountered, STP prevents the loop from possibly bringing down the network.
Note
In both loop-free topologies, the service module fault-tolerant VLANs are extended between aggregation switches over the 802.1Q inter-switch link. This permits active-standby hellos and session state communications to take place to support redundancy.
Layer 2 Loop-Free U Topology
The loop-free U topology design provides a Layer 2 access solution with active uplinks and redundancy via an inter-switch link between the access layer switches. The chance of a loop condition is reduced but spanning tree is still configured in the event of cabling or configuration errors occur (see Figure 6-15).

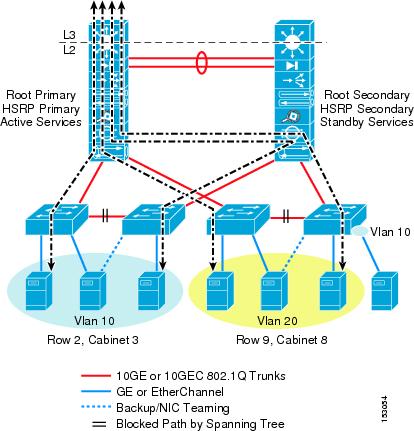

Figure 6-15 Loop-Free U Access Topology
With a loop-free U topology, there are no blocked paths by spanning tree because a loop does not exist. The VLANs are configured on the access layer uplink 802.1Q trunks and access layer inter-switch 802.1Q trunks but are not extended between the aggregation layer switches (note the dashed line designating the Layer 2 and Layer 3 boundaries). The service module fault tolerant VLANs are carried across the 802.1Q trunk for redundancy operations.
This topology allows both uplinks to be active for all VLANs to the aggregation layer switches while providing a backup path in the event of an uplink failure. This also permits a higher density of access switches to be supported on the aggregation module.
The main disadvantages of the loop-free U design is the inability to extend VLANs outside of an access pair, and failure conditions that can create black holes in the event of an uplink failure when service modules are used. Extending VLANs outside of a single access pair creates a loop through the aggregation layer, essentially creating a four-node looped topology with blocked links. The black holes condition is covered in the failure scenarios later in this section.
Spanning Tree, HSRP, and Service Module Design
Because a loop does not exist in the topology, it does not actually require a spanning tree protocol to be running. However, it is very wise to maintain spanning tree in case an error creates a loop condition. It is also still recommended to maintain spanning tree primary root and secondary root configurations just as in the triangle and square looped topology designs. This way, if a loop error condition does exist, the service module and default gateway still operate optimally.
Note
Failure Scenarios
This section describes the loop-free U design in various failure scenarios.
Failure 1—Access Layer Uplink Failure
Figure 6-16 shows failure scenario 1.
Figure 6-16 Loop-Free U Failure Scenario 1—Uplink Failure
In this failure scenario, HSRP multicast hellos are no longer exchanged between the aggregation switches, which creates an active-active HSRP state for the vlan 5 and 10 MSFC interfaces on both aggregation switches.
The servers on access pair 1 are not able to reach the active FWSM context on aggregation 1 because there is no Layer 2 path for vlan 105 across the aggregation layer inter-switch links. Although the FWSM can be configured to switchover the active-standby roles by using the interface monitoring features, this requires the entire module to switchover (all contexts) on a single uplink failure. This is not a desirable condition and is further complicated if there are multiple uplink failures, or when maintenance requires taking down an access layer switch/uplink.
Note
Failure 2—Inter-Switch Link Failure
Figure 6-17 shows failure scenario 2.
Figure 6-17 Loop-Free U Failure Scenario 2—Inter-Switch Link Failure
This failure scenario has many side effects to consider. Because the service module failover VLANs are configured across the inter-switch link only, service modules in both aggregation switches determine that the other has failed. This results in service modules in aggregation 1 remaining in the active state, and service modules in aggregation 2 moving from standby to the active state as well. This is commonly referred to as a split-brain effect, and is very undesirable because the opportunity for asymmetrical connection failure exists.
The HSRP heartbeats travel along the access layer path, so HSRP remains in the same state with primary on aggregation 1 and standby on aggregation 2.
If inbound traffic from the core flows into the aggregation 2 switch during this failure scenario, it reaches the MSFC and then attempts to flow through the now-active service modules. By default, the core switches are performing CEF-based load balancing, thereby distributing sessions to both aggregation 1 and 2. Because state is maintained on the service modules, it is possible that asymmetrical connection failures can occur. For these reasons, Cisco recommends tuning the aggregation-core routing configuration such that the aggregation 1 switch is the primary route from the core for the primary service module-related VLANs.
Route tuning prevents asymmetrical connections and black holing in a split-brain scenario because traffic flows are aligned with the same default gateway and service module combination, preventing asymmetrical conditions. More information on route tuning can be found in Establishing Path Preference with RHI.
Failure 3—Switch Power or Sup720 Failure (Non-redundant)
Figure 6-18 shows failure scenario 3.
Figure 6-18 Loop-Free U Failure Scenario 3—Single Sup720 or Power Failure
In this failure scenario, the spanning tree root, primary default gateway, and active service modules transition to the aggregation 2 switch.
The convergence characteristics of this failure scenario depend on spanning tree, HSRP, and service module failover times. Because the spanning tree and HSRP failover times are expected to be under that of service modules, the actual convergence time depends on service module timer configurations. Test lab results show this convergence time to be ~ 6 seconds.
Layer 2 Loop-Free Inverted U Topology
The loop-free inverted-U topology design provides a Layer 2 access solution with a single active access layer uplink to a single aggregation switch, as shown in Figure 6-19.
Figure 6-19 Loop-Free Inverted-U Access Topology
With a loop-free inverted-U topology, there are no blocked paths by spanning tree because a loop does not exist. The VLANs are configured on the access layer uplink 802.1Q trunks and are extended between the aggregation layer switches (note the dashed line designating the Layer 2 and Layer 3 boundaries). The service module fault tolerant VLANs are carried across the aggregation inter-switch 802.1Q trunk for redundancy operations. This topology allows both uplinks to be active for all VLANs to the aggregation layer switches and permits VLAN extension across the access layer. The loop-free inverted-U design does not provide a backup link at the access layer, but resiliency can be improved by the use of distributed EtherChannel (DEC), as shown in Figure 6-19.
The main disadvantage of the loop-free inverted-U design can be attributed to an aggregation switch failure or access switch uplink failure that black holes servers because there is no alternate path available. The following improvements to the design can offset the effects of these failures and improve overall resiliency:
•
•
•
•
Spanning Tree, HSRP, and Service Module Design
Because a loop does not exist in the topology, it does not require a spanning tree protocol to be running. However, Cisco recommends maintaining spanning tree in case an error creates a loop condition. Cisco also still recommends maintaining spanning tree primary root and secondary root configurations just as in the triangle and square looped topology designs. This way if a loop error condition does exist, the service module and default gateway still operate optimally.
As in all other access layer designs that use service modules, Cisco recommends aligning the HSRP default gateway, STP root, and active service modules on the same aggregation switch. If the primary default gateway and active service modules are not aligned, it creates session flows that travel across the inter-switch links unnecessarily.
When HSRP, STP root, and primary service modules are aligned, the session flows are more optimal, easier to troubleshoot, and deterministic, as shown in Figure 6-20. Note that in a loop-free inverted-U topology, 50 percent of the session flows use the aggregation layer inter-switch link to reach the active HSRP default gateway and active service modules.

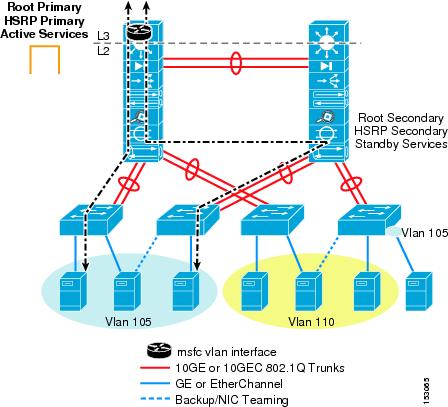

Figure 6-20 Loop-Free Inverted-U with HSRP and Service Modules Aligned -Recommended
Failure Scenarios
This section describes the loop-free inverted-U design in various failure scenarios.
Failure 1—Access Layer Uplink Failure
Figure 6-21 shows failure scenario 1.
Figure 6-21 Loop-Free Inverted-U Failure Scenario 1—Uplink Failure
This failure is fairly obvious and straightforward. If servers are single attached, this results in a black hole condition. If servers use NIC teaming, they should experience a fairly short outage as they transition to the backup NIC and access switch.
As mentioned earlier, the use of DEC is recommended to reduce the chances of this failure scenario. Convergence times with a single link failure within a port channel group are under one second. The use of redundant supervisors in the access layer can also increase the resiliency of this design.
Failure 2—Service Module Failure (using CSM One-arm and FWSM Transparent Mode)

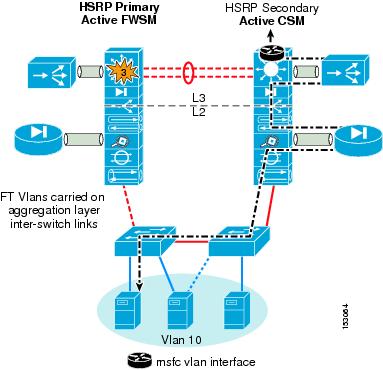

Figure 6-22 shows failure scenario 2.

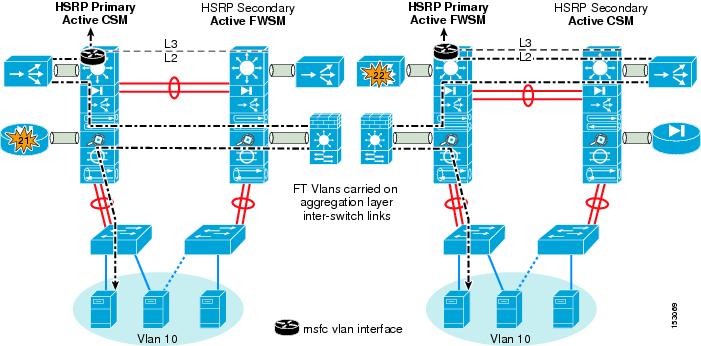

Figure 6-22 Failure Scenario 2—Service Module Failure with Loop-Free Inverted U Topology
In this failure scenario, the backup service module moves to the active state on aggregation 2 because it no longer receives hello packets from the active service module, and times out.
Figure 6-22 shows the following two scenarios:
•
•
Failure 3—Inter-Switch Link Failure
Figure 6-23 shows failure scenario 3.
Figure 6-23 Loop-Free Inverted-U Failure Scenario 3—Inter-Switch Link Failure
This failure scenario has many side effects to consider. Because the service module fault tolerant (failover) VLANs are configured across the inter-switch link only, service modules in both aggregation switches determine that the other has failed. This results in service modules in aggregation 1 remaining in the active state and service modules in aggregation 2 moving from standby to the active state as well. This is commonly referred to as a split-brain effect, and is very undesirable because the opportunity for asymmetrical connection failure exists.
The path for HSRP heartbeats between MSFCs is also broken so both MSFC VLAN interfaces go into the HSRP active state without a standby.
If inbound traffic from the core flows into the aggregation 2 switch during this failure scenario, it reaches the MSFC and then attempts to flow through the now-active service modules. The core switches are performing CEF-based load balancing, thereby distributing sessions to both aggregation 1 and 2. Because state is maintained on the service modules, it is possible that asymmetrical connection failures can occur. For these reasons, Cisco recommends tuning the aggregation-core routing configuration such that the aggregation 1 switch is the primary route from the core for the primary service module-related VLANs.
Route tuning prevents asymmetrical connections and black holing in a split-brain scenario because traffic flows are aligned with the same default gateway and service module combinations, thus preventing asymmetrical conditions. More information on route tuning is provided in Establishing Path Preference with RHI.
Failure 4—Switch Power or Sup720 Failure (Non-redundant)
Figure 6-24 shows failure scenario 4.
Figure 6-24 Loop-Free Inverted-U Failure Scenario 4—Single Sup720 or Power Failure
In this failure scenario, the primary HSRP default gateway and active service modules transition to the aggregation 2 switch. Servers that are single attached to an access layer switch are black holed. NIC teaming can be used to prevent this failure.
The convergence characteristics of this failure scenario depend on HSRP and service module failover times. Because the HSRP failover time is expected to be under that of service modules, the actual convergence time depends on service module timer configurations. Test lab results show this convergence time to be ~5-6 seconds.
FlexLinks Access Model
FlexLinks are an alternative to the looped access layer topology. FlexLinks provide an active-standby pair of uplinks defined on a common access layer switch. After an interface is configured to be a part of an active-standby FlexLink pair, spanning tree is turned off on both links and the secondary link is placed in a standby state, which prevents it from being available for packet forwarding. FlexLinks operate in single pairs only, participate only in a single pair at a time, and can consist of mixed interface types with mixed bandwidth. FlexLinks are configured with local significance only because the opposite end of a FlexLink is not aware of its configuration or operation. FlexLinks also has no support for preempt, or an ability to return to the primary state automatically after a failure condition is restored.
The main advantage of using FlexLinks is that there is no loop in the design and spanning tree is not enabled. Although this can have advantages in reducing complexity and reliance on STP, there is the drawback of possible loop conditions that can exist, which is covered in more detail later in this chapter. Other disadvantages are a slightly longer convergence time than R-PVST+, and the inability to balance traffic across both uplinks. Failover times measured using FlexLinks were usually under two seconds.
Note

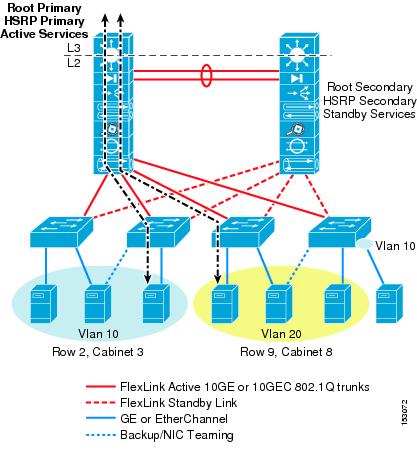

Figure 6-25 shows the FlexLinks access topology.Figure 6-25 FlexLinks Access Topology
The configuration steps for FlexLinks are as follows. FlexLinks are configured only on the primary interface.
ACCESS1#conf tACCESS1(config-if)#interface tenGigabitEthernet 1/1ACCESS1(config-if)#switchport backup interface tenGigabitEthernet 1/2ACCESS1(config-if)#May 2 09:04:14: %SPANTREE-SP-6-PORTDEL_ALL_VLANS: TenGigabitEthernet1/2 deleted from all VlansMay 2 09:04:14: %SPANTREE-SP-6-PORTDEL_ALL_VLANS: TenGigabitEthernet1/1 deleted from all VlansACCESS1(config-if)#endTo view the current status of interfaces configured as FlexLinks:
ACCESS1#show interfaces switchport backupSwitch Backup Interface Pairs:Active Interface Backup Interface State------------------------------------------------------------------------TenGigabitEthernet1/1 TenGigabitEthernet1/2 Active Up/Backup StandbyNote that both the active and backup interface are in up/up state when doing a "show interface" command:
ACCESS1#sh interfaces tenGigabitEthernet 1/1TenGigabitEthernet1/1 is up, line protocol is up (connected)Hardware is C6k 10000Mb 802.3, address is 000e.83ea.b0e8 (bia 000e.83ea.b0e8)Description: to_AGG1MTU 1500 bytes, BW 10000000 Kbit, DLY 10 usec,reliability 255/255, txload 1/255, rxload 1/255Encapsulation ARPA, loopback not setKeepalive set (10 sec)Full-duplex, 10Gb/sinput flow-control is off, output flow-control is offARP type: ARPA, ARP Timeout 04:00:00Last input 00:00:09, output 00:00:09, output hang neverLast clearing of "show interface" counters 00:00:30Input queue: 0/2000/0/0 (size/max/drops/flushes); Total output drops: 0Queueing strategy: fifoOutput queue: 0/40 (size/max)5 minute input rate 32000 bits/sec, 56 packets/sec5 minute output rate 0 bits/sec, 0 packets/sec1150 packets input, 83152 bytes, 0 no bufferReceived 1137 broadcasts (1133 multicasts)0 runts, 0 giants, 0 throttles0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored0 watchdog, 0 multicast, 0 pause input0 input packets with dribble condition detected26 packets output, 2405 bytes, 0 underruns0 output errors, 0 collisions, 0 interface resets0 babbles, 0 late collision, 0 deferred0 lost carrier, 0 no carrier, 0 PAUSE output0 output buffer failures, 0 output buffers swapped outACCESS1#sh interfaces tenGigabitEthernet 1/2TenGigabitEthernet1/2 is up, line protocol is up (connected)Hardware is C6k 10000Mb 802.3, address is 000e.83ea.b0e9 (bia 000e.83ea.b0e9)Description: to_AGG2MTU 1500 bytes, BW 10000000 Kbit, DLY 10 usec,reliability 255/255, txload 1/255, rxload 1/255Encapsulation ARPA, loopback not setKeepalive set (10 sec)Full-duplex, 10Gb/sinput flow-control is off, output flow-control is offARP type: ARPA, ARP Timeout 04:00:00Last input 00:00:51, output 00:00:03, output hang neverLast clearing of "show interface" counters 00:00:33Input queue: 0/2000/0/0 (size/max/drops/flushes); Total output drops: 0Queueing strategy: fifoOutput queue: 0/40 (size/max)5 minute input rate 32000 bits/sec, 55 packets/sec5 minute output rate 0 bits/sec, 0 packets/sec1719 packets input, 123791 bytes, 0 no bufferReceived 1704 broadcasts (1696 multicasts)0 runts, 0 giants, 0 throttles0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored0 watchdog, 0 multicast, 0 pause input0 input packets with dribble condition detected7 packets output, 1171 bytes, 0 underruns0 output errors, 0 collisions, 0 interface resets0 babbles, 0 late collision, 0 deferred0 lost carrier, 0 no carrier, 0 PAUSE output0 output buffer failures, 0 output buffers swapped outACCESS1#Note that both the spanning-tree is no longer sending BPDUs in an effort to detect loops on interfaces in the FlexLink pair:
ACCESS1#sh spanning-tree interface tenGigabitEthernet 1/1no spanning tree info available for TenGigabitEthernet1/1ACCESS1#sh spanning-tree interface tenGigabitEthernet 1/2no spanning tree info available for TenGigabitEthernet1/2CDP and UDLD packets are still transmitted across Flexlinks as shown below:
ACCESS1#show cdp neighborCapability Codes: R - Router, T - Trans Bridge, B - Source Route BridgeS - Switch, H - Host, I - IGMP, r - Repeater, P - PhoneDevice ID Local Intrfce Holdtme Capability Platform Port IDAggregation-1.cisco.comTen 1/1 156 R S WS-C6509 Ten 7/4Aggregation-2.cisco.comTen 1/2 178 R S WS-C6509 Ten 7/4ACCESS1#show udld neighborPort Device Name Device ID Port ID Neighbor State---- ----------- --------- ------- --------------Te1/1 TBM06108988 1 Te7/4 BidirectionalTe1/2 SCA0332000T 1 Te7/4 BidirectionalACCESS1#Spanning Tree, HSRP, and Service Module Design
FlexLinks automatically disable spanning tree BPDUs on both the active and standby links, as noted in the preceding section. Cisco still recommends enabling spanning tree on the aggregation switches that are connected to FlexLink-enabled access switches. It is also desirable to align the spanning tree root, HSRP default gateway, and active service modules on the same aggregation switch just as recommended in looped access layer designs. This is shown in Figure 6-25. By aligning the primary access layer switch uplink directly to the same switch that is the primary default gateway and active service module/appliance, traffic flows are optimized. Otherwise, traffic flows can hop back and forth between aggregation switches, creating undesirable conditions and difficulty in troubleshooting.
Implications Related to Possible Loop Conditions
Because spanning tree is disabled on FlexLinks, there is the possibility that a loop condition can exist in particular scenarios, such as a patch cable that is mistakenly connected between access layer switches that are configured for FlexLinks. This is shown in Figure 6-26.
Figure 6-26 Possible Loop Condition
Figure 6-26 demonstrates two possible loop conditions that can be introduced by configuration error or patch cable error. The first example demonstrates a connection between the aggregation switch and an access switch. This can be the result of an incorrect patch/uplink cable or simply the configuration of a separate link that is not part of the FlexLink channel group. Because STP BPDUs are not passed along the FlexLink path, a loop in the topology cannot be detected, and an endless replication of broadcast/multicast frames occurs that can have a very negative impact on the whole aggregation module. Note that RootGuard is ineffective in this scenario because Agg1 does not see a path to the root (Agg2) through the access switch with FlexLinks enabled.
The second example demonstrates a patch cable connection error between access switches.
If BPDU Guard is supported and enabled on access layer server ports, the port is automatically disabled when BPDUs are detected, as shown in the following console message:
ACCESS1#Apr 13 16:07:33: %SPANTREE-SP-2-BLOCK_BPDUGUARD: Received BPDU on port GigabitEthernet2/2 with BPDU Guard enabled. Disabling port.Apr 13 16:07:33: %PM-SP-4-ERR_DISABLE: bpduguard error detected on Gi2/2, putting Gi2/2 in err-disable stateACCESS1#sh int g2/2GigabitEthernet2/2 is administratively down, line protocol is down (disabled)If BPDU Guard is not supported or is not enabled on access layer server ports, a loop condition occurs. This loop condition endlessly forwards multicast and broadcast packets through the aggregation 1 switch and back through the access switches via the patch cable link that now extends between them. This could create negative conditions that affect all servers connected to this aggregation module.
Note
Failure Scenarios
The level of resiliency that is incorporated into the access layer design can vary based on the model used. Other features such as route health injection and route tuning can influence this. The four main failure scenarios that can occur in a looped access design are covered in this section. Understanding the amount of exposure in these scenarios helps to determine the best access layer design selection.
Failure 1—Access Layer Uplink Failure
Figure 6-27 shows failure scenario 1.
Figure 6-27 FlexLinks Failure Scenario 1—Uplink Down
In this failure scenario, the backup FlexLink goes active and immediately begins to pass packets over its interface. Default gateway and active service modules remain on aggregation 1 unless tracking mechanisms are configured and triggered. Traffic flow goes through aggregation 2 and uses the inter-switch link to aggregation 1 to reach the active HSRP default gateway and active service modules.
The convergence characteristics of this failure scenario are typically less than 2 seconds.
Failure 2—Service Module Failure (using CSM One-arm and FWSM Transparent Mode)
Figure 6-28 shows failure scenario 2.
Figure 6-28 FlexLinks Failure Scenario 2—Service Modules
In this failure scenario, there is no FlexLink convergence and the primary default gateway remains active on the aggregation 1 switch. The backup service module moves to the active state on aggregation 2 because it no longer receives hello packets from the failed active service module and times out.
Figure 6-28 shows the following two failure instances:
•
•
The convergence characteristics of these failure scenarios depend on the service module(s) failover time. The recommended service module failover timer configurations are as follows:
•
module ContentSwitchingModule 3ft group 1 vlan 102priority 20heartbeat-time 1failover 3preempt•
Unit Poll frequency 500 milliseconds, holdtime 3 secondsInterface Poll frequency 3 secondsTest lab results show that average service module failover times with these values is under ~5 seconds.
Failure 3—Inter-Switch Link Failure
Figure 6-29 shows failure scenario 3.
Figure 6-29 FlexLinks Failure Scenario 3—Inter-Switch Link Failure
FlexLinks do not converge in this failure scenario.
With the inter-switch link down, HSRP multicast hello messages no longer have a path between aggregation 1 and 2, so HSRP goes into an active state on both switches for all VLANs.
Service modules in both aggregation switches determine that the other has failed and become active (this is referred to as a split-brain effect).
If inbound traffic from the core flows into the aggregation 2 switch during this failure scenario, it attempts to flow through the now-active service modules and stops because the path to the servers is blocked by a standby FlexLink. For these reasons, Cisco recommends tuning the aggregation-core routing configuration such that the aggregation 1 switch is the primary route advertised to the core for the primary service module-related VLANs.
Route tuning helps to prevent asymmetrical connections and black holing in a split-brain scenario because traffic flows are aligned with the same default gateway and service module combination, preventing asymmetrical conditions.
Failure 4—Switch Power or Sup720 Failure (Non-redundant)
Figure 6-30 shows failure scenario 4.
Figure 6-30 FlexLinks Failure Scenario 4—Switch Power of Sup720 Failure
In this failure scenario, the active FlexLinks, primary default gateway, and active service modules transition to the aggregation 2 switch.
The convergence characteristics of this failure scenario depend on FlexLink failure detection, HSRP failover, and service module failover times. Because the FlexLink and HSRP failover times are expected to be under that of service modules, the actual convergence time depends on service module timer configurations.
Using EtherChannel Min-Links
EtherChannel Min-Links is a new feature as of the Cisco 12.2.18 SXF IOS Release. EtherChannel Min-Links permit you to designate the minimum number of member ports that must be in the link-up state and bundled in an LACP EtherChannel for a port channel interface to be in a link-up state. In the data center access layer, this can be useful in making sure that a higher bandwidth uplink path is chosen as the active path. For example, consider the diagram in Figure 6-31.
Figure 6-31 Using EtherChannel Min-Links
In the above example,4G EtherChannels connect the access layer switch to both aggregation layer switches. A failure has occurred that has taken down two of the port members on the EtherChannel to the aggregation 1 switch. Because two members of the port channel are still up, the port channel itself remains up and server traffic uses this path as normal, although it is a path with less available bandwidth. With EtherChannel Min-Links, you can designate a minimum number of required ports that must be active or the port channel is taken down. In this example, if EtherChannel Min-Links are set to 3, the port channel is taken down and server traffic is forced to use the higher 4G bandwidth path towards the aggregation 2 switch.
The EtherChannel Min-Links feature requires the LACP EtherChannel protocol to be used. The access layer topology can consist of looped, loop-free, or FlexLink models. The Min-Links feature works at the physical interface level and is independent of spanning tree path selection.
Consider the following when deciding whether Min-Links should be used:
•
•
•
The configuration steps for EtherChannel Min-Links are as follows:ACCESS2#conf tEnter configuration commands, one per line. End with CNTL/Z.ACCESS2(config)#interface port-channel 2ACCESS2(config-if)#port-channel ?min-links Minimun number of bundled ports needed to bring up this portchannelACCESS2(config-if)#port-channel min-links ?<2-8> The minimum number of bundled ports needed before this port channelcan come up.ACCESS2(config-if)#port-channel min-links 3ACCESS2(config-if)#end
Feedback
