Installation and Configuration Note for the Cisco Catalyst 4500 E-Series Supervisor Engine 7L-E
Revised: September 14, 2011
Product Numbers: WS-X45-SUP7L-E=
This publication describes how to install the Catalyst 4500 E-series Supervisor Engine 7L-E. For configuration information for the supervisor engines and the switching modules, refer to the applicable software configuration guide.
Note
Catalyst 4500 E-series switching modules require an E-series supervisor engine running a software image compatible with that supervisor engine. Refer to your switch's release notes for compatibility information.
Table 1 provides a brief over view of the Supervisor Engine 7L-E features.
Table 1 Supervisor Engine 7L-E Features
|
Feature
|
Description
|
Chassis compatibility |
The Supervisor Engine 7L-E is supported on the Catalyst 4503-E, Catalyst 4506-E, Catalyst 4507R-E, and the Catalyst 4507R+E switch chassis. The Supervisor Engine 7L-E is not supported on the Catalyst 4510R-E or the Catalyst 4510R+E switch chassis. |
Software requirements (minimum) |
Refer to your software release notes for the latest software release requirements. |
Chassis slot restrictions |
•Catalyst 4503-E: Slot 1 only •Catalyst 4506-E: Slot 1 only •Catalyst 4507R-E and Catalyst 4507R+E: Slot 3 and slot 4 |
Bandwidth per slot |
48-Gbps |
For additional specifications and features of the Supervisor Engine 7L-E, including physical and environmental specifications, refer to the Supervisor Engine 7L-E data sheet at the following URL:
http://www.cisco.com/en/US/products/hw/switches/ps4324/products_data_sheets_list.html
Contents
This document contains these sections:
•Safety Overview
•Supervisor Engine 7L-E Overview
•Removing and Installing the Supervisor Engine 7L-E
•Attaching Interface Cables to the Supervisor Engine 7L-E
•Configuring Your Supervisor Engine 7L-E
•Obtaining Documentation and Submitting a Service Request
Safety Overview
Throughout this publication, safety warnings appear in procedures that can harm you if performed incorrectly. A warning symbol precedes each warning statement.
Statement 1071—Warning Definition
 |
Warning
|
|
IMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071 SAVE THESE INSTRUCTIONS |
Waarschuwing |
BELANGRIJKE VEILIGHEIDSINSTRUCTIES Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen. BEWAAR DEZE INSTRUCTIES |
Varoitus |
TÄRKEITÄ TURVALLISUUSOHJEITA Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla. SÄILYTÄ NÄMÄ OHJEET |
Attention |
IMPORTANTES INFORMATIONS DE SÉCURITÉ Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement. CONSERVEZ CES INFORMATIONS |
Warnung |
WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden. BEWAHREN SIE DIESE HINWEISE GUT AUF. |
Avvertenza |
IMPORTANTI ISTRUZIONI SULLA SICUREZZA Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento. CONSERVARE QUESTE ISTRUZIONI |
Advarsel |
VIKTIGE SIKKERHETSINSTRUKSJONER Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten. TA VARE PÅ DISSE INSTRUKSJONENE |
Aviso |
INSTRUÇÕES IMPORTANTES DE SEGURANÇA Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo. GUARDE ESTAS INSTRUÇÕES |
¡Advertencia! |
INSTRUCCIONES IMPORTANTES DE SEGURIDAD Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo. GUARDE ESTAS INSTRUCCIONES |
Varning! |
VIKTIGA SÄKERHETSANVISNINGAR Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning. SPARA DESSA ANVISNINGAR |
|
|
|
|
|
|
|
|
|
|
Aviso |
INSTRUÇÕES IMPORTANTES DE SEGURANÇA Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo. GUARDE ESTAS INSTRUÇÕES |
Advarsel |
VIGTIGE SIKKERHEDSANVISNINGER Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed. GEM DISSE ANVISNINGER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Supervisor Engine 7L-E Overview
This section describes the Catalyst 4500 E-series Supervisor Engine 7L-E (WS-X45-SUP7L-E). Figure 1 shows a view of the Supervisor Engine 7L-E front panel with the major features identified.
Figure 1 Cisco Catalyst 4500 E-Series Supervisor Engine 7L-E Front Panel Features
|
1
|
STATUS LED |
4
|
UTILIZATION LEDs |
7
|
CONSOLE port (RJ-45 connector) |
|
2
|
RESET switch (recessed in panel) |
5
|
USB port |
8
|
10/100/1000 MGT port (management port, RJ-45 connector |
|
3
|
ACTIVE SUP LED (active supervisor engine) |
6
|
SECURE DIGITAL slot |
9
|
UPLINKS (SFP/SFP+) 1G/10G uplink ports and LEDs (port active and port status) |
Table 2 lists and describes the Supervisor Engine 7L-E front panel switches, connectors, and LEDs.
Table 2 Supervisor Engine 7L-E Front Panel Features
|
LED
|
Color and Meaning
|
STATUS LED |
The STATUS LED indicates the current health of the supervisor engine and the current software state. •Green—All diagnostic tests have passed. •Orange—System boot or a diagnostic test is in progress. •Red—A diagnostic test failed. •Off—The supervisor engine is disabled or is not powered up. |
RESET switch |
The RESET switch is used to reset and restart the switch. Note Use a paper clip or other small, pointed object to press the RESET switch. |
ACTIVE SUP LED |
The ACTIVE SUP LED indicates whether the supervisor engine is active or in standby mode in redundant supervisor engine configurations. •Green—Supervisor engine is active (in redundant supervisor engine configurations). •Off—Supervisor engine is in standby mode (in redundant supervisor engine configurations). |
UTILIZATION LEDs |
When the switch is operational, the eight UTILIZATION LEDs indicate the current traffic load over the backplane as an approximate percentage value. Each LED represents approximately 12.5 percent of load. |
USB connectors |
Two USB 2.0 ports are provided: •Port 1 is not supported at this time. •Port 2 operates in host mode (downstream). It has a USB type A connector and a standard USB 2.0 device such as a flash memory device, can plug into this connector. |
SECURE DIGITAL slot |
A standard Secure Data (SD) memory card interface is provided on the front panel. |
CONSOLE port |
A 10/100/1000 port that uses an RJ-45 connector. The console port allows you to access the switch either locally (with a console terminal) or through a modem (remote). The port has an RJ-45 connector. The console port allows you to perform the following functions: •Configure the switch from the CLI. •Monitor network statistics and errors. •Configure SNMP agent parameters. |
10/100/1000 MGT port |
The Ethernet management port is a Layer 3 host port to which you can connect a PC. You can use the Ethernet management port instead of the switch console port for network management. When managing a switch, connect the PC to the Ethernet management port on a Catalyst 4500 E-series switch. •Green—The link is operational. •Orange—The link is disabled by user. •Flashing orange—The power-on self-test indicates a faulty port. •Off—No signal is detected or there is a link configuration failure. Note When connecting a PC to the Ethernet management port, you must assign an IP address. |
LINK LED |
The 10/100/1000 MGT port has a LINK LED associated with it. |
UPLINK (SFP/SFP+) ports |
The Supervisor Engine 7L-E has four uplink ports. Ports 1 and 2 support either 10GBASE SFP+ transceivers or 1000BASE SFP transceivers. Ports 3 and 4 support only 1000BASE SFP transceivers. There are restrictions on the use of the uplink ports in both single supervisor engine and redundant supervisor engine configurations and both 10-G and 1-G operation. Refer to Table 3 for a matrix of uplink port permissible transceiver configurations and transceiver restrictions. |
Uplink port LEDs |
There are two types of LEDs associated with the supervisor engine uplink ports. |
Uplink port ACTIVE LEDs |
Uplink ports on the supervisor engine are active in pairs. Two LEDs on the front panel show this activity. One LED, labeled 1G/10G 1-2 ACTIVE, indicates ports 1 and 2 are active; the other is labeled 1G 3-4 ACTIVE and indicates ports 3 and 4 are active. In standalone supervisor engine configurations operating in 1-Gigabit mode, all four uplink ports are active; both the 1-2 ACTIVE LED and 3-4 ACTIVE LED are lit green. In redundant supervisor engine configurations, only the 1-2 ACTIVE LED is lit green. When one supervisor engine is removed, both the 1-2 ACTIVE LED and 3-4 ACTIVE LED are lit green on the remaining supervisor engine when it is in 1-Gigabit operation. In 10-Gigabit mode, only the 1-2 ACTIVE LED is lit. |
Uplink port STATUS LEDs |
Uplink ports 1 and 2 each have two uplink port STATUS LEDs. The 1G LED displays port status when a 1-GB SFP transceiver is installed in the port socket. The 10G LED displays port status when a 10-GB SFP+ transceiver is installed in the port socket. Port 3 and Port 4 support only 1-GB SFP transceivers and have only the 1G port status LED. •Green—The link is operational. •Orange—The link is disabled by user. •Flashing orange—The power-on self-test indicates a faulty port. •Off—No signal is detected or there is a link configuration failure. |
Table 3 lists the supported SFP and SFP+ transceiver configurations for the Supervisor Engine 7L-E uplink ports in both single and redundant supervisor engine configurations and 1-GB and 10-GB operation.
Table 3 Uplink Port SFP+ and SFP Transceiver Configurations
|
Port 1
|
Port 2
|
Port 3
|
Port 4
|
Comments
|
Single Supervisor Engine Configuration. 10-Gigabit Operation Selected Through CLI |
SFP+ |
SFP+ |
Not usable |
Not usable |
Maximum bandwidth is 20 Gbps. SFP+ transceivers are installed in ports 1 and 2. Port 3 and port 4 are not usable. |
SFP+ |
SFP |
Not usable |
Not usable |
Maximum bandwidth is 11 Gbps. With SFP and SFP+ transceivers installed in ports 1 and 2, port 3 and port 4 are not usable. 10-Gigabit operation selected through CLI. |
SFP |
SFP+ |
Not usable |
Not usable |
Maximum bandwidth is 11 Gbps. With SFP and SFP+ transceivers installed in ports 1 and 2, port 3 and port 4 are not usable. 10-Gigabit operation selected through CLI. |
SFP |
SFP |
Not usable |
Not usable |
Maximum bandwidth is 2 Gbps. With SFP transceivers installed in ports 1 and 2, port 3 and port 4 are not usable. 10-Gigabit operation selected through CLI. |
Single Supervisor Engine Configuration. 1-Gigabit Operation Selected Through CLI |
SFP |
SFP |
SFP |
SFP |
Maximum bandwidth is 4 Gbps. Any combination of SFP transceiver type can be used. SFP+ transceivers can not be used in this configuration. |
Redundant Supervisor Engine Configurations. 10-Gigabit Operation Selected Through CLI |
AS1 —SFP+ SS2 —SFP+ |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
Maximum bandwidth is 20 Gbps. If you plan to populate two uplink ports with SFP+ transceivers, you must install one SFP+ transceiver in the active supervisor engine (port 1) and one SFP+ transceiver in the standby supervisor engine (port 1). |
AS—SFP+ SS—SFP |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
Maximum bandwidth is 11 Gbps. If you plan to populate only two uplink ports with one SFP+ transceiver and one SFP transceiver, you can install one SFP+ transceiver in the active supervisor engine (port 1) and one SFP transceiver in the standby supervisor engine (port 1). |
AS—SFP SS—SFP+ |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
Maximum bandwidth is 11 Gbps. If you plan to populate only two uplink ports with one SFP+ transceiver and one SFP transceiver, you can install one SFP transceiver in the active supervisor engine (port 1) and one SFP+ transceiver in the standby supervisor engine (port 1). |
AS—SFP SS—SFP |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
Maximum bandwidth is 2 Gbps. If you plan to populate only two uplink ports with SFP transceivers, you must install an SFP transceiver in the active supervisor engine (port 1) and one SFP transceiver in the standby supervisor engine (port 1). |
Redundant Supervisor Engine Configuration. 1-Gigabit Operation Selected Through CLI |
AS—SFP SS—SFP |
AS—SFP SS—SFP |
AS—Not usable SS—Not usable |
AS—Not usable SS—Not usable |
Maximum bandwidth is 4 Gbps. If you plan to populate uplink ports with SFP transceivers, you must install two SFP transceivers in the active supervisor engine (port 1 and port 2) and two SFP transceivers in the standby supervisor engine (port 1 and port 2). SFP+ transceivers can not be used in this configuration. |
Removing and Installing the Supervisor Engine 7L-E
This section contains the following subsections:
•Required Tools
•Installing the Supervisor Engine
•Removing the Supervisor Engine 7L-E
|
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
|
|
Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040
|
Required Tools
You will need the following tools to remove or install a supervisor engine in a Catalyst 4500 E-series switch:
•Number 2 Phillips-head screwdrivers for the captive installation screws
•3/16-in. flat-blade screwdriver for the captive installation screws on other modules
•Antistatic mat or antistatic bag
•ESD wrist strap or other grounding device
Note Whenever you handle supervisor engines, use a wrist strap or other personal grounding device to prevent electrostatic discharge (ESD) damage.
Preventing Electrostatic Discharge Damage
ESD damage, which can occur when electronic cards or components are improperly handled, results in complete or intermittent failures. Port adapters and processor modules consist of printed circuit boards that are fixed in metal carriers. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps to protect the board from ESD, use a preventive antistatic strap during handling.
Following are guidelines for preventing ESD damage:
•Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.
•Connect the equipment end of the strap to an unfinished chassis surface.
•When installing a component, use any available ejector levers or captive installation screws to properly seat the bus connectors in the backplane or midplane. These devices prevent accidental removal, provide proper grounding for the system, and help to ensure that bus connectors are properly seated.
•When removing a component, use any available ejector levers or captive installation screws to release the bus connectors from the backplane or midplane.
•Handle carriers by available handles or edges only; avoid touching the printed circuit boards or connectors.
•Place a removed component board-side-up on an antistatic surface or in a static-shielding container. If you plan to return the component to the factory, immediately place it in a static-shielding container.
•Avoid contact between the printed circuit boards and clothing. The wrist strap only protects components from ESD voltages on the body; ESD voltages on clothing can still cause damage.
•Never attempt to remove the printed circuit board from the metal carrier.
Caution
For safety, periodically check the resistance value of the antistatic strap. The measurement should be between 1 and 10 megohm (Mohm).
Removing the Supervisor Engine 7L-E
|
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
|
|
Warning Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. Statement 1034
|
Caution
To prevent ESD damage, handle supervisor engines by the carrier edges only.
To remove a supervisor engine from a Catalyst 4500 E-series switch, follow these steps:
Step 1 Disconnect any network interface cables attached to the ports on the supervisor engine that you intend to remove.
Step 2 Loosen the two captive installation screws on either edge of the supervisor engine faceplate.
Step 3 Grasp the left and right ejector levers at either end of the supervisor engine faceplate and simultaneously pivot the levers outward to disengage the supervisor engine from the chassis backplane connector.
Step 4 Grasp the front panel of the supervisor engine with one hand and place your other hand under the supervisor engine carrier to support and guide it out of the slot. Do not touch the printed circuit boards or connector pins.
Step 5 Carefully slide the supervisor engine straight out of the slot, keeping your other hand under the carrier to guide it.
Step 6 Place the supervisor engine on an antistatic mat or in an antistatic bag, or immediately install the supervisor engine in another chassis slot.
Step 7 In chassis configured with redundant supervisor engines, if the chassis slot is to remain empty, you must install a blank line card (C4K-SLOT-CVR-E) to cover the empty slot.
|
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
|
Installing the Supervisor Engine
Catalyst 4500 E-series switches have horizontal chassis slots that are numbered from top to bottom. Table 4 lists the Catalyst 4500 E-series chassis and which chassis slots support the Supervisor Engine 7L-E.
Table 4 Supervisor Engine 7L-E Support
|
Chassis
|
Chassis Slot Support
|
Catalyst 4503-E |
Slot 1 only |
Catalyst 4506-E |
Slot 1 only |
Catalyst 4507R-E and Catalyst 4507R+E |
Slot 3 and slot 4 Note Redundant supervisor engine configurations are supported in both of these chassis. |
:
Note The supervisor engines in a redundant system must be of the same type.
|
Warning Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. Statement 1034
|
Caution
To prevent ESD damage, handle supervisor engines by the carrier edges only.
To install a supervisor engine in the chassis, follow these steps:
Step 1 Take the necessary precautions to prevent ESD damage as described in the installation guide for your switch.
Step 2 Ensure that you have enough clearance to accommodate any interface equipment that you will connect directly to the supervisor engine ports.
Step 3 Loosen the two captive installation screws that secure the switching-module filler plate or the existing supervisor engine and remove it.
Step 4 Remove the blank slot cover or the existing supervisor engine from the slot. If you are removing a blank slot cover, set it aside and save it for future use. If you are removing an existing supervisor engine, see the "Removing the Supervisor Engine 7L-E" section.
Step 5 Remove the new supervisor engine from the shipping packaging.
Step 6 Hold the switching module front panel with one hand and place your other hand under the carrier to support the supervisor engine, as shown in Figure 2. Do not touch the printed circuit boards or connector pins.
Step 7 Align the edges of the supervisor engine carrier with the guides on the sides of the switch chassis slot, as shown in Figure 2.

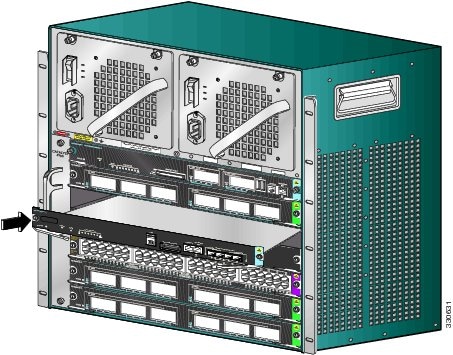

Figure 2 Installing the Supervisor Engine in the Chassis (Catalyst 4507R-E Chassis Shown)
Step 8 Pivot the two module ejector levers out and away from the faceplate.
Step 9 Carefully slide the supervisor engine into the slot until the notches on both ejector levers engage the chassis sides.
Step 10 Simultaneously pivot in both ejector levers so that they are parallel with the supervisor engine faceplate to fully seat the supervisor engine in the backplane connector.
Caution
Always use the ejector levers when installing or removing a supervisor engine. A supervisor engine that is partially seated in the backplane will not function correctly.
Step 11 Use a screwdriver to tighten the two captive installation screws on the supervisor engine. Do not overtighten the captive installation screws.
To check the status of the module, follow these steps:
Step 1 Verify that the supervisor engine STATUS LED is lit.
Step 2 Periodically check the STATUS LED.
•If the STATUS LED changes from orange to green, the supervisor engine has successfully completed the boot process and is now online.
•If the STATUS LED remains orange or turns red, the supervisor engine has not successfully completed the boot process and may have encountered an error.
Step 3 When the switch is online, enter the show module command. Verify that the system acknowledges the new supervisor engine and that the supervisor engine status is good.
Step 4 If the supervisor engine is not operational, reseat it. If the supervisor engine is still not operational, contact your customer service representative.
Attaching Interface Cables to the Supervisor Engine 7L-E
The Supervisor Engine 7L-E has the following interface ports:
•USB ports
•Console port
•Management port
•Uplink Ports
USB Port
The Supervisor Engine 7L-E has two USB ports:
•Port 1 is not supported at this time.
•Port 2 is set up in host mode (downstream). This port interfaces with a Type A USB connector. A standard USB 2.0 device such as a flash memory device can plug into this connector.
Console Port
The console port allows you to access the switch either locally (through a console terminal) or remotely (through a modem). The console is an EIA/TIA-232 asynchronous, serial connection with hardware flow control and an RJ-45 connector.
Management Port
The Ethernet management port can be used (in ROMMON mode only) to recover a switch software image that has been corrupted or destroyed due to a network catastrophe. When using Cisco IOS Release 12.2(50)SG or later, this port can also perform the same functions as the console port. For earlier Cisco IOS software releases, this port is not active while the switch is operating normally.
Uplink Ports
The Supervisor Engine 7L-E has four Ethernet uplink ports available on the front panel. The ports can be used to provide additional port capacity for a fully configured switch or can eliminate the need to use a chassis slot for a module. The ports can be configured with either SFP transceivers for 1-GB operation or SFP+ transceivers for 10-GB operation. See Table 3 for SFP+ and SFP transceiver options. For additional information on the SFP and the SFP+ transceivers, refer to the SFP and the SFP+ data sheets at the following URLs:
http://www.cisco.com/en/US/prod/collateral/modules/ps5455/ps6577/product_data_sheet0900aecd8033f885.html
http://www.cisco.com/en/US/prod/collateral/modules/ps5455/data_sheet_c78-455693.html
Note Always keep caps and plugs on the fiber-optic connectors on the cable and the switch when they are not in use.
|
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
|
Note Make sure that the optical connectors are clean before making the connections. Contaminated connectors can damage the fiber and cause data errors.
Caution
Use extreme care when removing or installing connectors so that you do not damage the connector housing or scratch the end-face surface of the fiber. Always install protective covers on unused or disconnected components to prevent contamination. Always clean fiber connectors before installing them.
For SFP and SFP+ transceiver installation information, refer to the Cisco SFP and SFP+ Transceiver Module Installation Notes at the following URL:
http://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/installation/note/78_15160.html
Note Use only Cisco SFP and SFP+ transceivers on your Cisco device. Each SFP transceiver has an internal serial EEPROM that is encoded with security information. This encoding provides a way for Cisco to identify and validate that the SFP transceiver meets the requirements for the device.
Not all SFP+ or SFP transceivers may be supported by the Supervisor Engine 7L-E. For up-to-date information on which SFP+ and SFP transceivers are supported, refer to the 10-Gigabit Ethernet Transceiver Modules Compatibility Matrix or the Gigabit Ethernet Transceiver Modules Compatibility Matrix at the following URL:
http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html
Configuring Your Supervisor Engine 7L-E
For information and commands to configure your supervisor engine for the first time, refer to the software configuration guide for your switch. Software configuration guides are located at:
http://www.cisco.com/en/US/products/hw/switches/ps4324/products_installation_and_configuration_guides_list.html
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS Version 2.0.
This document is to be used in conjunction with the publications documents that support your specific Cisco device.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1005R)
Copyright © 2011, Cisco Systems, Inc. All rights reserved.
Feedback
